RENAULT SCENIC 2011 J95 / 3.G Engine And Peripherals EDC16 Workshop Manual
Manufacturer: RENAULT, Model Year: 2011, Model line: SCENIC, Model: RENAULT SCENIC 2011 J95 / 3.GPages: 365, PDF Size: 2.11 MB
Page 211 of 365

13B-211
MR-372-J84-13B200$576.mif
V13
DIESEL INJECTION
Fault finding – Parameter summary table
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
Tool parameter Diagnostic tool title
PR061Exterior air temperature
PR064Coolant temperature
PR066Oil temperature
PR071Computer feed voltage
PR073Air flowmeter feed voltage
PR076Refrigerant sensor voltage
PR077EGR valve position sensor voltage
PR079Atmospheric pressure sensor voltage
PR080Rail pressure sensor voltage
PR083Air temperature sensor voltage
PR084Coolant temperature sensor voltage
PR085Oil temperature sensor voltage
PR089Vehicle speed
PR128First EGR valve offset
PR129Last EGR valve offset
PR130Cruise control setpoint
PR131EGR air flow variation
PR132Air flow
PR146Inlet air flow
PR147Pedal potentiometer voltage gang 1
PR148Pedal potentiometer voltage gang 2
PR157Fuel flow setpoint
PR171Air flow setpoint for EGR
PR190Idle speed setpoint
PR209Turbocharging pressure loop difference
PR213Rail pressure loop difference
Page 212 of 365

13B-212
MR-372-J84-13B200$576.mif
V13
DIESEL INJECTION
Fault finding – Parameter summary table
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
* OCR: Opening cyclic ratioTool parameter Diagnostic tool title
PR358Sensor reference voltage
PR364Cylinder no. 1 fuel correction
PR365Cylinder no. 4 fuel flow correction
PR381Particle filter downstream temperature
PR382Particle filter upstream temperature
PR383Weight of soot in the particle filter
PR385Exhaust pipe flow
PR391Mileage since particle filter replacement
PR405Cylinder no. 2 fuel flow correction
PR406Cylinder no. 3 fuel flow correction
PR412Mileage since last successful regeneration
PR414Particle filter differential pressure
PR415Time since last regeneration
PR417Damper valve OCR*
PR420Damper valve error counter
PR667Turbine upstream temperature
PR668Turbine upstream temperature sensor voltage
PR672Damper valve position setpoint
PR754Supplier no. 1 signal
PR784Stored DF312 no. 1
PR785Stored DF312 no. 2
PR786Stored DF312 no. 3
PR787Stored DF312 no. 4
PR788Stored DF312 no. 5
PR789Stored DF312 no. 6

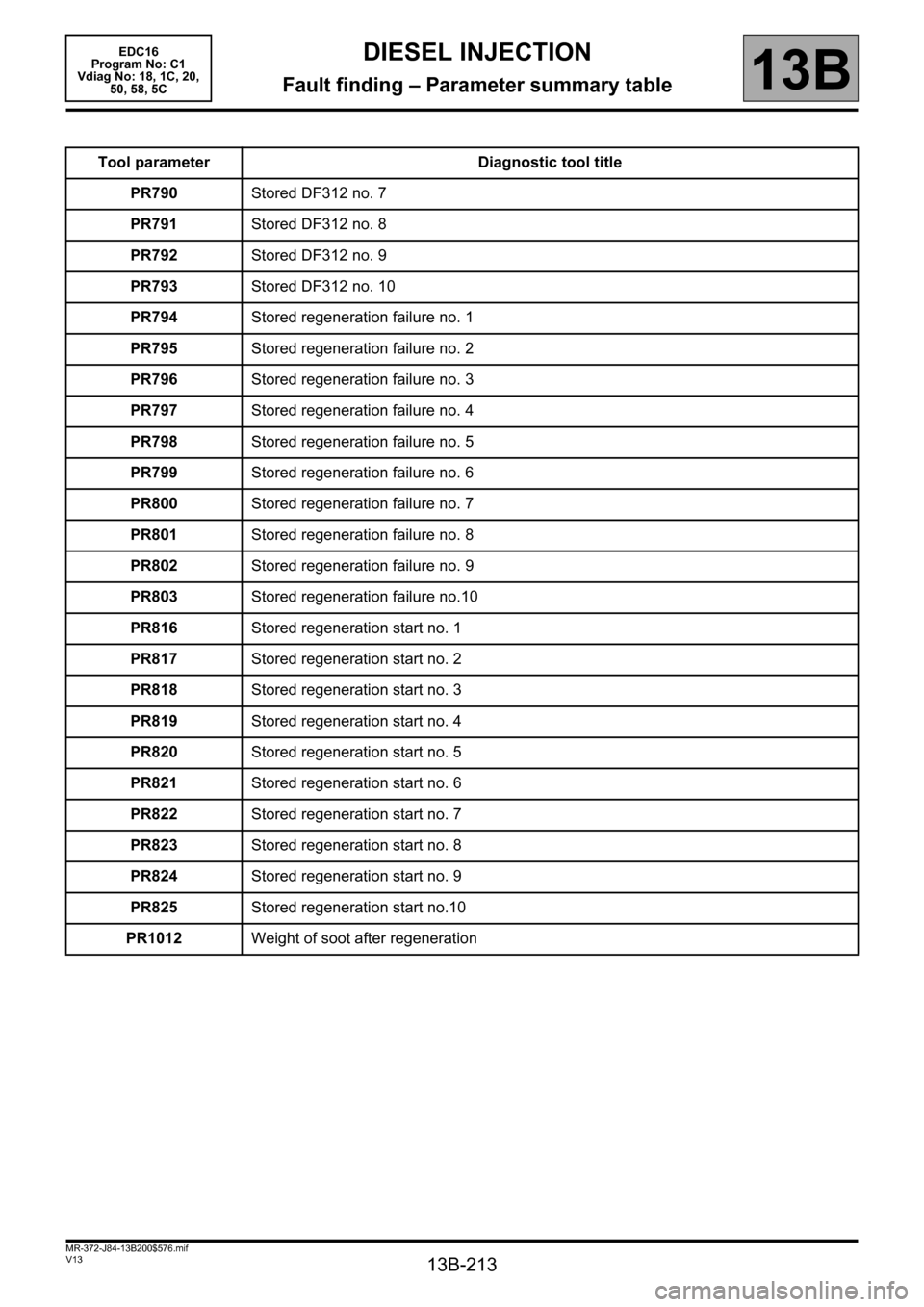

Page 213 of 365

13B-213
MR-372-J84-13B200$576.mif
V13
DIESEL INJECTION
Fault finding – Parameter summary table
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
Tool parameter Diagnostic tool title
PR790Stored DF312 no. 7
PR791Stored DF312 no. 8
PR792Stored DF312 no. 9
PR793Stored DF312 no. 10
PR794Stored regeneration failure no. 1
PR795Stored regeneration failure no. 2
PR796Stored regeneration failure no. 3
PR797Stored regeneration failure no. 4
PR798Stored regeneration failure no. 5
PR799Stored regeneration failure no. 6
PR800Stored regeneration failure no. 7
PR801Stored regeneration failure no. 8
PR802Stored regeneration failure no. 9
PR803Stored regeneration failure no.10
PR816Stored regeneration start no. 1
PR817Stored regeneration start no. 2
PR818Stored regeneration start no. 3
PR819Stored regeneration start no. 4
PR820Stored regeneration start no. 5
PR821Stored regeneration start no. 6
PR822Stored regeneration start no. 7
PR823Stored regeneration start no. 8
PR824Stored regeneration start no. 9
PR825Stored regeneration start no.10
PR1012Weight of soot after regeneration
Page 214 of 365

13B-214
MR-372-J84-13B200$612.mif
V13
13B
DIESEL INJECTION
Fault finding – Interpretation of parameters
PR002
ALTERNATOR CHARGE
PARAMETER
DEFINITIONThis parameter indicates the alternator charge value in %.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant temperature
>80°C.
The alternator charge value varies according to the battery voltage.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
EDC16_V50_PR002/EDC16_V58_PR002/EDC16_V5C_PR002/EDC16_V18_PR002/EDC16_V1C_PR002/EDC16_V20_PR002 EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
MR-372-J84-13B200$612.mif
Page 215 of 365

13B-215
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR005
EGR VALVE OPENING VALUE REQUIRED
PARAMETER
DEFINITIONThis parameter indicates a theoretical opening value for the EGR valve giving optimum
engine performance.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
The EGR valve theoretical opening value for operation with the engine stopped and ignition on is:
- 10 < PR005 < 0%.
In the event of a fault, refer to the interpretation of fault DF272 EGR control circuit.
Conformity check with the engine running and engine coolant temperature > 80°C.
The theoretical EGR valve opening value for operation with the engine running and the engine coolant
temperature > 80°C is 10 < PR005 < 40%.
If there is a fault, refer to the interpretation of fault DF272 EGR control circuit.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR005/EDC16_V58_PR005/EDC16_V5C_PR005/EDC16_V18_PR005/EDC16_V1C_PR005/EDC16_V20_PR005
Page 216 of 365

13B-216
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR006
RAIL PRESSURE REGULATOR CURRENT
PARAMETER
DEFINITIONThis parameter indicates the current absorbed by the rail pressure regulator.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
PR006 = PR007 “Rail pressure regulator current setpoint” ± 5mA
Default value: 1600 mA
In the event of a fault, refer to the interpretation of faults DF053 Rail pressure regulation function and DF007
Rail pressure sensor circuit.
Engine running, engine coolant temperature > 80°C.
PR006 = PR007 “Rail pressure regulator current setpoint” ± 5mA
Default value: 1600 mA
In the event of a fault, consult the interpretation of fault DF007 Rail pressure sensor circuit.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR006/EDC16_V58_PR006/EDC16_V5C_PR006/EDC16_V18_PR006/EDC16_V1C_PR006/EDC16_V20_PR006
Page 217 of 365

13B-217
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR007
RAIL PRESSURE REGULATOR CURRENT SETPOINT
PARAMETER
DEFINITIONThis parameter indicates the current setpoint absorbed by the rail pressure regulator.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
395 mA < PR007 < 405 mA
Default value: 1600 mA
In the event of a fault, refer to the interpretation of faults DF053 Rail pressure regulation function and DF007
Rail pressure sensor circuit.
Engine running, engine coolant temperature > 80°C.
1350 mA < PR007 < 1450 mA
Default value: 1600 mA
In the event of a fault, consult the interpretation of fault DF007 Rail pressure sensor circuit.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR007/EDC16_V58_PR007/EDC16_V5C_PR007/EDC16_V18_PR007/EDC16_V1C_PR007/EDC16_V20_PR007
Page 218 of 365

13B-218
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR008
RAIL REFERENCE PRESSURES
PARAMETER
DEFINITIONThis parameter indicates the theoretical pressure value for optimum engine operation in
bar.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
The theoretical rail pressure value is a setpoint of:
200 bar < PR008 < 300 bar.
In the event of a fault, refer to the interpretation of faults DF053 Rail pressure regulation function and DF007
Rail pressure sensor circuit.
Engine running, engine coolant temperature > 80°C.
The theoretical rail pressure value is a setpoint of:
220 bar < PR008 < 320 bar.
In the event of a fault, consult the interpretation of fault DF053 Rail pressure regulator function.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
EDC16_V50_PR008/EDC16_V58_PR008/EDC16_V5C_PR008/EDC16_V18_PR008/EDC16_V1C_PR008/EDC16_V20_PR008
Page 219 of 365

13B-219
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR009
TURBOCHARGING PRESSURE SETPOINTS
PARAMETER
DEFINITIONThis parameter indicates the theoretical turbocharging pressure setpoint value
in bar.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant temperature
>80 °C.
The theoretical turbocharging pressure value is a setpoint of:
Pressure ≈ 1 bar
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR009/EDC16_V58_PR009/EDC16_V5C_PR009/EDC16_V18_PR009/EDC16_V1C_PR009/EDC16_V20_PR009
Page 220 of 365

13B-220
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR011
TURBOCHARGING SOLENOID VALVE POSITION CORRECTION
PARAMETER
DEFINITIONThis parameter indicates the turbocharging solenoid valve position correction in %.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant temperature
>80 °C.
This value must be PR011 < 5%.
The Opening Cyclic Ratio should be identical to the correction of the solenoid valve position
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR011/EDC16_V58_PR011/EDC16_V5C_PR011/EDC16_V18_PR011/EDC16_V1C_PR011/EDC16_V20_PR011
