RENAULT SCENIC 2011 J95 / 3.G Engine And Peripherals Siemens Injection Workshop Manual

13B-171
MR-372-J84-13B050$624.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET648
FAN UNIT
STATUS DEFINITIONINACTIVE: This status indicates that the cooling fan assembly is INACTIVE.
LOW SPEED: This status indicates that the cooling fan assembly is at LOW SPEED.
HIGH SPEED: This status indicates that the cooling fan assembly is at HIGH SPEED.
NOTESSpecial notes:
Only perform these tests if the status does not correspond with the system
programming functions.
Conformity check with the engine stopped and the ignition on, or engine running, and engine coolant
temperature > 80°C
INACTIVE
The fan assembly is inactive when the coolant temperature does not exceed 96°C.
LOW SPEEDThe injection computer requests the activation of the low speed GMV when:
– the engine coolant temperature is above 96°C,
– the injection computer has system faults that could lead to the engine
overheating,
– the air conditioning is switched on by the driver.
When the high speed fan is supplied:
–status ET022 Low speed fan request becomes activated.
The low-speed fan assembly stops when:
– the engine coolant temperature is below 94°C,
– no fault which could cause engine overheating is present in the injection
system.
– the air conditioning is not switched on by the driver.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID301_V44_ET648/SID304_V45_ET648/SID301_V48_ET648/SID304_V49_ET648/SID304_V4D_ET648/SID301_V4C_ET648

13B-172
MR-372-J84-13B050$624.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET648
CONTINUED
HIGH SPEED
The injection computer requests the activation of the high speed GMV when:
– the engine coolant temperature is above 104°C,
– the injection computer has system faults that could lead to the engine
overheating.
When the high speed fan is supplied:
–status ET021 High speed fan request becomes activated.
The high-speed fan assembly stops when:
– the engine coolant temperature is below 102°C,
– no fault which could cause engine overheating is present in the injection
system.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-173
MR-372-J84-13B050$624.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET649
WATER IN DIESEL FUEL DETECTOR
STATUS DEFINITIONWITH: This status indicates that the water in diesel fuel detector has detected water in
the diesel fuel.
WITHOUT: This status indicates that the water in diesel fuel detector has not detected
water in the diesel fuel.
NOTESSpecial notes:
Only perform these tests if the status does not correspond with the system
programming functions.
Conformity check with the engine stopped and the ignition on, or engine running, and engine coolant
temperature > 80°C
WITH
In the event of a fault, consult the interpretation of fault DF886 Water present in diesel
fuel.
WITHOUTThe status is WITHOUT if no water is detected.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID301_V44_ET649/SID304_V45_ET649/SID301_V48_ET649/SID304_V49_ET649/SID304_V4D_ET649/SID301_V4C_ET649

13B-174
MR-372-J84-13B050$624.mif
V17
13B
DIESEL INJECTION
Fault finding – Interpretation of statuses
ET673
JAMMED ACCELERATOR PEDAL
STATUS DEFINITIONYES: This status indicates that the accelerator pedal is detected to be jammed.
NO: This status indicates that the accelerator pedal is not detected to be jammed.
Conformity check with the engine stopped and the ignition on, or engine running, and engine coolant
temperature > 80°C
NOTESSpecial notes:
Apply this procedure only if the status is YES.
Use the Wiring Diagram Technical Note for Mégane II ph2, Scénic II ph2, CLIO III,
MODUS and Kangoo II.
Check the condition of the connector for the brake switch, component code160.
Check the condition of the connector for the accelerator potentiometer, component code921.
Check the condition of the connector for the engine management computer, component code 120.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair) repair the connector(s); otherwise, replace the wiring.
Measure the resistance of the pedal potentiometer gang 1 between connections 3LR and 3LT.
If the resistance of the pedal potentiometer is not between 0.8 kΩ and
2.6 kΩ, replace the pedal potentiometer
(see MR 392, 385, 364, 370 and 417 Mechanical, 13B, Diesel injection, Accelerator pedal potentiometer:
Removal - Refitting).
Measure the resistance of the pedal potentiometer on gang 2 between connections 3LU and 3LV.
If the resistance of the pedal potentiometer is not between 0.8 kΩ and
4.9 kΩ, replace the pedal potentiometer
(see MR 392, 385, 364, 370 and 417 Mechanical, 13B, Diesel injection, Accelerator pedal potentiometer:
Removal - Refitting).
YES or NOThis status varies when the ignition is on or the engine is running depending on the
status of the accelerator pedal.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID301_V44_ET673/SID301_V48_ET673/SID301_V4C_ET673
Siemens Injection
SID304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2

13B-175
MR-372-J84-13B050$624.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of statuses
Siemens Injection
SID304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
ET673
CONTINUED

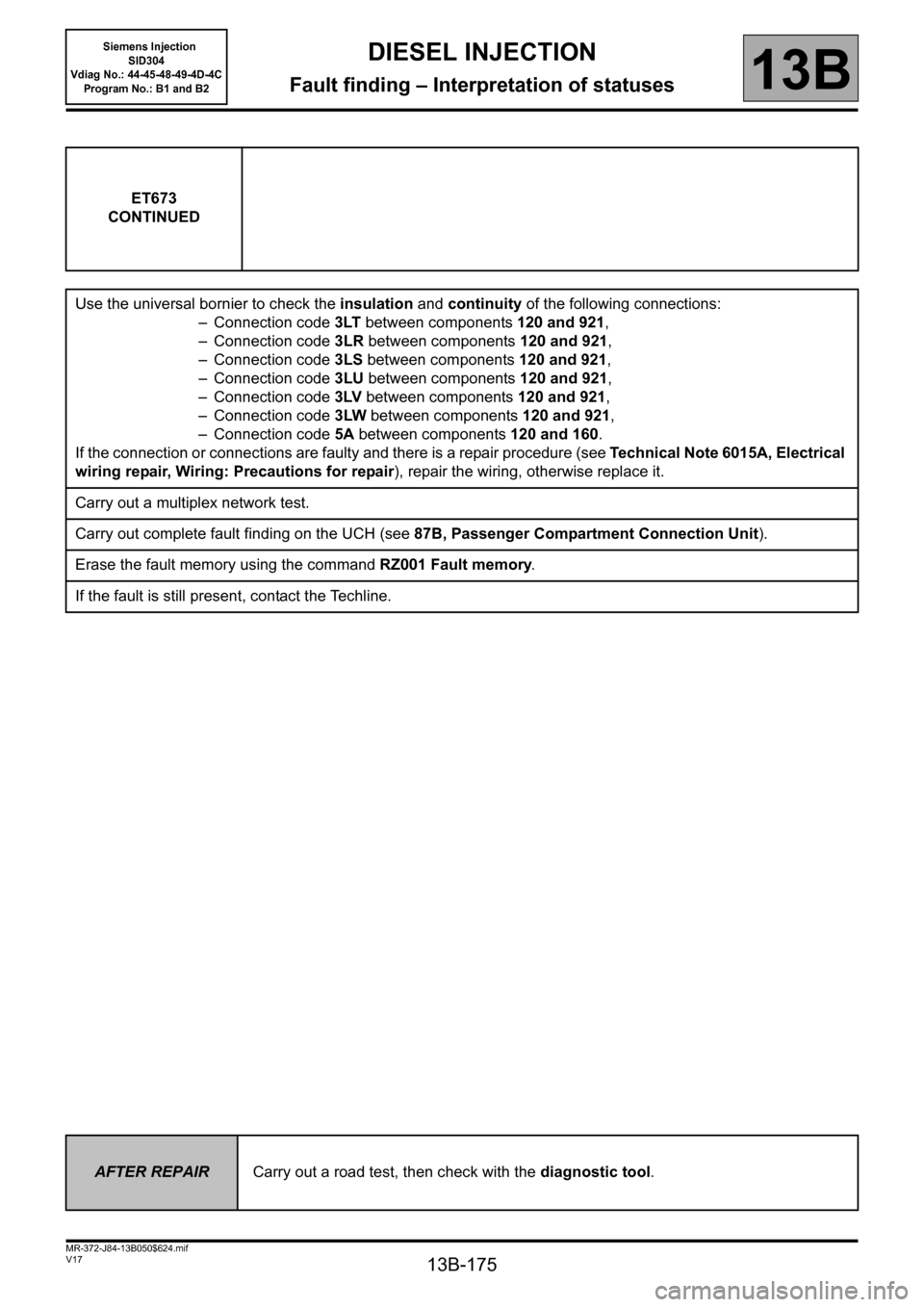

Use the universal bornier to check the insulation and continuity of the following connections:
– Connection code3LT between components120 and 921,
– Connection code 3LR between components120 and 921,
– Connection code3LS between components120 and 921,
– Connection code3LU between components120 and 921,
– Connection code3LV between components120 and 921,
– Connection code3LW between components120 and 921,
– Connection code5A between components120 and 160.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Carry out a multiplex network test.
Carry out complete fault finding on the UCH (see87B, Passenger Compartment Connection Unit).
Erase the fault memory using the command RZ001 Fault memory.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-176
MR-372-J84-13B050$624.mif
V17
13B
DIESEL INJECTION
Fault finding – Interpretation of statuses
*elec: electric
**circ: circuitET701
PARTICLE FILTER PRESSURE SENSOR
STATUS DEFINITIONACTIVE: This status indicates that the particle filter electric fuel pump is active.
INACTIVE: This status indicates that the particle filter electric fuel pump is not active.
NOTESSpecial notes:
Only perform these tests if the status does not correspond with the system
programming functions.
Only for vehicles equipped with a particle filter.
Conformity check with the engine stopped and the ignition on, or engine running, and engine coolant
temperature > 80°C
ACTIVE
INACTIVE
The status is ACTIVE during the particle filter regeneration phase.
If there is a fault, consult the interpretation of fault DF1004 Electric fuel pump control
relay circ**.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID304_V4D_ET701/SID304_V45_ET701/SID304_V49_ET701/SID301_V44_ET701/SID301_V4C_ET701
Siemens Injection
SID304
Vdiag No.: 44-45-49-4D-4C
Program No.: B2

13B-177
MR-372-J84-13B050$624.mif
V17
13B
DIESEL INJECTION
Fault finding – Interpretation of statuses
ET703
CRUISE CONTROL/SPEED LIMITER BUTTONS
STATUS DEFINITIONINACTIVE: This status indicates that no button has been pressed.
INCREASE: This status indicates that the increase button is pressed.
DECREASE: This status indicates that the decrease button is pressed.
SUSPEND: This status indicates that the 0 button is pressed.
RESUME: This status indicates that the R button is pressed.
NOTESSpecial notes:
Only perform these tests if the status does not correspond with the system
programming functions.
Use the Wiring Diagram Technical Note for Mégane II ph2, Scénic II ph2, CLIO III,
MODUS and Kangoo II.
INACTIVE
Status ET703 becomes INACTIVE when the cruise control/speed limiter button is not
pressed. These buttons are located on the steering wheel.
Refer to the airbag technical note for the vehicle for details on removal of the driver's
airbag and carrying out the checks in complete safety (see 88C, Airbag and
pretensioners).
If status ET703 does not display INACTIVE,
●check the condition of the cruise control/speed limiter +/- button and the
condition of its connector.
●check the condition of the cruise control/speed limiter "R/0" button and the
condition of its connector,
If the connectors are faulty and if there is a repair procedure (see Te c h n i c a l N o t e
6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the
connector(s), otherwise replace the wiring.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID301_V44_ET703/SID304_V45_ET703/SID301_V48_ET703/SID304_V49_ET703/SID304_V4D_ET703/SID301_V4C_ET703
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B2

13B-178
MR-372-J84-13B050$624.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B2DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET703
CONTINUED 1
INCREASE
Status ET703 becomes INCREASE when the cruise control/speed limiter + button is
pressed. This button is on the steering wheel, on the left-hand side.
Refer to the airbag technical note for the vehicle for details on removal of the driver's
airbag and carrying out the checks in complete safety (see 88C, Airbag and
pretensioners).
If status ET703 does not display INCREASE, check the status of the cruise control/
speed limiter +/- button, and the condition of its connector.
If the connector is faulty and if there is a repair method (see Technical Note 6015A,
Repairing electrical wiring, wiring: Precautions for repair), repair the connector(s);
otherwise replace the wiring.
Measure the resistance on the following connections while pressing the + button
(on the button tracks):
●Connection code86G of component 331.
●Connection code 86M of component 331.
If the resistance is not approximately 300Ω, check the continuity of the connection for
the button when the button is in the rest position.
If there is continuity, replace the +/- control button (see MR 392, 385, 364, 370 and 417
Mechanical, 83D, Cruise control, Switch on the steering wheel: Removal -
Refitting).
If the connection or connections are faulty and there is a repair procedure
(seeTechnical Note 6015A, Electrical wiring repair, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-179
MR-372-J84-13B050$624.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B2DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET703
CONTINUED 2
DECREASE
Status ET703 becomes DECREASE when the cruise control/speed limiter button is
pressed. This button is on the steering wheel, on the left-hand side.
Refer to the airbag technical note for the vehicle for details on removal of the driver's
airbag and carrying out the checks in complete safety (see 88C, Airbag and
pretensioners).
If status ET703 does not change to DECREASE, check the status of the cruise control/
speed limiter +/- button and check the condition of its connector.
If the connector is faulty and if there is a repair method (see Technical Note 6015A,
Repairing electrical wiring, wiring: Precautions for repair), repair the connector(s);
otherwise replace the wiring.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Measure the resistance of the following connections while pressing the "-" button
(on the button tracks):
●Connection code86G of component 331.
●Connection code 86M of component 331.
If the resistance is not approximately 100Ω, check the continuity of the button when the
button is in the rest position.
If there is continuity, replace the +/- control button.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
SUSPENDStatus ET703 becomes SUSPEND when the cruise control/speed limiter "0" button is
pressed. This button is located on the steering wheel, to the right.
Refer to the airbag technical note for the vehicle for details on removal of the driver's
airbag and carrying out the checks in complete safety (see 88C, Airbag and
pretensioners).
If status ET703 does not become SUSPEND, check the status of the cruise control/
speed limiter R/0 button and the condition of its connector.
If the connector is faulty and if there is a repair method (see Technical Note 6015A,
Repairing electrical wiring, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring.
Measure the resistance of the following connections while pressing the 0 button
(on the button tracks):
●Connection code86G of component 331.
●Connection code 86M of component 331.
If the resistance is not approximately 0Ω, replace the R/0 control button.
If there is continuity, replace the R/0 control button.
If the connection or connections are faulty and there is a repair procedure
(seeTechnical Note 6015A, Electrical wiring repair, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-180
MR-372-J84-13B050$624.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B2DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET703
CONTINUED 3
RESUME
Status ET703 becomes RESUME when the cruise control/speed limiter "R" button is
pressed. This button is located on the steering wheel, to the right.
Refer to the airbag technical note for the vehicle for details on removal of the driver's
airbag and carrying out the checks in complete safety (see 88C, Airbag and
pretensioners).
If status ET703 does not change to RESUME, check the status of the cruise control/
speed limiter R/0 button and the condition of its connector.
If the connector is faulty and if there is a repair method (see Technical Note 6015A,
Repairing electrical wiring, wiring: Precautions for repair), repair the connector(s);
otherwise replace the wiring.
If the connector is faulty and if there is a repair method (see Technical Note 6015A,
Repairing electrical wiring, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring. Measure the resistance of the following connections
while pressing the R button (on the button tracks):
●Connection code86G of component 331.
●Connection code 86M of component 331.
If the resistance is not approximately 900 Ω, check the continuity of the connection
when the button is in the rest position.
If there is continuity, replace the R/0 control button.
If the connection or connections are faulty and there is a repair procedure
(seeTechnical Note 6015A, Electrical wiring repair, Wiring: Precautions for
repair), repair the wiring, otherwise replace the wiring.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
