Lights and Visibility
60Interior lightingVehicle interior lighting in the front and lighting of storage compartment on front passenger sideFig. 51 Front vehicle interior lightingSwitching the interior light on– Press the switch at the point of the symbol
 ⇒fig. 51
.
Switching the interior light off– Press the switch at the point of the symbol
O.
Door contact setting– Position the switch into middle position.
On vehicles without interior monitor*, the
middle position is ma
rked with a symbol
 ⇒fig. 51
on the left.
Lighting of storage compartment on the front passenger side– When opening the flap of the storage comp
artment on the front passenger side the
lighting in the storage compartment comes on.
– The light switches on automatically when
the parking light is switched on and goes
out when the flap is closed.
The interior light comes on as soon as you
unlock the car or open
a door or when the
ignition key has been removed. The light go
es out again about 30 seconds after all the
doors have been closed. The interior lighting
is switched off when you lock the car or
switch the ignition on. This only applies wh
en the switch for the corresponding interior
lights is standing n the door contact setting. The interior lighting goes off after about 10
minutes when a door has been left open in
order to avoid discharging the battery of the vehicle. If the switch is in the position
 (permanent lights), the interior lighting goes off at the
latest after 10 minutes in order to avoi
d discharging the battery of the vehicle.
Two diffuse lights* are integrated in the in
terior lighting, which
illuminates the shift
lever and the middle of the dash panel.
They are switched on automatically when
switching on the parking light. On vehicles with interior monitor, the il
lumination unit does not have any diffuse
lights*.
Note
We recommend having these bulbs re
placed by a specialist garage.
Front reading lightsFig. 52 Front reading lightsFront reading lights– You switch on or off the reading light on the right or left by pressing the switch

⇒ fig. 52
.
sgg.6.book Page 60 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
61
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Rear reading lightsSwitching the interior light on– Press the cover glass in the area of the symbol
 ⇒fig. 53
.
Switching the interior light off– Press the cover glass in the area of the symbol
O ⇒fig. 53
.
Door contact setting– Position the cover glass into middle position
.
Front door warning light*The warning light is located in the door trim panel below
⇒fig. 54
.
The warning light goes on every time the do
or is opened. The light goes out about 10
minutes after opening the door in order to
avoid discharging the battery of the vehicle.
There is a reflector installed on some vehicles instead of the warning light.Luggage compartment lightThe lighting comes on automatically when the boot lid is opened. The luggage compartment lighting will switch off again au
tomatically if the boot lid remains open
for more than about 30 minutes.Entry lighting*The lighting is positioned on the bottom edge of the exterior mirror. The light beam is directed towards
the entry area of the front door.
The light comes on after the doors have been
locked or on opening the boot lid. The
light goes out after switching on the ignition
or up to 30 seconds
after closing all the
doors, the bonnet and the boot lid. If a door, the bonnet or the boot lid remains open, the light goes out within 2 minutes if the ignition is switched off.
WARNING
If the entry light comes on, do not touch its cover - risk of burns!
Fig. 53 Detail of the headliner: Rear reading lightsFig. 54 Front door: Warning light
sgg.6.book Page 61 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
62VisibilityRear window heater– You can switch the rear window heater
on or off by pressing the switch
⇒ fig. 55
- the indicator light in the switch comes on or goes out.
The rear window heater only operates when the engine is running. The rear wind
ow heater
switches
off automatically after 10 minutes.
For the sake of the environment
As soon as the window is de-iced or free from
mist, the heating should be switched off.
The reduced current consumption will have a favourable effect on fuel economy ⇒ page 177, “Saving electricity”.Note
•
The position and the shape of the swit
ch can differ depending on equipment
installed in the vehicle.•
If the on-board voltage drops, the rear window heater is switched off automatically,
in order to provide sufficient electrical energy for the engine control.
Sun visorsFig. 56 Sun visor: Swivelling out / double sun visor: Folding outYou can pull the sun visor for the driver or front passenger out of the fixture and swivel it toward the door in the direction of the arrow
⇒fig. 56
.
The vanity mirrors* in the sun visors are provided with covers. Push the cover in direc- tion of arrow . On vehicles which are equipped with double
sun visor*, you can also unfold the auxil-
iary visor in direction of arrow after swivelling the sun visor
⇒fig. 56
.
WARNING
The sun visors must not be swivelled to the side windows into the deployment area of the head airbags if any objects, su
ch as ball-point pens
etc. are attached
to them. This might result in injuries to the occupants if the head airbag is deployed.
Fig. 55 Switch for rear window heater

A1
A2
A3
sgg.6.book Page 62 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
63
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Windshield wiper and wash systemWindshield wiper You can operate the windscreen wipers and automatic wipe/wash using the windscreen wiper lever.The windscreen wiper lever
⇒fig. 57
has the following positions:
Finger-operated wiping– If you wish to wipe the windscreen only
briefly
, push the lever into the sprung
position . If you hold the lever in the lo
wer position for more than 1 second, the
wiper wipes faster.
Intermittent wiping– Position the lever up into position . – Set with the switch the desired brea
k between the individual wiper strokes.
Slow wipe– Position the lever up into position .Fast wipe– Position the lever up into position .
Automatic wipe/wash for windscreen– Pull the lever towards the steering wheel into sprung position , the wash system
sprays immediately, the windscreen wiper starts wiping a little later. The wash system and the windscreen wiper operate simultaneously at a speed of more than 120 km/h.
– Release the lever. The windscreen wash system stops and the wiper continues for
another 3 - 4 wiper strokes (depending on
the period of spraying of the wind-
screen). At a speed of more than 2 km/h, the wiper wipes once again* 5 seconds after the last wiper stroke in order to wipe the last drops from the windscreen. This function can be activated/deacti
vated by a specialist garage.
Rain sensor*– Move the lever into position . – You can set the sensitivity of the sensor individually with switch .Wiping the rear window pane– Push the lever away from the steering wheel into position - the widescreen
wiper will operate every 6 seconds.
Automatic wipe/wash for the rear window pane*– Press the lever from the steering wheel forward into the sprung position , the
wash system sprays immediately, the windscreen wiper starts wiping a little later. A s l o n g a s y o u h o l d t h e l e v e r i n t h i s p o s i t i o n, th e w i p e r o p e ra t e s a s w e l l a s t h e w a s h system.
– Letting go of the lever will cause the windscreen wash system to stop and the wiper
to continue for another 2 - 3 wiper strokes
(depending on the period of spraying of
the windscreen).
The lever will stay in position after releasing it
.
Switching windscreen wipers off– Move the lever back into
its home position .
After the windscreen wiper switches off each
time or the ignition switches off for the
third time, the position of the windscreen wiper changes, this counteracts an early fatigue of the wiper rubbers.
Fig. 57 Windscreen wiper lever
A4
A1
AA
A2A3
A5
A1
AA
A6
A7
A6
A0
sgg.6.book Page 63 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
64The windscreen wipers and the wash system only operate if the ignition is switched on and the bonnet is closed
9).
If the intermittent wipe is switched on, the intervals are also controlled depending on speed. The rain sensor* automatically regulates
the break between the individual wiper
strokes depending on the intensity of the rain. The rear window will be wiped again if the front window wipers are on when reverse gear is selected. The windscreen washer nozzles are heated* when the ignition is switched on.Top up with wash liquid
⇒page 214.
Winter position If the windscreen wipers are in rest positi
on, they cannot be folded out from the wind-
screen. For this reason we recommend adjusting the windscreen wipers in winter so that they can be folded out from the windscreen easily. You can set this rest position as follows:•
Switch on the windscreen wipers.
•
Switch off the ignition. The windscreen wipers remain in the position in which they
were when switching off the ignition. You can also use the service position
⇒page 65 as a winter position.
WARNING
•
Properly maintained wind
screen wiper blades are essential for clear visi-
bility and safe driving
⇒page 65.
•
Do not use the windscreen washer sy
stem at low temperatures, without
heating the windscreen beforehand.
Otherwise the window cleaner could
freeze on the windscreen and re
strict the view to the front.
•
The rain sensor only operates as a support. The driver is not released from
the responsibility to set the function of the windscreen wipers manually depending on the visibility conditions.
Caution
In frosty weather, please firs
t of all check whether the windscreen wiper blades are not
frozen to the windscreen before switching them on. Switching on windscreen wipers when the blades are frozen to the windscreen may result in damage both to the blades and the motor of the windscreen wipers!
Note
•
If the slower or the faster wiper setting is switched on
⇒page 63, fig. 57
and
the vehicle speed decreases to below 4 km/h, the lower wiper step is switched on automatically. At a speed increase of more
than 8 km/h the previous wiper setting is
established again.•
If there is an obstacle on the windscre
en, the wiper will try to push away the
obstacle. If the obstacle continues to block
the wiper, the wiper stops after 5 cycles, in
order to avoid a damage to the wiper. Re
move the obstacle and and switch on the
wiper again.Automatic rear window wiper*If the windshield wiper lever is in the posi
tion or , the rear window wiper carries
out a wiping process every 30 seconds or
10 seconds at a speed above 5 km/h.
When the rain sensor* is active (the lever
is in the position ) the function is only
active if the front window wipers continue
to operate (no break between each wiping
process). Activation/deactivation The function of the automatic rear window wiper is activated/deactivated in the infor- mation display* in the menu:„
Setup„
Lights & Vision (Lights & Vision)„
Rear wiper
Note
The function of the automatic rear window
wiper is only valid for vehicles which are
equipped with the information display*. The function is activated in the factory.
9)On vehicles which do not have
a contact switch for the bonnet, the windshield wiper and wash
system operates also when
the bonnet is opened.
A2
A3
A2
A3
A1
sgg.6.book Page 64 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
65
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Alternative park position of the rear window wiperEach time after switching off the engine for
the second time, the wi
per blade of the rear
window wiper is tilted when the park position
is activated. Thus, the life of the wiper
blade is prolonged.Activating– Switch on the ignition - position
⇒page 109.
– Push the operating level in the position
⇒page 63, fig. 57
five times in succes-
sion within 5 seconds.
– Switch off the ignition. After switching on
the ignition again, the alternative park
position of the rear window wiper is activated.
– For deactivating the alternative park position of the rear window wiper, proceed in
the same way.
Headlight cleaning system*The headlights are being cleaned after the windscreen has been sprayed for the first time and fifth time, the low beam or main beam are switched on and the windscreen wiper lever was held in the position
⇒page 63, fig. 57
for about 1 second.
The headlight washer nozzles are moved forward out of the bumper by the water pres- sure for cleaning the headlights. You should remove stubborn dirt (such as in
sect residues) from the headlight lenses at
regular intervals, for example when refuelling
. Please refer to the following guidelines
⇒ page 196, “The headlight lenses”. You should remove any snow from the fixtur
es of the washer nozzles and clear ice in
winter with a de-icing spray in order to
ensure proper operation of the cleaning
system.
Replacing wiper blades for the windscreen wipersOne cannot fold out the wiper arms in the re
st position from the windscreen. Before
replacing the wiper arms you must pu
t them into the service position.
Service position for changing wiper blades– Close the bonnet. – Switch the ignition on and then again off. – Then press the windscreen wiper lever in the position
⇒page 63, fig. 57
within
10 seconds - the wiper arms move into the service position.
Taking off the wiper blade– Fold windscreen wiper arm away from the windscreen. – Press the locking button, in order to unlock the wiper blade and pull off in the
direction of arrow
⇒fig. 58
.
Attaching a wiper blade– Push the wiper blade until it locks up to the stop. – Check whether the wiper blade is correctly attached. – Fold the windscreen wiper ar
m back onto the windscreen.
The wiper arms move back into the rest posi
tion - after switching on the ignition and
after changing the position of the window
wiper lever or when driving at a speed
greater than 6°km/h.
A2
A6
A5
Fig. 58 Wiper blade for the windscreen wiper
A4
sgg.6.book Page 65 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
66Wiper blades in proper
condition are essential to obtain
good visibility
. Wiper blades
should not be allowed to become dirtied by
dust, insect remains and preserving wax.
Juddering or smearing of the
wiper blades could then be
due to wax residues left on
the windscreen by vehicle washing in automa
tic vehicle wash systems. It is therefore
important to
degrease
the lips of the wi
per blades after every pass through an
auto-
matic vehicle wash system
.
WARNING
•
If the windscreen wipers are handled carelessly, there is a risk of damage to
the windscreen.•
You should clean the wiper blades regu
larly with a windscreen cleaner in
order to avoid any smears. Clean a wiper blad
e with a sponge or cloth if it is very
dirty, for example from insect residues.•
Replace the wiper blades once or twice a year for safety reasons. The wiper
blades are available from specialist garages.Replacing the wiper blade on the rear window wiperTaking off the wiper blade– Fold windscreen wiper arm
away from the windscreen.
– Press the locking button, in order to unl
ock the wiper blade and pull off in the
direction of arrow
⇒fig. 59
.
Attaching a wiper blade– Push the wiper blade until it locks up to the stop. – Check whether the wiper blade is correctly attached. – Fold the windscreen wiper ar
m back onto the windscreen.
The same remarks apply here as for
⇒page 65.
Rear-view mirrorManual dimming interior rear-view mirrorBasic setting– Pull the lever on the bottom edge of the mirror forward.Dimming mirror– Pull the lever on the bottom edge of the mirror back.Automatic dimming interior rear-view mirror*Switching on the automatic dimming– Press the button - the warning light lights up
⇒fig. 60
.
Fig. 59 Wiper blade for rear window
Fig. 60 Automatic dimming interior rear-view mirror
AB
AA
sgg.6.book Page 66 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
67
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Switching off the automatic dimming– Press again the button - the warning light goes out . If the automatic dimming is switched on, the mirror dims
automatically
depending on
the light striking the mirror from the rear.
The mirror has no lever on the bottom edge
of the mirror. When the interior lights are sw
itched on or the reverse gear is engaged,
the mirror always moves back
into the basic position.
Note
•
Do not affix any stickers in front of the light sensor, so that you do not impair the
automatic dimming function or put it out of operation.•
If you switch off the automatic dimming inte
rior rear-view mirror, also the exterior
mirror dimming is switched off.Exterior mirror You can adjust the exterior mirrors electrically.The exterior mirror he
ater* only operates when the en
gine is running and up to an
outside temperature of +20°C.Heating of the external mirror*– Turn the rotary knob to position
 ⇒fig. 61
.
Adjusting left and right exterior mirrors simultaneously– Turn the rotary knob to position
. The movement of the mirror surface is identical
to the movement of the rotary knob.
Adjusting the right-hand exterior mirror– Turn the rotary knob to position
. The movement of the mirror surface is identical
to the movement of the rotary knob.
Switching off operating control– Turn the rotary knob to position
.
Tilting surface of front pa
ssenger exterior mirror*
When the rotary knob is in position
 ⇒fig. 61
and the reverse gear is engaged, the
surface of the mirror tilts down slightly. This provides an aid in seeing the kerb of the pavement when parking the car. The mirror returns into its initial position, after the rotary knob is moved out of the position
 and put into another position or if the speed is more than 15 km/h.
Memory for exterior mirrors* On vehicles fitted with a memory for the driver seat, the relevant setting of the exterior mirror is also stored
automatically when the se
at position is stored
⇒page 70.
WARNING
•
Convex (curved outward) or spherical (differently curved) exterior mirrors
increase the vision field. They do, however, make objects appear smaller in the mirror. These mirrors are only of limited
use, therefore, for estimating distances
to the following vehicles.•
Use whenever possible the interior rear
mirror, for estimating the distances
to the following vehicles.
Note
•
Do not touch the surfaces of the exterior
mirrors if the exterior
mirror heater is
switched on.
AB
AA
Fig. 61 Inner part of door: Rotary knob
sgg.6.book Page 67 Thursday, September 24, 2009 2:32 PM

Lights and Visibility

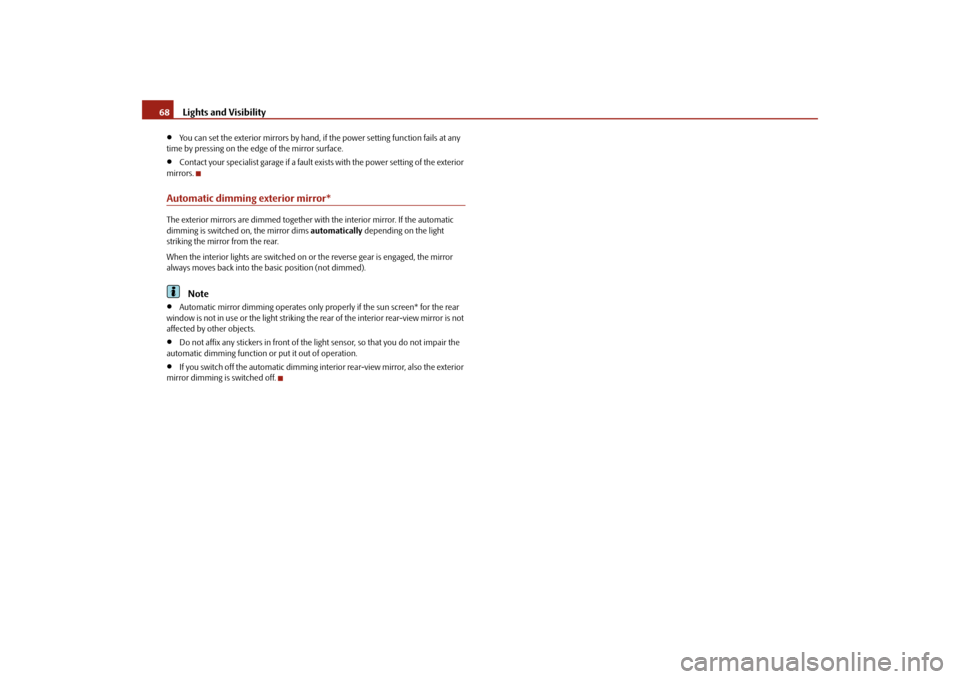

68•
You can set the exterior mirrors by hand, if
the power setting function fails at any
time by pressing on the edge of the mirror surface.•
Contact your specialist garage if a fault ex
ists with the power setting of the exterior
mirrors.Automatic dimming exterior mirror*The exterior mirrors are dimmed together with the interior mirror. If the automatic dimming is switched on, the mirror dims
automatically
depending on the light
striking the mirror from the rear. When the interior lights are switched on or the reverse gear is engaged, the mirror always moves back into the
basic position (not dimmed).
Note
•
Automatic mirror dimming operates only properly if the sun screen* for the rear
window is not in use or the light striking the rear of the interior rear-view mirror is not affected by other objects.•
Do not affix any stickers in front of the light sensor, so that you do not impair the
automatic dimming function or put it out of operation.•
If you switch off the automatic dimming interior rear-view mirror, also the exterior
mirror dimming is switched off.sgg.6.book Page 68 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
69
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Seats and StowageFront seatsBasic informationThe front seats have a wide range of differ
ent settings and can thus be matched to the
physical characteristics of the driver and
front passenger. Correct adjustment of the
seats is particularly important for:•
safely and quickly reaching the controls;
•
a relaxed, fatigue-free body position;
•
achieving the maximum protection offered by the seat belts and the airbag
system.
WARNING
•
Never transport more occupants than the maximum seating in the vehicle.
•
Each occupant must correctly fasten the seat belt belonging to the seat.
Children must be fastened
⇒page 156, “Transporting children safely” with a
suitable restraint system.•
The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be correctly fastened in order to provide an optimal protection for you and your occupants.•
Always keep your feet in the footwell
when the vehicle is being driven -
never place your feet on the instrument panel, out of the window or on the surfaces of the seats. This is particular
ly important for the front seat passenger.
You will be exposed to increased risk of
injury if it becomes necessary to apply
the brake or in the event of an accident.
If an airbag is deployed, you may suffer
fatal injuries when adopting an incorrect seated position!•
It is important for the driver and front
passenger to maintain
a distance of at
least 25 cm from the steering wheel or
dash panel. Not maintaining this
minimum distance will mean that the airbag
system will not be able to properly
protect you - hazard! The front seats and the head restraints must always also be correctly adjusted to match the body size of the occupant.
•
Ensure that there are no objects in
the footwell as any objects may get
behind the pedals during a driving or braking manoeuvre. You would then no longer be able to operate the clutch, to brake or accelerate.•
Do not transport any objects on the front passenger seat except those
provided for this purpose (e.g. child safety seat) - risk of accident!Adjusting the front seatsAdjusting a seat in a forward/back direction–Pull the lever
⇒fig. 62
up and push the seat into the desired position.
– Release the lever and push the seat further until the lock is heard to engage.Adjusting height of seat– Lift the seat if required by pulling or pumping lever upwards.– Lower the seat if required by pushing or pumping lever downwards.Adjust the angle of the seat backrest– Relieve any pressure on the seat backrest (do not lean on it) and turn the hand-
wheel
⇒fig. 62
to adjust the desired angle of the backrest.
WARNING (continued)
Fig. 62 Controls at seat
A1A1
A2A2
A3
sgg.6.book Page 69 Thursday, September 24, 2009 2:32 PM
