SKODA YETI 2009 1.G / 5L Owners Manual

Seats and Stowage
90– Press on the button
⇒page 89, fig. 96
in direction of arrow, the cover then folds
upwards.
Certain model versions are equipped without lid for the storage compartment.
WARNING
•
The storage compartment is not a substi
tute for the ashtray and must also
not be used for such purposes - risk of fire!•
The storage compartment must always be closed when driving for safety
reasons.•
Do not put any highly inflammable obje
cts or objects which are sensitive to
heat (e.g. lighters, spra
ys, spectacles, carbonated
drinks) in the storage
compartment.Storage compartment in front centre consoleThe storage compartment without cover in the centre console is foreseen for storage of small objects.
WARNING
The storage compartment is not a substitu
te for the ashtray and must also not
be used for such purposes - risk of fire!
Storage compartment for spectacles*– Press button , the storage compartment folds down
⇒fig. 98
.
WARNING
The compartment must only be opened
when removing or inserting the spec-
tacles and otherwise mu
st be kept closed.
Storage compartment in the front and rear doorsA bottle holder is located in the area of the storage compartment for the front and rear doors.
Fig. 97 Front centre console: Storage compartment
Fig. 98 Detail of the headliner: Storage compartment for spectacles
AA
Fig. 99 Storage compartment in the front doors
AB
sgg.6.book Page 90 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
91
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
Use the area
⇒page 90, fig. 99
of the storage compartment only for storing
objects which do not project so that the effectiveness of the side airbag is not impaired.Storage compartment below front passenger seat*The storage compartment is foreseen for storing small objects of up to 1.5 kg in weight. – Tilt the lock to open the flap and pull out the flap
⇒fig. 100
.
– Tilt the lock to close the
flap and press flap close.
Front seat armrest with storage compartment*Fig. 101 Armrest: Storage compartment / cooling of storage compartment
The armrest is adjustable for height and length.Opening storage compartment– Open the lid of the armrest in the direction of arrow
⇒fig. 101
.
Closing storage compartment– Open the lid up to the stop, then you can fold it downwards.Setting height– First of all fold the lid to the bottom and li
ft it in the direction of arrow into one of
the 4 fixed positions.
Adjusting in forward/back direction– Push the lid into the desired position.Opening air inlet– Pull the lock in upward direction
⇒fig. 101
.
Closing air inlet– Push the lock as far as the stop downwards. On vehicles fitted with air conditioning, the storage compartment is equipped with a lockable inlet for thermally treated (warmed-up) air. At open air supply, air flows into the storage with a temperature which is as high as the one out of the air outlet nozzles, depending on temperature setting. The air inlet in the storage compar
tment is connected to position
 through adjust-
ment of the control dial for air distribution. This position causes the maximum amount of air to flow into the storage compartmen
t (depending on the rotary regulator posi-
tion for the fan). You can use the storage compartment, for
example, to temper drinks cans, etc.
If you do not use the air inlet in the storage compartment, the end cover should always be kept closed.
AA
Fig. 100 Front passenger seat: Storage compartment
A1
AAAA
sgg.6.book Page 91 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
92
Note
Push the lid of the armrest up to stop to the rear before operating the handbrake.Storage compartment in rear centre console*The storage compartment is equipped with a removeable insert. – Open the storage compartment by pulling on the upper edge of the storage
compartment in the direction of arrow
⇒fig. 102
.
WARNING
The storage compartment is not a substitu
te for the ashtray and must also not
be used for such purposes - risk of fire!
Caution
The storage compartment in the rear part of the centre console must be closed (other-wise it could get damaged) before folding forward the rear middle seat.
Storage compartments in the luggage compartment*Fig. 103 Luggage compartment: Storage compartmentsStorage compartments are located on bo
th sides of the luggage compartment.
The removeable storage compartment on the left side
⇒fig. 103
is suitable for
stowing small objects weighing up to 1.5 kg. The storage compartment on the right side
⇒fig. 103
is suitable for stowing small
objects weighing up to 0.5 kg.Flexible storage compartment*A flexible storage compartmen
t is located on the right side of the luggage compart-
ment. The flexible storage compartment is foreseen for storing small objects of up to 8 kg in weight.
Fig. 102 Centre console at rear: Storage compartment
AA
AA
AB
Fig. 104 Flexible storage compartment
sgg.6.book Page 92 Thursday, September 24, 2009 2:32 PM

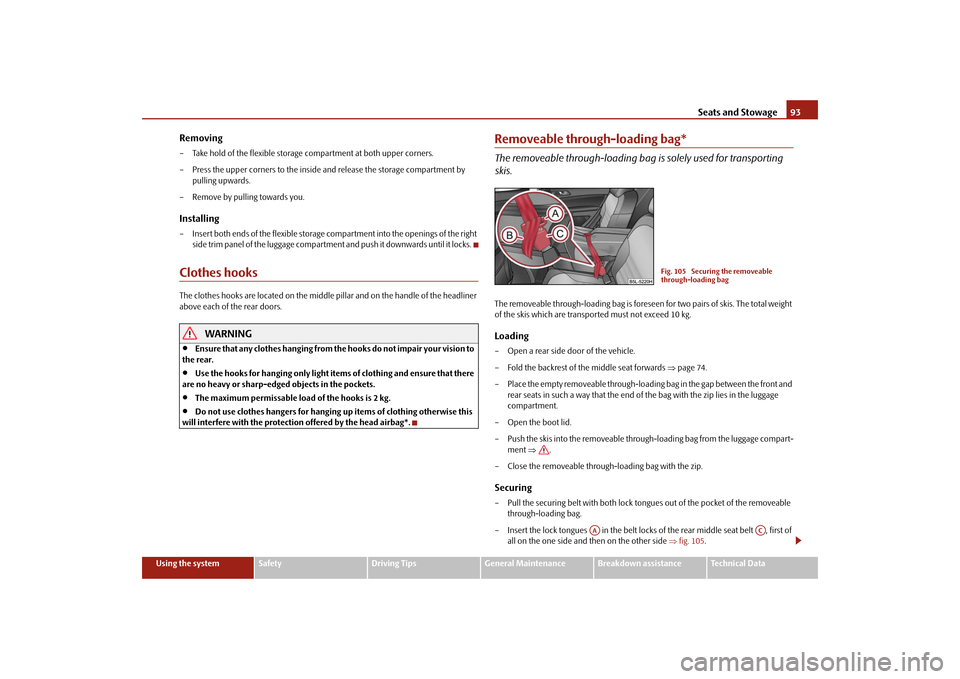

Seats and Stowage
93
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Removing– Take hold of the flexible storage
compartment at both upper corners.
– Press the upper corners to the inside
and release the storage compartment by
pulling upwards.
– Remove by pulling towards you.Installing– Insert both ends of the flexible storage
compartment into the openings of the right
side trim panel of the luggage compartment and push it downwards until it locks.
Clothes hooksThe clothes hooks are located on the middle
pillar and on the handle of the headliner
above each of the rear doors.
WARNING
•
Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.•
Use the hooks for hanging only light item
s of clothing and ensure that there
are no heavy or sharp-edge
d objects in the pockets.
•
The maximum permissable load of the hooks is 2 kg.
•
Do not use clothes hangers for hanging up items of clothing otherwise this
will interfere with the protection offered by the head airbag*.
Removeable through-loading bag*The removeable through-loading bag
is solely used for transporting
skis.The removeable through-loading bag is foreseen for two pairs of skis. The total weight of the skis which are transported must not exceed 10 kg.Loading– Open a rear side door of the vehicle. – Fold the backrest of the middle seat forwards
⇒page 74.
– Place the empty removeable through-loading bag in the gap between the front and
rear seats in such a way that the end of
the bag with the zip lies in the luggage
compartment.
– Open the boot lid.– Push the skis into the removeable through-loading bag from the luggage compart-
ment
⇒
.
– Close the removeable through-loading bag with the zip.Securing– Pull the securing belt with both lock to
ngues out of the pocket of the removeable
through-loading bag.
– Insert the lock tongues in the belt locks
of the rear middle seat belt , first of
all on the one side and then on the other side
⇒fig. 105
.
Fig. 105 Securing the removeable through-loading bag
AA
AC
sgg.6.book Page 93 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
94– Place the securing belt in the middle of
the skis between the heel and the tip of the
bindings and pull the secu
ring belt tight at the free end of the belt .
Stowing– Carefully fold the empty (dry) removeable through-loading bag together, place it in
the luggage compartment and secure it to prevent it slipping.
WARNING
•
After placing the skis into the remove
able through-loading bag, you must
secure it with the securing belt .•
The securing belt must hold the skis tight.
•
Ensure that the securing belt for skis
grasps the middle between the tip and
the heel element of the binding (see al
so imprint on the removeable through-
loading bag).
Note
•
You must put the skis and the sticks in
the removeable through-loading bag with
the tips facing the rear.•
If there are skis with different lengths in the removeable through-loading bag,
ensure that the bindings are always positioned at the same height.•
The removeable through-loading bag must never be folded together or stowed
when moist.
AB
AA
sgg.6.book Page 94 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
95
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Heating and air conditioning systemAir outlet ventsThe information provided is valid for all vehicles.Fig. 106 Air vents at the front Fig. 107 Air vents at the rearOpen the air outlet vents 3 and 4– Turn the horizontal wheel (to the right)
⇒fig. 106
.
Open the air outlet vents 6– Turn the vertical wheel (between the end positions)
⇒fig. 107
.
Close air outlet vents 3 and 4– Turn the horizontal wheel into the end position (to the left).Close air outlet vents 6– Turn the vertical wheel into the end position.Change air flow of air outlet vents 3 and 4– In order to change the strength of the air
flow, swivel the horizontal lamellas with
the aid of the moveable adjuster.
– In order to change the lateral direction of the air flow, turn the vertical lamellas with
the aid of the moveable adjuster.
Change air flow of air outlet vents 6– In order to change the strength of the air
flow, swivel the horizontal lamellas with
the aid of the vertical wheel upwards or downwards.
– In order to change the lateral direction of the air flow, turn the vertical lamellas with
the aid of the horizontal wheel to the left or to the right.
The air outlet vents
3, 4 ⇒fig. 106
and
6 ⇒fig. 107
can be closed and opened individ-
ually. The air outlet vents
6 are only fitted on vehicles
with higher centre console.
Warmed, unwarmed or cooled air will flow out
of the air outlet vents according to the
setting of the regulator of the heating or the air conditioning system* and the atmos- pheric conditions.
sgg.6.book Page 95 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
96HeatingUsing the system The heating system delivers air into the interior of the vehicle and warms it as required.Fig. 108 Heating: Control elementsSetting temperature– Turn the control dial
⇒fig. 108
to the right in order to increase the temperature.
– Turn the control dial to the left in order to increase the temperature.Controlling blower– Turn the blower switch into one of the po
sitions, 1 to 4, in order to switch the
blower on.
– Turn the blower switch into position 0 in order to switch the blower off. – If you wish to shut off the fresh air supply
, use the button - recirculated air mode
⇒
.
Control for air distribution– You can adjust the direction of the air
flow using the air distribution control
⇒ page 95.
Rear window heater– Press button . Further information
⇒page 62, “Rear window heater”.
Auxiliary heating (auxiliary heating)*– Press the button in order to directly switch on/off the auxiliary heating (auxiliary
heating and ventilation). Further information
⇒page 105, “Auxiliary heating (auxil-
iary heating and ventilation)*”.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and ventilation systems operate properly. The heating effect is dependent upon the coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature. The blower should aways be on to prevent the windows from misting up.
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your atten- tion and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mo
de off as soon as the windows begin
misting up.
Note
•
The whole heat output will be needed to unfrost the windscreen and side windows.
No warm air will be fed to the footwell. Th
is can lead to restriction of the heating
comfort.•
The used air streams out through the air removal openings in the luggage
compartment.
AAAAABAB
A1
AC
A2A3
sgg.6.book Page 96 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
97
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Set heatingRecommended settings of
heating controls for:
Note
We recommend that you leave the air outlet vents
3 ⇒page 95, fig. 106
in the opened
position.
Set-up
Setting of the control dial
Button
Air outlet vents 4
Defrosting the windscreen and side windows
To the right up to the
stop
3

Do not switch on
Open and align with the side win-
dow
Free windscreen and side windows from mist
Desired temperature
2 or 3

 
Do not switch on
Open and align with the side win-
dow
The fastest heating
To the right up to the
stop
3

briefly switched on
Opening
Comfortable heating
Desired temperature
2 or 3

Do not switch on
Opening
Fresh air mode - ventilation
To the left up to the
stop
Desired position

Do not switch on
Opening
A1
AA
AB
AC
sgg.6.book Page 97 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
98Recirculated air mode In recirculated air mode air is sucked
out of the interior of the vehicle
and then fed back into the interior.Recirculated air mode prevents polluted air
outside the vehicle from getting into the
vehicle, for example when driving through a
tunnel or when standi
ng in a traffic jam.
Switching recirculated air mode on– Press the button - the warning light lights up in the button
⇒page 96, fig. 108
.
Switching recirculated air mode off– Press again the button - the warning light in the button goes out. The recirculated air mode is switched off automatically if the air distribution control is in position
 ⇒page 96, fig. 108
. You can also switch recirculated air mode on
again from this setting by re
peatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your atten-tion and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.Climatic* (semi-automatic air conditioning system)Description The Climatic is a combined cooling and heating system. It makes it possible to optimally control the air
temperature at any season of the
year.Description of the Climatic It is important for your safety and for your
driving comfort that the Climatic is operating
properly.
The cooling only operates if button
⇒page 99, fig. 109
is pressed, and the
following conditions are met:•
engine running,
•
outside temperature above approx. +2°C and
•
blower switch switched
on (positions 1 to 4).
If the cooling system is switched on, th
e temperature and air humidity drops in the
vehicle. The wellbeing of the occupants of the car is enhanced as a result of this partic- ularly at high outside temperatures and a high air humidity. The system prevents the windows misting up during the cold season of the year. The heating effect is dependent upon the coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature. It is possible to briefly activate recirculat
ed air mode in order to enhance the cooling
effect
⇒
.
Air at a temperature of about 5°C may flow
out of the vents under certain circum-
stances when the cooling system is operatin
g. Lengthy and uneven distribution of the
air flow out of the vents and large differences in temperature, for example when getting out of the vehicle, can result in chills in sensitive persons. The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and cooling systems operate properly. After switching on the cooling
Condensation
from the evaporator of the air condi-
tioning may drip down and form a puddle be
low the vehicle. This is quite normal and
not an indication of a leak!
WARNING
•
For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and misting. Please familiarize yourself about how to correctly operate
the heating and ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.•
You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mo
de off as soon as the windows begin
misting up.


AC

AC
A1
sgg.6.book Page 98 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
99
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note
•
We recommend that you do not smoke in the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the interior of the vehicle forms deposits in the evapor
ator of the air conditioning system. This
produces a permanent odour when the air co
nditioning system is operating which can
only be eliminated through considerable
effort and expense (replacement of
compressor).Using the systemFig. 109 Climatic: Control elementsSetting temperature– Turn the control dial
⇒fig. 109
to the right in order to increase the temperature.
– Turn the control dial to the left in order to increase the temperature.Controlling blower– Turn the blower switch into one of the po
sitions, 1 to 4, in order to switch the
blower on.
– Turn the blower switch into position 0 in order to switch the blower off. – If you wish to shut off the fresh air supp
ly, use the button - recirculated air
mode
⇒page 101.
Control for air distribution– You can adjust the direction of the air
flow using the air distribution control
⇒ page 95.
Switching cooling on and off– Press the button
⇒fig. 109
. The warning light lights up in the button.
– When you again press the switch , the cooling system is switched off. The
warning light in the button goes out.
Rear window heater– Press button . Further information
⇒page 62, “Rear window heater”.
Auxiliary heating (auxiliary heating)– Press the button in order to direct
ly switch on/off the auxiliary heating
(auxiliary heating and ventilation). Further information
⇒page 105, “Auxiliary
heating (auxiliary heating and ventilation)*”.
The set temperature will be automatica
lly maintained other than when the
control dial is on the extreme
right or extreme left position:
•
Extreme right position - full heating;
•
Extreme left position - full cooling;
•
The blower should aways be on to
prevent the windows from misting up.
Note
•
T h e w h o l e h e a t o u t p u t w i l l b e n e e d e d t o u n f ro s t t h e w i n d s c re e n a n d s i d e w i n d o w s .
No warm air will be fed to the footwell. Th
is can lead to restriction of the heating
comfort.•
The used air streams out through the air
removal openings in the luggage compart-
ment.•
If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of
deposits. Switch the cooling system on at
least once a month for approximately 5 minu
tes at the highest blower stage - also
during the cold season of the year - in order to remove such odours. Also open a window for a short time.
AAAAABAB

A4
AC
AC
A1
AC

A2A3
sgg.6.book Page 99 Thursday, September 24, 2009 2:32 PM
