AUTOMATIC TRANSMISSION 5A-17
SSANGYONG MY2002

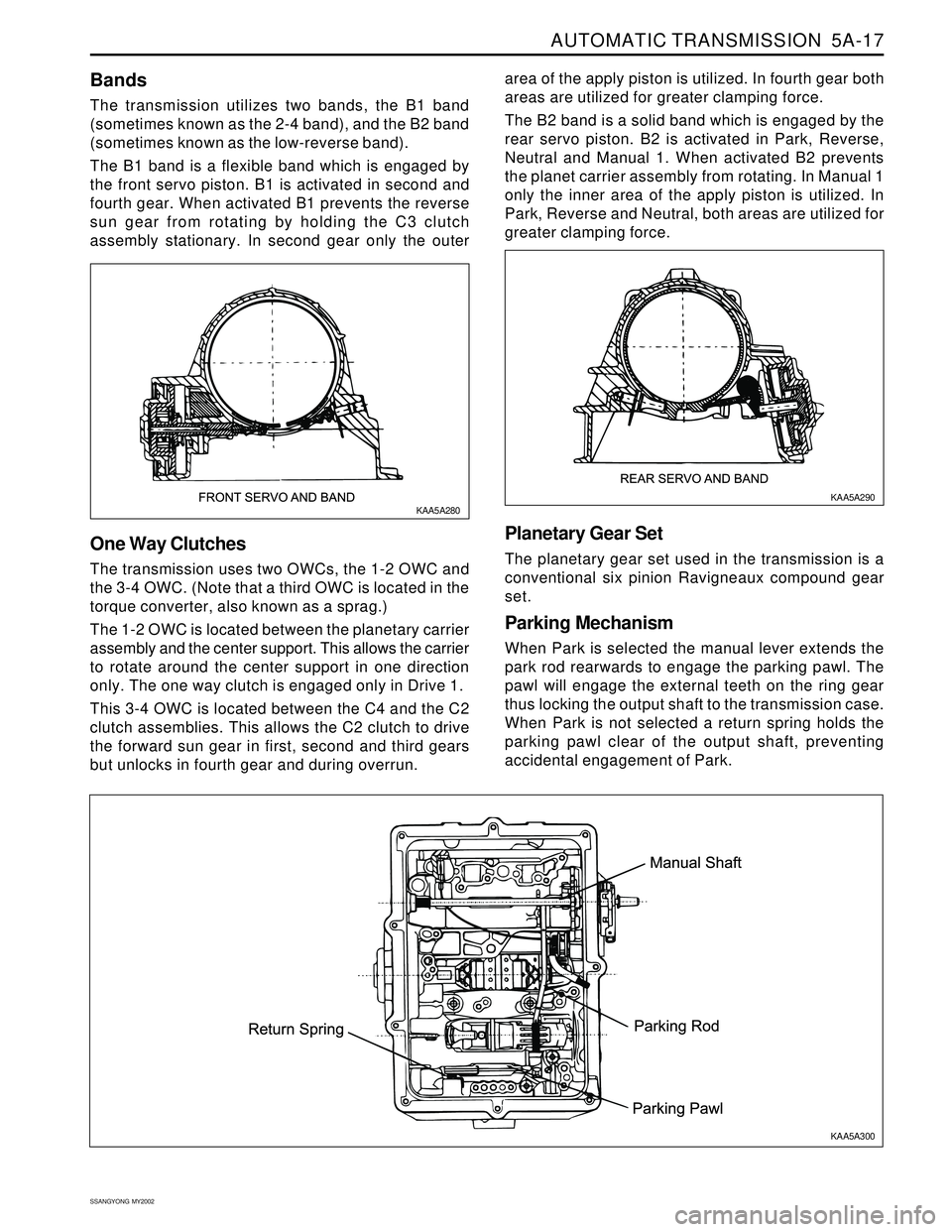

Bands
The transmission utilizes two bands, the B1 band
(sometimes known as the 2-4 band), and the B2 band
(sometimes known as the low-reverse band).
The B1 band is a flexible band which is engaged by
the front servo piston. B1 is activated in second and
fourth gear. When activated B1 prevents the reverse
sun gear from rotating by holding the C3 clutch
assembly stationary. In second gear only the outerarea of the apply piston is utilized. In fourth gear both
areas are utilized for greater clamping force.
The B2 band is a solid band which is engaged by the
rear servo piston. B2 is activated in Park, Reverse,
Neutral and Manual 1. When activated B2 prevents
the planet carrier assembly from rotating. In Manual 1
only the inner area of the apply piston is utilized. In
Park, Reverse and Neutral, both areas are utilized for
greater clamping force.
One Way Clutches
The transmission uses two OWCs, the 1-2 OWC and
the 3-4 OWC. (Note that a third OWC is located in the
torque converter, also known as a sprag.)
The 1-2 OWC is located between the planetary carrier
assembly and the center support. This allows the carrier
to rotate around the center support in one direction
only. The one way clutch is engaged only in Drive 1.
This 3-4 OWC is located between the C4 and the C2
clutch assemblies. This allows the C2 clutch to drive
the forward sun gear in first, second and third gears
but unlocks in fourth gear and during overrun.
Planetary Gear Set
The planetary gear set used in the transmission is a
conventional six pinion Ravigneaux compound gear
set.
Parking Mechanism
When Park is selected the manual lever extends the
park rod rearwards to engage the parking pawl. The
pawl will engage the external teeth on the ring gear
thus locking the output shaft to the transmission case.
When Park is not selected a return spring holds the
parking pawl clear of the output shaft, preventing
accidental engagement of Park.
KAA5A300 KAA5A280KAA5A290

5A-18 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
POWER FLOWS
The power flows for the various transmission selections
are listed below;
Power Flow - Neutral and Park
Power Flow - Reverse
Power Flow - Manual 1
Power Flow - Drive 1
Power Flow - Drive 2
Power Flow - Drive 3
Power Flow - Drive 3 Lock Up
Power Flow - Drive 4 (Overdrive)
Power Flow - Drive 4 Lock Up
The following table details the engaged elements
versus the gear selected for all transmission selections.
C1
-
-
-
-
-
X
X
X
X1-2
OWC
-
-
-
X
-
-
-
-
-3-4
OWC
-
-
X
X
X
X
X
X
X B2
X
X
X
-
-
-
-
-
- B1
-
-
-
-
X
-
-
X
X
Gear State
Park and Neutral
Reverse
Manual 1
Drive 1
Drive 2 and Manual 2
Drive 3 and Manual 3
Drive 3 Lock Up and
Manual 3 Lock Up
Drive 4 Overdrive
Drive 4 Lock UpC2
-
-
X
X
X
X
X
X
XC3
-
X
-
-
-
-
-
-
-C4
-
-
X
-
X
X
X
-
-LU
CLUTCH
-
-
-
-
-
-
X
-
X ELEMENTS ENGAGED

AUTOMATIC TRANSMISSION 5A-19
SSANGYONG MY2002
BLANK

5A-20 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
PARK AND NEUTRAL
KAA5A31A

AUTOMATIC TRANSMISSION 5A-21
SSANGYONG MY2002
Power Flow - Park and Neutral
In Park and Neutral, there is no drive to the planetary
gear set. The rear band is applied to eliminate ‘clunk’
on engagement of the reverse gear, and to improve
the low range engagement for 4WD applications. No
other clutches or bands are applied.
In Park the transmission is mechanically locked by
engaging a case mounted pawl with teeth on the output
shaft ring gear.
Control
To maintain this arrangement in the steady state sole-
noids and valves are activated as follows:
Solenoids S1 and S2 are switched OFF.
Line (pump) pressure is applied to the Primary Regu-
lator Valve (PRV) and to the solenoid supply
pressure regulator valve.
The converter, oil cooler, and lubrication circuits are
charged from the primary regulator valve.
The line 500 circuit is charged by the solenoid
supply pressure regulator valve.
The S5 circuit is charged by the variable pressure
solenoid (S5).
Line pressure is prevented from entering the drive
circuit by the manual valve.
The B1 circuit and all clutch circuits are open to ex-
haust.
C1
-C2
-C3
-C4
-B1
-B2
X1-2
OWC
-3-4
OWC
-LU
CLUTCH
- Gear State
Park and Neutral
ELEMENTS ENGAGED
KAA5A320

5A-22 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
REVERSE
KAA5A33A

AUTOMATIC TRANSMISSION 5A-23
SSANGYONG MY2002
Power Flow - Reverse
In Reverse, transmission drive is via the input shaft
and the forward clutch cylinder to the hub of the C3
clutch. The elements of the transmission function as
follows;
The C3 clutch is engaged and drives the reverse
sun gear in a clock-wise direction.
The B2 band is engaged and holds the planetary
gear carrier stationary causing the long pinion to
rotate anti-clockwise about its axis on the pinion
shaft.
The long pinion drives the internal ring gear in the
same direction.
The internal ring being splined to the output shaft
drives it in an anti-clockwise or reverse direction.Control
To maintain this arrangement in the steady state sole-
noids and valves are activated as follows;
Solenoids S1 and S2 are switched OFF.
Line pressure is directed through the reverse lockout
valve to both the inner and outer apply areas of the
rear servo piston for B2 band application.
Line pressure feeds the reverse oil circuit via the
manual valve.
Reverse oil is routed from the manual valve to the
C3 clutch.
Reverse oil is also applied to the spring end of the
primary regulator valve to assist the spring and to
boost the line pressure value.
All other clutch and band apply circuits are open to
exhaust.
C3
X
Gear State
ReverseC1
-C2
-C4
-B1
-B2
X1-2
OWC
-3-4
OWC
-LU
CLUTCH
- ELEMENTS ENGAGED
KAA5A340

5A-24 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
MANUAL 1
KAA5A35A

AUTOMATIC TRANSMISSION 5A-25
SSANGYONG MY2002
Power Flow - Manual 1
In Manual 1, transmission drive is via the input shaft
to the forward clutch cylinder. The elements of the
trans-mission function as follows;
The C2 clutch is engaged to drive the forward sun
gear, via the 3-4 OWC.
The B2 band is engaged to hold the planetary gear
carrier stationary.
The forward sun gear drives the short pinion anti-
clockwise.
The short pinion drives the long pinion clockwise.
The long pinion rotating about its axis drives the
inter-nal ring gear and the output shaft in a clockwise
or forward direction.
The C4 clutch provides engine braking through the
3-4 OWC on overrun.Control
To maintain this arrangement in the steady state sole-
noids and valves are activated as follows;
Solenoids S1 and S2 are switched ON.
The 1-2, 2-3, and 3-4 shift valves are held in their
first gear positions by line 500 pressure.
Drive (line pressure) oil from the manual valve en-
gages the C2 clutch.
Lo-1st (line pressure) oil is routed through the 1-2
shift valve to the C4 clutch, and to the inner apply
area of the rear servo piston for B2 band application.
ELEMENTS ENGAGED
Gear State
Manual 1C1
-C2
XC3
-C4
XB1
-B2
X1-2
OWC
-3-4
OWC
XLU
CLUTCH
-
KAA5A360

5A-26 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DRIVE 1
KAA5A37A
