OM600 ENGINE MECHANICAL 1B3 -- 131
D AEW OO M Y_2000
11. The distance ’x’ (camshaft basic bore -- valve stem).
’x’ = ’z’ -- ’y’.
Determine the valve to use according to this mea-
surement (See ’matching valves’)
Example) Measured value ’w’= 38.2 mm
Measured value ’z’ = 36.5 mm
—————————————
Value’y’ =15.5mm
’x’ = 36.5 -- 15.5 = 21.0mm
In this case according to ’Matching valves’ table, the
installed valve may be used.

1B3 -- 132 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
MACHINING OF VALVE SEAT
Preceding Work : Removal of prechamber
Removal and inspection of valve, replace if necessary
Inspection of valve guide, replace if necessary
1Valve
2 Valve Seat Ring
3 Cylinder Head
4 Valve Guidea Valve Seat Angle
b Valve Seat Free Angle

OM600 ENGINE MECHANICAL 1B3 -- 133
D AEW OO M Y_2000
Service Data
ItemIntakeExhaust
Valve Arrears ’a’0.1 -- 0.7 mm0.1 -- 0.7 mm
Valve Seat Width ’b’1.2 -- 1.7 mm1.5 -- 2.0 mm
Valve Seat Angle ’α’45_45_
Valve Seat Free Angle ’β’65_65_
Permissible Radial Runout0.03 mm0.03 mm
ValveLength’I’Standard106.20 -- 106.60 mm106.20 -- 106.60 mmValveLength’I’Repair105.30 -- 105.70 mm105.30 -- 105.70 mm
Matching Valves
Camshaft Cam Basic Dia.
W = 38.0±0.2 mmCamshaft Cam Basic Dia.
W=36.6±0.2 mmValvetobeUsed
Size (x)19.5 -- 20.3 mm19.5 -- 20.1 mm
Use machined valve,
if needed
new repair valve
I = 105.5±0.2mm
Size (x)20.4 -- 21.4 mm20.2 -- 21.2 mmReuse valve
Size (x)21.4 -- 21.97 mm21.2 -- 21.97 mm
Use standard size
valve
I = 106.4±0.2mm
Commercial Tools
Cylinder Head Clamping DeviceHunger
D-- 8000 München 70
Type Ventilknecht K2000
Order No. 221 00 100
Valve Seat Turning ToolHunger
D-- 8000 München 70
Ty p e VDS 1 A
Order No. 236 03 308
Test Set for ValvesHunger
D-- 8000 München 70
Order No. 217 93 601

1B3 -- 134 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
Machining Procedure
Valve machining is required :
-- When the valve is leaking.
-- When replacing the valve.
-- When replacing the valve guide.
-- When replacing the valve seat or valve seat ring.
1. Machine the valve seat (a=45_).
2. Measure valve seat width ’b’.
Va lv e s e a tIntake1.2 -- 1.7 mmValveseat
width ’b’Exhaust1.5 -- 2.0 mm
3. If the specification is exceeded, the valve seat width
has to be corrected at the lower free angle of
’β’=65.
4. Measure radial runout.
RunoutMax. 0.03mm

OM600 ENGINE MECHANICAL 1B3 -- 135
D AEW OO M Y_2000
5. Insert the valve (1) into the valve guide according to
marking and measure amount by which the valve ar-
rears ’a’.
Arrears ’a’0.1 -- 0.7mm
6. Measure camshaft cam basic circle diameter (w).
Diameter ’w’38±0.2mm
or 37.6±0.2mm
7. Measure distance ’z’ (cylinder head cover parting
surface -- valve stem).

1B3 -- 136 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
I Length of Valve
w Camshaft Cam Basic Circle Diameter
x Distance (Camshaft basic bore -- valve stem)y Half Camshaft Basic Bore Diameter
z Distance (Cylinder head cover parting surface --
valve stem)
8. Measure ’x’ (Camshaft basic bore -- valve stem).
’x’ = ’z’ -- ’y’
9. Determine the valve to be used.
(See ’Matching valves’)
Example) Measured value ’w’ = 38.2 mm
Measured value ’z’ = 36.5 mm
Value ’y’ = 15.5 mm
’x’ = 36.5 -- 15.5 = 21.0 mm
In the case of a camshaft cam basic circle diameter
’w’ = 38.2mm and a distance ’x’ = 21.0mm, the
installed valve may be used.

OM600 ENGINE MECHANICAL 1B3 -- 137
D AEW OO M Y_2000

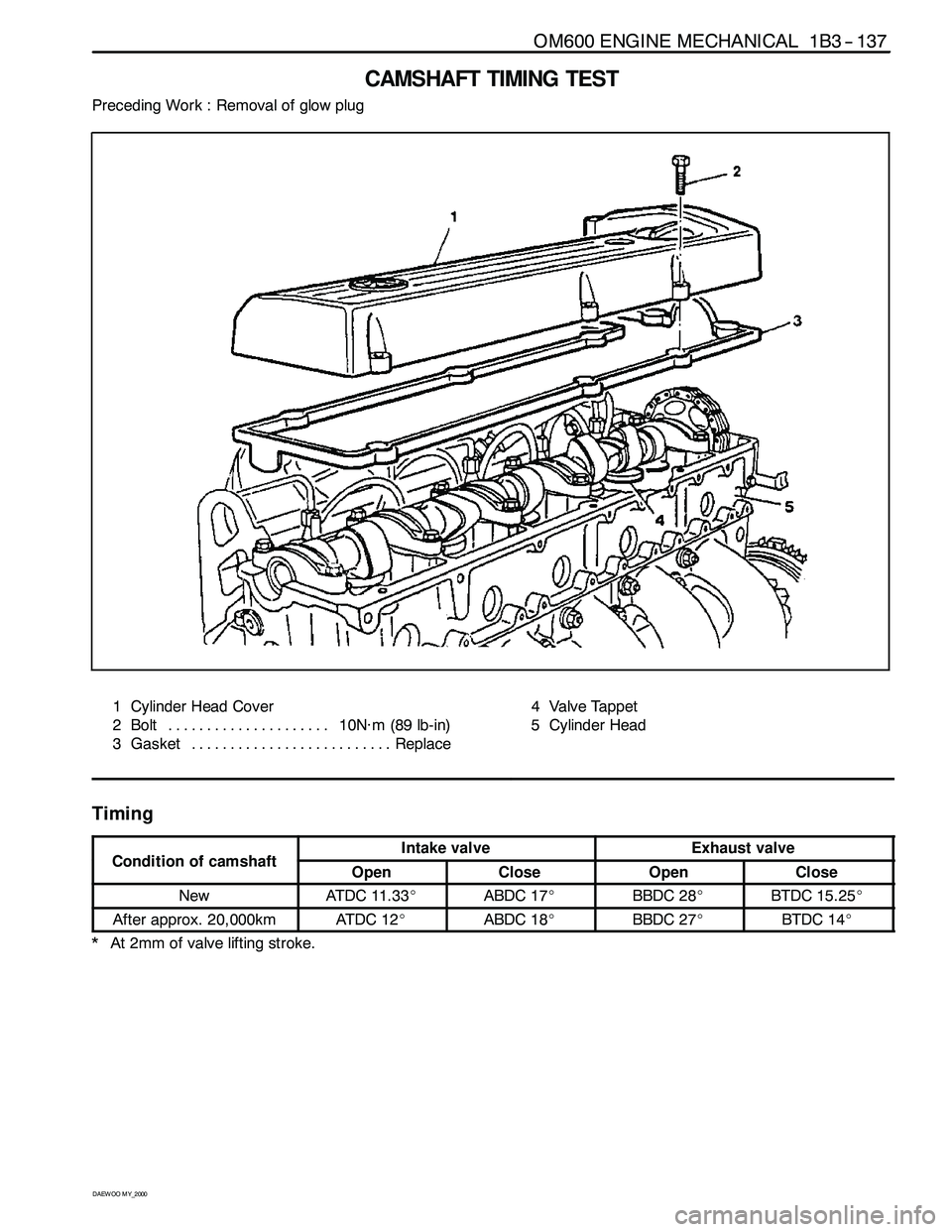

CAMSHAFT TIMING TEST
Preceding Work : Removal of glow plug
1 Cylinder Head Cover
2 Bolt 10N∙m (89 lb-in) .....................
3 Gasket Replace..........................4 Valve Tappet
5 Cylinder Head
Timing
CditifhftIntake valveExhaust valveCondition of camshaftOpenCloseOpenClose
NewAT DC 11 . 3 3_ABDC 17_BBDC 28_BTDC 15.25_
After approx. 20,000kmAT DC 1 2_ABDC 18_BBDC 27_BTDC 14_
* At 2mm of valve lifting stroke.

1B3 -- 138 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
Tools Required
001589532100 DialGauge
363 589 02 21 00 Dial Gauge Holder
366589002105 Extension
Measurement Procedure
1. Remove the cylinder head cover.
2. Rotate the engine in the direction of engine rotation
until the intake valve of NO.1 cylinder is completely
closed. The cam lobe faces up (arrow).
Notice
Do not rotate the engine at the bolt of the crankshaft
sprocket. Do not rotate the engine in the opposite di-
rection of engine rotation. If do, thiswill cause seri-
ous measuring errors.
3. Install the dial gauge holder and dial gauge (7) with
the extension (8) to the cylinder head and position
the tracer pin (9) onto the valve tappet (intake valve
of cylinder NO.1) with a preload of min. 3mm.
Notice
The tracer pin should be positioned exactly vertical.
Dial gauge Holder 363 589 02 21 00
Dial Gauge 001 589 53 21 00
Extension 366 589 00 21 05
4. Set the dial gauge to ’0’.
5. Rotate the engine further in direction of rotation until
the dial gauge has moved back by 2mm (valve lift) to
1mm.
6. Check the timing.
NewAT DC 11 . 3 3_
After approx. 20,000kmAT DC 1 2_
Notice
If timing is out standard, the camshaft should be
checked for wear and the timing chain for stretch. If
adifferenceofmorethan4_exists, the timing chain
should be replaced.
7. Replace the gasket and install the cylinder head
cover.
Tightening Torque10 N∙m(89lb-in)

OM600 ENGINE MECHANICAL 1B3 -- 139
D AEW OO M Y_2000
CAMSHAFT
Preceding Work : Removal of cylinder head cover
1 Bolt 25N∙m (18 lb-ft) ......................
2 Washer
3 Camshaft Bearing Cap
4 Camshaft
5 Dowel Pin
6 Locking Washer
7 Timing Chain8 Cylinder Head
9OilPan
10 Camshaft Sprocket
11 Was h er
12 12-- Sided Bolt (M11)
Check, 25N∙m (18 lb-ft)+90_ ...............
13 Gasket Replace..........................
14 Chain Tensioner 80N∙m (59 lb-ft) ............

1B3 -- 140 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
Tools Required
602 589 00 40 00 Engine Lock
Removal Procedure
1. Rotate the crankshaft and position the piston of no.1
cylinder at TDC.
Notice
Do not rotate the crankshaft in the opposite direction
of engine rotation.
In this position, the markings of the camshaft/cam-
shaft bearing cap (arrow) must be aligned.
2. Place alignment marks on the camshaft sprocket
and timing chain.
3. Remove the starter motor and install the engine
lock.
Engine Lock 602 589 00 40 00
