SSANGYONG KORANDO 2012 Service Manual

01-30000-00
Top view
Side view
Front side Rear view
1. SPECIFICATIONS
1,830
1,675
4,410(4,500) 2,650
1,573(1,566) 1,558(1,551) *Unit: mm, ( ): option
1) Dimensions

01-4

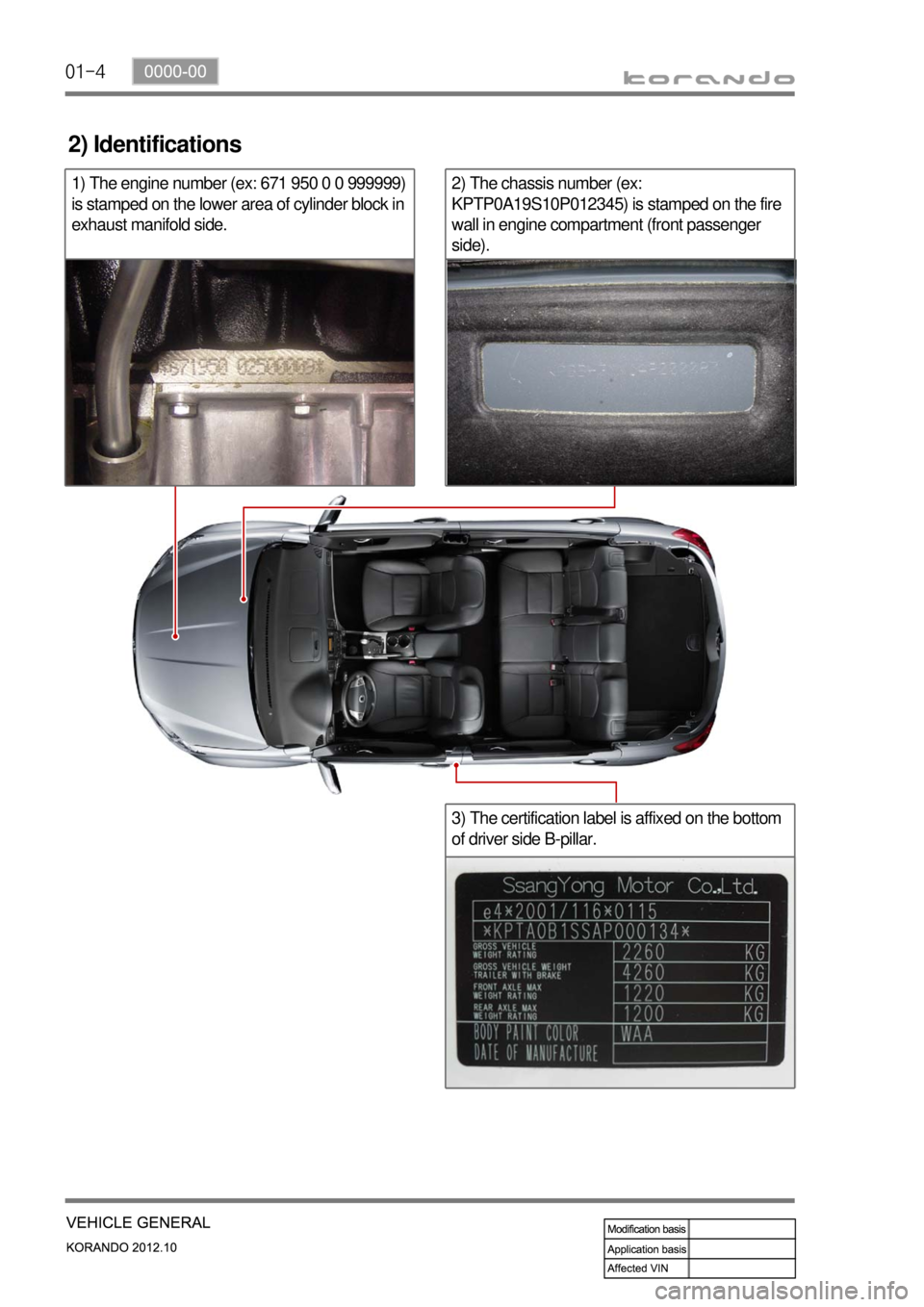

2) Identifications
2) The chassis number (ex:
KPTP0A19S10P012345) is stamped on the fire
wall in engine compartment (front passenger
side).1) The engine number (ex: 671 950 0 0 999999)
is stamped on the lower area of cylinder block in
exhaust manifold side.
3) The certification label is affixed on the bottom
of driver side B-pillar.

01-50000-00

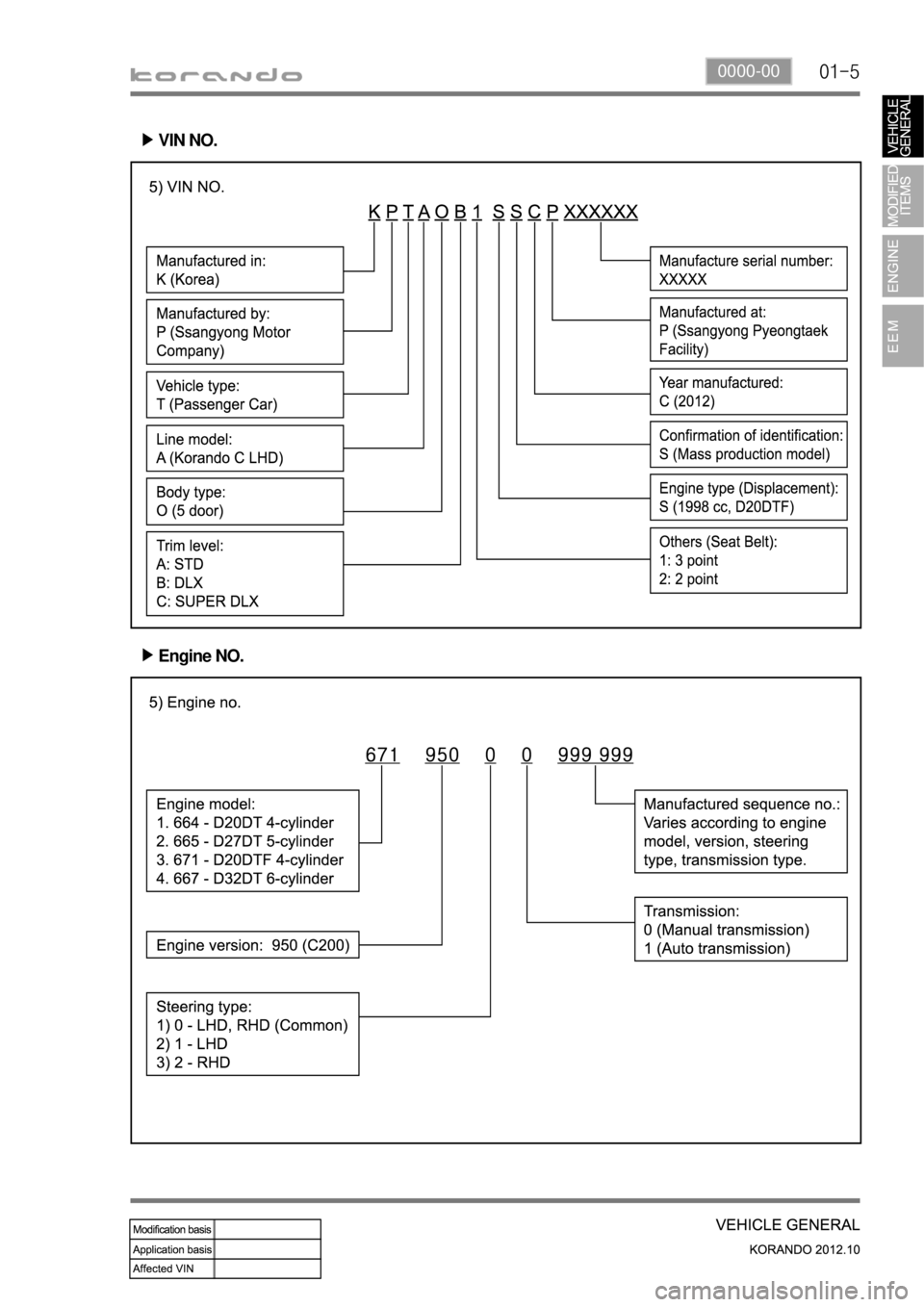

VIN NO. ▶
Engine NO. ▶

01-6
2. SPECIFICATION
DescriptionDiesel 2.0 Engine
(D20DTF(Low CO2))
General Overall length (mm) 4,410 (4,500: with trailer hitch)
Overall width (mm) 1,830
Overall height (mm) 1,675
Gross vehicle
weight (kg)M/T 4WD : 2,065(2,110)
2WD : 1,905(1,920)
Curb vehicle
weight (kg)M/T 4WD : 1,740(1,785)
2WD : 1,580(1,595)
Fuel Diesel
Fuel tank capacity (ℓ)57
Engine Engine D20DTF
Number of cylinders/ Compression ratio 4 / 16.5:1
Total displacement (cc) 1,998
Camshaft arrangement DOHC
Max. power M/T 149 ps / 4,000 rpm
Max. torque 360 Nm / 1,500~2,800 RPM
Idle speed750 ± 20 rpm
Cooling system Water-cooled / forced circulation
Coolant capacity (ℓ)8.5
Lubrication type Gear pump, forced circulation
Max. oil capacity (ℓ)6.0
Turbocharger and cooling type Turbocharger, water-cooled

01-70000-00
Brake Master cylinder type Tandem type
Booster type Vacuum assisted booster type
Brake type Front wheel Disc
Rear wheel Disc
Parking brake Mechanical type
Suspension Front suspension MacPherson + Coil spring
Rear suspension Multi-link + Coil spring
Air
ConditionerRefrigerant (capacity)
R-134a(430 ± 30g)
Electrical Battery type / Capacity (V-AH) MF / 12 - 90
Starter capacity (V-KW) 12 - 2.3
Alternator capacity (V-A) 14V-140A (EPS), 14V-120A (NPS)
* ( ) option
DescriptionDiesel 2.0 Engine
(D20DTF(Low CO2))
Manual
TransaxleOperating type Floor change type
Gear ratio 1st 3.385
2nd 1.708
3rd 1.033
4th 0.786
5th 0.730
6th 0.595
Reverse 3.747
Transfer Case Model 4WD
Type Electronic control type
Clutch Operating type Hydraulic type
Disc type Dry single diaphragm type
Power
SteeringType Rack and pinion
Steering angle Inner39.0°
Outer31.24°
Rear Axle Drive shaft type Independent
suspensionBall joint type (4WD)
Axle housing type Build-up type (4WD)

01-8
3. RECOMMENDED FLUIDS AND LUBRICANTS
Descriptions Capacity Specifications
Engine OilDiesel 2.0≒ 6.0ℓ Quality class: Ssangyong genuine engine oil
(Total Quartz INEO ECS 5W 30, SK ZIC SY
5W 30 or oil Approved by MB 229.51 SAE 5W30)
Engine Coolant Diesel 2.0≒ 8.5ℓ Ssangyong genuine coolant
Anti-Freeze: SYC-1025
Manual Transaxle
Fluid6-speed≒ 1.6ℓ Ssangyong genuine oil (HD MTF 75W/85
(SHELL) or HK MTF 75W/85(SK))
Transfer Case Fluid
4WD ≒ 0.58ℓ Ssangyong genuine oil
(IDEMITSU LW 80W/90)
Rear Axle Oil 4WD ≒ 0.7ℓ Ssangyong genuine oil
(SAE 80W/90, API GL-5)
Brake / Clutch Fluid As required Ssangyong genuine oil (DOT4)
Power Steering Fluid≒ 1.0ℓ Ssangyong genuine oil (ATF DEXRON II)
* TOTAL FLUIDE DA (Extreme cold condition
only)
Use only Ssangyong genuine fluids. Use of non-recommended products could cause damage to
the unit
Keep the specified capacity and service interval. -
-

01-90000-00

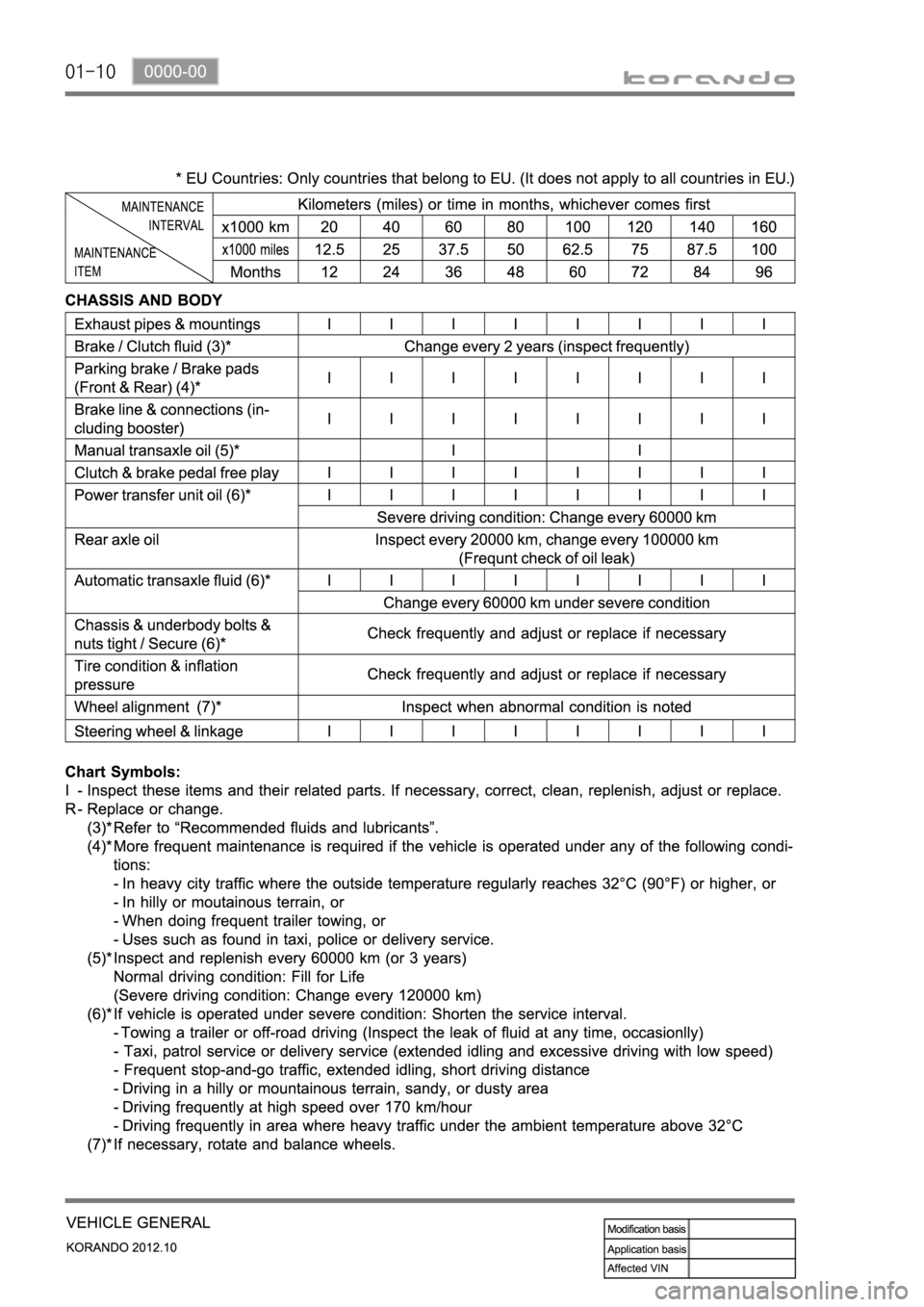

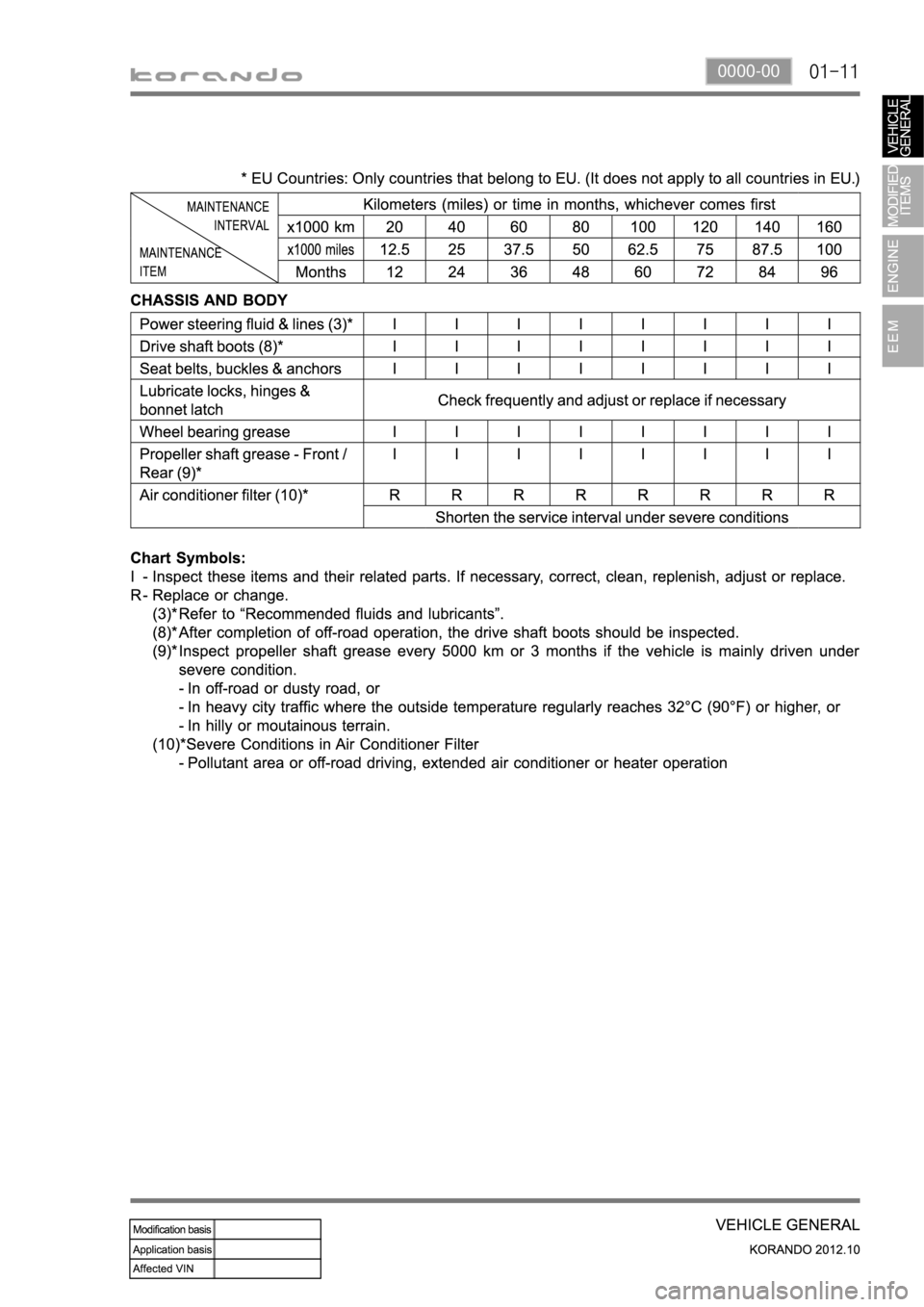

4. SCHEDULED MAINTENANCE SERVICES

01-10

01-110000-00
