SSANGYONG KORANDO 2012 Service Manual

01-70000-00

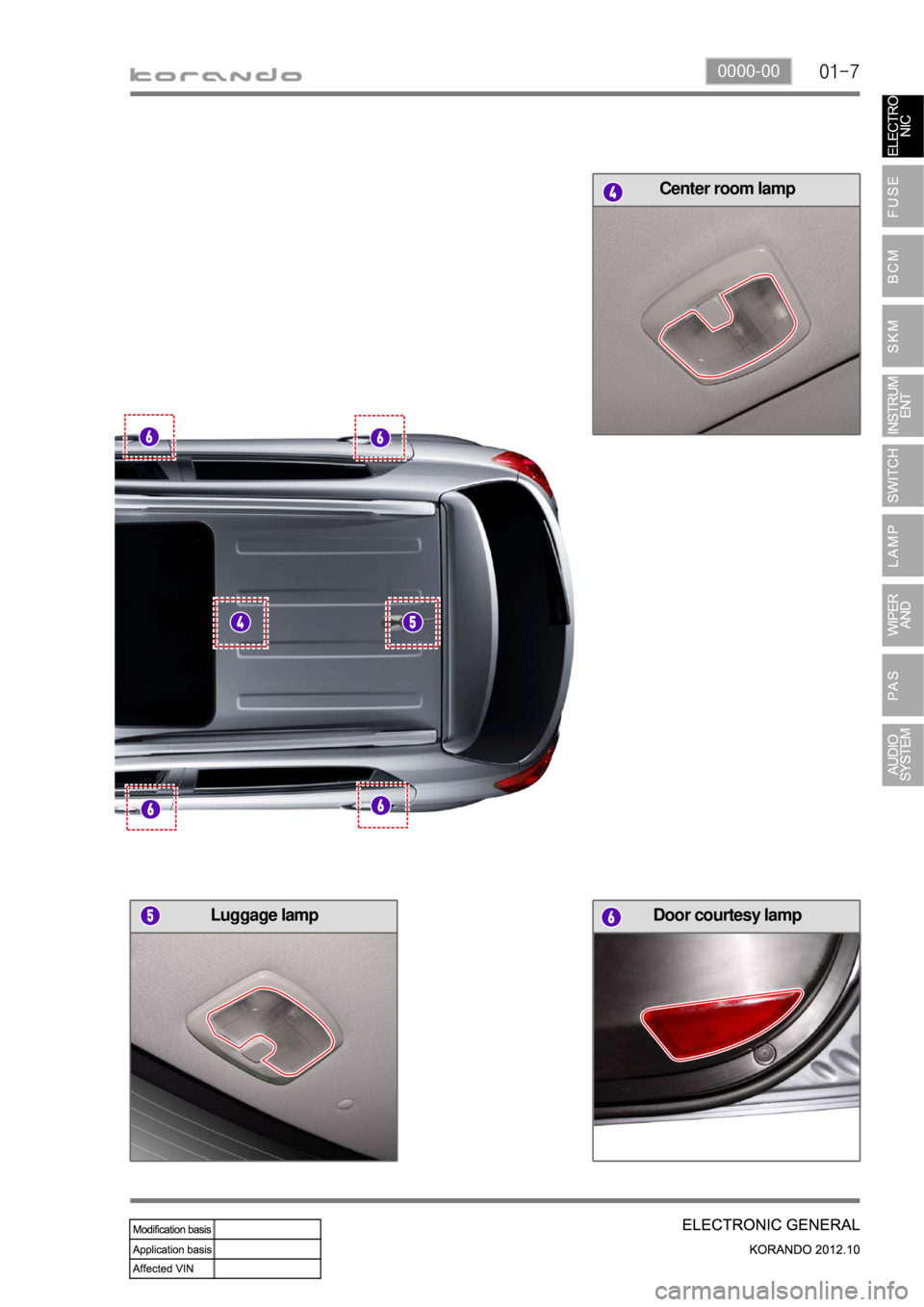

Center room lamp
Luggage lampDoor courtesy lamp

01-8
Steering wheel remote
control switchPassenger door switch
Lower main panel
switch
Start/stop switch
Cruise control switch
Hazard warning switch
bezel assembly
Multifunction switch
FATC switch
Drive door main switch
& Outside rearview mirror
switch
3. SWITCH SYSTEM LAYOUT

01-90000-00
Center room lamp
switch
Front seat heated wire switch
(STD)
Rear door switch (RH)
Overhead console
switch
Rear door switch (LH)
Tailgate switch
Front seat heated wire switch
(DLX)
Luggage lamp switch
Driver power seat
switch

01-10
4. SCHEMATIC DIAGRAM FOR WIRING AND ELECTRICAL
DEVICES
1) Wiring Harness Arrangement

01-110000-00

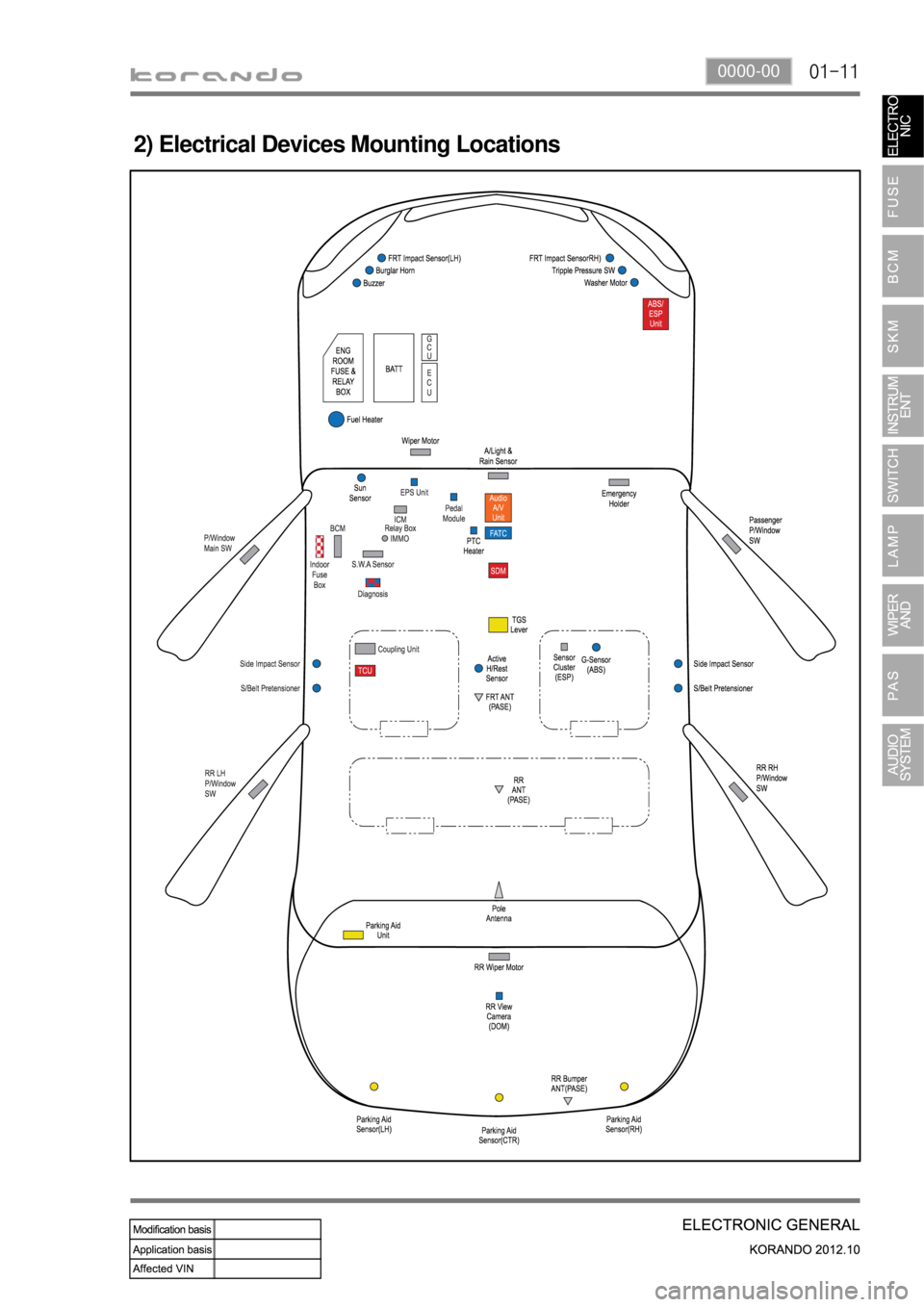

2) Electrical Devices Mounting Locations

01-12

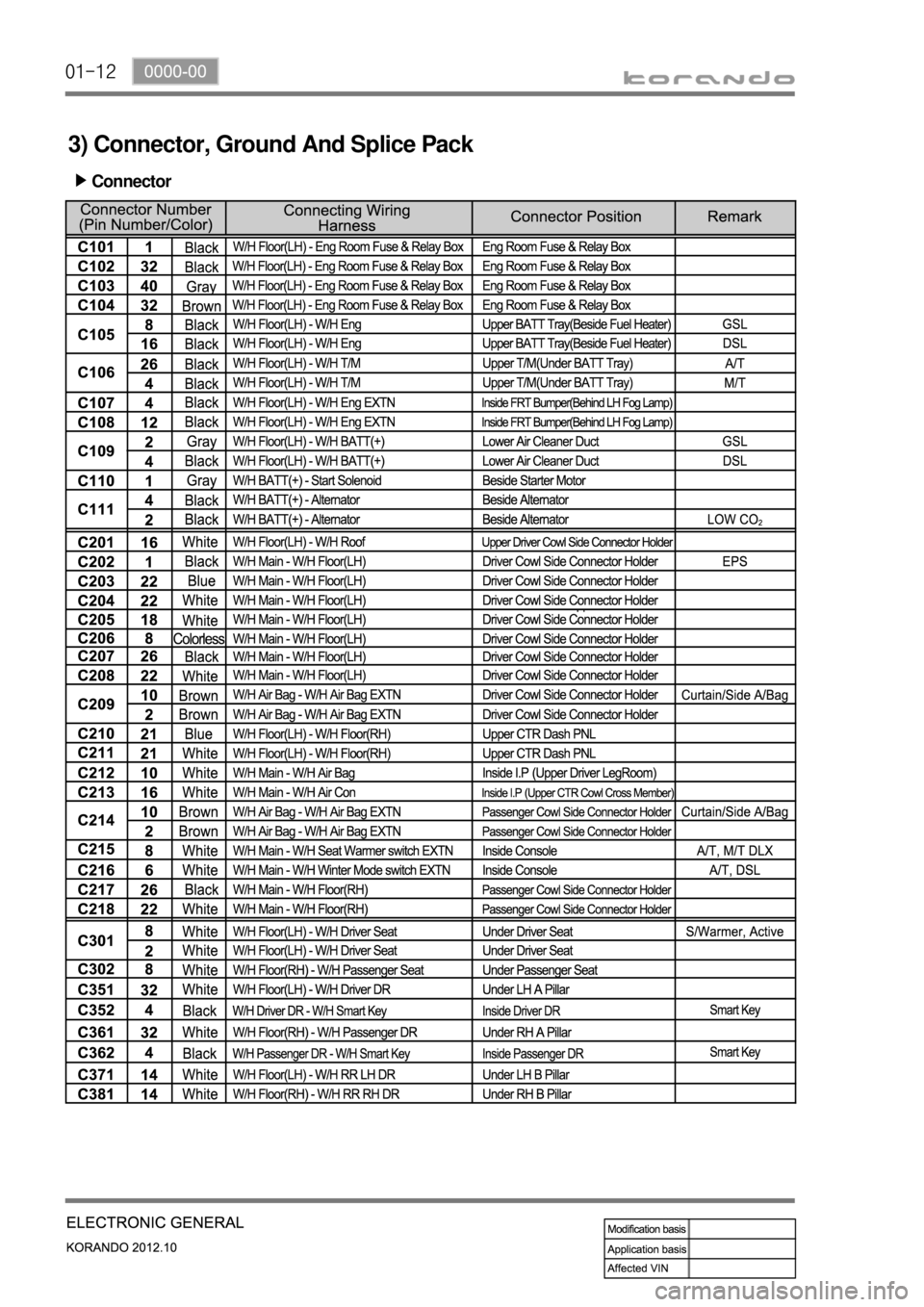

3) Connector, Ground And Splice Pack
Connector ▶

01-130000-00
Ground ▶
Splice pack ▶

01-14
5. CAN COMMUNICATION CONFIGURATION
The CAN topology is linked with CAN communication system, which consists of P-CAN and B-CAN.
The instrument cluster and BCM (Body Control Module) communicate through both P-CAN and B-CAN
at the same time, and the SKM (SMART Key Module) communicates with the instrument cluster and
BCM through B-CAN.
1) CAN Configurations (P-CAN/B-CAN)
Abbreviations Meaning Function
GCU Glow Control Unit Glow control unit
EPS Electronic Power Steering Unit Electrically driven power steering unit
BCM Body Control Module Body control module
SKM Smart Key Module Smart key module

01-150000-00
2) CAN Communication Wiring Diagram
Splice pack Wiring Location
S101 Floor wiring (LH) Under fuse and relay box in engine compartment
S102 Floor wiring (RH) Inside of right fender
S201 Main wiring Behind the instrument cluster (cowl cross member)
S202 Main wiring Behind the instrument cluster (cowl cross member)
S205 Floor wiring (LH) Bottom of driver seat (front right)
