1. SPECIFICATION
Unit Description Specification
Start motorCapacity 12V 1.4kw
Engagement Meshed type
Rotating direction Clockwise
Solenoid operating voltage Max. 8V
Weight 2.5kg

Page 452 of 1082

SSANGYONG KORANDO 2012  Service Manual 11-4

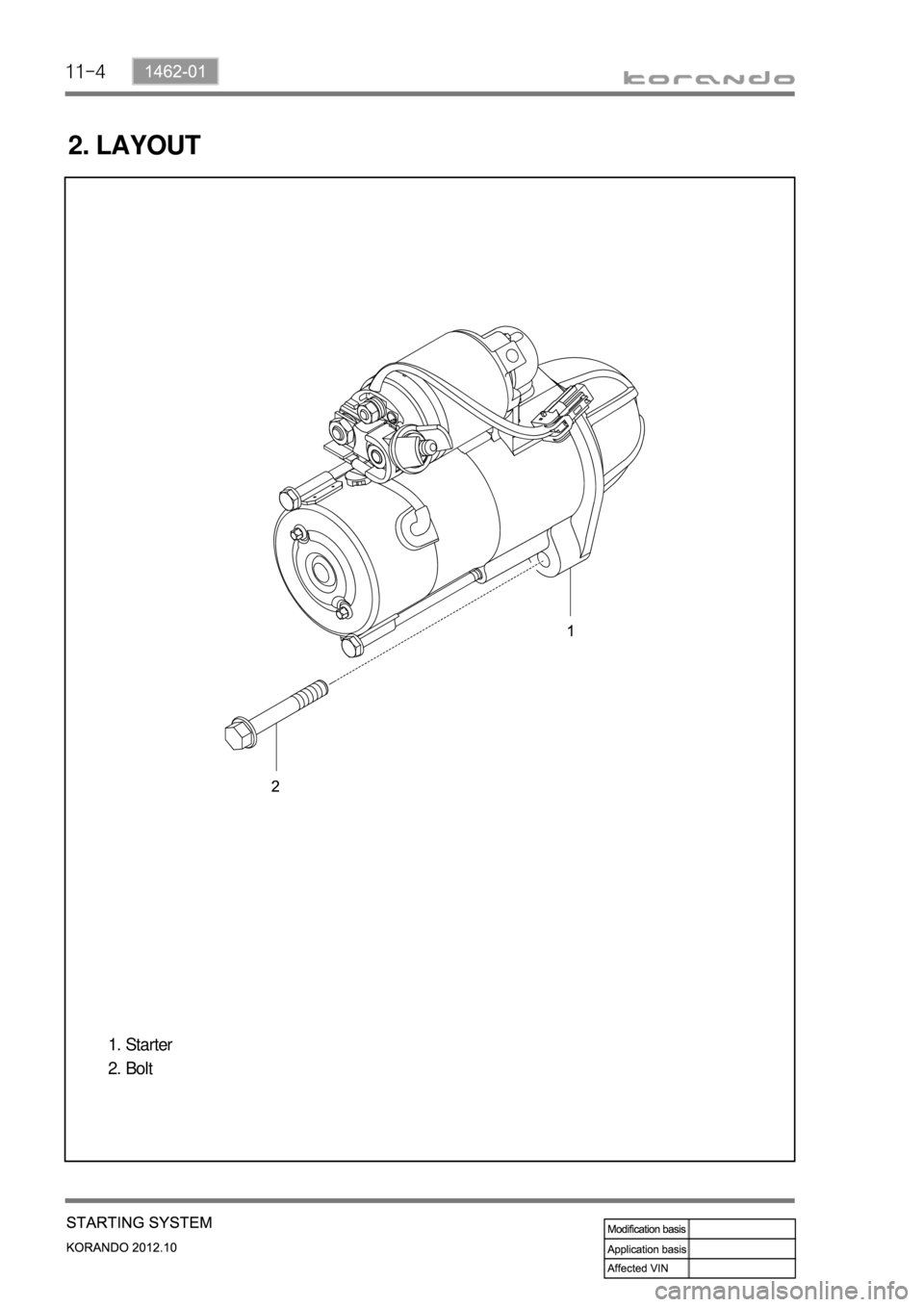

2. LAYOUT
Starter
Bolt 1.
2.

Page 453 of 1082

SSANGYONG KORANDO 2012  Service Manual 11-51462-01
3. TROUBLESHOOTING
Problem Possible Cause Action
Engine will not
crankLow battery voltage Charge or replace
Loose, corroded or damaged battery cable
Repair or replace
Faulty starter or op

Page 454 of 1082

SSANGYONG KORANDO 2012  Service Manual 11-6
Start motor assembly
1. OVERVIEW
The starter (start motor) starts the engine with rotational power by converting the electric energy to the
mechanical energy.
When the engine is cranking, the pi

Page 455 of 1082

SSANGYONG KORANDO 2012  Service Manual 11-71462-01

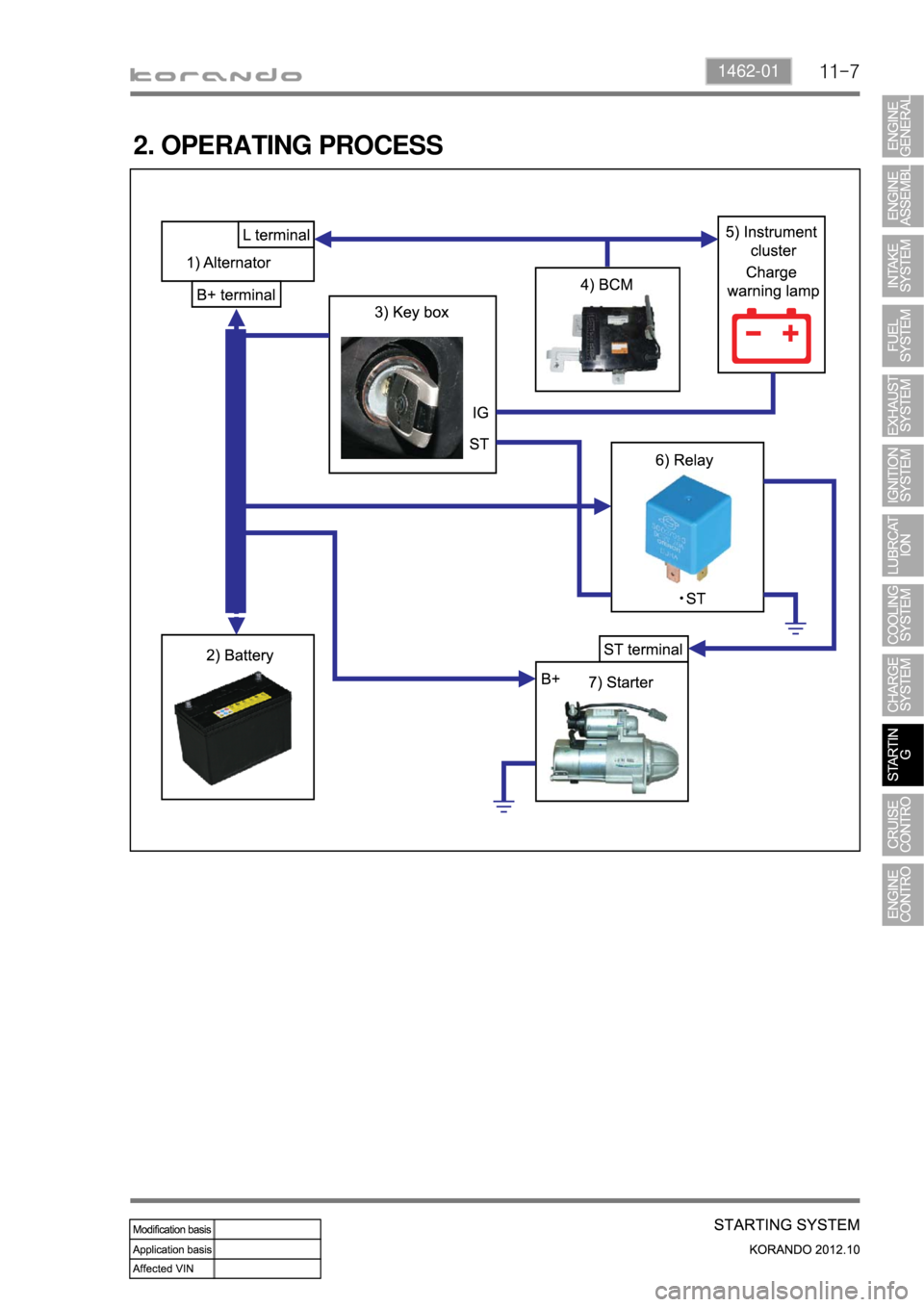

2. OPERATING PROCESS

Page 456 of 1082

SSANGYONG KORANDO 2012  Service Manual 11-8

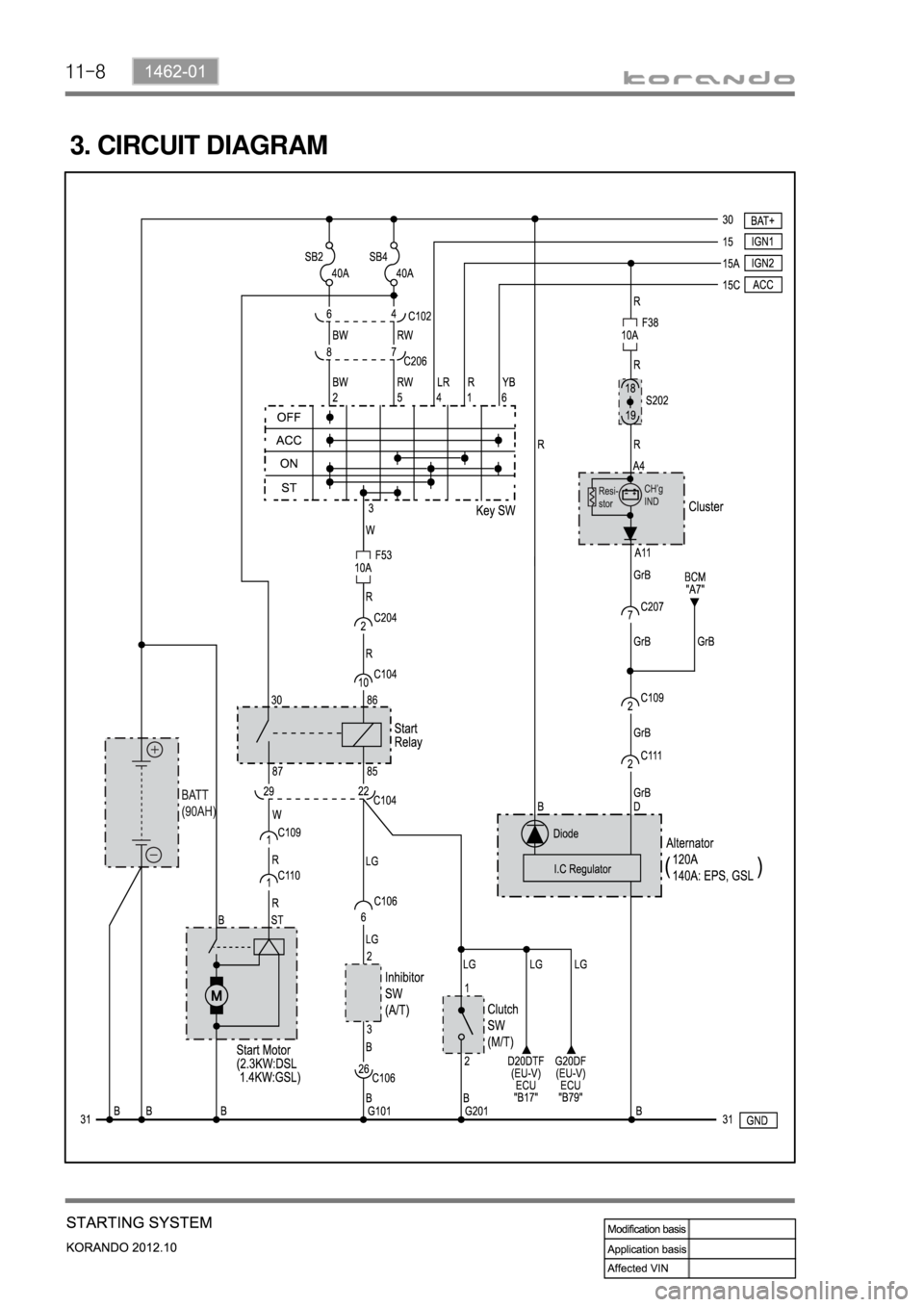

3. CIRCUIT DIAGRAM

Page 457 of 1082

SSANGYONG KORANDO 2012  Service Manual 12-38530-00
1. OVERVIEW
1) System Description
The cruise control is an automatic speed control system that maintains a desired driving speed without
using the accelerator pedal.
The vehicle speed mus

Page 458 of 1082

SSANGYONG KORANDO 2012  Service Manual 12-4
2) Traffic Conditions for Using Cruise Control
Use the cruise control system only when the traffic is not jammed, driving on motorways or highways
where there is no sudden change in the driving

Page 459 of 1082

SSANGYONG KORANDO 2012  Service Manual 12-58530-00
2. CONFIGURATION
1) Circuit Diagram
The engine ECU detects the operating conditions of cruise control system, and monitors the braking
performance, vehicle speed, road conditions and ESP

Page 460 of 1082

SSANGYONG KORANDO 2012  Service Manual 12-6
2) Components
Test voltage(VCC 5V)
FUNCTION KEY VOLUE REMARK
MAIN  0.15 ~ 0.55V  -
DECEL  0.7 ~ 1.1V  -
ACCEL  1.6 ~ 2.0V  -
RESUME  2.52 ~ 2.92V  -
ECO  4.22 ~ 4.82V  -
