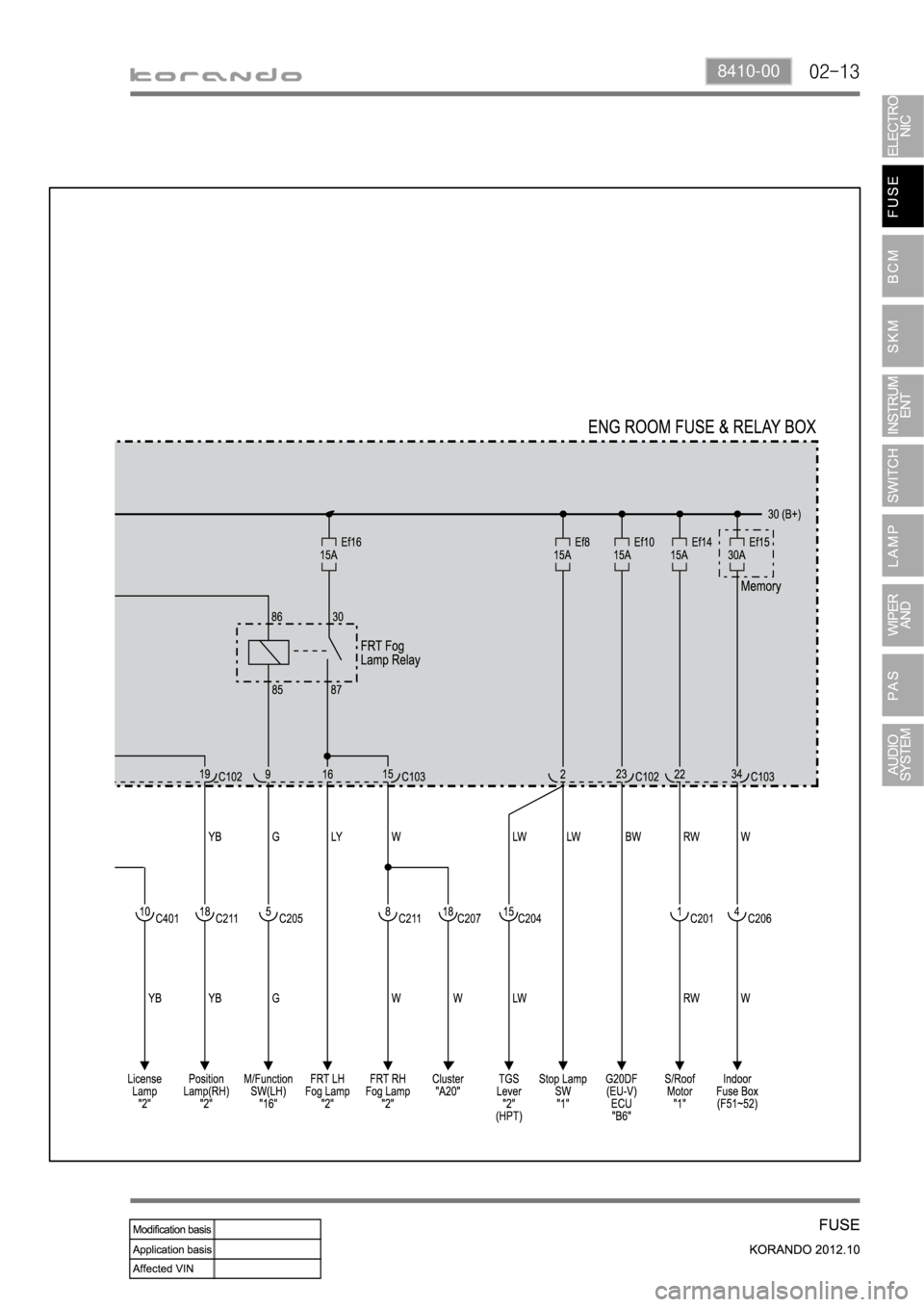

SSANGYONG KORANDO 2012 Service Manual 02-138410-00

Page 552 of 1082

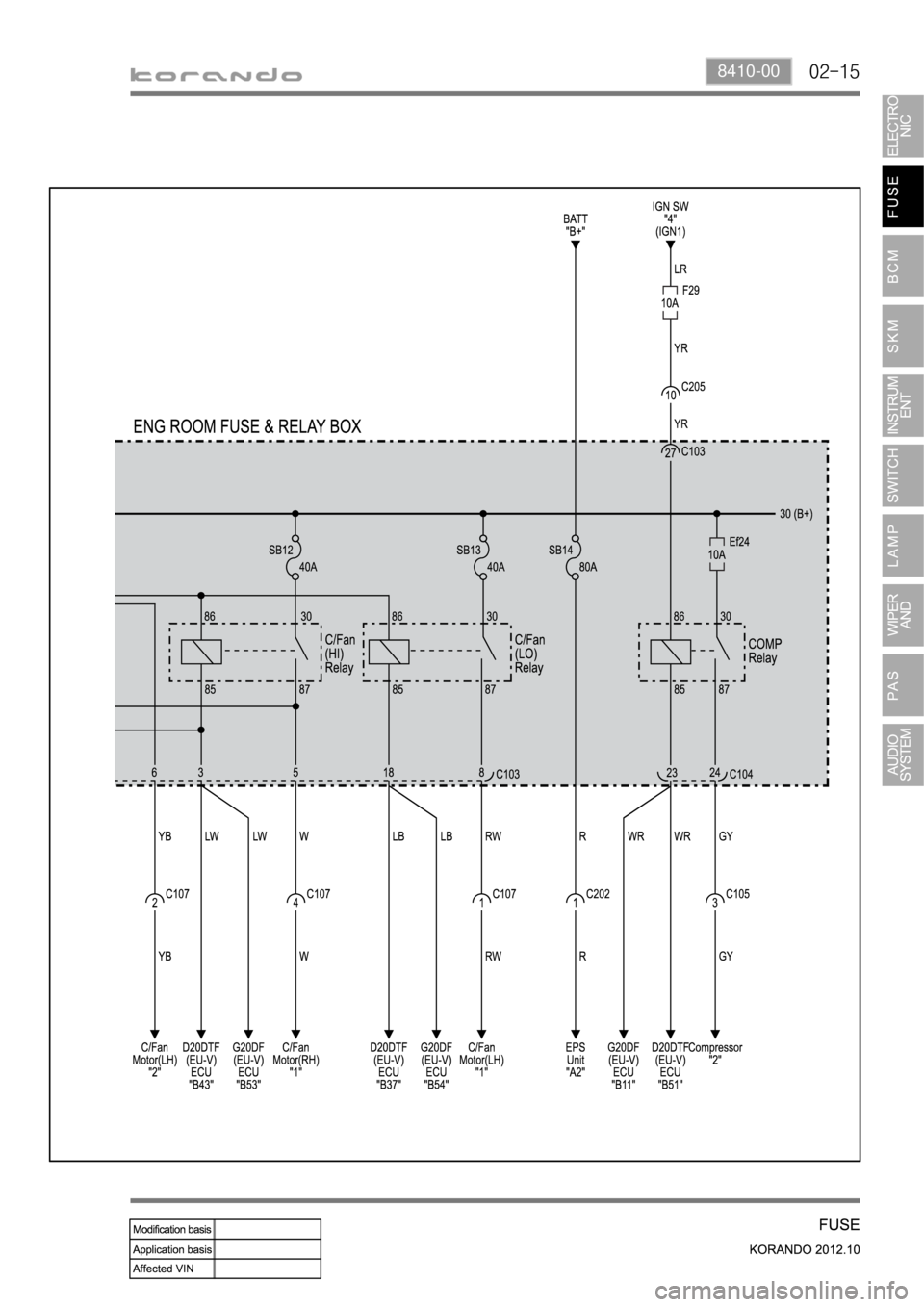

SSANGYONG KORANDO 2012 Service Manual 02-14 Engine compartment fuse and relay box V (Ef17, Ef20~Ef23, Ef25~Ef26, WIPER MOTOR RELAY(HI, LO), HORN RELAY, POWER WINDOW RELAY) ▶

Page 553 of 1082

SSANGYONG KORANDO 2012 Service Manual 02-158410-00

Page 554 of 1082

SSANGYONG KORANDO 2012 Service Manual 02-16 2) Interior Fuse Box The interior fuse box is located in the left side of the instrument panel. To remove this fuse box, disconnect the main wiring first. Capacity and name of interior fuse and

Page 555 of 1082

SSANGYONG KORANDO 2012 Service Manual

Page 556 of 1082

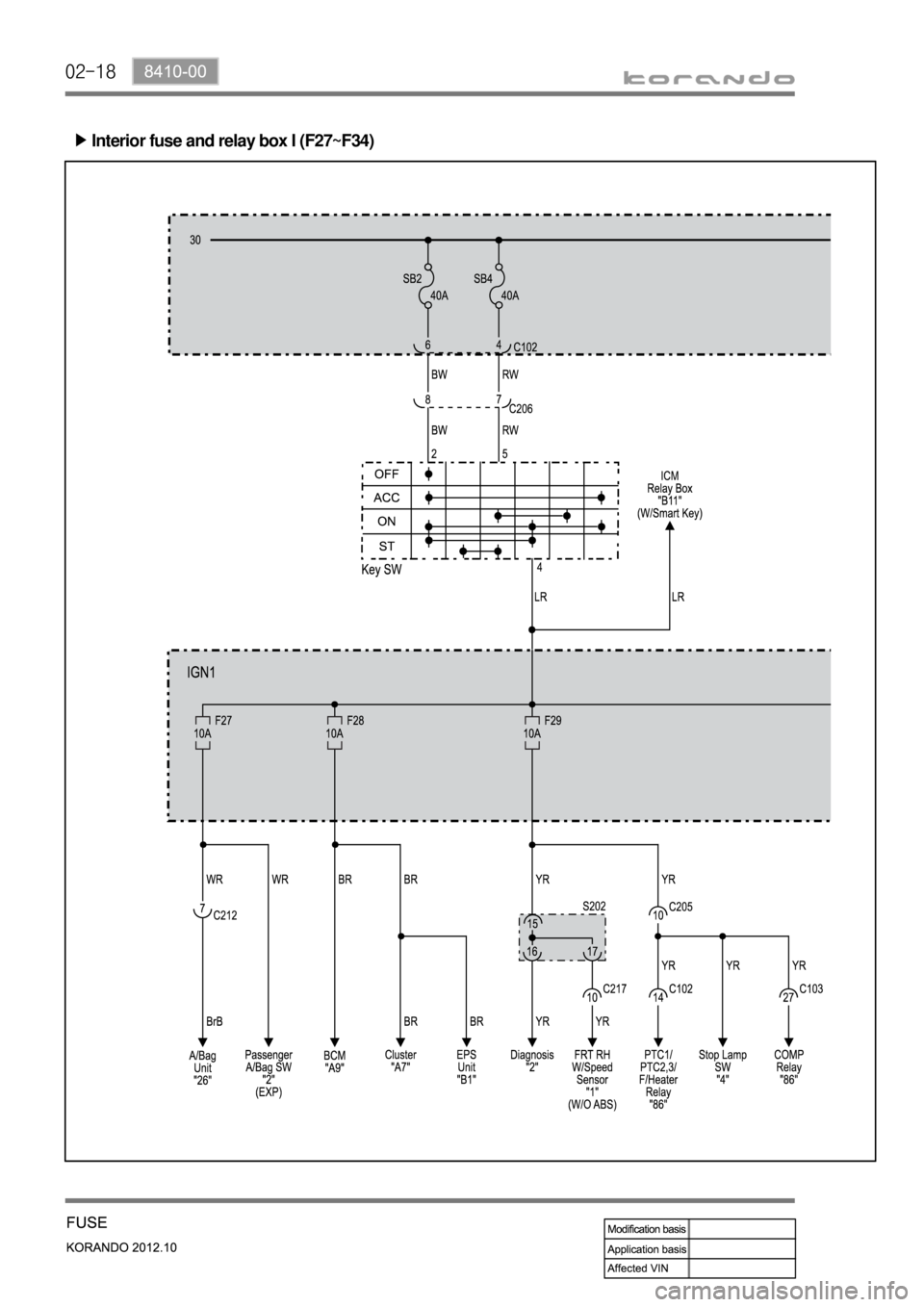

SSANGYONG KORANDO 2012 Service Manual 02-18 Interior fuse and relay box I (F27~F34) ▶

Page 557 of 1082

SSANGYONG KORANDO 2012 Service Manual 02-198410-00

Page 558 of 1082

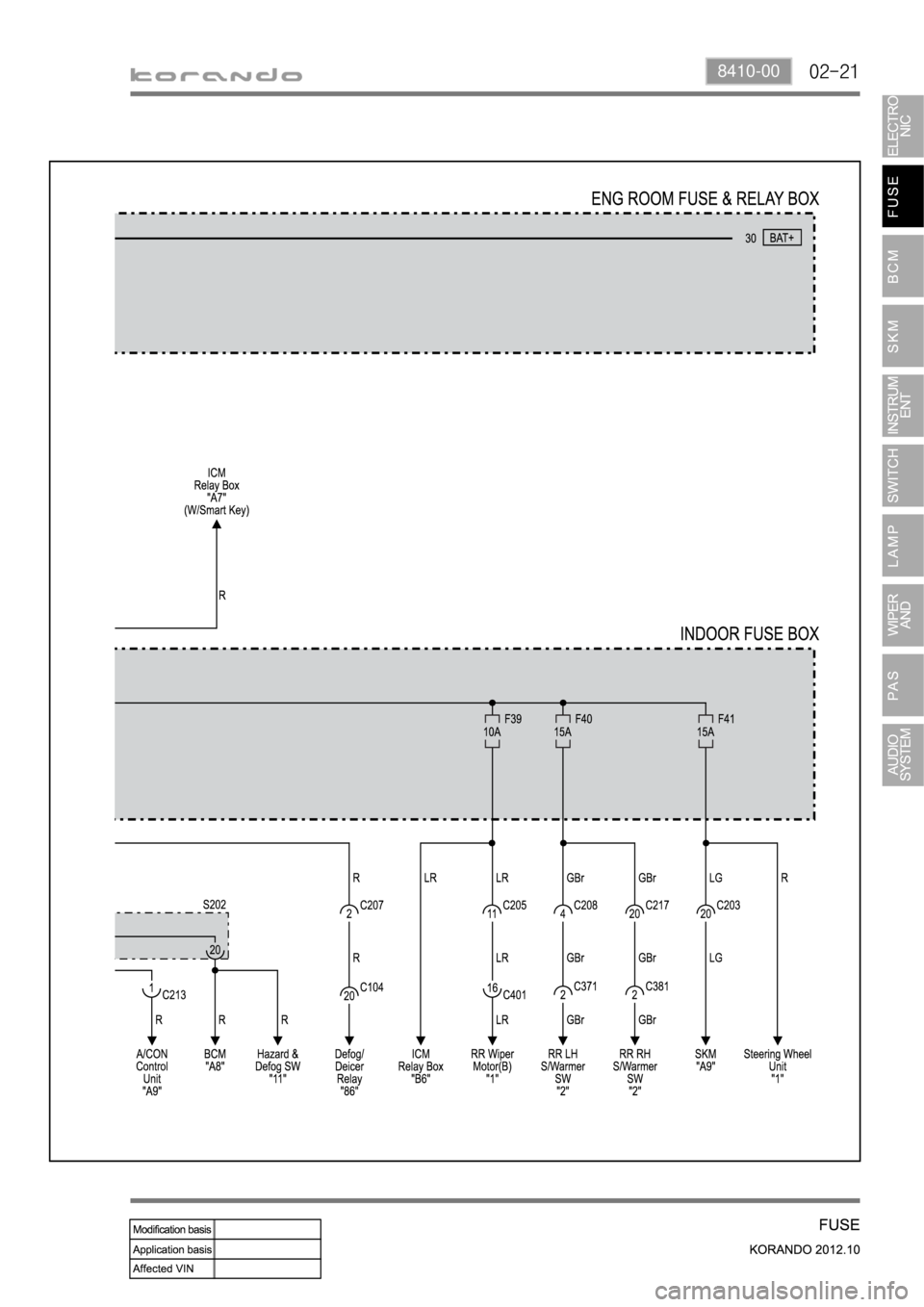

SSANGYONG KORANDO 2012 Service Manual 02-20 Interior fuse and relay box II (F35~F41) ▶

Page 559 of 1082

SSANGYONG KORANDO 2012 Service Manual 02-218410-00

Page 560 of 1082

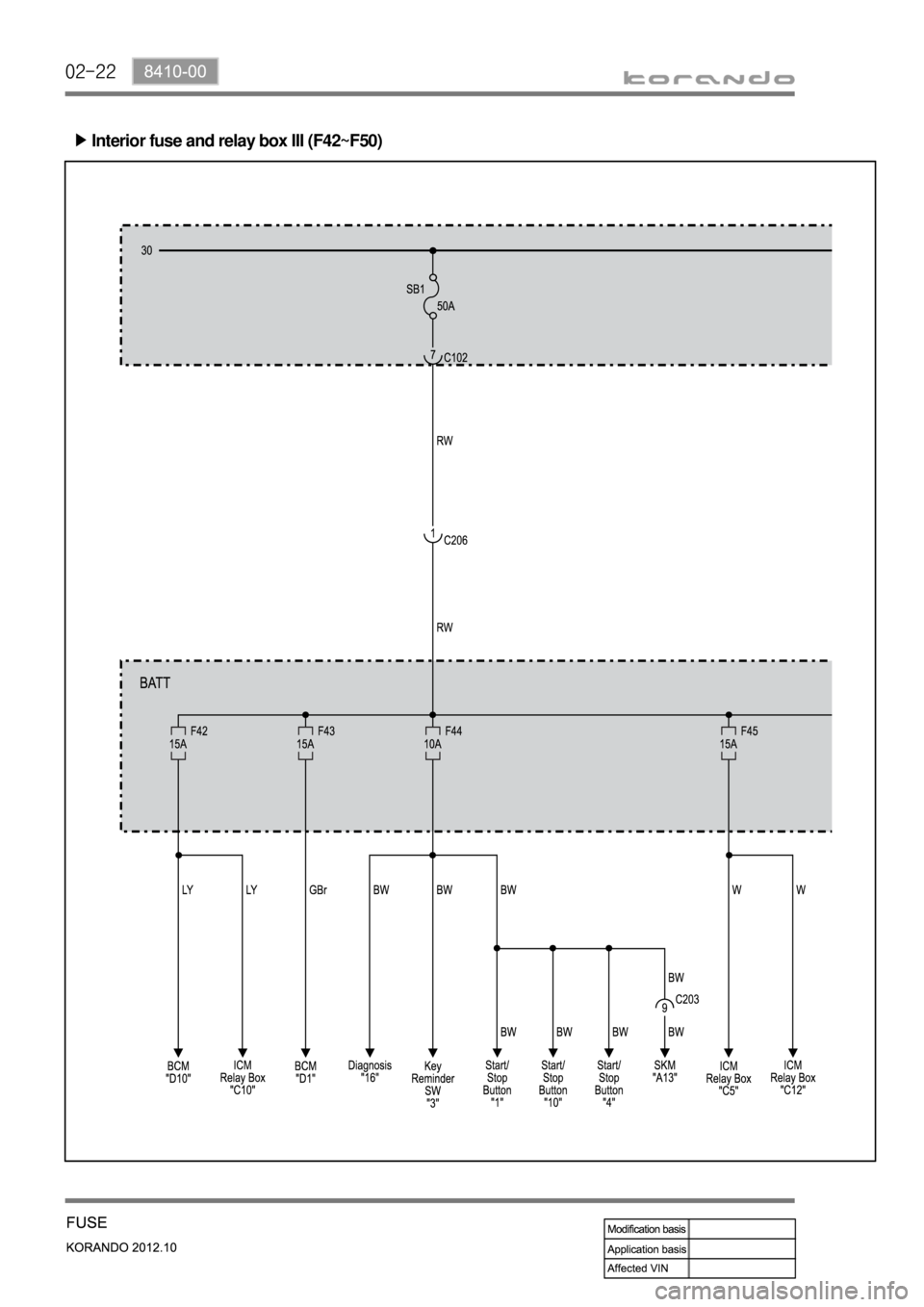

SSANGYONG KORANDO 2012 Service Manual 02-22 Interior fuse and relay box III (F42~F50) ▶
