SSANGYONG KORANDO 2012 Service Manual

03-158710-01
Power-up reminder wiper ▶
If the intermittent/automatic wiper switch is in "ON" position, the wiper motor does not operate even
when turning the ignition switch to ON from OFF position.
When turning the intermittent/automatic wiper switch to ON from OFF position with IGN ON, the wipers
operate once at low speed initially regardless of the communication with the rain sensor. After that, the
wipers operate once at low speed only when the rain sensor detects
the side fascia panel. 1.
2.

03-16
Washer coupled wiper in rain sensing mode ▶
When the washer switch signal is received during intermittent operation coupled with rain sensor
with IGN ON and intermittent/automatic washer switch operation, the wipers operate in washer
coupled mode regardless of the communication with the rain sensor. However, if the washer switch
signal is received the washer relay is activated and wiper relay remains activated, when the data
coupled with rain sensor indicates continuous wiper operation.
Even though the wiping system is in washer coupled wiper mode, the operating data are sent to rain
sensor. 1.
2.
Sensitivity adjustment (instant wiping) ▶
When the wiping speed control switch is turned to "FAST" with IGN2 ON, intermittent/automatic wiper
switch in "ON" position and wiper motor stop (parking position), the wiper motor operates one cycle at
low speed.
(only when the rain sensor detects raindrops)
If the wiping speed control switch is changed more than 2 stages within 2 seconds, the wiper motor
operates only one cycle. 1.
*

03-178710-01
Processing method for abnormal wiper parking signal ▶
The wiper system sends continuously the signal for current status when the wiper parking terminal is
shorted to ground with IGN2 ON and intermittent wiper switch in "ON" position.
The wiper motor runs only when the rain sensor requires the wiper operation. 1.*
When the parking terminal is shorted to power with IGN2 ON and intermittent wiper switch in "ON"
position, the wiper system sends the signal for current wiping status for 2 seconds. After that, it sends
the current signal for parking status continuously.
The wiper motor runs only when the rain sensor requires the wiper operation. 2.*

03-18
Processing method for rain sensor malfunction ▶
If the BCM is received the signal for sensor malfunction from the rain sensor unit when turning the
wiping speed control switch to 2 from 3 stage with IGN ON and intermittent/automatic wiper switch in
"ON" position, the wiper motor operates one cycle at low speed. 1.
If the BCM is received the signal for communication error from the rain sensor unit when turning the
wiping speed control switch to 3 from 4 stage with IGN ON and intermittent/automatic wiper switch in
"ON" position, the wiper motor operates one cycle at low speed. 2.

03-198710-01
Speed sensitive intermittent wiper ▶
The BCM without rain sensor operates the wiper as follows:
When turning the ignition switch to ON from OFF position with the intermittent wiper switch in "ON"
position, the wipers do not operate.
When turning the wiper switch to ON from OFF position after turning the ignition switch to ON position,
the wipers operate one cycle.
The wiper's operation cycle depends on the vehicle speed (CAN communication with instrument
cluster) and wiping speed the side fascia panel.
<0054004700760097008c00990088009b0090009600950047008a00a0008a0093008c00610047005a00b700570055005c0047009a008c008a0047004f006d0068007a007b00500047009b009600470058006000b700590047009a008c008a0047004f007a00
730076007e0050> 1.
2.
3.

03-20
Wiper low/high control ▶
The wiper low relay is activated when the wiper low switch is operated and the wiper high relay
activated when the wiper high switch is operated.
The wiper motor returns to parking position and stops, even when turning off the ignition switch during
wiper operation.
The wiper relay should remain activated during wiper operation in low/high mode even though the
system does not receive P-POS signal. (During intermittent/automatic wiper operation, the wiper relay
should be deactivated after 5 seconds if there is no P-POS signal for 3 seconds in order to inform the
driver of faulty signal)
While the wiper operates at low/high speed, the front/rear washer switch can be operated but the auto
washer switch cannot.
The wiper motor returns to parking position and stops when turning off the ignition switch during wiper
operation in high mode. 1.
2.
3.
4.
5.

03-218710-01
2) Ignition Key Reminder
Key reminder warning
(This function has priority over the "Tail lamp on warning".) ▶
When opening the driver door while the ignition key is inserted into the key cylinder, the buzzer sound
for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF.
When removing the ignition key or closing the driver door during the buzzer output (within 10
seconds), the buzzer stops its operation.
This function is not available when the ignition switch (IGN1) is in "ON" position. 1.
2.
3.

03-22

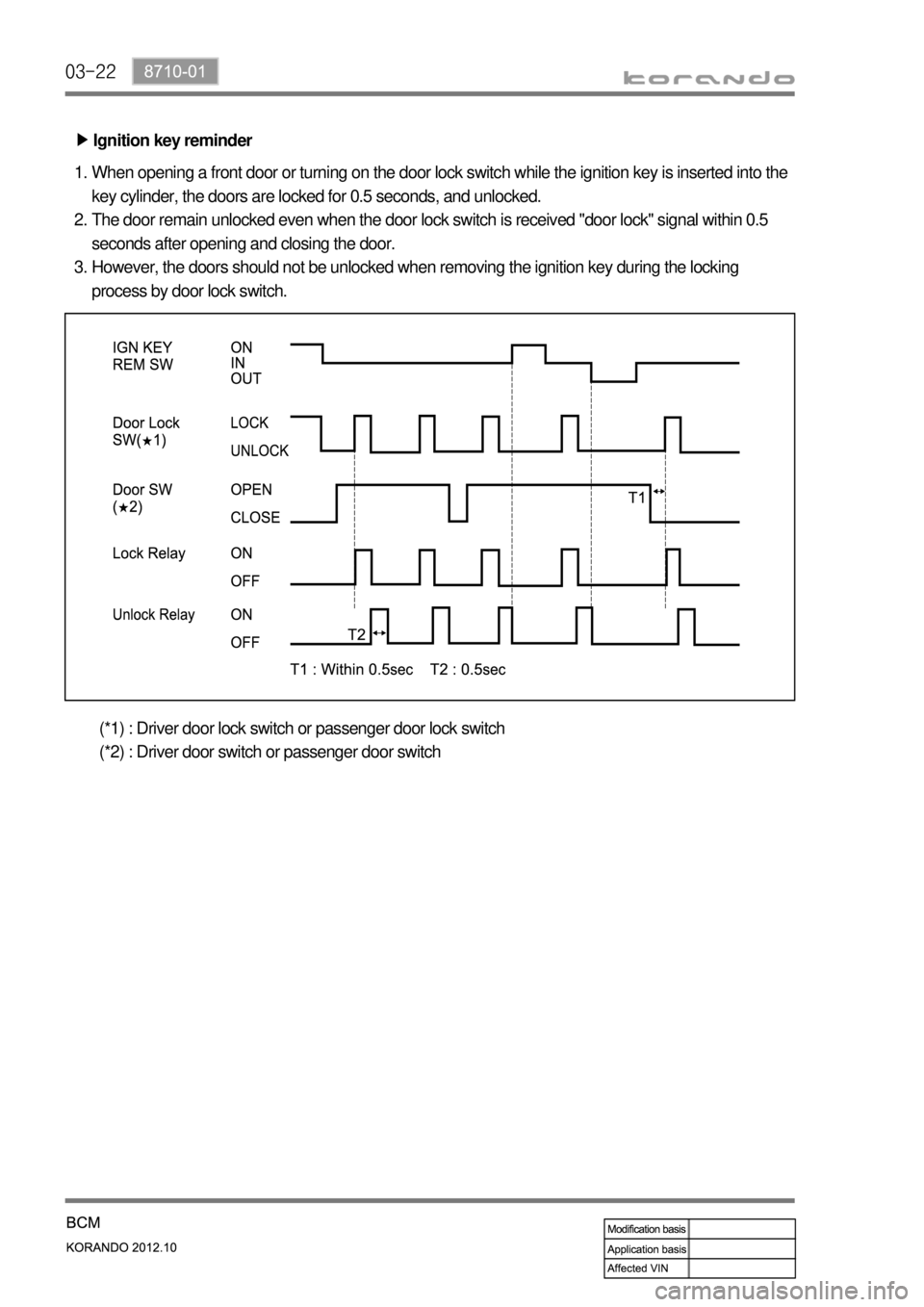

Ignition key reminder ▶
When opening a front door or turning on the door lock switch while the ignition key is inserted into the
key cylinder, the doors are locked for 0.5 seconds, and unlocked.
The door remain unlocked even when the door lock switch is received "door lock" signal within 0.5
seconds after opening and closing the door.
However, the doors should not be unlocked when removing the ignition key during the locking
process by door lock switch. 1.
2.
3.
(*1) : Driver door lock switch or passenger door lock switch
(*2) : Driver door switch or passenger door switch

03-238710-01
Anti-lock function when a door is open ▶
If any of doors (except tailgate and engine hood) is open, the doors are locked once but immediately
unlocked when receiving the lock signal.
The door remains unlocked for 0.5 seconds when closing the door during unlock.
The system also performs operation as above while the key is removed or the ignition switch is
turned to "ON" position. The ignition key reminder function is activated while the ignition key is
inserted into the key cylinder.
This function is not available when the vehicle speed is over 10 km/h. 1.
2.
3.
4.
(*1) : Driver door lock switch or passenger door lock switch
(*2) : Driver door switch or passenger door switch

03-24
3) Tail Lamp
Tail lamp left ON warning (sunroof and ignition key reminder functions have priority) ▶
The buzzer sounds for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF when opening the
driver door with the key removed (without SKM)/with IGN OFF or ACC (with SKM) and tail lamp ON.
The buzzer stops its operation when turning off the tail lamp or closing the driver door during buzzer
operation. The buzzer stays ON when turning the tail lamp on again after turning it off during buzzer
operation.
This function is not available when the ignition switch (IGN1) is in ON position. 1.
2.
3.
