03-58710-01
FunctionSKM
without
BCMSKM
with
BCM
10 Keyless entry
controlTransmitter O X
Receiver O X
Remote door lock O X
Remote door unlock O X
Remote panic O X
After 30 seconds delay auto door lock O X
11 Door lock/unlock
controlLock/unlock control by door lock
controlOO
Lock/unlock control by central door lock
switchOO
Lock/unlock control by REKES signal O X
Lock/unlock control by SKM REKES
controlXO
Lock/unlock control by SKM passive entry X O
Auto door lock control O O
Auto door unlock (crash signal) control O O
12 Panic alarm Panic alarm control by REKES signal O X
Panic alarm control by SKM REKES FOB X O
13 Headlamp control
(escort)Coming-home-light control O O
14 Tailgate open control Tailgate open control in BCM without SKM O X
Tailgate open control in BCM
with SKMXO
Page 572 of 1082
03-6
FunctionSKM
without
BCMSKM
with
BCM
15 Theft deterrent control Theft deterrent mode control in
controlOX
Theft deterrent mode control in smart BCM X O
16 Time lag power
window controlTime lag power window control O O
17 System power sleep
modeSystem power sleep mode control O O
18 Flasher (blinking)
functionLH turn signal control O O
RH turn signal control O O
Hazard warning flasher switch control O O
Hazard warning flasher indicator control X X
Auto hazard warning flasher control O O
Emergency hazard warning flasher control
(coupled with ABS)OO
19 DRL (Daytime Running
Light) controlDRL (Daytime Running Light) control X X
20 Fog lamp control Fog lamp control O O
21 Auto light
control (LIN)Auto light control O O
22 Immobilizer function Key coding and synchronization O X
Challenge O X
CAN information O X
23 Mirror folding/unfolding
controlFolding/unfolding control O O
Auto folding/unfolding control O O
24 Approach (puddle)
lamp control
Approach (puddle) lamp control in BCM without
SKMOX
Approach (puddle) lamp control in BCM with
SKMXO
25 SKM warning buzzer
controlSKM warning buzzer control X O
26 Diagnosis function O O
Page 573 of 1082
03-78710-01
3. MAJOR CHANGES
Emergency hazard warning flasher control
Previous Current
Operating condition
If the emergency braking signal is received, the
hazard warning flasher blinks 4 times/second for
10 seconds.
Deactivation conditions:
Returns to normal operation after blinking 4
times/second
Deactivated when hazard warning flasher
switch is pressed once during operation by
emergency braking signal 1.
2.Operating condition
If the emergency braking signal is received, the
hazard warning flasher blinks 4 times/second for
10 seconds.
Operation priority
Hazard warning flasher switch → Emergency
braking signal → Emergency hazard warning
flasher → Multi-function automatic hazard
warning flasher
Deactivation conditions:
Vehicle speed exceeds 50 km/h when
emergency braking signal is received
(activated at speed of 50km/h or less)
Vehicle speed increases more than 10 km/h
above the speed when the signal is received
during operation by emergency braking signal
Turn emergency hazard warning flasher switch
OFF during operation by emergency braking
signal
Deactivated automatically 10 seconds after if
items 2) and 3) above are not met during
operation by emergency braking signal
If multi-function automatic hazard warning
flasher signal is received during operation by
emergency braking signal, it will be overridden. 1.
2.
Page 574 of 1082
03-8

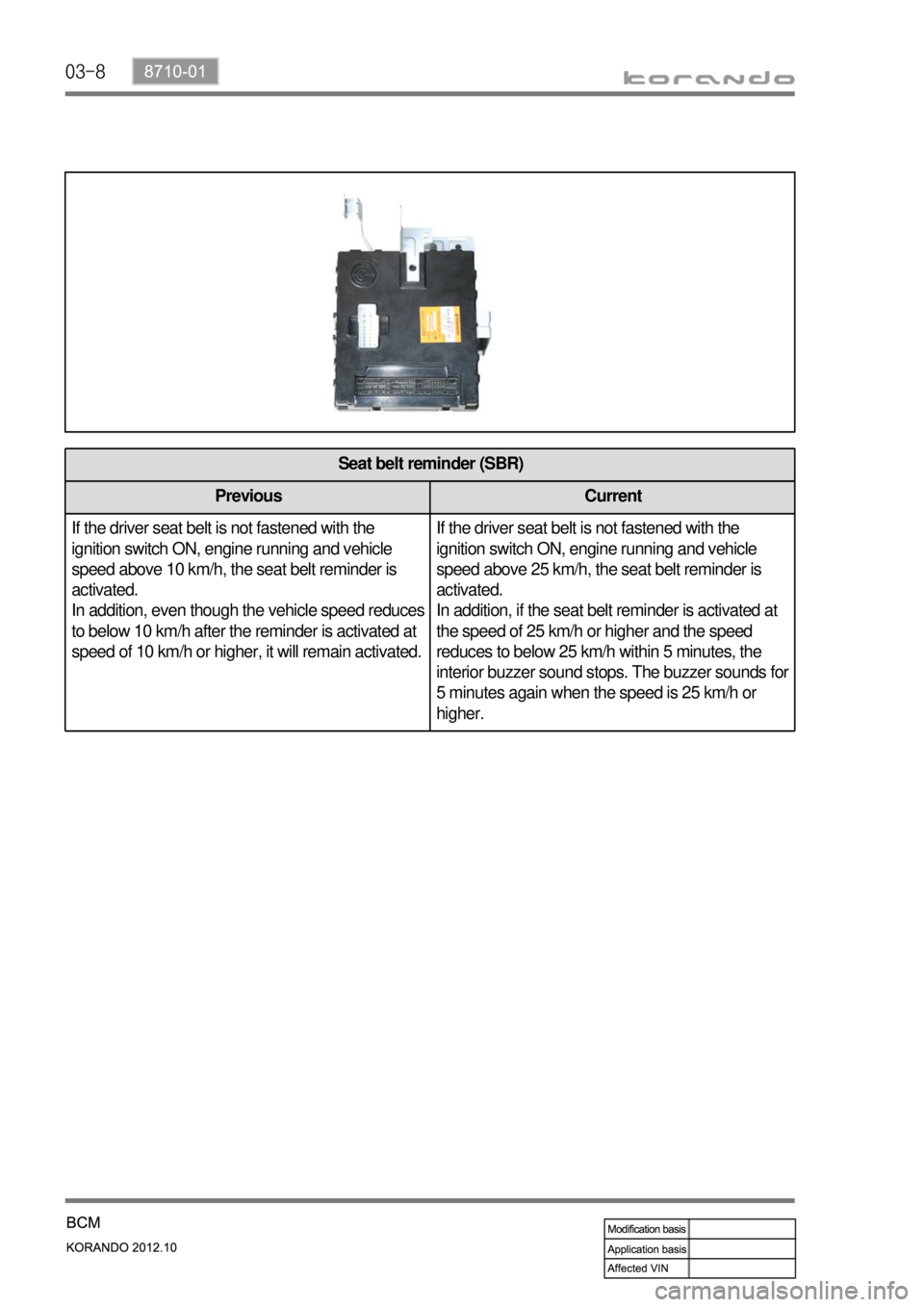

Seat belt reminder (SBR)
Previous Current
If the driver seat belt is not fastened with the
ignition switch ON, engine running and vehicle
speed above 10 km/h, the seat belt reminder is
activated.
In addition, even though the vehicle speed reduces
to below 10 km/h after the reminder is activated at
speed of 10 km/h or higher, it will remain activated.If the driver seat belt is not fastened with the
ignition switch ON, engine running and vehicle
speed above 25 km/h, the seat belt reminder is
activated.
In addition, if the seat belt reminder is activated at
the speed of 25 km/h or higher and the speed
reduces to below 25 km/h within 5 minutes, the
interior buzzer sound stops. The buzzer sounds for
5 minutes again when the speed is 25 km/h or
higher.
Page 575 of 1082
03-98710-01
1. OVERVIEW & FUNCTIONS
BCM (Body Control Module) controls the electric equipment on car body and outputs the control and
warning signals as below.
List Function List Function
1 Wiper control 14 Tailgate open control
2 Ignition key reminder warning 15 Theft deterrent
3 Tail lamp control 16 Time lag power window control
4 Door ajar warning 17 System power sleep mode
5 Seat belt control 18 Flasher function
6 Sunroof warning 19 DRL (daytime running lamp) control
7 Room lamp control 20 Fog lamp control
8 Key hole illumination control 21 Auto light control (LIN)
9 Defogger control 22 Immobilizer function
10 Keyless entry function 23 Folding/unfolding function
11 Door lock/unlock control 24 Approach (puddle) lamp control
12 Panic alarm 25 SKM warning buzzer control
13 Headlamp control (escort) 26 Diagnosis function
