Front seat heated wire and ventilation switch
Heated wire Heated wire and
ventilation
Front seat belt (3-point type)Front seat and seat switch

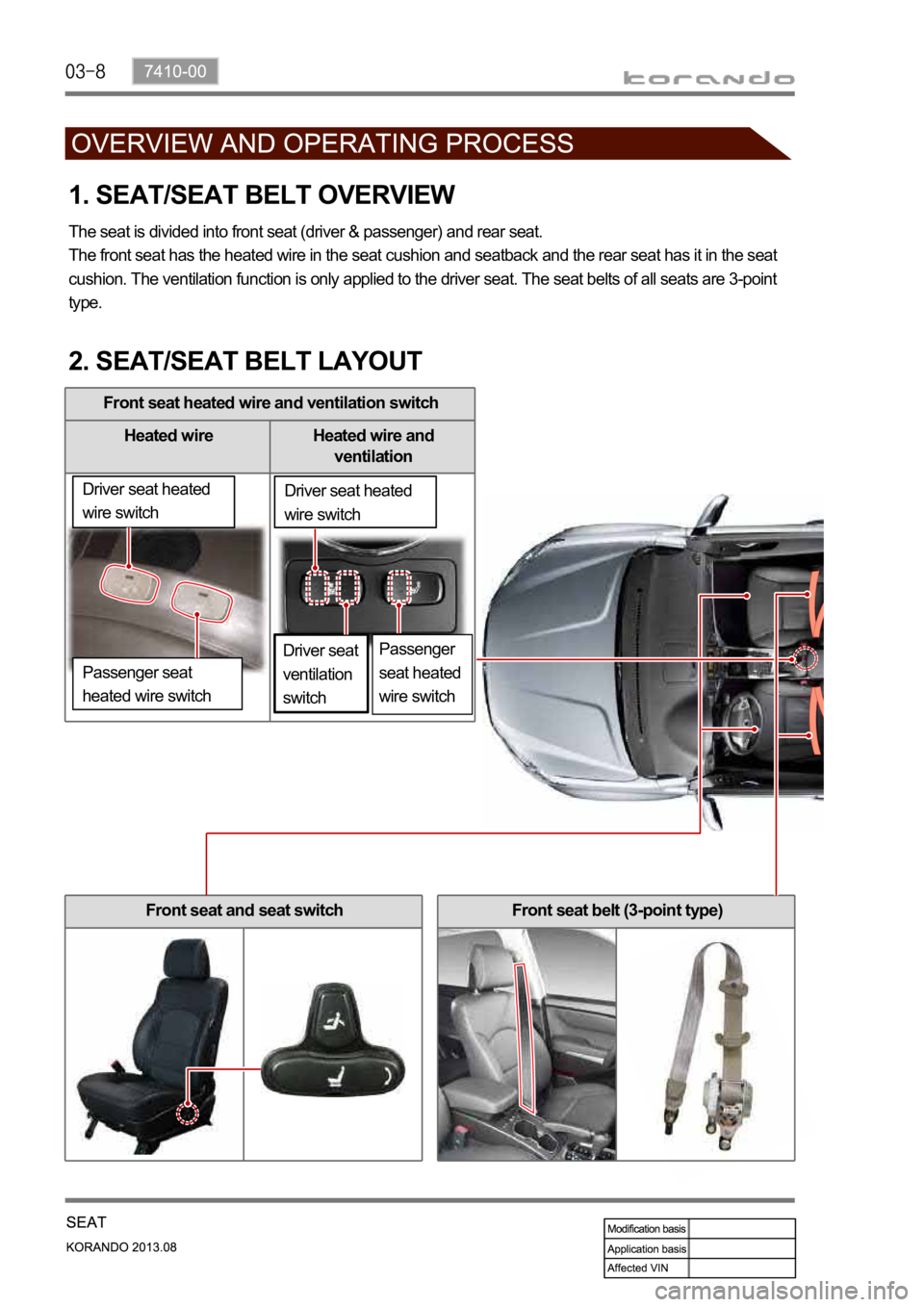

1. SEAT/SEAT BELT OVERVIEW
The seat is divided into front seat (driver & passenger) and rear seat.
The front seat has the heated wire in the seat cushion and seatback and the rear seat has it in the seat
cushion. The ventilation function is only applied to the driver seat. The seat belts of all seats are 3-point
type.
2. SEAT/SEAT BELT LAYOUT
Driver seat heated
wire switch
Passenger seat
heated wire switchDriver seat heated
wire switch
Driver seat
ventilation
switchPassenger
seat heated
wire switch

7410-00
Rear seat belt (3-point type)
Rear LH, center Rear RH
Rear seat
Rear seat heated wire switch
LH RH
Rear seat belt - LH
Rear center
seat beltRear seat
belt - RH
Rear double buckle
- 1st rowRear buckle -
1st row

Head restraint adjustment (Height)
To raise the head restraint, pull upward on
the head restraint. To lower the head
restraint, push downward on the head
restraint with the head restraint sleeve (A)
pressed.
Head restraint adjustment (Tilting)
The head restraint can be moved
forward/backward.
3. SEAT ADJUSTMENT AND OPERATION
1) Front Seat
There are 2 types of front seats: a) power seat that uses electric motor to move the seat and adjust the
seatback and seat cushion; b) manual seat that a user has to operate the lever manually to adjust the
seat.
However the head restraint and driver seat lumber support should be adjusted manually for both types of
seats. Heated wire is installed in the seatback and seat cushion, and ventilation function may be added
to driver seat depending on vehicle specifications. The switch for the front seat heated wire and
ventilation is located on the TGS lever side.
The front part of the active head restraint is separated and moved forward to protect the occupant's neck
in the event of a rear-end collision. The active head restraints may be installed to both driver and
passenger seats depending on the vehicle specifications.
Head restraint adjustment

7410-00
Power seat Manual seat
Moving the upper part of the recliner knob
forward/backward adjusts the seatback angle by
activating the recliner motor. Pull the recliner knob upward and adjust the
seatback angle with the seatback lock released.
Then release the recliner knob at the desired angle
to lock the seatback.
Power seat Manual seat
Moving the slide knob forward/backward moves
the seat forward/backward by activating the slide
motor.To move the seat forward or backward, pull up and
hold the seat slide lever and move the seat to the
desired position.
(1) Driver seat operation
Seat slide adjustment (forward/rearward)
Seatback reclining adjustment

Power seat Manual seat
Lowering the lumbar support lever moves the
lumbar support to the forward position, and raising
the lever moves the lumbar support to the
backward position.Lowering the lumbar support lever moves the
lumbar support to the forward position, and raising
the lever moves the lumbar support to the
backward position.
Power seat Manual seat
Moving the slide switch upward/downward moves
the seat cushion upward/downward as the front &
rear up/down motors rotate the rail.Pulling the recliner knob upward/downward moves
the seat upward/downward.
Seat adjustment (height)
Driver seat lumbar support adjustment

7410-00
Driver seat ventilation
Driver seat heated wireDriver seat heated wire switch
(vehicle with heated wire function only)
Driver seat heated wire and ventilation
switch (vehicle with heated wire and
ventilation functions)
Seat back board
(2) Driver seat heated wire and ventilation functions

Seatback reclining adjustment
Pull the recliner knob upward and adjust the
seatback angle with the seatback lock released.
Then release the recliner knob at the desired
angle to lock the seatback.
Seat slide adjustment (forward/rearward)
To move the seat forward or backward, pull up
and hold the seat slide lever and move the seat
to the desired position.
Passenger seat heated wire switch
Heated wire and
ventilationHeated wirePassenger seat heated wire
(3) Passenger seat operation
Passenger seat
(4) Passenger seat heated wire and functions
Seat back board

7410-00
The front part of the active head restraint is separated and moved forward to protect the occupant's neck
in the event of a rear-end collision.
The active head restraints may be installed to both driver and passenger seats depending on the vehicle
specifications.
(1) System configuration
Active head restraint sensor
Active head restraint
(passenger seat)
Active head restraint
(driver seat)
2) Active Head Restraint

(2) Active head restraint deployment
No in operation In operation

7410-00
(3) Operating process
Driver seat
Passenger seat
For a vehicle with an active head restraint system, an active head restraint sensor is installed and its G
sensor is operated in the event of a rear-end collision. As the G sensor in the active head restraint
sensor is operated, the power is supplied to the driver's or passenger's active head restraint. Then, the
lock in the head restraint is disengaged and the front part of the head restraint is separated and moved
toward the neck of an occupant.
