Head restraint adjustment (Height)

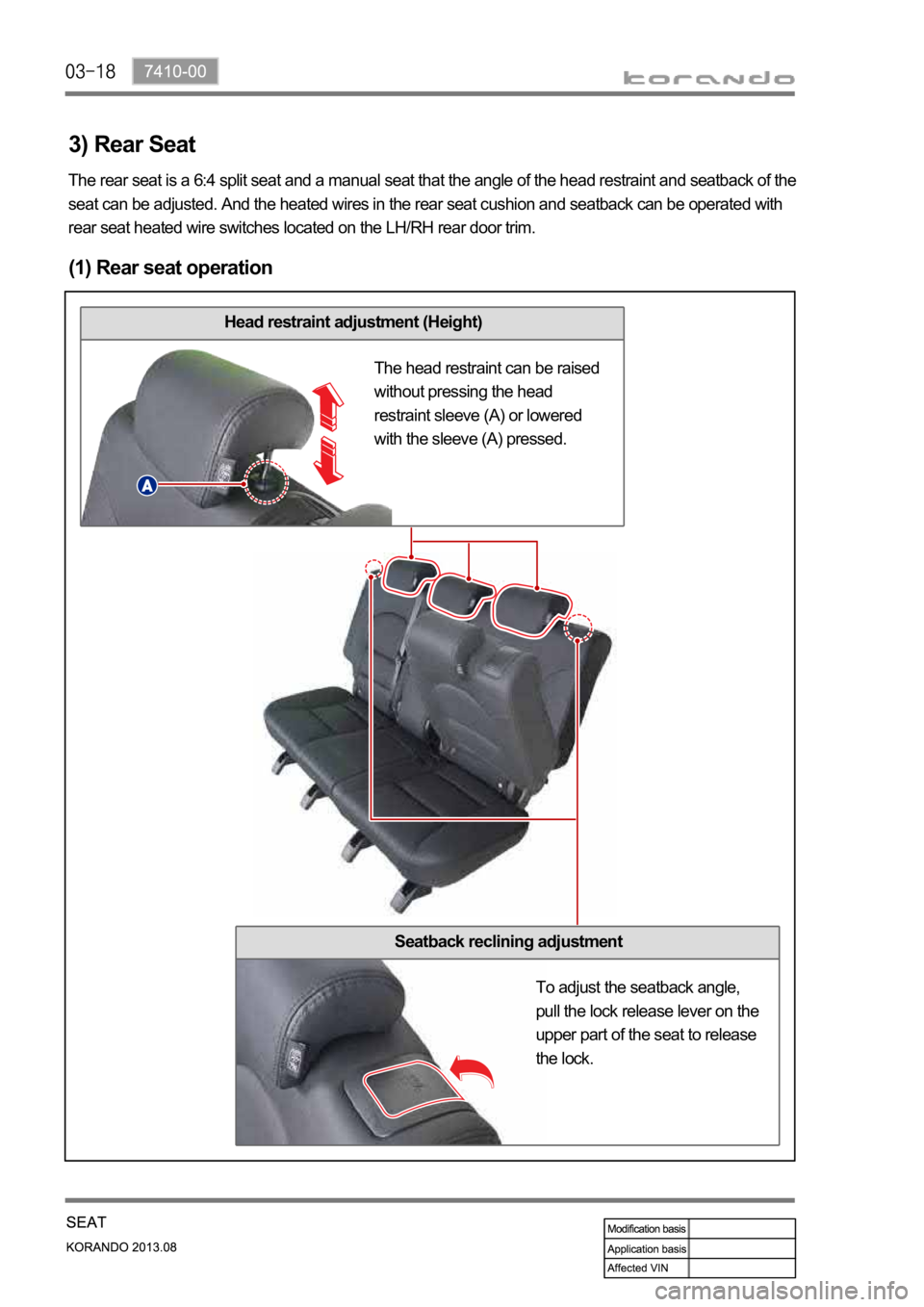

3) Rear Seat
(1) Rear seat operation
The rear seat is a 6:4 split seat and a manual seat that the angle of the head restraint and seatback of the
seat can be adjusted. And the heated wires in the rear seat cushion and seatback can be operated with
rear seat heated wire switches located on the LH/RH rear door trim.
The head restraint can be raised
without pressing the head
restraint sleeve (A) or lowered
with the sleeve (A) pressed.
Seatback reclining adjustment
To adjust the seatback angle,
pull the lock release lever on the
upper part of the seat to release
the lock.

7410-00
Seatback folding
Rear seat heated wire
Rear seat heated wire switch
(2) Rear seat heated wire functions
Rear armrest
LH
RH

Mounting location Seat heated wire and
ventilation unit
4) Front Seat Heated Wire and Ventilation Unit
(1) Front seat heated wire and ventilation unit operation
The seat heated wire and ventilation unit is mounted at the bottom of the driver seat. The temperature of
ventilation switch. Every time the seat heated wire and ventilation switch is pressed, the temperature
level goes down by one level. Pressing the switch a third time will turn off the operation. Pressing the
desired side of the switch heats the seat cushion and seatback or activates the seat ventilation function.
The temperature of the seat is kept uniform by cutting off or connecting power through thermistor fitted in
the seat. The seat heated wire and ventilation unit controls the rpm of the motor using PWM control to
operate the seat ventilation.
Seat heated wire and ventilation unit & switch application
The seat heated wire and ventilation unit is not fitted in a vehicle without seat ventilation function. -

7410-00
(2) Front seat heated wire and ventilation unit diagram
Condition: Engine running
seat heated wire and ventilation switch. Every time the switch is pressed, the temperature level goes
down by one level. Pressing the switch a third time will turn off the operation.
The front seat heated wire and ventilation functions cannot be operated at the same time.

(3) Connector pin description
Seat heated wire and
ventilation unit side
Seat heated wire and
ventilation unit wiring side Pin No. Function
1IGN2
2-
3-
4 Ventilation switch
5 Heater switch (LH)
6 Heater switch (RH)
7 Heater level 1 (LH)
8 Heater level 1 (RH)
9 Ventilation level 1 (LH)
10 Heater back (LH) NTC -
11 Heater back (RH) NTC +
12 Cushion ventilation power (+)
13 Heater back (LH) HTR
14 ALT
15 -
16 -
17 -
18 -
19 -
20 Heater level 2 (LH)
21 Heater level 2 (RH)
22 Ventilation level 2 (LH)
23 Heater back (LH) NTC +
24 Heater back (RH) NTC -
25 Heater back (RH) HTR
26 Ground

7410-00
5) Front Seat Heated Wire and Ventilation Operation
Operating conditions
Engine running
If the engine starts to crank during the seat heated wire and ventilation signal output, the seat heated
wire will not be operated until the cranking stops. -
-
Operation description
After the ignition is turned on, the temperature of the seat can be adjusted in 3 levels (Level 2
pressed, the temperature level goes down by one level. Pressing the switch a third time will turn off
the operation. -
Operating process
When the front seat heated wire and ventilation switch is pressed, the front seat heated wire and
ventilation unit supplies the power to the corresponding seat for heated wire and ventilation operation
through the switch. -
The heated wire and ventilation functions cannot be operated at the same time.
(1) Heated wire and ventilation functions for front seat (driver seat heated
wire and ventilation - 2 levels, passenger seat heated wire - 2 levels)

Operating conditions
IGN ON
If the engine starts to crank during the seat heated wire signal output, the seat heated wire will not be
operated until the cranking stops. -
-
Operation description
After the ignition is turned on, the heated wire of the front seat can be operated to the desired
temperature (LO/HI) by pressing the front seat heated wire switch.
After the ignition is turned on, pressing a rear seat heated wire switch activates the heated wire of the
corresponding seat and pressing the switch again turns off the heated wire operation. -
-
Operating process
When the front or rear seat heated wire switch is pressed, the power is supplied to the corresponding
front or rear seat heated wire through the switch. -
The seat heated wire and ventilation unit is not fitted in a vehicle without seat ventilation function.
(2) Heated wire function for front and rear seats (driver and passenger

7410-00
The 3-point type seat belts are mounted on the driver seat, passenger seat and rear seats (LH, RH,
Center). The seat belts on the front seats (driver's/passenger's) include pretensioner feature which
rewinds the seat belt immediately to protect the occupant's face and chest when a strong frontal collision
occurs.
Front 3-point type seat belt
(Driver & Passenger seats)
Rear 3-point type seat belt (RH)
Front seat belt
Height adjuster
Rear seat belt - RH Rear seat belt - LH
Rear double buckle -
1st row
Rear center seat belt
Rear buckle - 1st row
6) Seat Heated Wire and Ventilation
(1) Seat belt configuration
3-point type seat belt
(RR center, LH)

Rear seat belt - LH/RH (3-point type)Rear center seat belt (3-point type)
(2) Mounting location for seat belt
Driver seat Belt (3-point type)Passenger seat Belt (3-point type)
LH
Rear seat belt Front seat belt

7410-00
Pretensioner
Driver sidePassenger side
7) Mounting Location for Pretensioner
The seat belt pretensioner retracts the seat belt instantly by igniting the inflator in the pretensioner when
the front air bag system is activated. It also improves the safety effect of the seat belt by preventing the
front seat occupants from moving forward and keeping occupants in a stable posture.
The load limiter is also installed to reduce the chest impact to a front seat occupant by loosening the seat
belt while maintaining the force applied by the seat belt uniformly when the pretensioner retracts the seat
belt instantly. The seat belt pretensioner is operated first, and then the load limiter is activated.
Height adjuster
This feature improves
comfort and enhances
safety performance in the
event of a collision by
adjusting the shoulder belt
to the desired length to
restrain the occupant.
