SSANGYONG KORANDO 2013 Service Manual

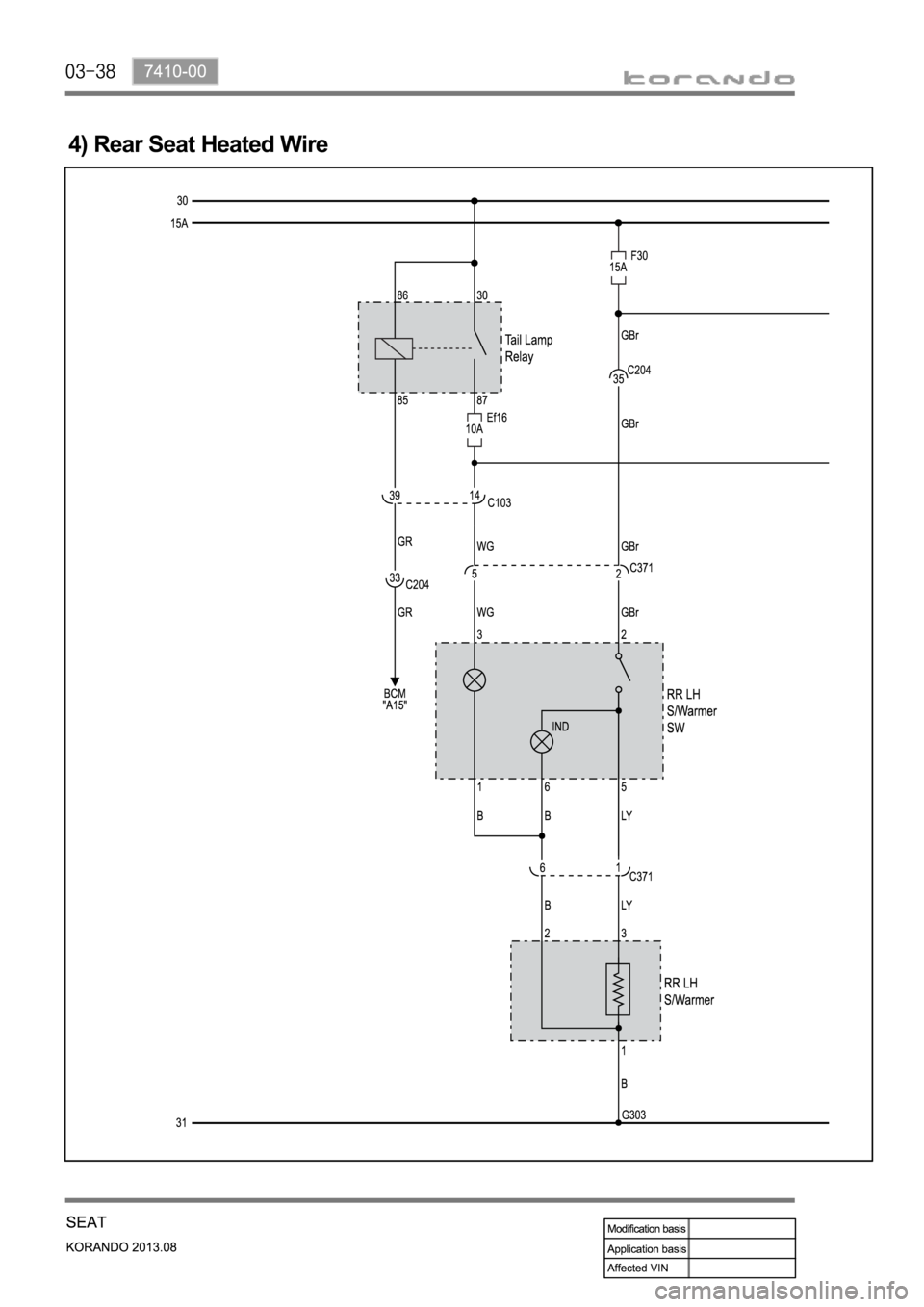

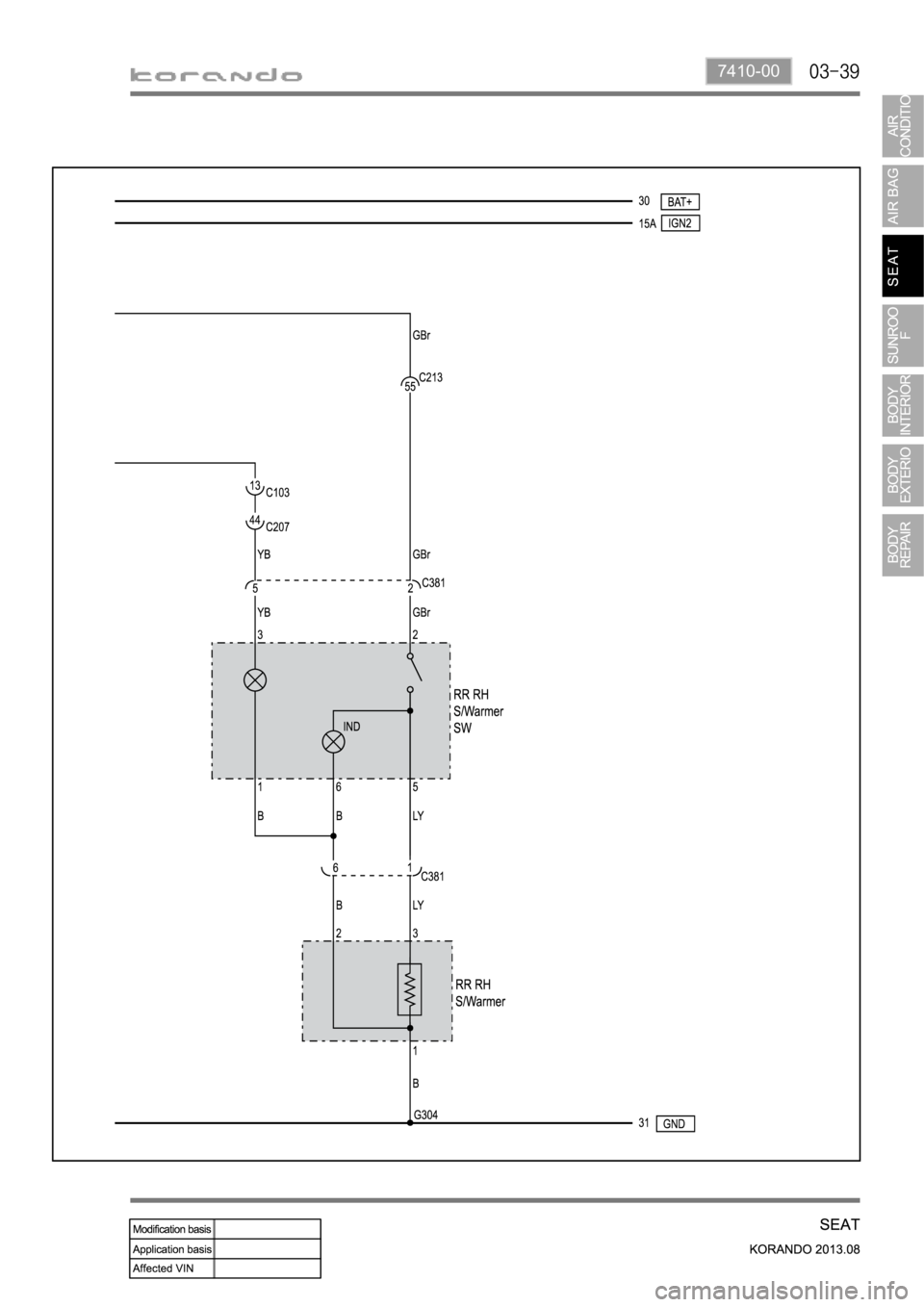

4) Rear Seat Heated Wire

7410-00

7340-01
1. SPECIFICATIONS
2. CAUTIONS
Operating voltage 9 ~ 16V
Operating current (open & close) Max. 6 A
At no load Approx. 3 A
Leakage current Max. 1 mA or less
Roof motor operating speed
(at opening and closing)
Motor overload stop conditionsCurrent for 25 A or higher and torque (load) for 7.5
Nm or above
2-step opening amount
Vertical/horizontal tolerance for sunroof glass
panel
Cautions during work
Wear a clean work clothes and gloves.
Any unauthorized modification or operational test is not allowed since the sunroof motor and
control unit are preset at the factory.
Take care not to drop or stack vertically when removing the sunroof. This may cause the moving
parts to be damaged. -
-
-

OPEN
Sunroof switch
1. SYSTEM LAYOUT
Sunroof assembly
TILT
Sunroof motor &
control unit

7340-00
2. OPERATING PROCESS
1) Sunroof Switch
This can be closed or open manually to block sunlight when the sunroof function is not in use. The sunroof glass can be open in two steps and can be tilted by the switch operation. The sunroof switches are included in the overhead console switches and consists of the TILT,
CLOSE and OPEN switches.
TILT
CLOSE
OPEN
Sun shade panel Sunroof glass Sunroof switch
Opens only rear section of the sunroof.
Closes the sunroof.
Opens the sunroof.
Sunroof glass
Sun shade panel

Closing sunroof (Sliding close)
Open: 2-step open
2) Sunroof Sliding Opening/Closing
Pull down the switch briefly: auto sliding close
When pulling down the switch briefly, the sunroof is automatically closed. To stop the closing
sunroof, operate the switch to either direction. -
Pull down and hold the switch: manual sliding close
The sunroof is closed as long as pulling down the switch. -Pull down the switch -Push up the switch -
Push up the switch briefly: 2-step auto sliding open
When pushing up the switch briefly, the sunroof is automatically opened. Opening is carried out in 2
steps. In first step, the area 5 cm behind the sunroof is not opened. Push up the switch once again
in order to open the sunroof completely. The sunroof operation stops if you operate the switch
during its operation. -
Push up and hold the switch: manual sliding open
The sunroof is opened as long as pushing up the switch. -

7340-00
Tilt Up
3) Sunroof Tilt Up/Down
This function is to raise or lower the rear section of the sunroof.
When leaving the vehicle, make sure the sunroof is completely closed. The sunroof may look closed
but it might be tilted up.
Tilt Down
The rear side of the sunroof is tilted up when pulling down the sunroof switch with the sunroof
closed. -
The rear side of the sunroof is tilted down when pushing up the sunroof switch with the sunroof
tilted up. -Pull down the switch -
Push up the switch -

When you drive this vehicle with the window or sunroof open at a certain position, you may feel
some pressure upon your ears or hear some noises similar to those from a helicopter. This happens
because of an influx in air through the window or sunroof and its resonance effect. If this happens,
adjust by opening the window or sunroof. - The anti-pinch function is deactivated just before the sunroof closes.
The sunroof safety function is just a safety supplementary system which cannot replace driver's care
and caution. Moreover, it may not be able to operate due to electric part or other conditions. To prevent any body parts from being trapped by the sliding sunroof, an Anti-Pinch Function
automatically opens the sunroof when an object is trapped.
4) Sunroof Safety Function
Wind buffeting

7340-00
3. SUNROOF OPEN WARNING
1) Warning Sound
When removing the key and then opening the door with the sunroof open, the warning sound is heard.
Closing the door stops the warning sound.
2) Message on Instrument Cluster
The following message is displayed on the screen in the instrument cluster.
General precaution for sunroof
Even though the sunroof can be operated when the engine is not running, operating the sunroo
f
repeatedly with the engine turned off will run down the battery. Operate the sunroof while the
engine is running.
When the sunroof operation is completed, release the switch. Keeping pressing the switch can
result in malfunction.
Especially in winter, never operate the sunroof if operation areas are iced. Wait until melted.
Make sure that the sunroof is completely closed when leaving the vehicle. Leaving the vehicle with
the sunroof open result in a theft. In addition, rain or snow can get into the vehicle through the
open sunroof.
When the sunroof is fully open, wind buffeting symptom can be worse. In this case, try to adjust
the sunroof position manually or open the sunroof into 1st first step until the wind buffeting is
disappeared.
Parts of the body can be trapped in the sunroof and can be struck by passing objects. Do not stick
hands, head or anything else out of the openings.
Remove any dirt and foreign material stuck on the edge of the sunroof glass periodically.
Noise can occur due to friction when operating the sunroof. -
-
-
-
-
-
Supervision type

4. CIRCUIT DIAGRAM
