▶Door Ajar Warning
The warning light comes on when opening any door while the vehicle speed is below 10
km/h.
The warning light goes off when closing the door under step (1).
The warning light blinks when the vehicle speed is over 10 km/h while the warning light is
turned on.
The warning light blinks when a door is open while the vehicle speed is over 10 km/h.
The warning light goes off when closing the door under step (3).
The warning light comes on when the vehicle speed goes below 10 km/h under step (3). 1.
2.
3.
4.
5.
6.
Since the luggage room tailgate does not have the door switch, the door ajar warning light
does not come on when it is open.

02-28

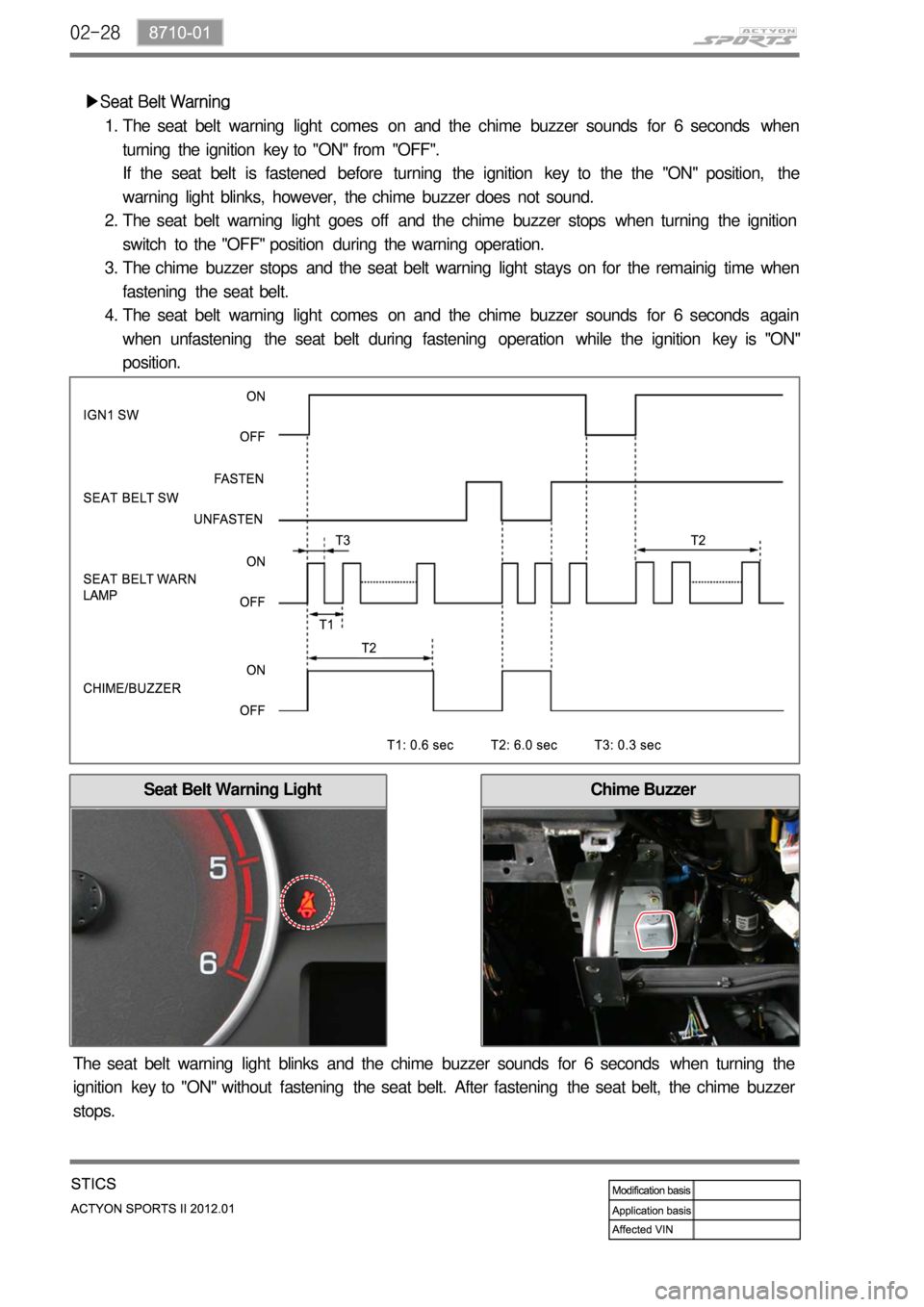

▶Seat Belt Warning
The seat belt warning light comes on and the chime buzzer sounds for 6 seconds when
turning the ignition key to "ON" from "OFF".
If the seat belt is fastened before turning the ignition key to the the "ON" position, the
warning light blinks, however, the chime buzzer does not sound.
The seat belt warning light goes off and the chime buzzer stops when turning the ignition
switch to the "OFF" position during the warning operation.
The chime buzzer stops and the seat belt warning light stays on for the remainig time when
fastening the seat belt.
The seat belt warning light comes on and the chime buzzer sounds for 6 seconds again
when unfastening the seat belt during fastening operation while the ignition key is "ON"
position. 1.
2.
3.
4.
The seat belt warning light blinks and the chime buzzer sounds for 6 seconds when turning the
ignition key to "ON" without fastening the seat belt. After fastening the seat belt, the chime buzzer
stops.
Seat Belt Warning LightChime Buzzer

02-298710-01
▶Parking Brake Warning
The parking brake warning light comes on for approx. 4 seconds when turning the ignition
key from the "OFF" to the "ON" position regardless of the vehicle speed and the parking
brake switch position. After this 4 seconds, the warning light comes on, goes off or blinks
according to the vehicle speed and the parking brake switch position.
The warning light comes on when the parking brake is applied and the vehicle speed is
below 10 km/h.
The warning light goes off when releasing the parking brake under step (2).
The warning light blinks and the chime buzzer sounds for 2.5 seconds and stops for 1.5
seconds when the vehicle speed is over 10 km/h for more than 2 seconds while the
parking brake is applied.
The warning light goes off and the chime buzzer stops when releasing the parking brake
under step (4).
The warning light comes on and the chime buzzer stops when the vehicle speed goes
down below 10 km/h under step (4).
This function does not work when the ignition switch is in "OFF" position. 1.
2.
3.
4.
5.
6.
7.

02-30
▶Center Room Lamp Control
The overhead console lamp (front room lamp) and the center room lamp come on at 100%
when opening the door (driver's/passenger's/rear) while the center room lamp switch is at the
door coupled/tailgate coupled operating position and the key reminder switch is "OFF".
When the door (driver's/passenger's/rear) is opened, the front and center room lamps
come on at 100% and automatically go off after 30 seconds.
The room lamp stays on for 2 seconds and then dims through 3 seconds when closing the
doors within 30 seconds.
The dimming operation must have greater than 32 steps per one second.
The room lamp output should stop immediately after turning on the ignition key during the
dimming operation.
The front room lamp and the center room lamp come on for 30 seconds when receiving
the unlock signal from the remote control key while the doors are closed.
The front room lamp and the center room lamp output period is extended by 30 seconds
when receiving the unlock signal from the remote control key again during output under
step (5). (The lamp stays on when unlocked by the remote control key.)
When a door is opened during its extended period, the lamp stays on. If closed, operates
as in step (2).
The room lamp output stops immediately after receiving the lock signal from door lock
switches while all doors are closed or entering into the anti-theft mode by pushing LOC
K
button on the remote control key. 1.
2.
3.
4.
5.
6.
7.
8.

02-318710-01
Center Room Lamp: 12V / 8W - 1 EAFront Room Lamp: 12V / 8W - 2 EA
Front room lamp (driver's or passenger's) is
turned on and off when pressing the switch (1
or 2). However, it comes on when a door is
opened and goes off when the door is
closed. The front and center room lamps
come on when pressing the room lamp main
switch (3).Center Room Lamp
If the switch is at the door coupled position,
the center room lamp comes on whenever a
door is opened. The lamp always comes on
while the switch is at the other position.
Driver's seatTailgate
Center Room Lamp
(Door coupled
operation)
Center Room
Lamp
(Lamp: ON)

02-32
▶Ignition Key Hole Illumination
The ignition key hole illumination comes on when opening the driver's door or passenger's
door while the ignition key is removed.
The ignition key hole illumination stays on for 10 seconds when closing the door after step
(1).
The output stops when the ignition key is turned to the "ON" position.
The output stops when receiving the lock signal from the remote control key and entering
armed mode. 1.
2.
3.
4.
▶Key cylinder with key hole illumination
With diesel and gasoline engine With diesel engine With gasoline engine
Without immobilizer
(rechargeable)
→With key hole
illumination With immobilizer
(rechargeable)
→With key hole
illumination With immobilizer
→Without key hole
illumination and
rechargeable function

02-338710-01
▶STICS Circuit for Tail Lamp Auto Cut (Battery Saver)
▶Tail Lamp Auto Cut (Battery Saver)
The tail lamp is turn on or off according to the operations of the tail lamp switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door after
removing the ignition key without turning off the tail lamp.
The tail lamp relay is turned on when inserting the ignition key into the ignition switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door
while the ignition key is removed and the tail lamp is turned on. 1.
2.
3.
4.

02-34
▶STICS Circuit for Front/Rear Defogger Timer

02-358710-01
The defogger system uses the heated glass to remove the moisture and frost on the windows,
which can disturb safe driving.
The defogger (including de-icer) activates the corresponding switch and the STICS controls the
operating time.
Tailgate and outside rearview mirror heate
d
glass switch
Pressing switch activates tailgate and
outside rearview mirror heated glass for
approx. 12 minutes
Windshield heated glass (de-icer) switch
Pressing switch activates windshield heated
glass for approx. 12 minutes

02-36
▶Front Defogger Timer
The front defogger output is "ON" when turning on the front defogger switch with the
engine started (IGN ON)
The output stops when turning on the front defogger switch again during its operation.
The output is "ON" only for 6 minutes when turning on the front defogger switch within 10
minutes after completion of output for 12 minutes. This can be done only once.
The output is "OFF" when the ignition switch is "OFF". 1.
2.
3.
4.
