SSANGYONG NEW ACTYON SPORTS 2012 Service Manual

02-478710-01
(2) Armed mode cancellation requirements
(3) Warning operation requirements
(4) Warning operation
(5) Warning cancellation requirements
(6) Operation when warning is cancelled
Receiving UNLOCK signal from the remote control key or starting the engine. a.
When opening the door in armed mode
When unlocking the door lock switch in armed mode by other than the remote control key
When closing and then opening the door after completion of warning (27 seconds) a.
b.
c.
The theft deterrent horn and hazard warning flasher output is "ON" for 27 seconds at the interval
of 1 second. a.
Cancels warning by using any signal from the remote control key (LOCK, UNLOCK, PANIC,
ESCORT) during warning operation.
Cancels warning after 27 seconds (remaining time) while the ignition key is turned to "ON"
position.
If the ignition switch is turned to ON position when the warning is activated in armed mode,
the warning is cancelled immediately and the warning buzzer stops after 27 seconds
(remaining time). a.
b.
c.
The theft deterrent horn and hazard warning flasher outputs are "OFF". a.

02-48
(7) Operation when warning is cancelled
The theft deterrent horn and hazard warning flasher is activated when fitting the battery in armed mode.
(The same operation as when alarm condition is met in armed mode is performed.)
PANIC Warning ▶
The PANIC warning output is "ON" for 27 seconds using the horn and hazard warning
flasher, when receiving the PANIC signal from the remote control key.
The PANIC warning output is "OFF" when pressing any button on the remote control key
during PANIC warning.
The followings are about the theft deterrent warnings. 1.
2.
3.
The theft deterrent warning is deactivated when receiving PANIC signal from the
remote control key during theft deterrent warning.
The theft deterrent warning output is "ON" when the theft deterrent conditions are
established during PANIC warning (PANIC output is "OFF").
The PANIC warning output is "ON" when receiving the PANIC signal from the remote
control key in Armed Ready / Armed / Warning Completion / Relock Ready mode
(maintaining the theft deterrent mode). a.
b.
c.
This function operates only in armed mode. 4.
RemovedNormal Armed Warning Remark
Normal O
RELOCK operation:
When the door is not
opened or the ignition key
is not inserted into ignition
switch for 30 seconds after
receiving "UNLOCK" signal,
outputs "LOCK" and then
activates armed mode Armed Ready O
Armed O
Warning O
Warning Completion O O O
RELOCK Ready O
Installed

02-498710-01
Automatic Hazard Warning Lamp Switch (SHP: Safety Hazard Protection) ▶
When the automatic hazard warning lamp switch is pressed for approx. 0.1 to 0.59
seconds, the hazard warning lamp blinks 3 times at an interval of 0.35 seconds.
When the automatic hazard warning lamp switch is pressed for approx. 0.6 seconds or
longer, the hazard warning lamp blinks 10 times at an interval of 0.35 seconds.
This function is only available when the ignition key is in the "ON" position.
If the ignition key is turned to the "OFF" position during this function is activated, this
function is immediately deactivated.
If the system receives signals for the turn signal lamp operation during this function is
activated, this function is immediately deactivated.
While the turn signal lamp signals are already inputted, pressing the automatic hazard
warning lamp switch does not activate the automatic hazard warning lamp function. 1.
2.
3.
4.
5.
6.
Automatic hazard warning lamp switch ▶
Press briefly (0.1 ~ 0.59 seconds): The hazard
warning lamp blinks three times.
Press and hold (more than 0.6 seconds): The
hazard warning lamp blinks ten times. ·
·

02-50
▶Specifications of Remote Control Key
When any of switches on remote control key is pressed, the integrated CPU in remote control key
sends the coded control message to the CPU in receiver to control the vehicle. (same as the key
of ACTYON SPORTS)
Door Unlock and Panic Function
Breifly press (below 0.5 sec): Door unlock and theft deterrent
mode is deactivated
Press and hold (over 2 sec): Panic function
Door unlock (Briefly press) 1.
If you send the door unlock signal using the remote control key, with all the doors locked,
the door will be opened and the theft deterrent mode will be deactivated. If the door
coupled switch of front room lamp is pressed, the lamp will come on for 30 seconds. It
will turn off immediately after the lock button of the remote control is pressed. ·
Panic function: activated in the theft deterrent mode 2.
If you press and hold the door unlock and panic buttons, the buzzer will sound for 27
seconds and the hazard warning flasher blinks.
The function is inactivated if any button of remote control is pressed.
* For the previous model, only the theft deterrent horn has been activated. ·
·
LED flasher
Briefly press: blink once
Press and hold: blink twice
Door Lock and Escort Function
Breifly press (below 0.5 sec): Door lock and theft deterrent mode is activated
Press and hold (over 0.5 sec): Escort function
Door unlock (Briefly press) 1.
Pressing this button locks all doors and activates the theft deterrent mode. ·
Escort function 2.
If you press the button for more than 0.5 seconds in theft deterrent mode, the headlamp
comes on for about 20 seconds.
This function is deactivated if you press the door lock button of the remote control key. ·
·

02-518710-01
Battery Replacement
Key typeImmobilizer & charging key REKES key
SpecificationLithium-ion PD2032 CR2032
Amount1 EA 1 EA
REKES key
Battery
Immobilizer &
charging key

02-52

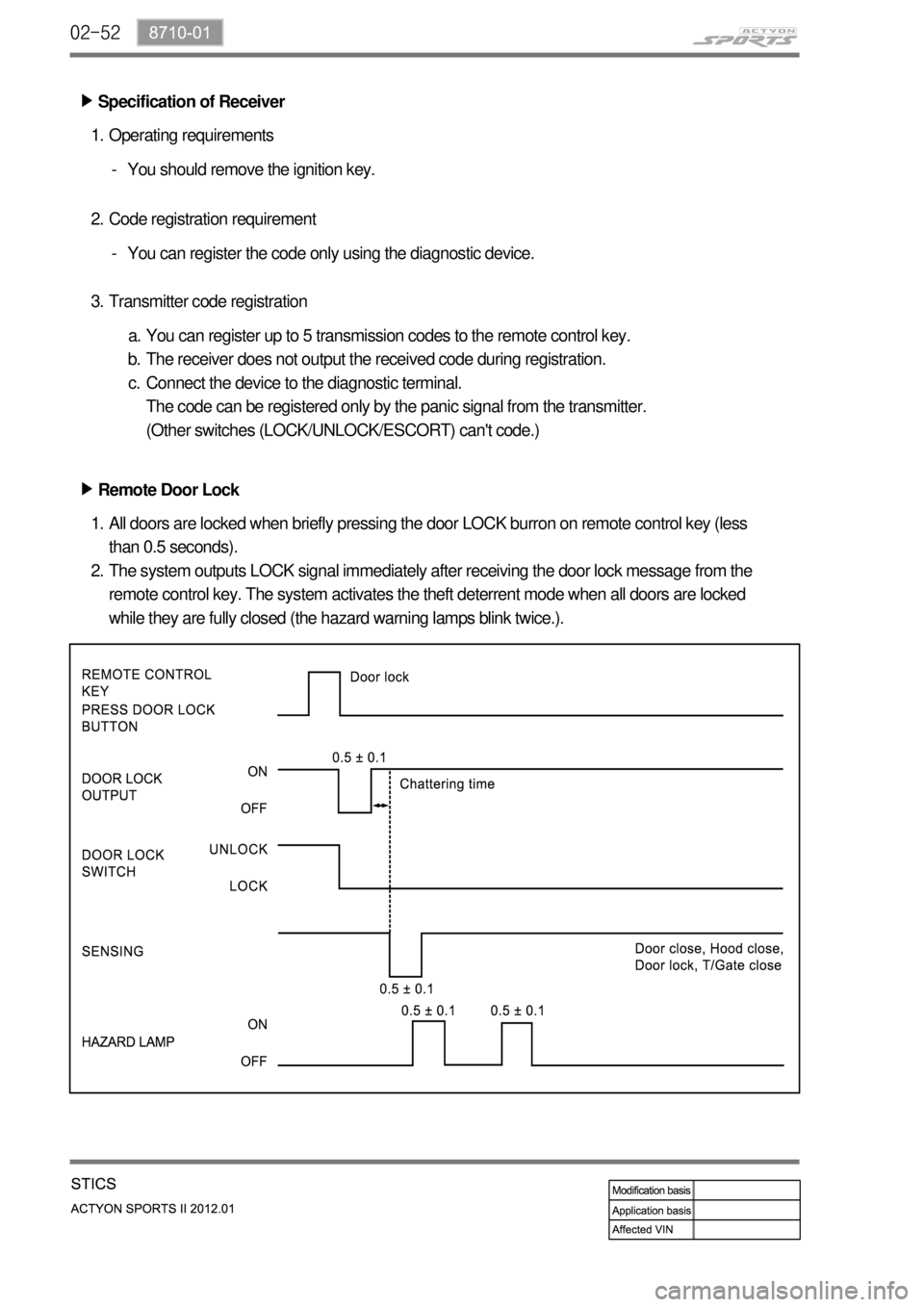

Specification of Receiver ▶
Operating requirements 1.
You should remove the ignition key. -
Code registration requirement 2.
You can register the code only using the diagnostic device. -
Transmitter code registration 3.
You can register up to 5 transmission codes to the remote control key.
The receiver does not output the received code during registration.
Connect the device to the diagnostic terminal.
The code can be registered only by the panic signal from the transmitter.
(Other switches (LOCK/UNLOCK/ESCORT) can't code.) a.
b.
c.
Remote Door Lock ▶
All doors are locked when briefly pressing the door LOCK burron on remote control key (less
than 0.5 seconds).
The system outputs LOCK signal immediately after receiving the door lock message from the
remote control key. The system activates the theft deterrent mode when all doors are locked
while they are fully closed (the hazard warning lamps blink twice.). 1.
2.

02-538710-01
Door Unlock ▶
The door unlock operates when pressing the door switch on the remote control key for longer
than 0.5 seconds.
The door unlock relay is "ON" for 0.5 seconds when receiving the door unlock message from
the remote control key.
The hazard warning lamps blink once only when all the doors unlocked successfuly. 1.
2.
3.

02-54
Remote Panic ▶
If you press and hold the door UNLOCK and PANIC button (more than 2 seconds) on the
remote control key, the panic function is activated.
The vehicle activates the panic alarm by using the horn and hazard warning lamp for 27
seconds when receiving the panic message from the remote control key. 1.
2.

02-558710-01
Remote Escort ▶
When you press and hold the door LOCK button (more than 0.5 seconds) the escort function
is activated.
The headlamp comes on for 20 seconds and goes off automatically, when the escort
message is received from the remote control key. 1.
2.
Auto Door Lock in 30 Seconds after Pressing Door Unlock Button ▶
If no door is opened for 30 seconds after inputting remote door unlock, the doors are
automatically locked and the armed mode of anti-theft system is activated again (RELOCK
function). 1.

02-56
Outside rearview mirror folding/unfolding control ▶
If you press the folding/unfoling switch with the ignition switch in "ON" position, the outside
rearview mirror is folded or unfolded depending on the previous status. At this time,
folding/unfolding outputs are maintained for about 15 to 17 seconds.
Even though the ignition switch is turned to "OFF" position during folding/unfolding output,
the output continues on for remaining time.
When removing and refitting the battery, the first switch input folds the mirror.
If you turn the ignition switch to the "OFF" from "ON" position, operating time is extended by
60 seconds. Unlikely the previous model, opening the front door does not affect the
extension time. (i.e., opening/closing the front door is irrelevant)
If the unfolding input is received from the switch during folding output or the folding input is
received during unfolding output, the existing output stops and new output is activated after
the delay time of about 0.1 second.
When the vehilce speed is above 50 km/h with the mirror unfolded, even though the folding
signal is received it is overridden.
(folding is possible only at vehicle speed of less than 50 km/h ) 1.
2.
3.
4.
5.
6.
