SSANGYONG RODIUS 2005 User Guide 0-5 CONNECTOR/GROUND RODIUS 2005.07 8201-00 4) CONNECTOR C101 ▶C102 ▶ C103 ▶ C104 ▶ C105 ▶

Page 12 of 502

SSANGYONG RODIUS 2005 User Guide 0-6RODIUS 2005.07 8201-00 CONNECTOR/GROUND C106 ▶ C107 ▶ C108 ▶ C112 ▶ C109 ▶ C110 ▶ C111 ▶

Page 13 of 502

SSANGYONG RODIUS 2005 User Guide 0-7 CONNECTOR/GROUND RODIUS 2005.07 8201-00 C115 ▶C116 ▶ C113 ▶ C114 (DSL) ▶

Page 14 of 502

SSANGYONG RODIUS 2005 User Guide 0-8RODIUS 2005.07 8201-00 CONNECTOR/GROUND C201 ▶ C203 ▶

Page 15 of 502

SSANGYONG RODIUS 2005 User Guide 0-9 CONNECTOR/GROUND RODIUS 2005.07 8201-00 C207 ▶ C205 ▶ C204 ▶ C206 ▶

Page 16 of 502

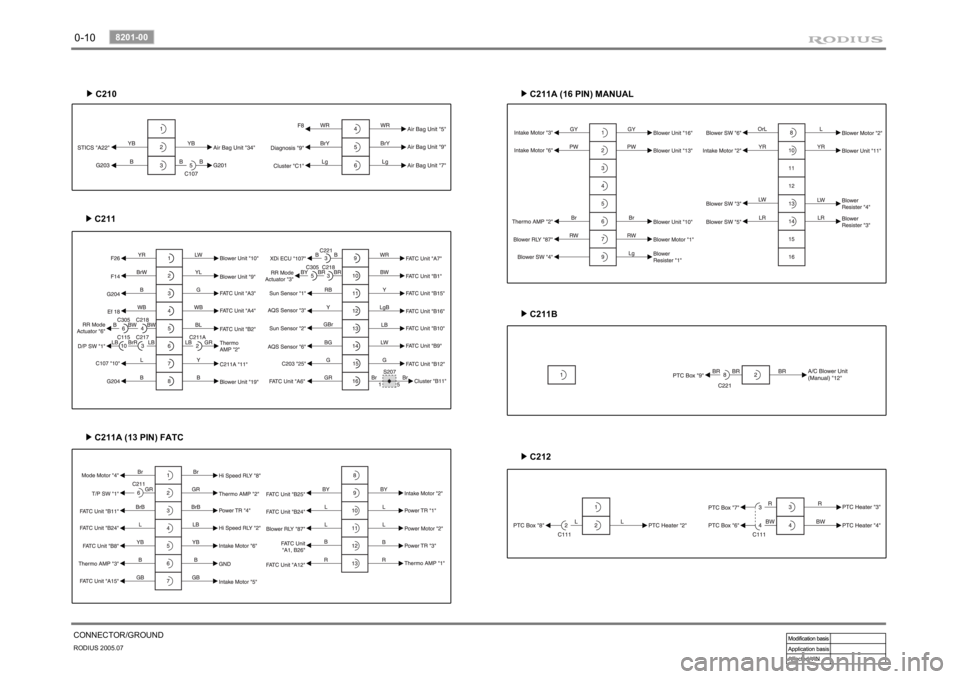

SSANGYONG RODIUS 2005 User Guide 0-10RODIUS 2005.07 8201-00 CONNECTOR/GROUND C210 ▶C211A (13 PIN) FATC ▶ C211B ▶C212 ▶ C211 ▶ C211A (16 PIN) MANUAL ▶

Page 17 of 502

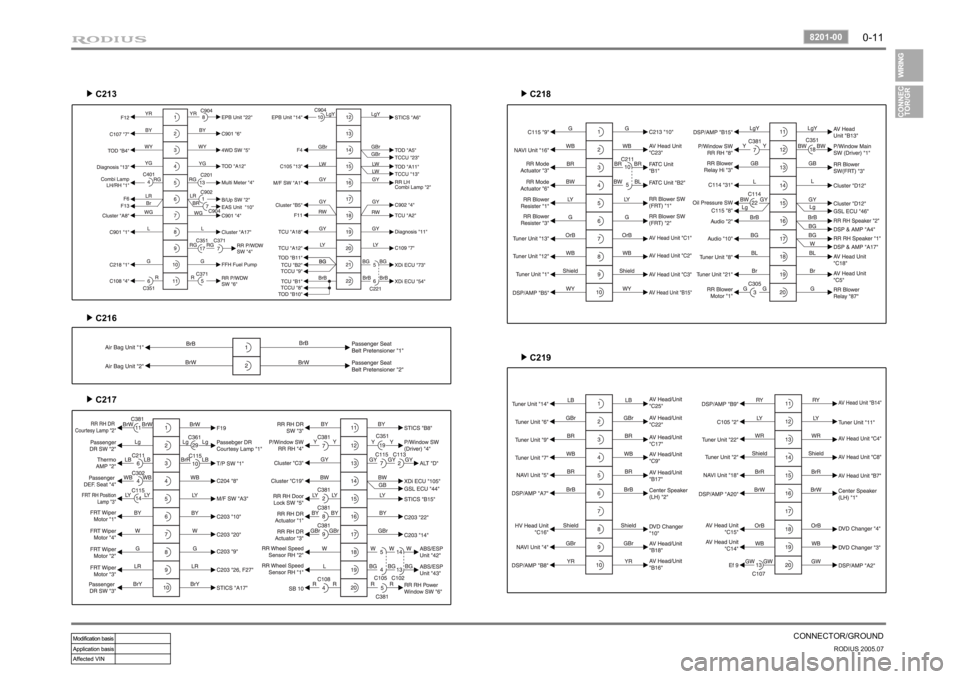

SSANGYONG RODIUS 2005 User Guide 0-11 CONNECTOR/GROUND RODIUS 2005.07 8201-00 C216 ▶ C217 ▶ C219 ▶ C213 ▶ C218 ▶

Page 18 of 502

SSANGYONG RODIUS 2005 User Guide 0-12RODIUS 2005.07 8201-00 CONNECTOR/GROUND C221 ▶ C302 ▶C303 ▶C304 ▶C301 ▶ C220 ▶ C301A ▶

Page 19 of 502

SSANGYONG RODIUS 2005 User Guide 0-13 CONNECTOR/GROUND RODIUS 2005.07 8201-00 C306 ▶C351 ▶ C381 ▶C305 ▶ C361 ▶C371 ▶

Page 20 of 502

SSANGYONG RODIUS 2005 User Guide 0-14RODIUS 2005.07 8201-00 CONNECTOR/GROUND C402 ▶ C903 ▶ C401 ▶ C901 ▶ C902 ▶
