SSANGYONG TURISMO 2013  Service Manual 02-40
(3) Auto Light Function
The lights automatically come on and off according to the ambient brightness when the
multifunction light switch is in “AUTO” position while the ignition key is in

Page 472 of 796

SSANGYONG TURISMO 2013  Service Manual 02-418710-01
3. CIRCUIT DIAGRAM
▶ Tail lamp, key reminder SW, chime bell

Page 473 of 796

SSANGYONG TURISMO 2013  Service Manual 02-42
▶ Power window, warning lamp(brake, s/belt)

Page 474 of 796

SSANGYONG TURISMO 2013  Service Manual 02-438710-01
▶ Door SW, lamp(door courtesy, g/handle), door open warning lamp, defogger

Page 475 of 796

SSANGYONG TURISMO 2013  Service Manual 02-44
▶ Central door lock

Page 476 of 796

SSANGYONG TURISMO 2013  Service Manual 02-458710-01

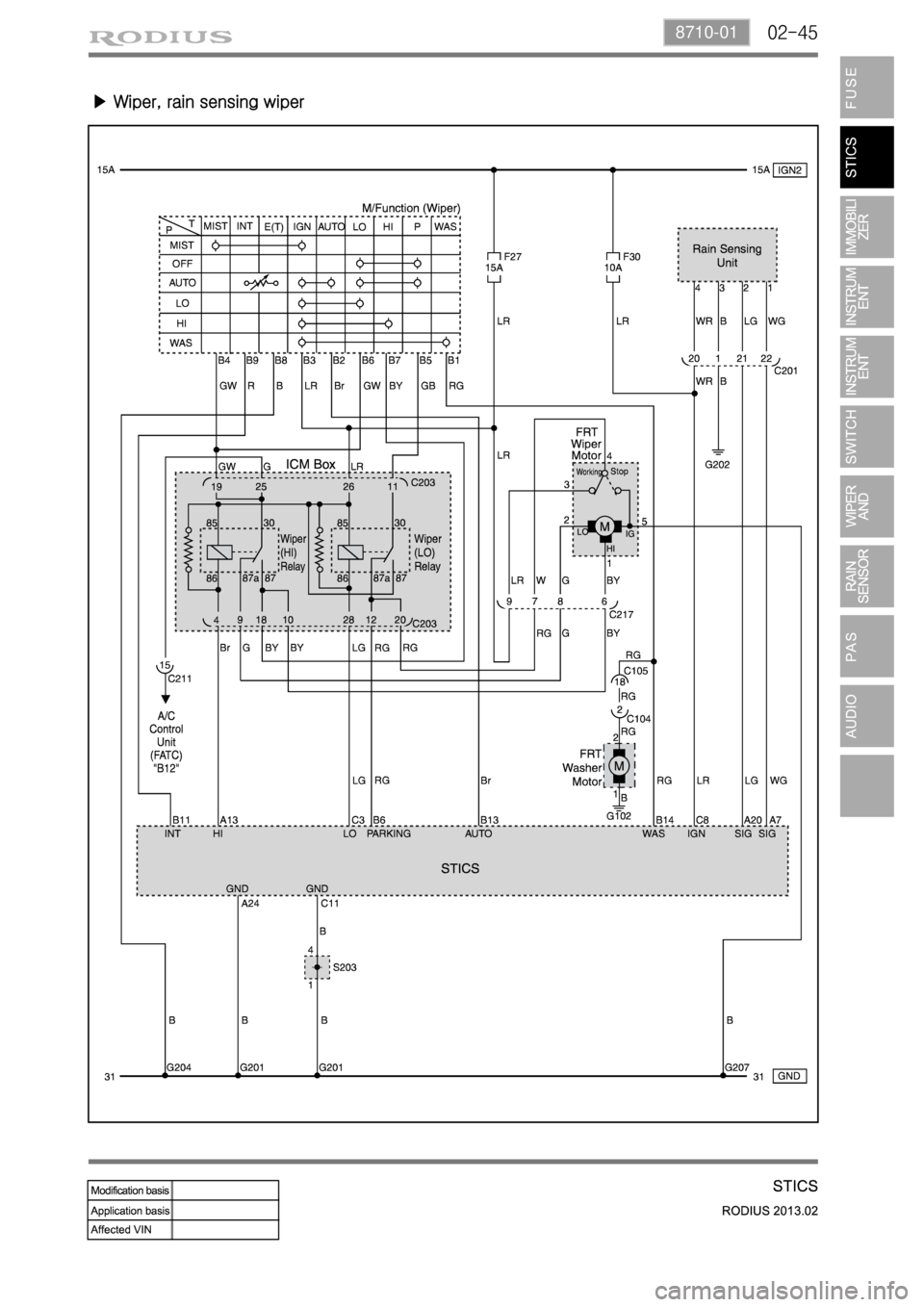

▶ Wiper, rain sensing wiper

Page 477 of 796

SSANGYONG TURISMO 2013  Service Manual 03-37010-06
1. SPECIFICATIONS
Item Item Specification
Immobilizer
unitOperating voltage
(CAN) 6.0 V to 16.0 V
(6.0 V ~18.0 V)
Operating temperature-30℃ ~ 80℃
Coil inductance420 uH ± 20 uH
Mod

Page 478 of 796

SSANGYONG TURISMO 2013  Service Manual 03-4
1. SYSTEM LAYOUT
1) Location
Immobilizer Warning LampImmobilizer Unit
ECUREKES KeyDiagnostic Connector

Page 479 of 796

SSANGYONG TURISMO 2013  Service Manual 03-57010-06
2) System Diagram
The certification for the immobilizer is performed when turning the ignition switch to the "ON" position
after the CAN communication between the ECU and immobilizer is e

Page 480 of 796

SSANGYONG TURISMO 2013  Service Manual 03-6
2. OVERVIEW
The Immobilizer System provides an additional theft deterrent to the vehicle in which it is installed and
prevents it from being started by unauthorized persons. The transponder inte
