Page 151 of 572

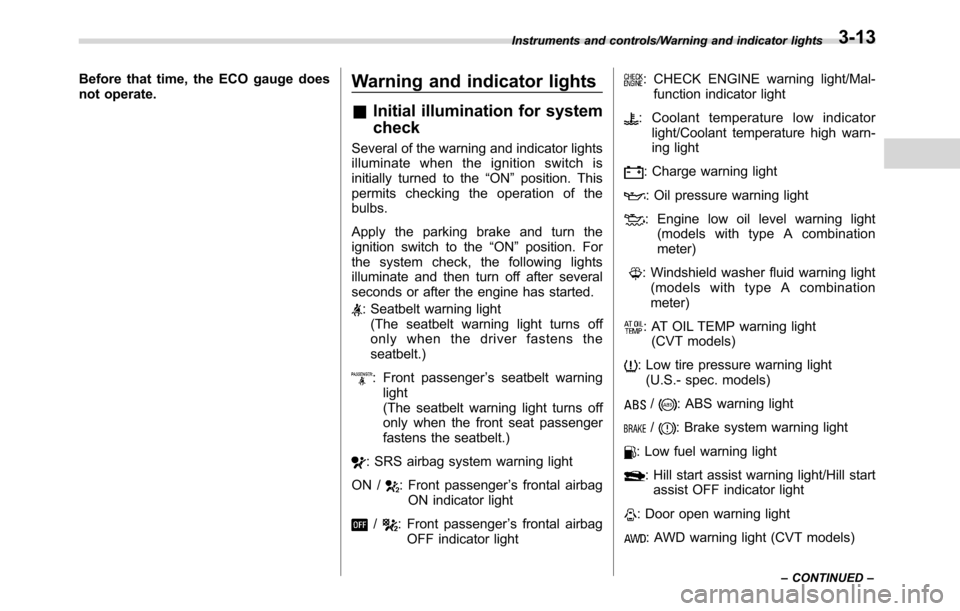

SUBARU CROSSTREK 2017 1.G Owners Manual Before that time, the ECO gauge does
not operate.Warning and indicator lights
&Initial illumination for system
check
Several of the warning and indicator lights
illuminate when the ignition switch is

Page 152 of 572

SUBARU CROSSTREK 2017 1.G Owners Manual Instruments and controls/Warning and indicator lights

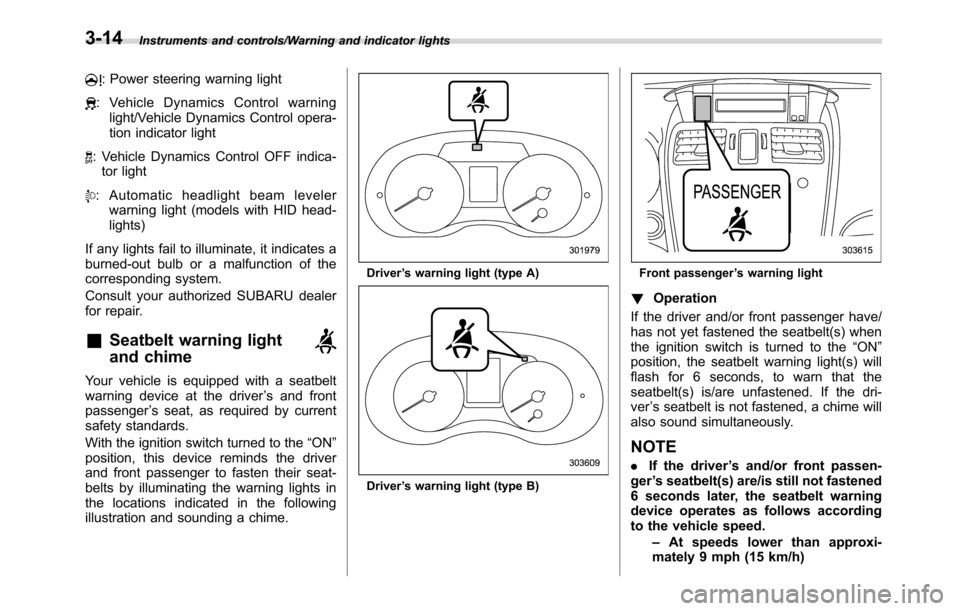

: Power steering warning light
: Vehicle Dynamics Control warning
light/Vehicle Dynamics Control opera-
tion indicator light
: Vehicle Dynamics Co

Page 153 of 572

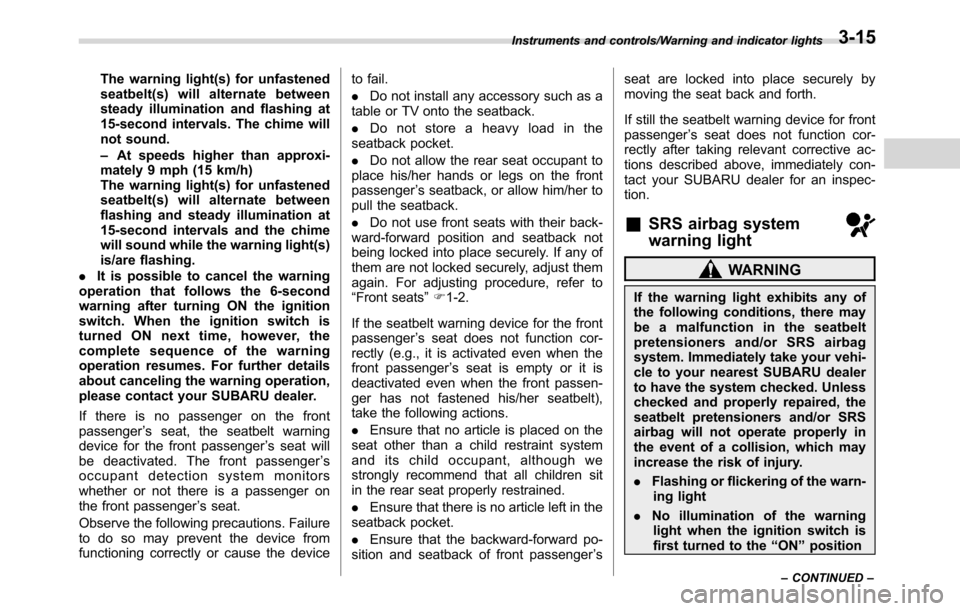

SUBARU CROSSTREK 2017 1.G Owners Manual The warning light(s) for unfastened
seatbelt(s) will alternate between
steady illumination and flashing at
15-second intervals. The chime will
not sound.
–At speeds higher than approxi-
mately 9 mph

Page 154 of 572

SUBARU CROSSTREK 2017 1.G Owners Manual Instruments and controls/Warning and indicator lights

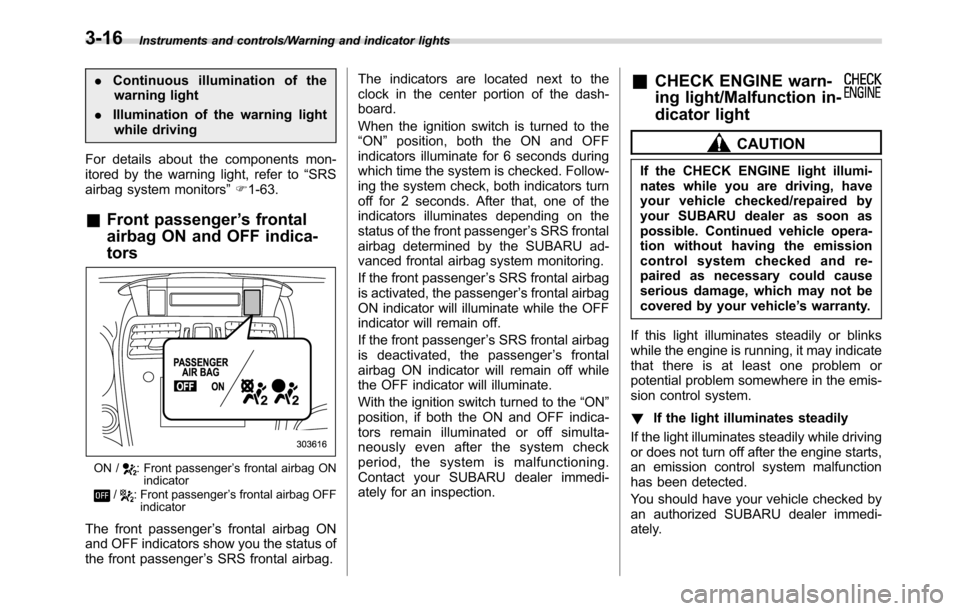

.Continuous illumination of the
warning light
.Illumination of the warning light
while driving
For details about the components mon-
itored by the

Page 155 of 572

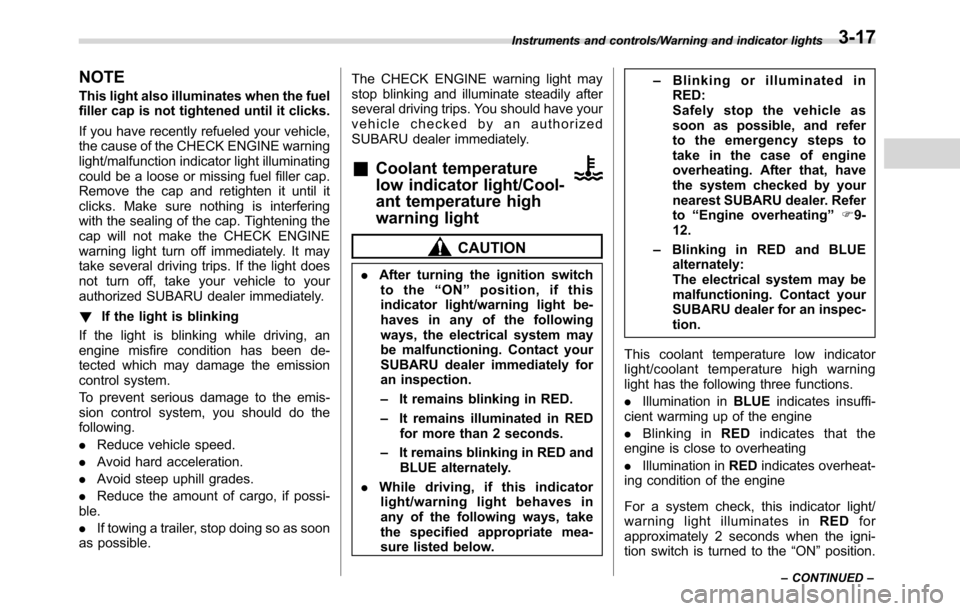

SUBARU CROSSTREK 2017 1.G Owners Manual NOTE
This light also illuminates when the fuel
filler cap is not tightened until it clicks.
If you have recently refueled your vehicle,
the cause of the CHECK ENGINE warning
light/malfunction indicato

Page 156 of 572

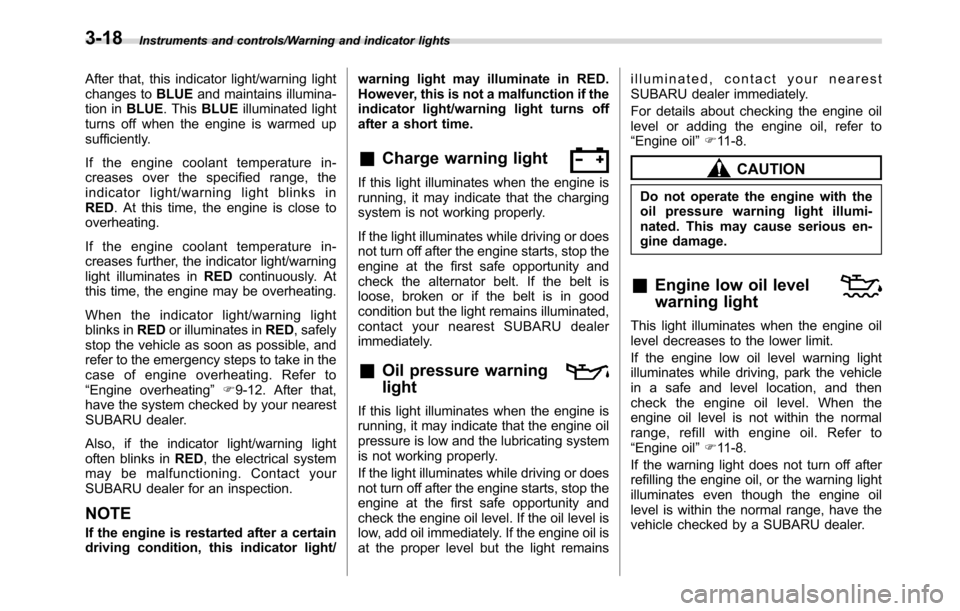

SUBARU CROSSTREK 2017 1.G Owners Manual Instruments and controls/Warning and indicator lights
After that, this indicator light/warning light
changes toBLUEand maintains illumina-
tion inBLUE. ThisBLUEilluminated light
turns off when the eng

Page 157 of 572

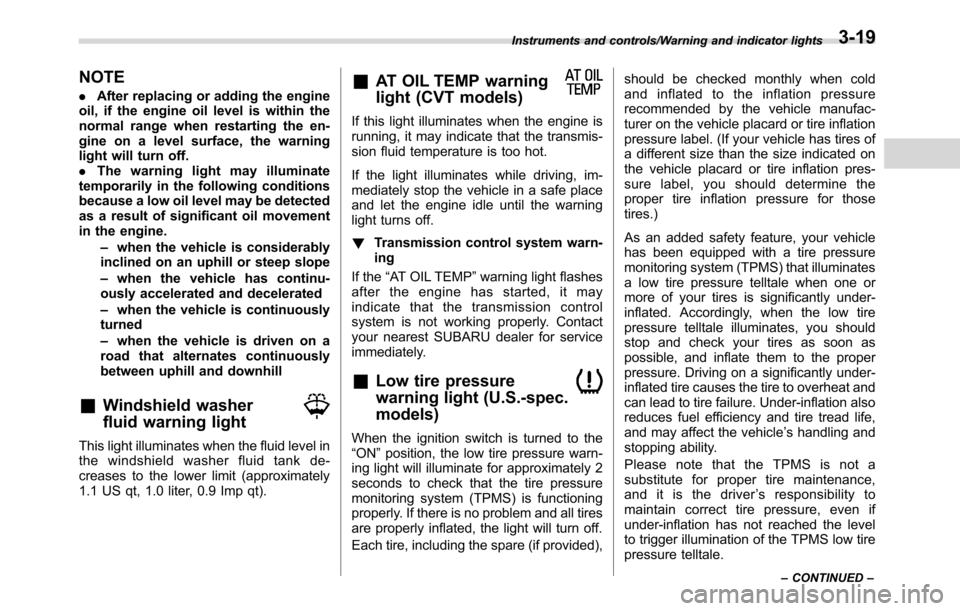

SUBARU CROSSTREK 2017 1.G Owners Manual NOTE
.After replacing or adding the engine
oil, if the engine oil level is within the
normal range when restarting the en-
gine on a level surface, the warning
light will turn off.
.The warning light

Page 158 of 572

SUBARU CROSSTREK 2017 1.G Owners Manual Instruments and controls/Warning and indicator lights

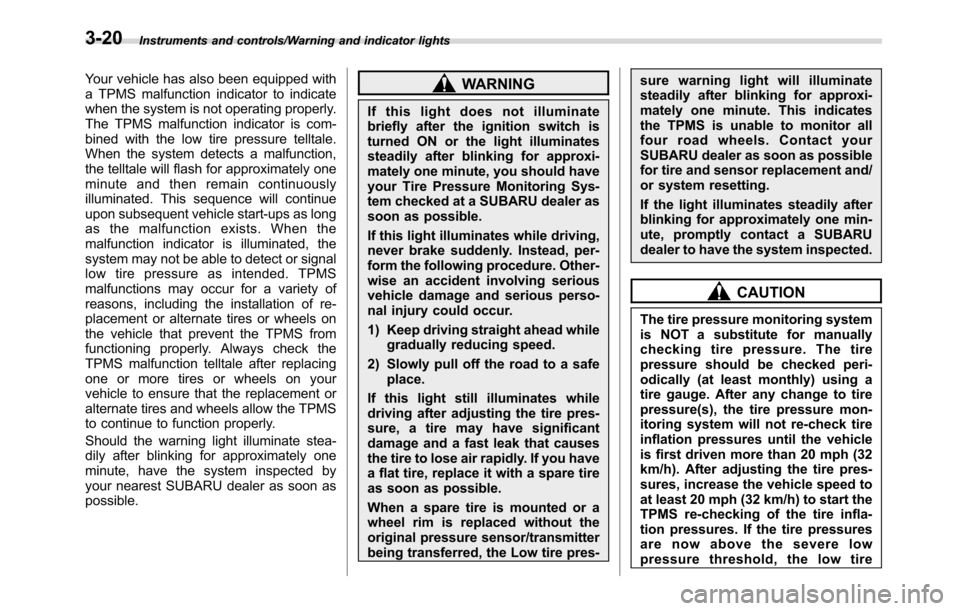

Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction

Page 159 of 572

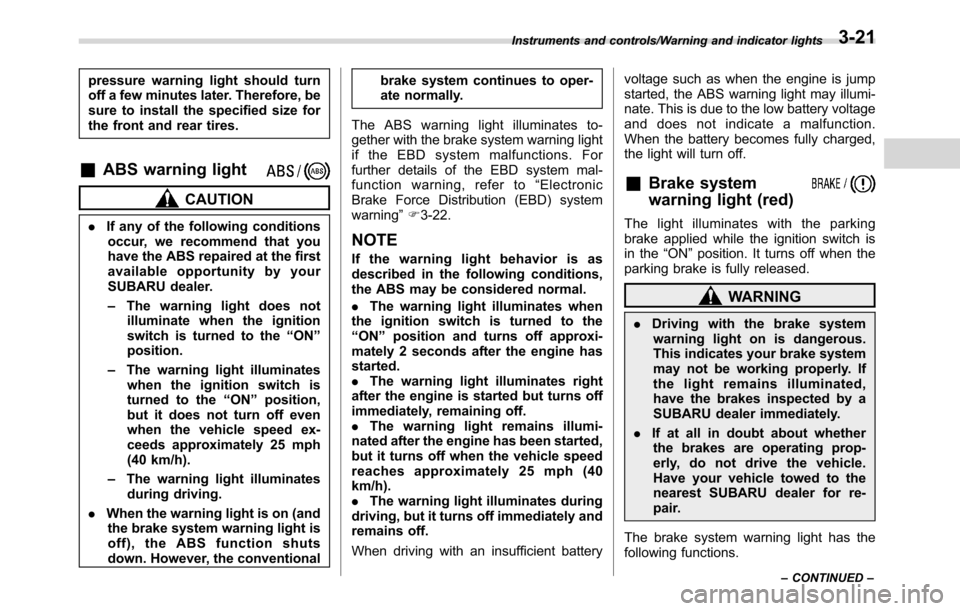

SUBARU CROSSTREK 2017 1.G Owners Manual pressure warning light should turn
off a few minutes later. Therefore, be
sure to install the specified size for
the front and rear tires.
&ABS warning light
CAUTION
.If any of the following condition

Page 160 of 572

SUBARU CROSSTREK 2017 1.G Owners Manual Instruments and controls/Warning and indicator lights

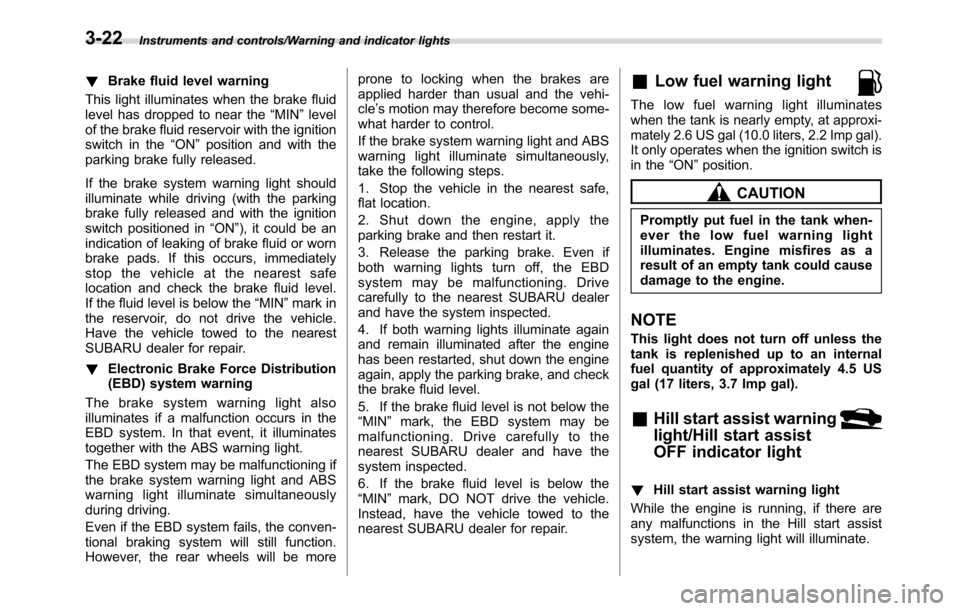

!Brake fluid level warning
This light illuminates when the brake fluid
level has dropped to near the“MIN”level
of the brake fluid reservoir wi
