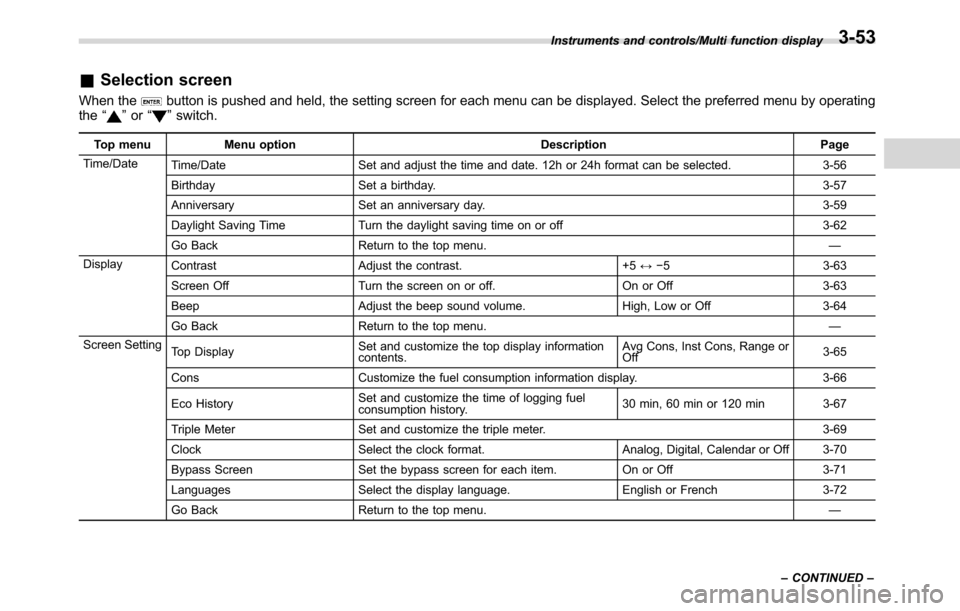

&Selection screen
When thebutton is pushed and held, the setting screen for each menu can be displayed. Select the preferred menu by operating
the“”or“”switch.
Top menu Menu option Description Page
Time/Date
Time/Date Set and adjust the time and date. 12h or 24h format can be selected. 3-56
Birthday Set a birthday. 3-57
Anniversary Set an anniversary day. 3-59
Daylight Saving Time Turn the daylight saving time on or off 3-62
Go Back Return to the top menu.—
Display
Contrast Adjust the contrast. +5↔−53-63
Screen Off Turn the screen on or off. On or Off 3-63
Beep Adjust the beep sound volume. High, Low or Off 3-64
Go Back Return to the top menu.—
Screen Setting
Top DisplaySet and customize the top display information
contents.Avg Cons, Inst Cons, Range or
Off3-65
Cons Customize the fuel consumption information display. 3-66
Eco HistorySet and customize the time of logging fuel
consumption history.30 min, 60 min or 120 min 3-67
Triple Meter Set and customize the triple meter. 3-69
Clock Select the clock format. Analog, Digital, Calendar or Off 3-70
Bypass Screen Set the bypass screen for each item. On or Off 3-71
Languages Select the display language. English or French 3-72
Go Back Return to the top menu.— Instruments and controls/Multi function display
–CONTINUED–
3-53

Instruments and controls/Multi function display

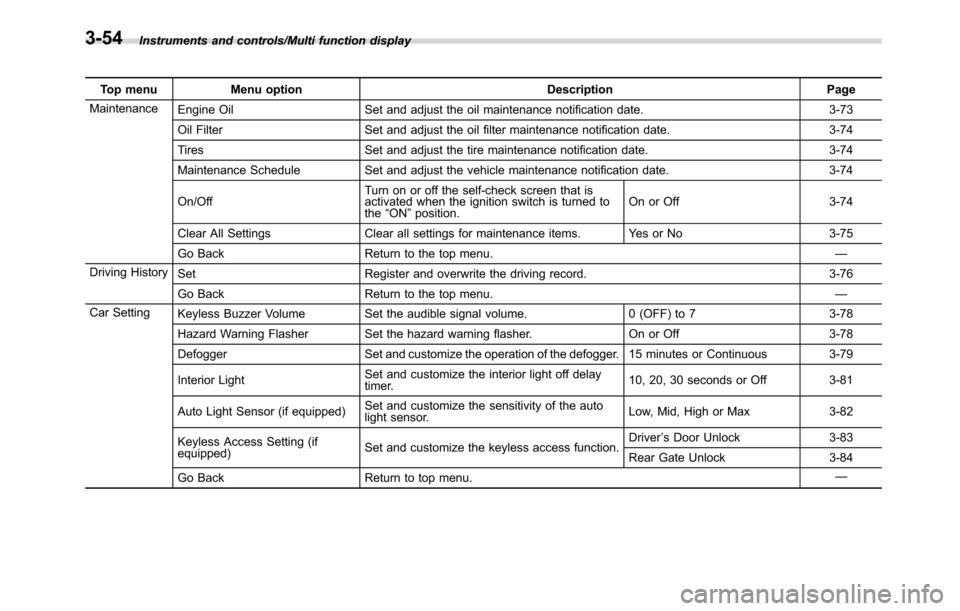

Top menu Menu option Description Page
Maintenance
Engine Oil Set and adjust the oil maintenance notification date. 3-73
Oil Filter Set and adjust the oil filter maintenance notification date. 3-74
Tires Set and adjust the tire maintenance notification date. 3-74
Maintenance Schedule Set and adjust the vehicle maintenance notification date. 3-74
On/OffTurn on or off the self-check screen that is
activated when the ignition switch is turned to
the“ON”position.On or Off 3-74
Clear All Settings Clear all settings for maintenance items. Yes or No 3-75
Go Back Return to the top menu.—
Driving History
Set Register and overwrite the driving record. 3-76
Go Back Return to the top menu.—
Car Setting
Keyless Buzzer Volume Set the audible signal volume. 0 (OFF) to 7 3-78
Hazard Warning Flasher Set the hazard warning flasher. On or Off 3-78
Defogger Set and customize the operation of the defogger. 15 minutes or Continuous 3-79
Interior LightSet and customize the interior light off delay
timer.10, 20, 30 seconds or Off 3-81
Auto Light Sensor (if equipped)Set and customize the sensitivity of the auto
light sensor.Low, Mid, High or Max 3-82
Keyless Access Setting (if
equipped)Set and customize the keyless access function.Driver’s Door Unlock 3-83
Rear Gate Unlock 3-84
Go Back Return to top menu.—
3-54

Top menu Menu option Description Page
Initialize
Reset to Defaults Reset all settings to the default settings. Yes or No 3-86
Lifetime Fuel Consumption Reset Clear logged lifetime fuel consumption data. Yes or No 3-87
Go Back Return to the top menu.—
Go Back
—Return to the top menu.— Instruments and controls/Multi function display
–CONTINUED–
3-55

Instruments and controls/Multi function display

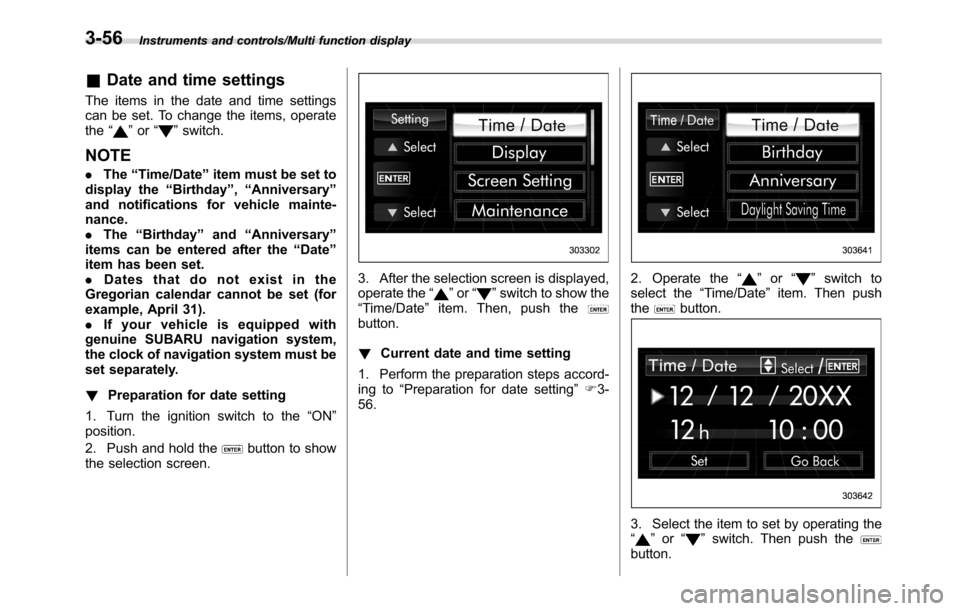

&Date and time settings
The items in the date and time settings
can be set. To change the items, operate
the“
”or“”switch.
NOTE
.The“Time/Date”item must be set to
display the“Birthday”,“Anniversary”
and notifications for vehicle mainte-
nance.
.The“Birthday”and“Anniversary”
items can be entered after the“Date”
item has been set.
.Dates that do not exist in the
Gregorian calendar cannot be set (for
example, April 31).
.If your vehicle is equipped with
genuine SUBARU navigation system,
the clock of navigation system must be
set separately.
!Preparation for date setting
1. Turn the ignition switch to the“ON”
position.
2. Push and hold the
button to show
the selection screen.
3. After the selection screen is displayed,
operate the“”or“”switch to show the
“Time/Date”item. Then, push the
button.
!Current date and time setting
1. Perform the preparation steps accord-
ing to“Preparation for date setting”F3-
56.
2. Operate the“”or“”switch to
select the“Time/Date”item. Then push
the
button.
3. Select the item to set by operating the
“”or“”switch. Then push thebutton.
3-56

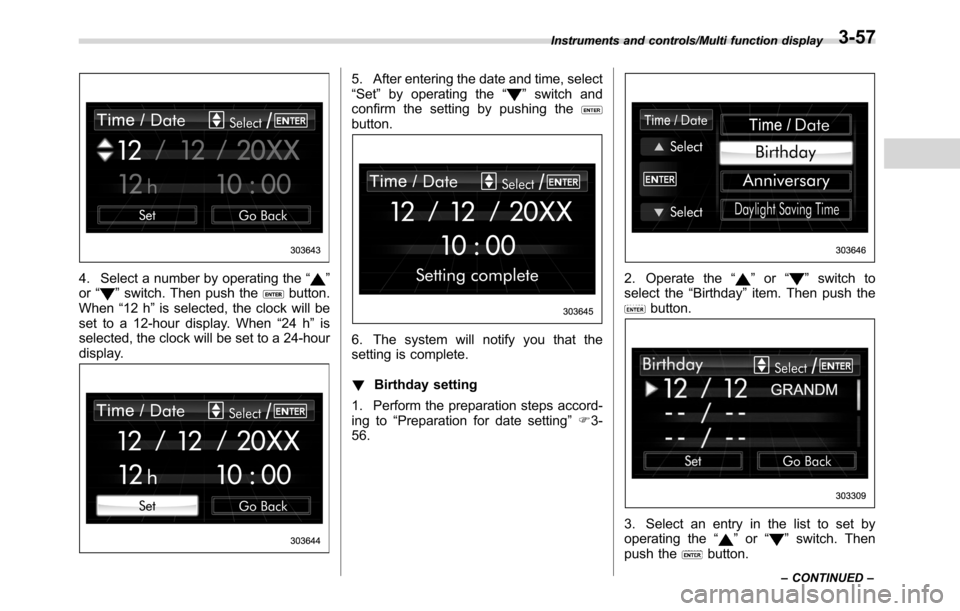

4. Select a number by operating the“”
or“”switch. Then push thebutton.
When“12 h”is selected, the clock will be
set to a 12-hour display. When“24 h”is
selected, the clock will be set to a 24-hour
display.
5. After entering the date and time, select
“Set”by operating the“”switch and
confirm the setting by pushing the
button.
6. The system will notify you that the
setting is complete.
!Birthday setting
1. Perform the preparation steps accord-
ing to“Preparation for date setting”F3-
56.
2. Operate the“”or“”switch to
select the“Birthday”item. Then push the
button.
3. Select an entry in the list to set by
operating the“”or“”switch. Then
push thebutton.
Instruments and controls/Multi function display
–CONTINUED–3-57

Instruments and controls/Multi function display

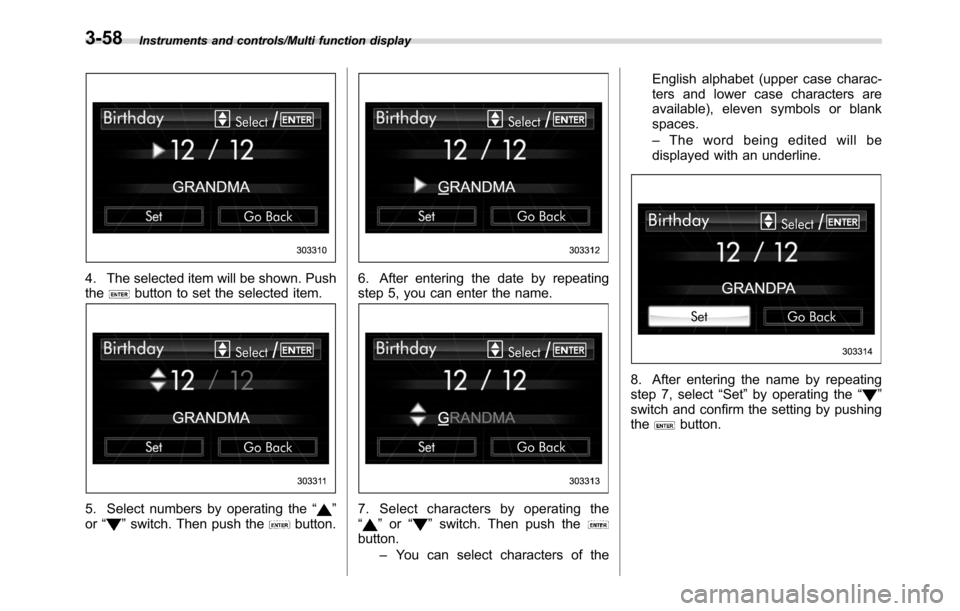

4. The selected item will be shown. Push
thebutton to set the selected item.
5. Select numbers by operating the“”
or“”switch. Then push thebutton.
6. After entering the date by repeating
step 5, you can enter the name.
7. Select characters by operating the
“”or“”switch. Then push thebutton.
–You can select characters of theEnglish alphabet (upper case charac-
ters and lower case characters are
available), eleven symbols or blank
spaces.
–The word being edited will be
displayed with an underline.
8. After entering the name by repeating
step 7, select“Set”by operating the“”
switch and confirm the setting by pushing
the
button.
3-58

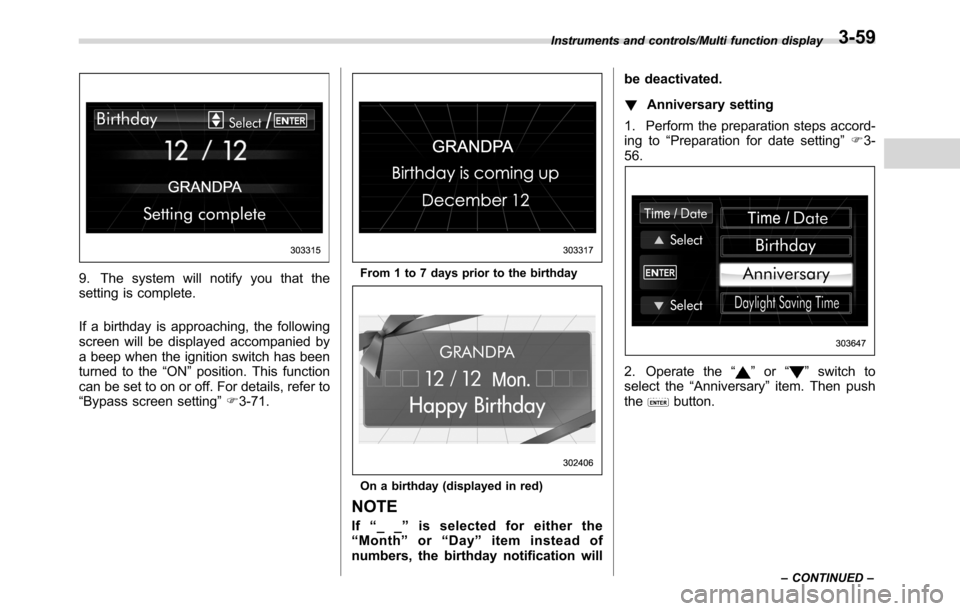

9. The system will notify you that the
setting is complete.
If a birthday is approaching, the following
screen will be displayed accompanied by
a beep when the ignition switch has been
turned to the“ON”position. This function
can be set to on or off. For details, refer to
“Bypass screen setting”F3-71.From 1 to 7 days prior to the birthday
On a birthday (displayed in red)
NOTE
If“__”is selected for either the
“Month”or“Day”item instead of
numbers, the birthday notification willbe deactivated.
!Anniversary setting
1. Perform the preparation steps accord-
ing to“Preparation for date setting”F3-
56.
2. Operate the“”or“”switch to
select the“Anniversary”item. Then push
the
button.
Instruments and controls/Multi function display
–CONTINUED–3-59

Instruments and controls/Multi function display

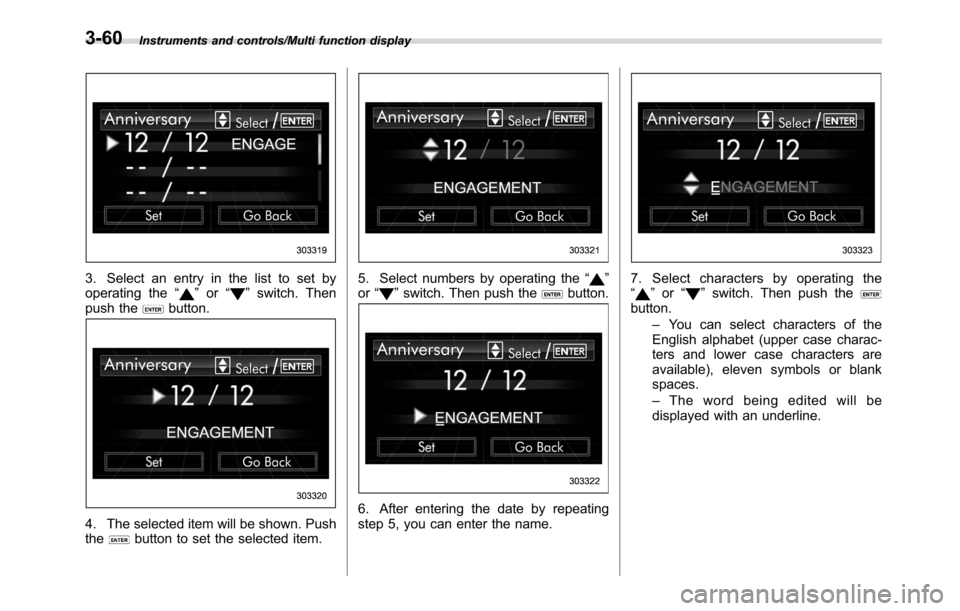

3. Select an entry in the list to set by
operating the“”or“”switch. Then
push thebutton.
4. The selected item will be shown. Push
thebutton to set the selected item.
5. Select numbers by operating the“”
or“”switch. Then push thebutton.
6. After entering the date by repeating
step 5, you can enter the name.
7. Select characters by operating the
“”or“”switch. Then push thebutton.
–You can select characters of the
English alphabet (upper case charac-
ters and lower case characters are
available), eleven symbols or blank
spaces.
–The word being edited will be
displayed with an underline.
3-60

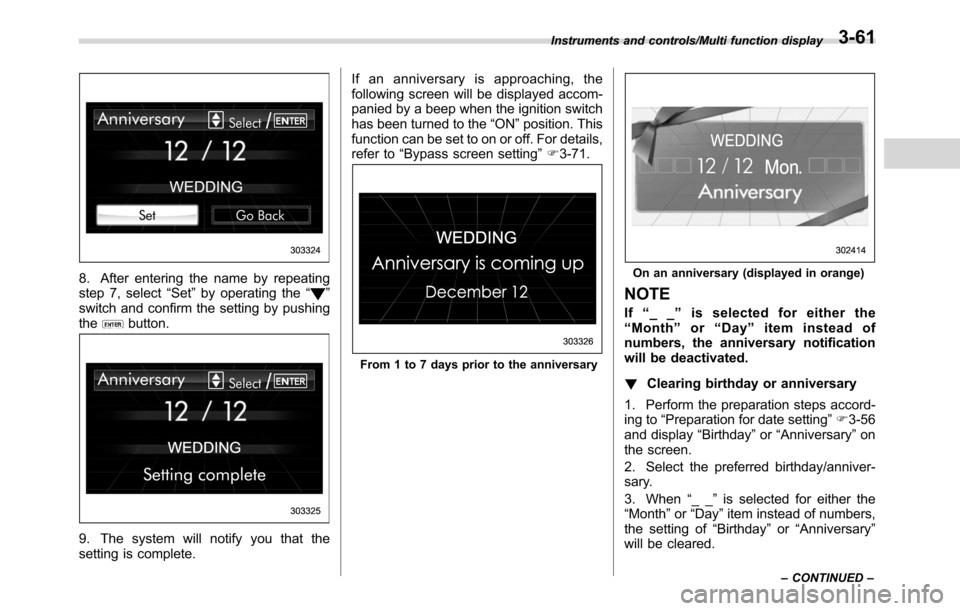

8. After entering the name by repeating
step 7, select“Set”by operating the“”
switch and confirm the setting by pushing
the
button.
9. The system will notify you that the
setting is complete.If an anniversary is approaching, the
following screen will be displayed accom-
panied by a beep when the ignition switch
has been turned to the“ON”position. This
function can be set to on or off. For details,
refer to“Bypass screen setting”F3-71.
From 1 to 7 days prior to the anniversary
On an anniversary (displayed in orange)
NOTE
If“__”is selected for either the
“Month”or“Day”item instead of
numbers, the anniversary notification
will be deactivated.
!Clearing birthday or anniversary
1. Perform the preparation steps accord-
ing to“Preparation for date setting”F3-56
and display“Birthday”or“Anniversary”on
the screen.
2. Select the preferred birthday/anniver-
sary.
3. When“__”is selected for either the
“Month”or“Day”item instead of numbers,
the setting of“Birthday”or“Anniversary”
will be cleared.
Instruments and controls/Multi function display
–CONTINUED–3-61

Instruments and controls/Multi function display

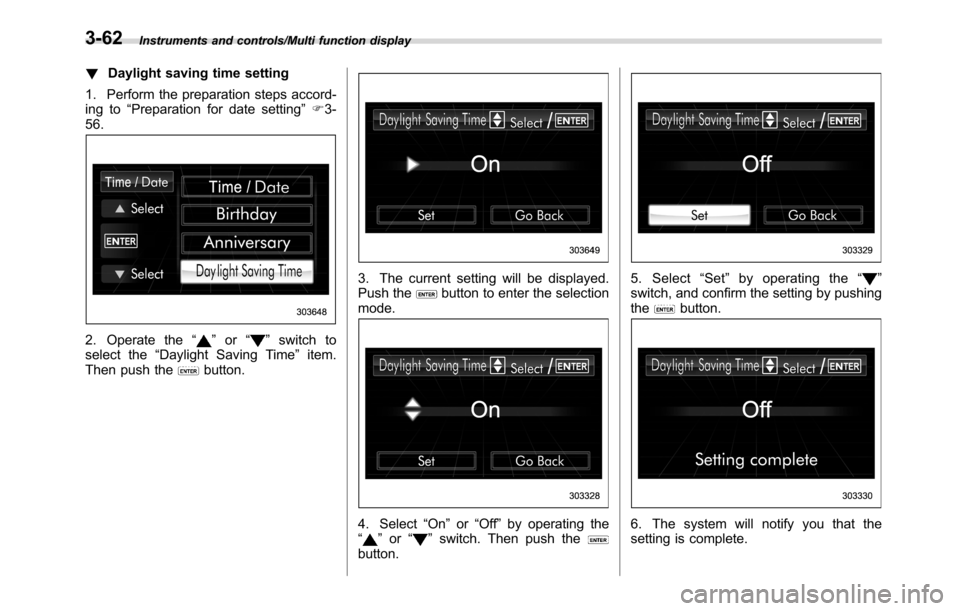

!Daylight saving time setting
1. Perform the preparation steps accord-
ing to“Preparation for date setting”F3-
56.
2. Operate the“”or“”switch to
select the“Daylight Saving Time”item.
Then push the
button.
3. The current setting will be displayed.
Push thebutton to enter the selection
mode.
4. Select“On”or“Off”by operating the
“”or“”switch. Then push thebutton.
5. Select“Set”by operating the“”
switch, and confirm the setting by pushing
the
button.
6. The system will notify you that the
setting is complete.
3-62
