5F62 : CHECK HARNESS CONNECTOR
BETWEEN FRONT DOOR SWITCH
RH AND COMBINATION METER.
1) Disconnect connector from front door switch
RH.
2) Measure resistance between front door switch
RH connector (R12) and combination meter con-
nector (i10).
Connector & terminal
(R12) No. 1 Ð (i10) No. 11:
S6M0470A
:Is the resistance less than 10W?
: Go to step5F63.
: Repair wiring harness between front
door switch RH and combination meter.5F63 : CHECK COMBINATION METER CIR-
CUIT.
1) Remove combination meter.

2) Measure resistance between combination
meter terminals.
Terminals
No. 11 Ð No. 12:
S6M0468
:Is the resistance less than 10W?
: Replace security control module. to 6-2 [W14A1].>
: Repair or replace combination meter.

89
[T5F6]6-2DIAGNOSTICS
5. Security System

7. DIAGNOSTIC ITEM 6
5F71 : CHECK HARNESS CONNECTOR
BETWEEN SECURITY CONTROL
MODULE AND COMBINATION
METER.
1) Disconnect connector from security control
module and combination meter.
2) Measure resistance between security control
module connector (B93) and combination meter
connector (i10).
Connector & terminal
(B93) No. 5 Ð (i10) No. 11:
S6M0465A
:Is the resistance less than 10W?
: Go to step5F72.
: Repair wiring harness between security
control module and combination meter.5F72 : CHECK HARNESS CONNECTOR
BETWEEN REAR DOOR SWITCH LH
AND COMBINATION METER.
1) Disconnect connector from rear door switch LH.
2) Measure resistance between rear door switch
LH connector (R22) and combination meter con-
nector (i10).
Connector & terminal
(R22) No. 1 Ð (i10) No. 11:
S6M0471A
:Is the resistance less than 10W?
: Go to step5F73.
: Repair wiring harness between rear
door switch LH and combination meter.
5F73 : CHECK COMBINATION METER CIR-
CUIT.
1) Remove combination meter. [W8A0].>
2) Measure resistance between combination
meter terminals.
Terminals
No. 11 Ð No. 12:
S6M0468
:Is the resistance less than 10W?
: Replace security control module. to 6-2 [W14A1].>
: Repair or replace combination meter.

90
6-2[T5F7]DIAGNOSTICS
5. Security System

8. DIAGNOSTIC ITEM 7
5F81 : CHECK HARNESS CONNECTOR
BETWEEN SECURITY CONTROL
MODULE AND COMBINATION
METER.
1) Disconnect connector from security control
module and combination meter.
2) Measure resistance between security control
module connector (B93) and combination meter
connector (i10).
Connector & terminal
(B93) No. 5 Ð (i10) No. 11:
S6M0465A
:Is the resistance less than 10W?
: Go to step5F82.
: Repair wiring harness between security
control module and combination meter.5F82 : CHECK HARNESS CONNECTOR
BETWEEN REAR DOOR SWITCH RH
AND COMBINATION METER.
1) Disconnect connector from rear door switch
RH.
2) Measure resistance between rear door switch
RH connector (R16) and combination meter con-
nector (i10).
Connector & terminal
(R16) No. 1 Ð (i10) No. 11:
S6M0472A
:Is the resistance less than 10W?
: Go to step5F83.
: Repair wiring harness between rear
door switch RH and combination meter.
91
[T5F8]6-2DIAGNOSTICS
5. Security System

5F83 : CHECK COMBINATION METER CIR-
CUIT.
1) Remove combination meter. [W8A0].>
2) Measure resistance between combination
meter terminals.
Terminals
No. 11 Ð No. 12:
S6M0468
:Is the resistance less than 10W?
: Replace security control module. to 6-2 [W14A1].>
: Repair or replace combination meter.

9. DIAGNOSTIC ITEM 8
5F91 : CHECK HARNESS CONNECTOR
BETWEEN REAR GATE LATCH
SWITCH AND SECURITY CONTROL
MODULE.
1) Disconnect connector from rear gate latch
switch and security control module.
2) Measure resistance between rear gate latch
switch connector (D46) and security control mod-
ule connector (B93).
Connector & terminal
(D46) No. 1 Ð (B93) No. 5:
S6M0473A
:Is the resistance less than 10W?
: Go to step5F92.
: Repair wiring harness between rear
gate latch switch and security control
module.
92
6-2[T5F8]DIAGNOSTICS
5. Security System

5F92 : CHECK HARNESS CONNECTOR
BETWEEN REAR GATE LATCH
SWITCH AND CHASSIS GROUND.
Measure resistance between rear gate latch switch
connector (D46) and chassis ground.
Connector & terminal
(D46) No. 2 (+) Ð Chassis ground (þ):
B6M1010A
:Is the resistance less than 10W?
: Go to step5F93.
: Repair wiring harness between rear
gate latch switch and chassis ground.
5F93 : CHECK REAR GATE LATCH
SWITCH.
Measure resistance between rear gate latch switch
terminals.
Terminals
No. 1 Ð No. 2:
B6M1386
:Is the resistance less than 10W?
: Go to step5F94.
: Replace rear gate latch switch.5F94 : CHECK REAR GATE LATCH
SWITCH.
Measure resistance between rear gate latch switch
terminals while pushing the switch.
Terminals
No. 1 Ð No. 2:
B6M1386
:Is the resistance less than 10W?
: Replace rear gate latch switch.
: Replace security control module. to 6-2 [W14A1].>
93
[T5F9]6-2DIAGNOSTICS
5. Security System

10. DIAGNOSTIC ITEM 9
5F101 : CHECK SECURITY CONTROL
MODULE.
Check and ensure that security control module is
installed on the bracket.
:Is the security control module
securely installed?
: Go to step5F102.
: Securely install security control module.

5F102 : ADJUST SENSITIVITY.
1) Remove security control module. [W14A1].>
2) Adjust the sensitivity adjust screw in security
control module.
NOTE:
After adjusting, be sure to plug the adjust screw
hole.
B6M1389A
3) Install security control module. [W14A1].>
4) Perform impact sensitivity test.

:Is sensitivity adjustment possible?
: Impact sensitivity is normal.
: Replace security control module. to 6-2 [W14A1].>
11. DIAGNOSTIC ITEM 10
5F111 : CHECK PASSIVE ARM CIRCUIT.
1) Connect connector (B183) and (B184) at driver
side front lower pillar.
2) Disconnect connector from security control
module.
3) Measure resistance between security control
module (B93) and chassis ground.
Connector & terminal
(B93) No. 3 (+) Ð Chassis ground (þ):
B6M1013A
:Is the resistance less than 10W?
: Replace security control module. to 6-2 [W14A1].>
: Repair wiring harness between security
control module and chassis ground.
94
6-2[T5F10]DIAGNOSTICS
5. Security System

1. Precaution
A: SUPPLEMENTAL RESTRAINT
SYSTEM ªAIRBAGº
Airbag system wiring harness is routed on and
along body panels.
CAUTION:
IAll airbag system wiring harness and con-
nectors are yellow. Do not use electrical test
equipment on these circuit.
IBe careful not to damage airbag system wir-
ing harness when repairing the body panel.
2. Body Datum Points
Various master repair locations are established as datum points used during body repairs. In addition, guide
holes, locators and indents are provided to facilitate panel replacement and achieve alignment accuracy.
NOTE:
Left and right datum points are all symmetrical to each other.

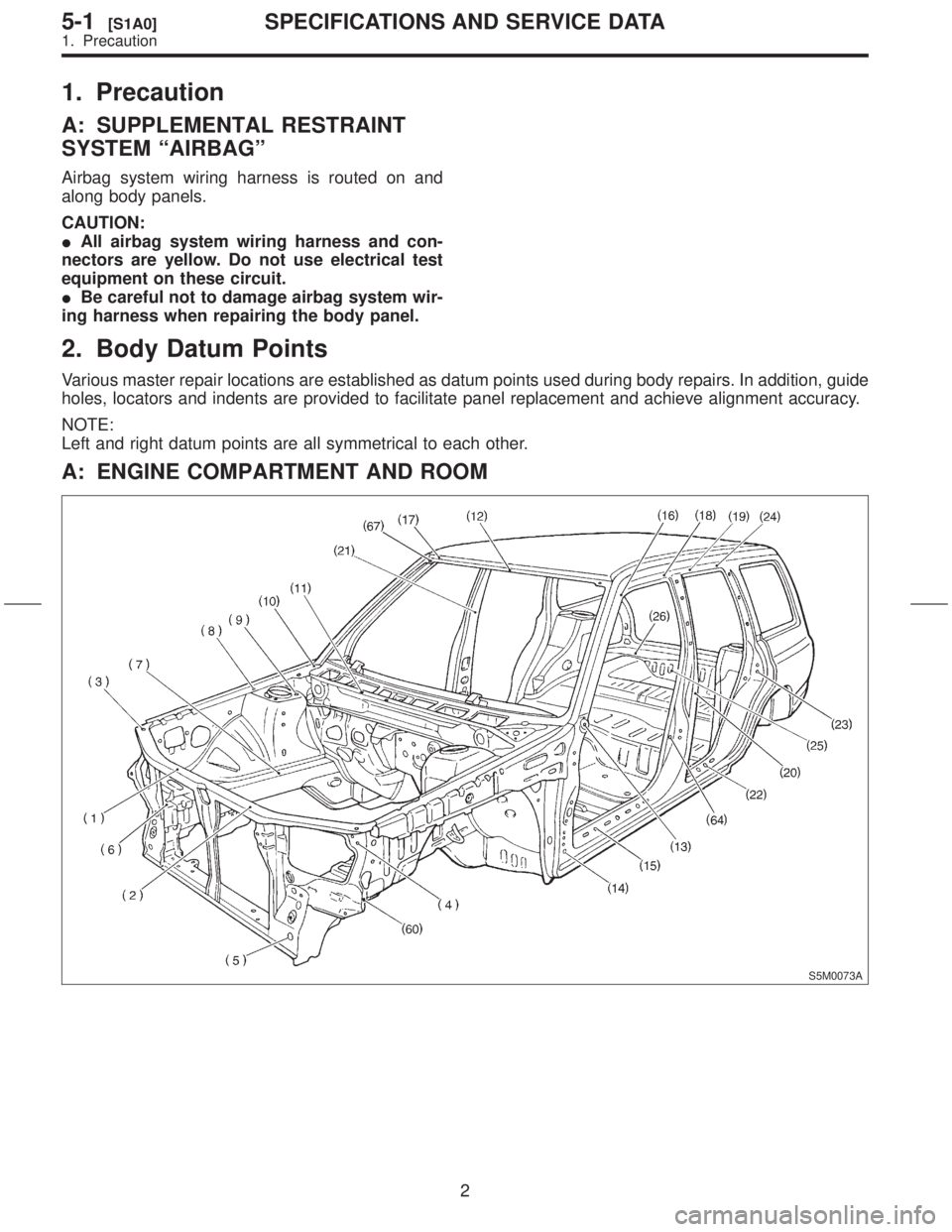

A: ENGINE COMPARTMENT AND ROOM
S5M0073A
2
5-1[S1A0]SPECIFICATIONS AND SERVICE DATA
1. Precaution

1. Precaution
A: SUPPLEMENTAL RESTRAINT
SYSTEM ªAIRBAGº
Airbag system wiring harness is routed on and
along body panels.
CAUTION:
IAll airbag system wiring harness and con-
nectors are yellow. Do not use electrical test
equipment on these circuit.
IBe careful not to damage airbag system wir-
ing harness when repairing the body panel.
2. Body Datum Points
Various master repair locations are established as datum points used during body repairs. In addition, guide
holes, locators and indents are provided to facilitate panel replacement and achieve alignment accuracy.
NOTE:
Left and right datum points are all symmetrical to each other.
A: ENGINE COMPARTMENT AND ROOM
S5M0073A
2
5-1[S1A0]SPECIFICATIONS AND SERVICE DATA
1. Precaution

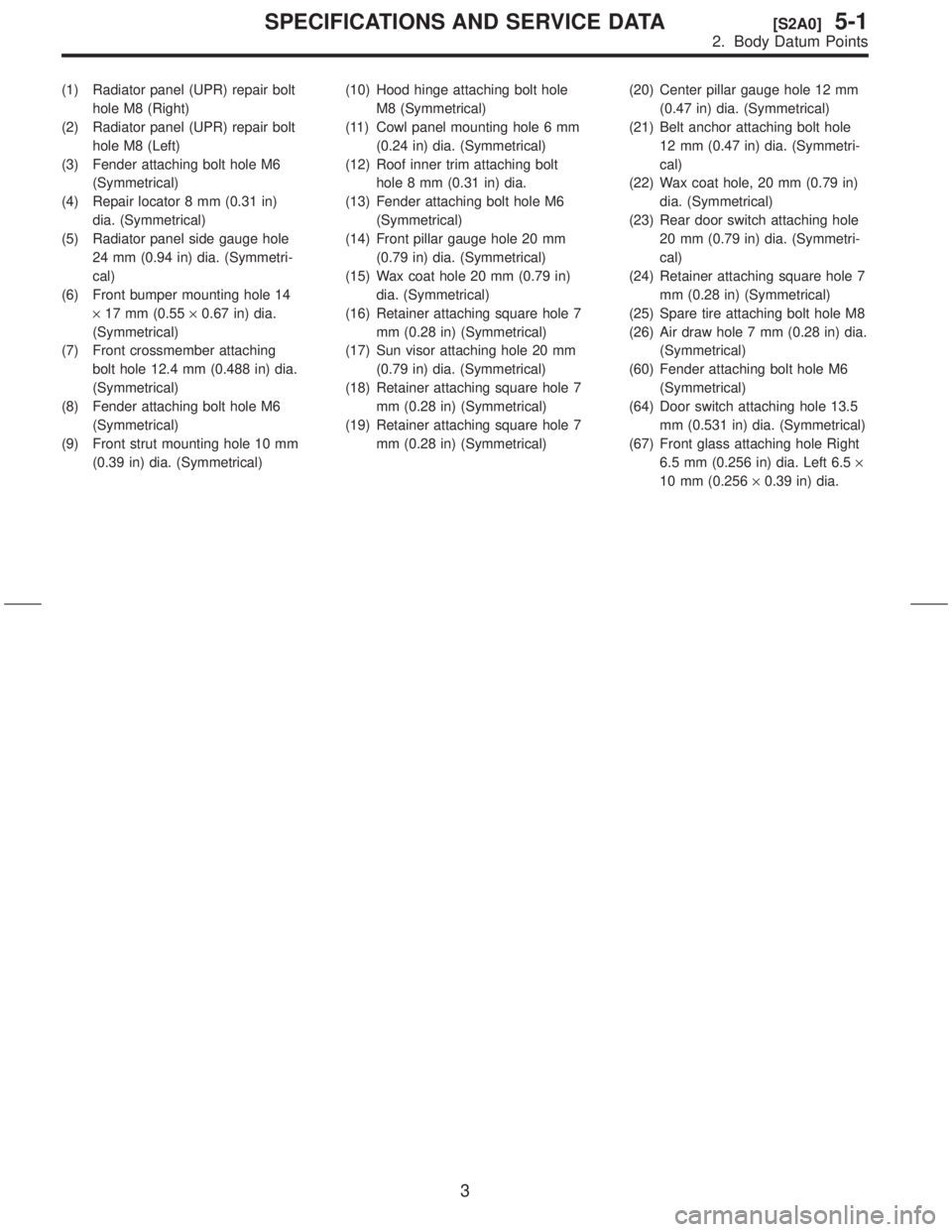

(1) Radiator panel (UPR) repair bolt
hole M8 (Right)
(2) Radiator panel (UPR) repair bolt
hole M8 (Left)
(3) Fender attaching bolt hole M6
(Symmetrical)
(4) Repair locator 8 mm (0.31 in)
dia. (Symmetrical)
(5) Radiator panel side gauge hole
24 mm (0.94 in) dia. (Symmetri-
cal)
(6) Front bumper mounting hole 14
´17 mm (0.55´0.67 in) dia.
(Symmetrical)
(7) Front crossmember attaching
bolt hole 12.4 mm (0.488 in) dia.
(Symmetrical)
(8) Fender attaching bolt hole M6
(Symmetrical)
(9) Front strut mounting hole 10 mm
(0.39 in) dia. (Symmetrical)(10) Hood hinge attaching bolt hole
M8 (Symmetrical)
(11) Cowl panel mounting hole 6 mm
(0.24 in) dia. (Symmetrical)
(12) Roof inner trim attaching bolt
hole 8 mm (0.31 in) dia.
(13) Fender attaching bolt hole M6
(Symmetrical)
(14) Front pillar gauge hole 20 mm
(0.79 in) dia. (Symmetrical)
(15) Wax coat hole 20 mm (0.79 in)
dia. (Symmetrical)
(16) Retainer attaching square hole 7
mm (0.28 in) (Symmetrical)
(17) Sun visor attaching hole 20 mm
(0.79 in) dia. (Symmetrical)
(18) Retainer attaching square hole 7
mm (0.28 in) (Symmetrical)
(19) Retainer attaching square hole 7
mm (0.28 in) (Symmetrical)(20) Center pillar gauge hole 12 mm
(0.47 in) dia. (Symmetrical)
(21) Belt anchor attaching bolt hole
12 mm (0.47 in) dia. (Symmetri-
cal)
(22) Wax coat hole, 20 mm (0.79 in)
dia. (Symmetrical)
(23) Rear door switch attaching hole
20 mm (0.79 in) dia. (Symmetri-
cal)
(24) Retainer attaching square hole 7
mm (0.28 in) (Symmetrical)
(25) Spare tire attaching bolt hole M8
(26) Air draw hole 7 mm (0.28 in) dia.
(Symmetrical)
(60) Fender attaching bolt hole M6
(Symmetrical)
(64) Door switch attaching hole 13.5
mm (0.531 in) dia. (Symmetrical)
(67) Front glass attaching hole Right
6.5 mm (0.256 in) dia. Left 6.5´
10 mm (0.256´0.39 in) dia.
3
[S2A0]5-1SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

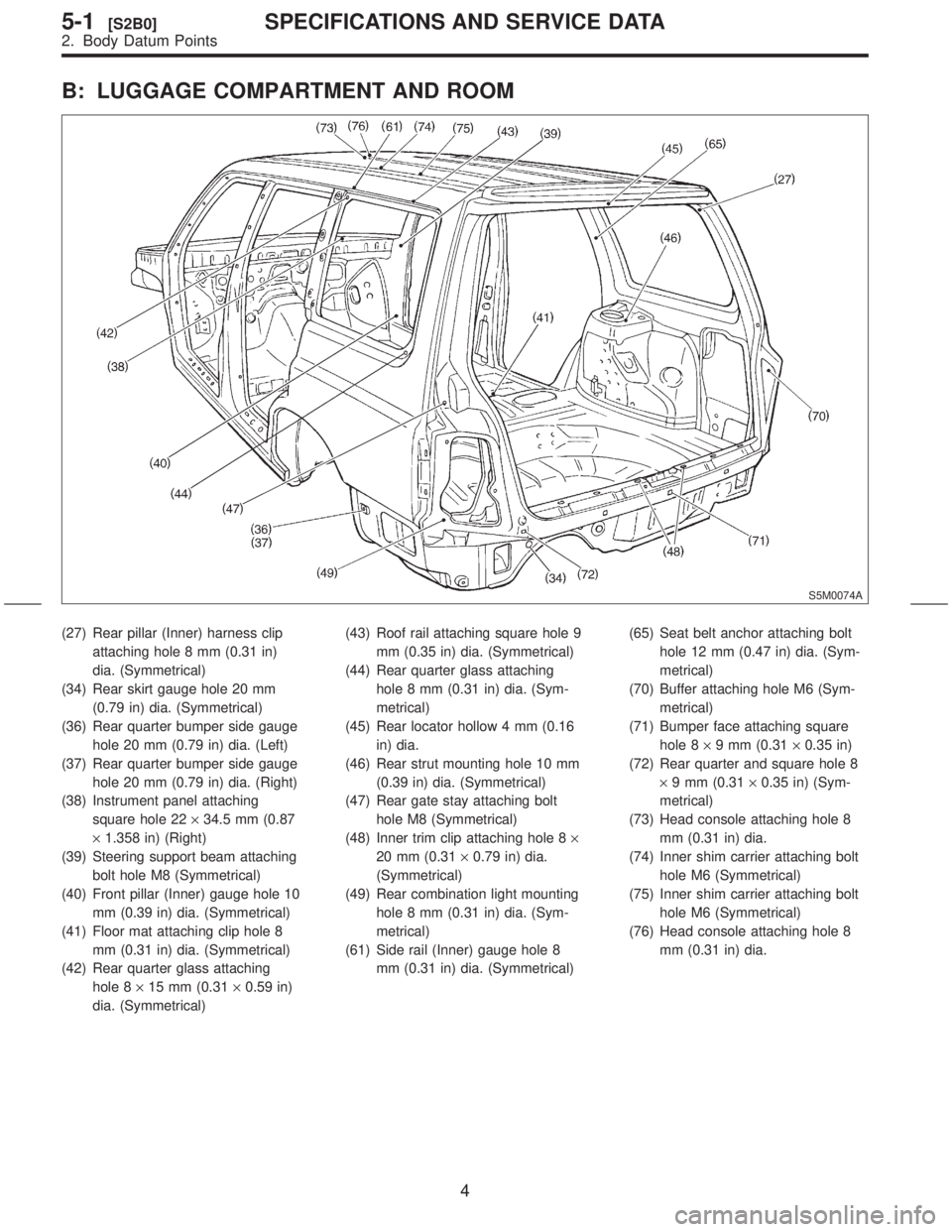

B: LUGGAGE COMPARTMENT AND ROOM
S5M0074A
(27) Rear pillar (Inner) harness clip
attaching hole 8 mm (0.31 in)
dia. (Symmetrical)
(34) Rear skirt gauge hole 20 mm
(0.79 in) dia. (Symmetrical)
(36) Rear quarter bumper side gauge
hole 20 mm (0.79 in) dia. (Left)
(37) Rear quarter bumper side gauge
hole 20 mm (0.79 in) dia. (Right)
(38) Instrument panel attaching
square hole 22´34.5 mm (0.87
´1.358 in) (Right)
(39) Steering support beam attaching
bolt hole M8 (Symmetrical)
(40) Front pillar (Inner) gauge hole 10
mm (0.39 in) dia. (Symmetrical)
(41) Floor mat attaching clip hole 8
mm (0.31 in) dia. (Symmetrical)
(42) Rear quarter glass attaching
hole 8´15 mm (0.31´0.59 in)
dia. (Symmetrical)(43) Roof rail attaching square hole 9
mm (0.35 in) dia. (Symmetrical)
(44) Rear quarter glass attaching
hole 8 mm (0.31 in) dia. (Sym-
metrical)
(45) Rear locator hollow 4 mm (0.16
in) dia.
(46) Rear strut mounting hole 10 mm
(0.39 in) dia. (Symmetrical)
(47) Rear gate stay attaching bolt
hole M8 (Symmetrical)
(48) Inner trim clip attaching hole 8´
20 mm (0.31´0.79 in) dia.
(Symmetrical)
(49) Rear combination light mounting
hole 8 mm (0.31 in) dia. (Sym-
metrical)
(61) Side rail (Inner) gauge hole 8
mm (0.31 in) dia. (Symmetrical)(65) Seat belt anchor attaching bolt
hole 12 mm (0.47 in) dia. (Sym-
metrical)
(70) Buffer attaching hole M6 (Sym-
metrical)
(71) Bumper face attaching square
hole 8´9 mm (0.31´0.35 in)
(72) Rear quarter and square hole 8
´9 mm (0.31´0.35 in) (Sym-
metrical)
(73) Head console attaching hole 8
mm (0.31 in) dia.
(74) Inner shim carrier attaching bolt
hole M6 (Symmetrical)
(75) Inner shim carrier attaching bolt
hole M6 (Symmetrical)
(76) Head console attaching hole 8
mm (0.31 in) dia.
4
5-1[S2B0]SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points
