SUBARU FORESTER 1999 Service Repair Manual

1. Front Door
S5M0173B
(1) Gusset
(2) Weatherstrip
(3) Stabilizer (Outer)
(4) Stabilizer (Inner)
(5) Door panel
(6) Plate(7) Checker
(8) Sealing cover
(9) Lower hinge
(10) Upper hingeTightening torque: N´m (kg-m, ft-lb)
T1:
7.4±2.0 (0.75±0.2, 5.4±1.4)
T2:13±3 (1.3±0.3, 9.4±2.2)
T3:25±3 (2.5±0.3, 18.1±2.2)
T4:29±5 (3.0±0.5, 21.7±3.6)
T5:32±10 (3.3±1.0, 23.9±7.2)
3
[C100]5-2COMPONENT PARTS
1. Front Door

2. Rear Door
S5M0174B
(1) Weatherstrip
(2) Stabilizer (Outer)
(3) Stabilizer (Inner)
(4) Door panel
(5) Plate
(6) Seating cover(7) Checker
(8) Lower hinge
(9) Upper hingeTightening torque: N´m (kg-m, ft-lb)
T1:
7.4±2.0 (0.75±0.2, 5.4±1.4)
T2:25±3 (2.5±0.3, 18.1±2.2)
T3:29±5 (3.0±0.5, 21.7±3.6)
T4:32±10 (3.3±1.0, 23.9±7.2)
4
5-2[C200]COMPONENT PARTS
2. Rear Door

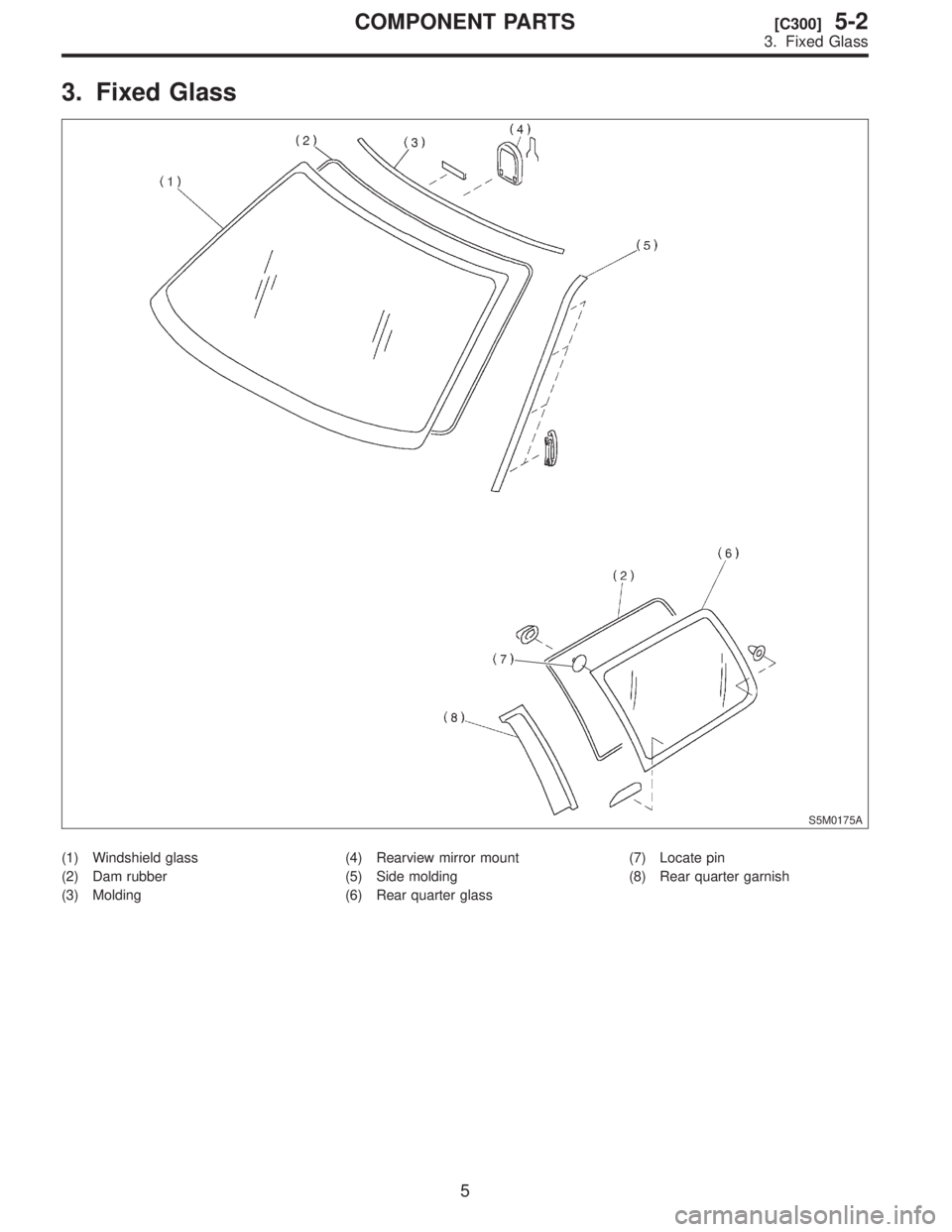

3.
S5M0175A
\(1\)
\(2\)
\(3\)\(4\)
\(5\)
\(6\)\(7\)
\(8\)
5
[C300]5-2COMPONENT
3.

4.
S5M0176A
\(1\)
\(2\)
\(3\)
\(4\)\(5\)T
T1:
7.4\2612.0\2610.2,\2611.4\)
T2:14\2614\2610.4,\2612.9\)
6
5-2[C400]COMPONENT
4.

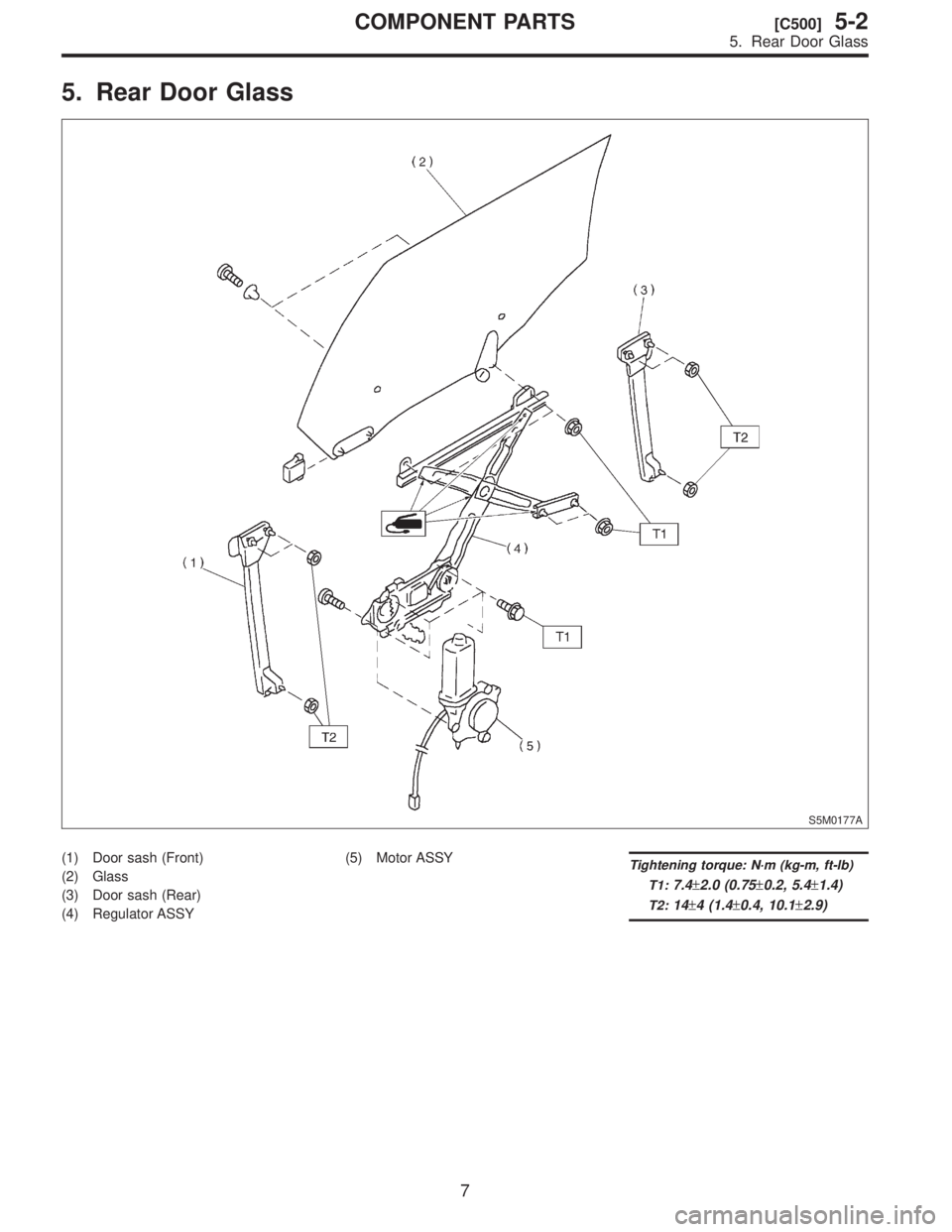

5.
S5M0177A
\(1\)
\(2\)
\(3\)
\(4\)\(5\)T
T1:
7.4\2612.0\2610.2,\2611.4\)
T2:14\2614\2610.4,\2612.9\)
7
[C500]5-2COMPONENT
5.

6. Rear Gate and Glass
S5M0381A
(1) Locate pin
(2) Dam rubber
(3) Glass
(4) Hinge
(5) Rear gate
(6) Buffer cover
(7) Auto-door lock actuator
(8) Key cylinder
(9) Clip(10) Outer handle
(11) Striker
(12) Latch
(13) Stopper
(14) Buffer
(15) Stud
(16) Gas stay
(17) Rod
(18) Link(19) Rear gate inner handle
Tightening torque: N´m (kg-m, ft-lb)
T1:
2.0±0.5 (0.2±0.05, 1.4±0.4)
T2:7.4±2.0 (0.75±0.2, 5.4±1.4)
T3:14±4 (1.4±0.4, 10.1±2.9)
T4:25±5 (2.5±0.5, 18.1±3.6)
T5:13±3 (1.3±0.3, 9.4±2.2)
8
5-2[C600]COMPONENT PARTS
6. Rear Gate and Glass

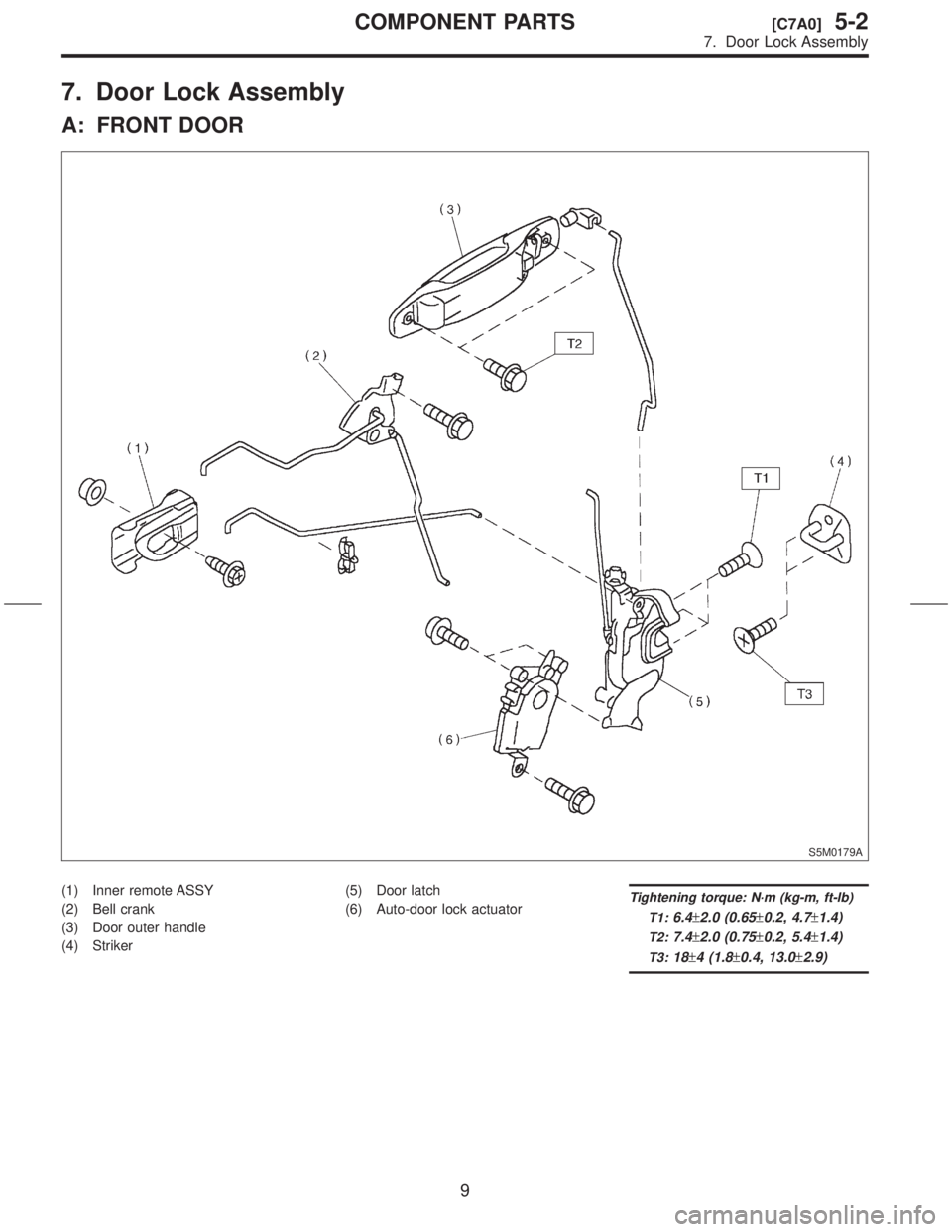

7. Door Lock Assembly
A: FRONT DOOR
S5M0179A
(1) Inner remote ASSY
(2) Bell crank
(3) Door outer handle
(4) Striker(5) Door latch
(6) Auto-door lock actuatorTightening torque: N´m (kg-m, ft-lb)
T1:
6.4±2.0 (0.65±0.2, 4.7±1.4)
T2:7.4±2.0 (0.75±0.2, 5.4±1.4)
T3:18±4 (1.8±0.4, 13.0±2.9)
9
[C7A0]5-2COMPONENT PARTS
7. Door Lock Assembly

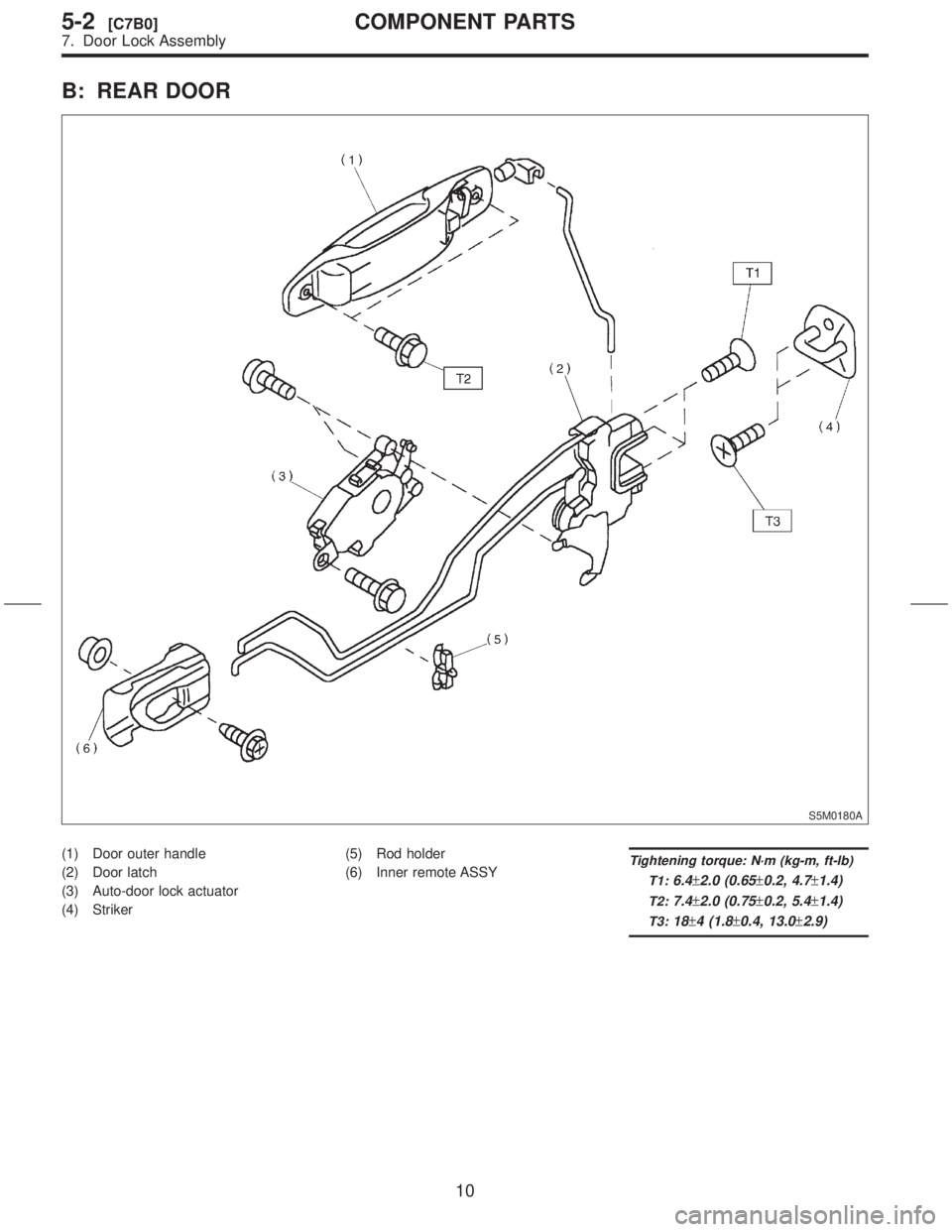

B: REAR DOOR
S5M0180A
(1) Door outer handle
(2) Door latch
(3) Auto-door lock actuator
(4) Striker(5) Rod holder
(6) Inner remote ASSYTightening torque: N´m (kg-m, ft-lb)
T1:
6.4±2.0 (0.65±0.2, 4.7±1.4)
T2:7.4±2.0 (0.75±0.2, 5.4±1.4)
T3:18±4 (1.8±0.4, 13.0±2.9)
10
5-2[C7B0]COMPONENT PARTS
7. Door Lock Assembly

8. Door Trim
S5M0382A
(1) Gusset cover
(2) Weatherstrip
(3) Trim panel(4) Pull handle
(5) Handle
(6) Pocket(7) Speaker grille
11
[C800]5-2COMPONENT PARTS
8. Door Trim

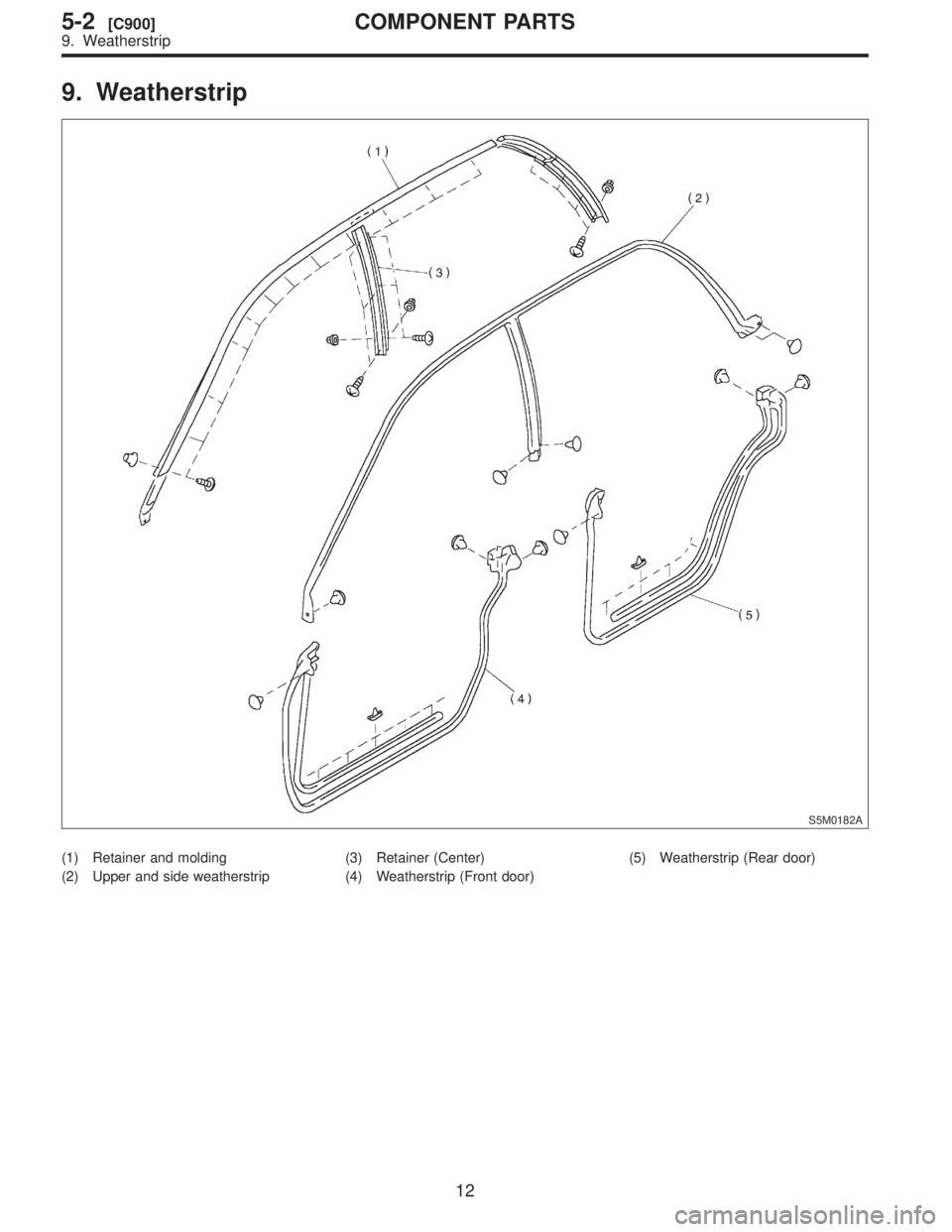

9.
S5M0182A
\(1\)
\(2\)\(3\)
\(4\)\(5\)
12
5-2[C900]COMPONENT
9.
