SL-2
SECURITY AND LOCK
General Description
1. General Description
A: COMPONENT
1. DOOR LOCK ASSEMBLY

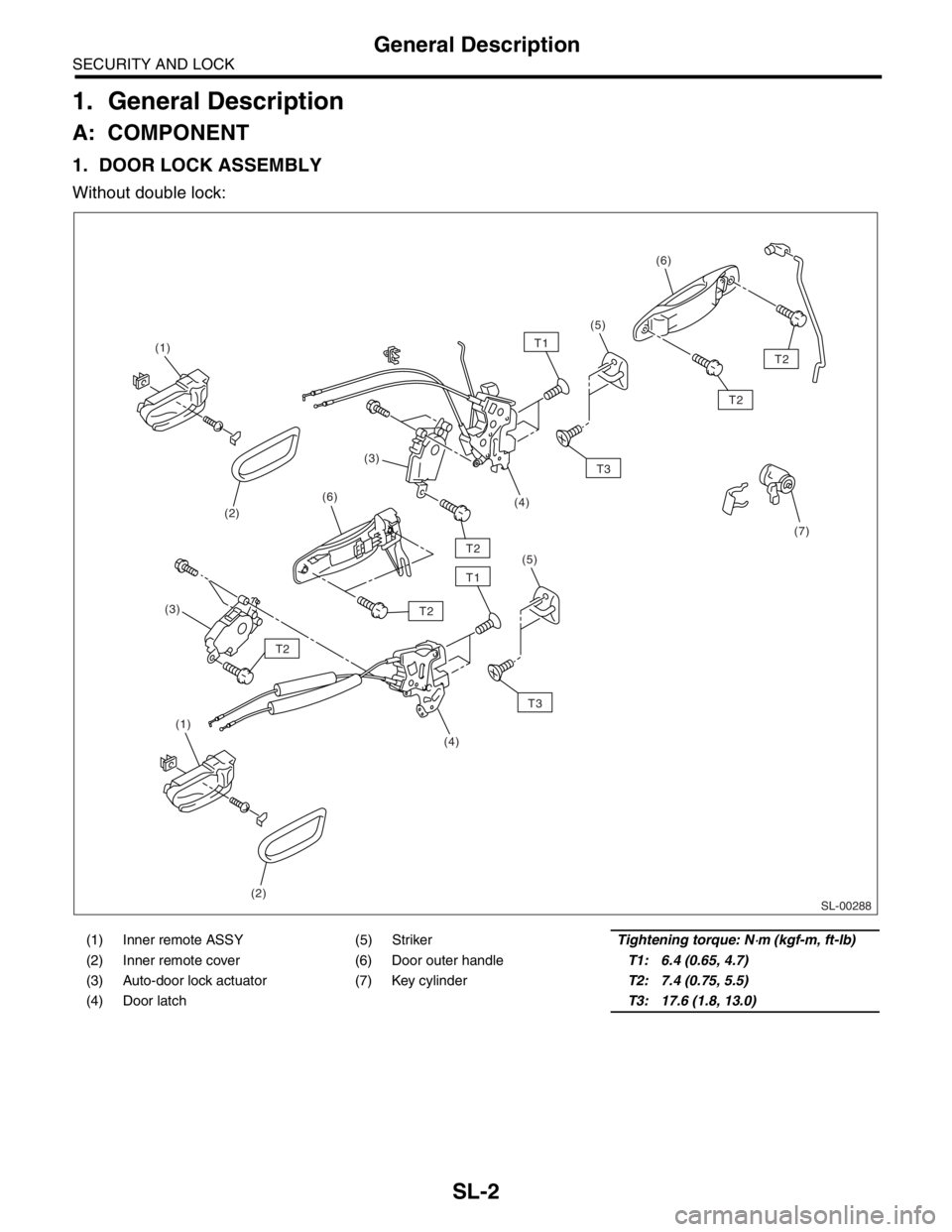

Without double lock:
(1) Inner remote ASSY (5) Striker Tightening torque: N⋅m (kgf-m, ft-lb)
(2) Inner remote cover (6) Door outer handleT1: 6.4 (0.65, 4.7)
(3) Auto-door lock actuator (7) Key cylinderT2: 7.4 (0.75, 5.5)
(4) Door latch T3: 17.6 (1.8, 13.0)
SL-00288
T1
T1
T3
T3
T2
T2 (1)
(2)
(3)
(1)
(2)(3)
(4)(4)
(5)(5)
(6)(6)
(7)
T2
T2
T2

SL-3
SECURITY AND LOCK
General Description

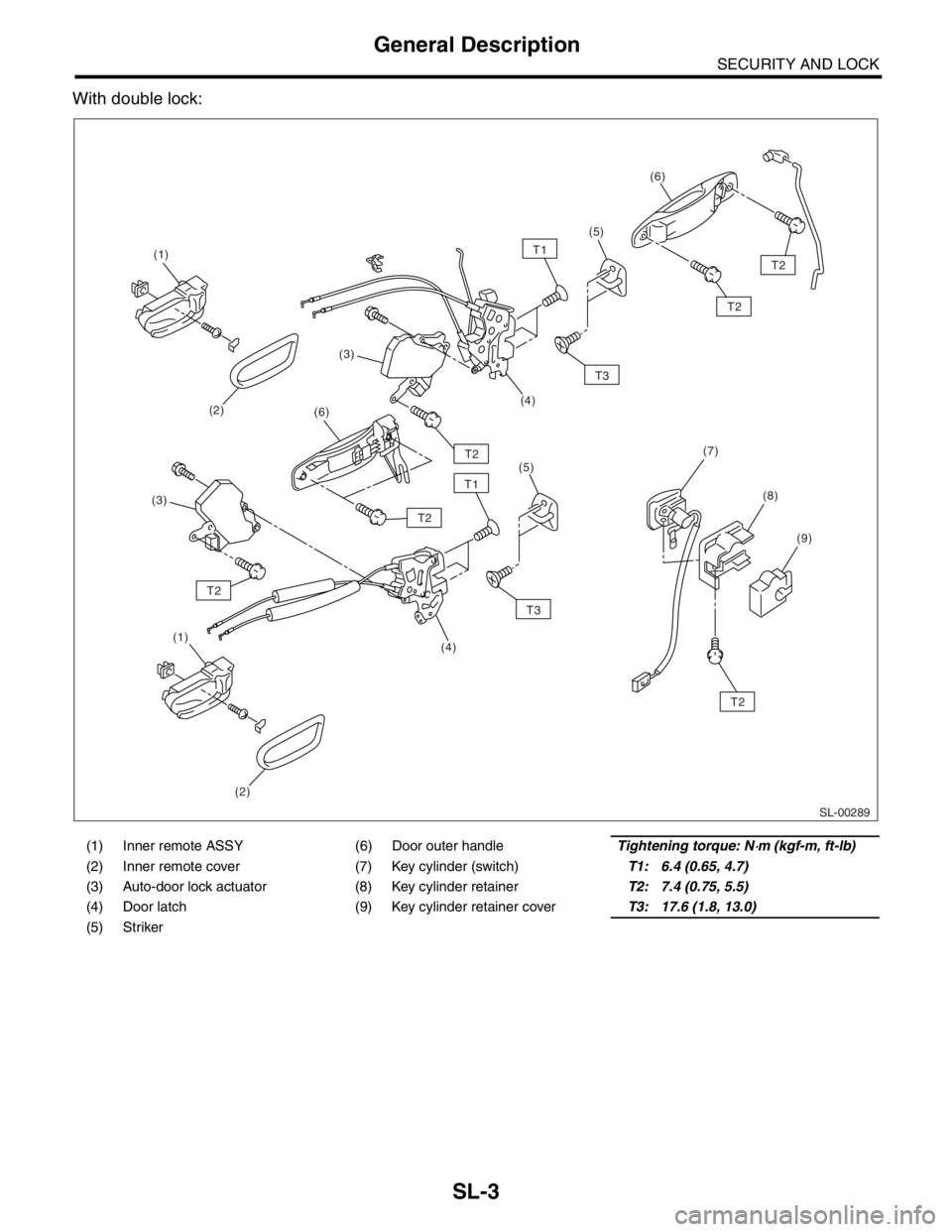

With double lock:
(1) Inner remote ASSY (6) Door outer handleTightening torque: N⋅m (kgf-m, ft-lb)
(2) Inner remote cover (7) Key cylinder (switch)T1: 6.4 (0.65, 4.7)
(3) Auto-door lock actuator (8) Key cylinder retainerT2: 7.4 (0.75, 5.5)
(4) Door latch (9) Key cylinder retainer coverT3: 17.6 (1.8, 13.0)
(5) Striker
SL-00289
T1
T1
T3
T3
T2
T2 (1)
(2)
(1)
(2)(3)
(4)(4)
(5)(5)
(3)
(6)(6)
(7)
(8)
(9)
T2
T2
T2
T2

SL-4
SECURITY AND LOCK
General Description

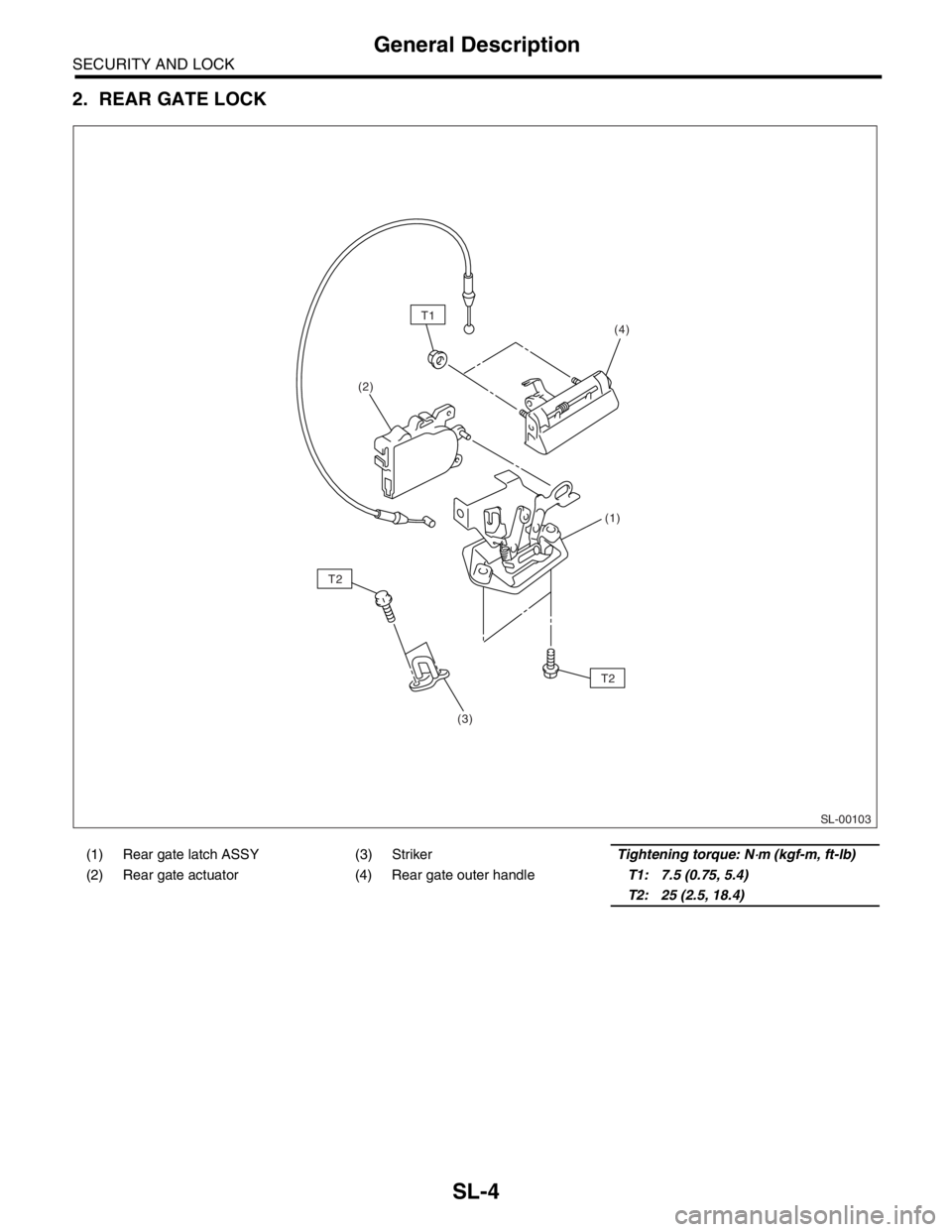

2. REAR GATE LOCK
(1) Rear gate latch ASSY (3) Striker Tightening torque: N⋅m (kgf-m, ft-lb)
(2) Rear gate actuator (4) Rear gate outer handleT1: 7.5 (0.75, 5.4)
T2: 25 (2.5, 18.4)
SL-00103
T1
T2
T2(1) (2)
(3)(4)

SL-5
SECURITY AND LOCK
General Description

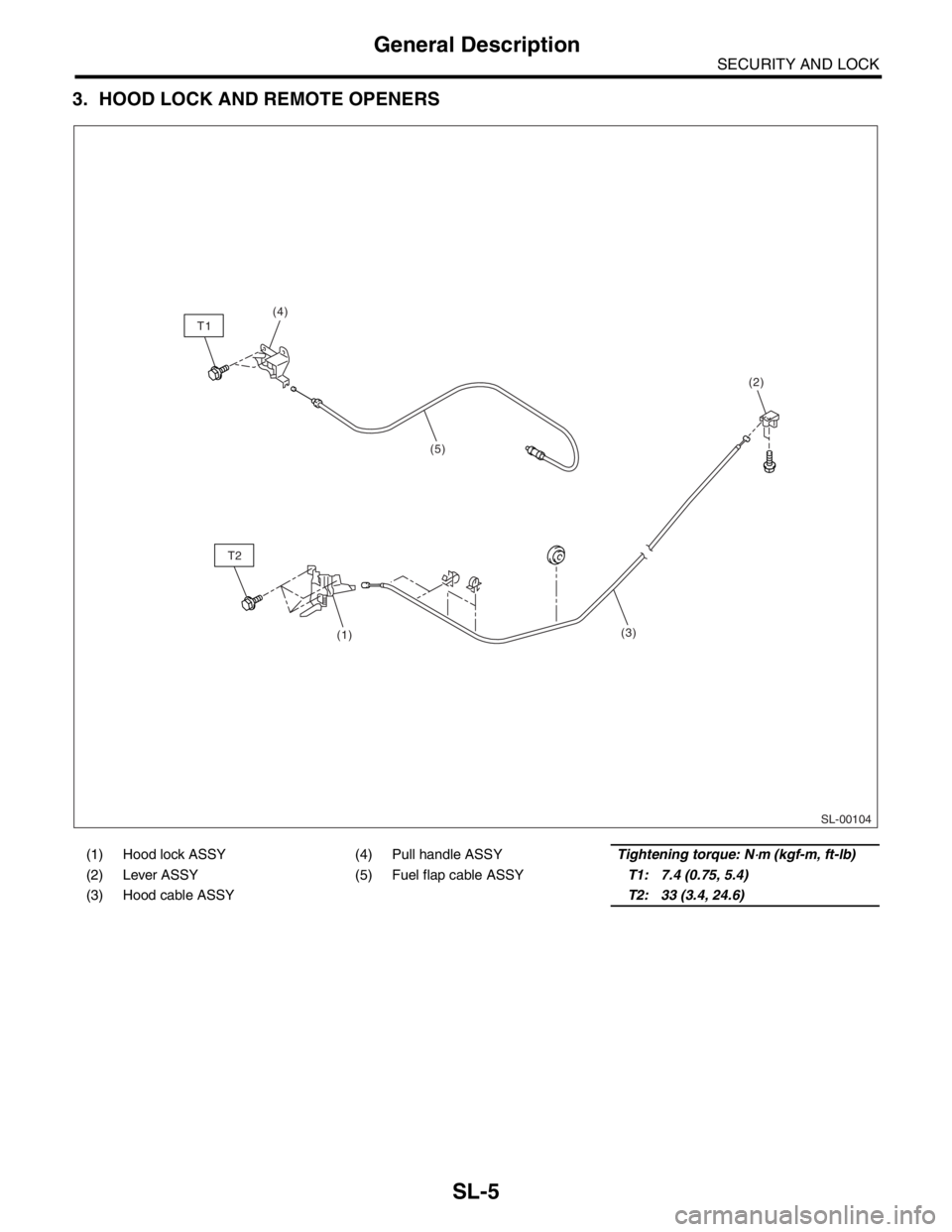

3. HOOD LOCK AND REMOTE OPENERS
(1) Hood lock ASSY (4) Pull handle ASSYTightening torque: N⋅m (kgf-m, ft-lb)
(2) Lever ASSY (5) Fuel flap cable ASSYT1: 7.4 (0.75, 5.4)
(3) Hood cable ASSYT2: 33 (3.4, 24.6)
SL-00104
T1
T2
(5) (4)
(2)
(3)
(1)

SL-6
SECURITY AND LOCK
General Description

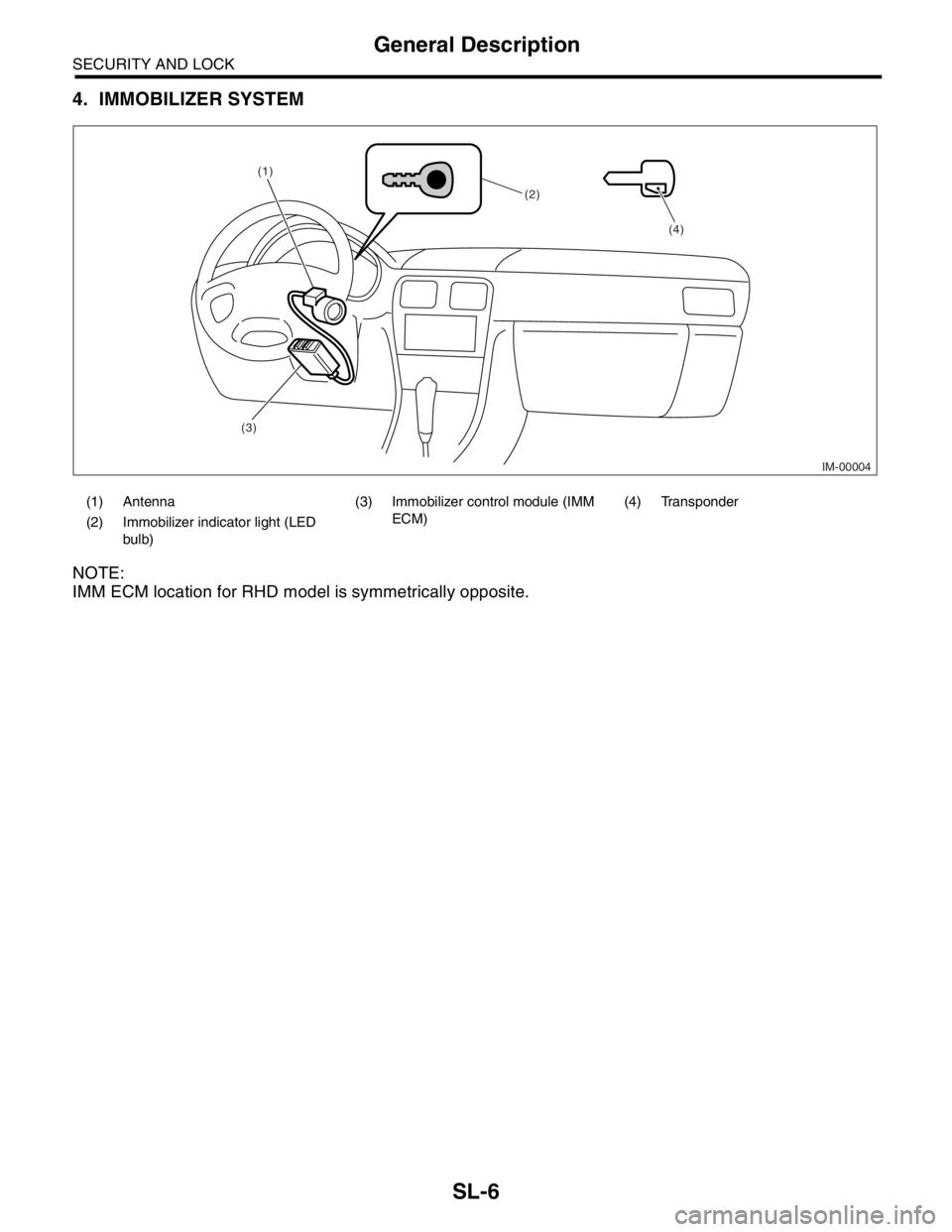

4. IMMOBILIZER SYSTEM
NOTE:
IMM ECM location for RHD model is symmetrically opposite.
(1) Antenna (3) Immobilizer control module (IMM
ECM)(4) Transponder
(2) Immobilizer indicator light (LED
bulb)
IM-00004
(1)
(2)
(3)(4)

SL-7
SECURITY AND LOCK
General Description
5. KEYLESS ENTRY SYSTEM
B: CAUTION
 Before disassembling or reassembling parts,
always disconnect the ground cable from battery.
When repairing radio, control module, etc. which
are provided with memory functions, record the
memory contents before disconnecting the
ground cable from battery. Otherwise, these
contents are cancelled upon disconnection.
 Reassemble parts in the reverse order of
disassembly procedure unless otherwise
indicated.
 Adjust parts to specifications contained in
this manual if so designated.
Connect the connectors and hoses securely
during reassembly.
After reassembly, ensure all functional parts
operate smoothly.
Airbag system wiring harness is routed near
the electrical parts and switch.
 All airbag system wiring harness and
connectors are colored yellow. Do not use
electrical test equipment on these circuits. Be careful not to damage the airbag system
wiring harness when servicing the ignition key
cylinder.

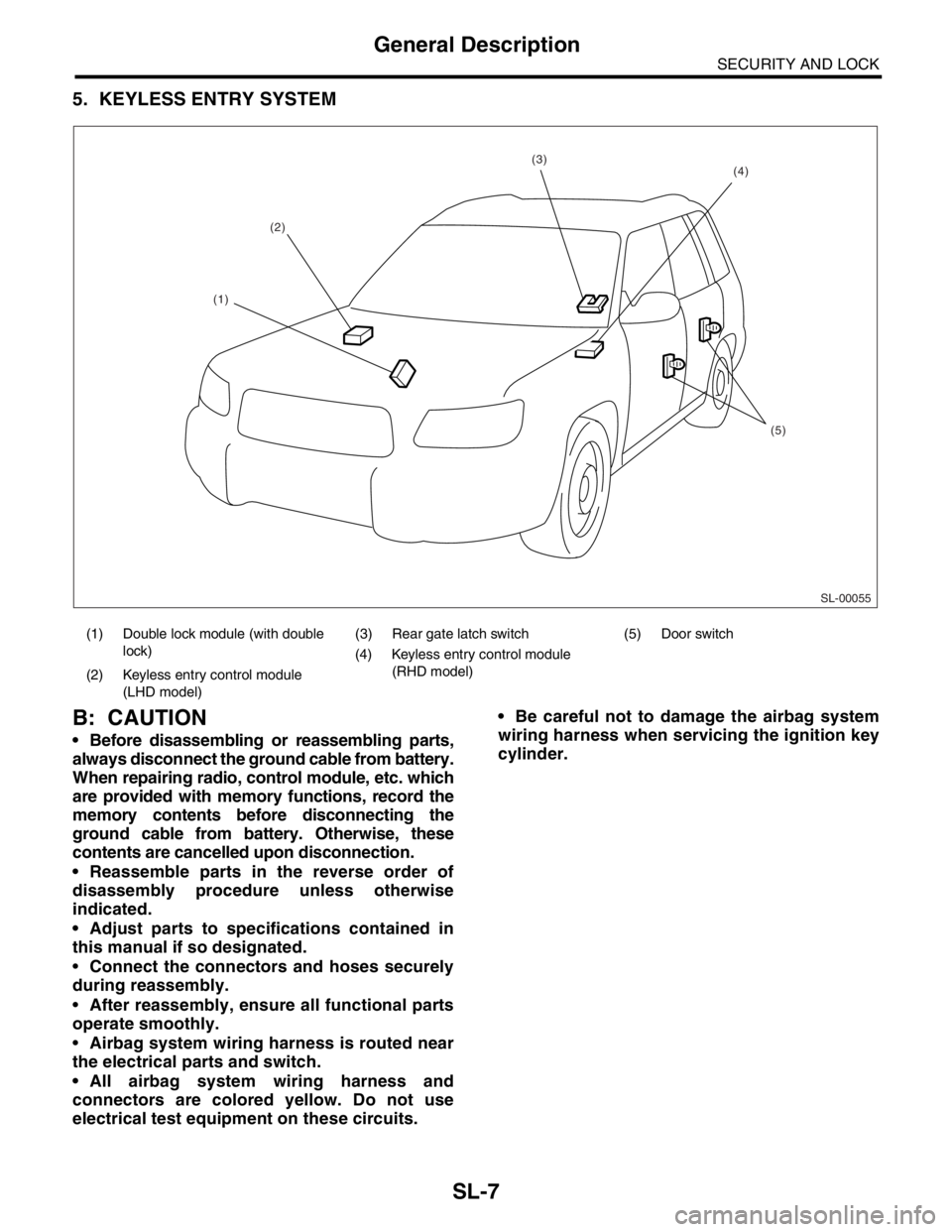

(1) Double lock module (with double
lock)(3) Rear gate latch switch (5) Door switch
(4) Keyless entry control module
(RHD model)
(2) Keyless entry control module
(LHD model)
SL-00055
(2)
(5)
(4)(3)
(1)

SL-8
SECURITY AND LOCK
General Description
C: PREPARATION TOOL
1. SPECIAL TOOL
2. GENERAL TOOL
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
925580000 PULLER Used for removing trim clip.
TOOL NAME REMARKS
Circuit tester Used for measuring resistance and voltage.
Drill Used for replacing ignition key lock.
ST-925580000

SL-9
SECURITY AND LOCK
Door Lock Control System
2. Door Lock Control System
A: WIRING DIAGRAM
1. DOOR LOCK CONTROL

B: INSPECTION
1. SYMPTOM CHART
Symptom Repair order Reference
The door lock control system does
not operate.1. Check the fuse. INSPECTION, Door Lock Control
System.>
2. Check the power supply and ground circuit for
keyless entry control module (without double lock)
or double lock module (with double lock). SUPPLY AND GROUND CIRCUIT,
INSPECTION, Door Lock Control
System.>
3. Check the door lock switch and the circuit. LOCK SWITCH AND CIRCUIT,
INSPECTION, Door Lock Control
System.>
4. Check the door lock actuator and the circuit. LOCK ACTUATOR AND CIRCUIT,
INSPECTION, Door Lock Control
System.>
The door lock switch does not oper-
ate.Check the door lock switch and the circuit. LOCK SWITCH AND CIRCUIT,
INSPECTION, Door Lock Control
System.>
A specific door lock actuator does not
operate.Check the door lock actuator and the circuit. LOCK ACTUATOR AND CIRCUIT,
INSPECTION, Door Lock Control
System.>
The key cylinder lock switch does not
operate. (with double lock)Check the key cylinder lock switch and circuit. INDER LOCK SWITCH AND CIR-
CUIT, INSPECTION, Door Lock
Control System.>
The double lock does not operate.
(with double lock)Check the door lock actuator (double lock) and cir-
cuit. LOCK ACTUATOR (DOUBLE
LOCK) AND CIRCUIT, INSPEC-
TION, Door Lock Control System.>

SL-10
SECURITY AND LOCK
Door Lock Control System
2. CHECK FUSE
3. CHECK POWER SUPPLY AND GROUND CIRCUIT
Step Check Yes No
1 CHECK FUSE.
Remove and visually check the fuse No. 2 (in
the main fuse box).In the fuse blown out? Replace the fuse
with a new one.Check the power
supply and ground
circuit. SL-10, CHECK
POWER SUPPLY
AND GROUND
CIRCUIT,
INSPECTION,
Door Lock Control
System.>
Step Check Yes No
1 CHECK POWER SUPPLY.
1) Disconnect the keyless entry control mod-
ule or double lock module harness connector.
2) Measure the voltage between the harness
connector terminal and chassis ground.
Connector & terminal
Without double lock:
(B176) No. 5, 16 (+) — Chassis ground (
−
):
With double lock:
(B324) No. 7, 8 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2.Check the harness
for open circuits or
shorts between
the keyless entry
control module or
double lock mod-
ule and the fuse.
2 CHECK GROUND CIRCUIT.
Measure the resistance between the harness
connector terminal and chassis ground.
Connector & terminal
Without double lock:
(B176) No. 6, 14 — Chassis ground:
With double lock:
(B324) No. 9 — Chassis ground:Is the resistance less than 10
Ω?The power supply
and ground circuit
is OK.Repair the har-
ness.
