SUBARU FORESTER 2004 Service Repair Manual

EI-5
EXTERIOR/INTERIOR TRIM
General Description

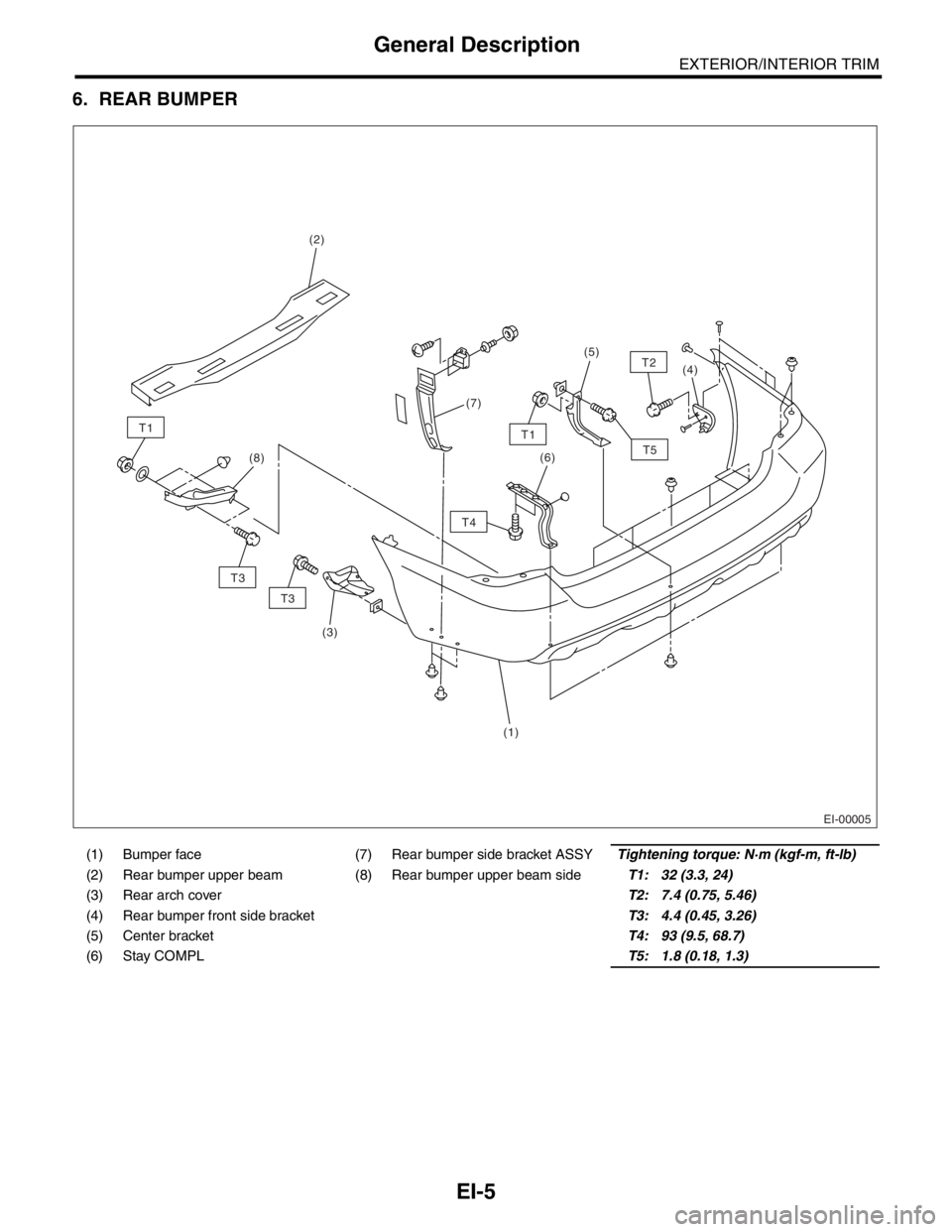

6. REAR BUMPER
(1) Bumper face (7) Rear bumper side bracket ASSYTightening torque: N·m (kgf-m, ft-lb)
(2) Rear bumper upper beam (8) Rear bumper upper beam sideT1: 32 (3.3, 24)
(3) Rear arch coverT2: 7.4 (0.75, 5.46)
(4) Rear bumper front side bracketT3: 4.4 (0.45, 3.26)
(5) Center bracketT4: 93 (9.5, 68.7)
(6) Stay COMPLT5: 1.8 (0.18, 1.3)
EI-00005
T1T1
T4
T5
T2
T3
T3
(2)
(8)
(3)(7)(5)
(1)(4)
(6)

EI-6
EXTERIOR/INTERIOR TRIM
General Description

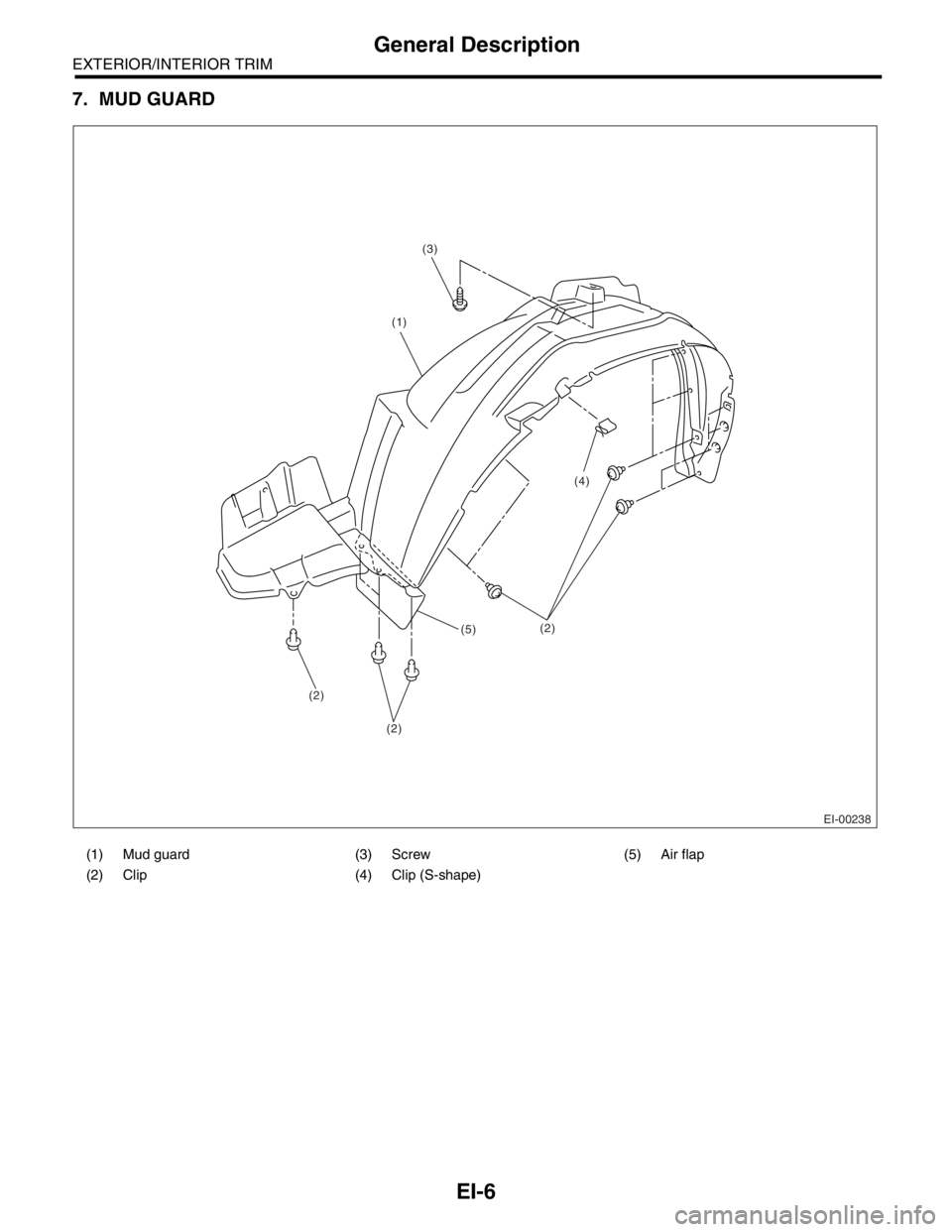

7. MUD GUARD
(1) Mud guard (3) Screw (5) Air flap
(2) Clip (4) Clip (S-shape)
EI-00238
(4)
(2) (1)(3)
(5)
(2) (2)

EI-7
EXTERIOR/INTERIOR TRIM
General Description
8. COWL PANEL
(1) Cowl panel (2) Cowl side panel (3) Seal
EI-00724 (2)
(1)
(3)
(2)

EI-8
EXTERIOR/INTERIOR TRIM
General Description
9. SIDE SILL SPOILER
(1) Side garnish (Front fender) (3) Side garnish (Rear door) (5) Side garnish (Side sill)
(2) Side garnish (Front door) (4) Side garnish (Rear quarter)
EI-00009
(1)(2)
(3)
(4)
(5)

EI-9
EXTERIOR/INTERIOR TRIM
General Description

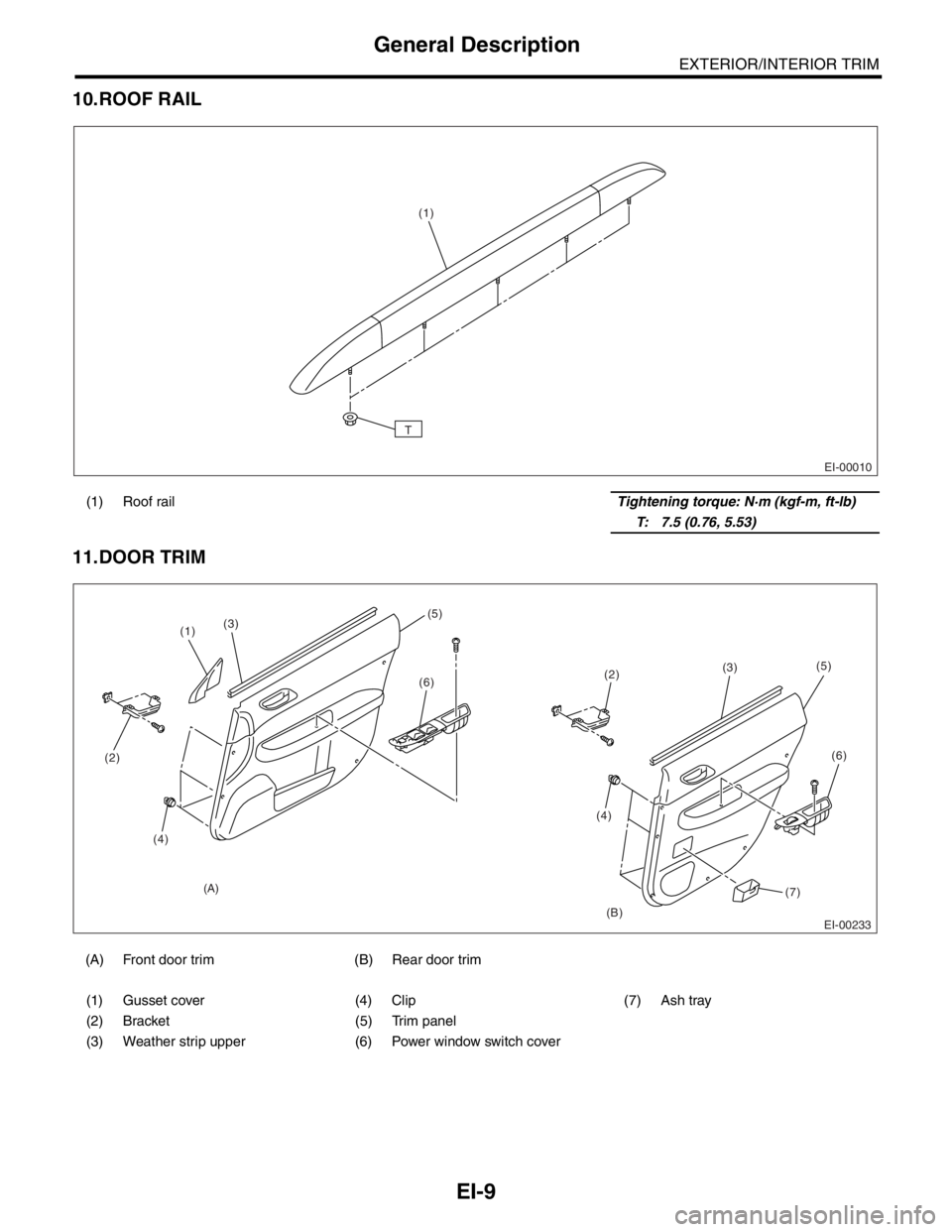

10.ROOF RAIL
11.DOOR TRIM
(1) Roof railTightening torque: N·m (kgf-m, ft-lb)
T: 7.5 (0.76, 5.53)
(A) Front door trim (B) Rear door trim
(1) Gusset cover (4) Clip (7) Ash tray
(2) Bracket (5) Trim panel
(3) Weather strip upper (6) Power window switch cover
EI-00010
T
(1)
EI-00233 (A)
(1)
(2)(3)(5)
(6)
(2)(3)(5)
(6)
(7)
(4)
(B)
(4)

EI-10
EXTERIOR/INTERIOR TRIM
General Description
12.REAR GATE TRIM
EI-00012

EI-11
EXTERIOR/INTERIOR TRIM
General Description

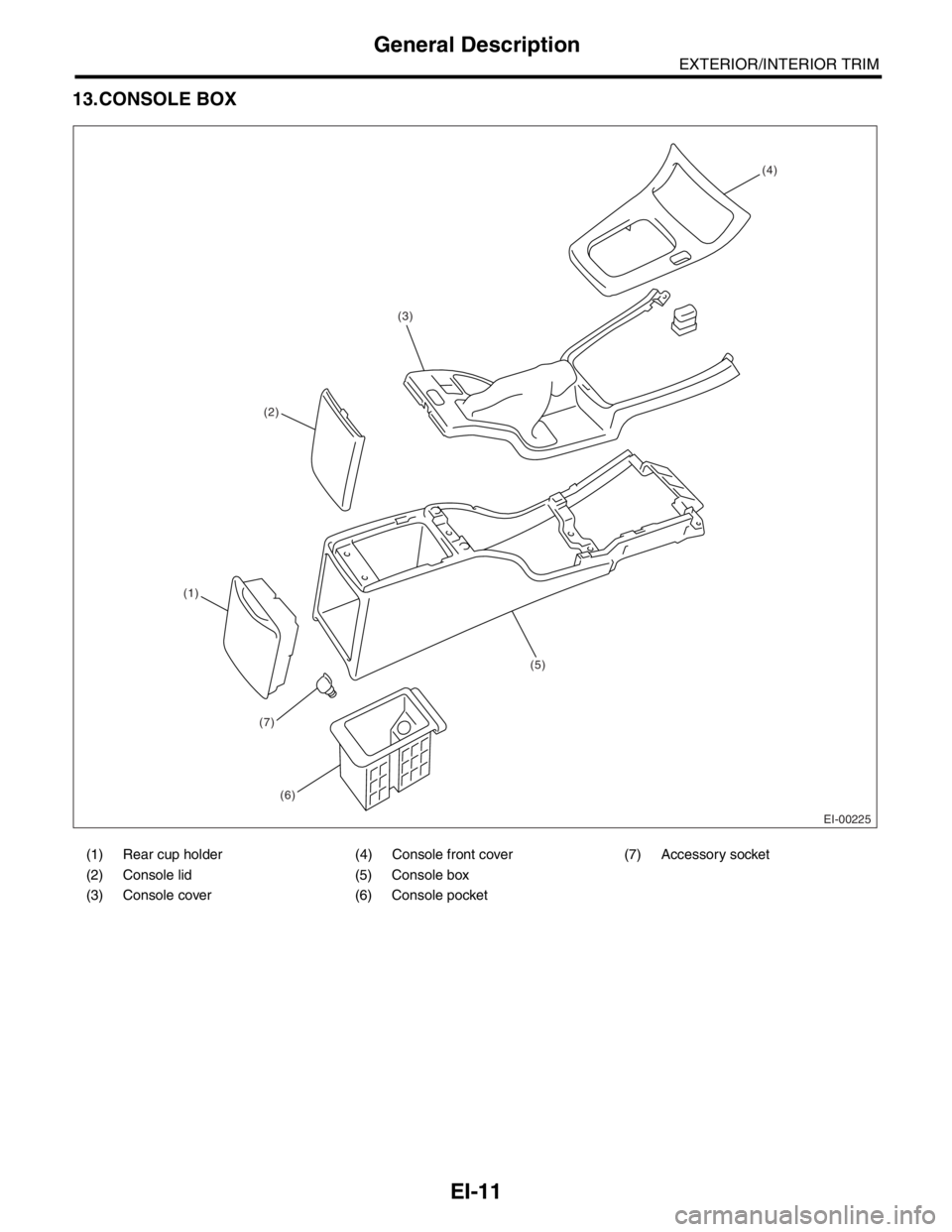

13.CONSOLE BOX
(1) Rear cup holder (4) Console front cover (7) Accessory socket
(2) Console lid (5) Console box
(3) Console cover (6) Console pocket
EI-00225
(1)
(2)
(3)
(4)
(5)
(7)
(6)

EI-12
EXTERIOR/INTERIOR TRIM
General Description

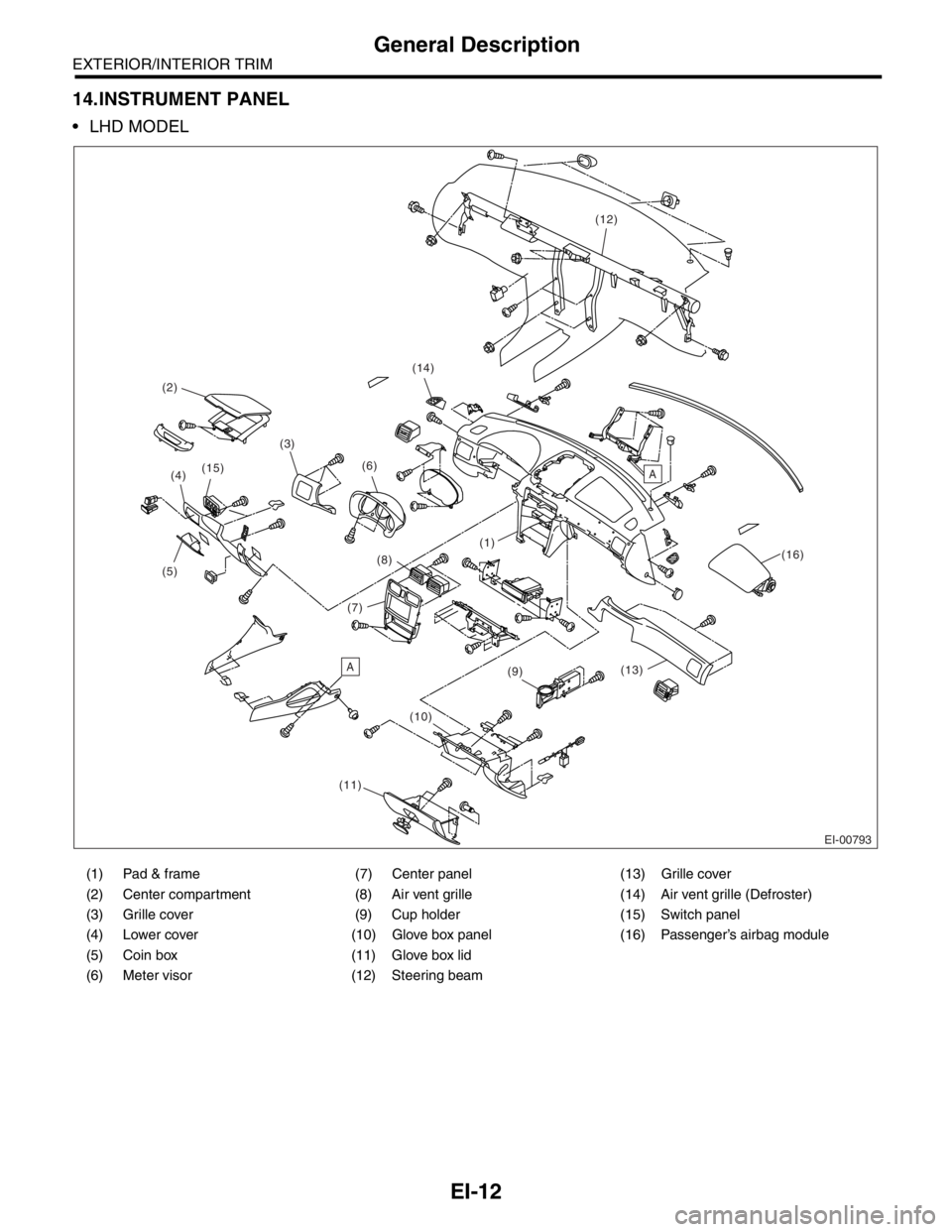

14.INSTRUMENT PANEL
 LHD MODEL
(1) Pad & frame (7) Center panel (13) Grille cover
(2) Center compartment (8) Air vent grille (14) Air vent grille (Defroster)
(3) Grille cover (9) Cup holder (15) Switch panel
(4) Lower cover (10) Glove box panel (16) Passenger’s airbag module
(5) Coin box (11) Glove box lid
(6) Meter visor (12) Steering beam
EI-00793
(9)
(14)
(16)
(4)
(3)
(2)
(13)
(12)
(11) (15)
(1)
(8)
(10)
(5)
(6)
(7)
A
A

EI-13
EXTERIOR/INTERIOR TRIM
General Description

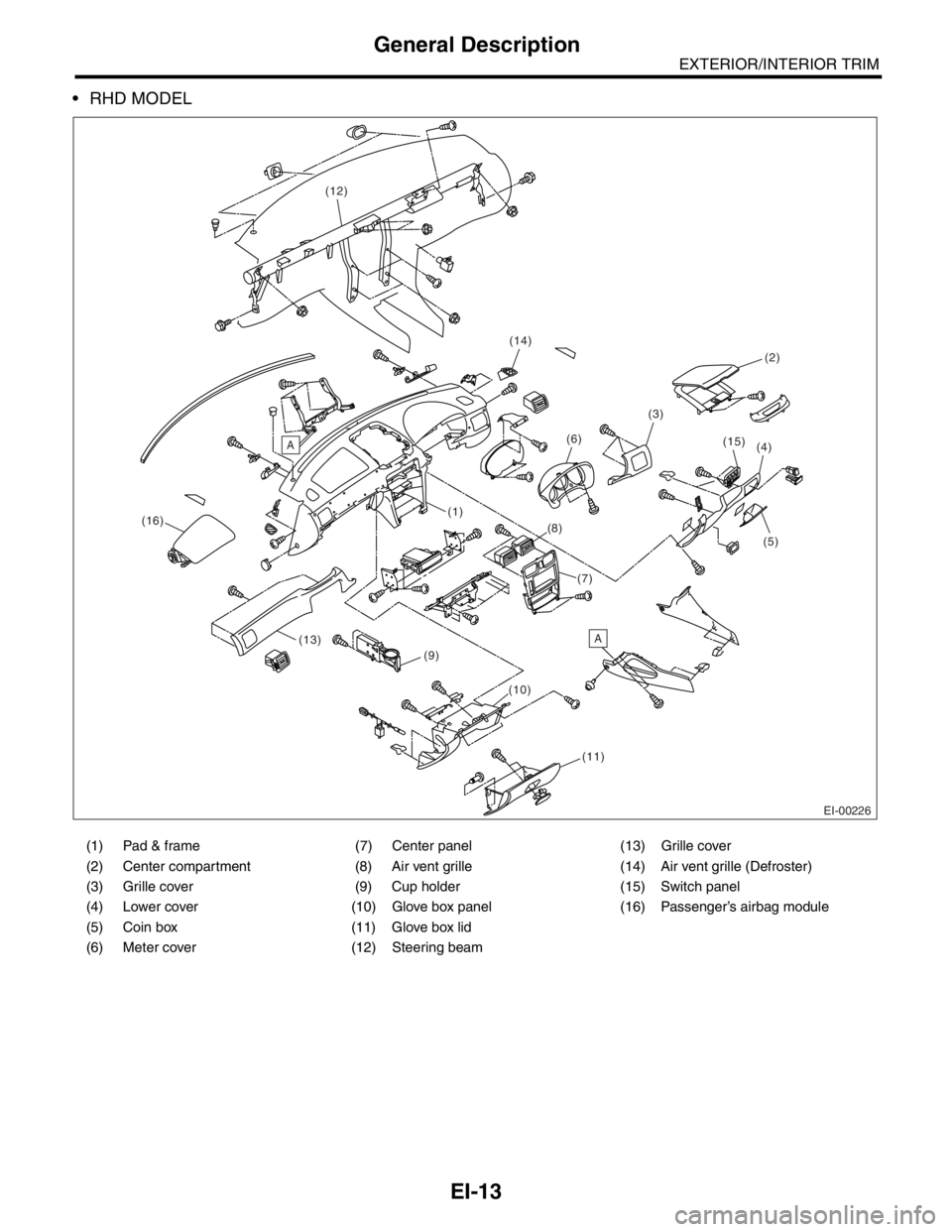

 RHD MODEL
(1) Pad & frame (7) Center panel (13) Grille cover
(2) Center compartment (8) Air vent grille (14) Air vent grille (Defroster)
(3) Grille cover (9) Cup holder (15) Switch panel
(4) Lower cover (10) Glove box panel (16) Passenger’s airbag module
(5) Coin box (11) Glove box lid
(6) Meter cover (12) Steering beam
EI-00226
(12)
(14)
(3)
(2)
(11)
(10)
(9)(13)
(1)
(7)
(8)
(15)(4)
(5)
(6)A
A
(16)

EI-14
EXTERIOR/INTERIOR TRIM
General Description
15.INNER TRIM
(1) Front pillar upper trim (8) Rear skirt trim (15) Center pillar inner rib
(2) Center pillar upper trim (9) Side sill rear cover (16) Bracket
(3) Rear pillar upper trim (10) Center pillar lower trim
(4) Rear rail trim (11) Side sill front coverTightening torque: N·m (kgf-m, ft-lb)
(5) Insulator (12) Front garnishT: 2 (0.20, 1.46)
(6) Rear quarter lower trim (13) Rear garnish
(7) Strut cap (14) Front pillar inner rib
EI-00015
(1)(2)(3)
(6) (5)
(8) (9) (10)
(11)(13) (14)
(15)
(16)(7)
(4)
T
T
(12)
