SUBARU LEGACY 1999 Service Repair Manual

71

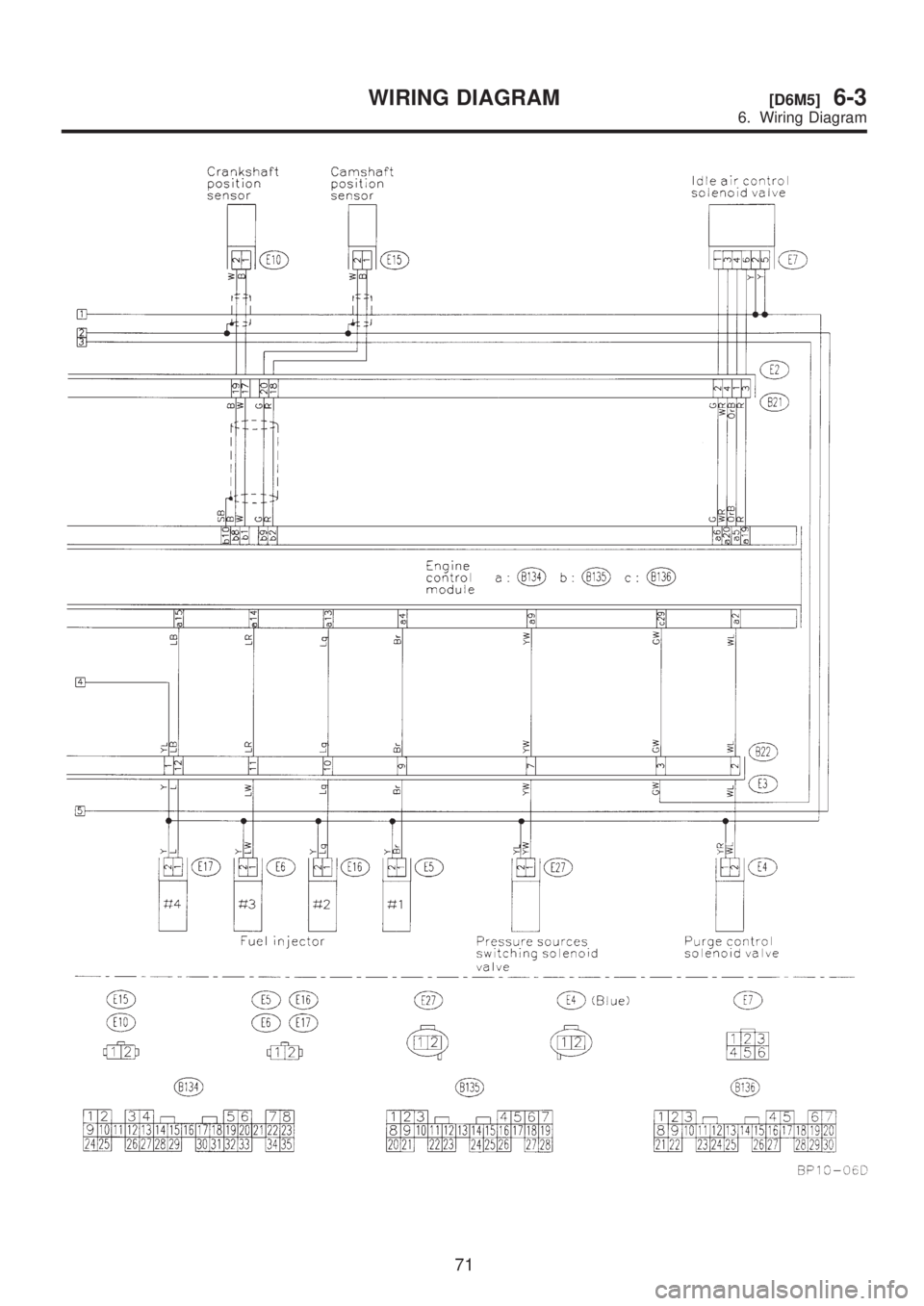

[D6M5]6-3WIRING DIAGRAM
6. Wiring Diagram

N: FUEL GAUGE SYSTEM
1. TAIWAN MODEL
72
6-3[D6N1]WIRING DIAGRAM
6. Wiring Diagram

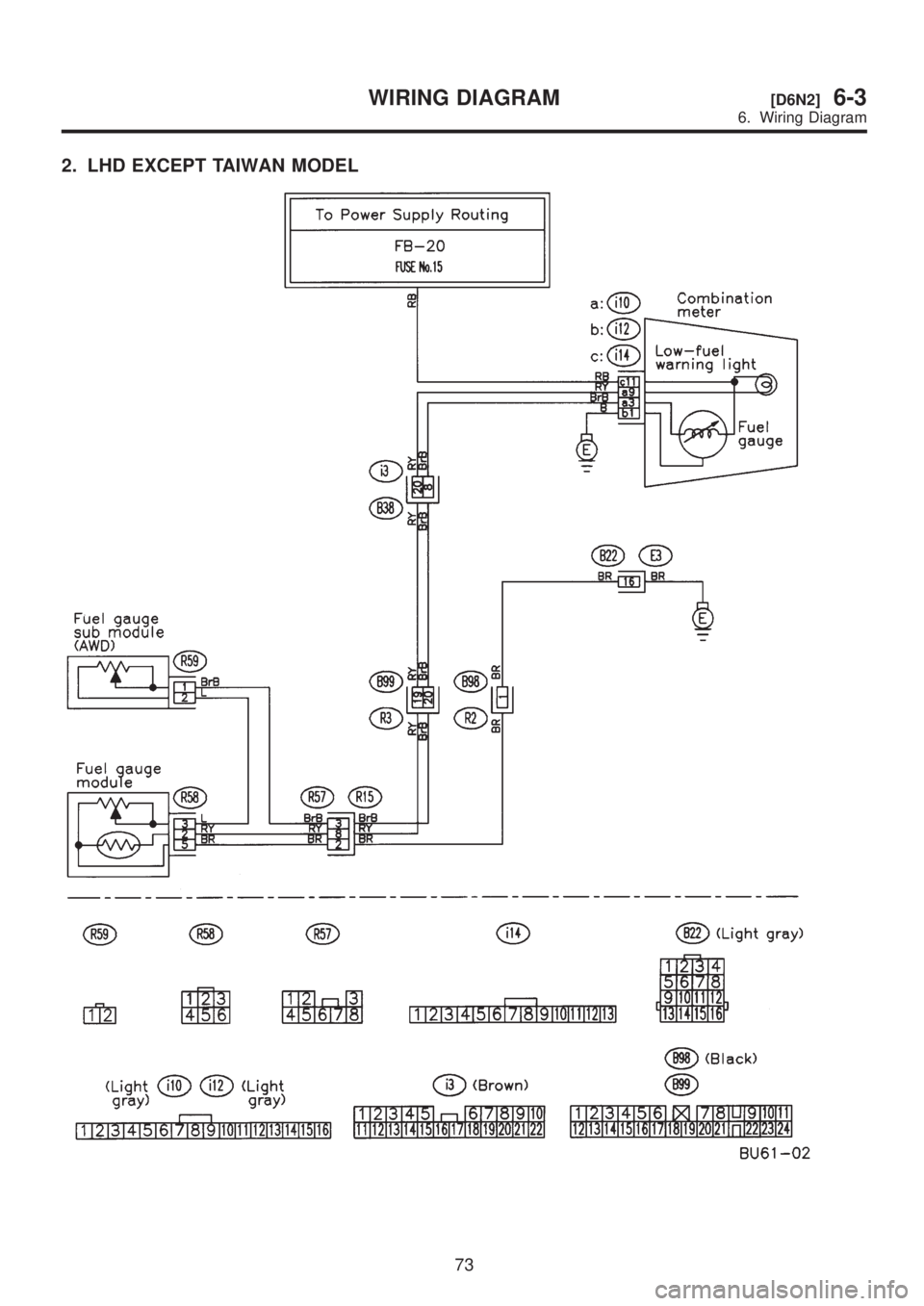

2. LHD EXCEPT TAIWAN MODEL
73
[D6N2]6-3WIRING DIAGRAM
6. Wiring Diagram

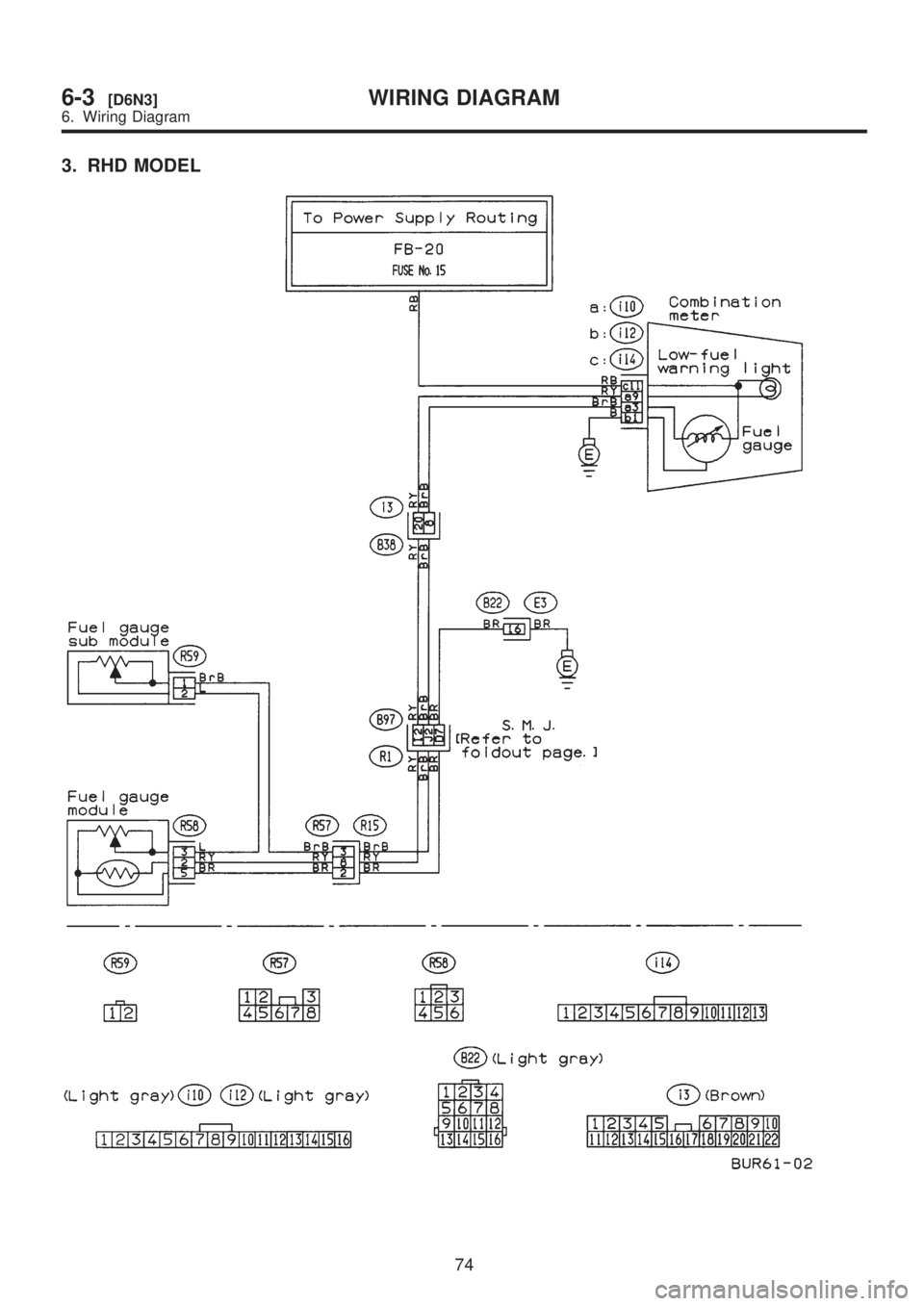

3. RHD MODEL
74
6-3[D6N3]WIRING DIAGRAM
6. Wiring Diagram

MEMO:
75
[D6N3]6-3WIRING DIAGRAM
6. Wiring Diagram

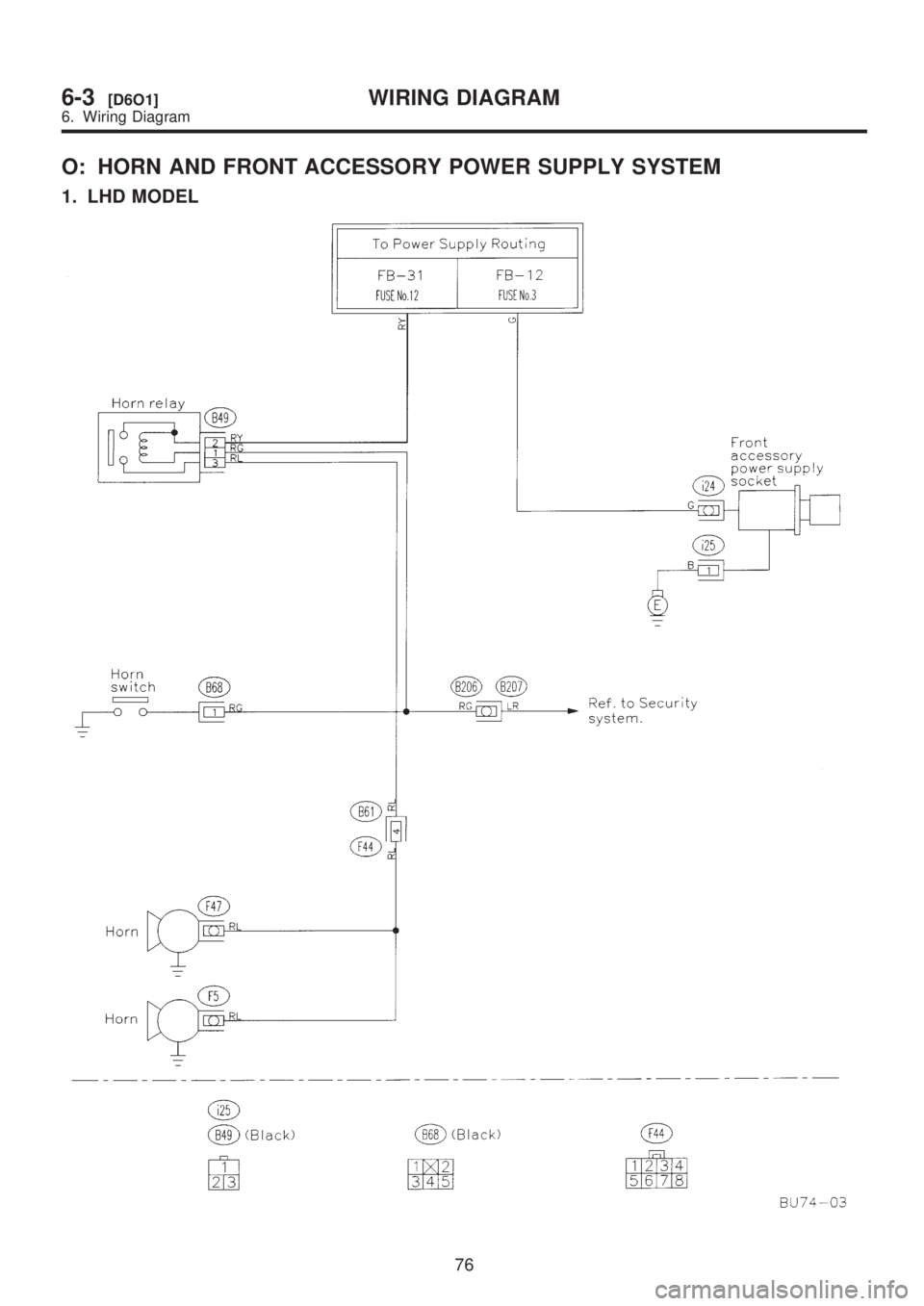

O: HORN AND FRONT ACCESSORY POWER SUPPLY SYSTEM
1. LHD MODEL
76
6-3[D6O1]WIRING DIAGRAM
6. Wiring Diagram

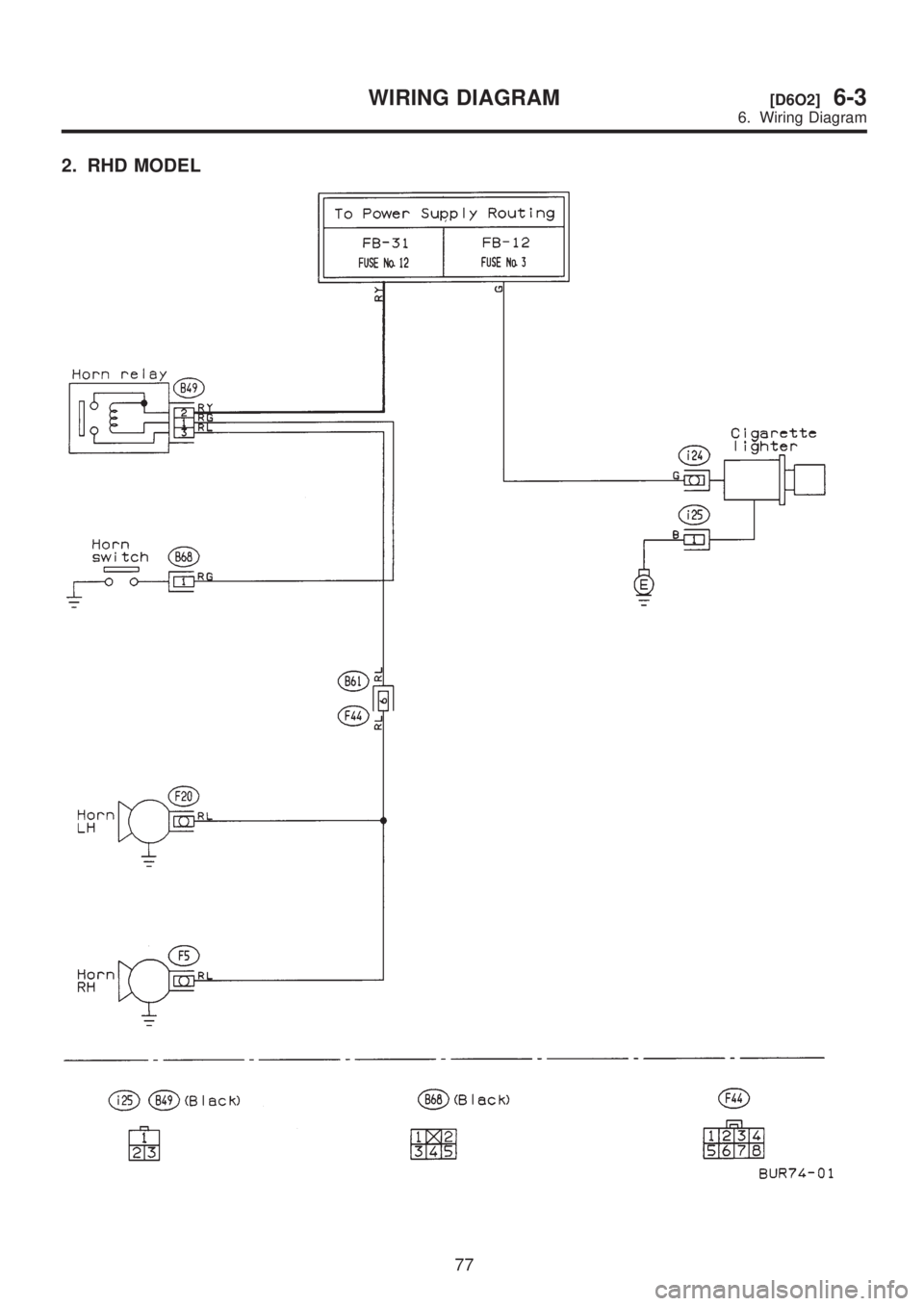

2. RHD MODEL
77
[D6O2]6-3WIRING DIAGRAM
6. Wiring Diagram

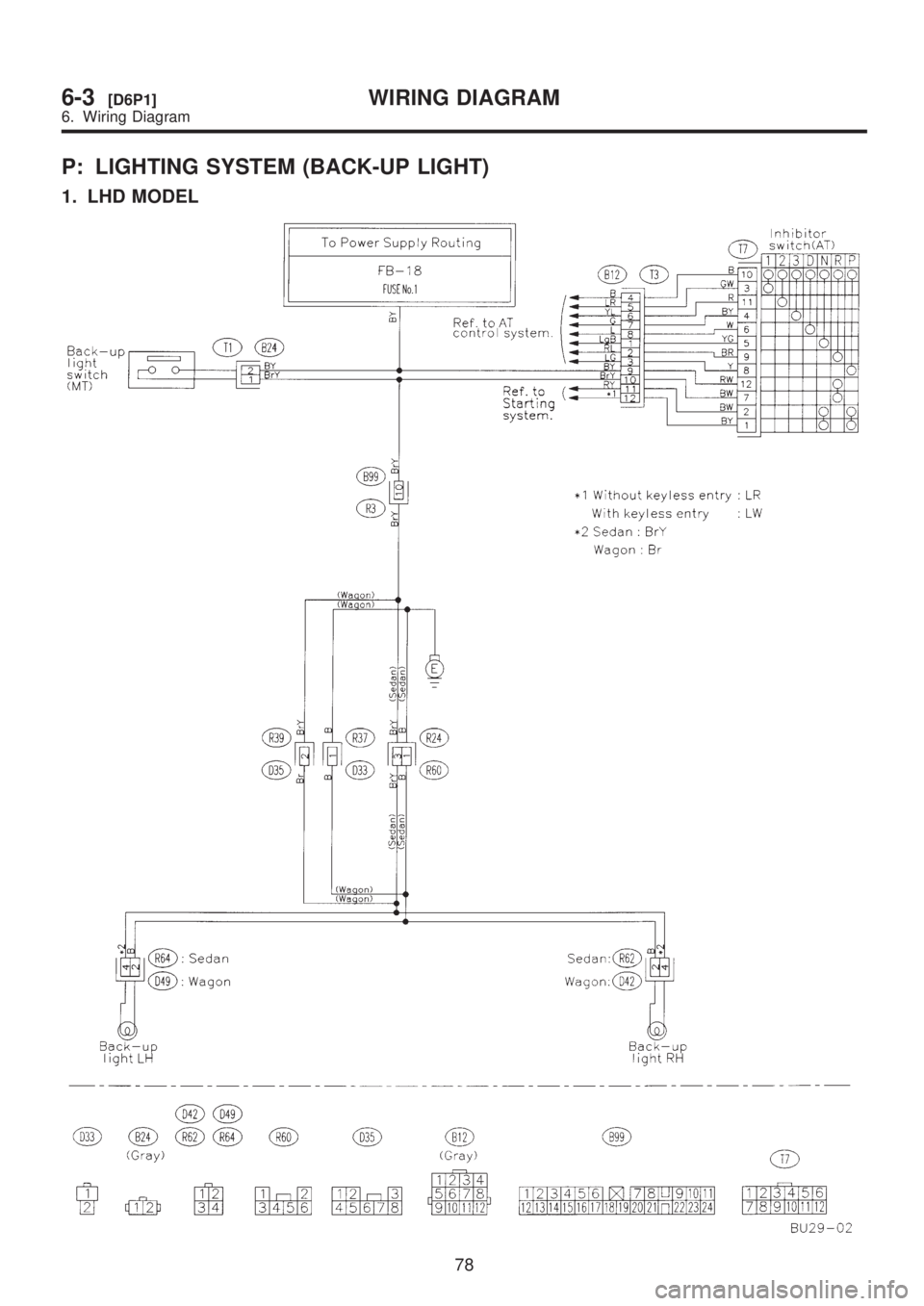

P: LIGHTING SYSTEM (BACK-UP LIGHT)
1. LHD MODEL
78
6-3[D6P1]WIRING DIAGRAM
6. Wiring Diagram

2. RHD MODEL
79
[D6P2]6-3WIRING DIAGRAM
6. Wiring Diagram

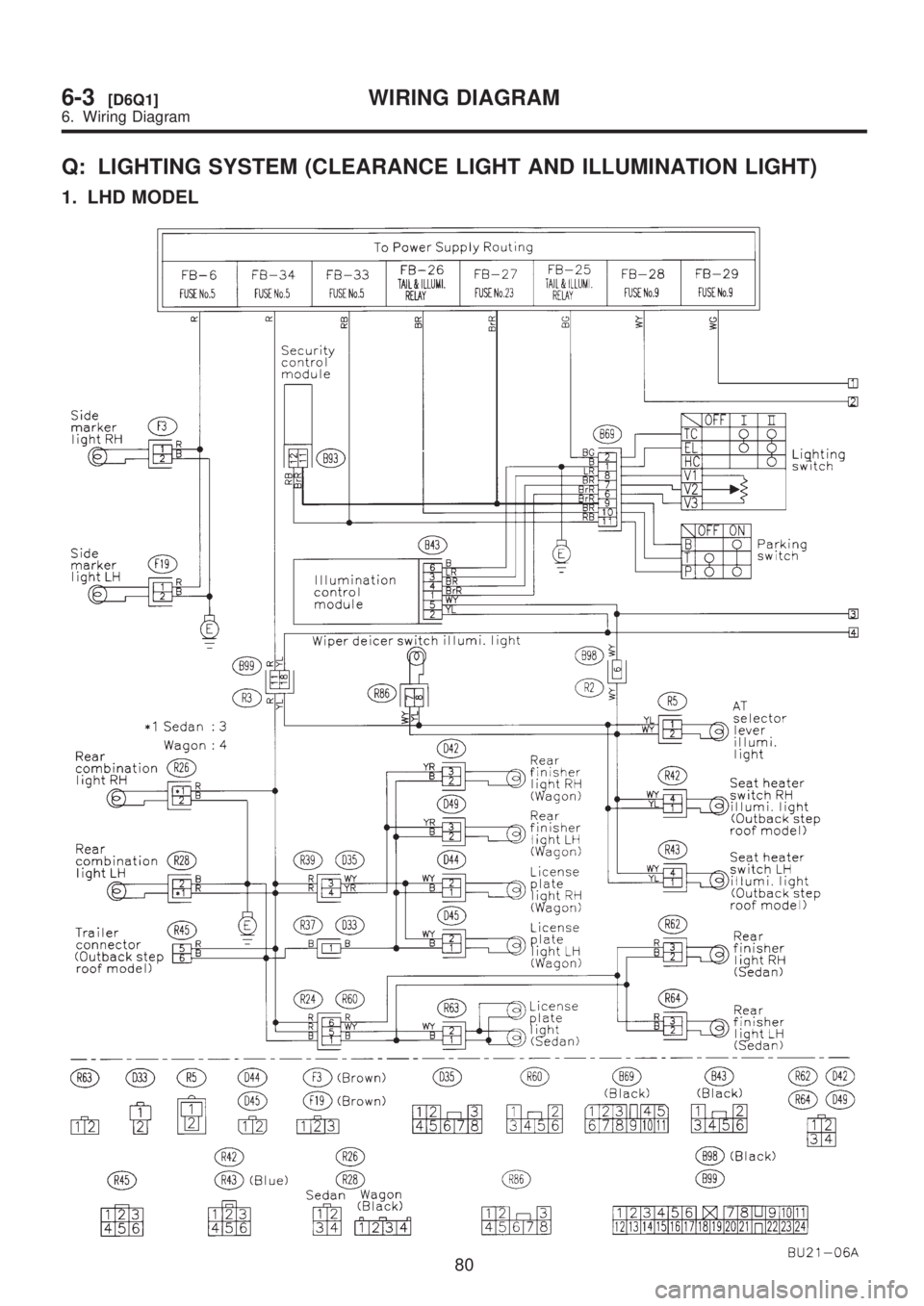

Q: LIGHTING SYSTEM (CLEARANCE LIGHT AND ILLUMINATION LIGHT)
1. LHD MODEL
80
6-3[D6Q1]WIRING DIAGRAM
6. Wiring Diagram
