SUBARU LEGACY 1999 Service Repair Manual
Page 1321 of 1456
![SUBARU LEGACY 1999 Service Repair Manual 2. RHD MODEL
41
[D6G2]6-3WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual 2. RHD MODEL
41
[D6G2]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1320.png)
Page 1322 of 1456

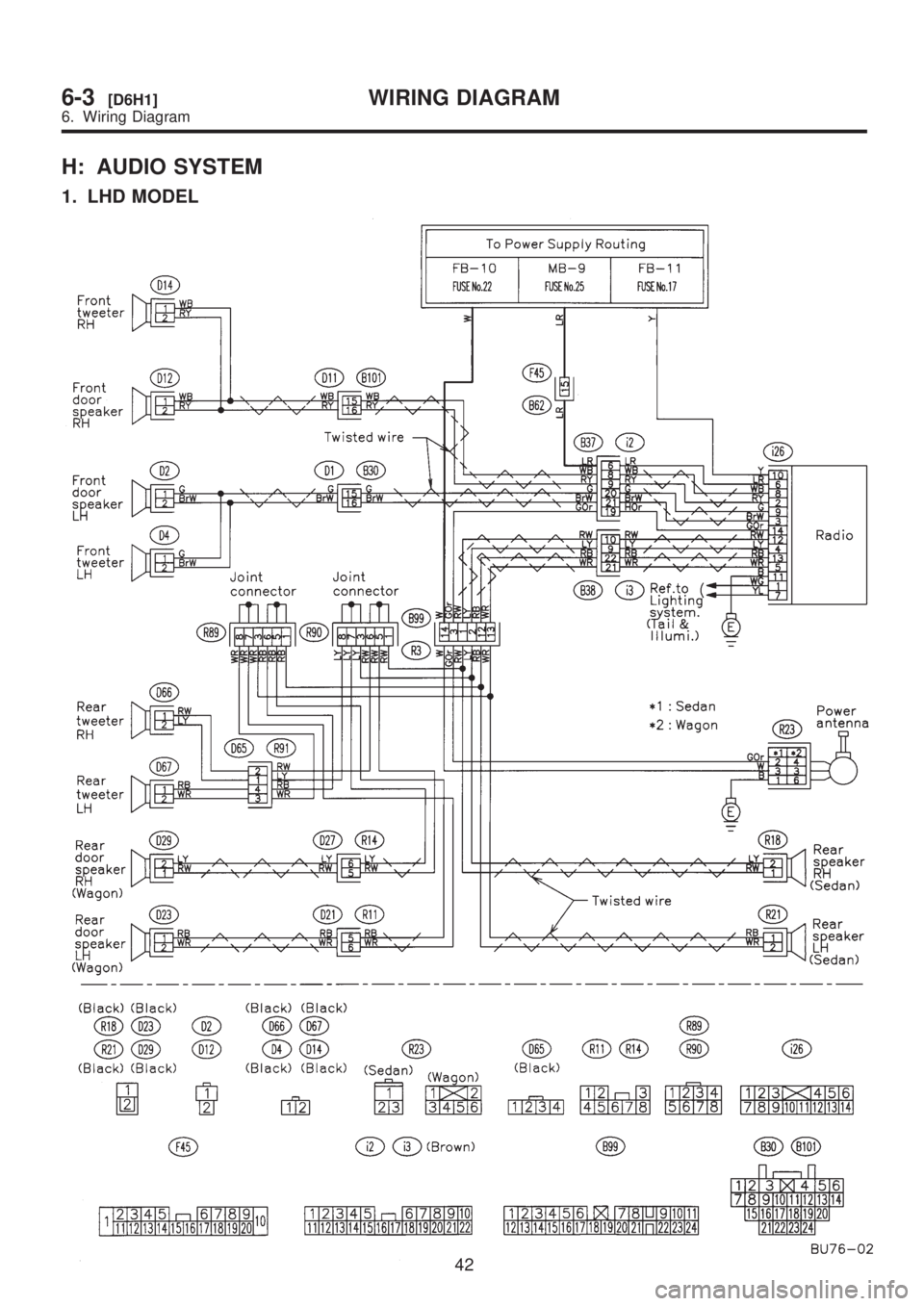

![SUBARU LEGACY 1999 Service Repair Manual H: AUDIO SYSTEM
1. LHD MODEL
42
6-3[D6H1]WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual H: AUDIO SYSTEM
1. LHD MODEL
42
6-3[D6H1]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1321.png)
Page 1323 of 1456

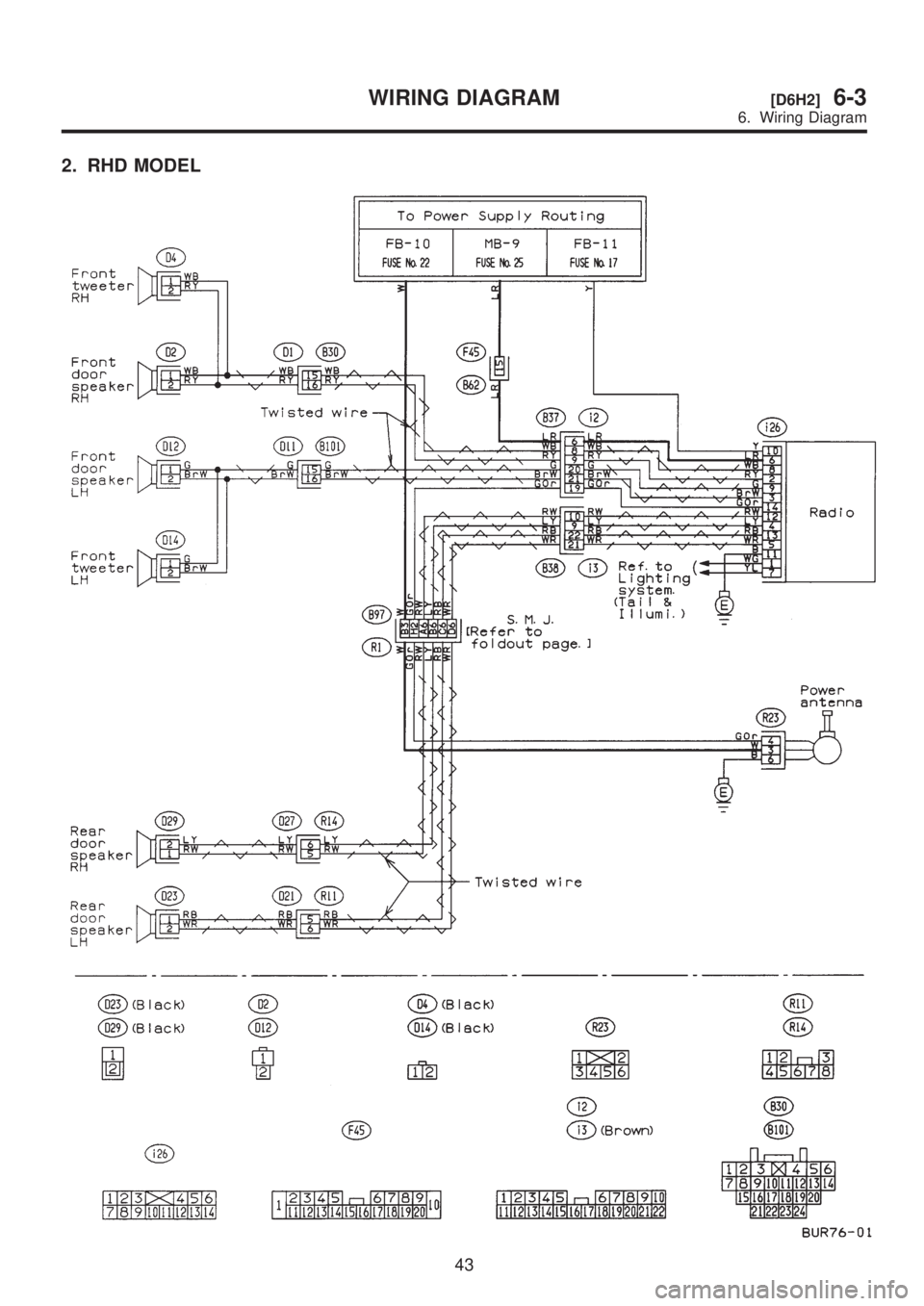

![SUBARU LEGACY 1999 Service Repair Manual 2. RHD MODEL
43
[D6H2]6-3WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual 2. RHD MODEL
43
[D6H2]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1322.png)
Page 1324 of 1456

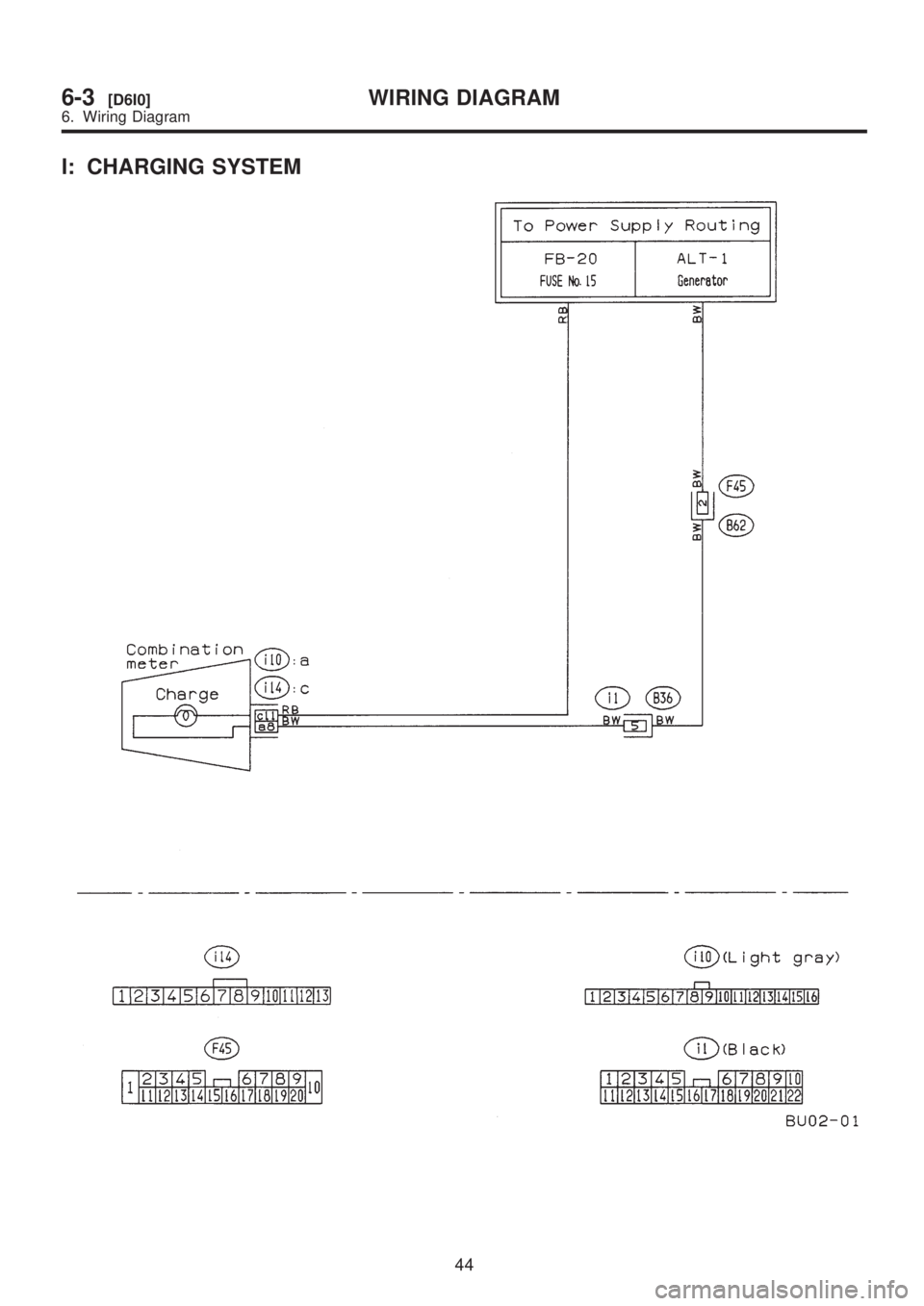

![SUBARU LEGACY 1999 Service Repair Manual I: CHARGING SYSTEM
44
6-3[D6I0]WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual I: CHARGING SYSTEM
44
6-3[D6I0]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1323.png)
Page 1325 of 1456
![SUBARU LEGACY 1999 Service Repair Manual MEMO:
45
[D6I0]6-3WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual MEMO:
45
[D6I0]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1324.png)
Page 1326 of 1456

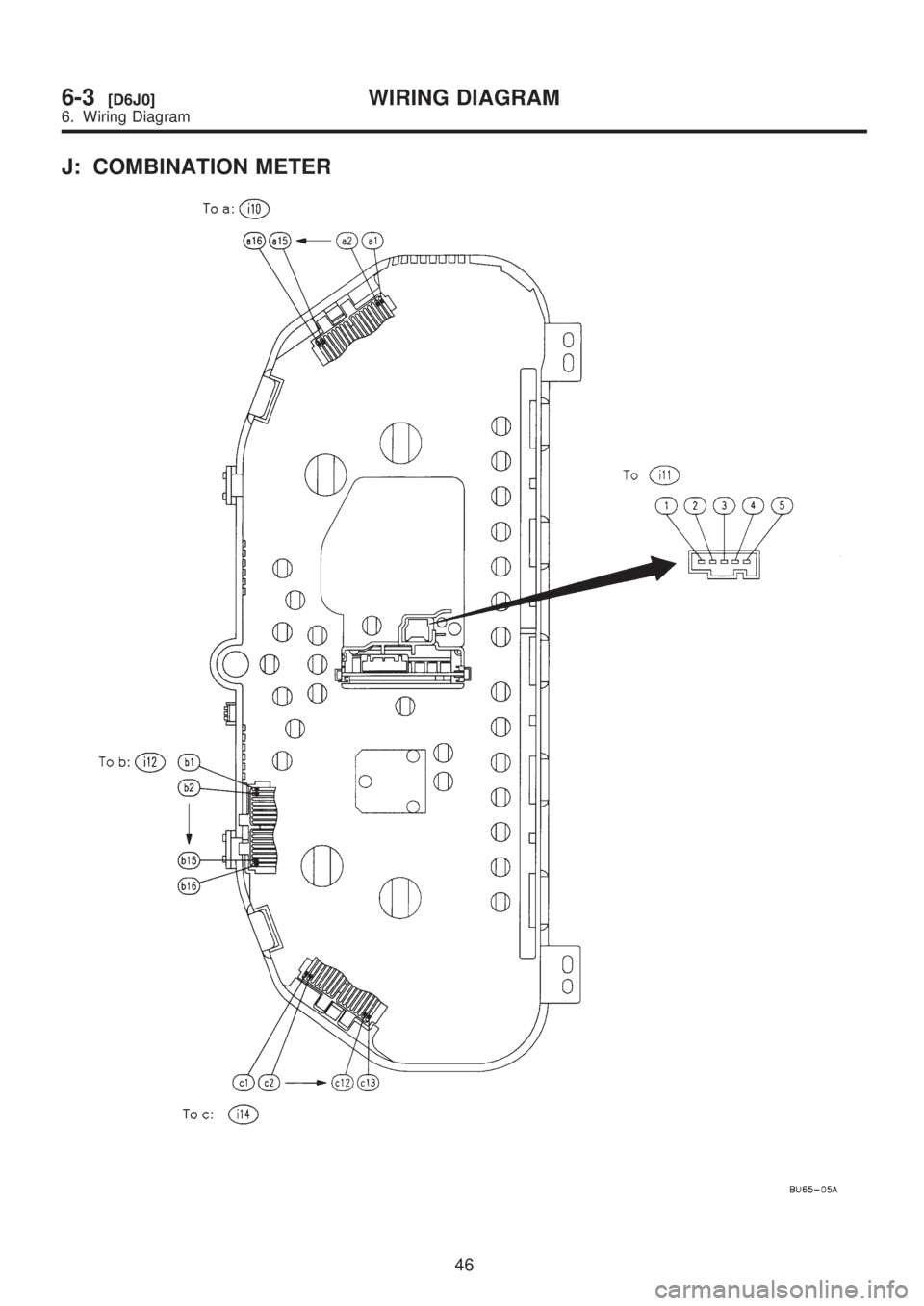

![SUBARU LEGACY 1999 Service Repair Manual J: COMBINATION METER
46
6-3[D6J0]WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual J: COMBINATION METER
46
6-3[D6J0]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1325.png)
Page 1327 of 1456

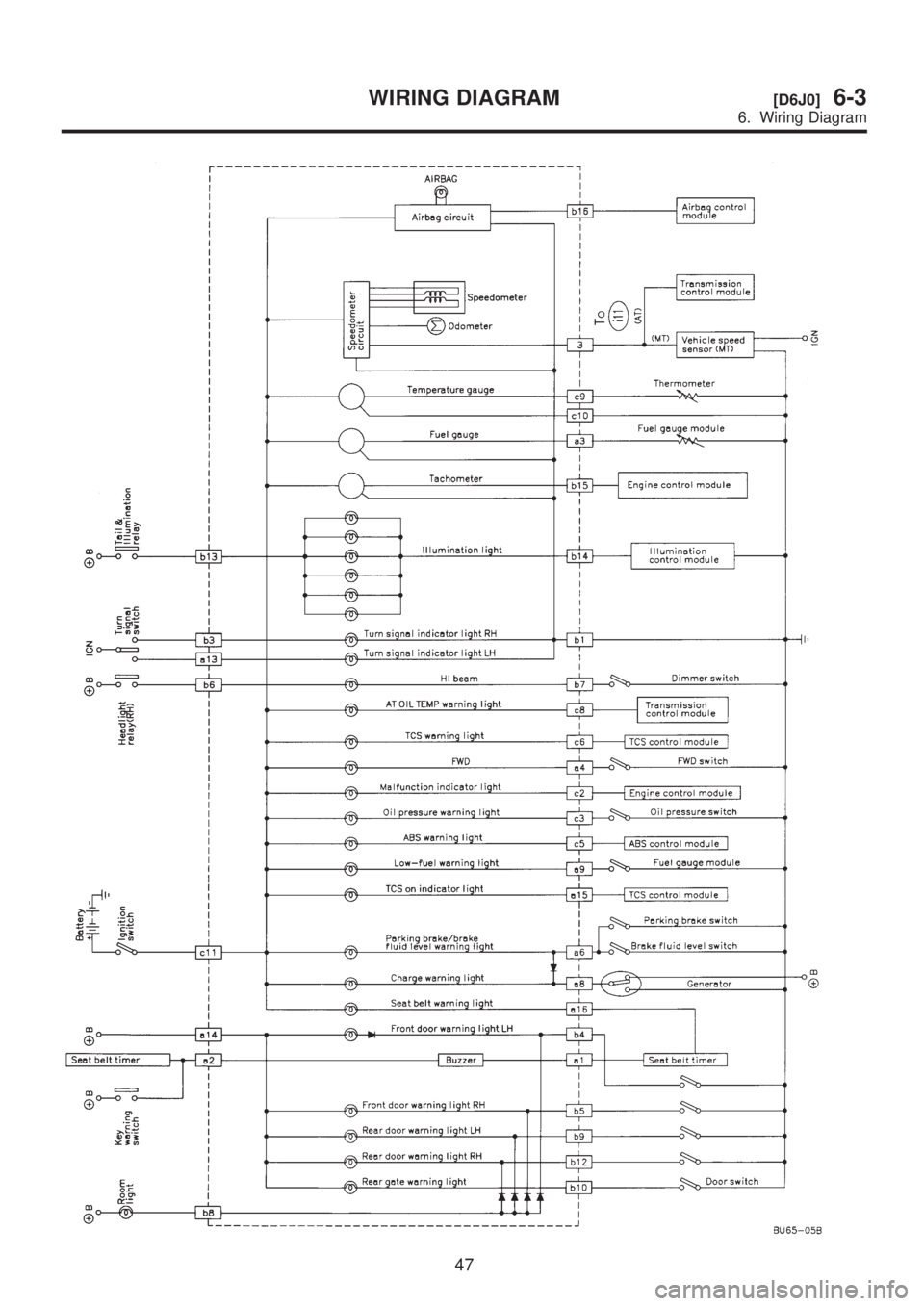

![SUBARU LEGACY 1999 Service Repair Manual 47
[D6J0]6-3WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual 47
[D6J0]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1326.png)
Page 1328 of 1456

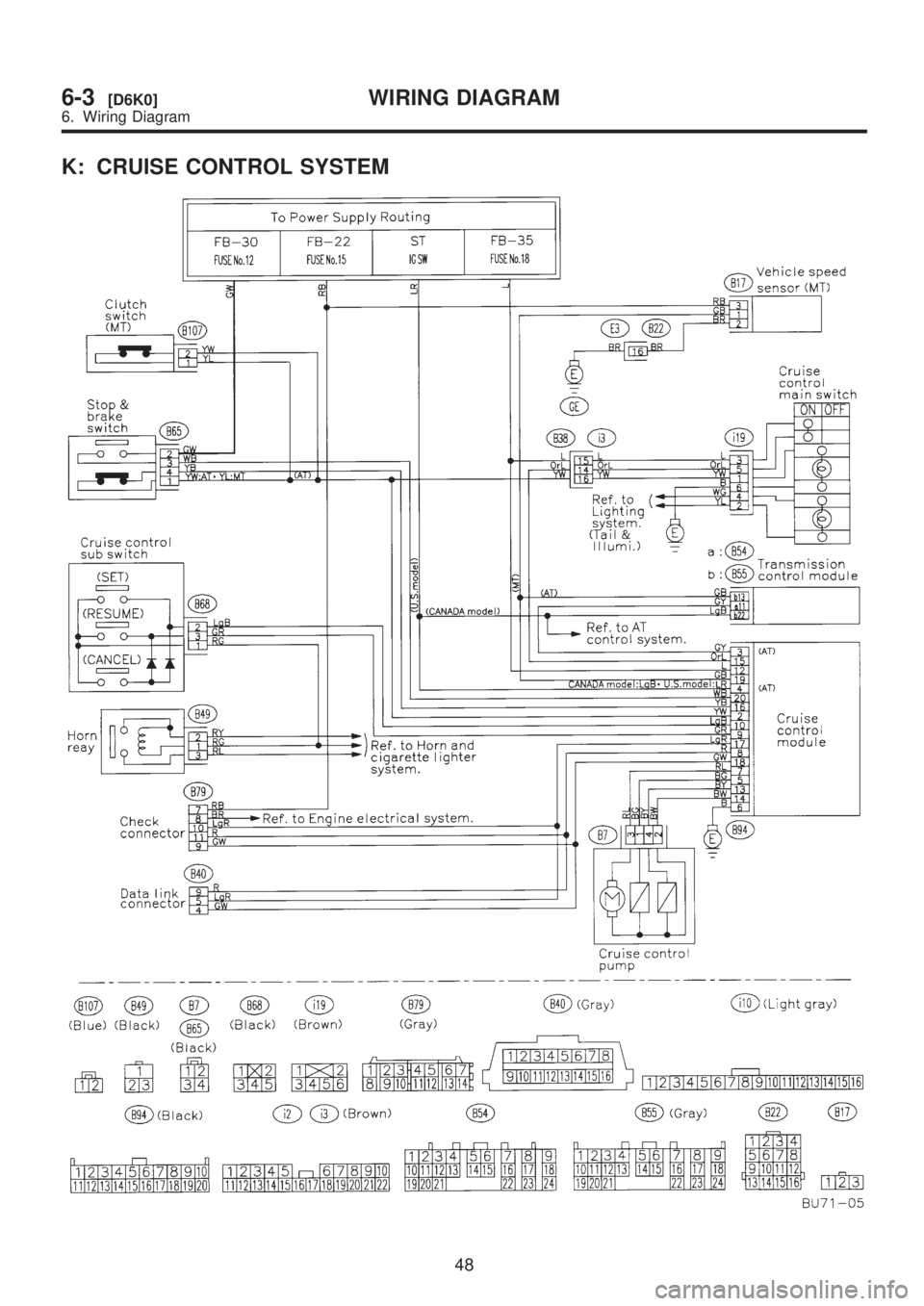

![SUBARU LEGACY 1999 Service Repair Manual K: CRUISE CONTROL SYSTEM
48
6-3[D6K0]WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual K: CRUISE CONTROL SYSTEM
48
6-3[D6K0]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1327.png)
Page 1329 of 1456
![SUBARU LEGACY 1999 Service Repair Manual MEMO:
49
[D6K0]6-3WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual MEMO:
49
[D6K0]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1328.png)
Page 1330 of 1456

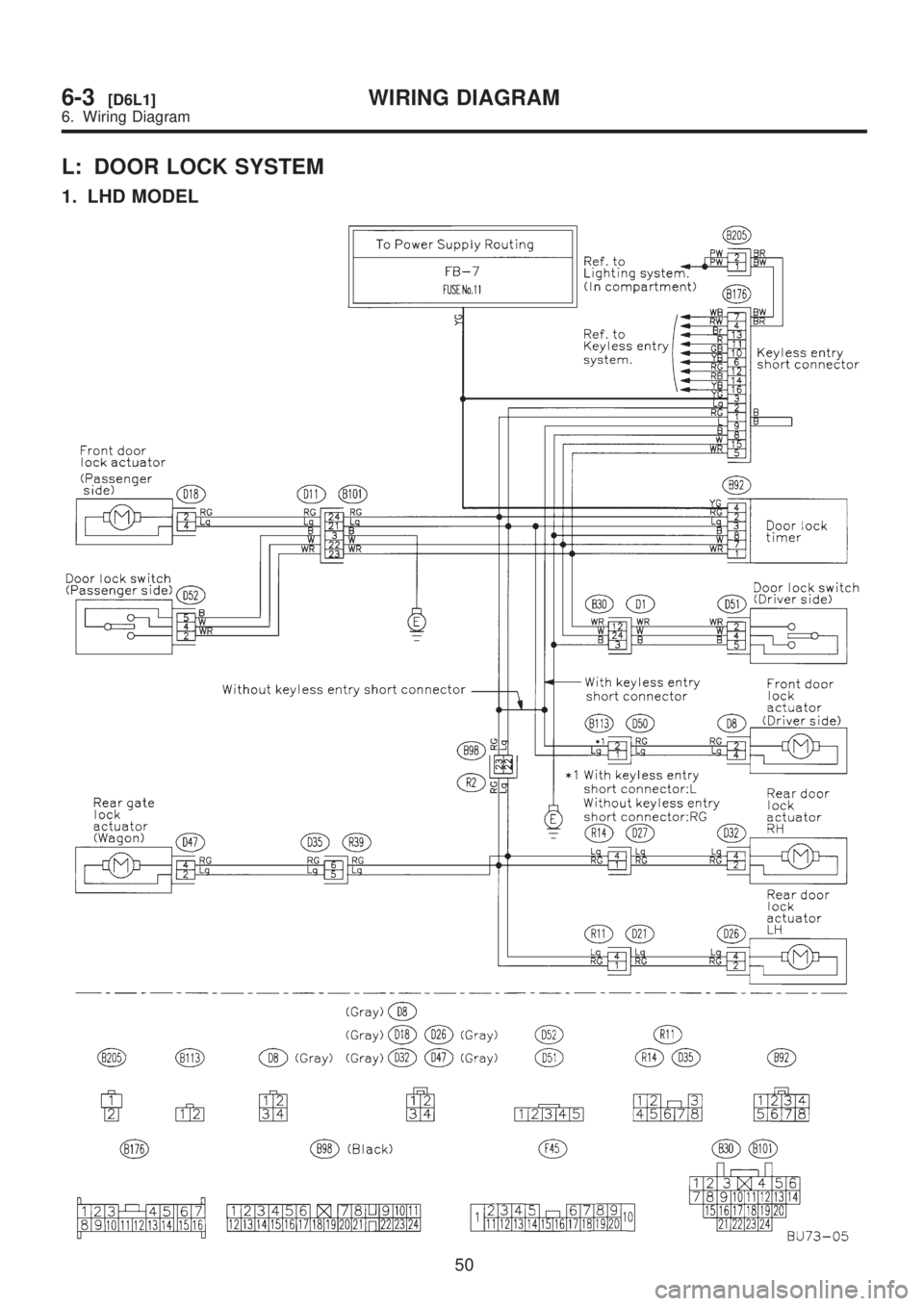

![SUBARU LEGACY 1999 Service Repair Manual L: DOOR LOCK SYSTEM
1. LHD MODEL
50
6-3[D6L1]WIRING DIAGRAM
6. Wiring Diagram SUBARU LEGACY 1999 Service Repair Manual L: DOOR LOCK SYSTEM
1. LHD MODEL
50
6-3[D6L1]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1329.png)
