SUBARU LEGACY 1999 Service Repair Manual

2. RHD MODEL
31
[D6D2]6-3WIRING DIAGRAM
6. Wiring Diagram

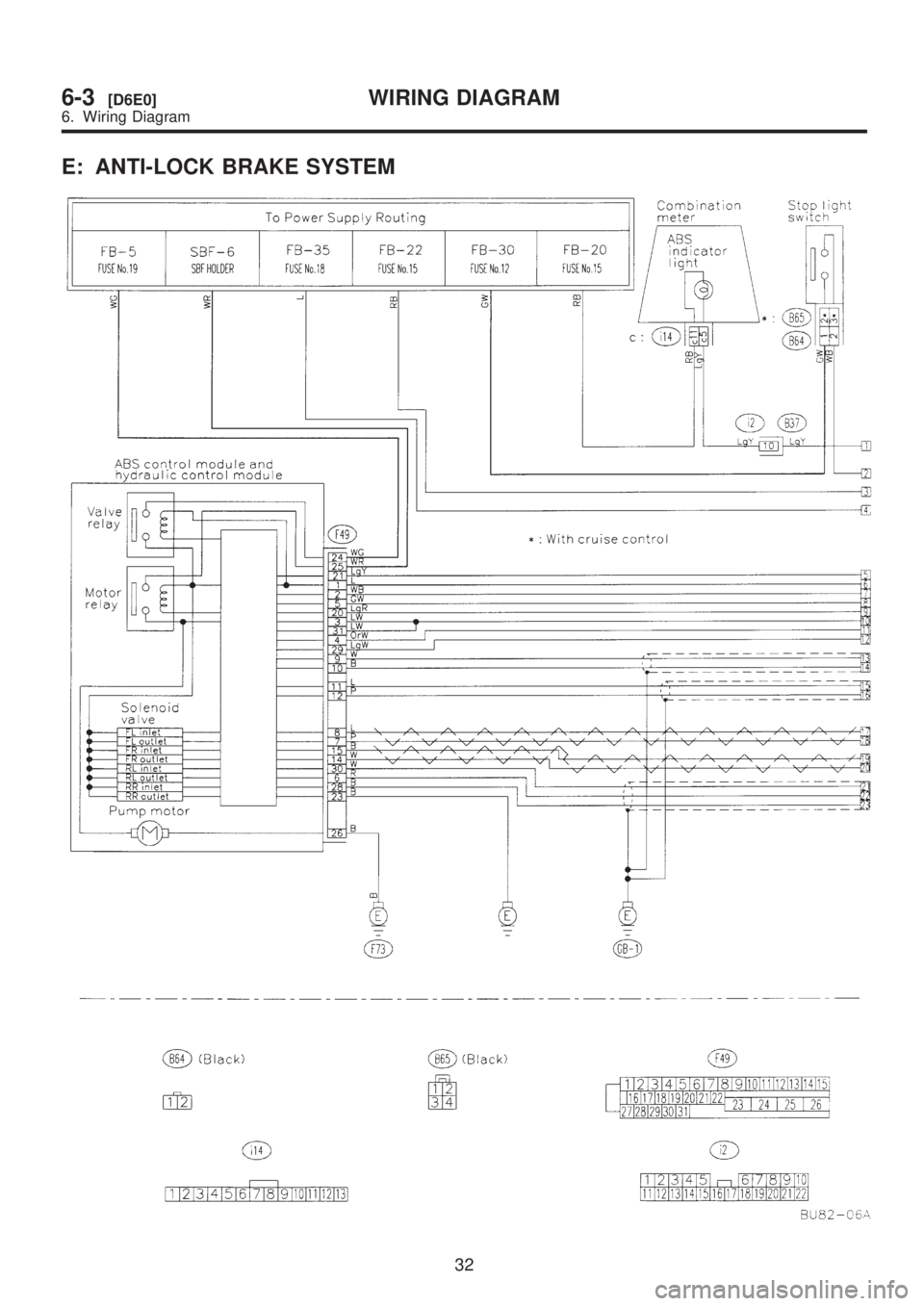

E: ANTI-LOCK BRAKE SYSTEM
32
6-3[D6E0]WIRING DIAGRAM
6. Wiring Diagram

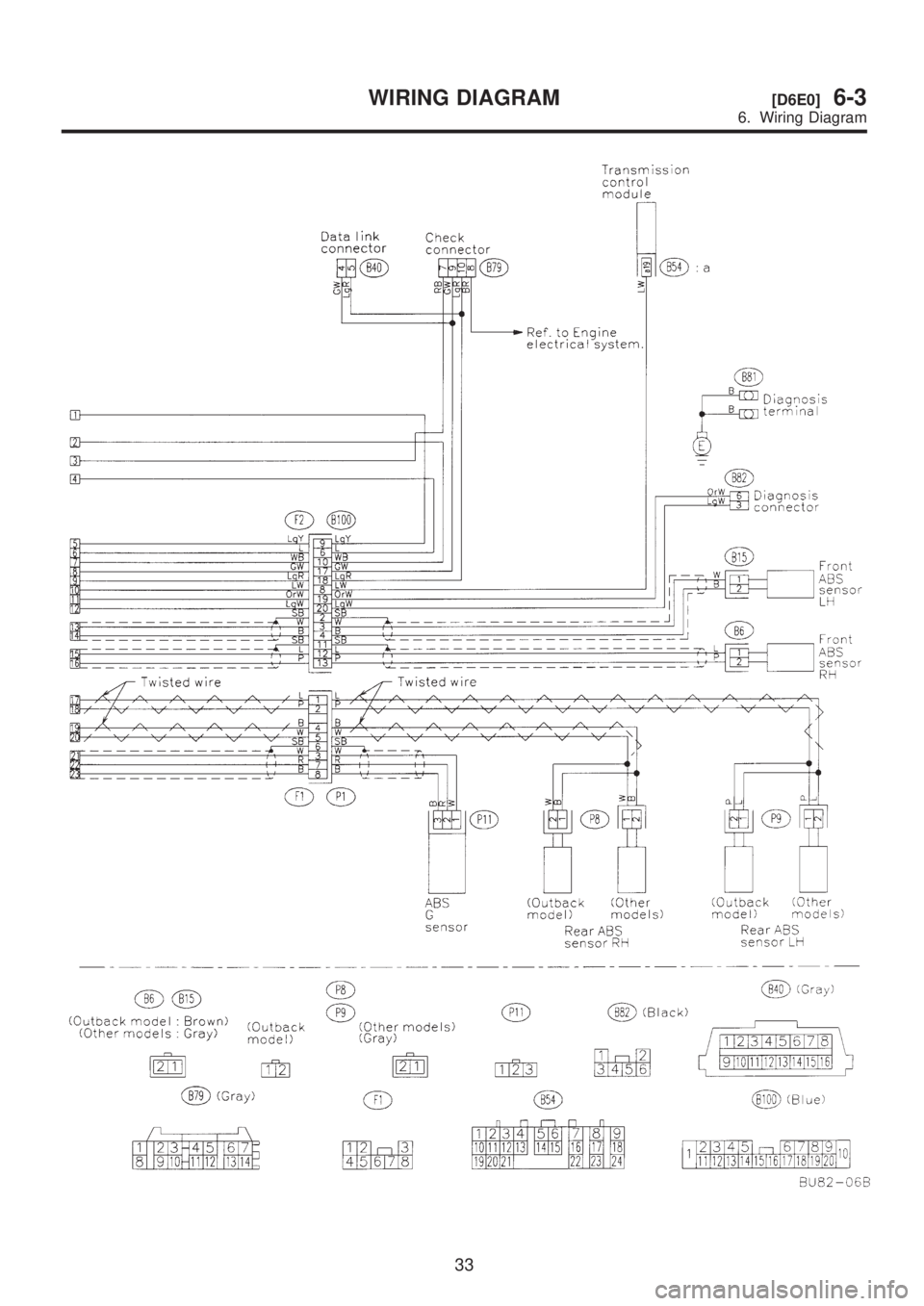

33
[D6E0]6-3WIRING DIAGRAM
6. Wiring Diagram

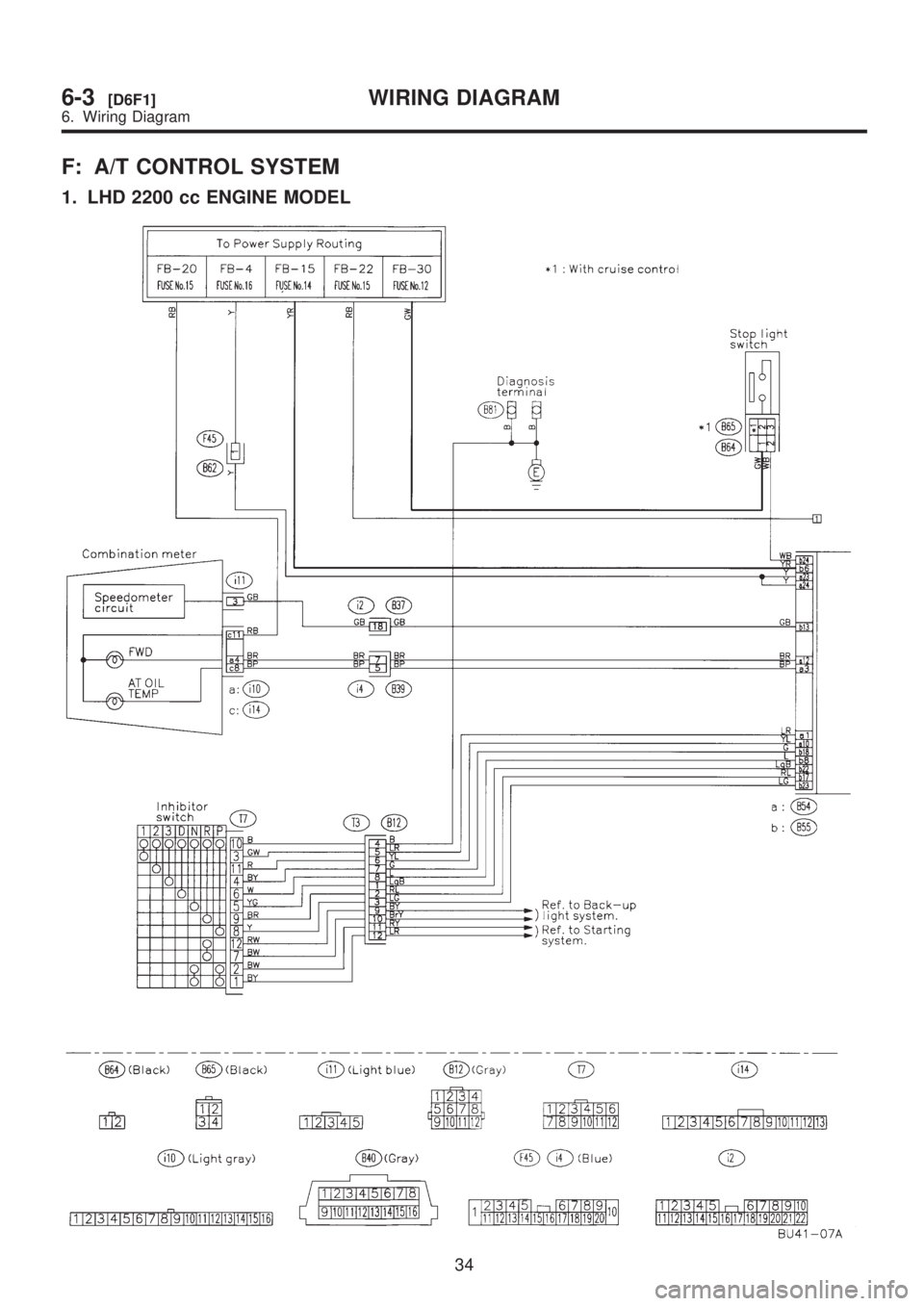

F: A/T CONTROL SYSTEM
1. LHD 2200 cc ENGINE MODEL
34
6-3[D6F1]WIRING DIAGRAM
6. Wiring Diagram

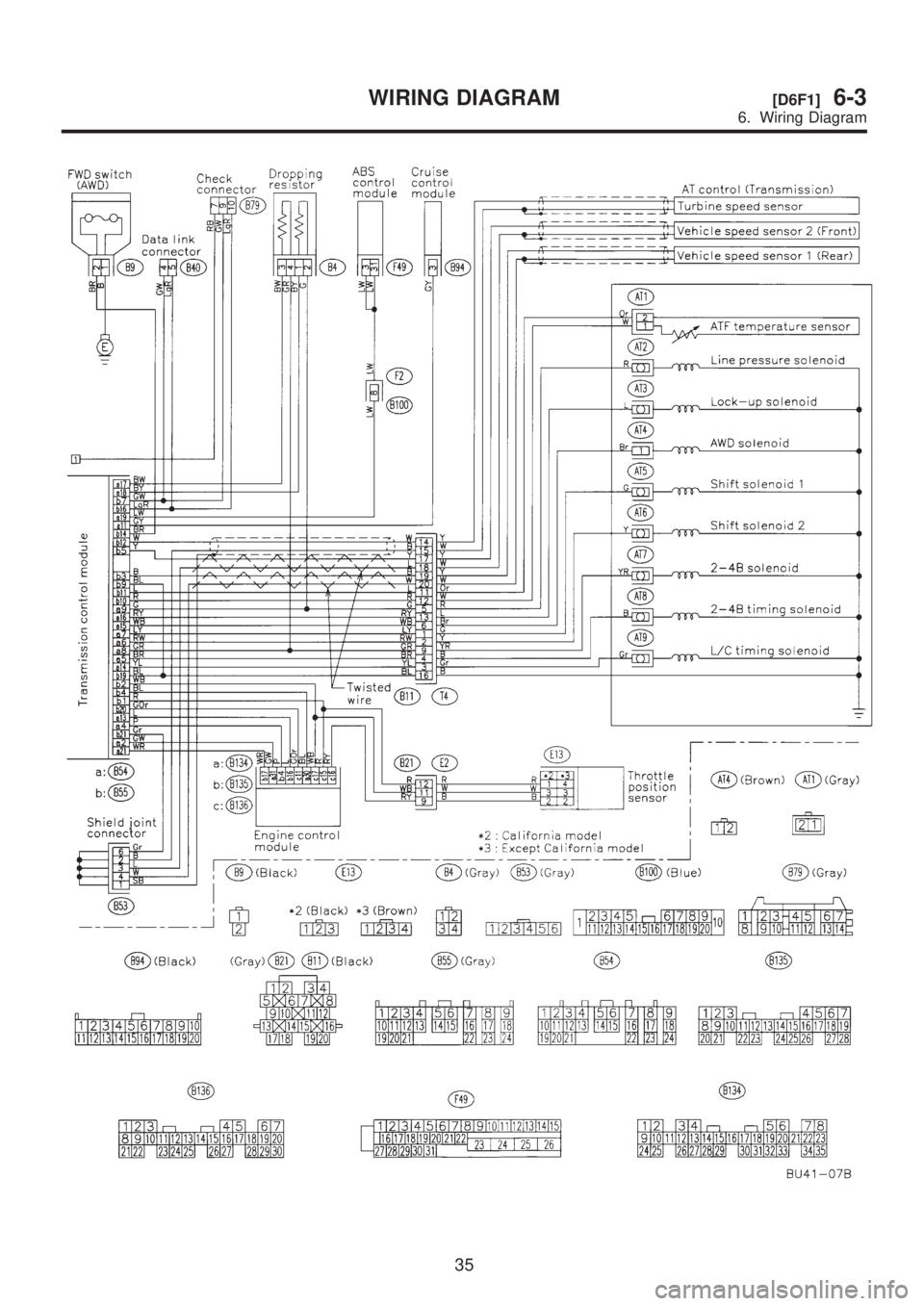

35
[D6F1]6-3WIRING DIAGRAM
6. Wiring Diagram

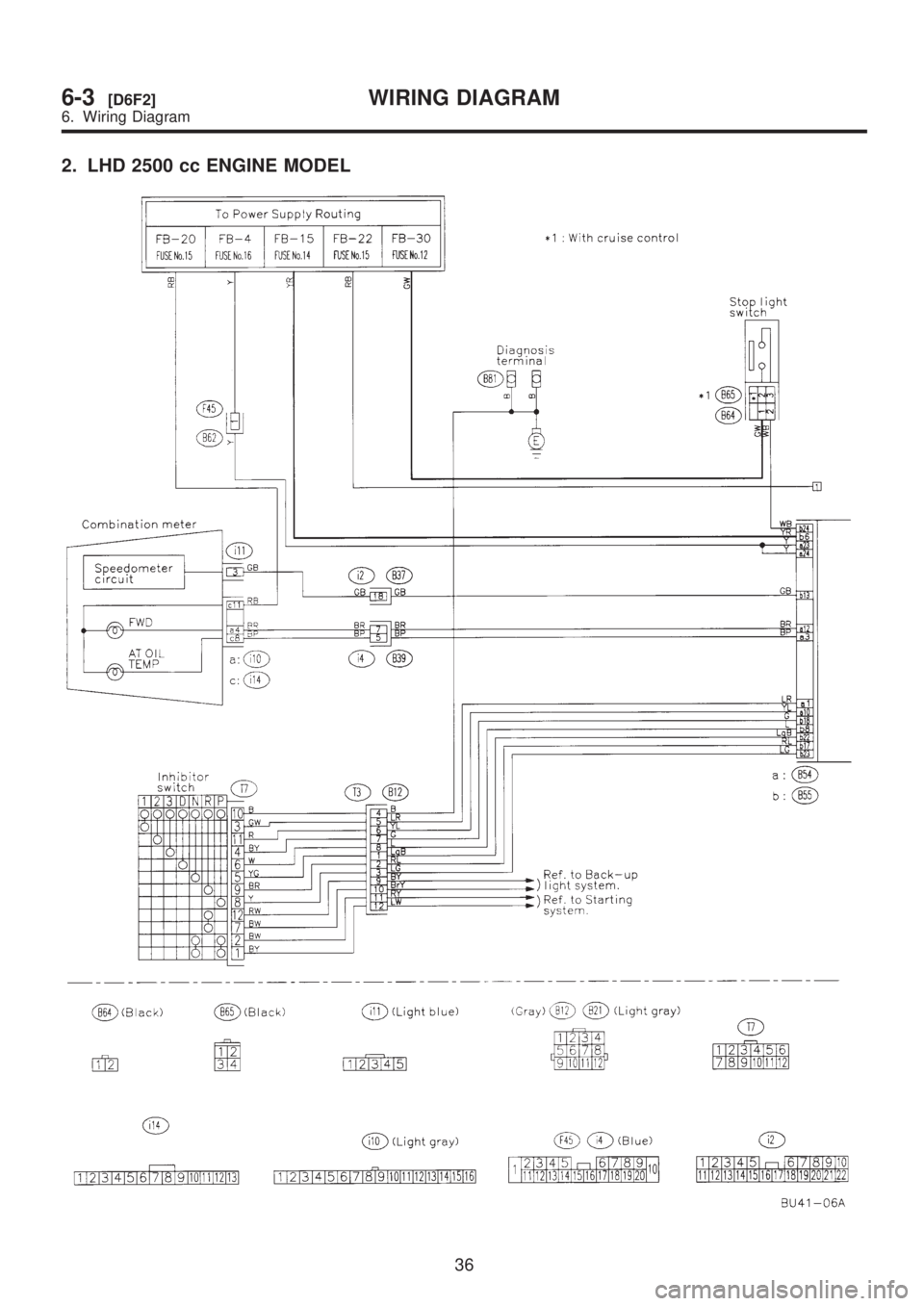

2. LHD 2500 cc ENGINE MODEL
36
6-3[D6F2]WIRING DIAGRAM
6. Wiring Diagram

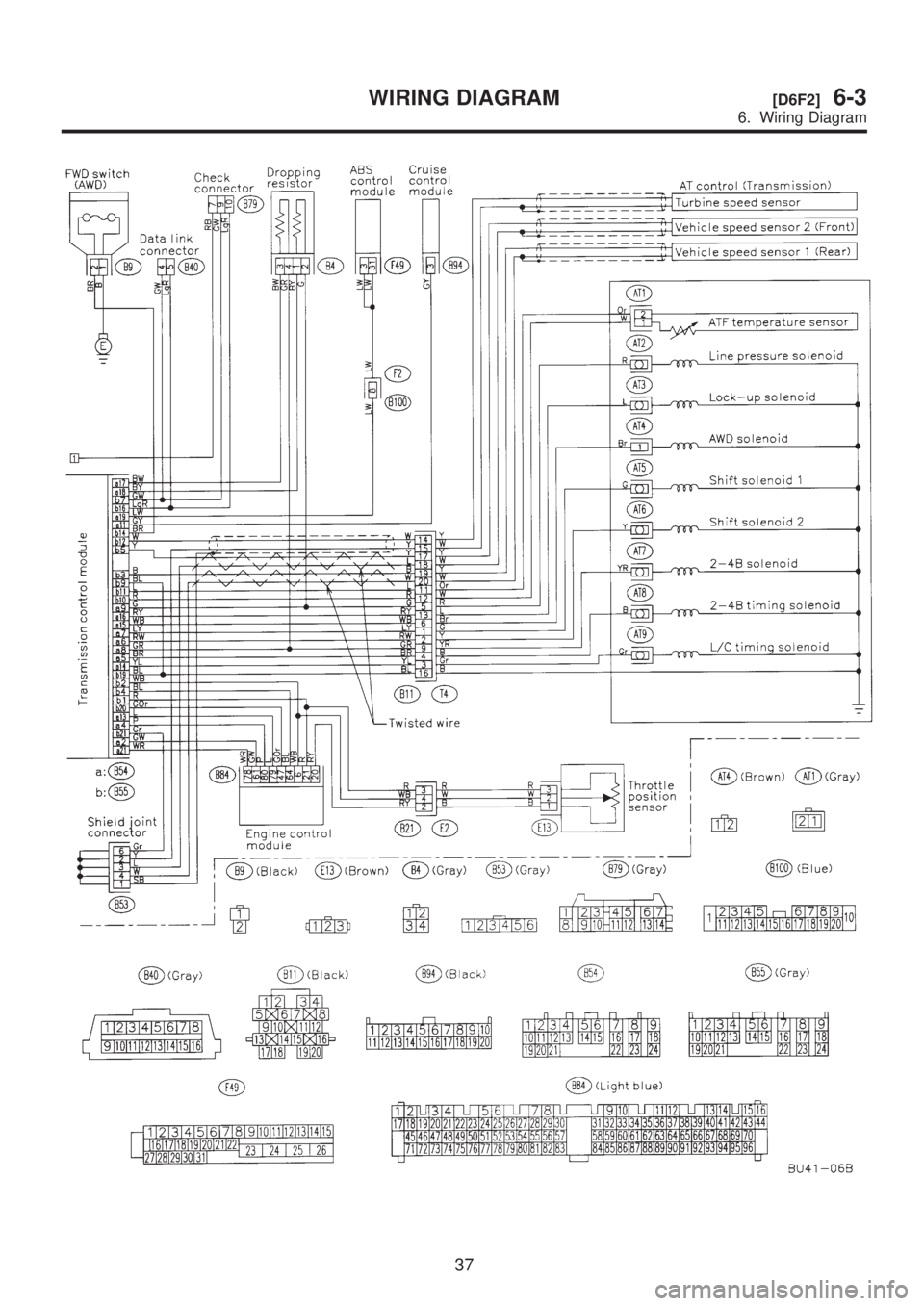

37
[D6F2]6-3WIRING DIAGRAM
6. Wiring Diagram

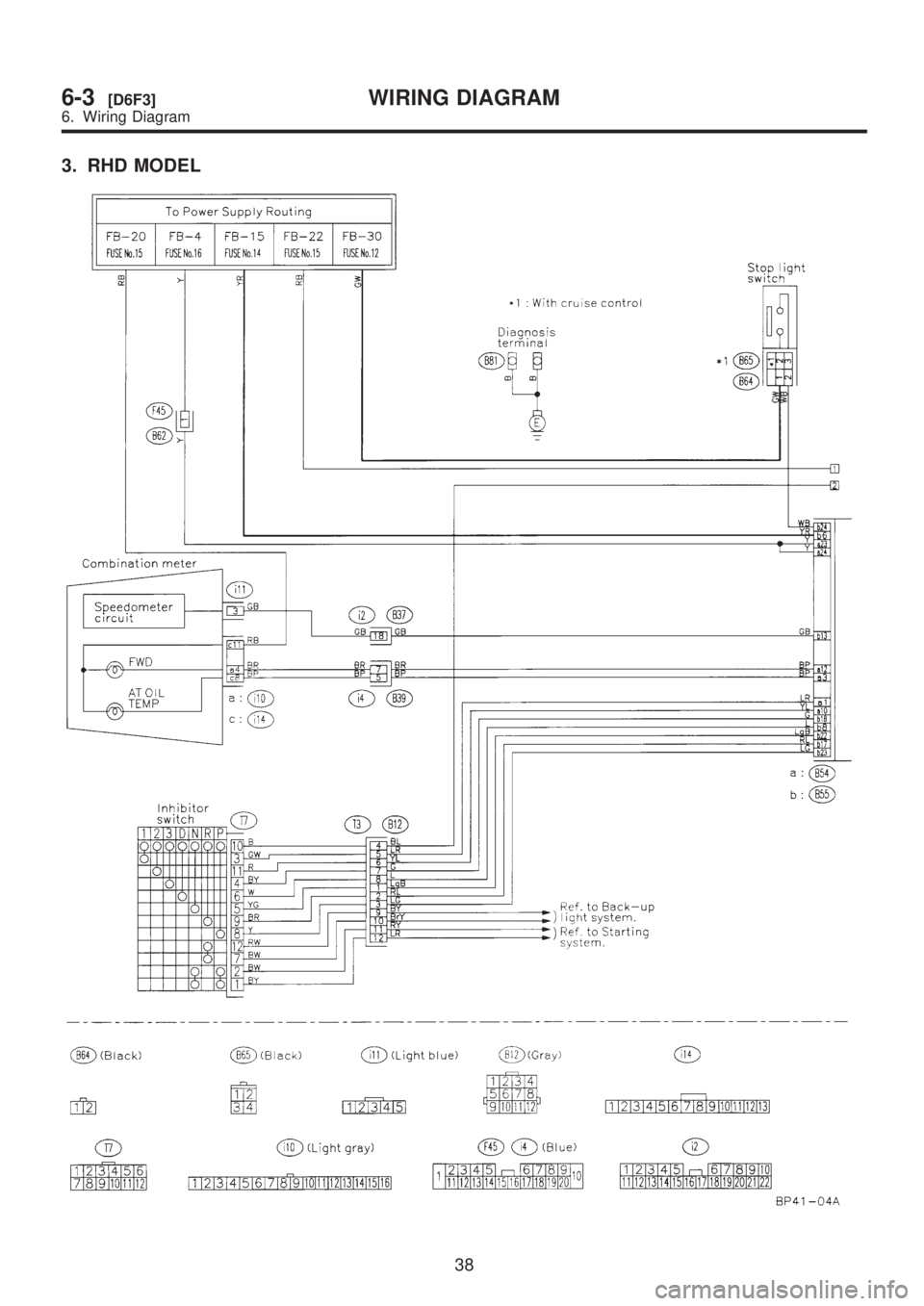

3. RHD MODEL
38
6-3[D6F3]WIRING DIAGRAM
6. Wiring Diagram

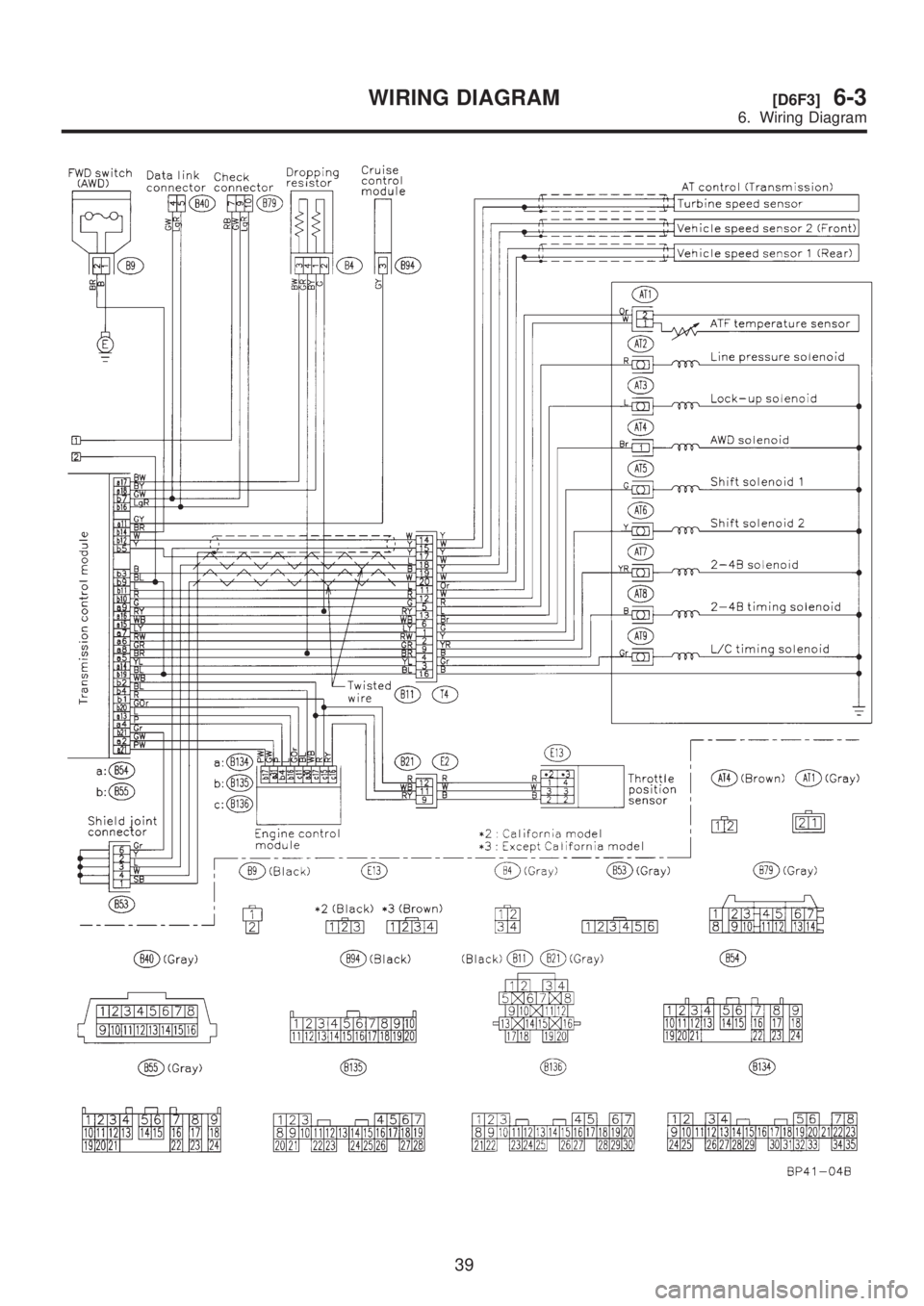

39
[D6F3]6-3WIRING DIAGRAM
6. Wiring Diagram

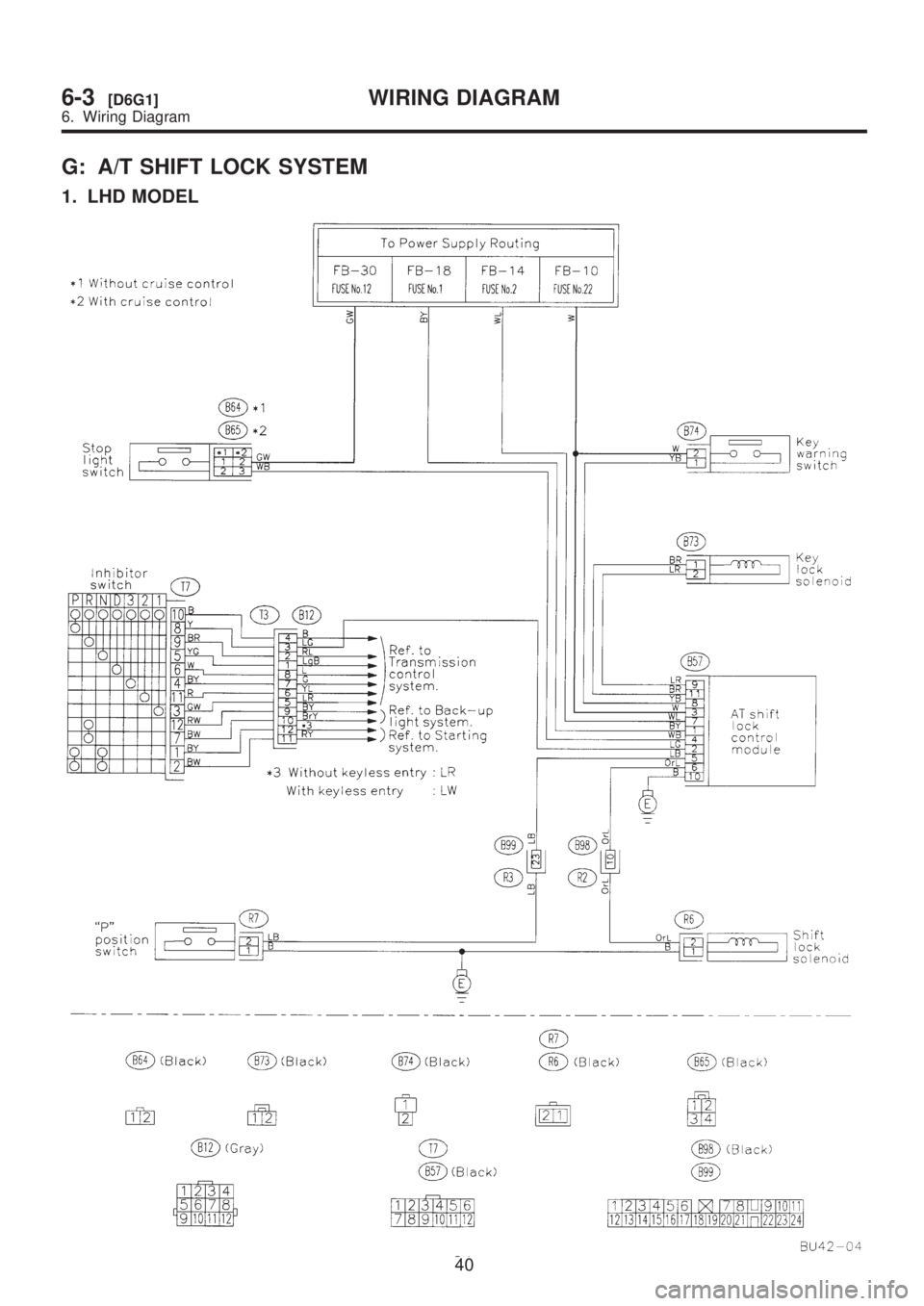

G: A/T SHIFT LOCK SYSTEM
1. LHD MODEL
40
6-3[D6G1]WIRING DIAGRAM
6. Wiring Diagram
