SUBARU LEGACY 1999 Service Repair Manual

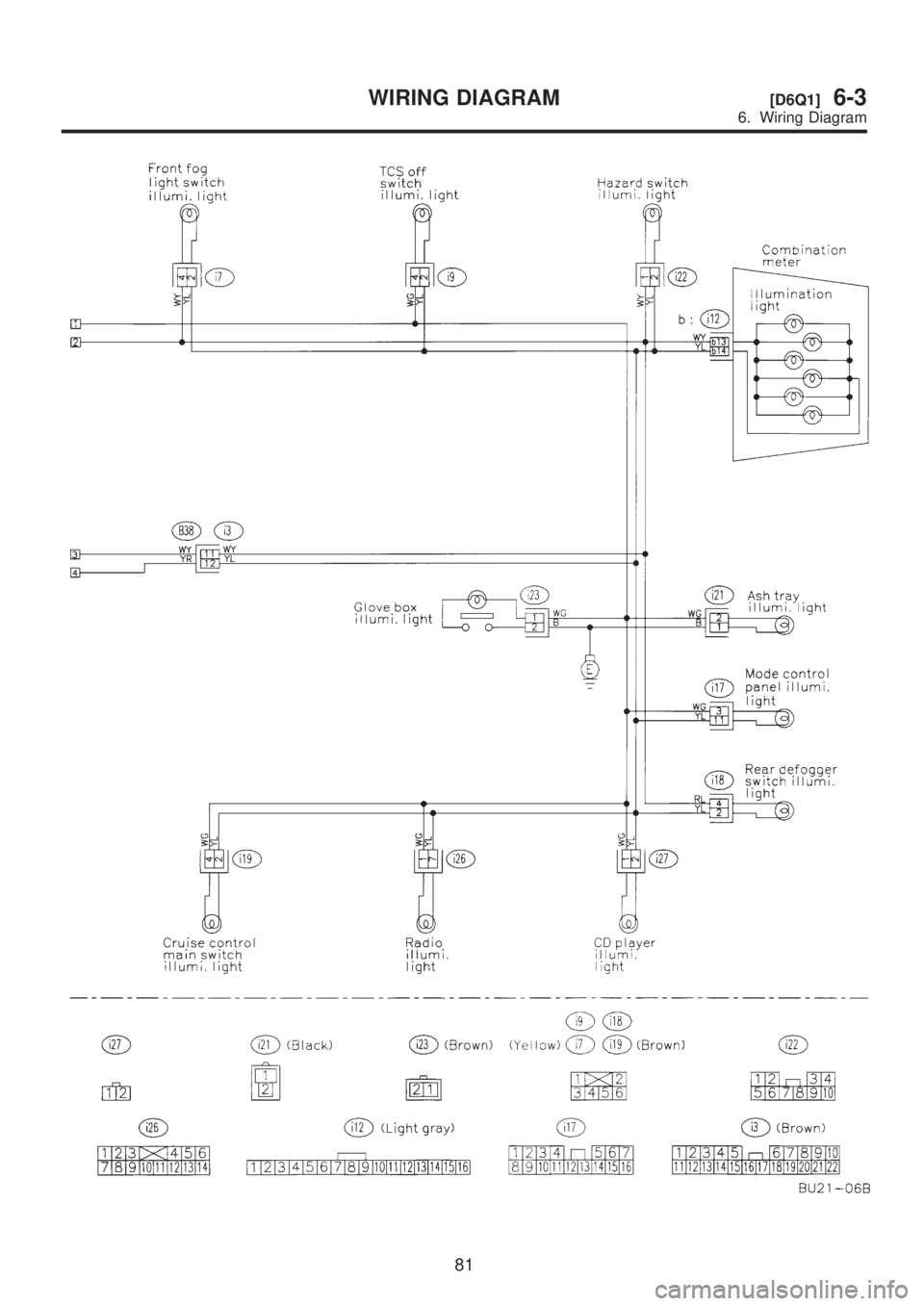

81
[D6Q1]6-3WIRING DIAGRAM
6. Wiring Diagram

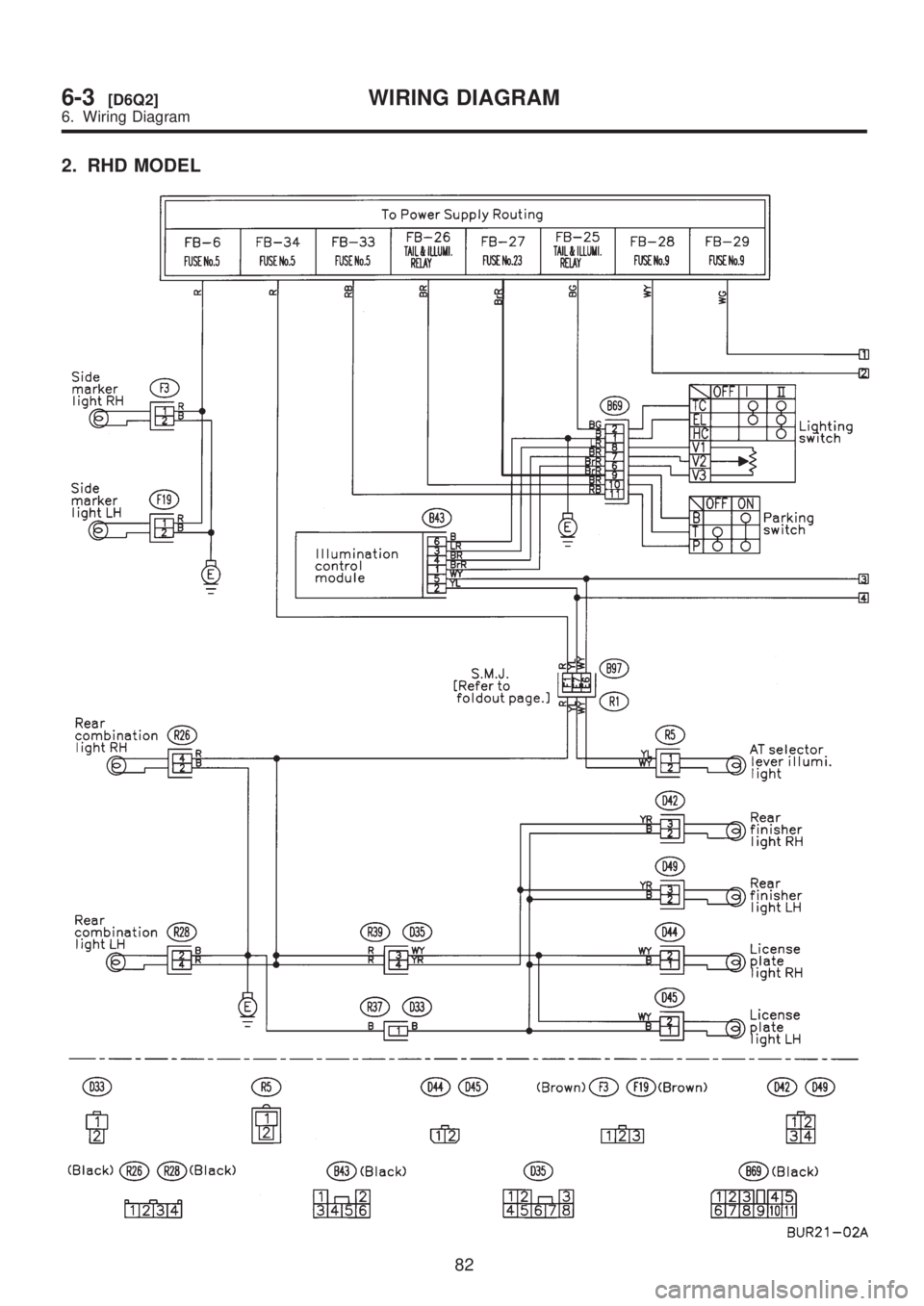

2. RHD MODEL
82
6-3[D6Q2]WIRING DIAGRAM
6. Wiring Diagram

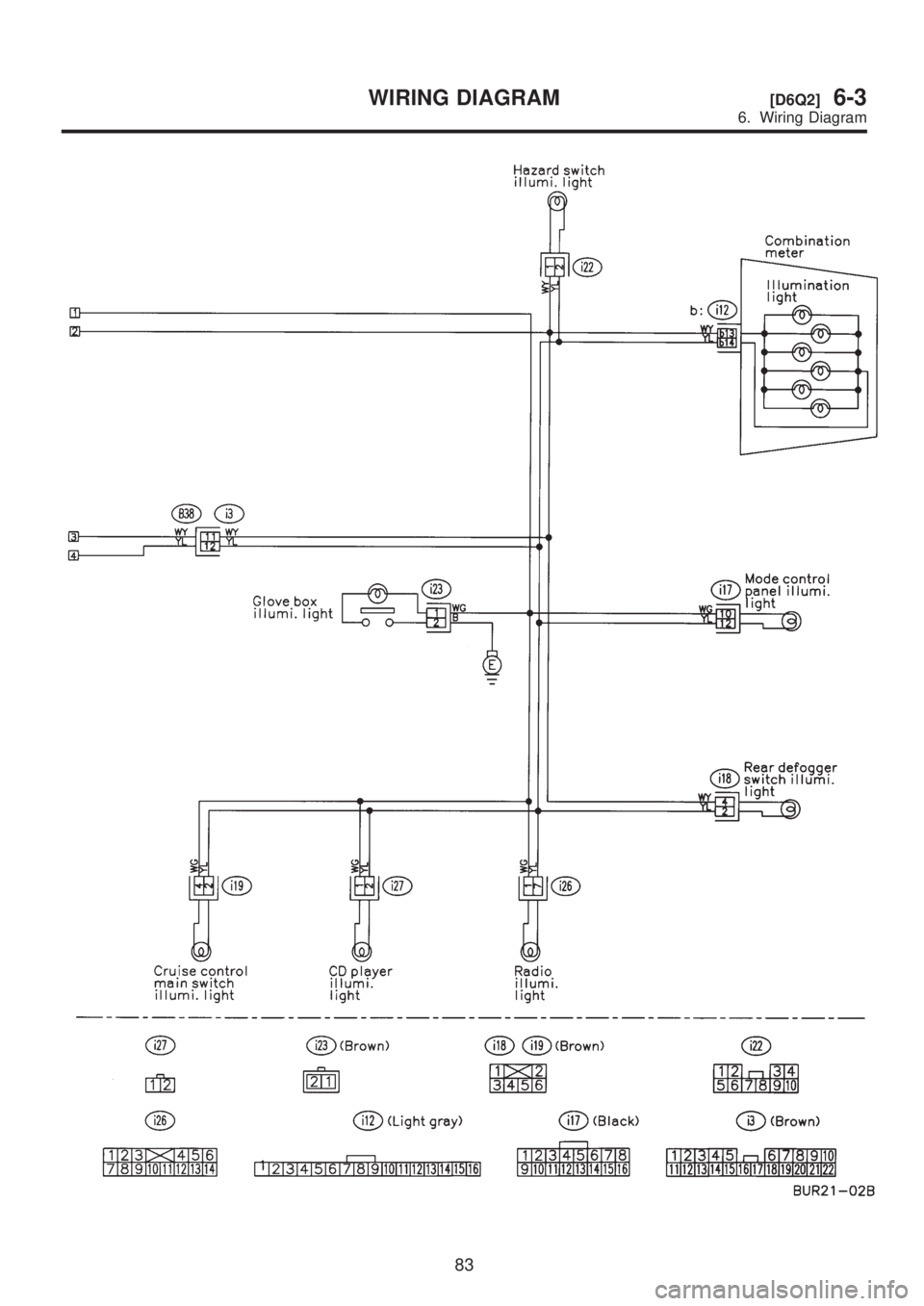

83
[D6Q2]6-3WIRING DIAGRAM
6. Wiring Diagram

R: LIGHTING SYSTEM (FRONT FOG LIGHT)
1. WITHOUT DRL MODEL
84
6-3[D6R1]WIRING DIAGRAM
6. Wiring Diagram

2. WITH DRL MODEL
85
[D6R2]6-3WIRING DIAGRAM
6. Wiring Diagram

MEMO:
86
6-3[D6R2]WIRING DIAGRAM
6. Wiring Diagram

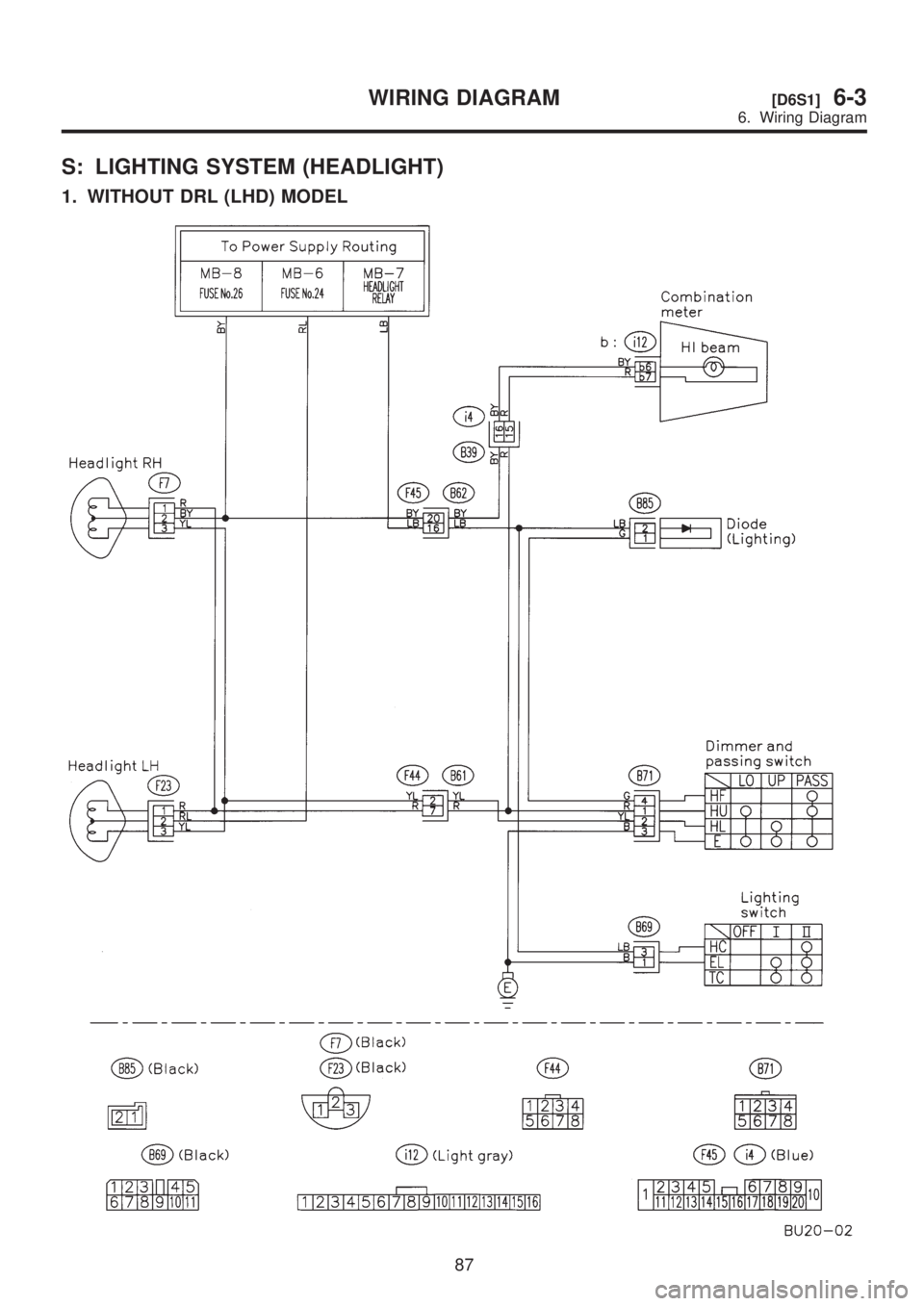

S: LIGHTING SYSTEM (HEADLIGHT)
1. WITHOUT DRL (LHD) MODEL
87
[D6S1]6-3WIRING DIAGRAM
6. Wiring Diagram

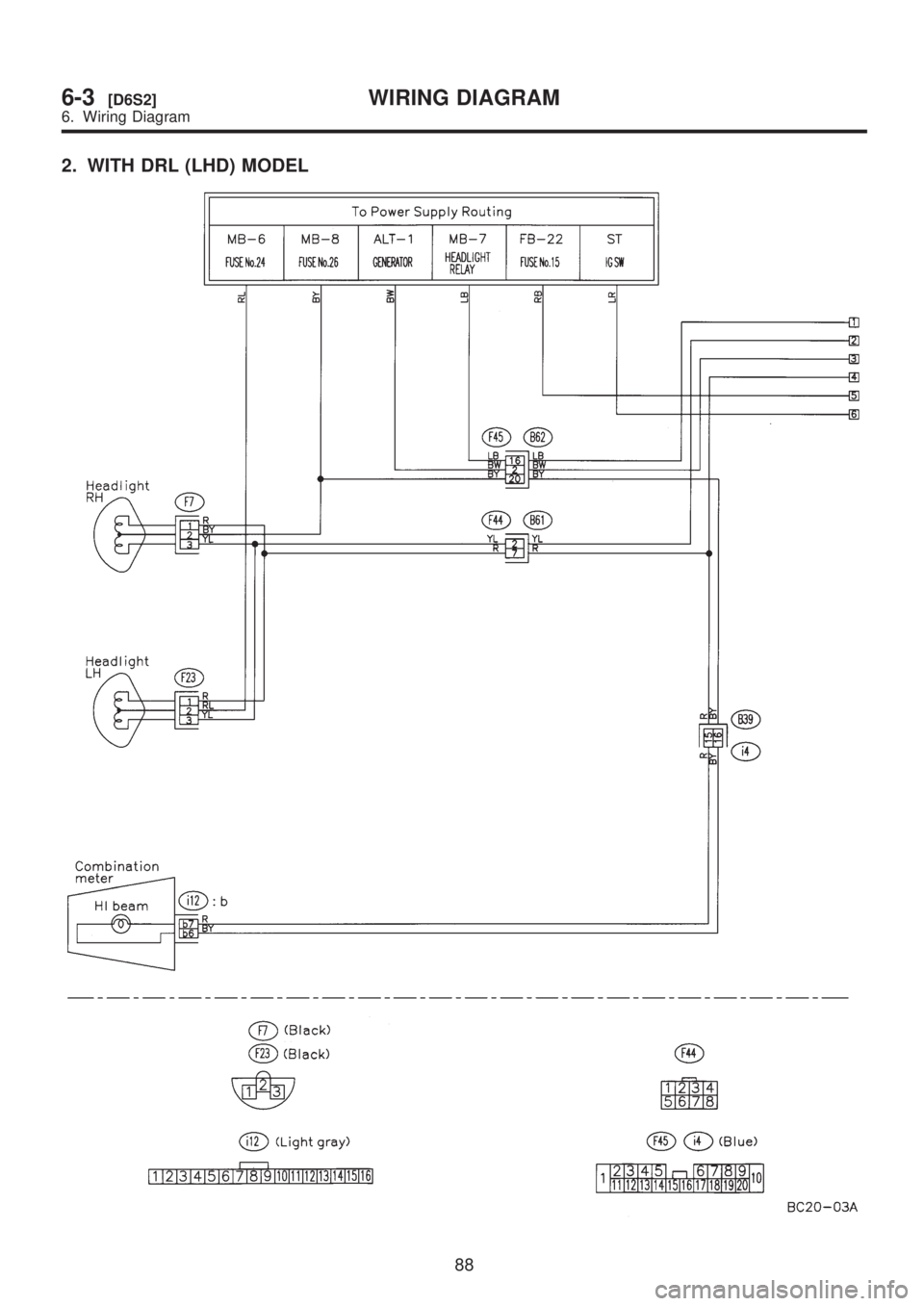

2. WITH DRL (LHD) MODEL
88
6-3[D6S2]WIRING DIAGRAM
6. Wiring Diagram

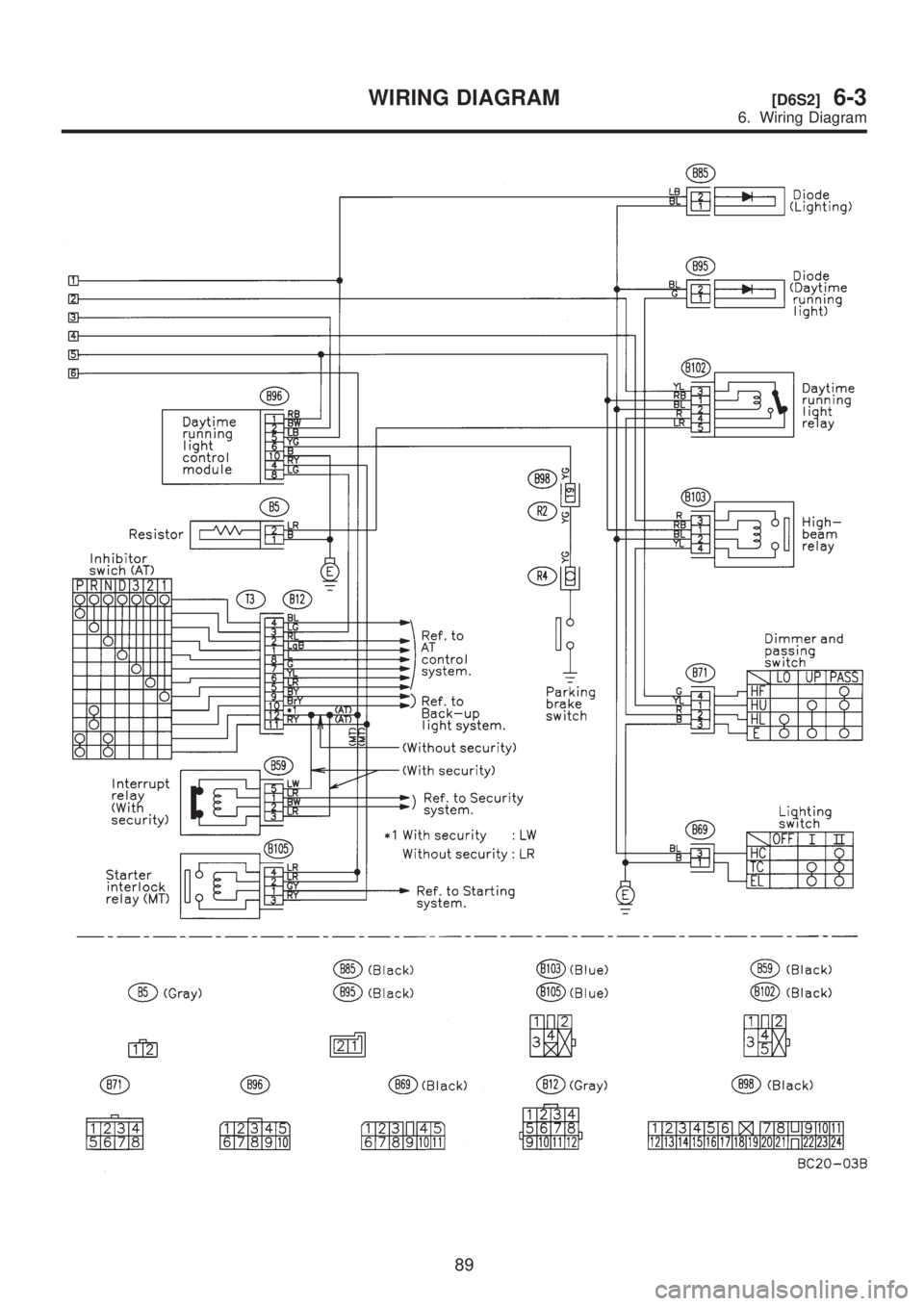

89
[D6S2]6-3WIRING DIAGRAM
6. Wiring Diagram

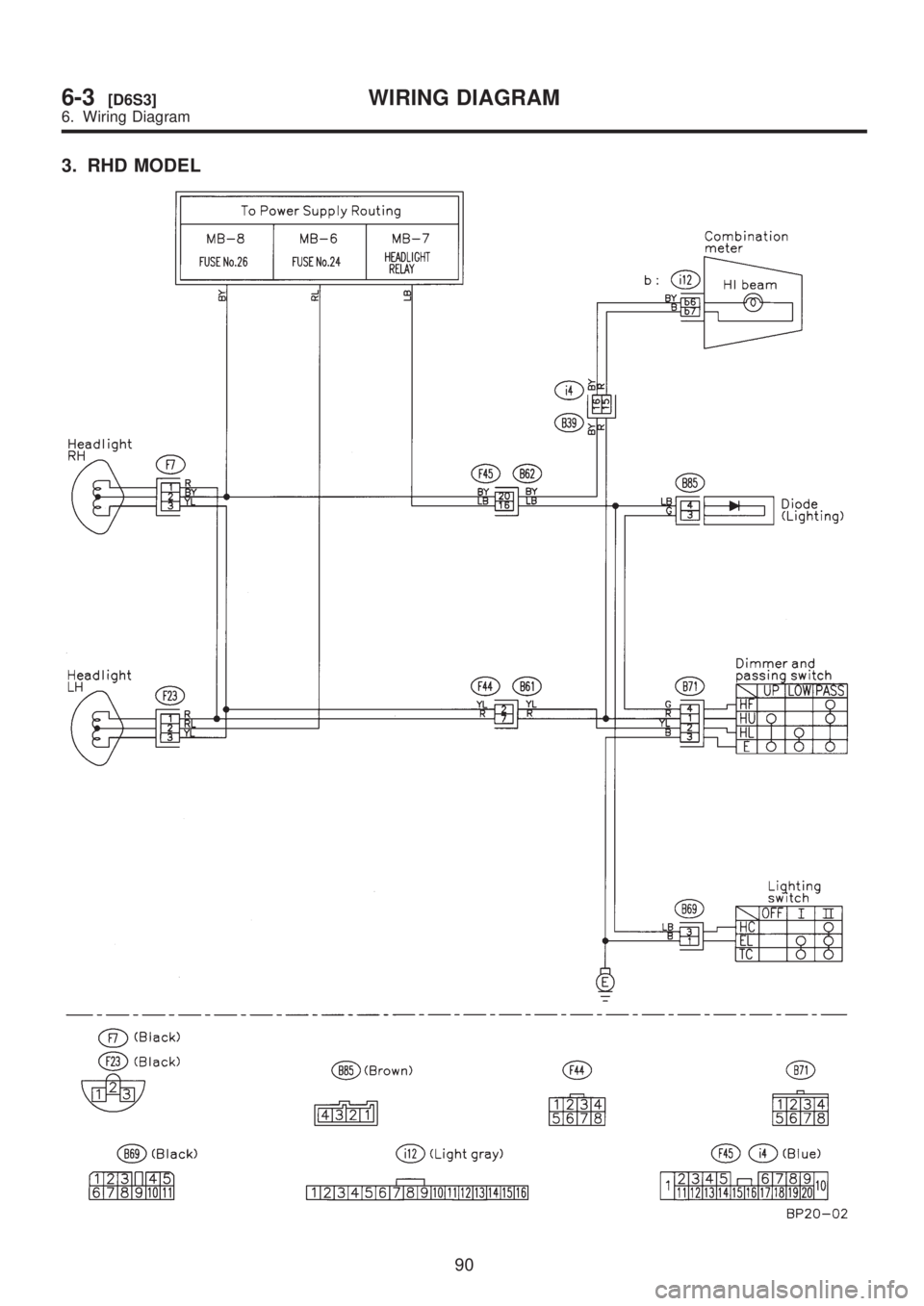

3. RHD MODEL
90
6-3[D6S3]WIRING DIAGRAM
6. Wiring Diagram
