SE-11
Front Seat
SEATS
1) Temporarily tighten the four reclining hinge
bolts.
2) Place the backrest in the most upright position.
3) Tighten the reclining hinge bolts in the order of
(1) through (4), in two or three steps by gradually in-
creasing the torque until they reach the specified
torque.
4) Assemble in the reverse order of disassembly.
2. PASSENGER’S SEAT
CAUTION:
Make sure to adhere to the following rules when
assembling the passenger seat. Improper work
procedures can cause the passenger detection
system to not operate properly.
•If the seat cushion cover is removed or re-
placed, make sure to perform passenger detec-
tion system adjustment after installing the seat
to the vehicle.
Subaru Select Monitor.>
Failure to do so may cause improper activation
of passenger’s airbag.
•The passenger detection system (passenger
seat only) control unit, passenger detection
sensor, seat cushion pad and seat cushion
frame are considered as a single seat cushion
pad and frame assembly. Never remove the
passenger detection control unit or the pres-
sure sensor from the seat cushion frame.
•If the seat cushion cover is removed, make
sure to replace the wire on the seat cushion
side with a new wire.
•Make sure to install the hog rings/clips to the
specified locations. Do not reuse hog rings.
Assemble in the reverse order of disassembly.
1) Assemble the seat cushion in the reverse order
of disassembly.
2) Assemble the backrest in the reverse order of
disassembly.
3) When assembling the backrest assembly to the
seat cushion assembly, fill up the gap in the front
side of slide rail LH and in the rear side of slide rail
RH using cloth etc.
4) Temporarily tighten the reclining hinge bolts in
the order of (1) through (4), to an extent that the
seat back assembly is not locked.
5) Hold the seat cushion assembly securely, and
tighten the reclining hinge bolts in the order de-
scribed above until they reach the specified torque.
CAUTION:
Do not touch the backrest assembly when tight-
ening the reclining hinge bolts.
6) Assemble each harness, inner belt assembly
and each cover in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
E: INSPECTION
Check that no tear or fray on the backrest cover
and seat cushion cover.
CAUTION:
If there are tears or looseness in the back rest
cover or seat cushion covers, do not attempt to
repair. Replace with a new cover. Repairing the
cover may cause improper operation of the side
airbag or the passenger detection system.
(A) Vehicle inside
(B) Vehicle outside
(A)
(B)
(2)
(4)
(3)
(1)
SE-00514
(A) Vehicle inside
(B) Vehicle outside
SE-00537
(A)
(B)
(2)
(4)
(3)
(1)
SE-00538
Page 622 of 2453

SE-12
Second-row Seats
SEATS
3. Second-row Seats

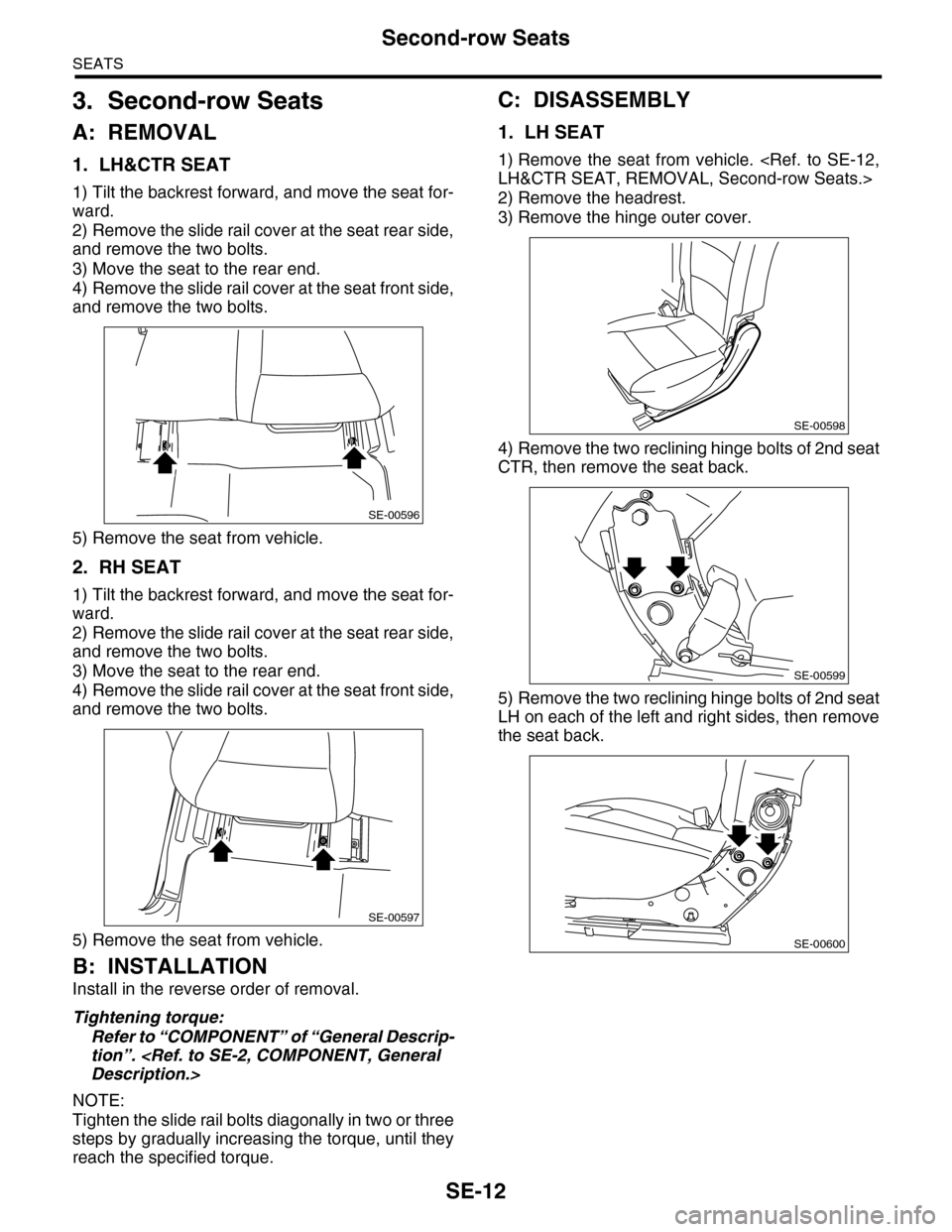

A: REMOVAL
1. LH&CTR SEAT
1) Tilt the backrest forward, and move the seat for-
ward.
2) Remove the slide rail cover at the seat rear side,
and remove the two bolts.
3) Move the seat to the rear end.
4) Remove the slide rail cover at the seat front side,
and remove the two bolts.
5) Remove the seat from vehicle.
2. RH SEAT
1) Tilt the backrest forward, and move the seat for-
ward.
2) Remove the slide rail cover at the seat rear side,
and remove the two bolts.
3) Move the seat to the rear end.
4) Remove the slide rail cover at the seat front side,
and remove the two bolts.
5) Remove the seat from vehicle.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
NOTE:
Tighten the slide rail bolts diagonally in two or three
steps by gradually increasing the torque, until they
reach the specified torque.
C: DISASSEMBLY
1. LH SEAT
1) Remove the seat from vehicle.
2) Remove the headrest.
3) Remove the hinge outer cover.
4) Remove the two reclining hinge bolts of 2nd seat
CTR, then remove the seat back.
5) Remove the two reclining hinge bolts of 2nd seat
LH on each of the left and right sides, then remove
the seat back.
SE-00596
SE-00597
SE-00598
SE-00599
SE-00600
Page 623 of 2453

SE-13
Second-row Seats
SEATS

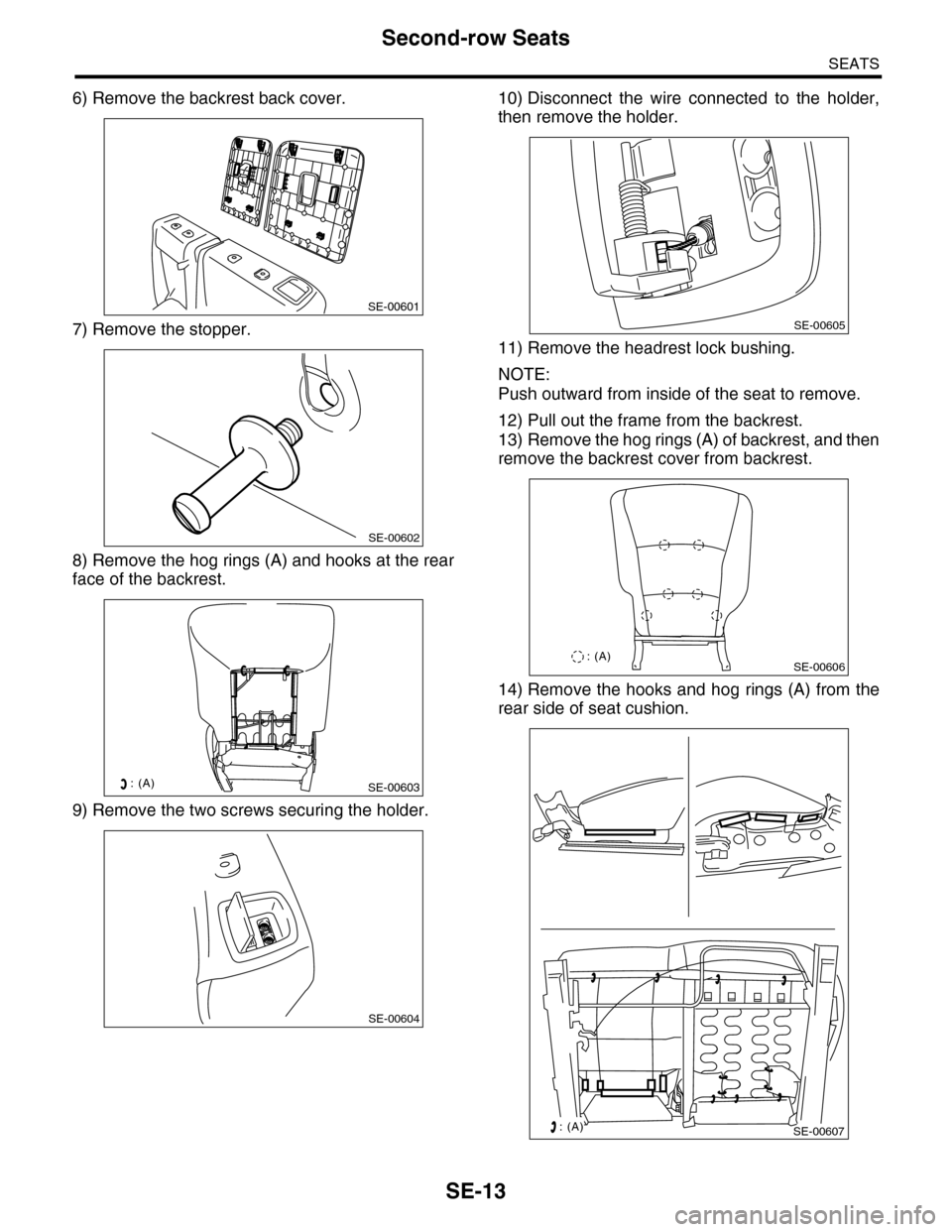

6) Remove the backrest back cover.
7) Remove the stopper.
8) Remove the hog rings (A) and hooks at the rear
face of the backrest.
9) Remove the two screws securing the holder.
10) Disconnect the wire connected to the holder,
then remove the holder.
11) Remove the headrest lock bushing.
NOTE:
Push outward from inside of the seat to remove.
12) Pull out the frame from the backrest.
13) Remove the hog rings (A) of backrest, and then
remove the backrest cover from backrest.
14) Remove the hooks and hog rings (A) from the
rear side of seat cushion.
SE-00601
SE-00602
SE-00603: (A)
SE-00604
SE-00605
SE-00606: (A)
SE-00607: (A)
Page 624 of 2453

SE-14
Second-row Seats
SEATS

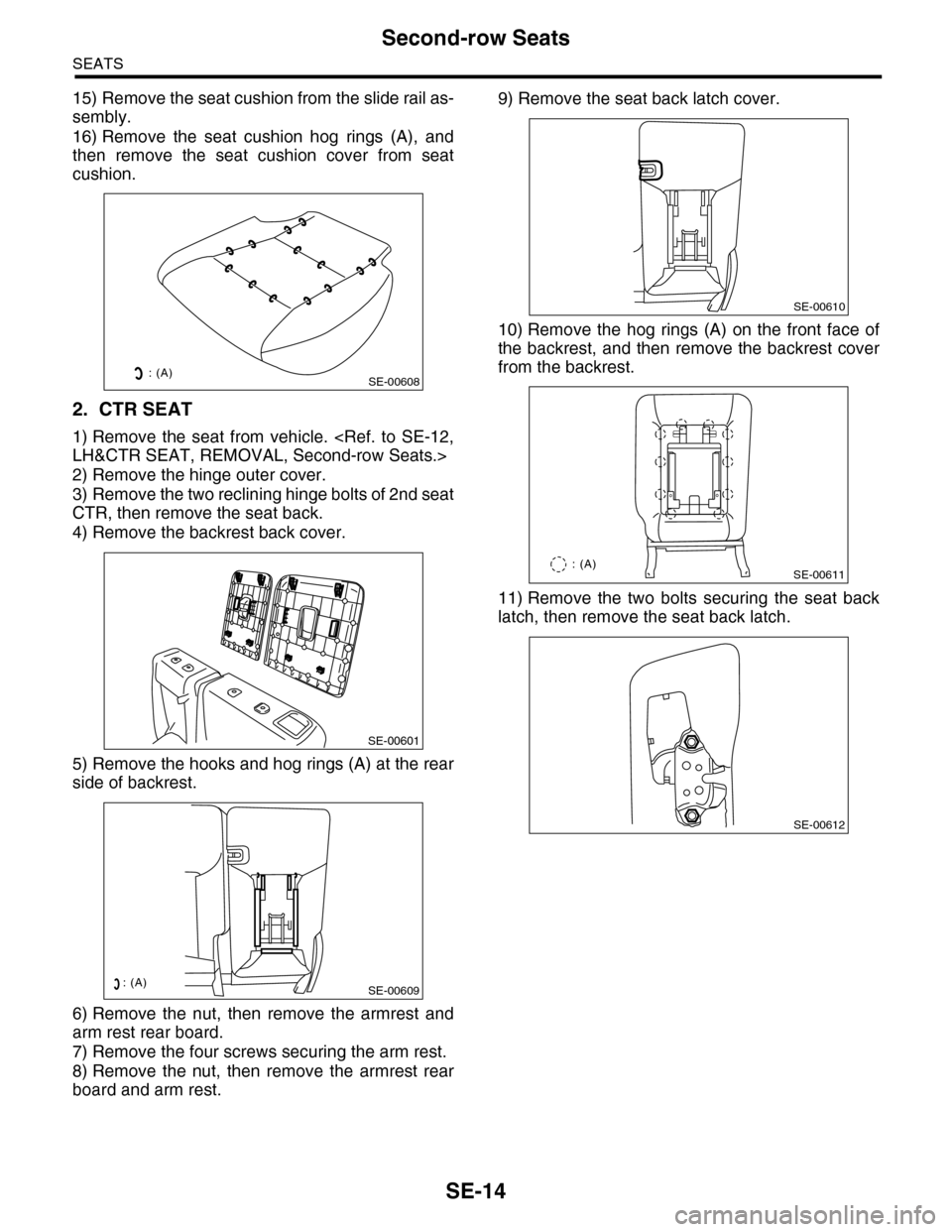

15) Remove the seat cushion from the slide rail as-
sembly.
16) Remove the seat cushion hog rings (A), and
then remove the seat cushion cover from seat
cushion.
2. CTR SEAT
1) Remove the seat from vehicle.
2) Remove the hinge outer cover.
3) Remove the two reclining hinge bolts of 2nd seat
CTR, then remove the seat back.
4) Remove the backrest back cover.
5) Remove the hooks and hog rings (A) at the rear
side of backrest.
6) Remove the nut, then remove the armrest and
arm rest rear board.
7) Remove the four screws securing the arm rest.
8) Remove the nut, then remove the armrest rear
board and arm rest.
9) Remove the seat back latch cover.
10) Remove the hog rings (A) on the front face of
the backrest, and then remove the backrest cover
from the backrest.
11) Remove the two bolts securing the seat back
latch, then remove the seat back latch.
SE-00608: (A)
SE-00601
SE-00609: (A)
SE-00610
SE-00611: (A)
SE-00612
Page 625 of 2453

SE-15
Second-row Seats
SEATS

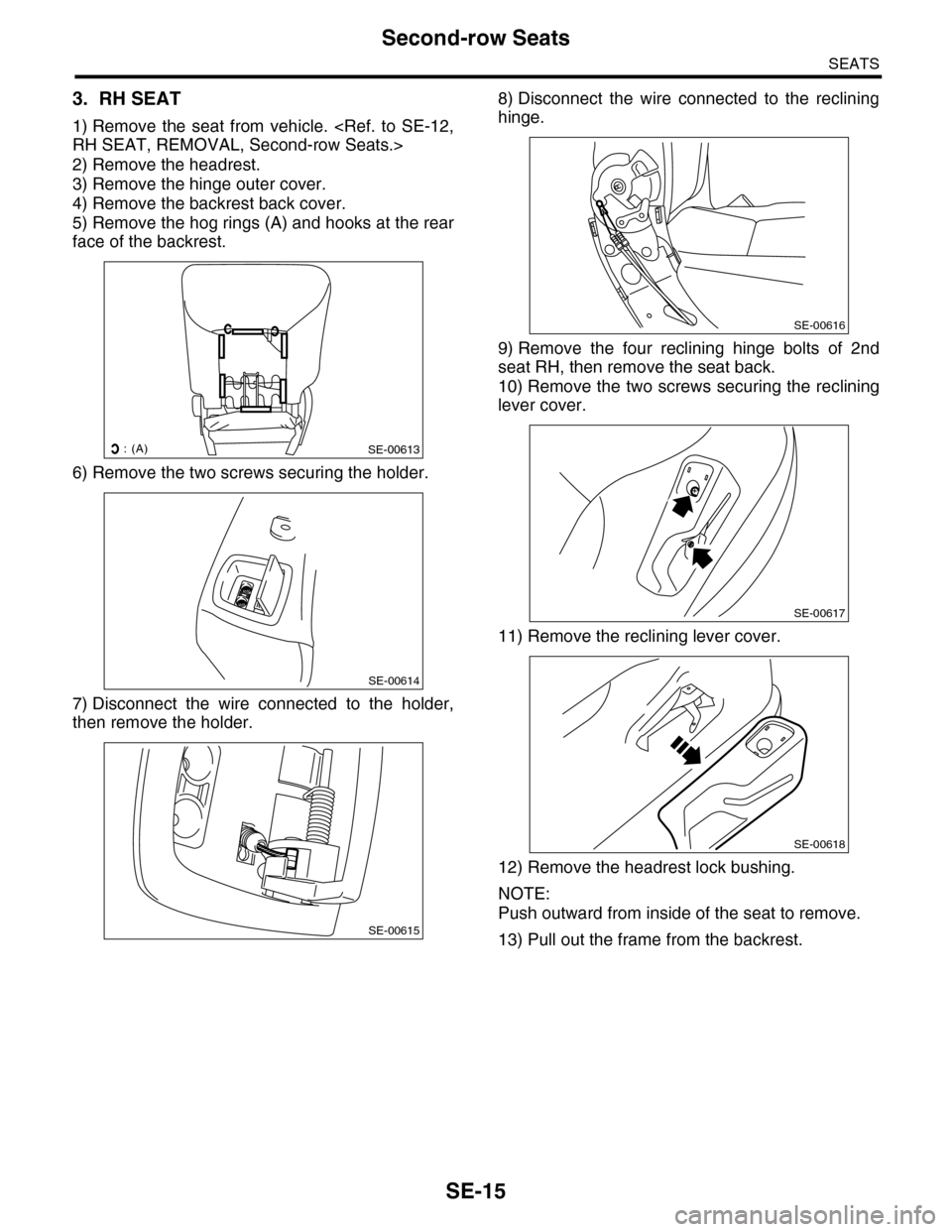

3. RH SEAT
1) Remove the seat from vehicle.
2) Remove the headrest.
3) Remove the hinge outer cover.
4) Remove the backrest back cover.
5) Remove the hog rings (A) and hooks at the rear
face of the backrest.
6) Remove the two screws securing the holder.
7) Disconnect the wire connected to the holder,
then remove the holder.
8) Disconnect the wire connected to the reclining
hinge.
9) Remove the four reclining hinge bolts of 2nd
seat RH, then remove the seat back.
10) Remove the two screws securing the reclining
lever cover.
11) Remove the reclining lever cover.
12) Remove the headrest lock bushing.
NOTE:
Push outward from inside of the seat to remove.
13) Pull out the frame from the backrest.
: (A)SE-00613
SE-00614
SE-00615
SE-00616
SE-00617
SE-00618
Page 626 of 2453

SE-16
Second-row Seats
SEATS

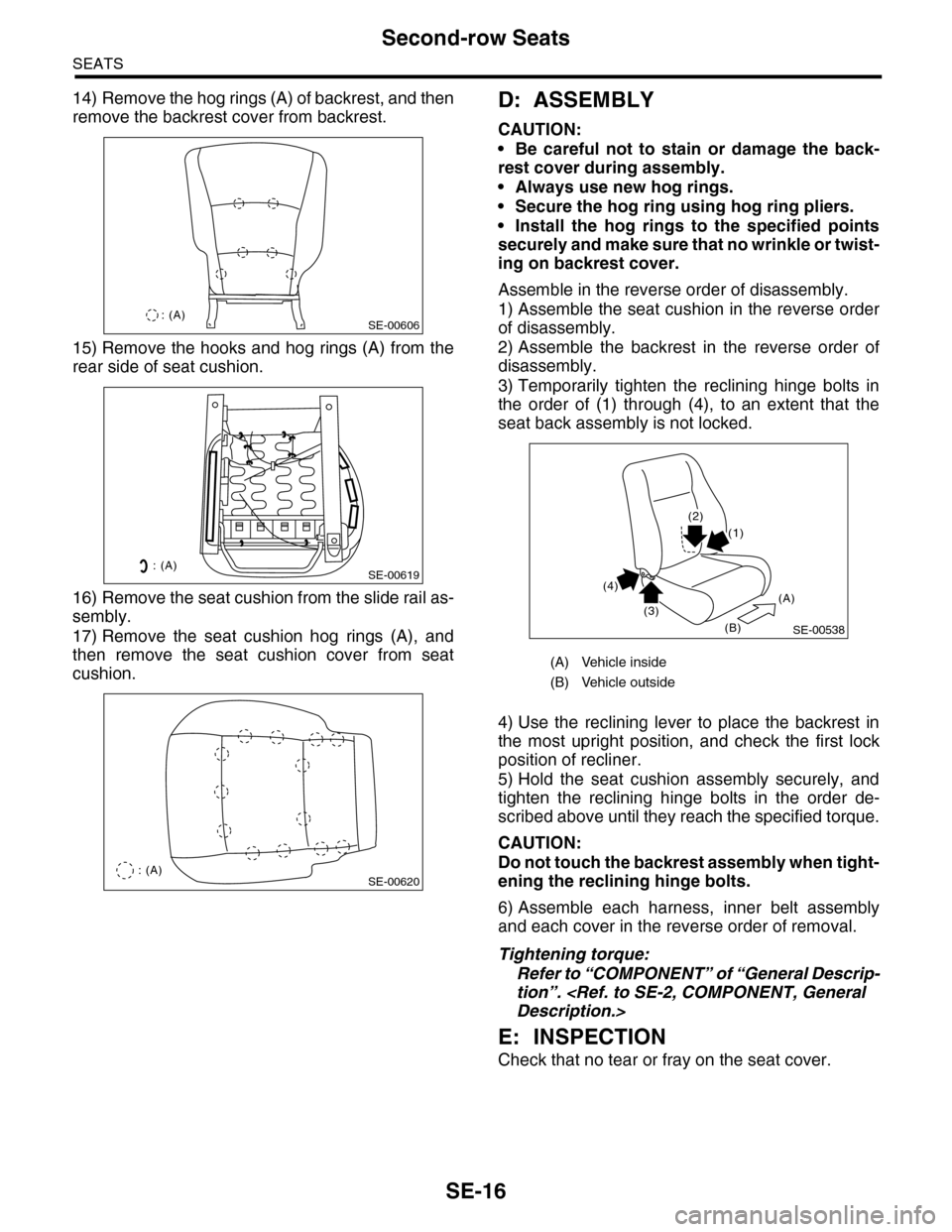

14) Remove the hog rings (A) of backrest, and then
remove the backrest cover from backrest.
15) Remove the hooks and hog rings (A) from the
rear side of seat cushion.
16) Remove the seat cushion from the slide rail as-
sembly.
17) Remove the seat cushion hog rings (A), and
then remove the seat cushion cover from seat
cushion.
D: ASSEMBLY
CAUTION:
•Be careful not to stain or damage the back-
rest cover during assembly.
•Always use new hog rings.
•Secure the hog ring using hog ring pliers.
•Install the hog rings to the specified points
securely and make sure that no wrinkle or twist-
ing on backrest cover.
Assemble in the reverse order of disassembly.
1) Assemble the seat cushion in the reverse order
of disassembly.
2) Assemble the backrest in the reverse order of
disassembly.
3) Temporarily tighten the reclining hinge bolts in
the order of (1) through (4), to an extent that the
seat back assembly is not locked.
4) Use the reclining lever to place the backrest in
the most upright position, and check the first lock
position of recliner.
5) Hold the seat cushion assembly securely, and
tighten the reclining hinge bolts in the order de-
scribed above until they reach the specified torque.
CAUTION:
Do not touch the backrest assembly when tight-
ening the reclining hinge bolts.
6) Assemble each harness, inner belt assembly
and each cover in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
E: INSPECTION
Check that no tear or fray on the seat cover.
SE-00606: (A)
SE-00619: (A)
SE-00620: (A)
(A) Vehicle inside
(B) Vehicle outside
(A)
(B)
(2)
(4)
(3)
(1)
SE-00538
Page 627 of 2453

SE-17
Third-row Seats
SEATS
4. Third-row Seats

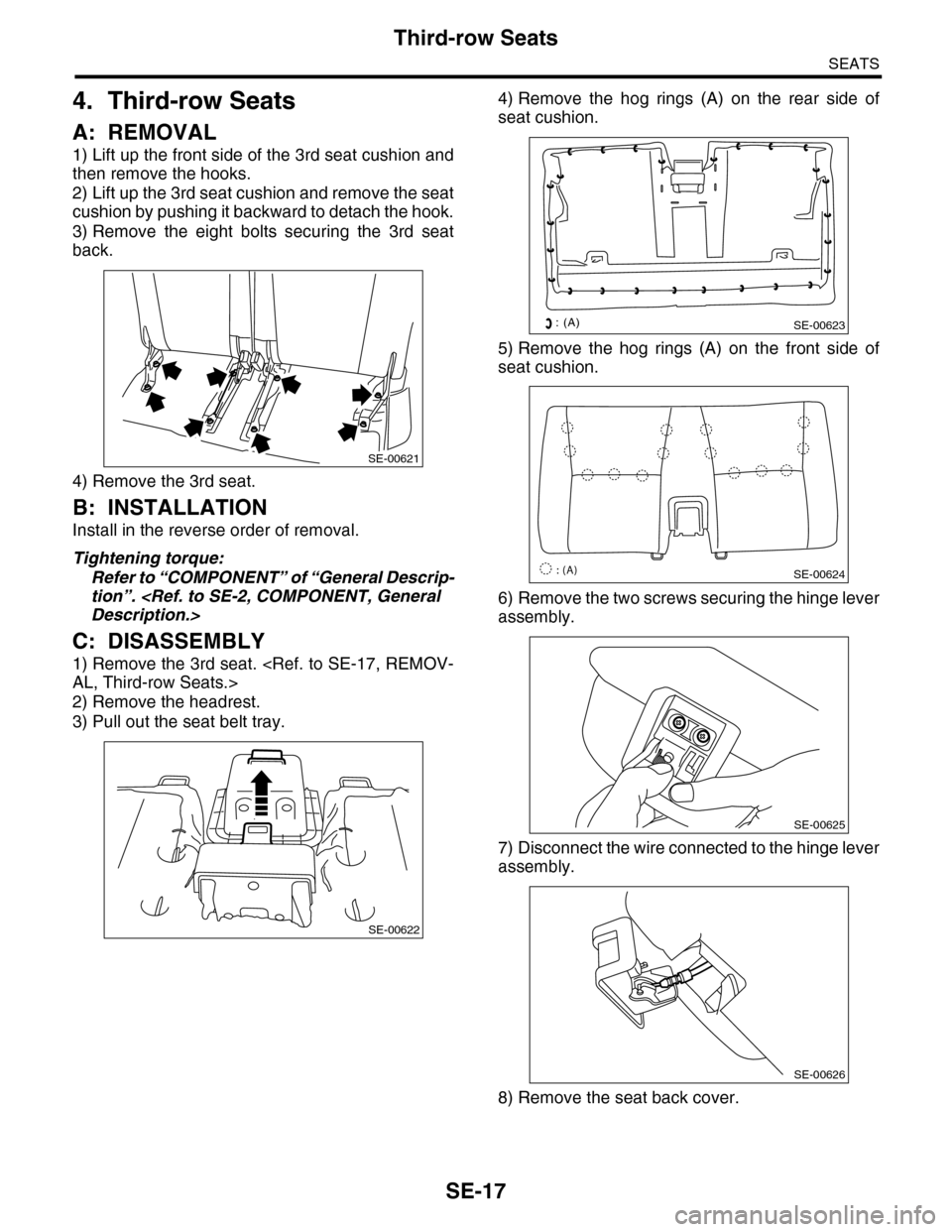

A: REMOVAL
1) Lift up the front side of the 3rd seat cushion and
then remove the hooks.
2) Lift up the 3rd seat cushion and remove the seat
cushion by pushing it backward to detach the hook.
3) Remove the eight bolts securing the 3rd seat
back.
4) Remove the 3rd seat.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
C: DISASSEMBLY
1) Remove the 3rd seat.
2) Remove the headrest.
3) Pull out the seat belt tray.
4) Remove the hog rings (A) on the rear side of
seat cushion.
5) Remove the hog rings (A) on the front side of
seat cushion.
6) Remove the two screws securing the hinge lever
assembly.
7) Disconnect the wire connected to the hinge lever
assembly.
8) Remove the seat back cover.
SE-00621
SE-00622
SE-00623: (A)
SE-00624: (A)
SE-00625
SE-00626
Page 628 of 2453

SE-18
Third-row Seats
SEATS

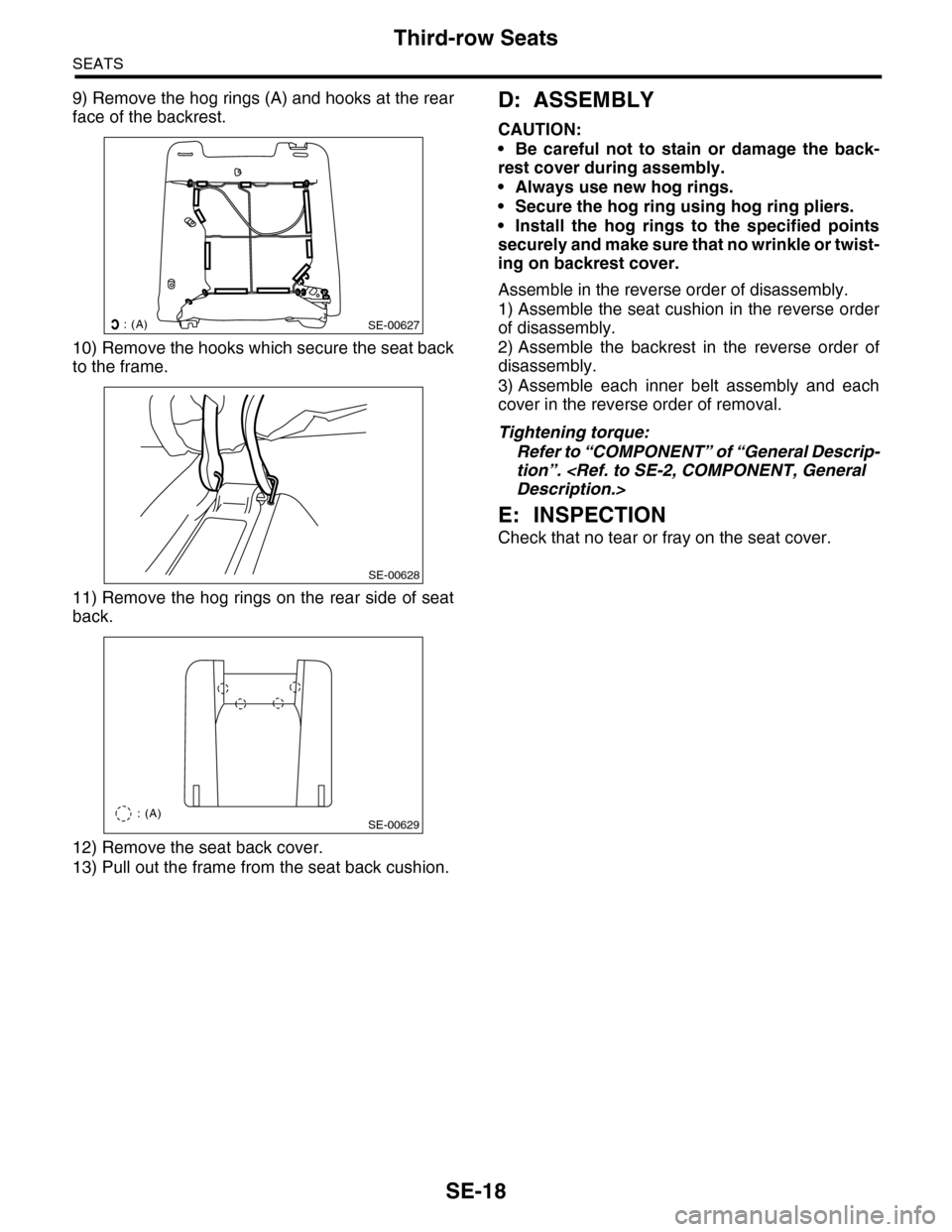

9) Remove the hog rings (A) and hooks at the rear
face of the backrest.
10) Remove the hooks which secure the seat back
to the frame.
11) Remove the hog rings on the rear side of seat
back.
12) Remove the seat back cover.
13) Pull out the frame from the seat back cushion.
D: ASSEMBLY
CAUTION:
•Be careful not to stain or damage the back-
rest cover during assembly.
•Always use new hog rings.
•Secure the hog ring using hog ring pliers.
•Install the hog rings to the specified points
securely and make sure that no wrinkle or twist-
ing on backrest cover.
Assemble in the reverse order of disassembly.
1) Assemble the seat cushion in the reverse order
of disassembly.
2) Assemble the backrest in the reverse order of
disassembly.
3) Assemble each inner belt assembly and each
cover in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
E: INSPECTION
Check that no tear or fray on the seat cover.
: (A)SE-00627
SE-00628
SE-00629: (A)
Page 629 of 2453

SE-19
Seat Heater System
SEATS
5. Seat Heater System

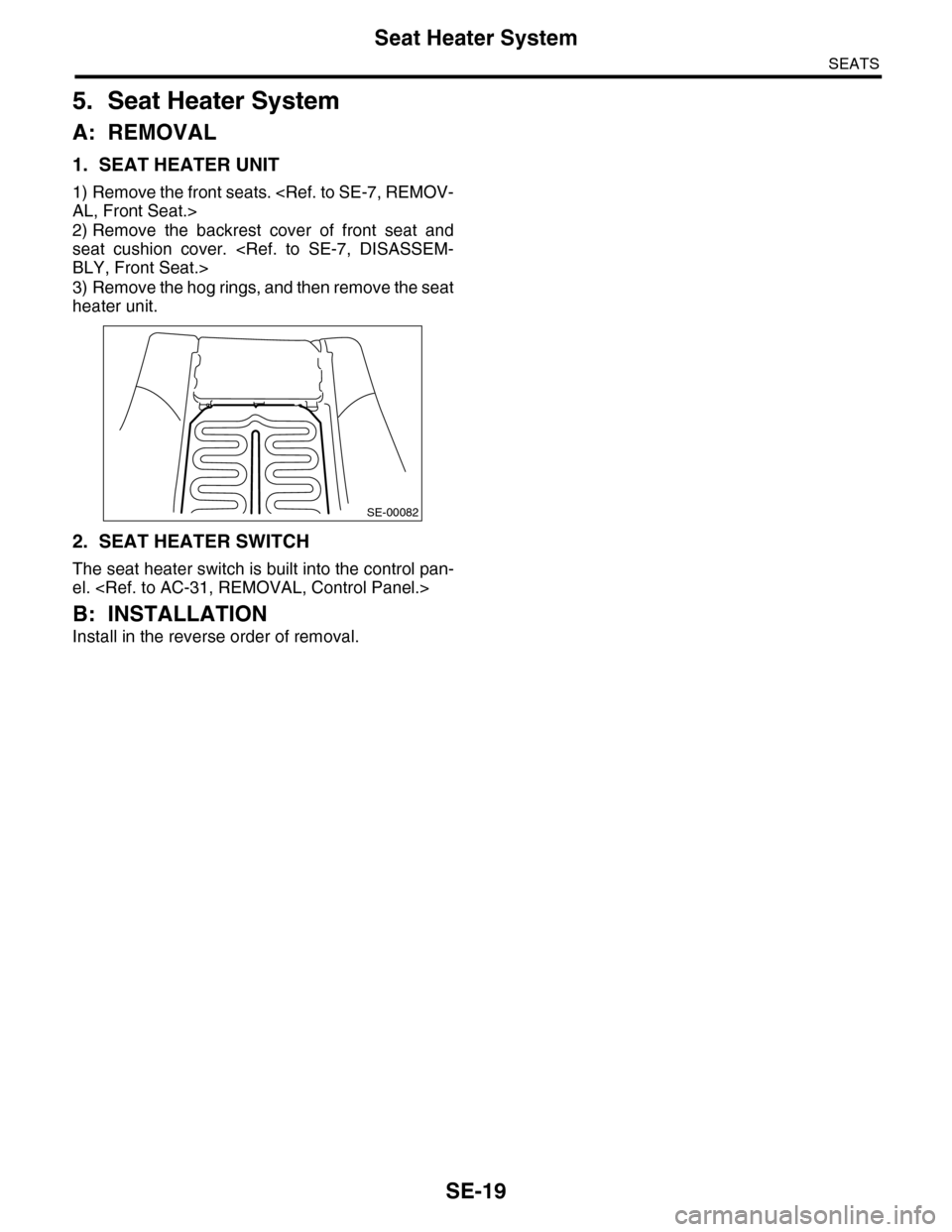

A: REMOVAL
1. SEAT HEATER UNIT
1) Remove the front seats.
2) Remove the backrest cover of front seat and
seat cushion cover.
3) Remove the hog rings, and then remove the seat
heater unit.
2. SEAT HEATER SWITCH
The seat heater switch is built into the control pan-
el.
B: INSTALLATION
Install in the reverse order of removal.
SE-00082
Page 630 of 2453

SE-20
Seat Heater System
SEATS
