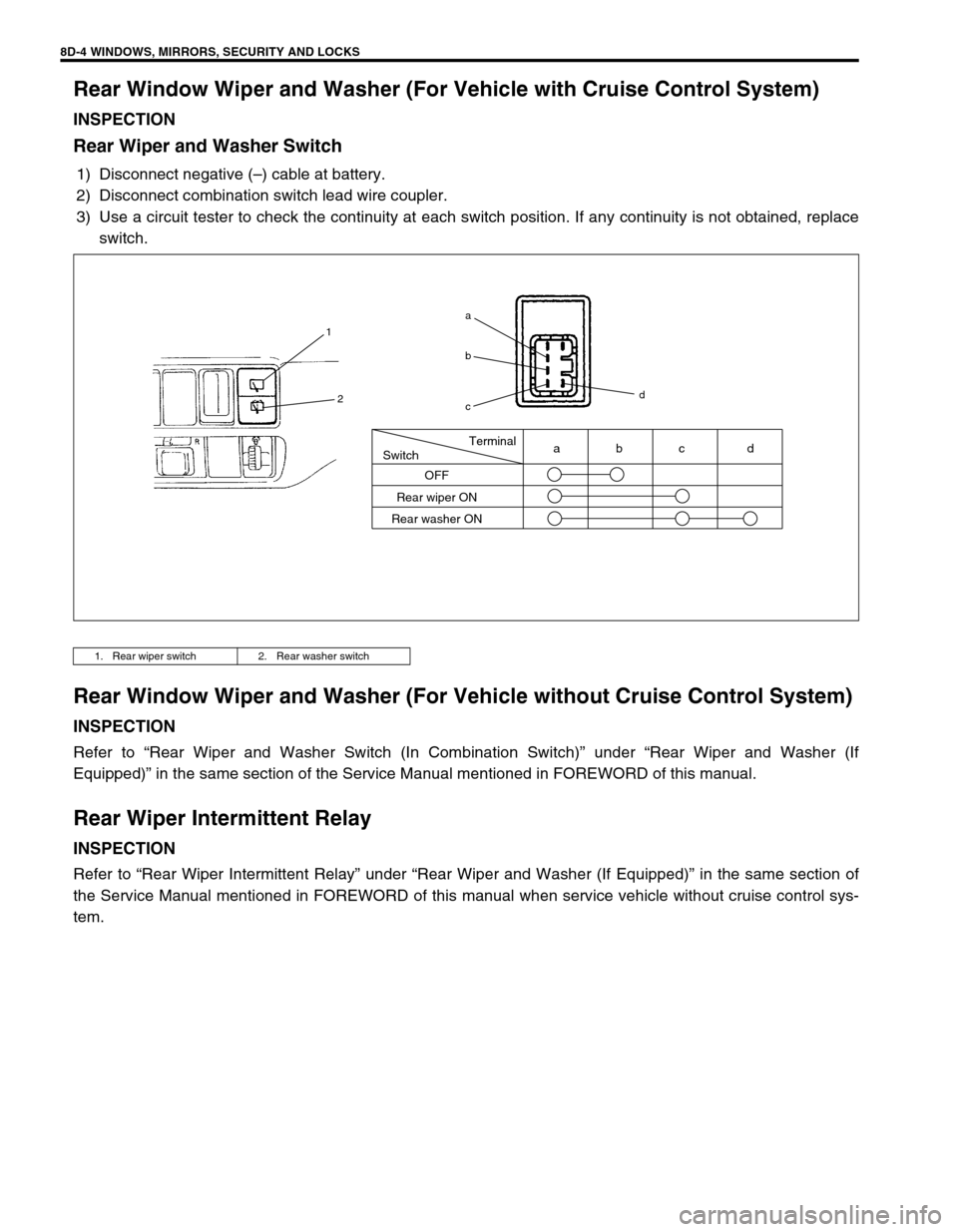

SUZUKI GRAND VITARA 1999 2.G Owners Manual 8D-4 WINDOWS, MIRRORS, SECURITY AND LOCKS
Rear Window Wiper and Washer (For Vehicle with Cruise Control System)
INSPECTION
Rear Wiper and Washer Switch
1) Disconnect negative (–) cable at battery.
2

Page 522 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual CRUISE CONTROL SYSTEM 8E-1
6F1
6F2
6G
6H
6K
7A
7A1
7B1
7C1
7D
7E
8E
8A
8B
8C
8D
8B
9
10
10A
10B

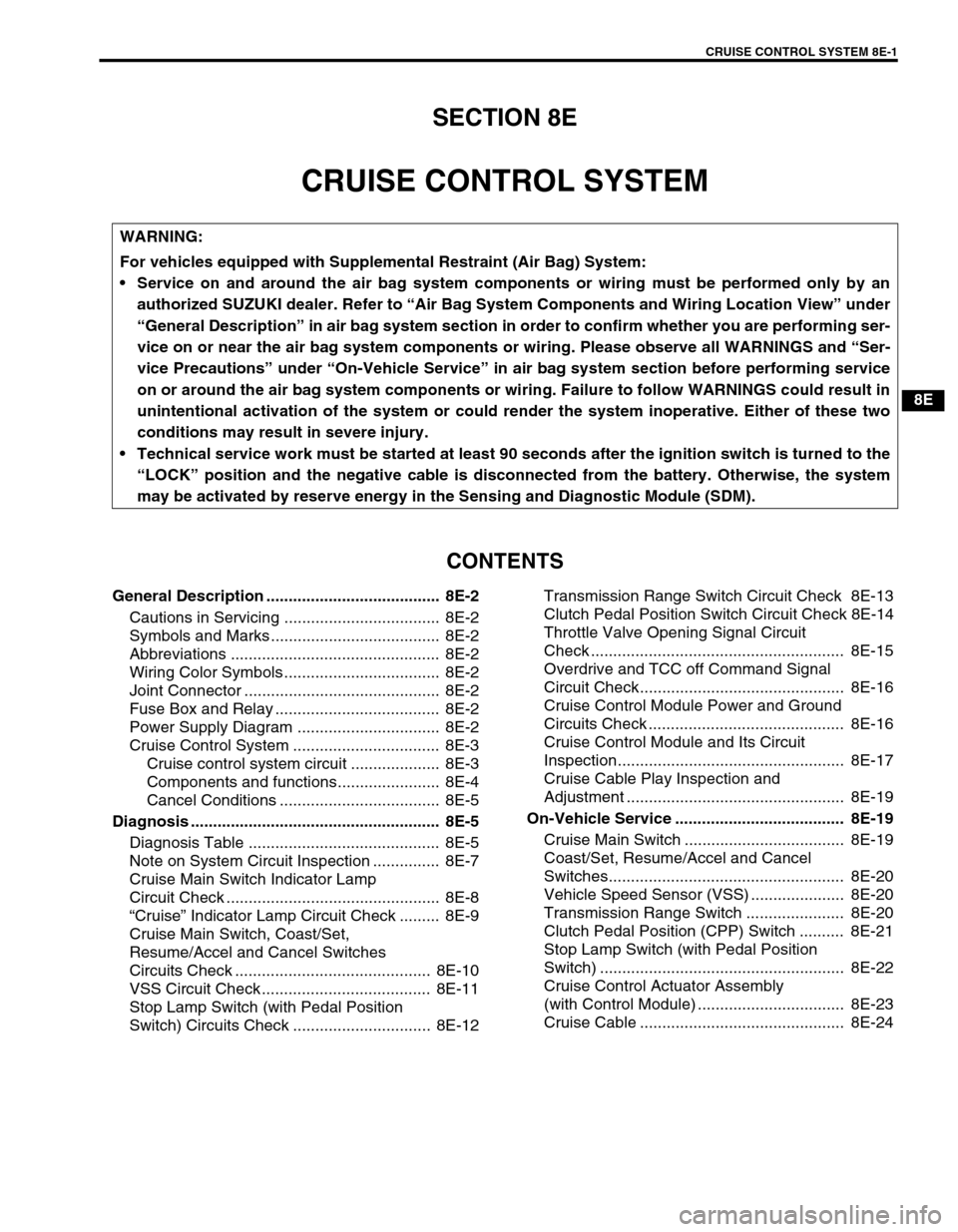

SECTION 8E
CRUISE CONTROL SYSTEM
CONTENTS
General Description .......................................  8

Page 523 of 656

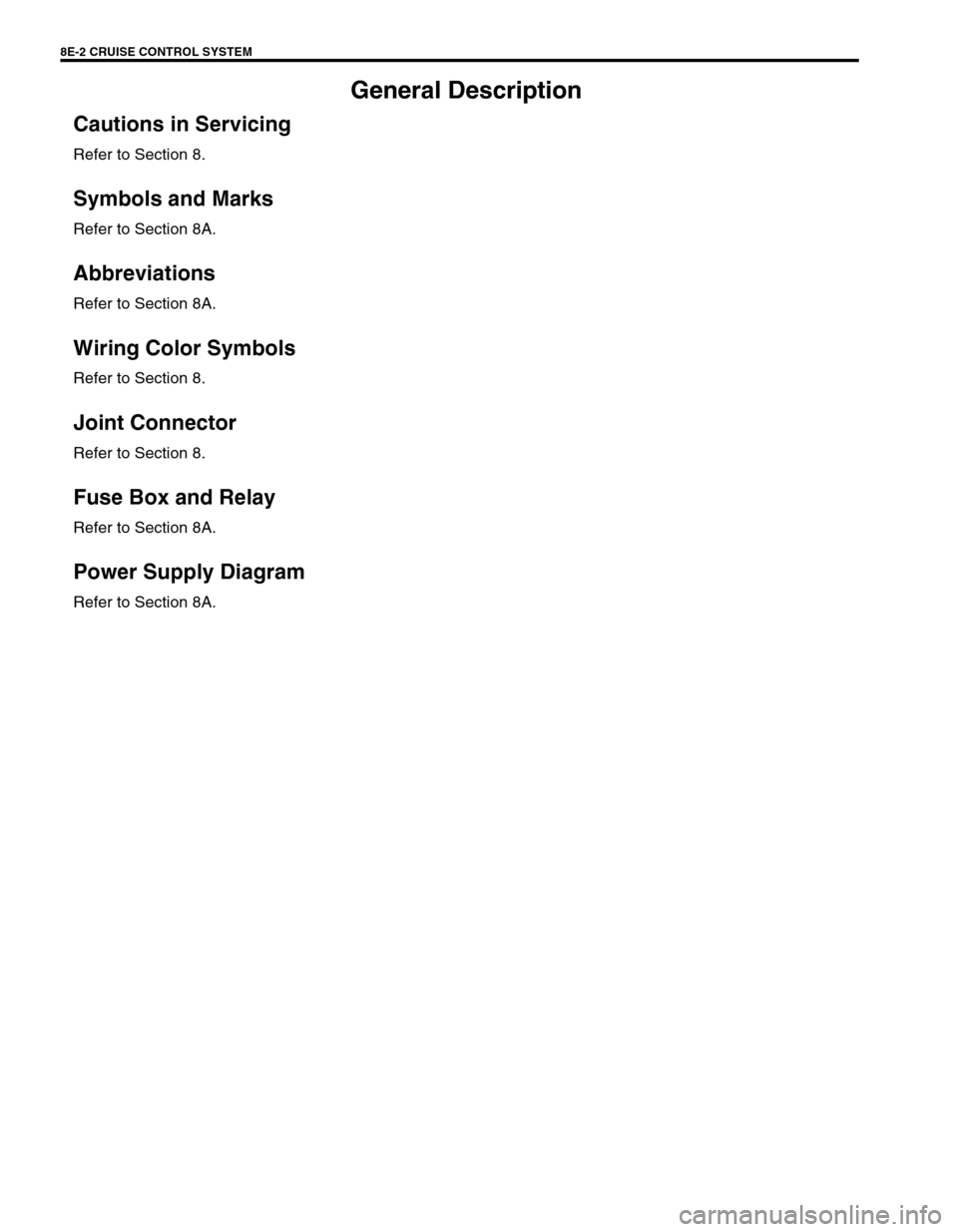

SUZUKI GRAND VITARA 1999 2.G Owners Manual 8E-2 CRUISE CONTROL SYSTEM
General Description
Cautions in Servicing
Refer to Section 8.
Symbols and Marks
Refer to Section 8A.
Abbreviations
Refer to Section 8A.
Wiring Color Symbols
Refer to Section

Page 524 of 656

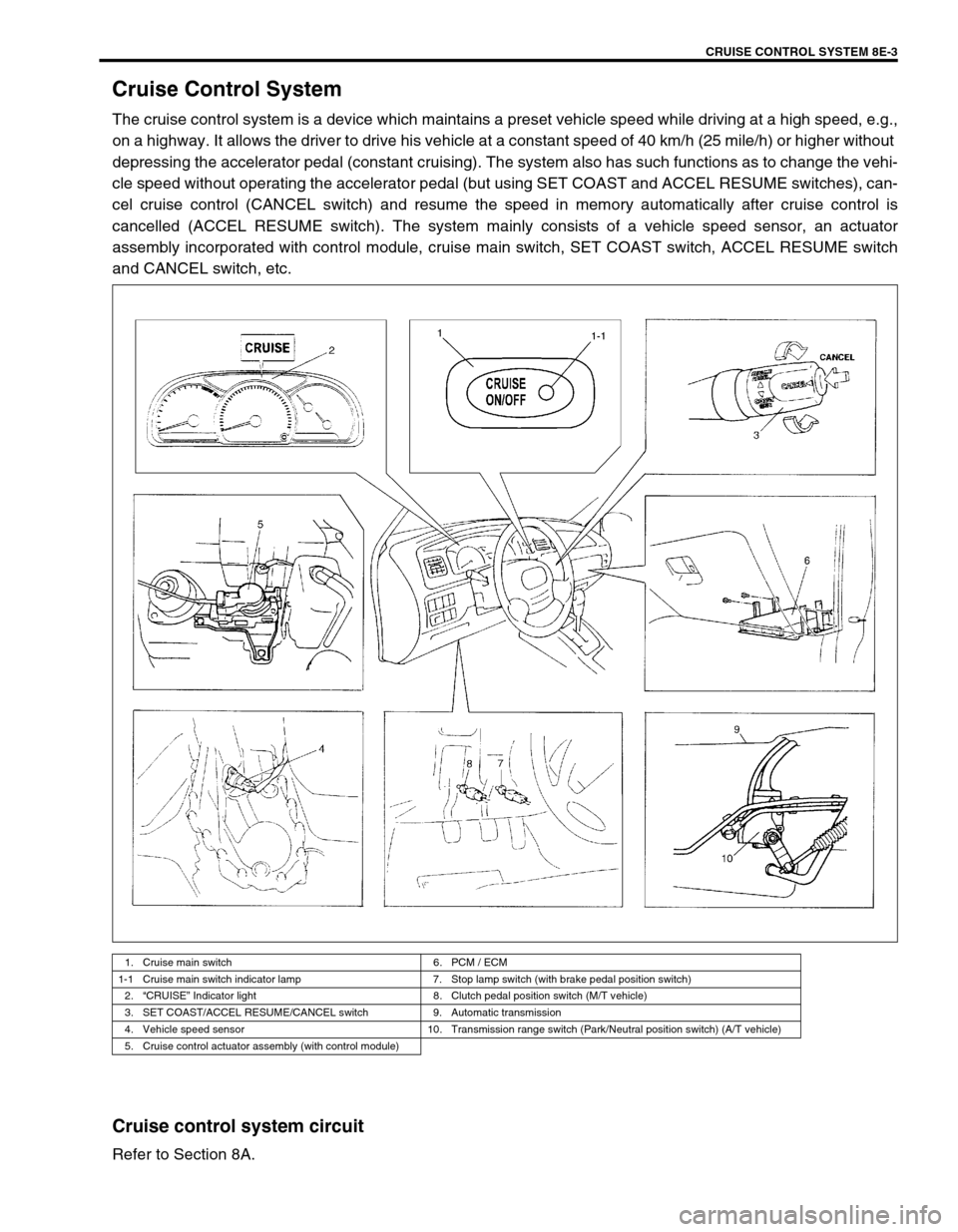

SUZUKI GRAND VITARA 1999 2.G Owners Manual CRUISE CONTROL SYSTEM 8E-3
Cruise Control System
The cruise control system is a device which maintains a preset vehicle speed while driving at a high speed, e.g.,
on a highway. It allows the driver to

Page 525 of 656

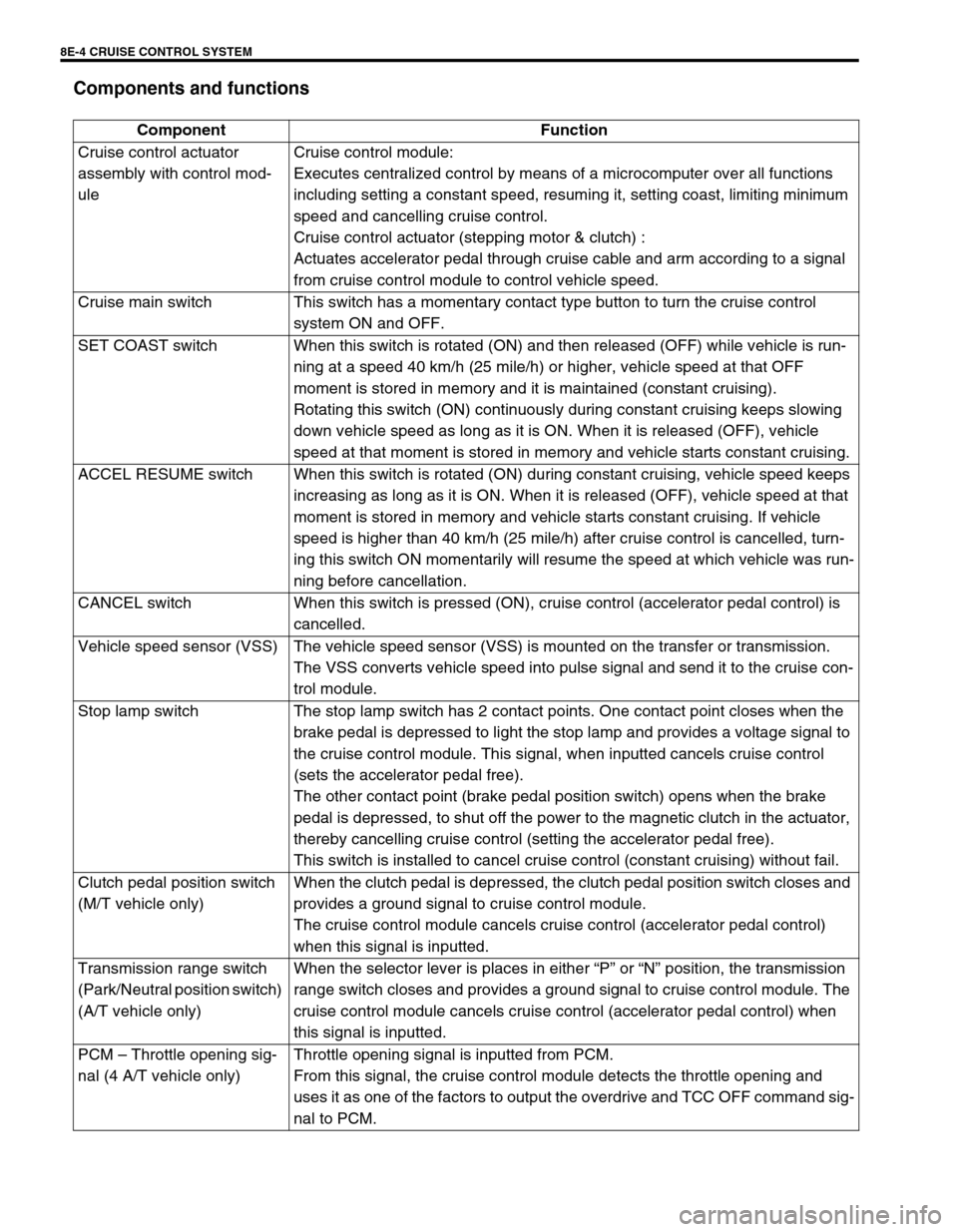

SUZUKI GRAND VITARA 1999 2.G Owners Manual 8E-4 CRUISE CONTROL SYSTEM
Components and functions
Component Function
Cruise control actuator
assembly with control mod-
uleCruise control module:
Executes centralized control by means of a microcom

Page 526 of 656

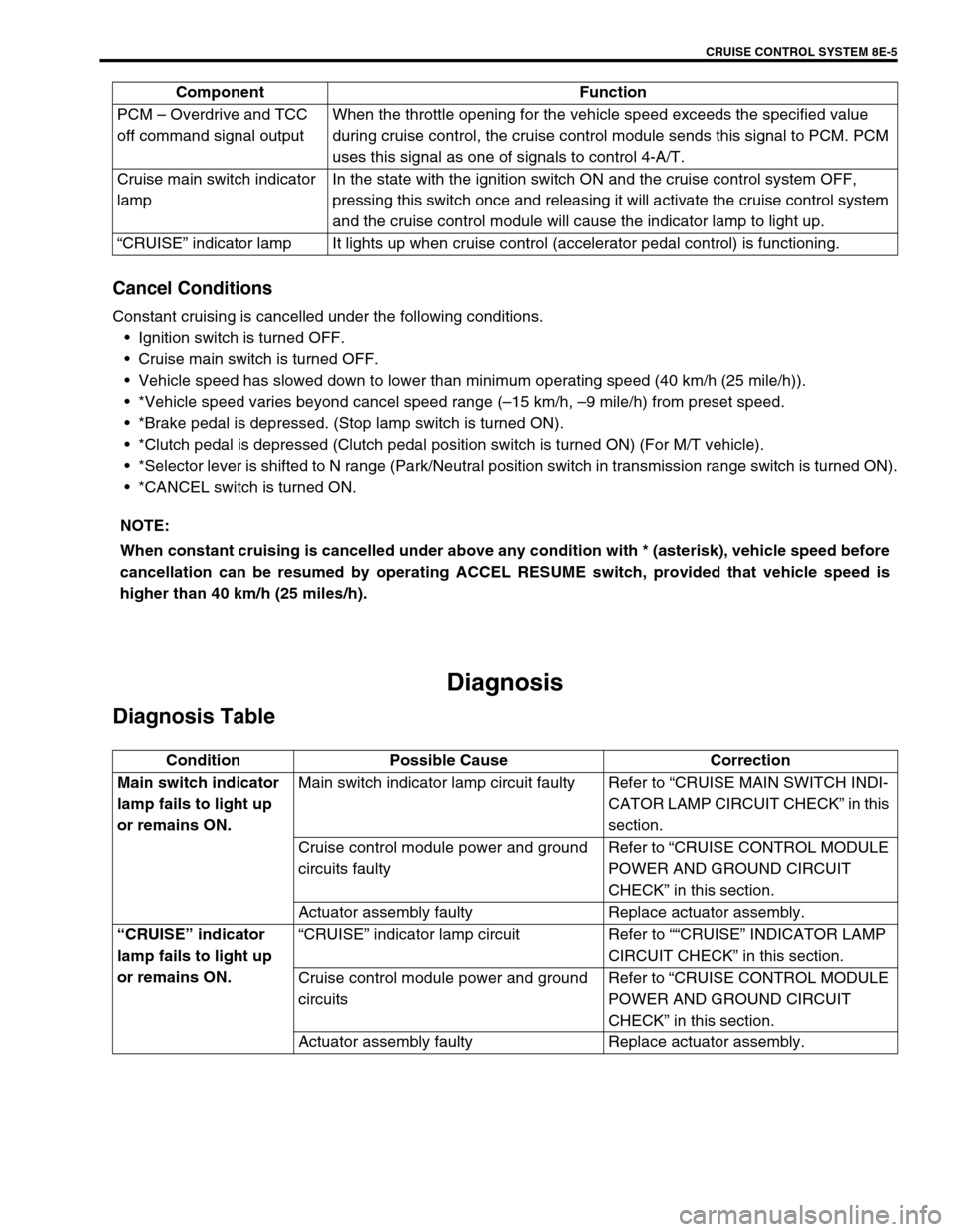

SUZUKI GRAND VITARA 1999 2.G Owners Manual CRUISE CONTROL SYSTEM 8E-5
Cancel Conditions
Constant cruising is cancelled under the following conditions.
•Ignition switch is turned OFF.
•Cruise main switch is turned OFF.
•Vehicle speed has

Page 527 of 656

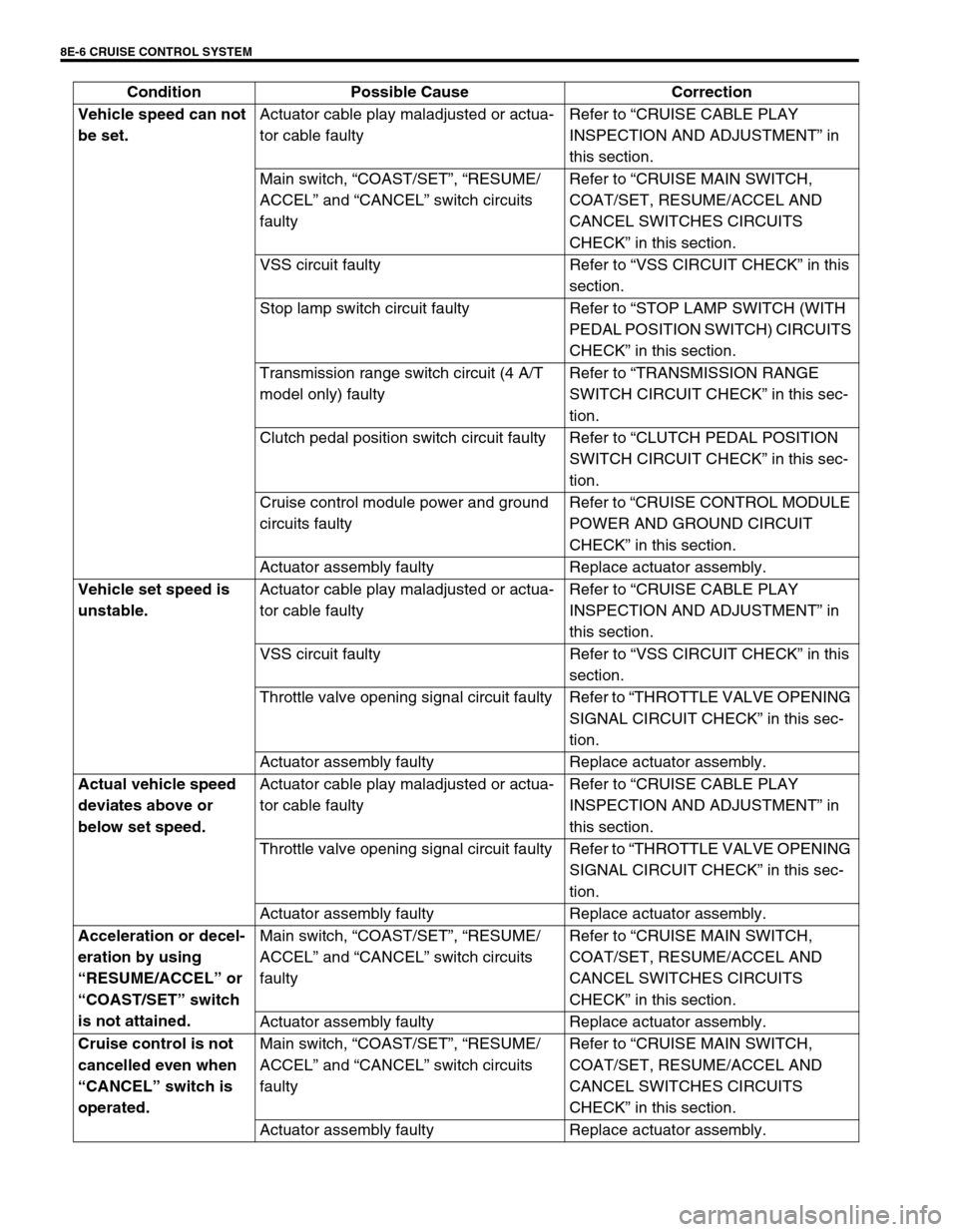

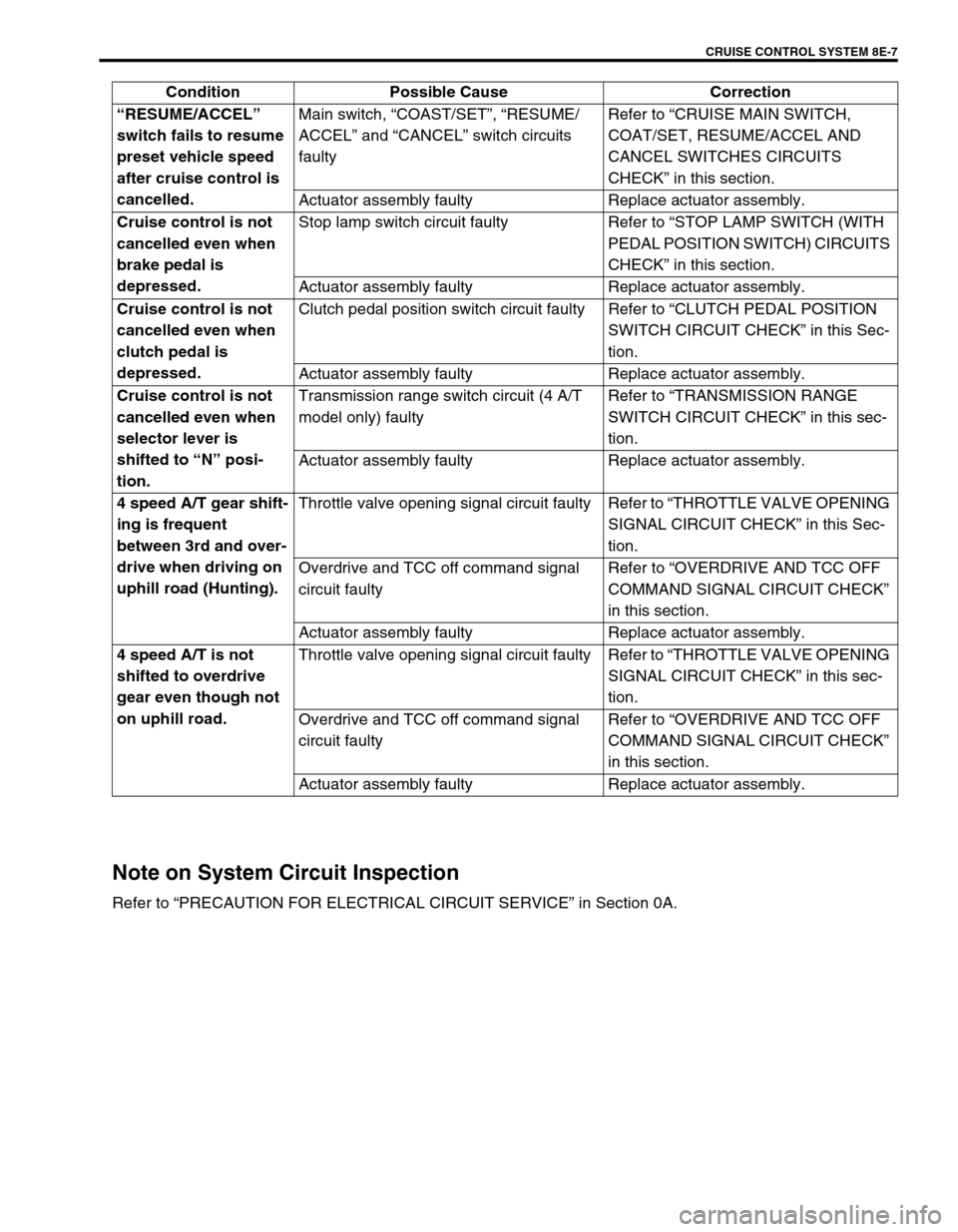

SUZUKI GRAND VITARA 1999 2.G Owners Manual 8E-6 CRUISE CONTROL SYSTEM
Vehicle speed can not
be set.Actuator cable play maladjusted or actua-
tor cable faultyRefer to “CRUISE CABLE PLAY
INSPECTION AND ADJUSTMENT” in
this section.
Main sw

Page 528 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual CRUISE CONTROL SYSTEM 8E-7
Note on System Circuit Inspection
Refer to “PRECAUTION FOR ELECTRICAL CIRCUIT SERVICE” in Section 0A. “RESUME/ACCEL”
switch fails to resume
preset vehicle speed
a

Page 529 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 8E-8 CRUISE CONTROL SYSTEM

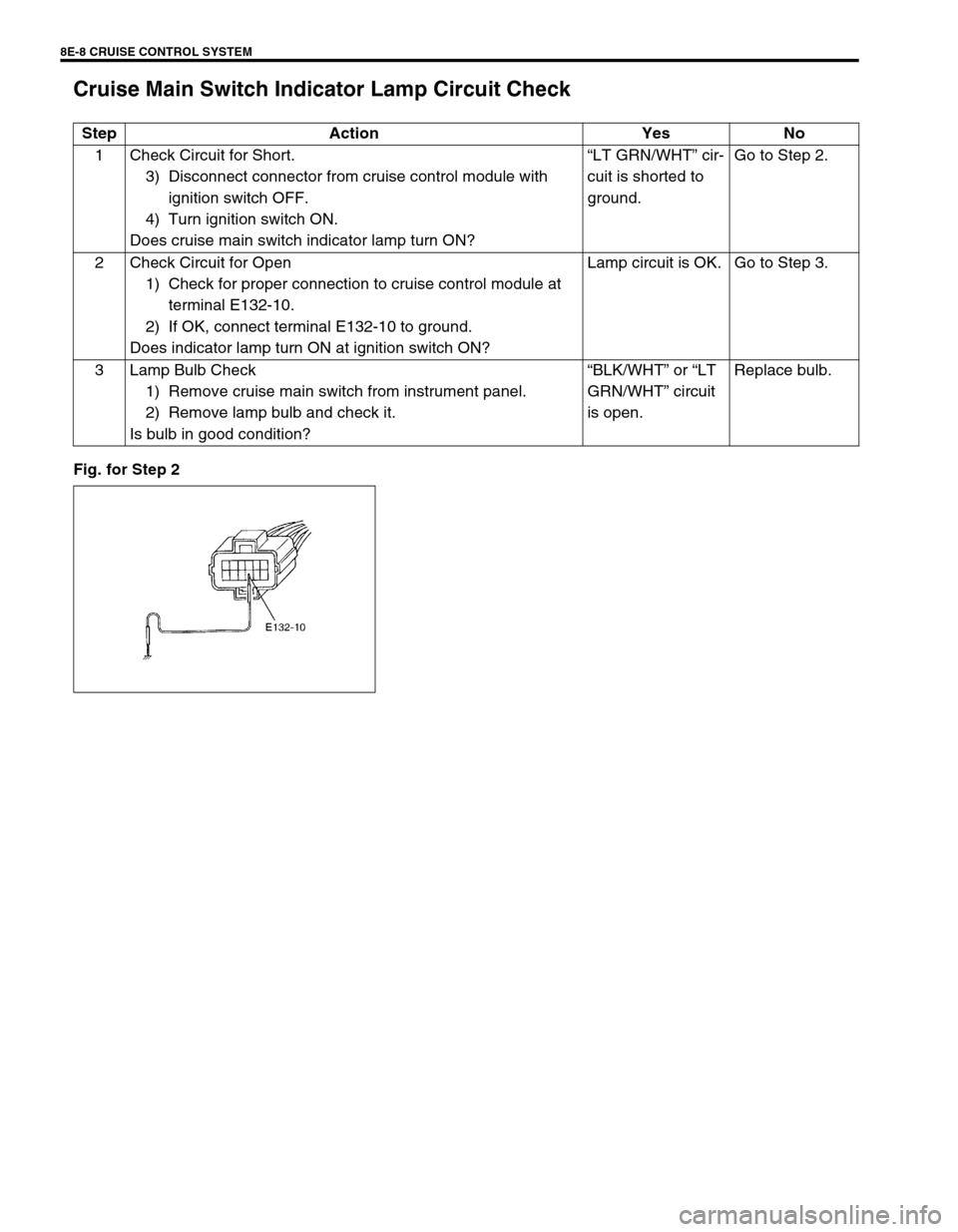

Cruise Main Switch Indicator Lamp Circuit Check
Fig. for Step 2Step Action Yes No
1 Check Circuit for Short.
3) Disconnect connector from cruise control module with
ignitio

Page 530 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual CRUISE CONTROL SYSTEM 8E-9

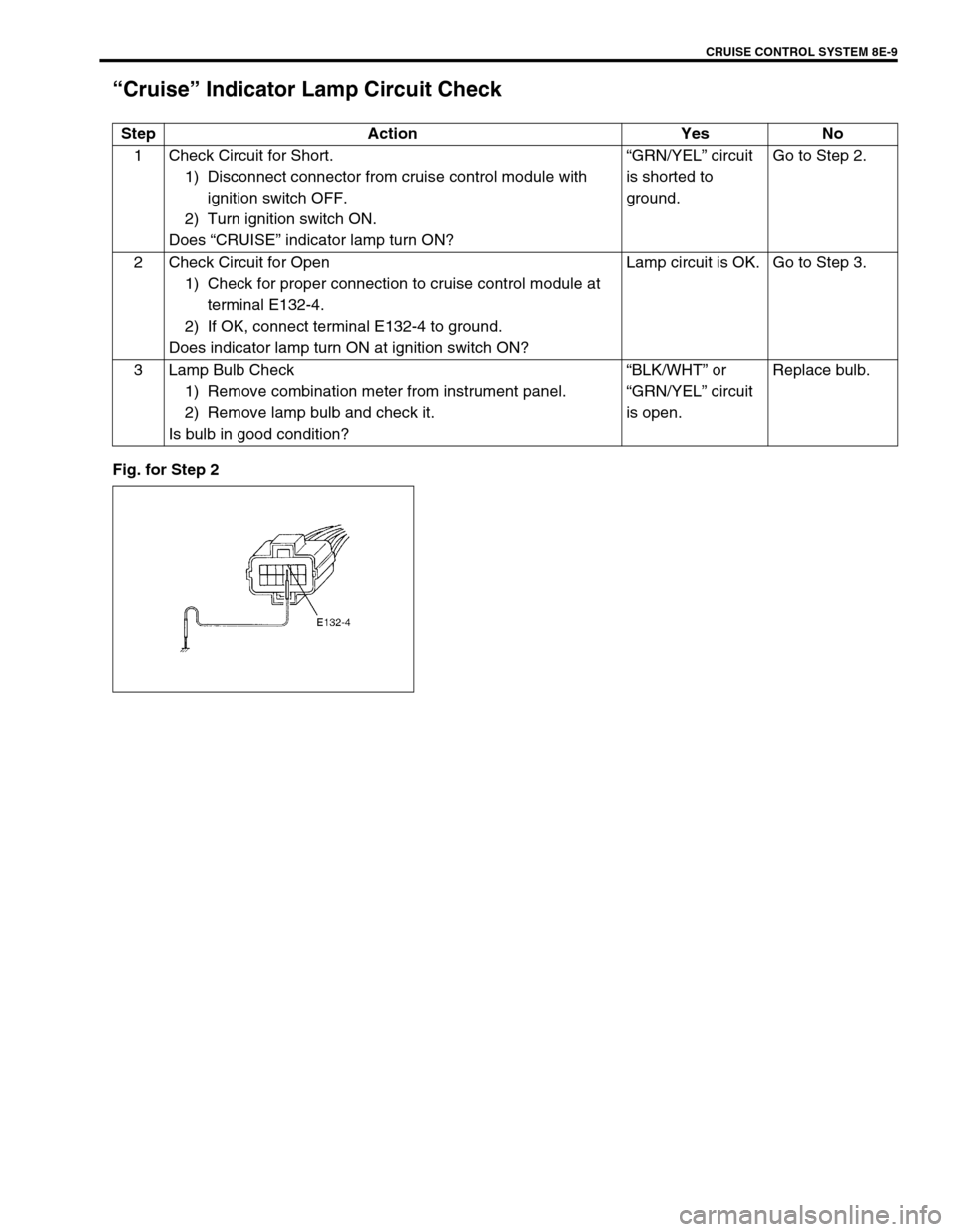

“Cruise” Indicator Lamp Circuit Check
Fig. for Step 2Step Action Yes No
1 Check Circuit for Short.
1) Disconnect connector from cruise control module with
ignition swit
