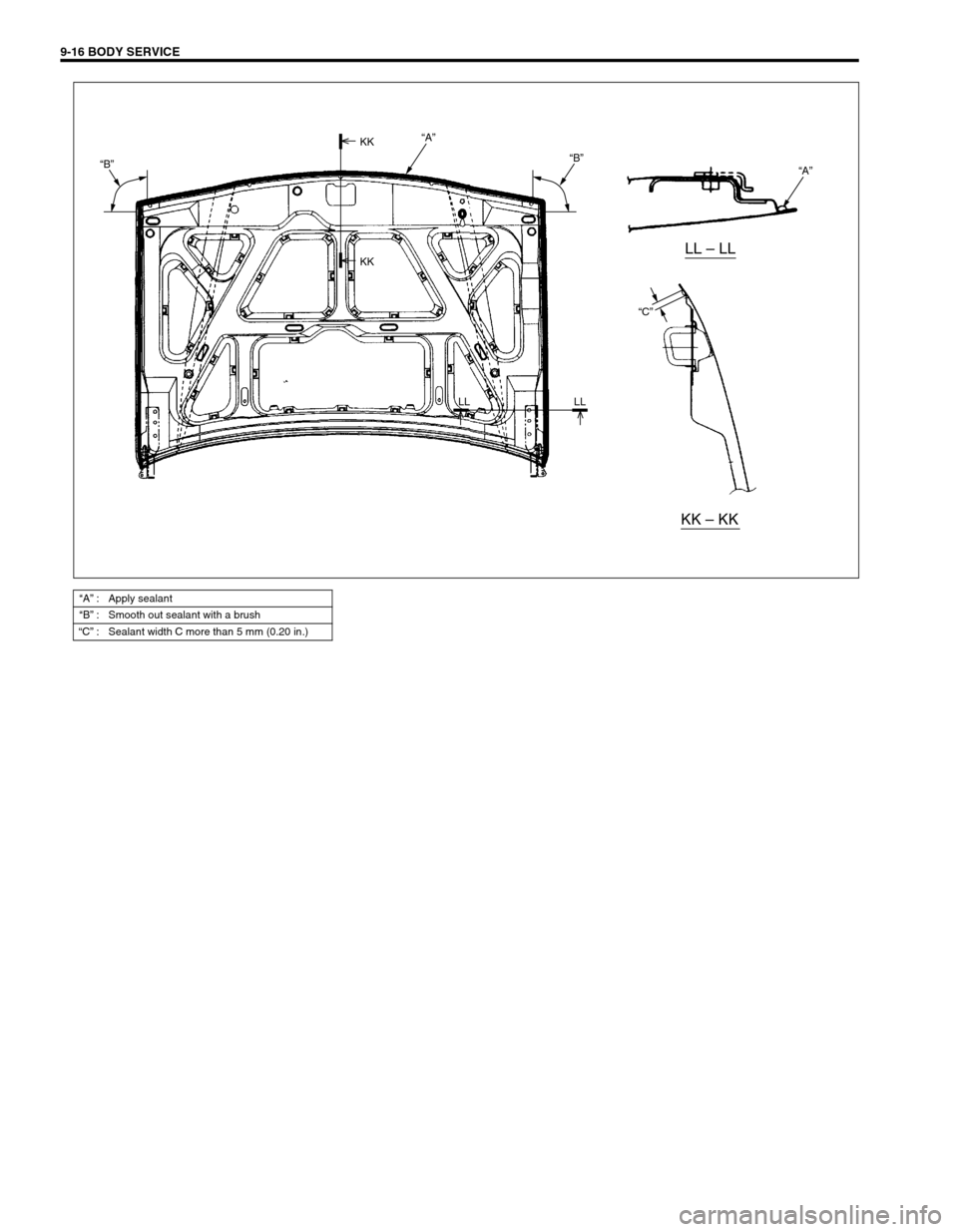

9-16 BODY SERVICE
“A” : Apply sealant
“B” : Smooth out sealant with a brush
“C” : Sealant width C more than 5 mm (0.20 in.)
KK
KK“A”
“A”“B”“B”
LL LL
“C”
LL – LL
KK – KK

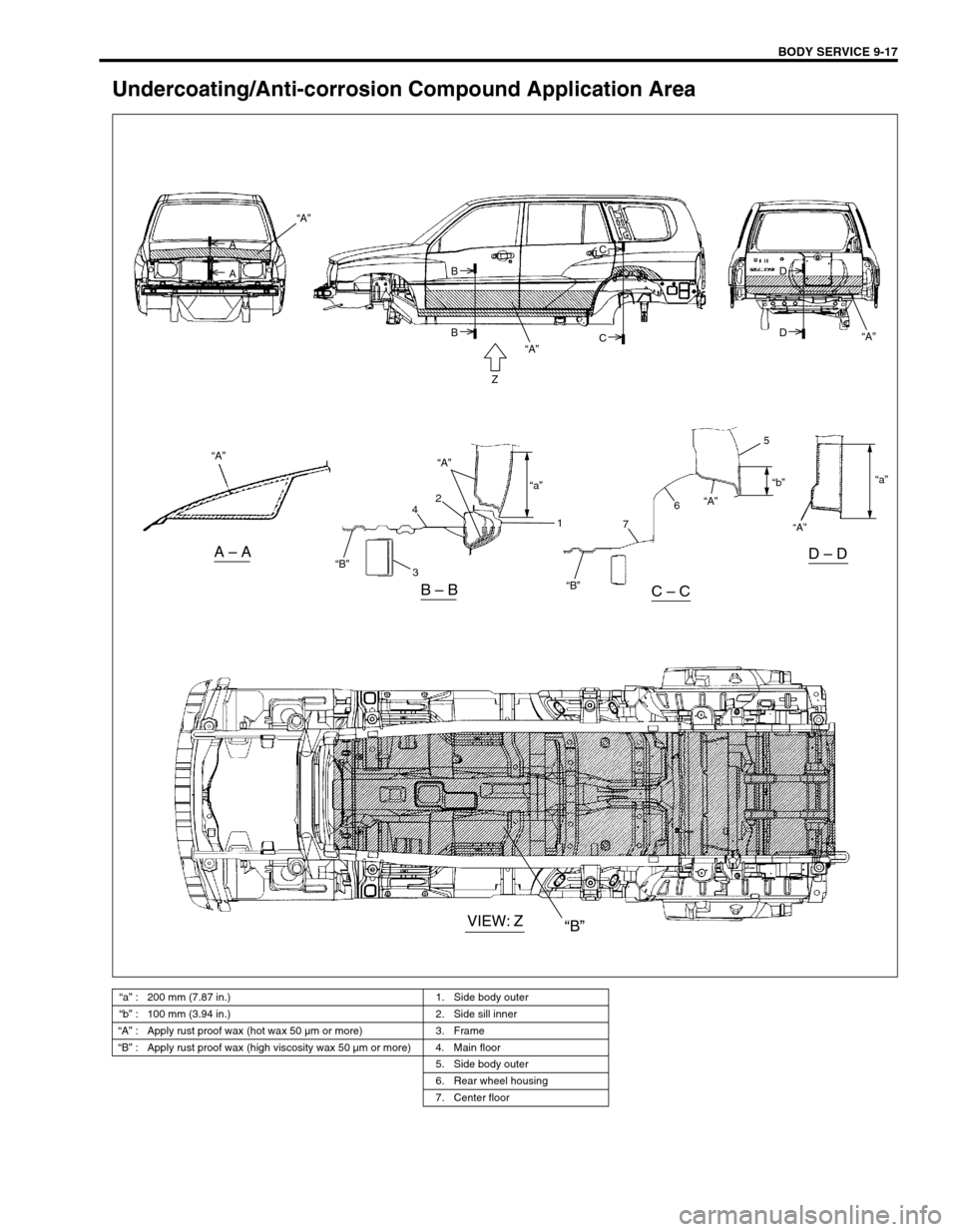

BODY SERVICE 9-17
Undercoating/Anti-corrosion Compound Application Area
“a” : 200 mm (7.87 in.) 1. Side body outer
“b” : 100 mm (3.94 in.) 2. Side sill inner
“A” : Apply rust proof wax (hot wax 50 µm or more) 3. Frame
“B” : Apply rust proof wax (high viscosity wax 50 µm or more) 4. Main floor
5. Side body outer
6. Rear wheel housing
7. Center floor
A
A
B
BD
D
C
“A”“A”
“A”“A”
“A”
“A”5
C
Z
“B”
“B” 3 4
76 2
“a”“b”“a”
1
D – D
C – CB – B
A – A
“B” VIEW: Z

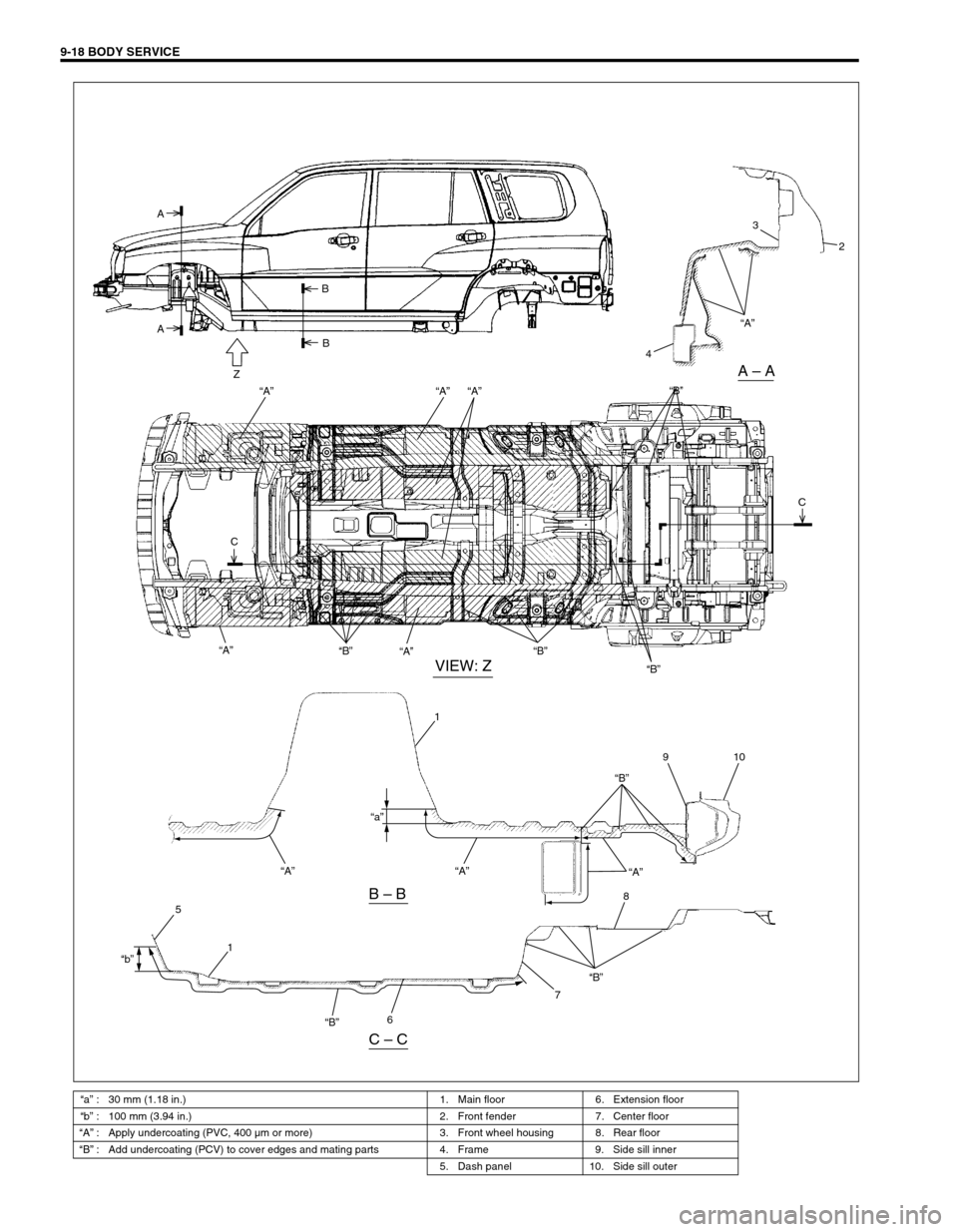

9-18 BODY SERVICE
“a” : 30 mm (1.18 in.) 1. Main floor 6. Extension floor
“b” : 100 mm (3.94 in.) 2. Front fender 7. Center floor
“A” : Apply undercoating (PVC, 400 µm or more) 3. Front wheel housing 8. Rear floor
“B” : Add undercoating (PCV) to cover edges and mating parts 4. Frame 9. Side sill inner
5. Dash panel 10. Side sill outer
A
A
B
B
Z
3
2
“A”
4
“B”“A” “A”“B”“B”
“B” “B” “B”
“b”
“a”
“B”
8910
7
6 5
1
“A”
1
“A”“A”“A”
“A” “A”
CC
A – A
C – C
B – B
VIEW: Z

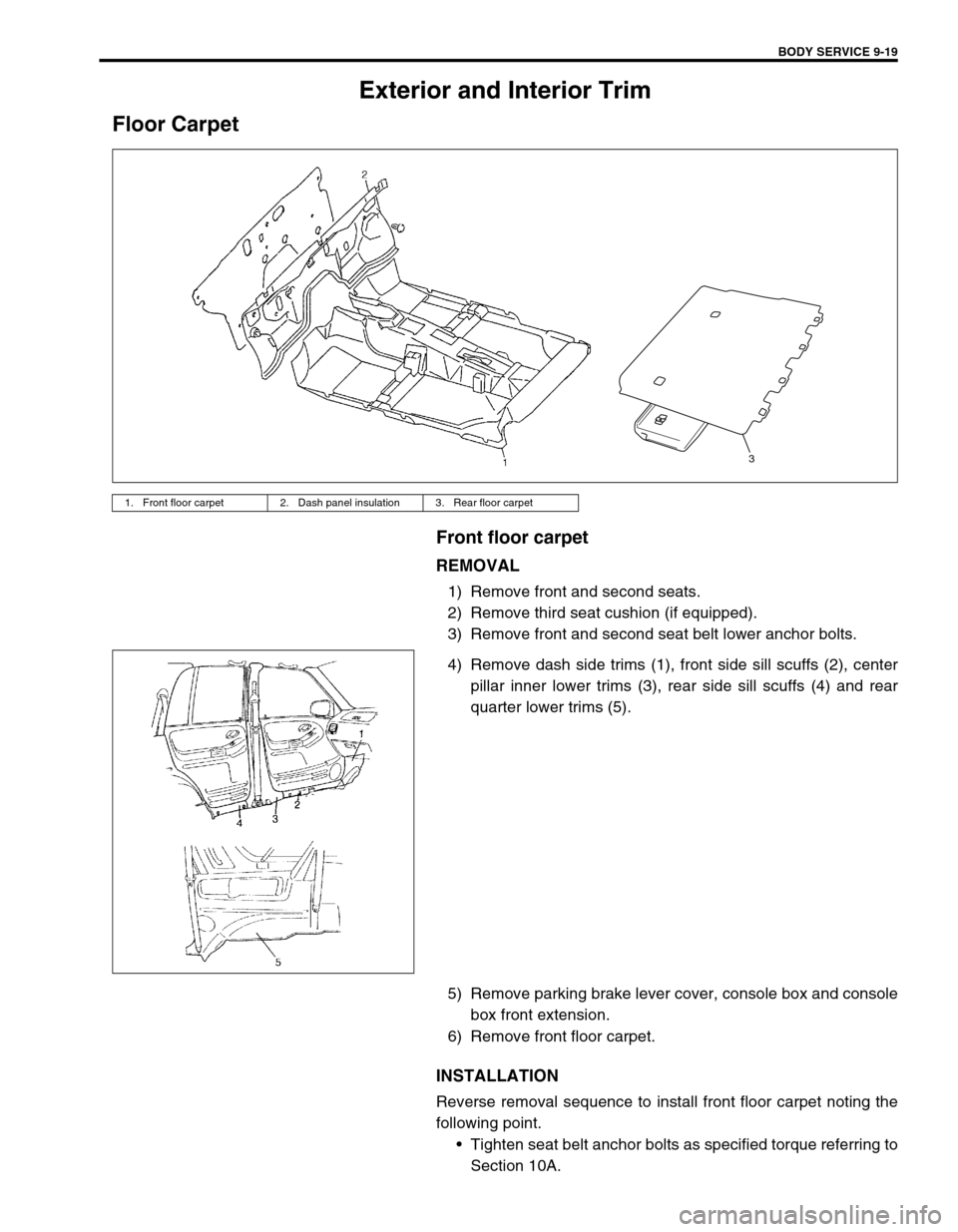

BODY SERVICE 9-19
Exterior and Interior Trim
Floor Carpet
Front floor carpet
REMOVAL
1) Remove front and second seats.
2) Remove third seat cushion (if equipped).
3) Remove front and second seat belt lower anchor bolts.
4) Remove dash side trims (1), front side sill scuffs (2), center
pillar inner lower trims (3), rear side sill scuffs (4) and rear
quarter lower trims (5).
5) Remove parking brake lever cover, console box and console
box front extension.
6) Remove front floor carpet.
INSTALLATION
Reverse removal sequence to install front floor carpet noting the
following point.
•Tighten seat belt anchor bolts as specified torque referring to
Section 10A.
1. Front floor carpet 2. Dash panel insulation 3. Rear floor carpet
3

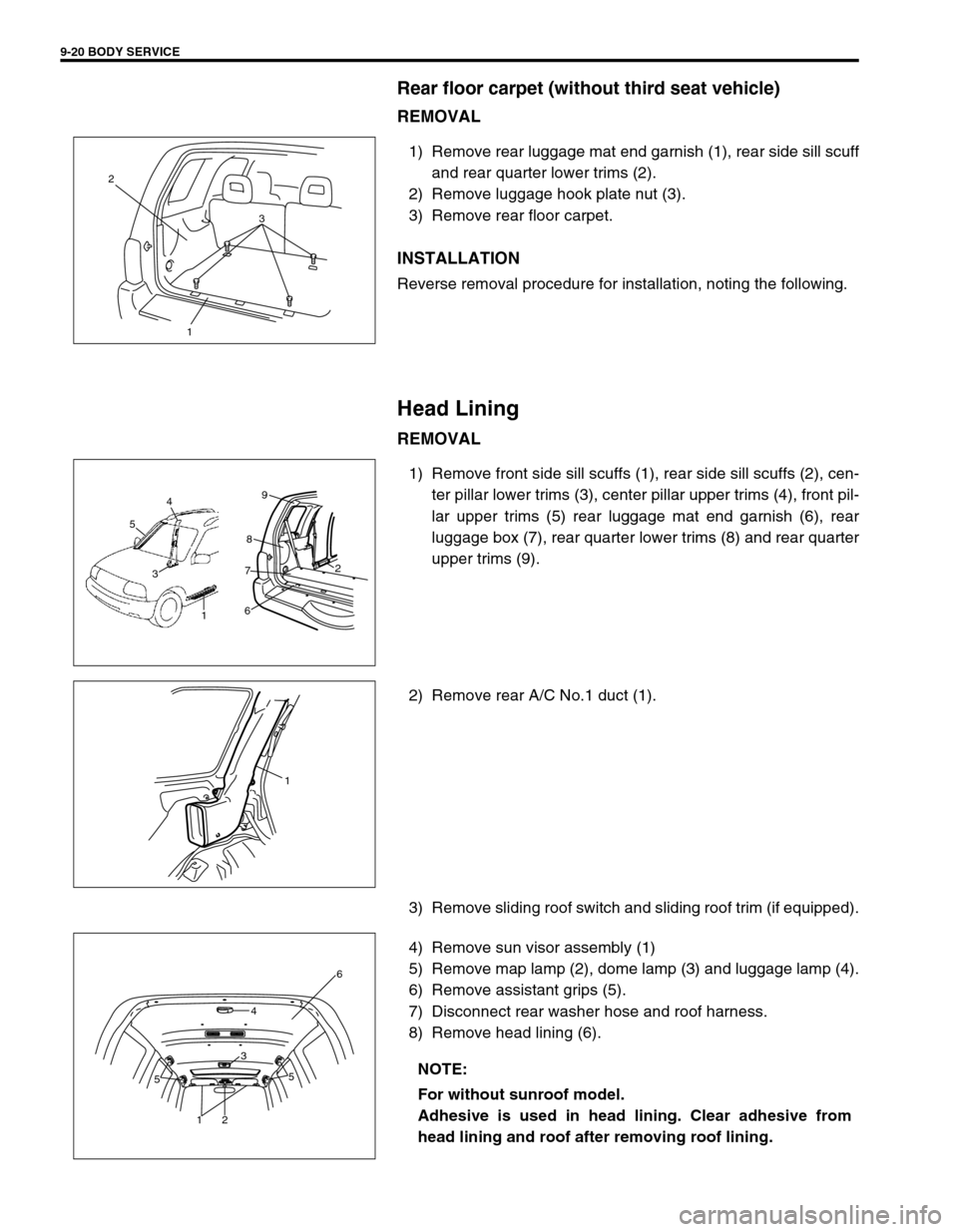

9-20 BODY SERVICE
Rear floor carpet (without third seat vehicle)
REMOVAL
1) Remove rear luggage mat end garnish (1), rear side sill scuff
and rear quarter lower trims (2).
2) Remove luggage hook plate nut (3).
3) Remove rear floor carpet.
INSTALLATION
Reverse removal procedure for installation, noting the following.
Head Lining
REMOVAL
1) Remove front side sill scuffs (1), rear side sill scuffs (2), cen-
ter pillar lower trims (3), center pillar upper trims (4), front pil-
lar upper trims (5) rear luggage mat end garnish (6), rear
luggage box (7), rear quarter lower trims (8) and rear quarter
upper trims (9).
2) Remove rear A/C No.1 duct (1).
3) Remove sliding roof switch and sliding roof trim (if equipped).
4) Remove sun visor assembly (1)
5) Remove map lamp (2), dome lamp (3) and luggage lamp (4).
6) Remove assistant grips (5).
7) Disconnect rear washer hose and roof harness.
8) Remove head lining (6).
1 2
3
4
5
3
1
6
7
8
9
2
1
NOTE:
For without sunroof model.
Adhesive is used in head lining. Clear adhesive from
head lining and roof after removing roof lining.
12
55 346

BODY SERVICE 9-21
INSTALLATION
Reverse removal procedure to install head lining noting the follow-
ing instructions.
•Set roof harness (1) and rear washer hose (2) to head lining
(3) with adhesive tape as shown.
•For without sunroof model
Apply double coated tape (4) to head lining as shown.
•Tighten seat belt anchor bolt as specified torque referring to
Section 10A. CAUTION:
Do not remove rear A/C No.2 duct (1) from head lining (2).
If perform this prohibited service, head lining (2) will be
broken.
13
2
1 4
2

9-22 BODY SERVICE

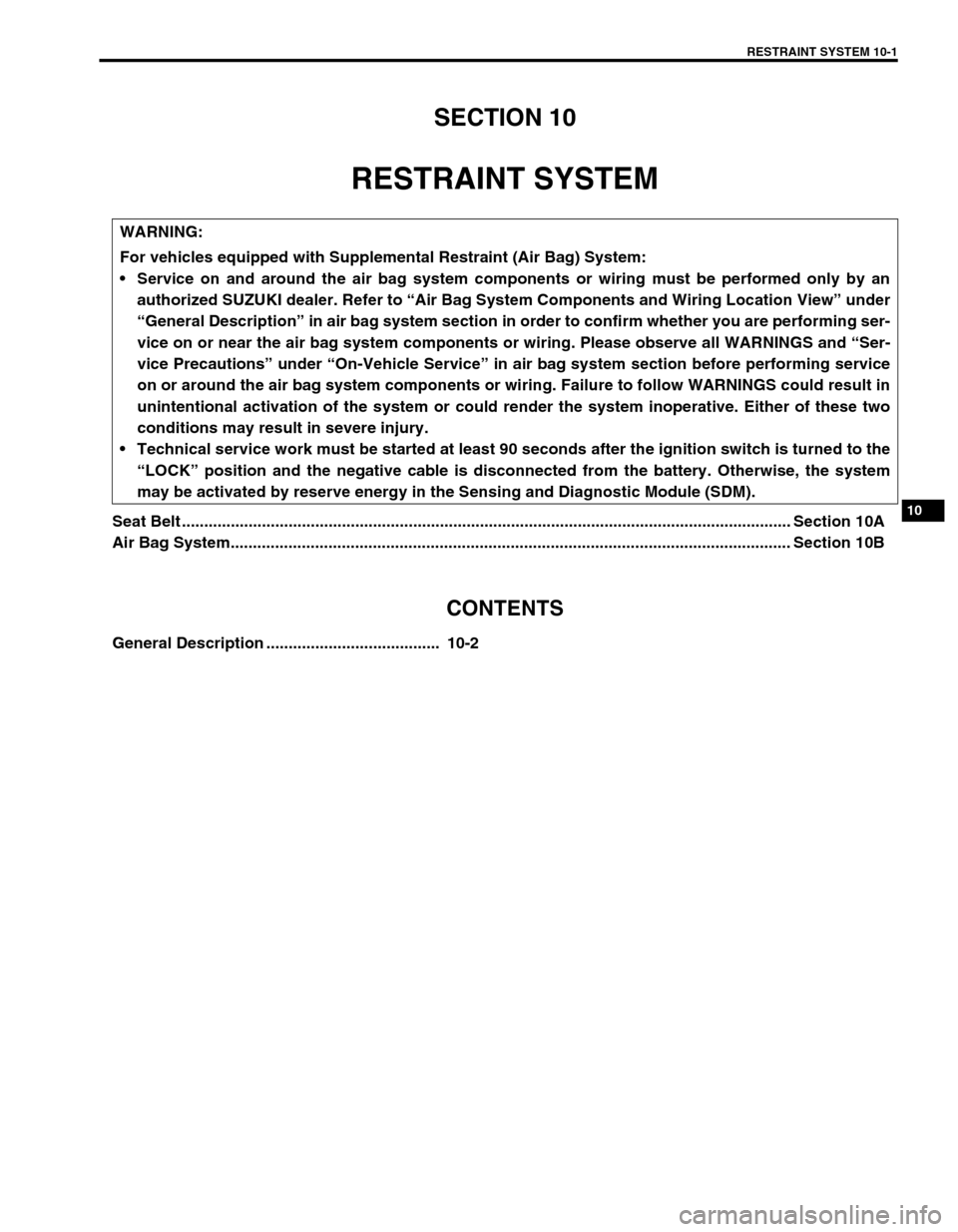

RESTRAINT SYSTEM 10-1
10
SECTION 10
RESTRAINT SYSTEM
Seat Belt ......................................................................................................................................... Section 10A
Air Bag System.............................................................................................................................. Section 10B
CONTENTS
General Description ....................................... 10-2

WARNING:
For vehicles equipped with Supplemental Restraint (Air Bag) System:
Service on and around the air bag system components or wiring must be performed only by an
authorized SUZUKI dealer. Refer to “Air Bag System Components and Wiring Location View” under
“General Description” in air bag system section in order to confirm whether you are performing ser-
vice on or near the air bag system components or wiring. Please observe all WARNINGS and “Ser-
vice Precautions” under “On-Vehicle Service” in air bag system section before performing service
on or around the air bag system components or wiring. Failure to follow WARNINGS could result in
unintentional activation of the system or could render the system inoperative. Either of these two
conditions may result in severe injury.
Technical service work must be started at least 90 seconds after the ignition switch is turned to the
“LOCK” position and the negative cable is disconnected from the battery. Otherwise, the system
may be activated by reserve energy in the Sensing and Diagnostic Module (SDM).

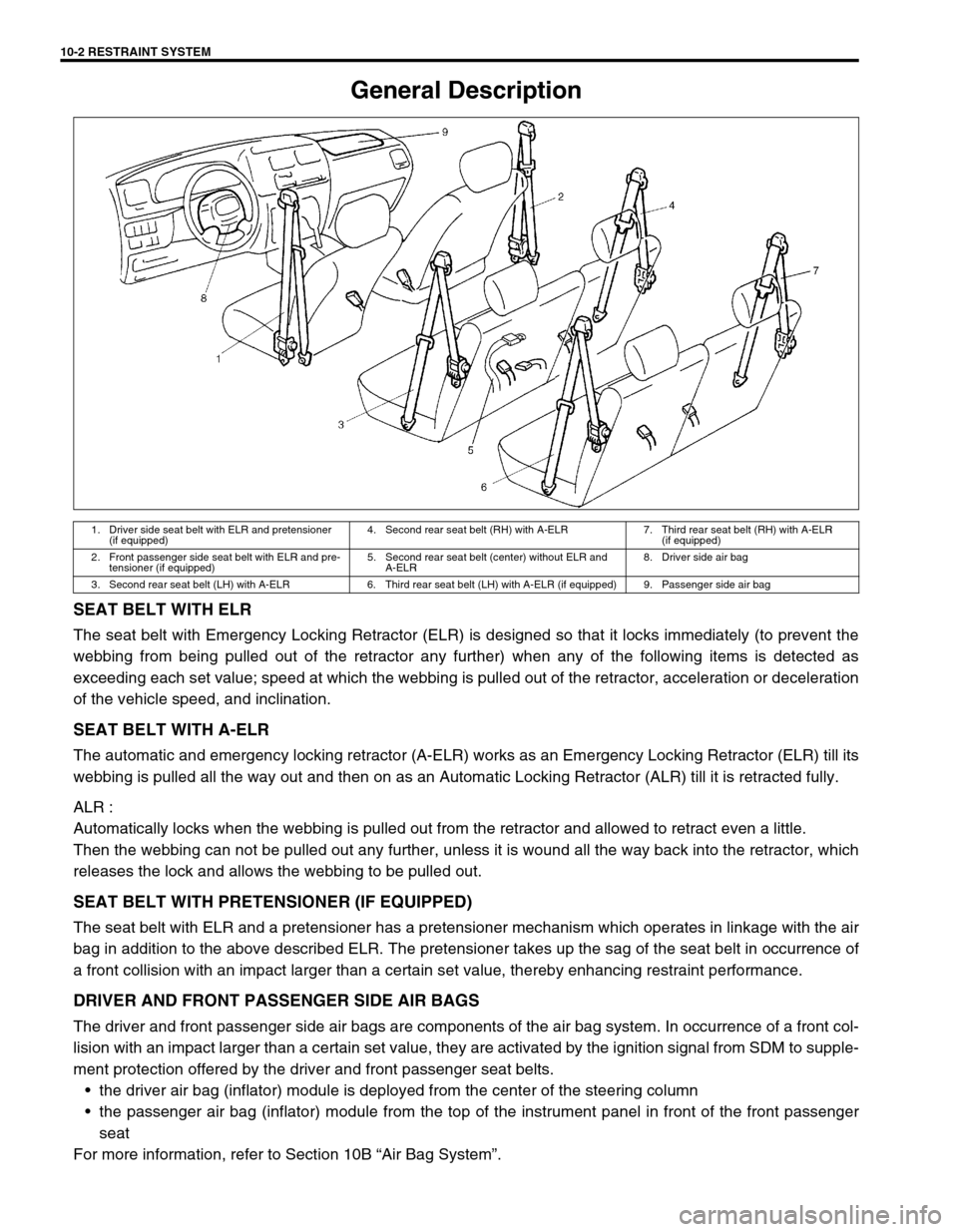

10-2 RESTRAINT SYSTEM
General Description
SEAT BELT WITH ELR
The seat belt with Emergency Locking Retractor (ELR) is designed so that it locks immediately (to prevent the
webbing from being pulled out of the retractor any further) when any of the following items is detected as
exceeding each set value; speed at which the webbing is pulled out of the retractor, acceleration or deceleration
of the vehicle speed, and inclination.
SEAT BELT WITH A-ELR
The automatic and emergency locking retractor (A-ELR) works as an Emergency Locking Retractor (ELR) till its
webbing is pulled all the way out and then on as an Automatic Locking Retractor (ALR) till it is retracted fully.
ALR :
Automatically locks when the webbing is pulled out from the retractor and allowed to retract even a little.
Then the webbing can not be pulled out any further, unless it is wound all the way back into the retractor, which
releases the lock and allows the webbing to be pulled out.
SEAT BELT WITH PRETENSIONER (IF EQUIPPED)
The seat belt with ELR and a pretensioner has a pretensioner mechanism which operates in linkage with the air
bag in addition to the above described ELR. The pretensioner takes up the sag of the seat belt in occurrence of
a front collision with an impact larger than a certain set value, thereby enhancing restraint performance.
DRIVER AND FRONT PASSENGER SIDE AIR BAGS
The driver and front passenger side air bags are components of the air bag system. In occurrence of a front col-
lision with an impact larger than a certain set value, they are activated by the ignition signal from SDM to supple-
ment protection offered by the driver and front passenger seat belts.
•the driver air bag (inflator) module is deployed from the center of the steering column
•the passenger air bag (inflator) module from the top of the instrument panel in front of the front passenger
seat
For more information, refer to Section 10B “Air Bag System”.
1. Driver side seat belt with ELR and pretensioner
(if equipped) 4. Second rear seat belt (RH) with A-ELR 7. Third rear seat belt (RH) with A-ELR
(if equipped)
2. Front passenger side seat belt with ELR and pre-
tensioner (if equipped) 5. Second rear seat belt (center) without ELR and
A-ELR8. Driver side air bag
3. Second rear seat belt (LH) with A-ELR 6. Third rear seat belt (LH) with A-ELR (if equipped) 9. Passenger side air bag

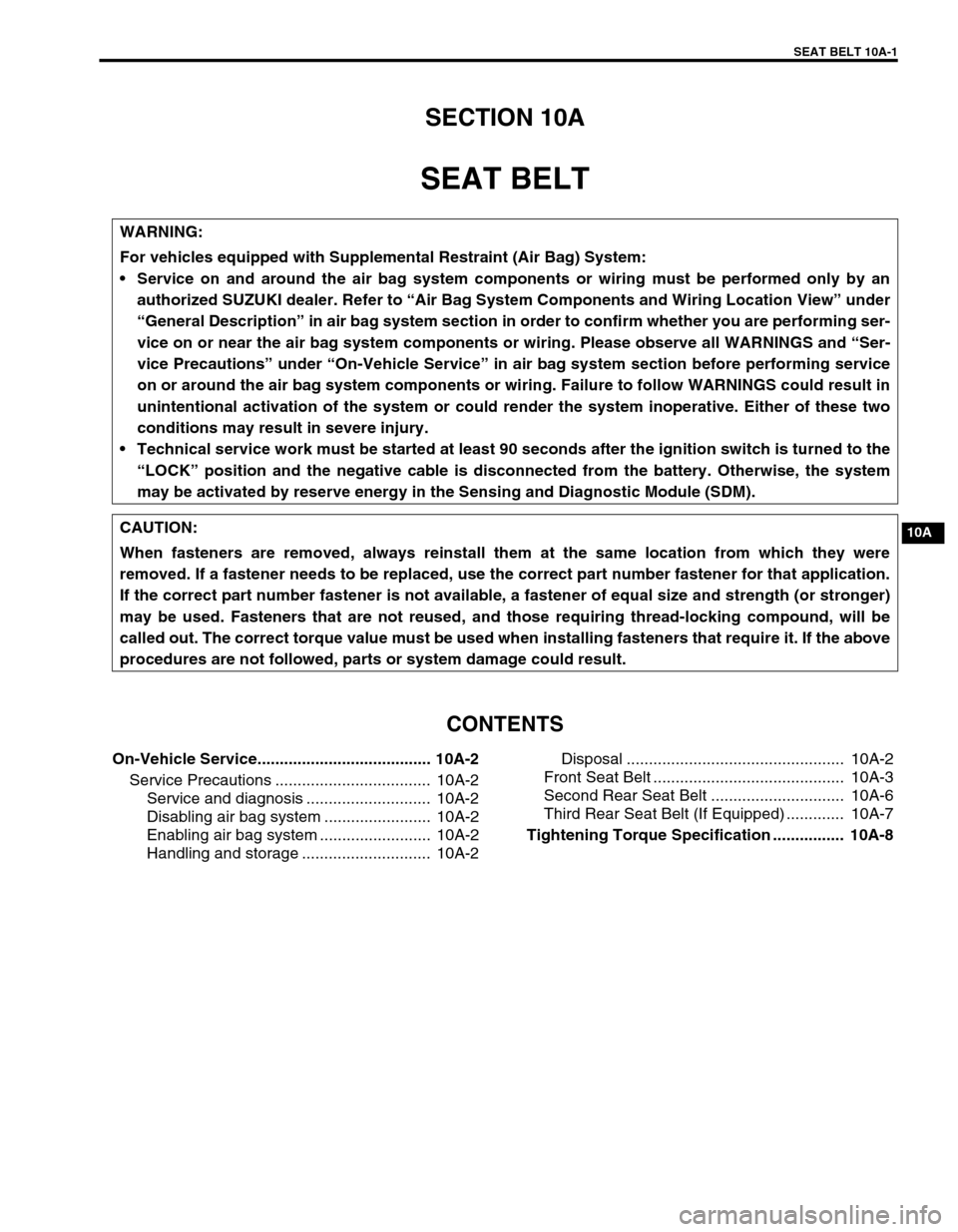

SEAT BELT 10A-1
10A
SECTION 10A
SEAT BELT
CONTENTS
On-Vehicle Service....................................... 10A-2
Service Precautions ................................... 10A-2
Service and diagnosis ............................ 10A-2
Disabling air bag system ........................ 10A-2
Enabling air bag system ......................... 10A-2
Handling and storage ............................. 10A-2Disposal ................................................. 10A-2
Front Seat Belt ........................................... 10A-3
Second Rear Seat Belt .............................. 10A-6
Third Rear Seat Belt (If Equipped) ............. 10A-7
Tightening Torque Specification ................ 10A-8

WARNING:
For vehicles equipped with Supplemental Restraint (Air Bag) System:
Service on and around the air bag system components or wiring must be performed only by an
authorized SUZUKI dealer. Refer to “Air Bag System Components and Wiring Location View” under
“General Description” in air bag system section in order to confirm whether you are performing ser-
vice on or near the air bag system components or wiring. Please observe all WARNINGS and “Ser-
vice Precautions” under “On-Vehicle Service” in air bag system section before performing service
on or around the air bag system components or wiring. Failure to follow WARNINGS could result in
unintentional activation of the system or could render the system inoperative. Either of these two
conditions may result in severe injury.
Technical service work must be started at least 90 seconds after the ignition switch is turned to the
“LOCK” position and the negative cable is disconnected from the battery. Otherwise, the system
may be activated by reserve energy in the Sensing and Diagnostic Module (SDM).
CAUTION:
When fasteners are removed, always reinstall them at the same location from which they were
removed. If a fastener needs to be replaced, use the correct part number fastener for that application.
If the correct part number fastener is not available, a fastener of equal size and strength (or stronger)
may be used. Fasteners that are not reused, and those requiring thread-locking compound, will be
called out. The correct torque value must be used when installing fasteners that require it. If the above
procedures are not followed, parts or system damage could result.
