Side outlet
57L50002
Move the knob (8) vertically or horizontally
to adjust the direction of airflow as desired.
The side outlet opens when you turn the
dial (9) to the right and closes when you
turn it to the left.
(9) (8)
Center outlet
57L51060
Rear outlet
57L51059
Move the knob (8) vertically or horizontally to adjust the direction of airflow as desired.
The center outlet/rear outlet opens when you turn the dial (10) upward and closes when
you turn it downward.
(10)
(8)
(8)
(10)
(8)
(8)
Pedals: 6
Gearshift Lever: 10

5-3OTHER CONTROLS AND EQUIPMENT
57L20-03E
Description of Controls
57L51002
(1) (9)
(6) (11)
(4)(2)
(5) (10) (3) (8) (7)
EXAMPLE
(1) Driver’s temperature selector
(2) Passenger’s temperature selector
(3) “DUAL” switch
(4) Blower speed selector
(5) Air intake selector
(6) “MODE” switch
(7) Defrost switch
(8) Air conditioning switch
(9) “AUTO” switch
(10) “OFF” switch
(11) Display
Gearshift Lever: 10
Fuel Filler Cap: 5

5-4
OTHER CONTROLS AND EQUIPMENT
57L20-03E
Driver’s temperature selector (1)/Pas-
senger’s temperature selector (2)
57L51003

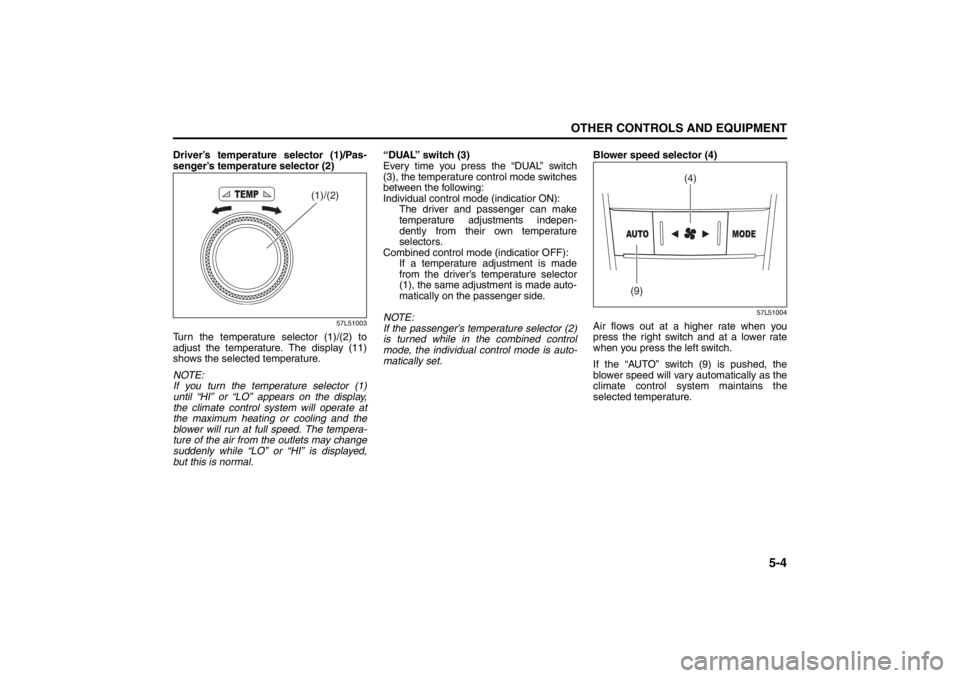

Turn the temperature selector (1)/(2) to
adjust the temperature. The display (11)
shows the selected temperature.
NOTE:
If you turn the temperature selector (1)
until “HI” or “LO” appears on the display,
the climate control system will operate at
the maximum heating or cooling and the
blower will run at full speed. The tempera-
ture of the air from the outlets may change
suddenly while “LO” or “HI” is displayed,
but this is normal.“DUAL” switch (3)
Every time you press the “DUAL” switch
(3), the temperature control mode switches
between the following:
Individual control mode (indicatior ON):
The driver and passenger can make
temperature adjustments indepen-
dently from their own temperature
selectors.
Combined control mode (indicatior OFF):
If a temperature adjustment is made
from the driver’s temperature selector
(1), the same adjustment is made auto-
matically on the passenger side.
NOTE:
If the passenger’s temperature selector (2)
is turned while in the combined control
mode, the individual control mode is auto-
matically set.Blower speed selector (4)
57L51004
Air flows out at a higher rate when you
press the right switch and at a lower rate
when you press the left switch.
If the “AUTO” switch (9) is pushed, the
blower speed will vary automatically as the
climate control system maintains the
selected temperature.
(1)/(2)
(4)
(9)
Fuel Filler Cap: 5
Folding Rear Seats: 3

5-5OTHER CONTROLS AND EQUIPMENT
57L20-03E
Air intake selector (5)
57L51005

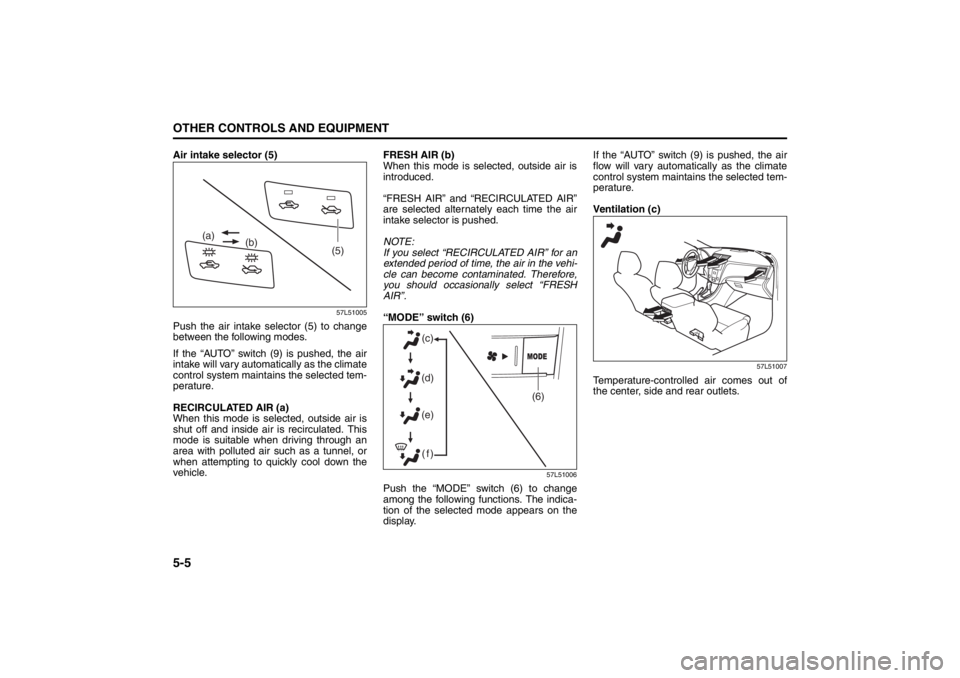

Push the air intake selector (5) to change
between the following modes.
If the “AUTO” switch (9) is pushed, the air
intake will vary automatically as the climate
control system maintains the selected tem-
perature.
RECIRCULATED AIR (a)
When this mode is selected, outside air is
shut off and inside air is recirculated. This
mode is suitable when driving through an
area with polluted air such as a tunnel, or
when attempting to quickly cool down the
vehicle.FRESH AIR (b)
When this mode is selected, outside air is
introduced.
“FRESH AIR” and “RECIRCULATED AIR”
are selected alternately each time the air
intake selector is pushed.
NOTE:
If you select “RECIRCULATED AIR” for an
extended period of time, the air in the vehi-
cle can become contaminated. Therefore,
you should occasionally select “FRESH
AIR”.
“MODE” switch (6)
57L51006
Push the “MODE” switch (6) to change
among the following functions. The indica-
tion of the selected mode appears on the
display.If the “AUTO” switch (9) is pushed, the air
flow will vary automatically as the climate
control system maintains the selected tem-
perature.
Ventilation (c)
57L51007
Temperature-controlled air comes out of
the center, side and rear outlets.
(a)
(b)
(5)
(c)
(d)
(e)
(f)
(6)
Folding Rear Seats: 3

5-6
OTHER CONTROLS AND EQUIPMENT
57L20-03E

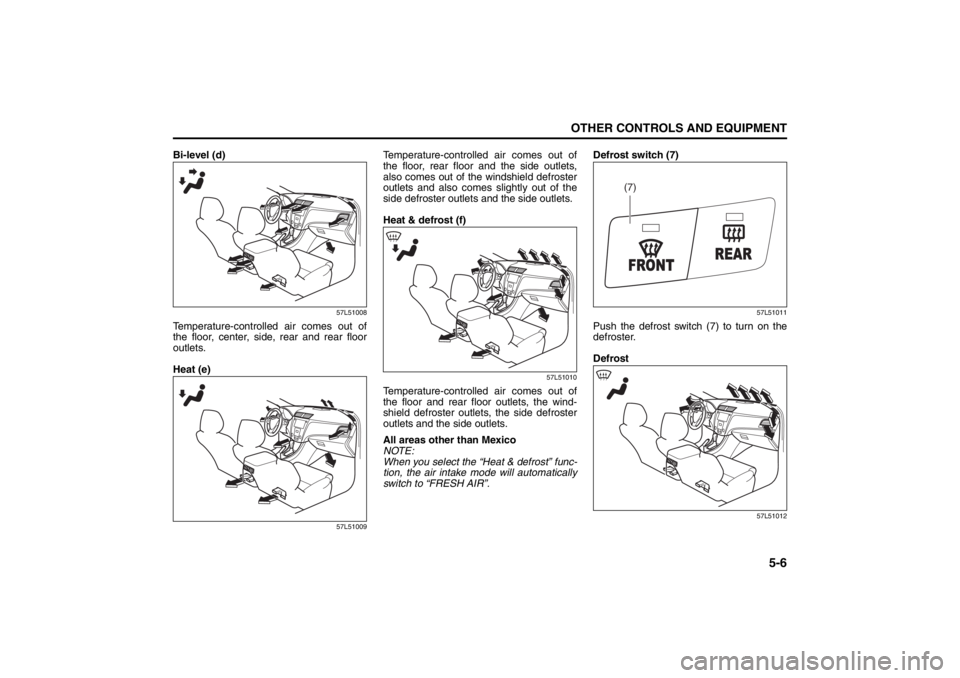

Bi-level (d)
57L51008
Temperature-controlled air comes out of
the floor, center, side, rear and rear floor
outlets.
Heat (e)
57L51009
Temperature-controlled air comes out of
the floor, rear floor and the side outlets,
also comes out of the windshield defroster
outlets and also comes slightly out of the
side defroster outlets and the side outlets.
Heat & defrost (f)
57L51010
Temperature-controlled air comes out of
the floor and rear floor outlets, the wind-
shield defroster outlets, the side defroster
outlets and the side outlets.
All areas other than Mexico
NOTE:
When you select the “Heat & defrost” func-
tion, the air intake mode will automatically
switch to “FRESH AIR”.Defrost switch (7)
57L51011
Push the defrost switch (7) to turn on the
defroster.
Defrost
57L51012
(7)
Folding Rear Seats: 3

5-7OTHER CONTROLS AND EQUIPMENT
57L20-03E
Temperature-controlled air comes out of
the windshield defroster outlets, the side
defroster outlets and the side outlets.
1. All areas other than Mexico
NOTE:
When you push the defrost switch (7), the
“FRESH AIR” mode will be automatically
selected and the air conditioning switch will
automatically turn on (“A/C” will appear on
the display). Furthermore, it is impossible
to return to the “RECIRCULATED AIR”
mode even if you push the air intake selec-
tor (5). In cold weather, air flows out of the
defroster outlets but the air conditioning
does not turn on even though the A/C indi-
cator comes on as well as the defrost indi-
cator.
2. Mexico
NOTE:
When you push the defrost switch (7), the
“FRESH AIR” mode will be automatically
selected and the air conditioning switch will
automatically turn on (“A/C” will appear on
the display). In cold weather, air flows out
of the defroster outlets but the air condi-
tioning does not turn on even though the A/
C indicator comes on as well as the defrost
indicator.Air conditioning switch (8)
57L51016

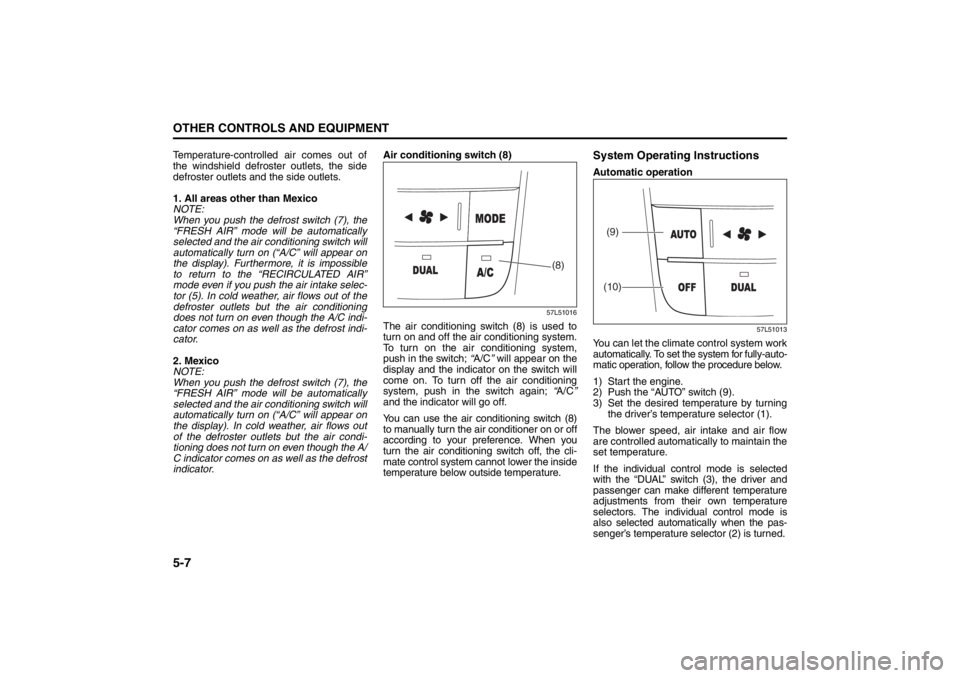

The air conditioning switch (8) is used to
turn on and off the air conditioning system.
To turn on the air conditioning system,
push in the switch; “A/C” will appear on the
display and the indicator on the switch will
come on. To turn off the air conditioning
system, push in the switch again; “A/C”
and the indicator will go off.
You can use the air conditioning switch (8)
to manually turn the air conditioner on or off
according to your preference. When you
turn the air conditioning switch off, the cli-
mate control system cannot lower the inside
temperature below outside temperature.
System Operating InstructionsAutomatic operation
57L51013
You can let the climate control system work
automatically. To set the system for fully-auto-
matic operation, follow the procedure below.
1) Start the engine.
2) Push the “AUTO” switch (9).
3) Set the desired temperature by turning
the driver’s temperature selector (1).
The blower speed, air intake and air flow
are controlled automatically to maintain the
set temperature.
If the individual control mode is selected
with the “DUAL” switch (3), the driver and
passenger can make different temperature
adjustments from their own temperature
selectors. The individual control mode is
also selected automatically when the pas-
senger’s temperature selector (2) is turned.
(8)
(9)
(10)
Folding Rear Seats: 3

5-8
OTHER CONTROLS AND EQUIPMENT
57L20-03E
To turn the climate control system off, push
the “OFF” switch (10).
NOTE:
If the “AUTO” on the display blinks, there is
a problem in the heating system and/or air
conditioning system. You should have the
system inspected by an authorized
SUZUKI dealer.
NOTE:
 To find the temperature at which you are
most comfortable, start with the 72°F
(25°C) setting, for example.
 If you turn the temperature selector (1)
until “HI” or “LO” appears on the display,
the climate control system will operate at
the maximum heating or cooling and the
blower will run at full speed.
 To avoid blowing cold air in cold weather
or hot air in hot weather, the system will
delay turning on the blower until warmed
or chilled air is available.
 If your vehicle has been left in the sun
with the windows closed, it will cool
faster if you open the windows briefly. Even under automatic operation, you
can set individual selectors to the man-
ual mode. The manually selected func-
tions are maintained, and the other
functions remain under automatic opera-
tion.
 To return the blower speed selector (4),
air intake selector (5), and “MODE”
switch (6) to automatic operation, push
the “AUTO” switch (9).
57L51014

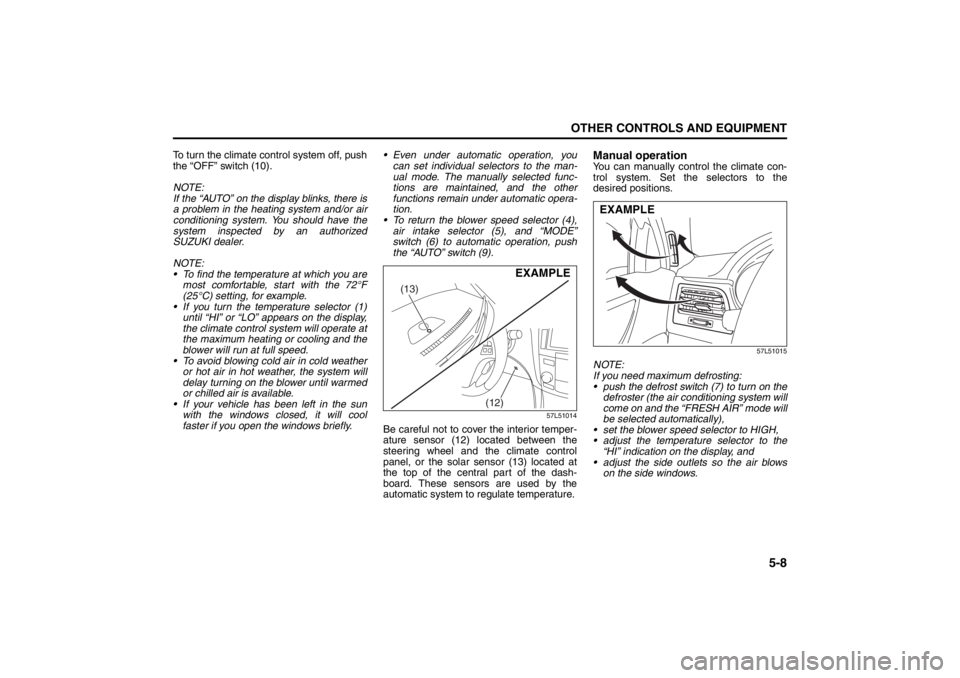

Be careful not to cover the interior temper-
ature sensor (12) located between the
steering wheel and the climate control
panel, or the solar sensor (13) located at
the top of the central part of the dash-
board. These sensors are used by the
automatic system to regulate temperature.
Manual operationYou can manually control the climate con-
trol system. Set the selectors to the
desired positions.
57L51015
NOTE:
If you need maximum defrosting:
 push the defrost switch (7) to turn on the
defroster (the air conditioning system will
come on and the “FRESH AIR” mode will
be selected automatically),
 set the blower speed selector to HIGH,
 adjust the temperature selector to the
“HI” indication on the display, and
 adjust the side outlets so the air blows
on the side windows.
(13)
(12)
EXAMPLE
EXAMPLE
Folding Rear Seats: 3

5-9OTHER CONTROLS AND EQUIPMENT
57L20-03E
MaintenanceIf you do not use the air conditioner for a
long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain opti-
mum performance and durability of your air
conditioner, it needs to be run periodically.
Operate the air conditioner at least once a
month for one minute with the engine
idling. This circulates the refrigerant and oil
and helps protect the internal components.
Your air conditioner is equipped with air fil-
ters. Clean or replace them as specified in
the “Maintenance Schedule” in the
“INSPECTION AND MAINTENANCE” sec-
tion. Have this job done by your SUZUKI
dealer as the lower glove box must be low-
ered for this job.
NOTE:
Your vehicle uses the air conditioning
refrigerant HFC-134a, commonly called
“R-134a”. R-134a replaced R-12 around
1993 for automotive applications. Other
refrigerants are available, including recy-
cled R-12, but only R-134a should be used
in your vehicle.
Radio AntennaPrinted antenna (if equipped)
57L51071

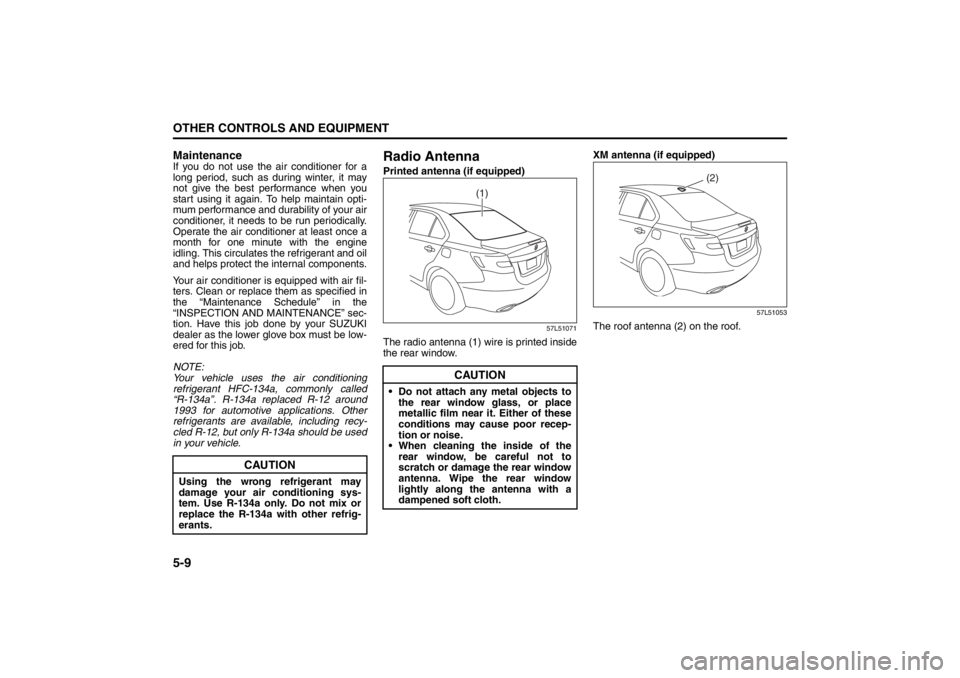

The radio antenna (1) wire is printed inside
the rear window.XM antenna (if equipped)
57L51053
The roof antenna (2) on the roof.
CAUTION
Using the wrong refrigerant may
damage your air conditioning sys-
tem. Use R-134a only. Do not mix or
replace the R-134a with other refrig-
erants.
CAUTION
 Do not attach any metal objects to
the rear window glass, or place
metallic film near it. Either of these
conditions may cause poor recep-
tion or noise.
 When cleaning the inside of the
rear window, be careful not to
scratch or damage the rear window
antenna. Wipe the rear window
lightly along the antenna with a
dampened soft cloth.
(1)
(2)
Folding Rear Seats: 3
Armrest: 3

5-10
OTHER CONTROLS AND EQUIPMENT
57L20-03E
Audio SystemsThere are two types of audio system as shown below:
TUNE / FOLDER / CHDISPAS
RPT
XM
USBMENU
RDM
SEEK/ TRACK/CAT
SOUNDPUSH
1
2
3
4
5
6
VOL PUSH POWER
CD
FM/ AMH
M
TUNE / FOLDER / CHDISPAS
RPT
XM
USBMENU
RDM
SEEK/ TRACK/CAT
SOUNDPUSH
1
2
3
4
5
6
VOL PUSH POWER
CD
FM/ AMH
M
Type 1 Type 2
AM/FM/XM CD PLAYER
AM/FM/XM CD PLAYER WITH Rockford
® Fosgate sound system

5-11OTHER CONTROLS AND EQUIPMENT
57L20-03E
Safety Information Notes on Discs
Precautions
 When the inside of the car is very cold
and the player is used soon after switch-
ing on the heater, moisture may form on
the disc or the optical parts of the player
and proper playback may not be possi-
ble. If moisture forms on the disc, wipe it
off with a soft cloth. If moisture forms on
the optical parts of the player, do not
use the player for about one hour, this
will allow the condensation to disappear
normally.
 Driving on extremely bumpy roads
which cause severe vibrations may
cause sound to skip.
 This unit uses a precision mechanism.
Even in the event that trouble arises,
never open the case, disassemble the
unit, or lubricate the rotating parts.
Please bring the unit to an authorized
SUZUKI dealer.Cautions on Handling
This unit has been designed specifically
for playback of compact discs bearing the
mark (A).
No other discs can be played.
WARNING
 The driver should neither watch the
display nor operate the system
while driving.
Watching the display or operating
the system will distract the driver
from looking ahead of the vehicle
and can cause accidents. Always
stop the vehicle in a safe location
and use the parking brake before
watching the display or operating
the system. It may cause trouble.
 Keep the sound volume at an
appropriate level.
Keep the volume level low enough
to be aware of road and traffic con-
ditions while driving.
(A)
