TOYOTA 4RUNNER 2003 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0208)
832003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00117
The registered point is shown by on
the map.
To change the icon or name, etc., see
“(b) Editing marked points”.
You can register up to 100 marked
points. If you attempt to register more
than 100, a message appears for con-
firmation.
L00118
If you want to register a new point, de-
lete one of the marked points. See “(c)
Deleting marked points”. Any areas you want to avoid due to
traffic jams, construc
tion work or other
reasons can be registered as areas to
avoid.
Touch the
“MENU” tab on the
screen to display the “Menu” screen
and touch the
“Marked points”
switch. Touch the “Area to avoid”
switch to display the following screen.
L00078
Area to avoid

4Runner_Navi_U (L/O 0208)
842003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
INFORMATION
Some areas and freeways may not
be able to be set as an avoid point.
 If a destination is input in the
avoid area or the route calculation
cannot be made without running
through the avoid area, a route
passing through the avoid area
may be shown.
1. Touch the “Register” switch of “Area to avoid”.
L00119
2. Find the area to avoid in the same way as yo u find any destination. (See pages 10 through 24.)
L00120
(a) Registering area to avoid

4Runner_Navi_U (L/O 0208)
852003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
3. Touch the “OK” switch when the cursor is at the center of the area that you want to avoid.
L00121
4. Depending on the contents to be edited, touch either or switch.
When you touch the
“OK” switch, the
following message appears.
L00122
After a few seconds, the avoid area
screen returns.
(b) Editing area to avoid

4Runner_Navi_U (L/O 0208)
862003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
1. Touch the “Edit” switch under “Area to avoid” to display the “Edit area to avoid” screen.
L00123
2. Touch the point you want to edit from the list.
L00124
You can edit the name, location and size
of the area to avoid. Touch the change
switch of any item that you want to edit.
L00125
3. Edit the name, location or size of the area to avoid.
When editing is completed, touch the
“OK” switch.

4Runner_Navi_U (L/O 0208)
872003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
INFORMATION
If you try to change the map to an
inappropriate scale, a message ap-
pears.
 For magnification or reduction of
the map scale, see page 57.
1. Touch the “Delete” switch to display the “Del ete area to avoid” screen.
L00126
2. Select the area you want to delete.
(c) Deleting area to avoid

4Runner_Navi_U (L/O 0208)
882003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
Delete all: All the areas to avoid regis-
tered in the system are deleted.
L00127
L00128
3. Either of the above messages appears.
To delete the area(s), touch the
“Yes”
switch.
If you want to try again or cancel the
deletion, touch the
“No” switch. The
previous screen will return. The current vehicle position mark will
be automatically corrected during driv-
ing on reception of GPS signals. If
your vehicle cannot receive GPS sig-
nals, you can correct the current posi-
tion mark manually.
L00059

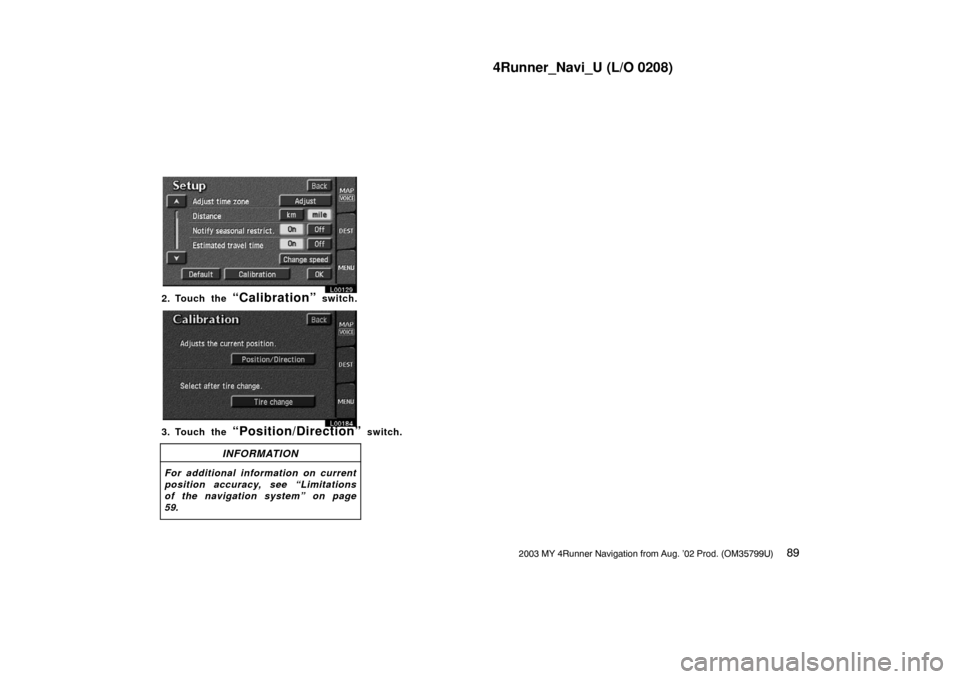

1. Touch the “MENU” tab on the screen to display
the “Menu” screen, and touch the “Setup” switch.
Current position calibration

4Runner_Navi_U (L/O 0208)
892003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00129
2. Touch the “Calibration” switch.
L00129
3. Touch the “Position/Direction” switch.
INFORMATION
For additional information on current
position accuracy, see “Limitations
of the navigation system” on page
59.

4Runner_Navi_U (L/O 0208)
902003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

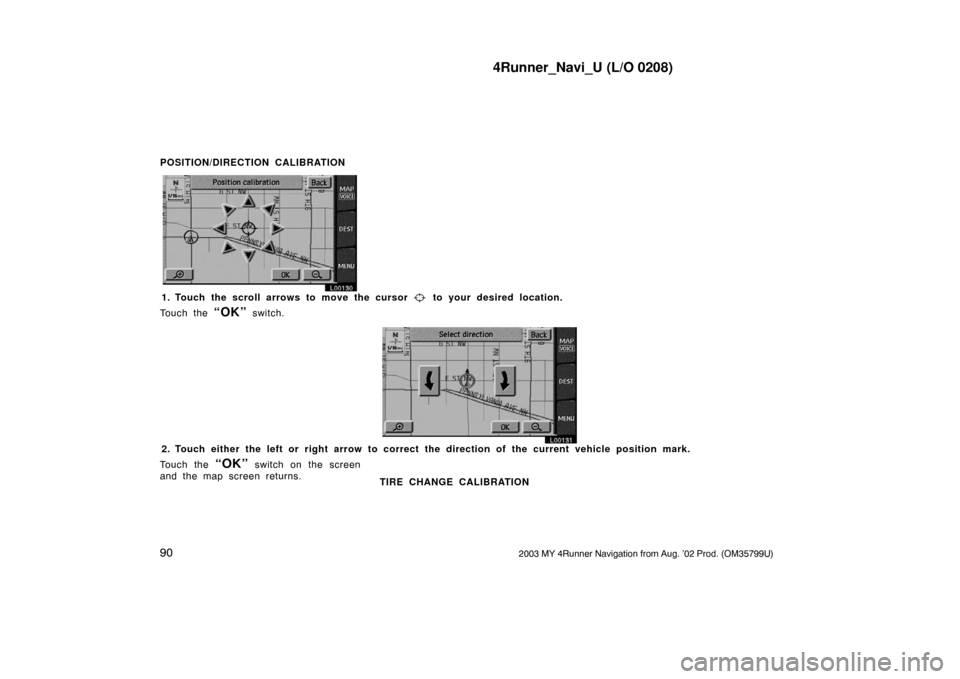

POSITION/DIRECTION CALIBRATION
L00130
1. Touch the scroll arrows to move the cursor to your desired location.
Touch the
“OK” switch.
L00131
2. Touch either the left or right arrow to correct the direction of the current vehicle position mark.
Touch the
“OK” switch on the screen
and the map screen returns. TIRE CHANGE CALIBRATION

4Runner_Navi_U (L/O 0208)
912003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
The tire change calibration function
should be used when the tires are re-
placed. This will adjust for any pos-
sible change in tire circumference from
the old tires to the new ones. If this
procedure is not performed when tires
are replaced, the current vehicle posi-
tion mark may become incorrect.
To execute the fast distance tire calibra-
tion procedure, touch the
“Tire
change”
switch on the “Calibration”
screen.
L00132
The above message appears and the fast
distance calibration is automatically star-
ted. A few seconds later, the map screen
returns.

4Runner_Navi_U (L/O 0208)
922003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
MORE ADVANCED FUNCTIONS
Convenient features
Setup93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Map color 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Auto reroute 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Estimated travel time 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Adjusting time zone 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Distance indication 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Notification of seasonal restrictions 104
. . . . . . . . . . . . . . . . . . . . . . . . .
Voice guidance in all modes 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current street name 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Maintenance information 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Calendar with memo 115
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION III
