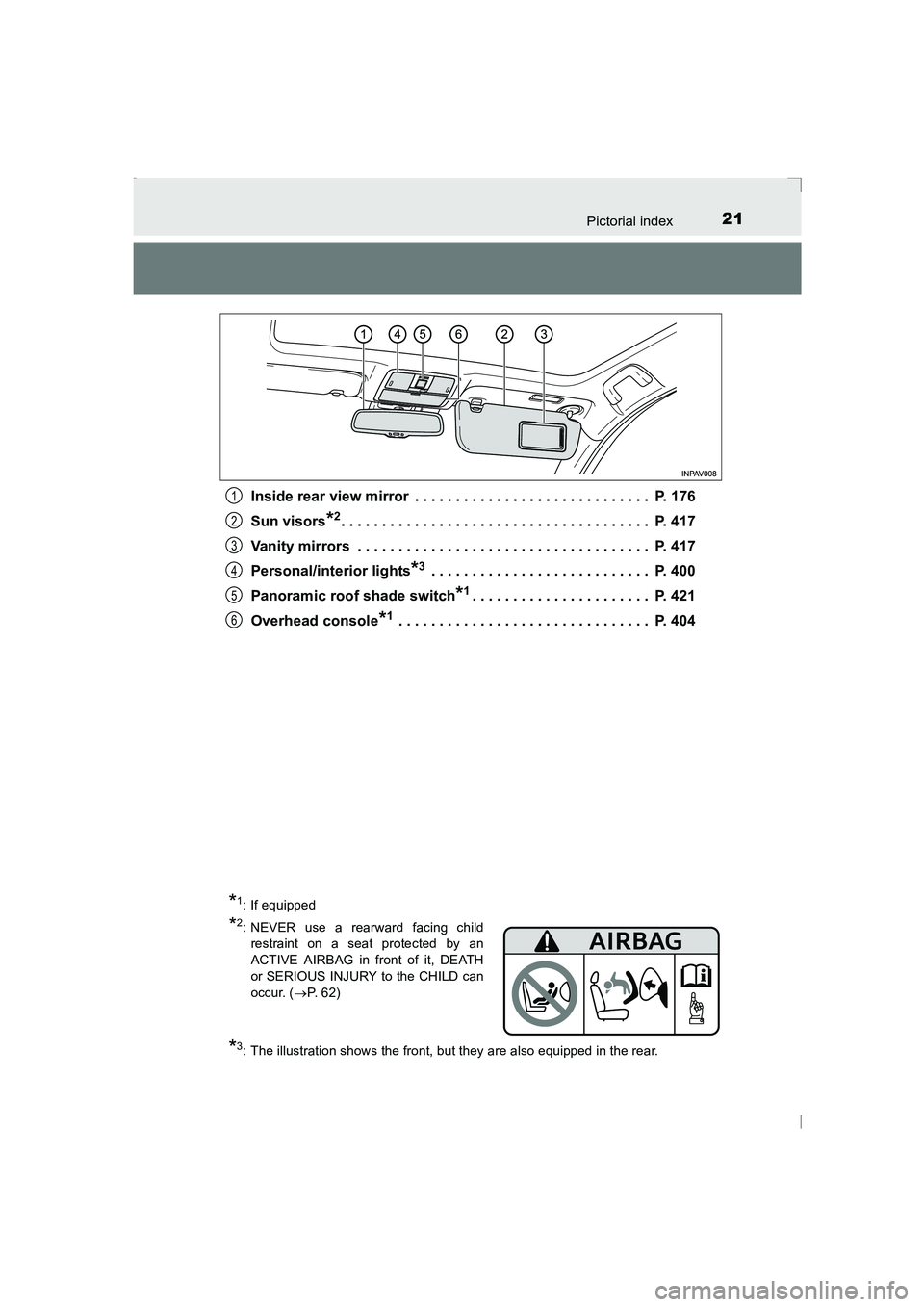

21Pictorial index
AVENSIS_OM_OM20C20E_(EE)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 176
Sun visors
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Personal/interior lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Panoramic roof shade switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 421
Overhead console
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
*3: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
*1: If equipped
*2: NEVER use a rearward facing child restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( →P. 6 2 )
AVENSIS_OM_OM20C20E_(EE).book Page 21 Thursday, January 29, 2 015 1:47 PM
Page 22 of 648
22Pictorial index
AVENSIS_OM_OM20C20E_(EE)

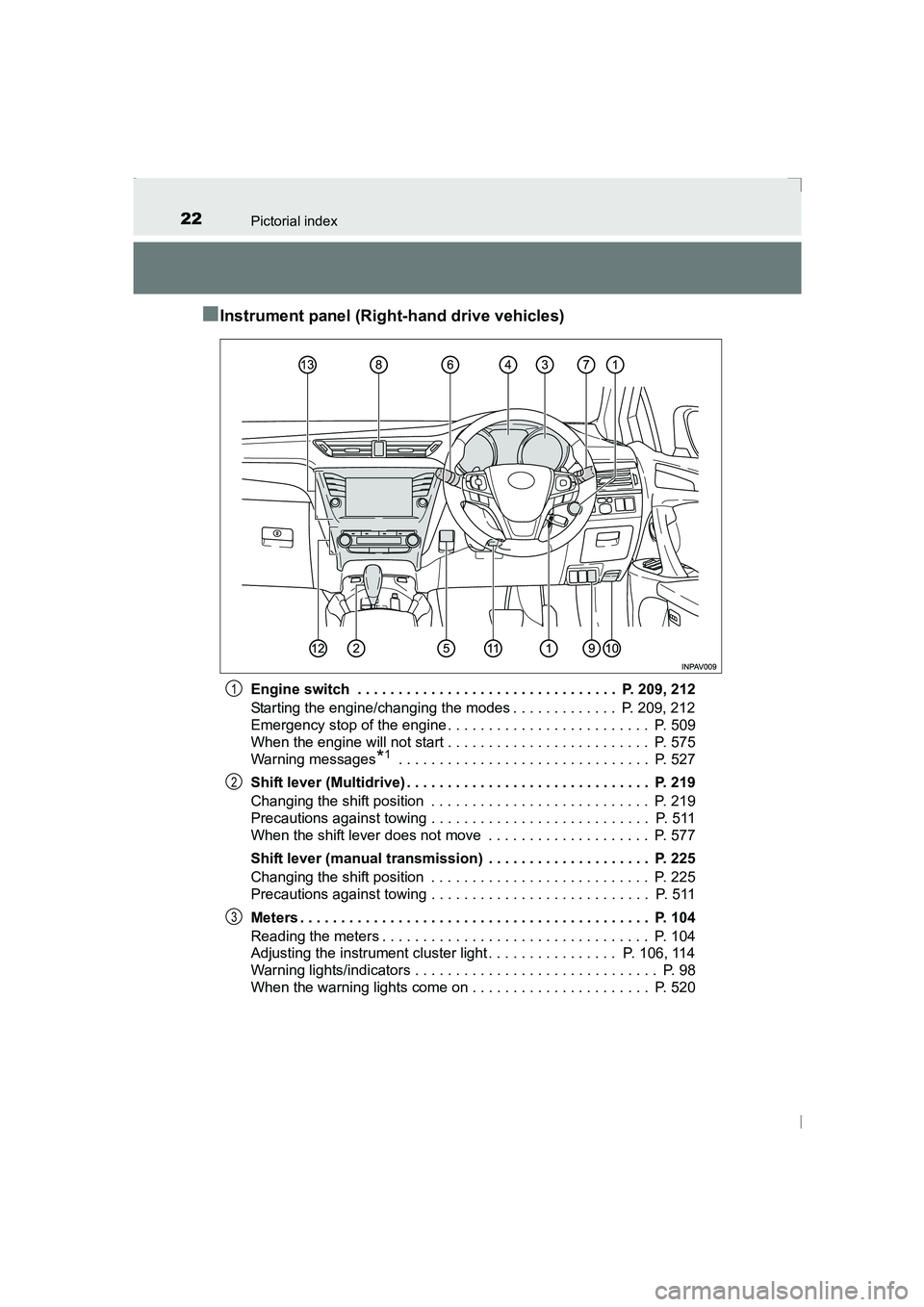

■Instrument panel (Right-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209, 212
Starting the engine/changing the modes . . . . . . . . . . . . . P. 209, 212
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 575
Warning messages
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527
Shift lever (Multidrive) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 511
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 577
Shift lever (manual transmission) . . . . . . . . . . . . . . . . . . . . P. 225
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 511
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Reading the meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Adjusting the instrument cluster light . . . . . . . . . . . . . . . . P. 106, 114
Warning lights/indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 520
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 22 Thursday, January 29, 2 015 1:47 PM

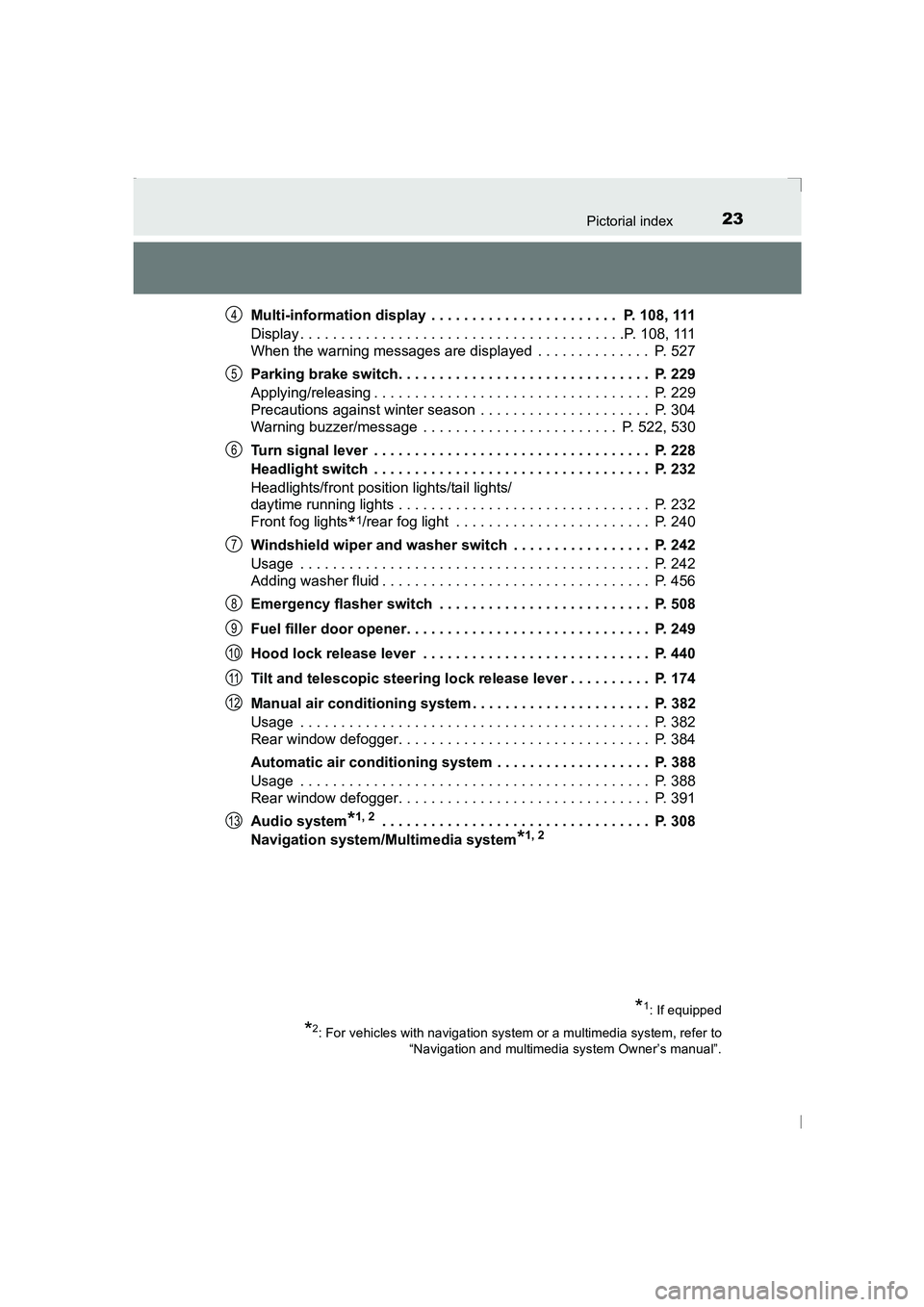

Page 23 of 648
23Pictorial index
AVENSIS_OM_OM20C20E_(EE)Multi-information display . . . . . . . .
. . . . . . . . . . . . . . . P. 108, 111
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 108, 111
When the warning messages are displayed . . . . . . . . . . . . . . P. 527
Parking brake switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 304
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . P. 522, 530
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Front fog lights
*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 242
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 456
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 508
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 174
Manual air conditioning system . . . . . . . . . . . . . . . . . . . . . . P. 382
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
Automatic air conditioning system . . . . . . . . . . . . . . . . . . . P. 388
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 391
Audio system
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Navigation system/Multimedia system
*1, 2
*1: If equipped
*2: For vehicles with navigation system or a multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12
13
AVENSIS_OM_OM20C20E_(EE).book Page 23 Thursday, January 29, 2 015 1:47 PM

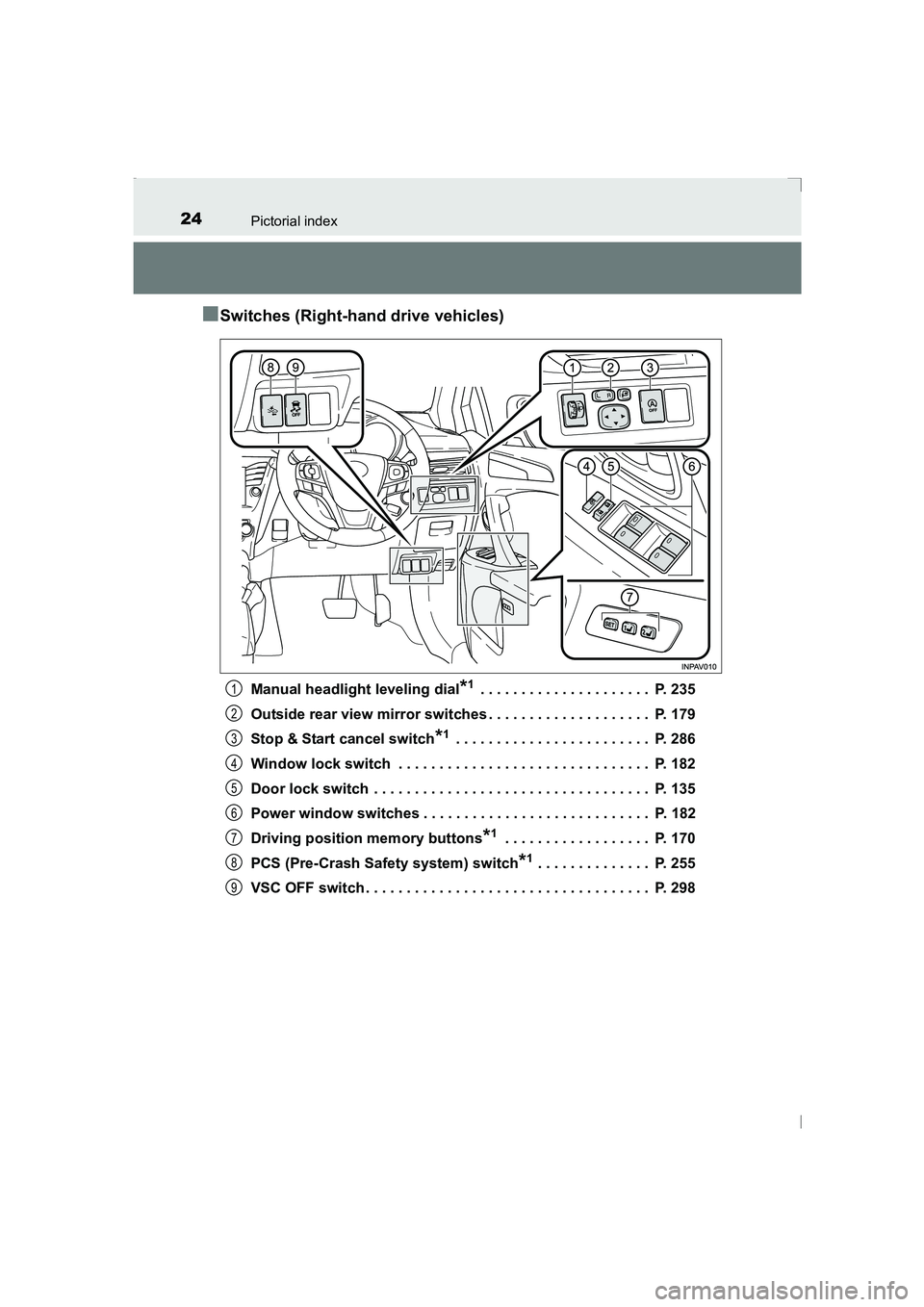

Page 24 of 648
24Pictorial index
AVENSIS_OM_OM20C20E_(EE)
■Switches (Right-hand drive vehicles)
Manual headlight leveling dial*1 . . . . . . . . . . . . . . . . . . . . . P. 235
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 179
Stop & Start cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 286
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Driving position memory buttons
*1 . . . . . . . . . . . . . . . . . . P. 170
PCS (Pre-Crash Safety system) switch
*1 . . . . . . . . . . . . . . P. 255
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 24 Thursday, January 29, 2 015 1:47 PM

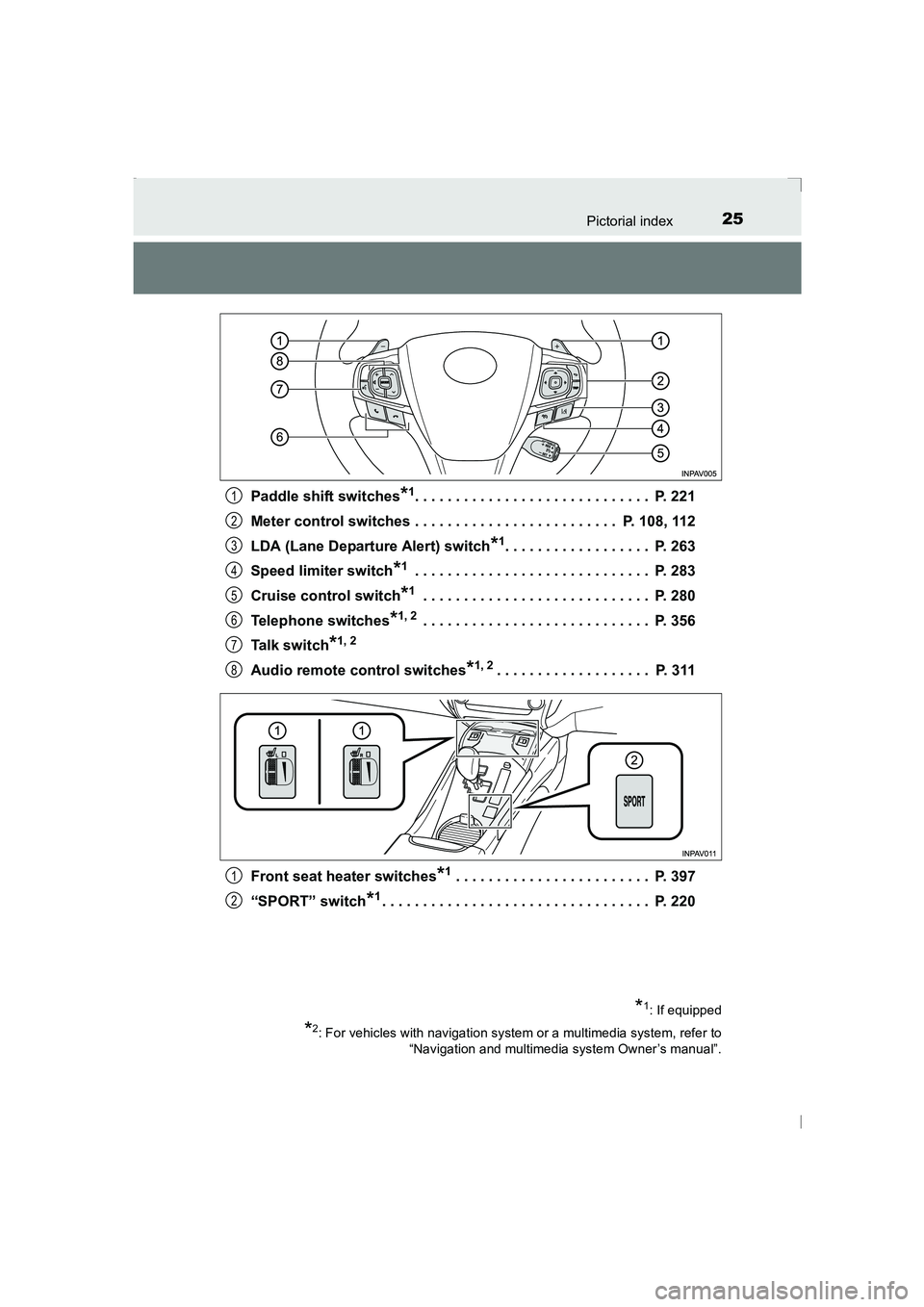

Page 25 of 648
25Pictorial index
AVENSIS_OM_OM20C20E_(EE)Paddle shift switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 108, 112
LDA (Lane Departure Alert) switch
*1. . . . . . . . . . . . . . . . . . P. 263
Speed limiter switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
Cruise control switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Telephone switches
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Talk switch
*1, 2
Audio remote control switches*1, 2. . . . . . . . . . . . . . . . . . . P. 311
Front seat heater switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 397
“SPORT” switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
1
2
3
4
5
6
7
8
*1: If equipped
*2: For vehicles with navigation system or a multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 25 Thursday, January 29, 2 015 1:47 PM

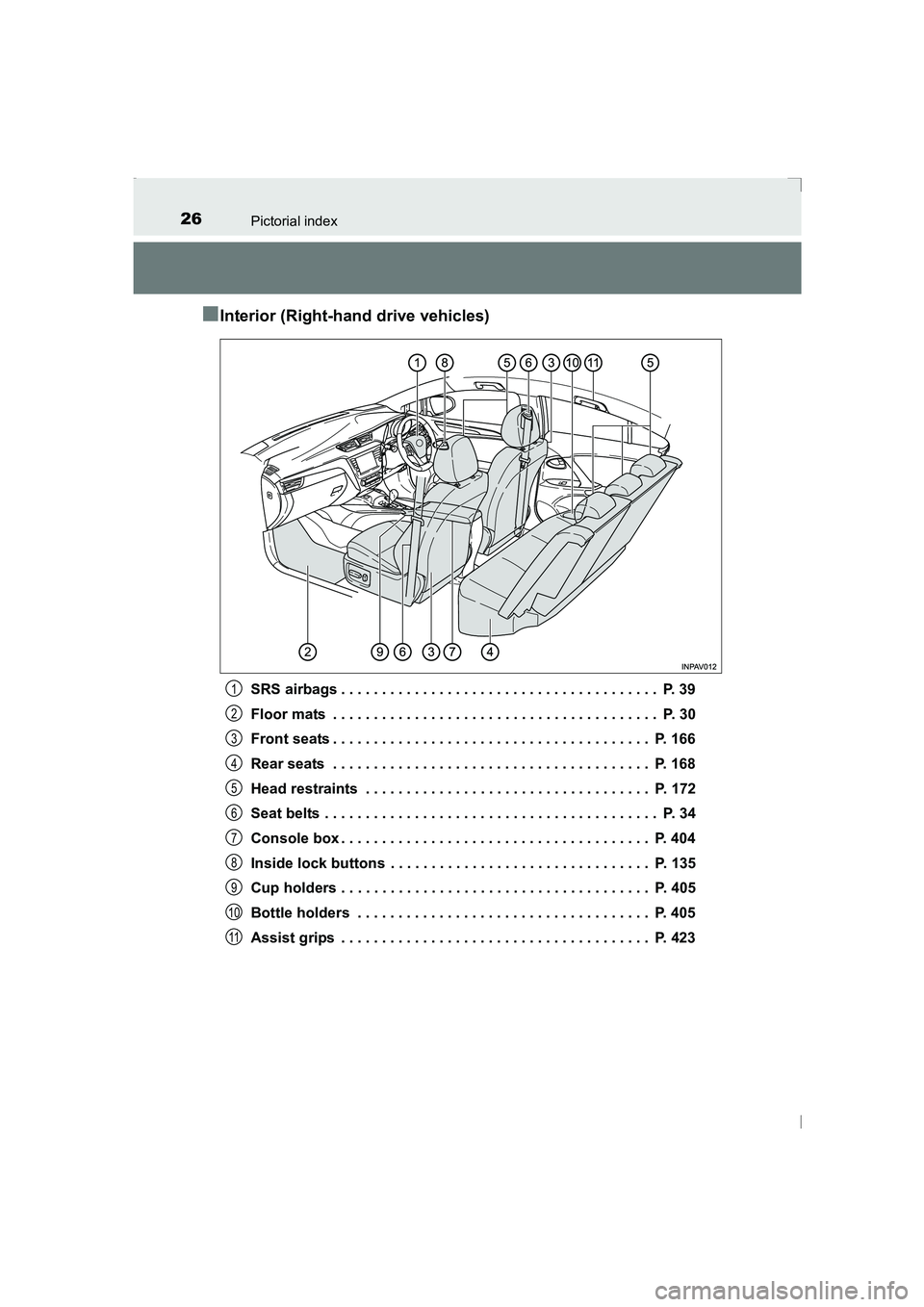

Page 26 of 648
26Pictorial index
AVENSIS_OM_OM20C20E_(EE)
■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4231
2
3
4
5
6
7
8
9
10
11
AVENSIS_OM_OM20C20E_(EE).book Page 26 Thursday, January 29, 2015 1:47 PM

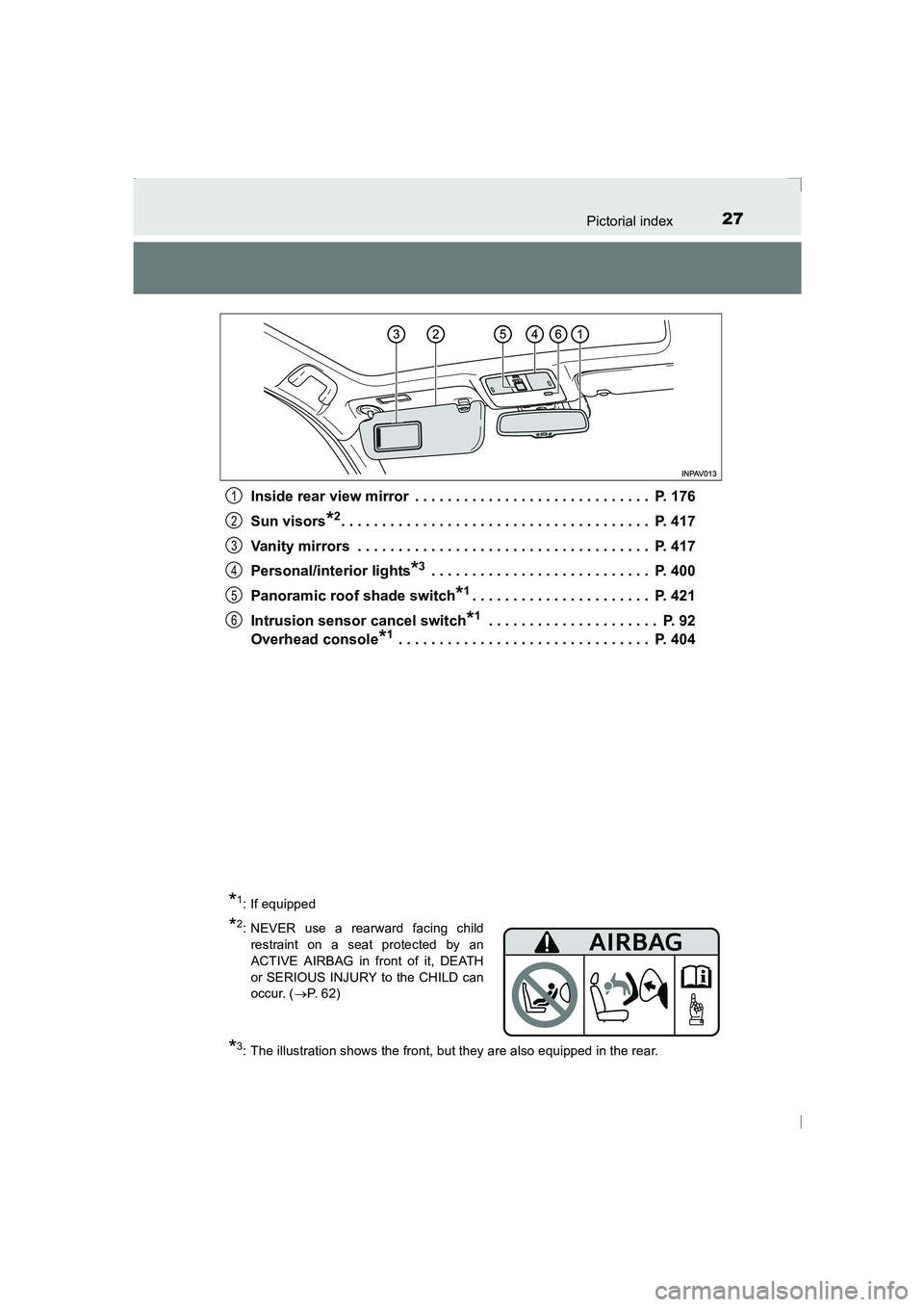

Page 27 of 648
27Pictorial index
AVENSIS_OM_OM20C20E_(EE)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 176
Sun visors
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Personal/interior lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Panoramic roof shade switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 421
Intrusion sensor cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . P. 92
Overhead console
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
*3: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
*1: If equipped
*2: NEVER use a rearward facing child restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( →P. 6 2 )
AVENSIS_OM_OM20C20E_(EE).book Page 27 Thursday, January 29, 2 015 1:47 PM
Page 28 of 648
28Pictorial index
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 28 Thursday, January 29, 2015 1:47 PM
Page 29 of 648
29
1For safety and security
AVENSIS_OM_OM20C20E_(EE)1-1. For safe use
Before driving....................... 30
For safety drive .................... 32
Seat belts ............................. 34
SRS airbags.........................39
Exhaust gas precautions ..... 51
1-2. Child safety Airbag manual on-off system ............................... 52
Safety information for children .............................. 54
Child restraint systems ........ 55
1-3. Theft deterrent system Engine immobilizer system ............................... 78
Double locking system ......... 87
Alarm ................................... 89
AVENSIS_OM_OM20C20E_(EE).book Page 29 Thursday, January 29, 2 015 1:47 PM
Page 30 of 648
301-1. For safe use
AVENSIS_OM_OM20C20E_(EE)
Before driving

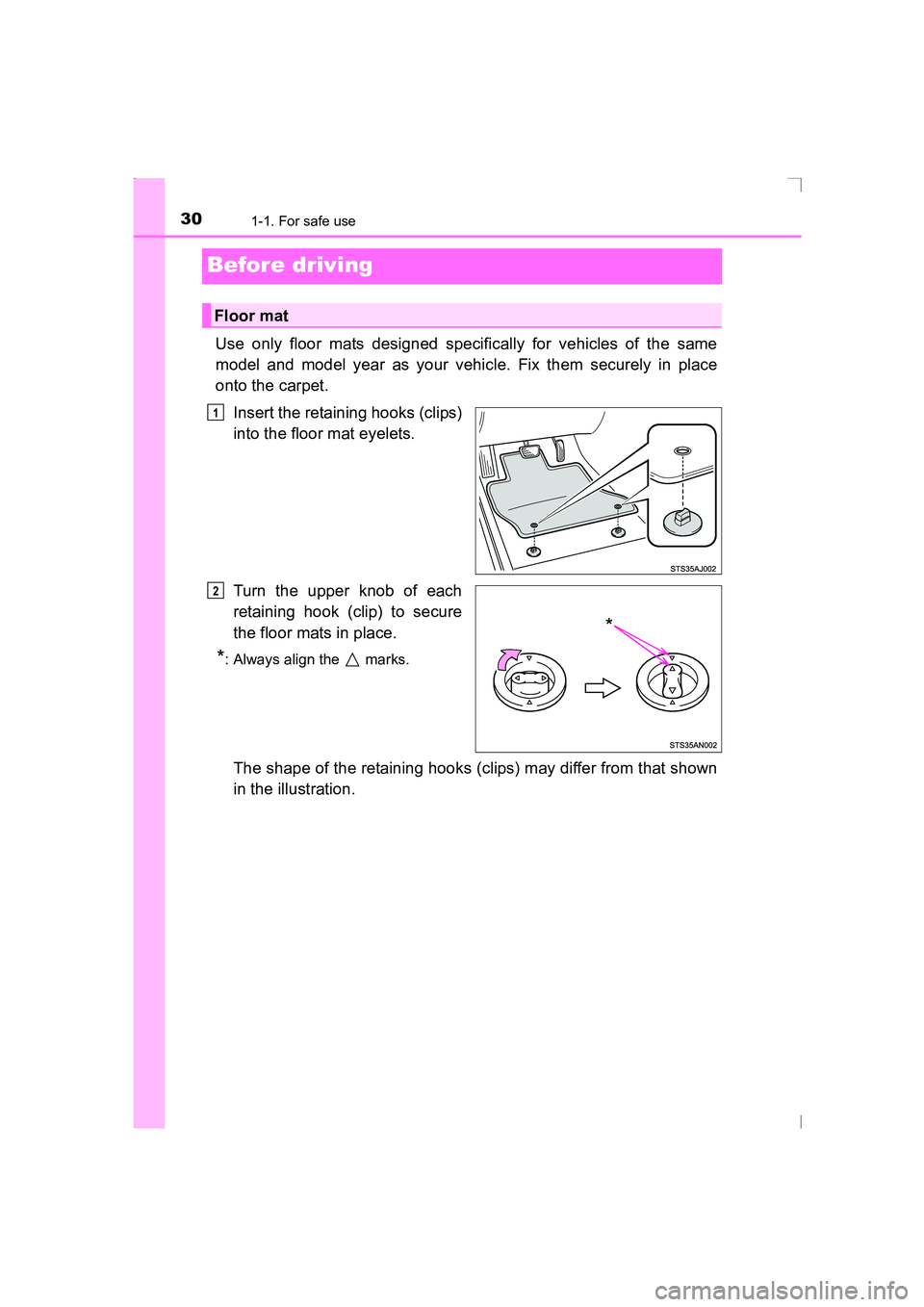

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet. Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
Floor mat
1
*
2
AVENSIS_OM_OM20C20E_(EE).book Page 30 Thursday, January 29, 2 015 1:47 PM
