TOYOTA AYGO 2012 Owners Manual (in English)

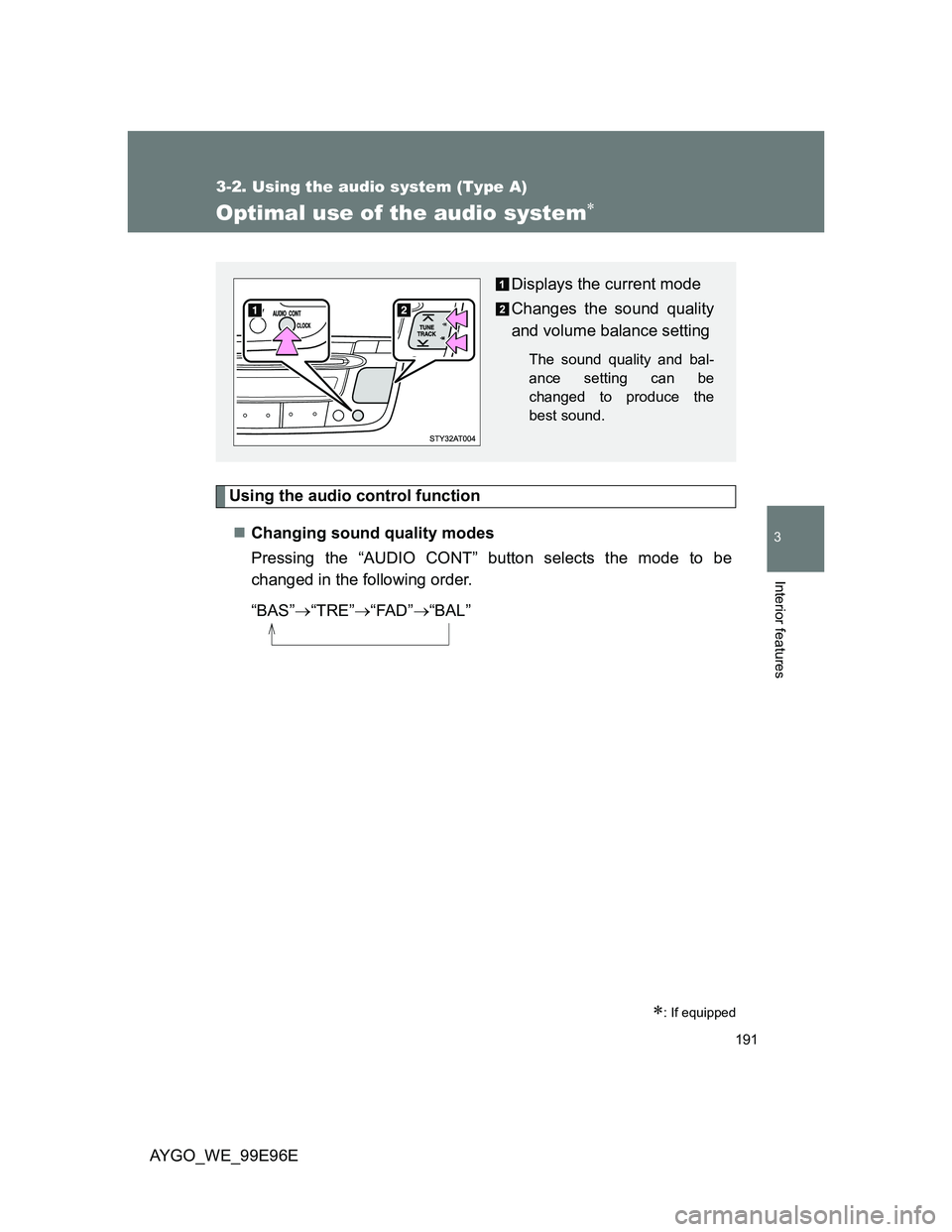

191
3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E
Optimal use of the audio system
Using the audio control function
Changing sound quality modes
Pressing the “AUDIO CONT” button selects the mode to be
changed in the following order.
“BAS”“TRE”“FAD”“BAL”
: If equipped
Displays the current mode
Changes the sound quality
and volume balance setting
The sound quality and bal-
ance setting can be
changed to produce the
best sound.

192 3-2. Using the audio system (Type A)

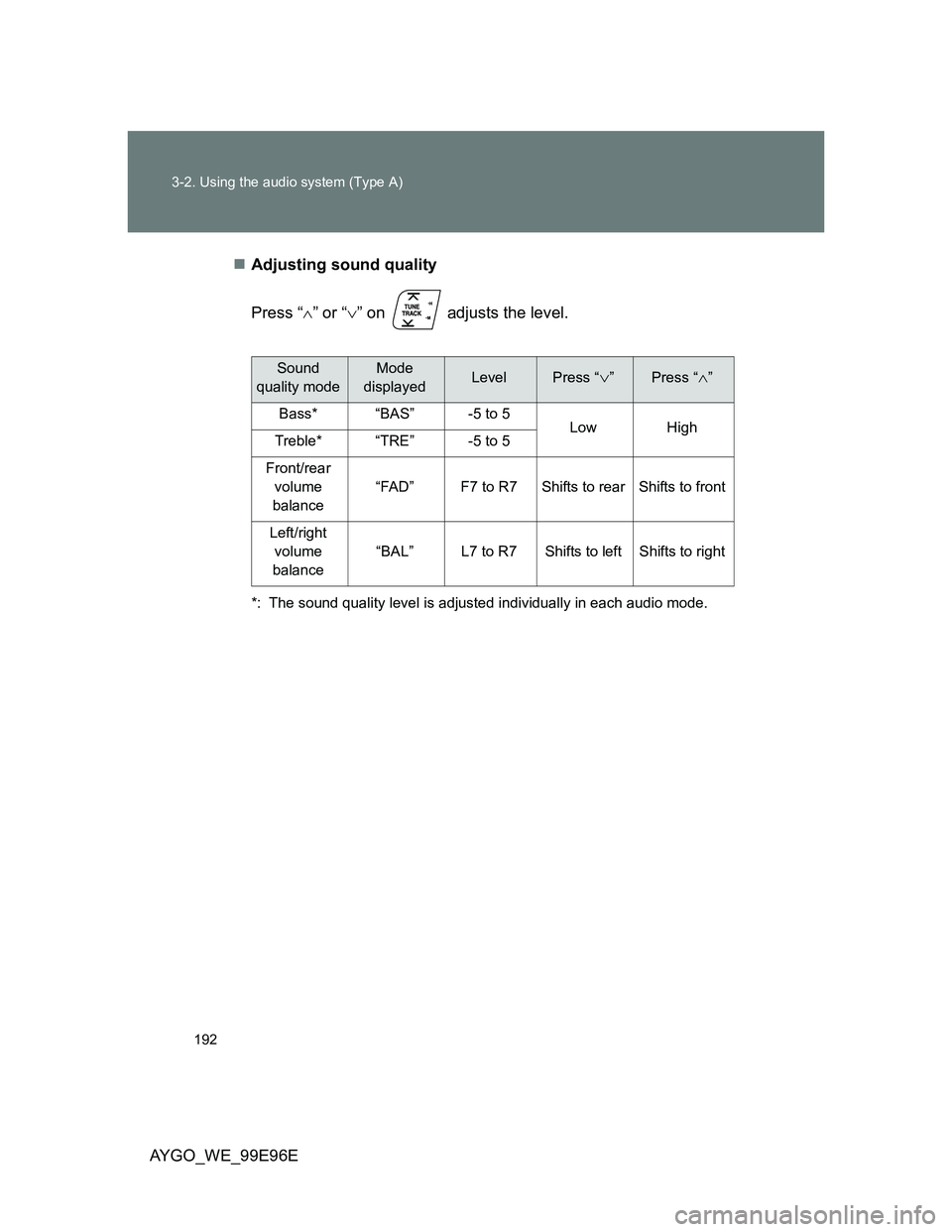

AYGO_WE_99E96EAdjusting sound quality
Press “” or “” on adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Sound
quality modeMode
displayedLevelPress “”Press “”
Bass*“BAS”-5 to 5LowHighTreble*“TRE”-5 to 5
Front/rear
volume
balance
“FAD”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“BAL”L7 to R7Shifts to leftShifts to right

193
3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E

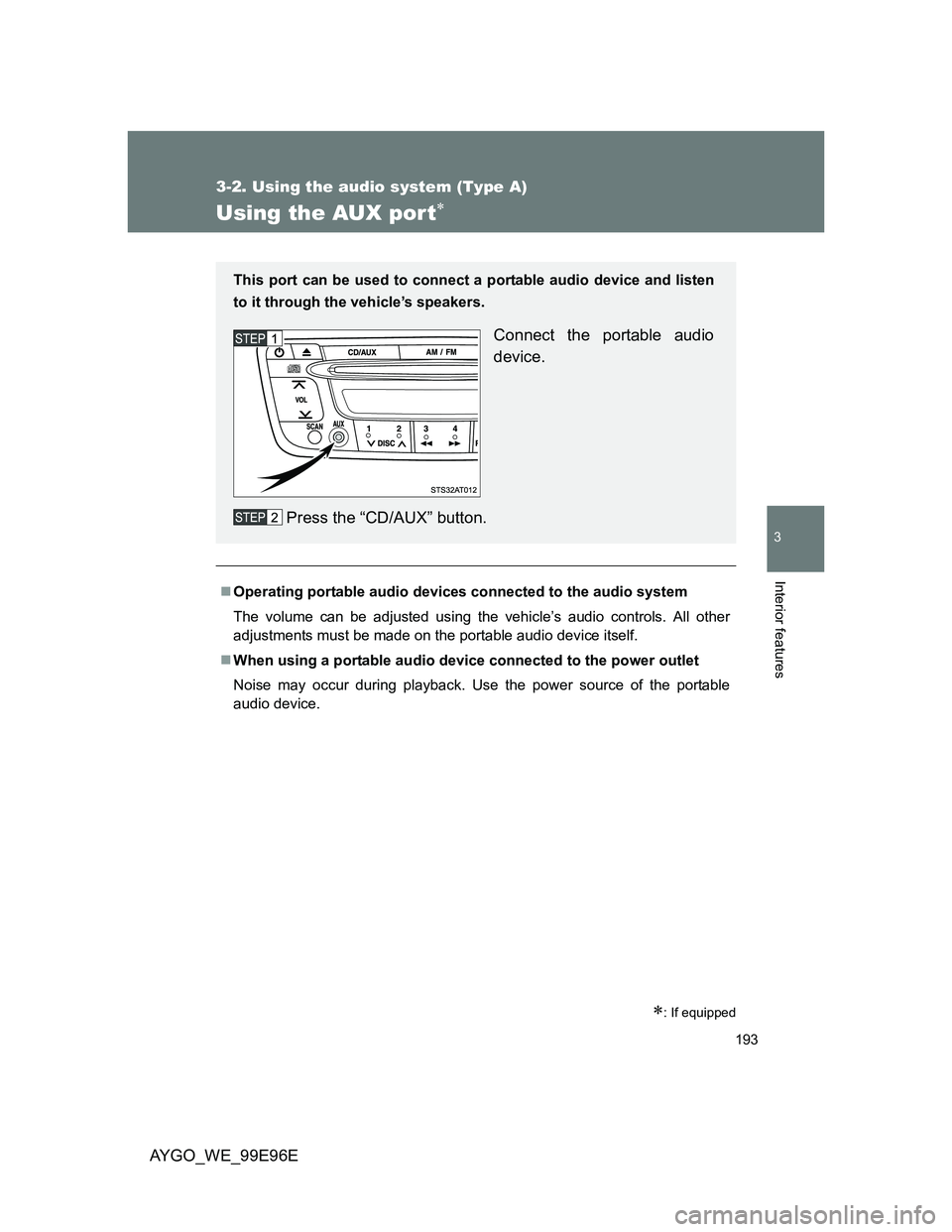

Using the AUX por t
: If equipped
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Connect the portable audio
device.
Press the “CD/AUX” button.

194
AYGO_WE_99E96E

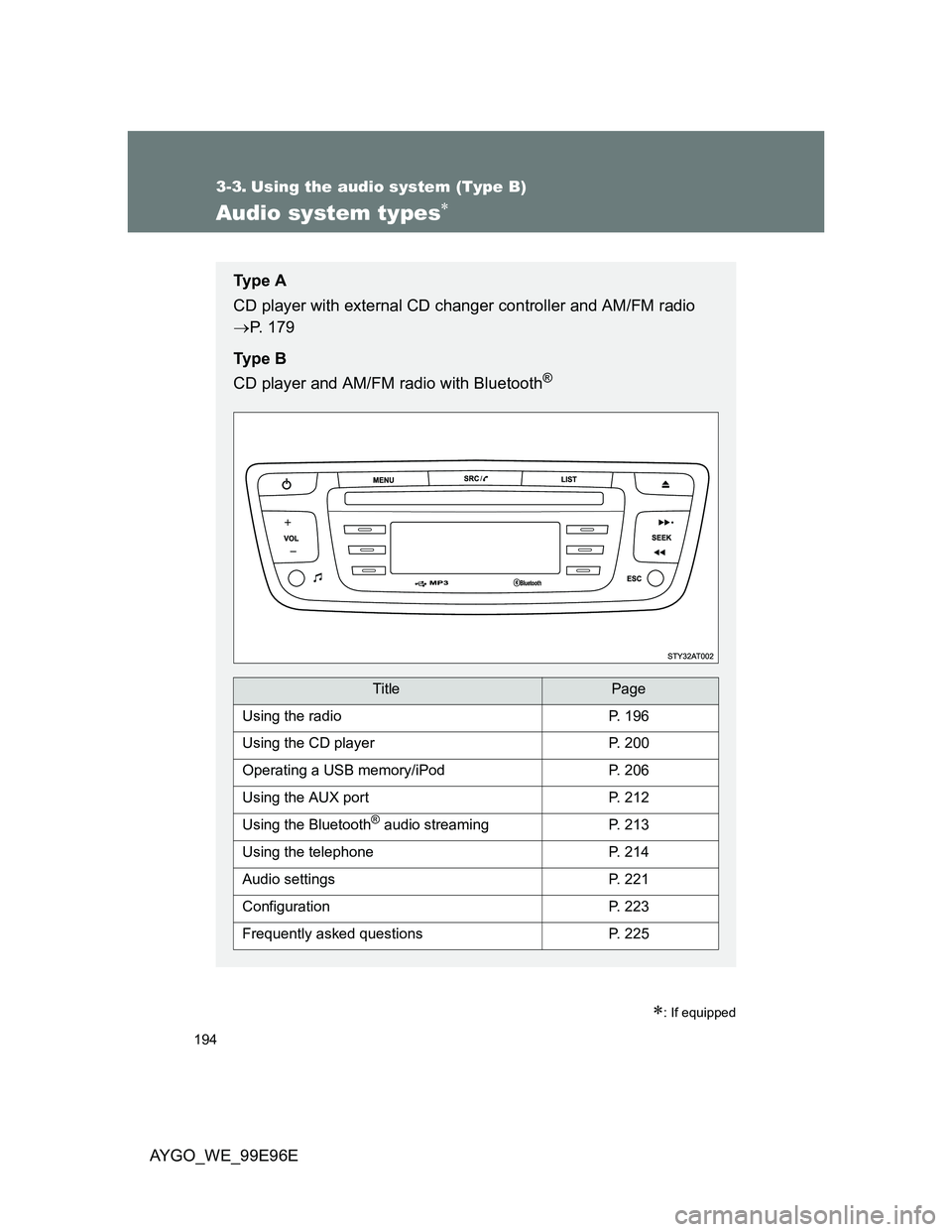

3-3. Using the audio system (Type B)
Audio system types
: If equipped
Ty p e A
CD player with external CD changer controller and AM/FM radio
P. 179
Ty p e B
CD player and AM/FM radio with Bluetooth
®
TitlePage
Using the radioP. 196
Using the CD playerP. 200
Operating a USB memory/iPodP. 206
Using the AUX portP. 212
Using the Bluetooth® audio streamingP. 213
Using the telephoneP. 214
Audio settingsP. 221
ConfigurationP. 223
Frequently asked questionsP. 225

195 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99E96E

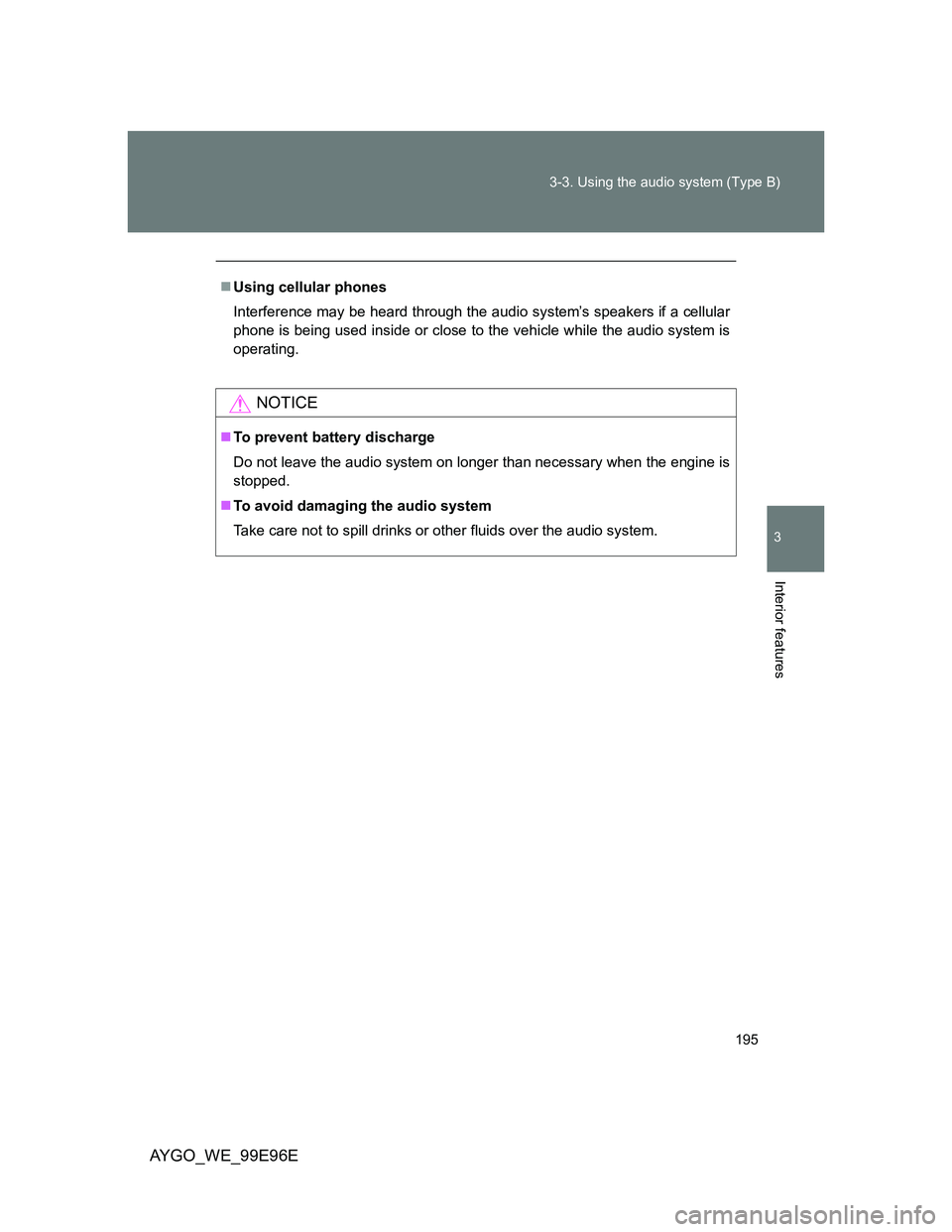

Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is
stopped.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

196
3-3. Using the audio system (Type B)
AYGO_WE_99E96E

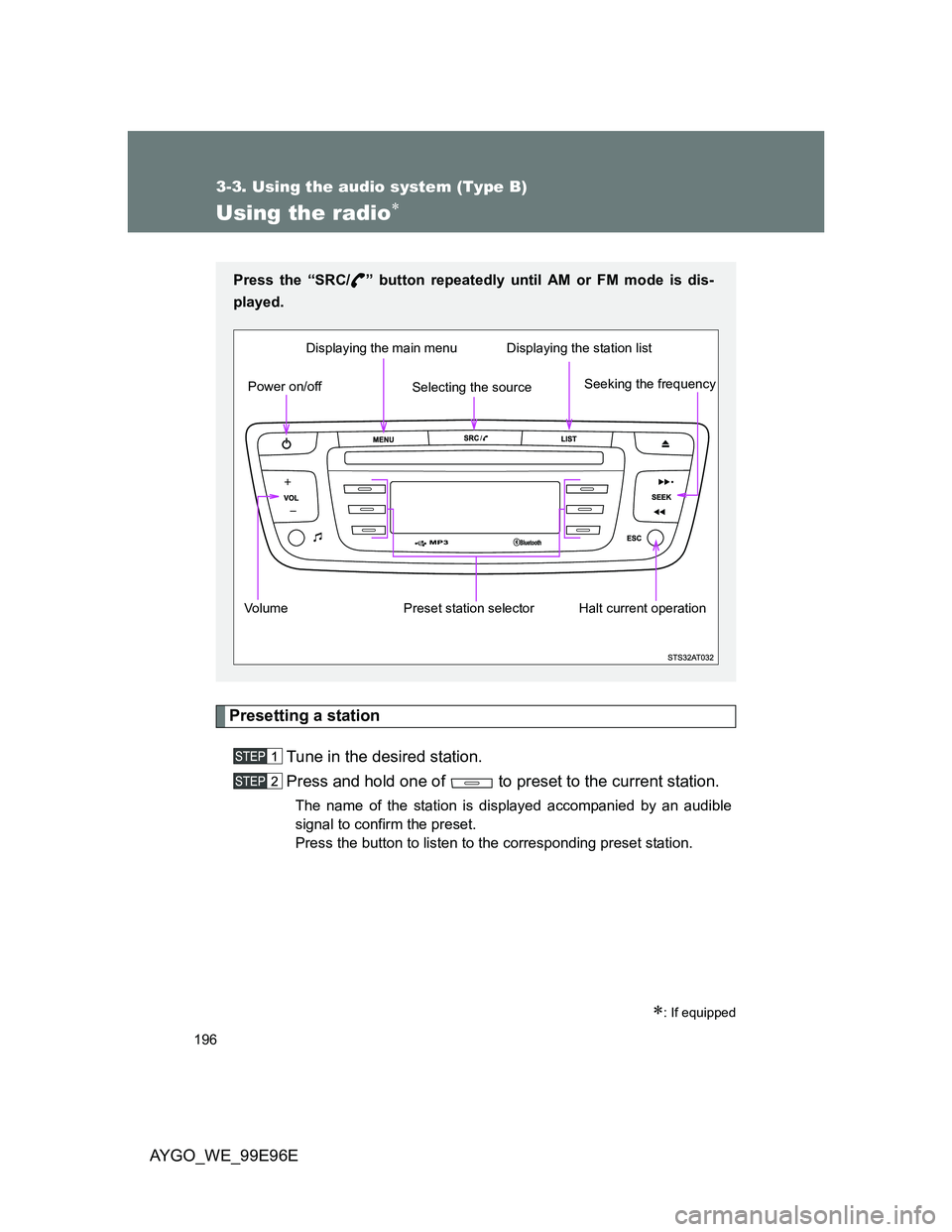

Using the radio
Presetting a station
Tune in the desired station.
Press and hold one of to preset to the current station.
The name of the station is displayed accompanied by an audible
signal to confirm the preset.
Press the button to listen to the corresponding preset station.
: If equipped
Press the “SRC/ ” button repeatedly until AM or FM mode is dis-
played.
Volume Preset station selectorSeeking the frequency Displaying the main menu
Power on/offDisplaying the station list
Halt current operation
Selecting the source

197 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99E96E

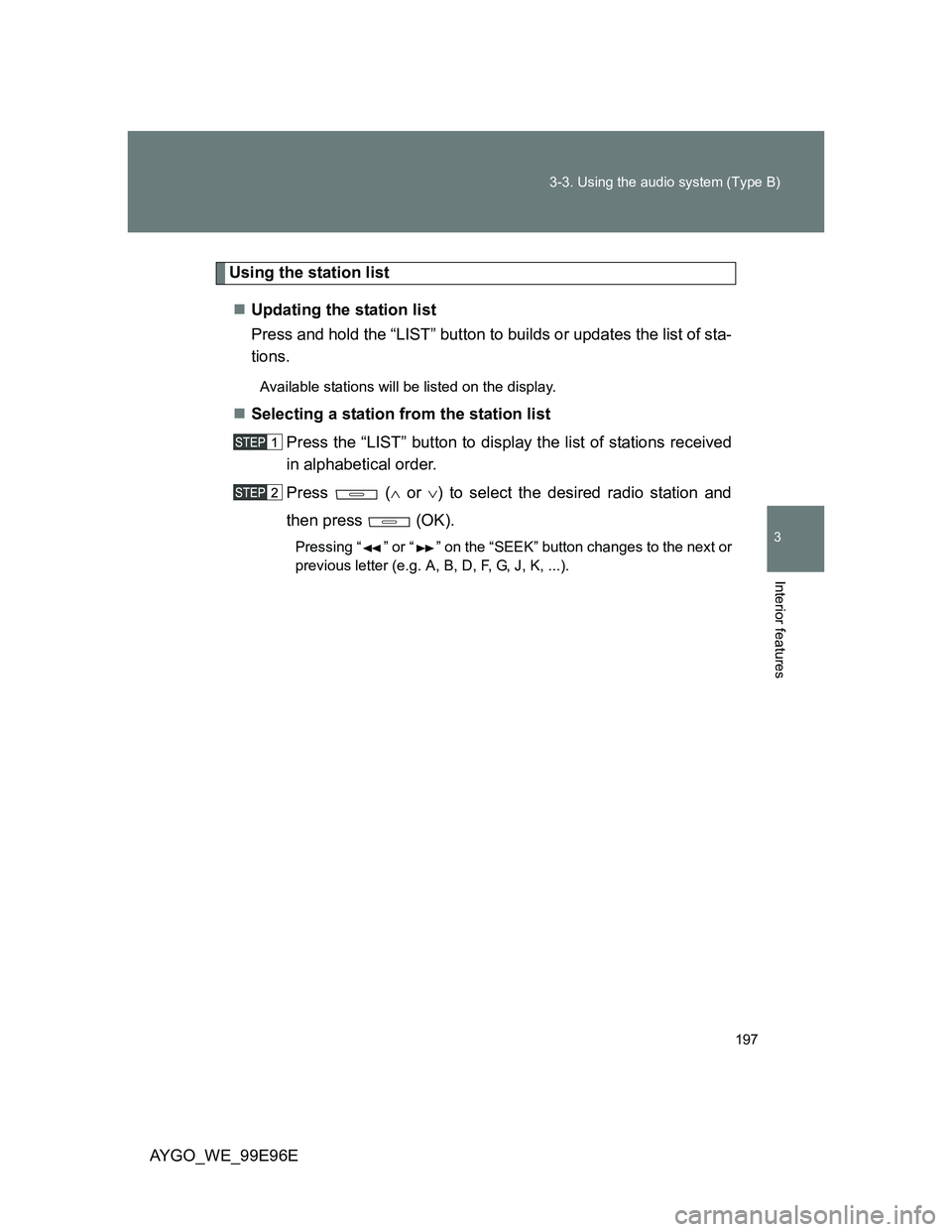

Using the station list
Updating the station list
Press and hold the “LIST” button to builds or updates the list of sta-
tions.
Available stations will be listed on the display.
Selecting a station from the station list
Press the “LIST” button to display the list of stations received
in alphabetical order.
Press ( or ) to select the desired radio station and
then press (OK).
Pressing “ ” or “ ” on the “SEEK” button changes to the next or
previous letter (e.g. A, B, D, F, G, J, K, ...).

198 3-3. Using the audio system (Type B)
AYGO_WE_99E96E

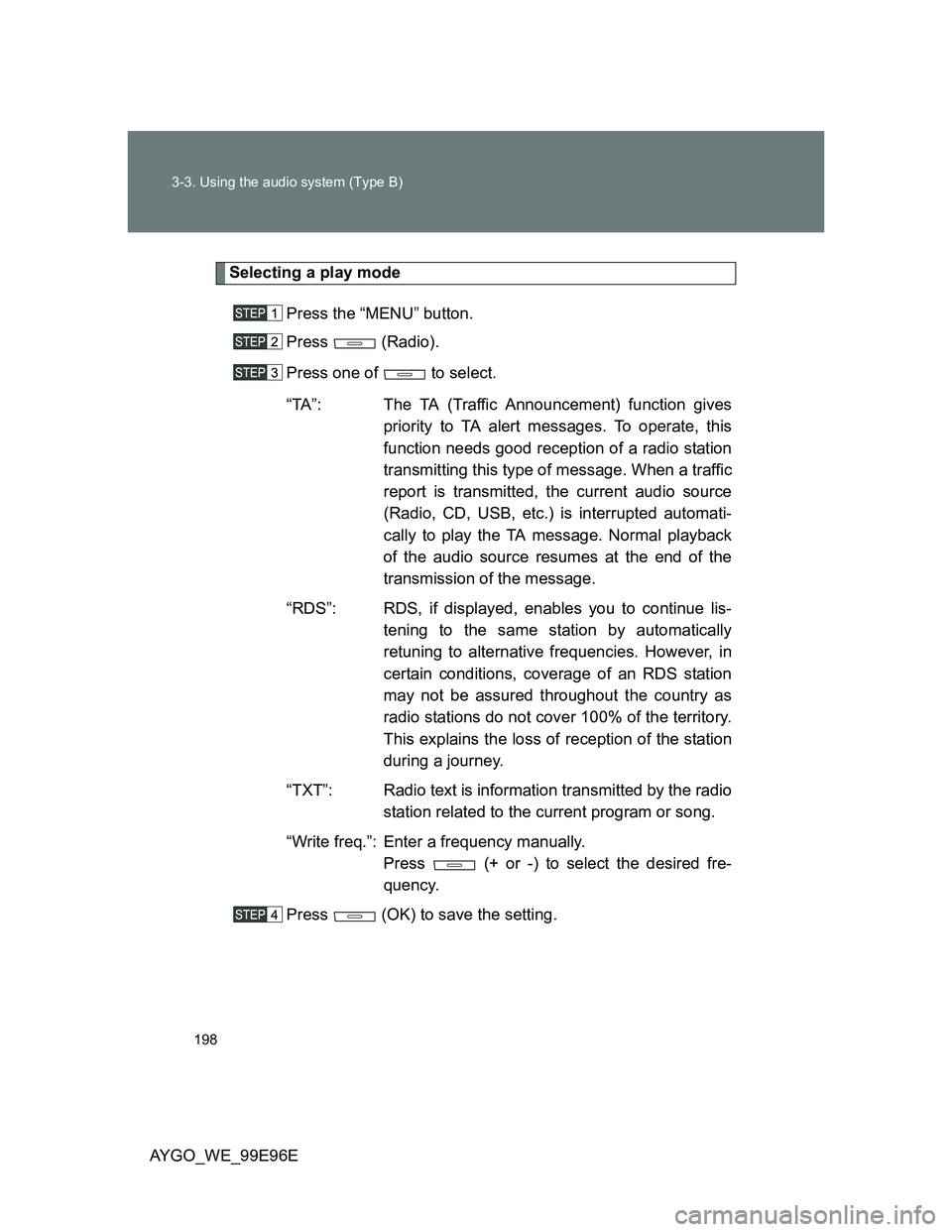

Selecting a play mode
Press the “MENU” button.
Press (Radio).
Press one of to select.
“TA”: The TA (Traffic Announcement) function gives
priority to TA alert messages. To operate, this
function needs good reception of a radio station
transmitting this type of message. When a traffic
report is transmitted, the current audio source
(Radio, CD, USB, etc.) is interrupted automati-
cally to play the TA message. Normal playback
of the audio source resumes at the end of the
transmission of the message.
“RDS”: RDS, if displayed, enables you to continue lis-
tening to the same station by automatically
retuning to alternative frequencies. However, in
certain conditions, coverage of an RDS station
may not be assured throughout the country as
radio stations do not cover 100% of the territory.
This explains the loss of reception of the station
during a journey.
“TXT”: Radio text is information transmitted by the radio
station related to the current program or song.
“Write freq.”: Enter a frequency manually.
Press (+ or -) to select the desired fre-
quency.
Press (OK) to save the setting.

199 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99E96E
Reception sensitivity
The exterior environment (hills, buildings, tunnel, car park, below
ground...) may prevent reception, even in RDS station tracking
mode.This phenomenon is normal in the propagation of radio waves and
is in no way indicative of a fault with the audio system.
The radio antenna is mounted on the roof. The antenna can be removed
from the base by turning it.
NOTICE
To prevent damage, remove the antenna in the following cases.
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.

200
3-3. Using the audio system (Type B)
AYGO_WE_99E96E

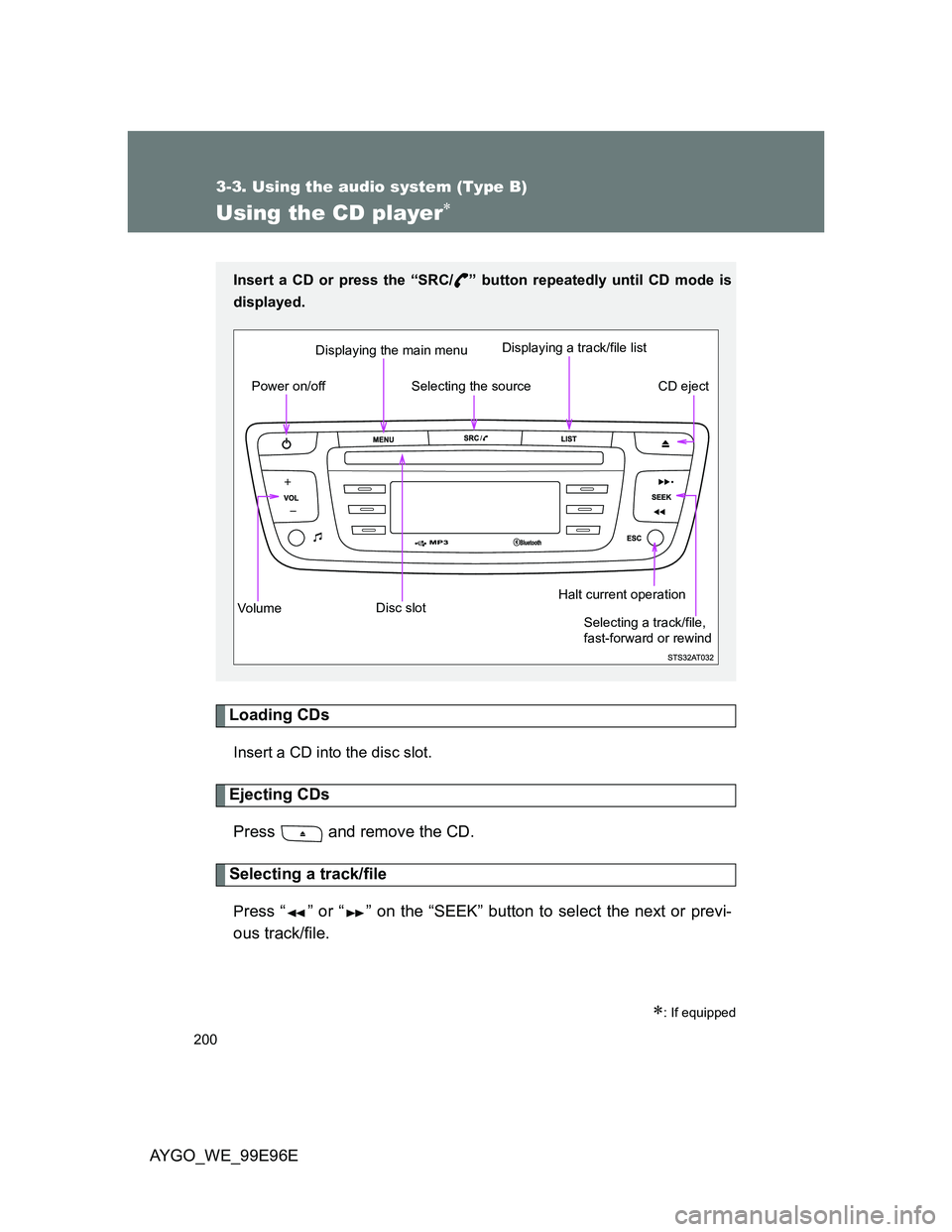

Using the CD player
Loading CDs
Insert a CD into the disc slot.
Ejecting CDs
Press and remove the CD.
Selecting a track/file
Press “ ” or “ ” on the “SEEK” button to select the next or previ-
ous track/file.
: If equipped
Insert a CD or press the “SRC/ ” button repeatedly until CD mode is
displayed.
Vo lu m eDisc slotCD eject Displaying the main menu
Power on/offDisplaying a track/file listHalt current operation
Selecting the source
Selecting a track/file,
fast-forward or rewind
