511-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E

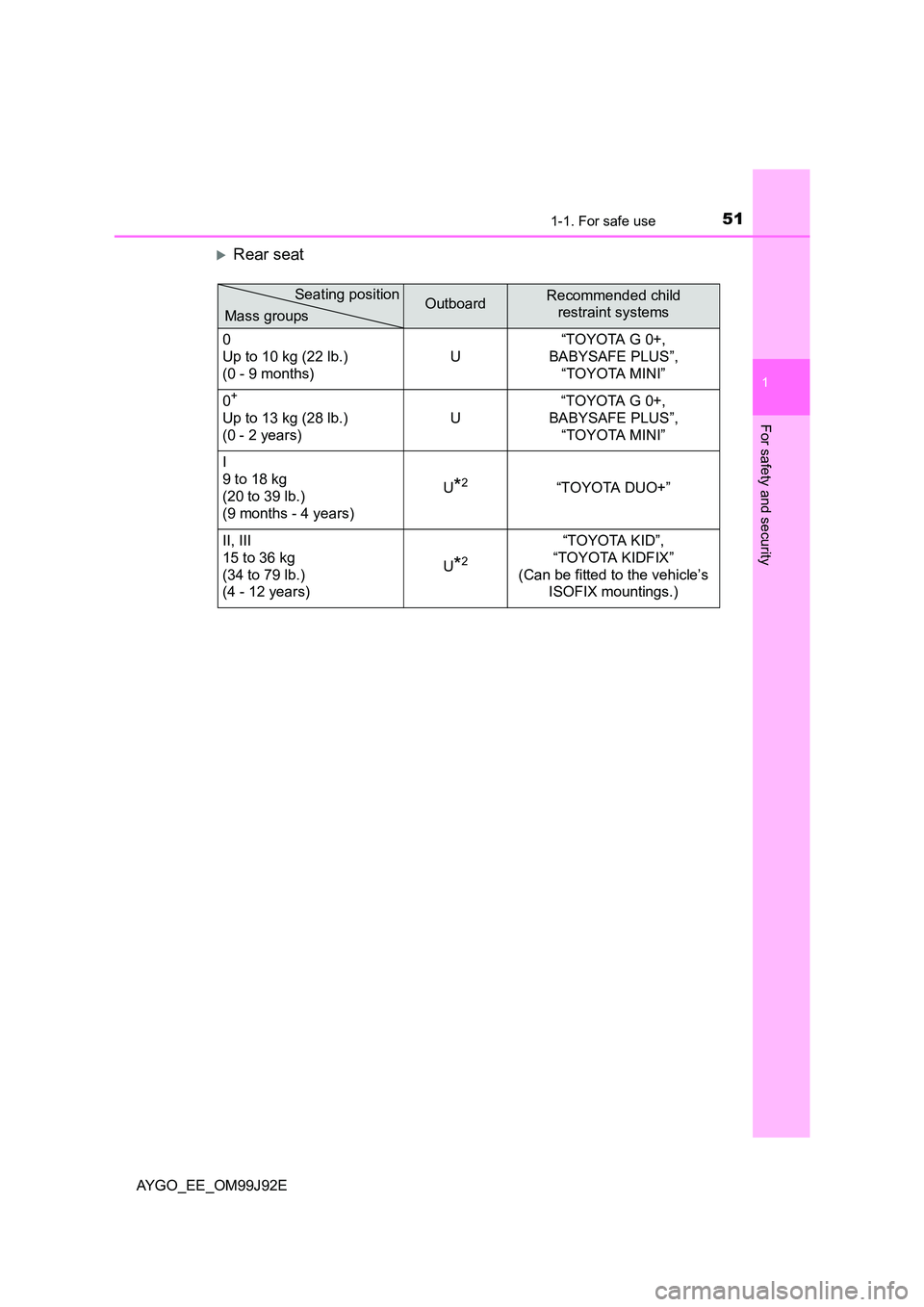

XRear seat
OutboardRecommended child
restraint systems
0
Up to 10 kg (22 lb.)
(0 - 9 months)
U
“TOYOTA G 0+,
BABYSAFE PLUS”,
“TOYOTA MINI”
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
U
“TOYOTA G 0+,
BABYSAFE PLUS”,
“TOYOTA MINI”
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
U*2“TOYOTA DUO+”
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
U*2
“TOYOTA KID”,
“TOYOTA KIDFIX”
(Can be fitted to the vehicle’s
ISOFIX mountings.)
Mass groups
Seating position

521-1. For safe use
AYGO_EE_OM99J92E
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved
for use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
systems approved for use in this mass group.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seatback to the most upright position.
If the passenger seat is equipped with a vertical height adjuster, it
must be placed in the upper most position.
Follow these procedures:
• For installing a baby seat with support base
If the baby seat interferes with the seatback when latching the
baby seat into the support base, adjust the seatback rearward
until there is no interference.
• For installing a forward-facing child seat
If there is gap between the child seat and the seatback, tilt the
seatback rearward until good contact is achieved.
If the seat belt shoulder anchor is ahead of the child seat belt
guide, move the seat cushion forward.
• For installing a junior seat
If the child in your child restraint system is in a very upright
position, adjust the seatback to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt
guide, move the seat cushion forward.
*2: If the head restraint interferes with your child restraint system,
and the head restraint can be removed, remove the head
restraint.
● Adjust the front seat so that it does not interfere with the child or
child restraint system.
● The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
● Other child restraint systems which are different from the systems
mentioned in the table can be used, but the suitability of the sys-
tems must be carefully checked with the child restraint system man-
ufacturer concerned and the seller of those seats.

531-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E
Information provided in the table shows your child restraint system
suitability for various seating positions.

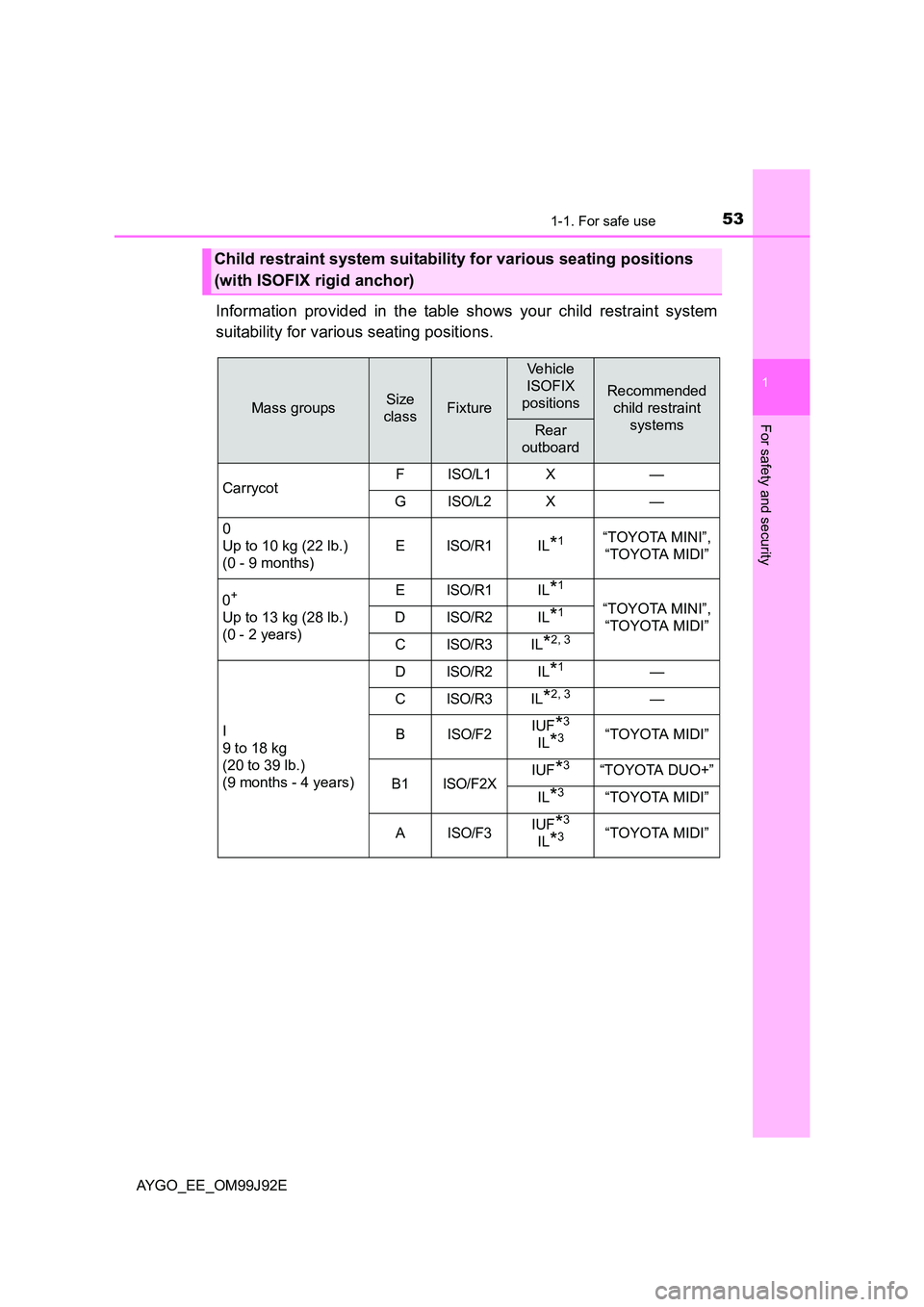

Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor)
Mass groupsSize
classFixture
Vehicle
ISOFIX
positionsRecommended
child restraint
systemsRear
outboard
Carrycot FISO/L1X—
GISO/L2X—
0
Up to 10 kg (22 lb.)
(0 - 9 months)
EISO/R1IL*1“TOYOTA MINI”,
“TOYOTA MIDI”
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
EISO/R1IL*1
“TOYOTA MINI”,
“TOYOTA MIDI” DISO/R2IL*1
CISO/R3IL*2, 3
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
DISO/R2IL*1—
CISO/R3IL*2, 3—
BISO/F2IUF*3
IL*3“TOYOTA MIDI”
B1ISO/F2XIUF*3 “TOYOTA DUO+”
IL*3“TOYOTA MIDI”
AISO/F3IUF*3
IL*3“TOYOTA MIDI”

541-1. For safe use
AYGO_EE_OM99J92E

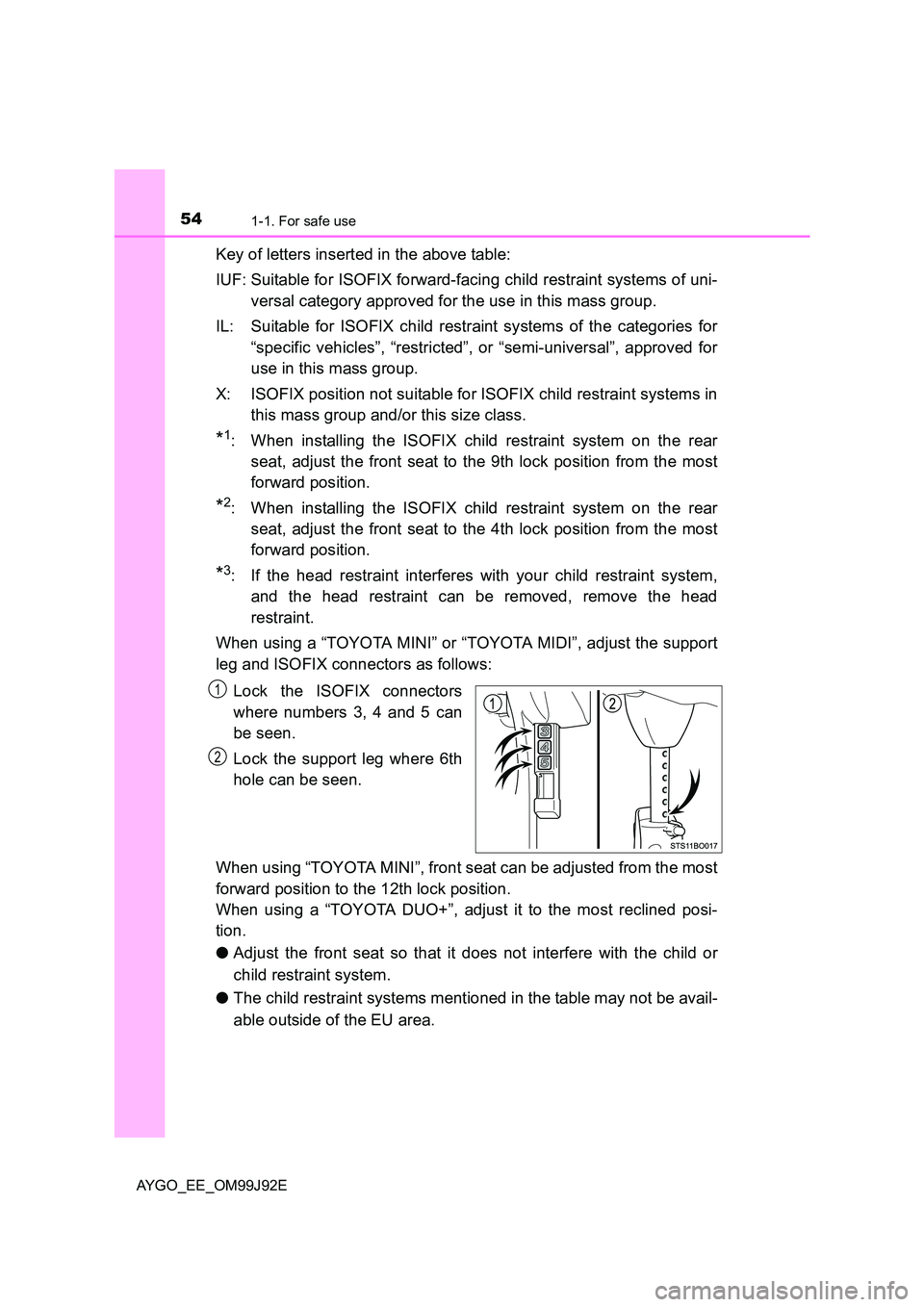

Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for the use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for
“specific vehicles”, “restricted”, or “semi-universal”, approved for
use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*1: When installing the ISOFIX child restraint system on the rear
seat, adjust the front seat to the 9th lock position from the most
forward position.
*2: When installing the ISOFIX child restraint system on the rear
seat, adjust the front seat to the 4th lock position from the most
forward position.
*3: If the head restraint interferes with your child restraint system,
and the head restraint can be removed, remove the head
restraint.
When using a “TOYOTA MINI” or “TOYOTA MIDI”, adjust the support
leg and ISOFIX connectors as follows:
Lock the ISOFIX connectors
where numbers 3, 4 and 5 can
be seen.
Lock the support leg where 6th
hole can be seen.
When using “TOYOTA MINI”, front seat can be adjusted from the most
forward position to the 12th lock position.
When using a “TOYOTA DUO+”, adjust it to the most reclined posi-
tion.
● Adjust the front seat so that it does not interfere with the child or
child restraint system.
● The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
1
2

551-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E
●Other child restraint systems different from the systems mentioned
in the table can be used, but the suitability of the systems must be
carefully checked with the child restraint system manufacturer and
retailer.

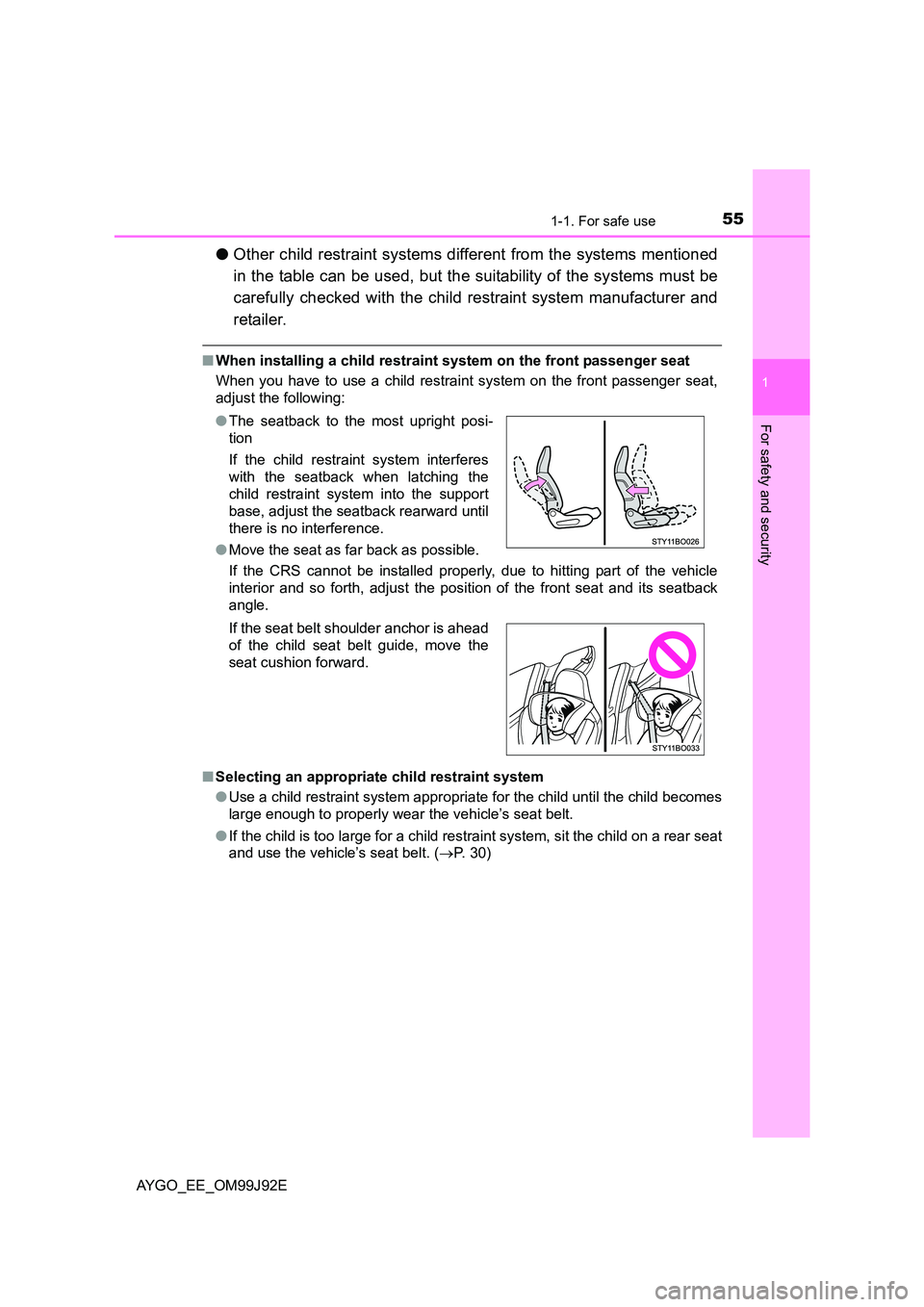

■ When installing a child restraint system on the front passenger seat
When you have to use a child restraint system on the front passenger seat,
adjust the following:
If the CRS cannot be installed properly, due to hitting part of the vehicle
interior and so forth, adjust the position of the front seat and its seatback
angle.
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. ( →P. 30)
● The seatback to the most upright posi-
tion
If the child restraint system interferes
with the seatback when latching the
child restraint system into the support
base, adjust the seatback rearward until
there is no interference.
● Move the seat as far back as possible.
If the seat belt shoulder anchor is ahead
of the child seat belt guide, move the
seat cushion forward.

561-1. For safe use
AYGO_EE_OM99J92E

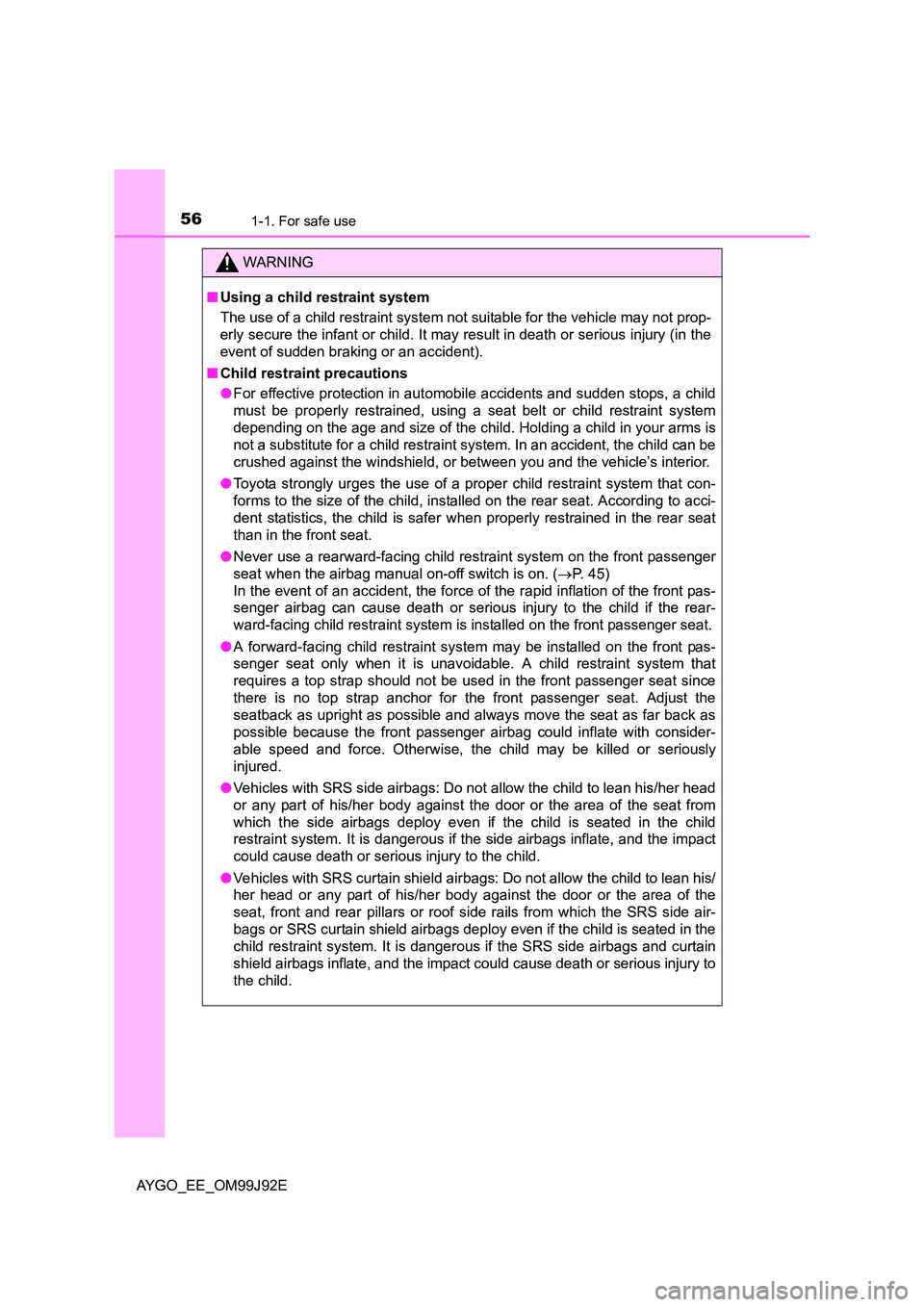

WARNING
■ Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never use a rearward-facing child restraint system on the front passenger
seat when the airbag manual on-off switch is on. ( →P. 4 5 )
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-
ward-facing child restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top strap should not be used in the front passenger seat since
there is no top strap anchor for the front passenger seat. Adjust the
seatback as upright as possible and always move the seat as far back as
possible because the front passenger ai rbag could inflate with consider-
able speed and force. Otherwise, the child may be killed or seriously
injured.
● Vehicles with SRS side airbags: Do not allow the child to lean his/her head
or any part of his/her body against the door or the area of the seat from
which the side airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags inflate, and the impact
could cause death or serious injury to the child.
● Vehicles with SRS curtain shield airbags: Do not allow the child to lean his/
her head or any part of his/her body against the door or the area of the
seat, front and rear pillars or roof side rails from which the SRS side air-
bags or SRS curtain shield airbags deploy even if the child is seated in the
child restraint system. It is dangerous if the SRS side airbags and curtain
shield airbags inflate, and the impact could cause death or serious injury to
the child.

571-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E

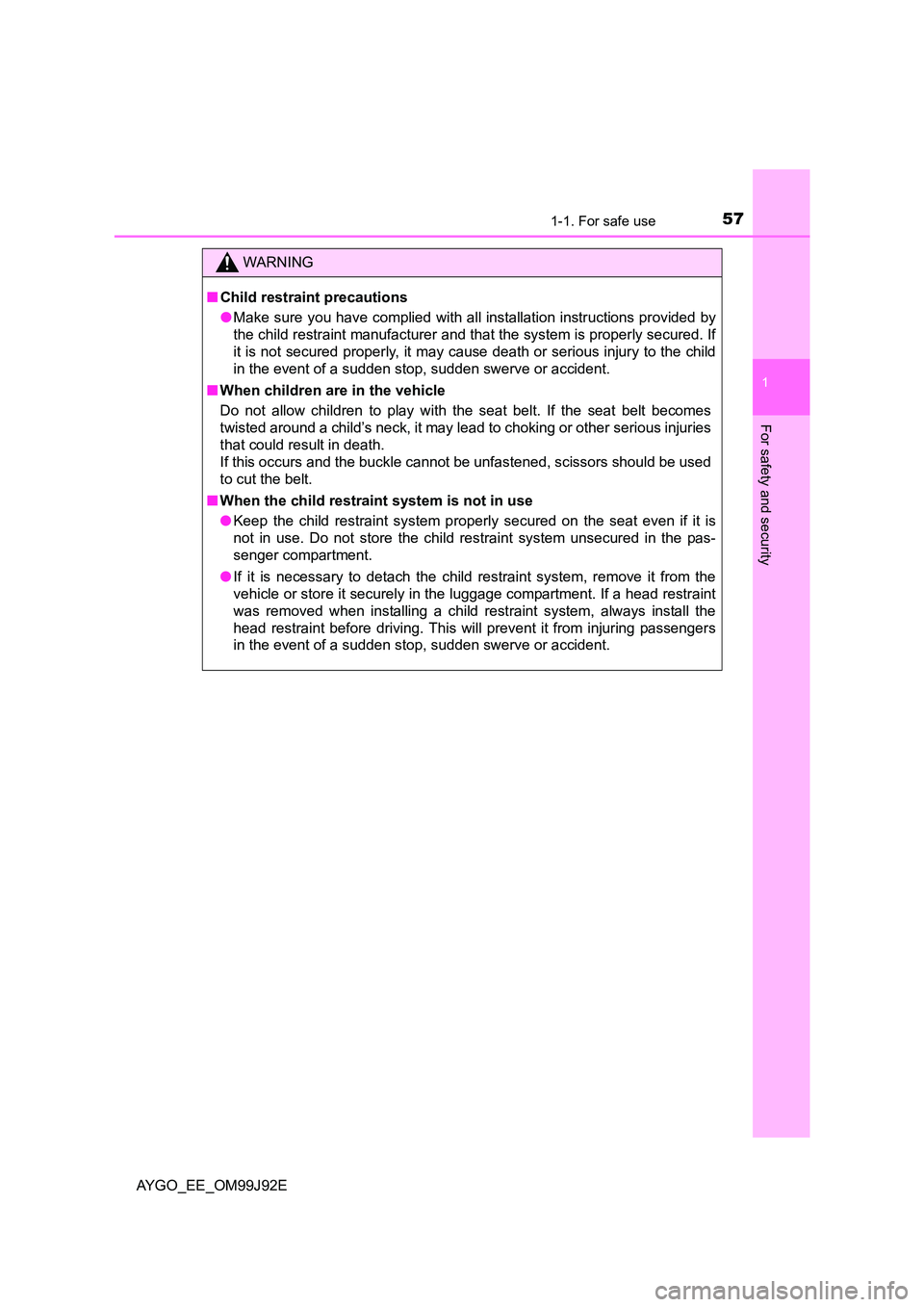

WARNING
■ Child restraint precautions
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. If a head restraint
was removed when installing a child restraint system, always install the
head restraint before driving. This will prevent it from injuring passengers
in the event of a sudden stop, sudden swerve or accident.

581-1. For safe use
AYGO_EE_OM99J92E

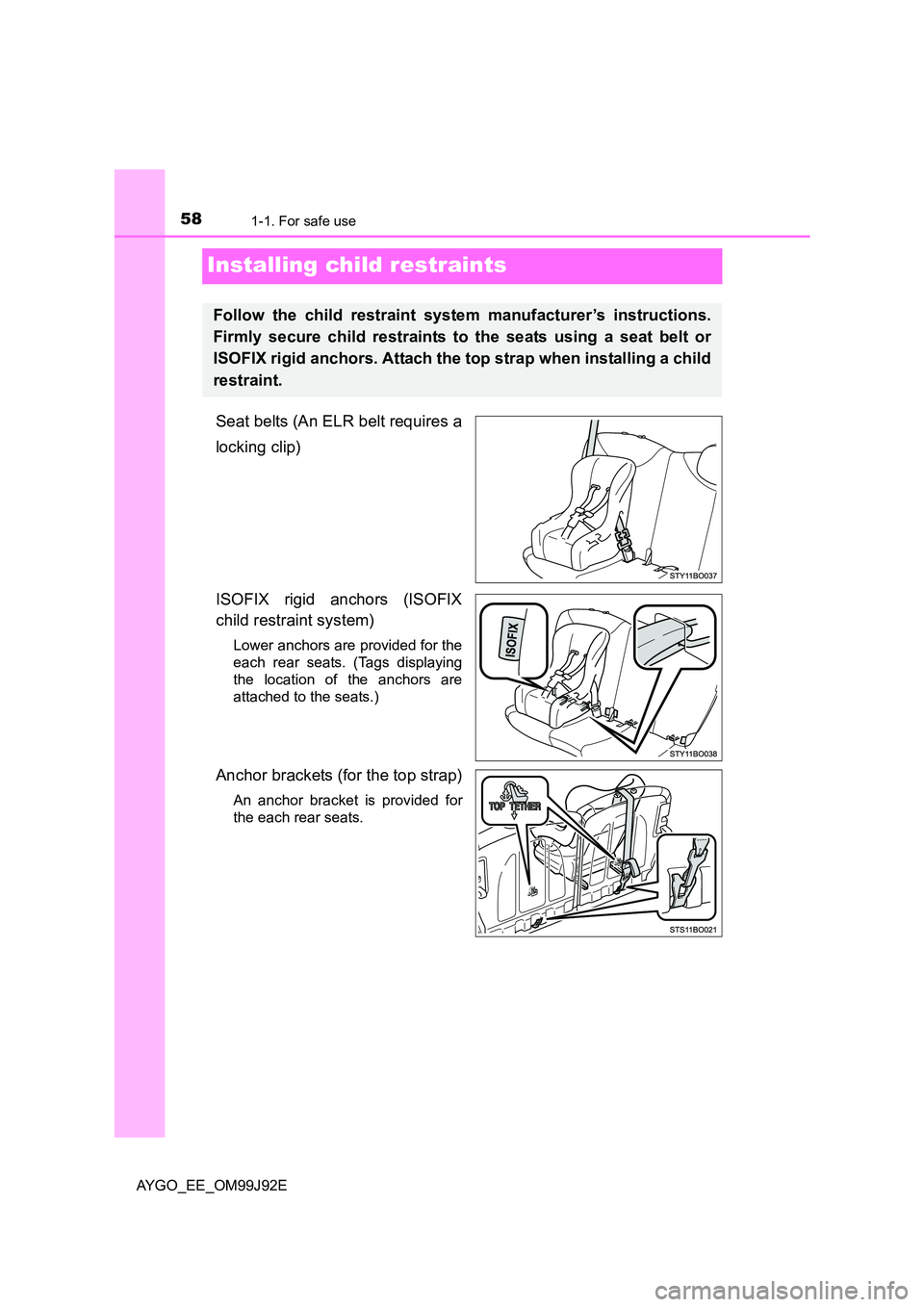

Installing child restraints
Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for the
each rear seats. (Tags displaying
the location of the anchors are
attached to the seats.)
Anchor brackets (for the top strap)
An anchor bracket is provided for
the each rear seats.
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.

591-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E
■Rearward-facing  Baby seat/child seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.

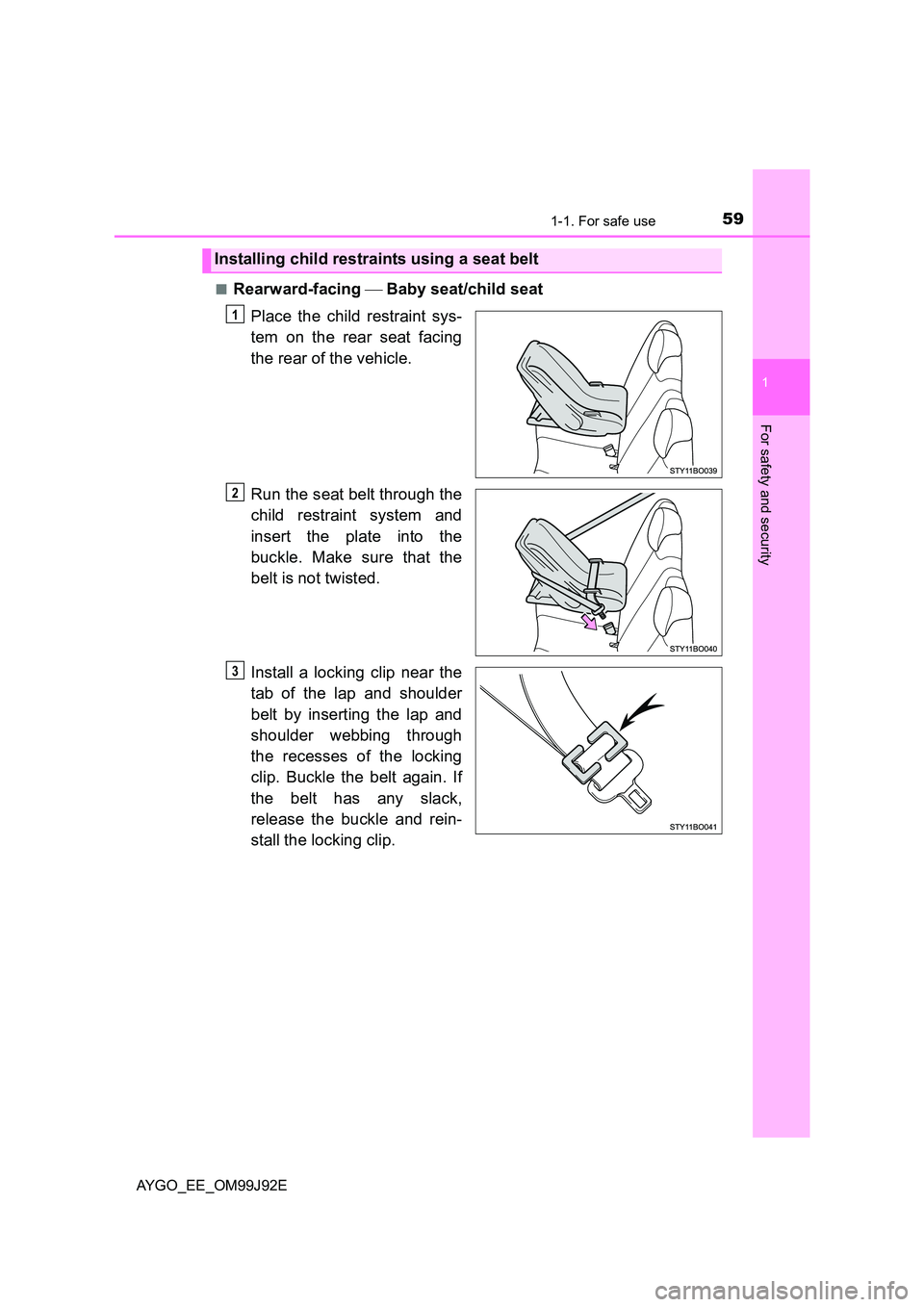

Installing child restraints using a seat belt
1
2
3

601-1. For safe use
AYGO_EE_OM99J92E

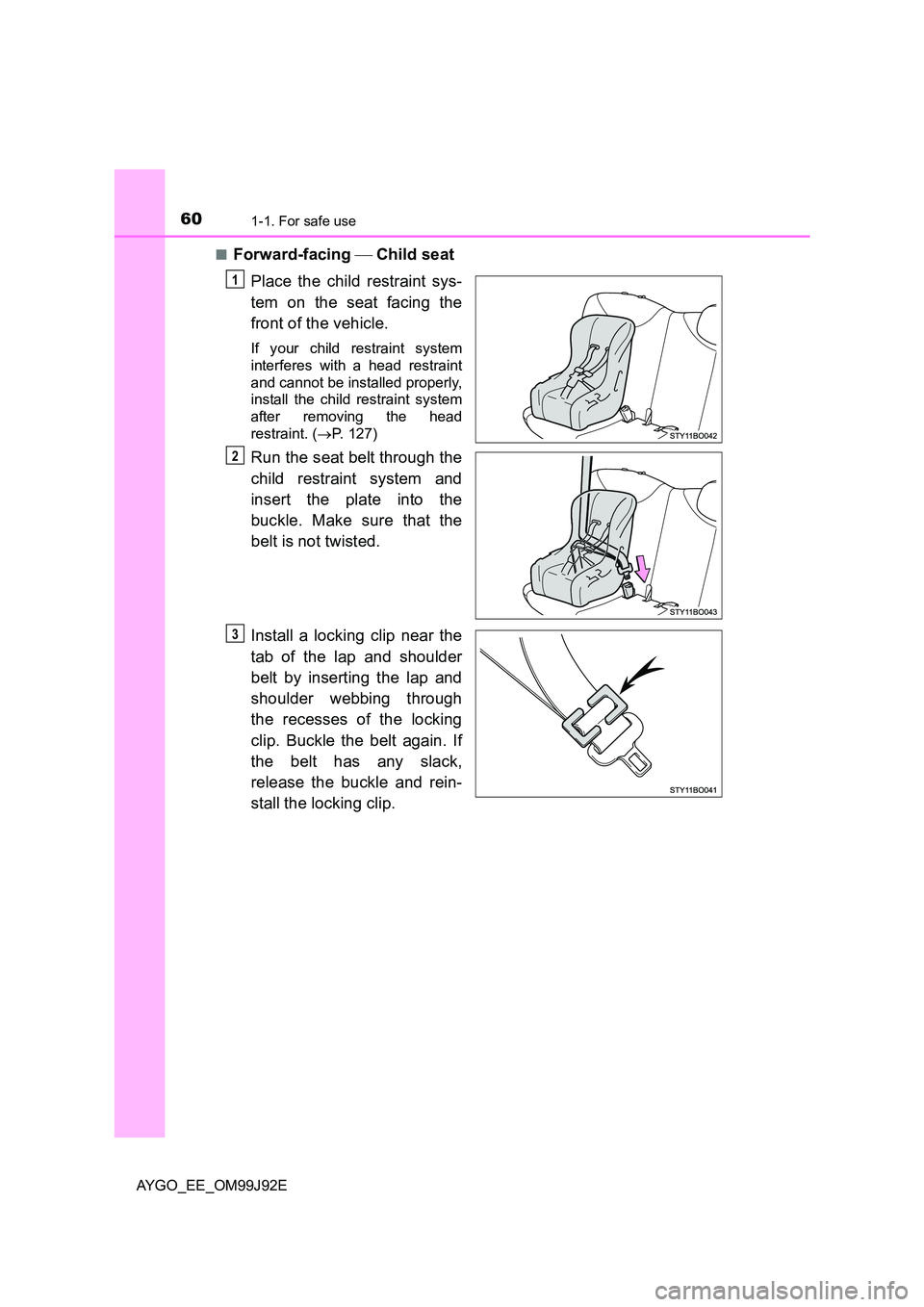

■Forward-facing  Child seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
If your child restraint system
interferes with a head restraint
and cannot be installed properly,
install the child restraint system
after removing the head
restraint. ( →P. 127)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
1
2
3
