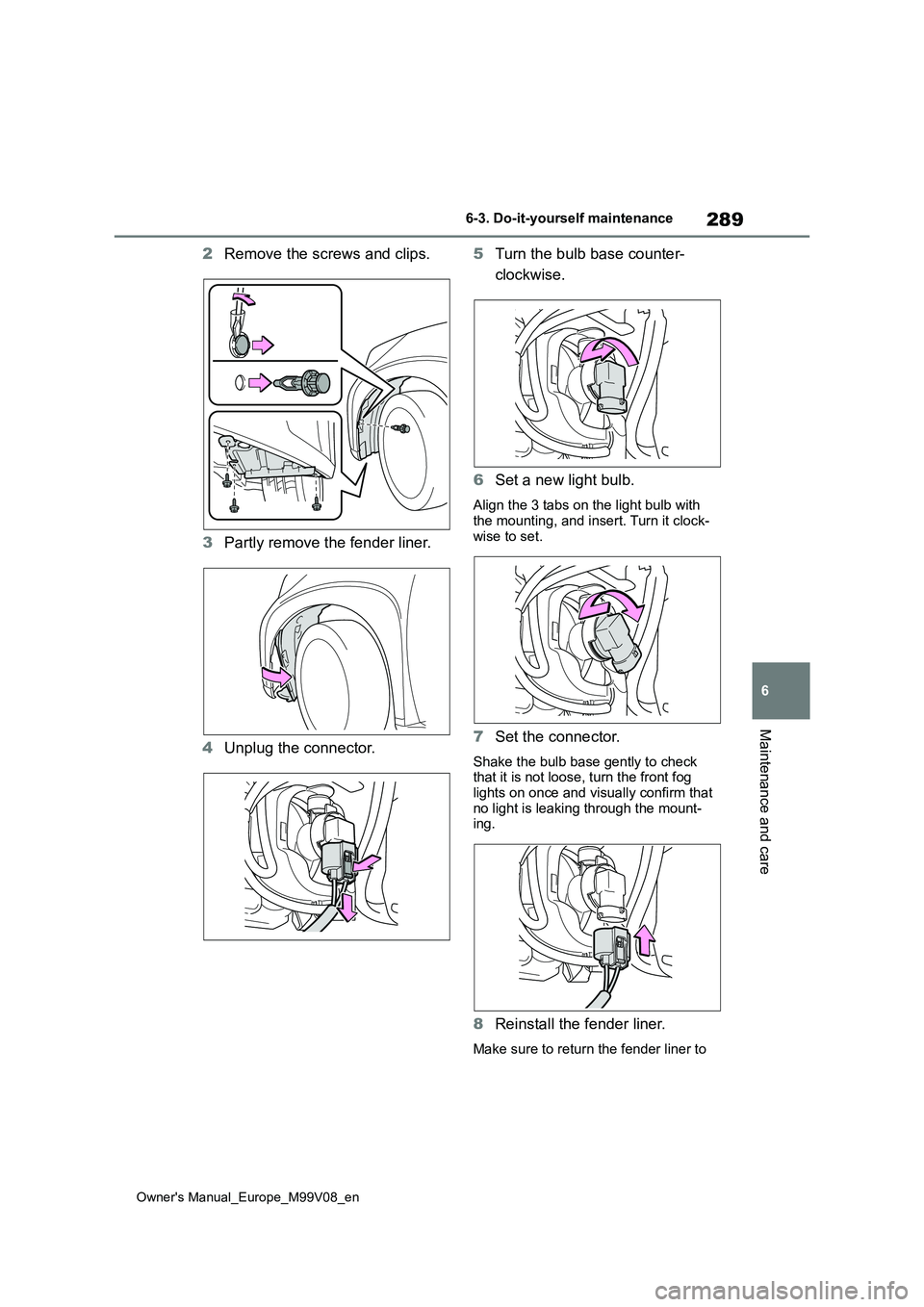

Page 291 of 494

289
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
2Remove the screws and clips.
3 Partly remove the fender liner.
4 Unplug the connector.
5 Turn the bulb base counter-
clockwise.
6 Set a new light bulb.
Align the 3 tabs on the light bulb with the mounting, and insert. Turn it clock-
wise to set.
7 Set the connector.
Shake the bulb base gently to check that it is not loose, turn the front fog
lights on once and visually confirm that no light is leaking through the mount-ing.
8 Reinstall the fender liner.
Make sure to return the fender liner to

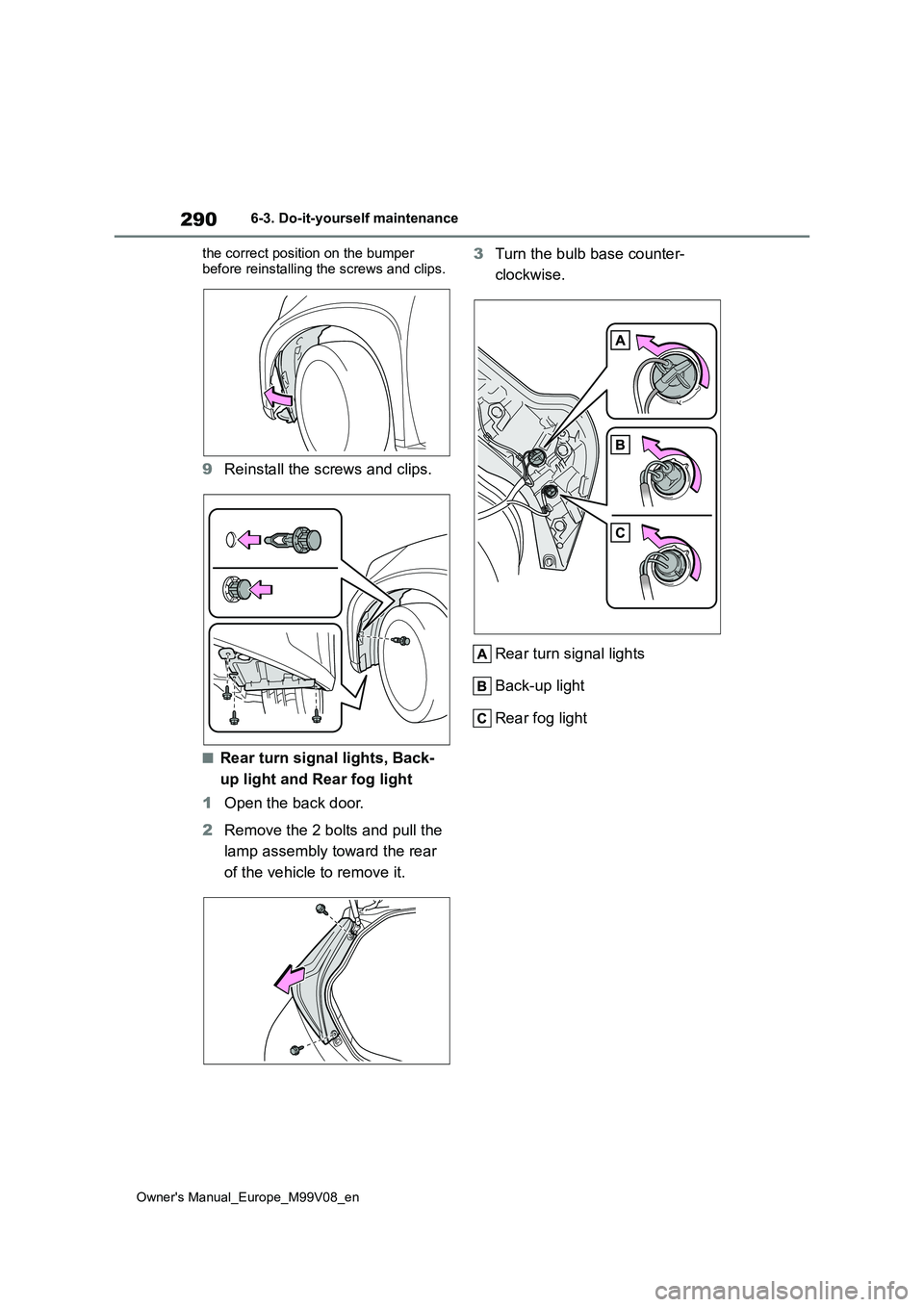

Page 292 of 494

290
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
the correct position on the bumper
before reinstalling the screws and clips.
9 Reinstall the screws and clips.
■Rear turn signal lights, Back-
up light and Rear fog light
1 Open the back door.
2 Remove the 2 bolts and pull the
lamp assembly toward the rear
of the vehicle to remove it.
3 Turn the bulb base counter-
clockwise.
Rear turn signal lights
Back-up light
Rear fog light

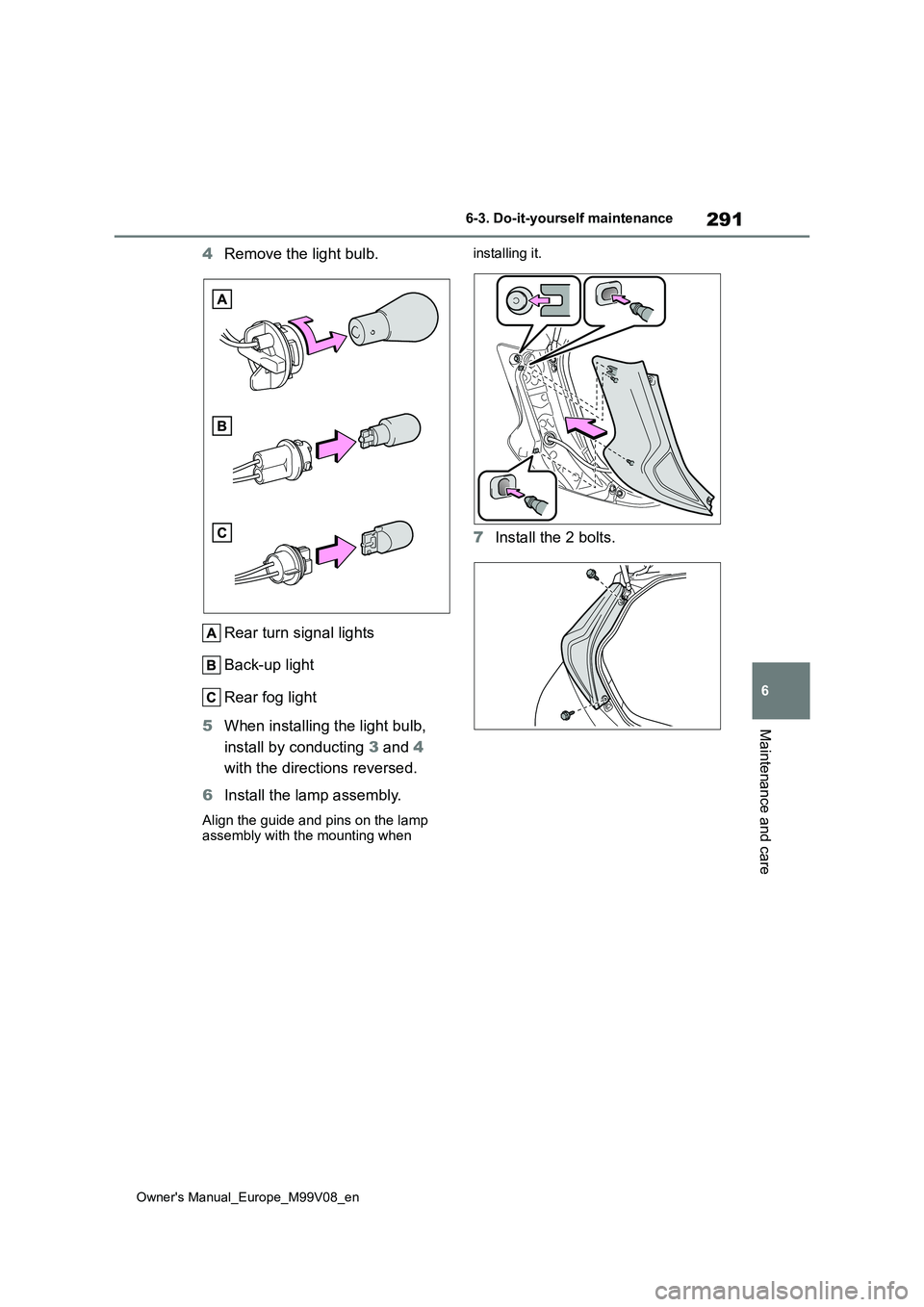

Page 293 of 494

291
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
4Remove the light bulb.
Rear turn signal lights
Back-up light
Rear fog light
5 When installing the light bulb,
install by conducting 3 and 4
with the directions reversed.
6 Install the lamp assembly.
Align the guide and pins on the lamp assembly with the mounting when
installing it.
7 Install the 2 bolts.

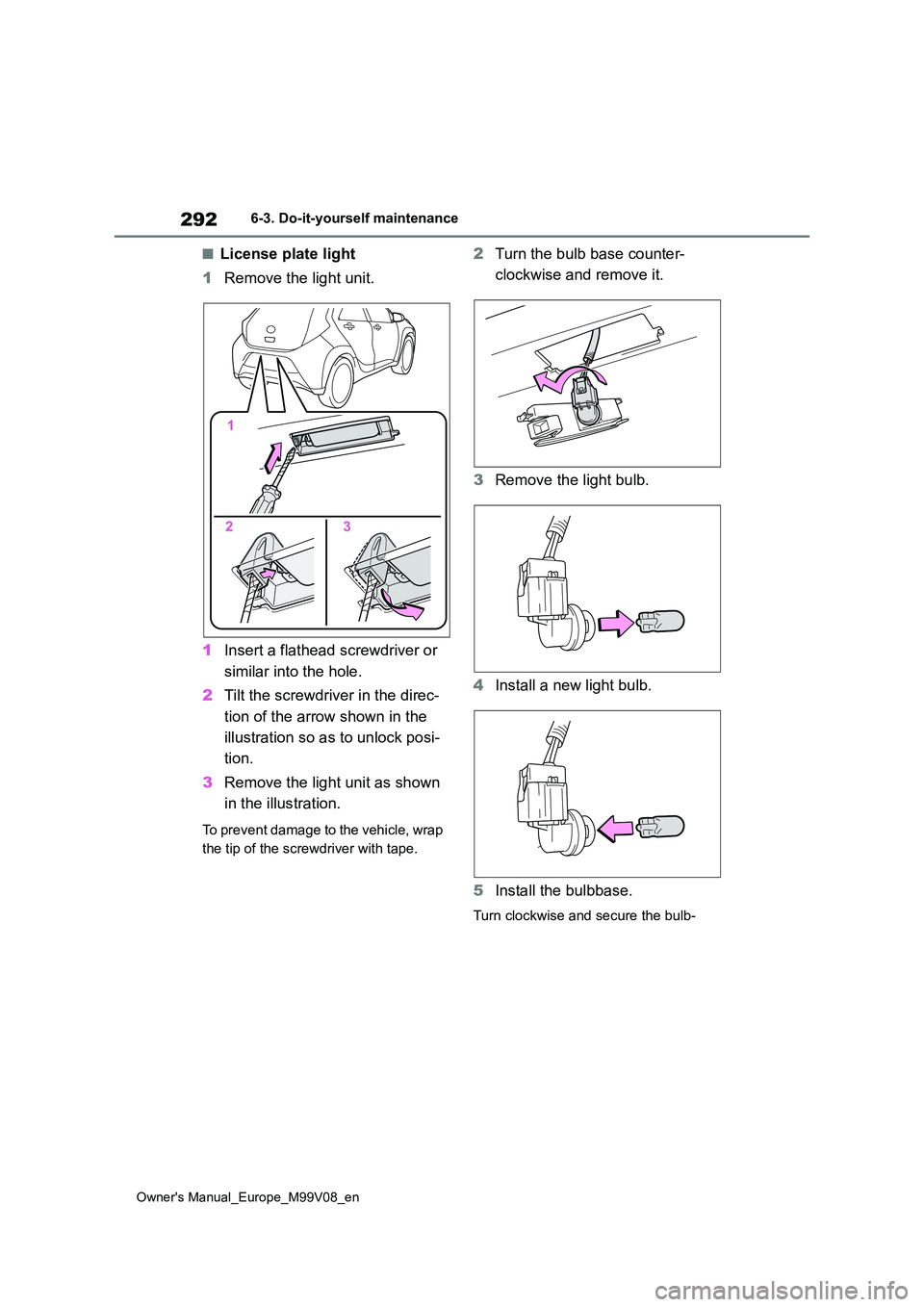

Page 294 of 494

292
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
■License plate light
1 Remove the light unit.
1 Insert a flathead screwdriver or
similar into the hole.
2 Tilt the screwdriver in the direc-
tion of the arrow shown in the
illustration so as to unlock posi-
tion.
3 Remove the light unit as shown
in the illustration.
To prevent damage to the vehicle, wrap
the tip of the screwdriver with tape.
2 Turn the bulb base counter-
clockwise and remove it.
3 Remove the light bulb.
4 Install a new light bulb.
5 Install the bulbbase.
Turn clockwise and secure the bulb-

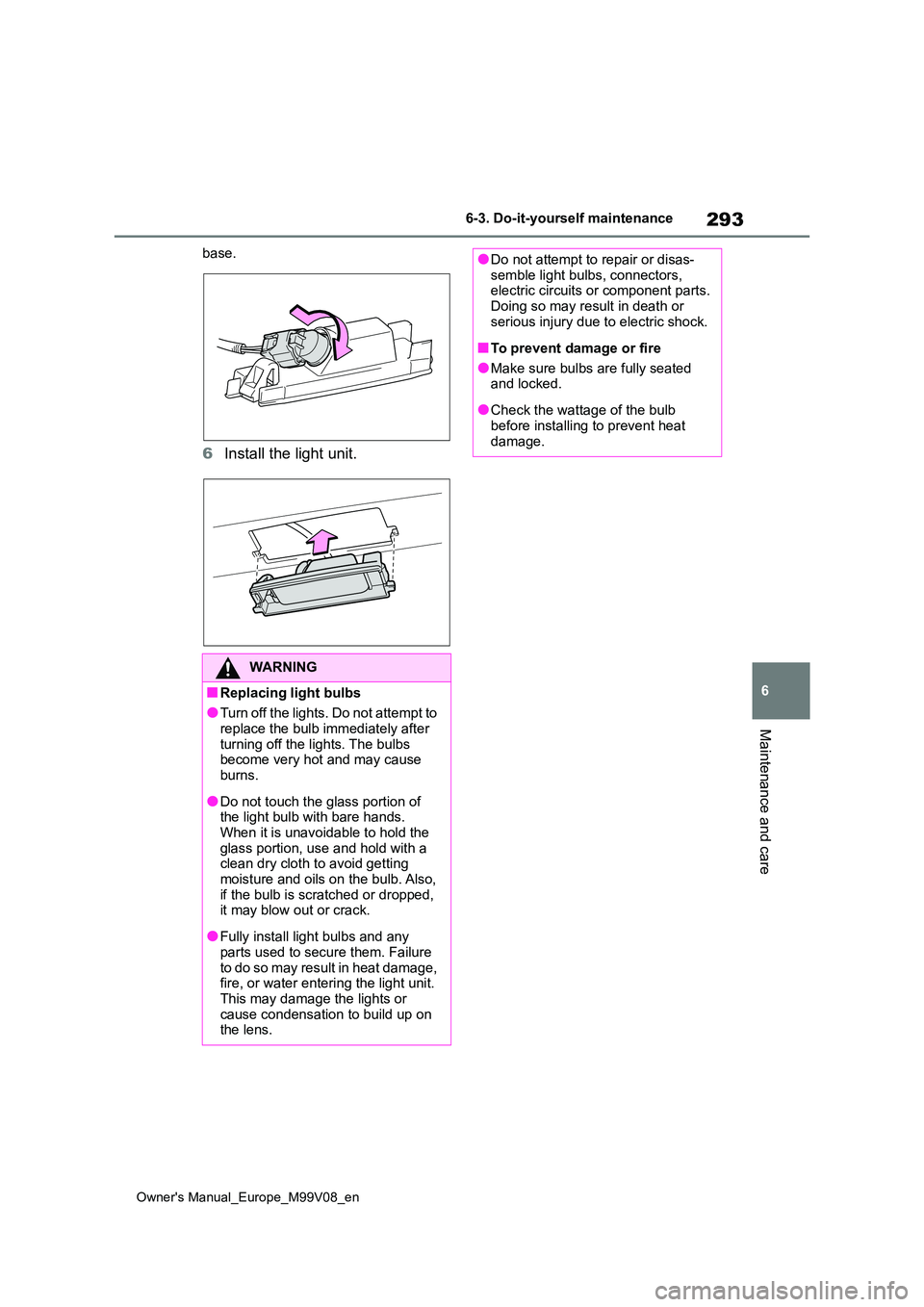

Page 295 of 494

293
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
base.
6Install the light unit.
WARNING
■Replacing light bulbs
●Tur n o ff t h e li g ht s. D o n o t at t e mp t t o replace the bulb immediately after
turning off the lights. The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands.
When it is unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb. Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure
to do so may result in heat damage, fire, or water entering the light unit. This may damage the lights or
cause condensation to build up on the lens.
●Do not attempt to repair or disas-semble light bulbs, connectors, electric circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat
damage.

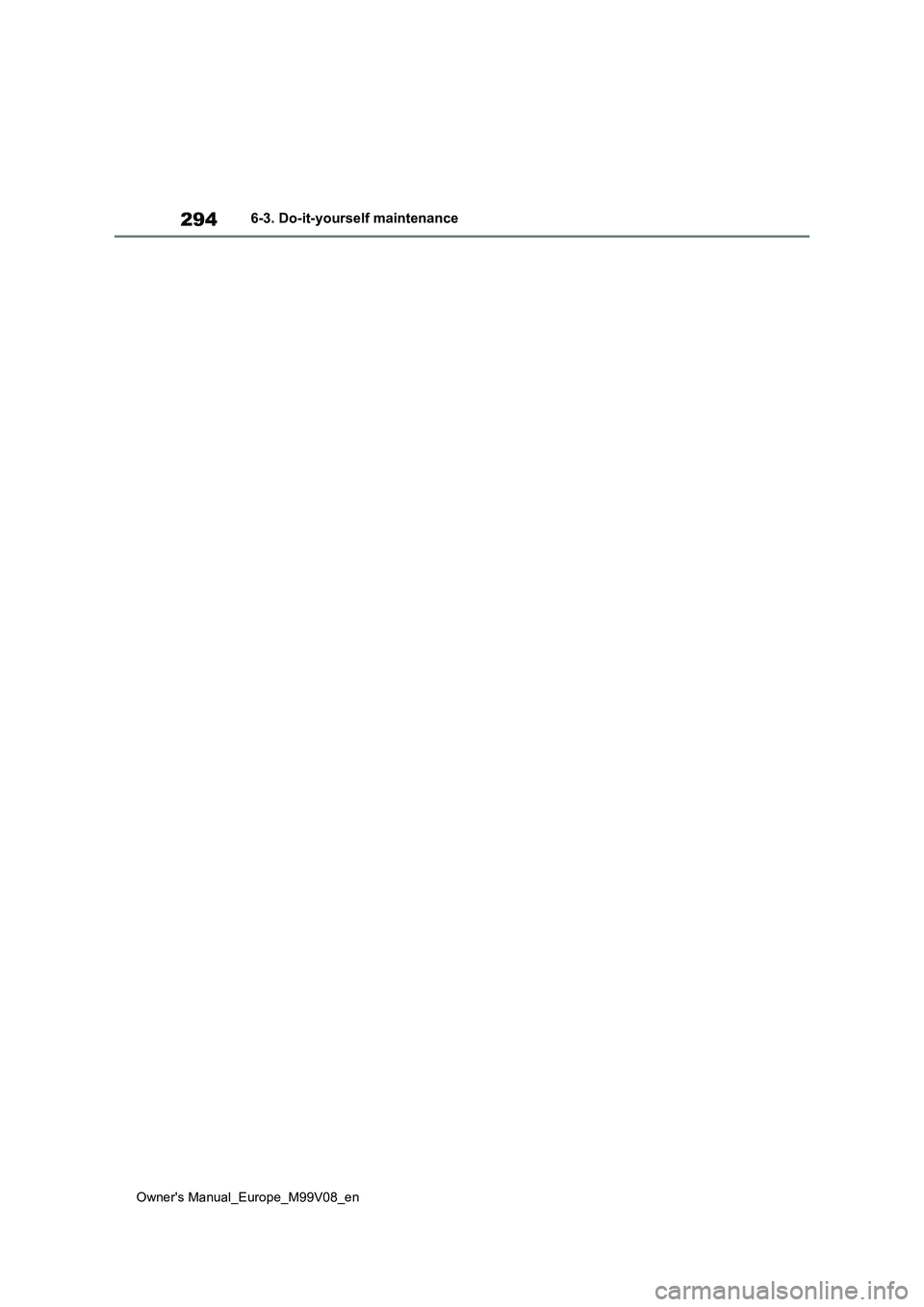

Page 296 of 494

294
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance

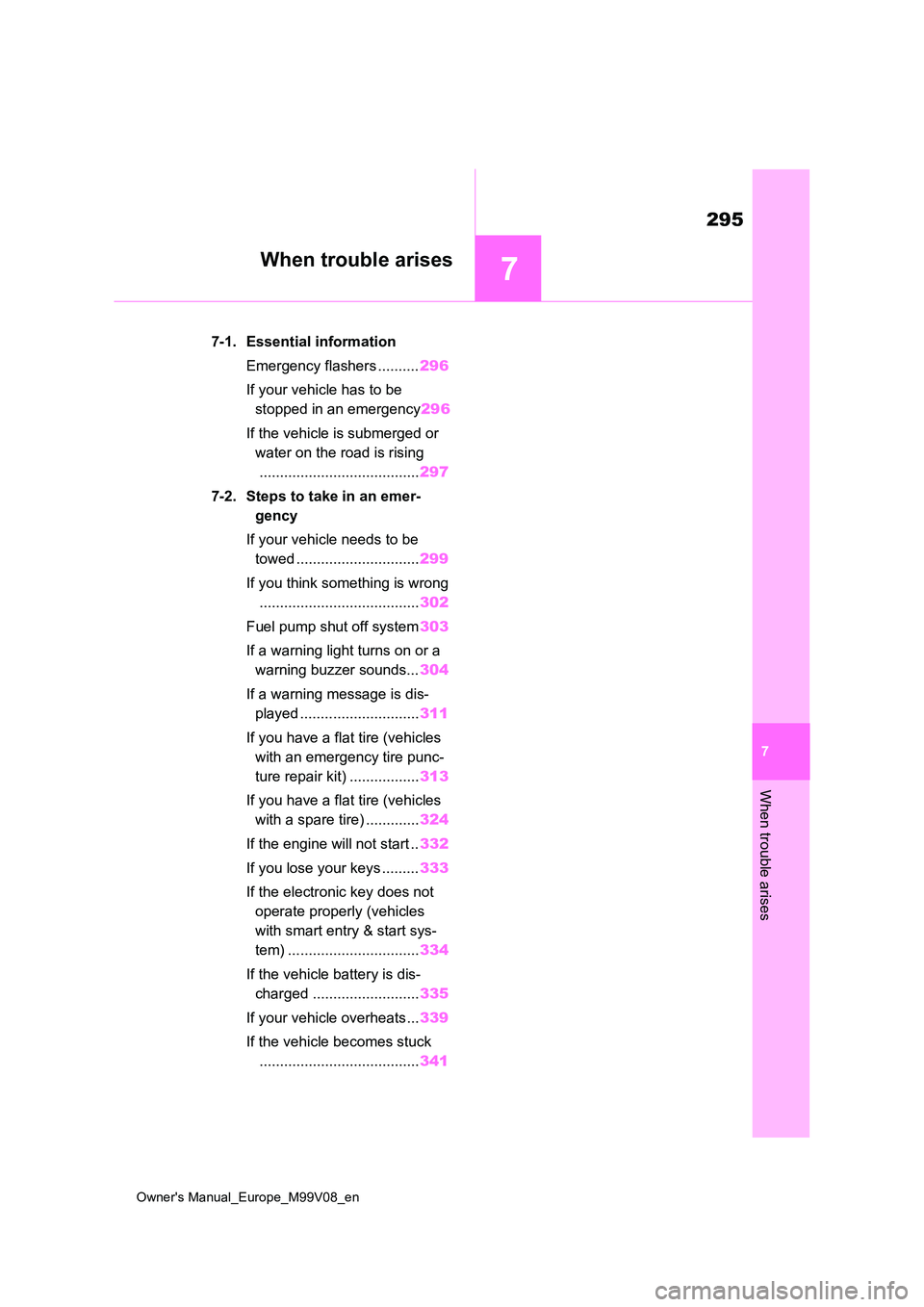

Page 297 of 494

7
295
Owner's Manual_Europe_M99V08_en
7
When trouble arises
When trouble arises
7-1. Essential information
Emergency flashers .......... 296
If your vehicle has to be
stopped in an emergency 296
If the vehicle is submerged or
water on the road is rising
....................................... 297
7-2. Steps to take in an emer-
gency
If your vehicle needs to be
towed .............................. 299
If you think something is wrong
....................................... 302
Fuel pump shut off system 303
If a warning light turns on or a
warning buzzer sounds... 304
If a warning message is dis-
played ............................. 311
If you have a flat tire (vehicles
with an emergency tire punc-
ture repair kit) ................. 313
If you have a flat tire (vehicles
with a spare tire) ............. 324
If the engine will not start .. 332
If you lose your keys ......... 333
If the electronic key does not
operate properly (vehicles
with smart entry & start sys-
tem) ................................ 334
If the vehicle battery is dis-
charged .......................... 335
If your vehicle overheats... 339
If the vehicle becomes stuck
....................................... 341

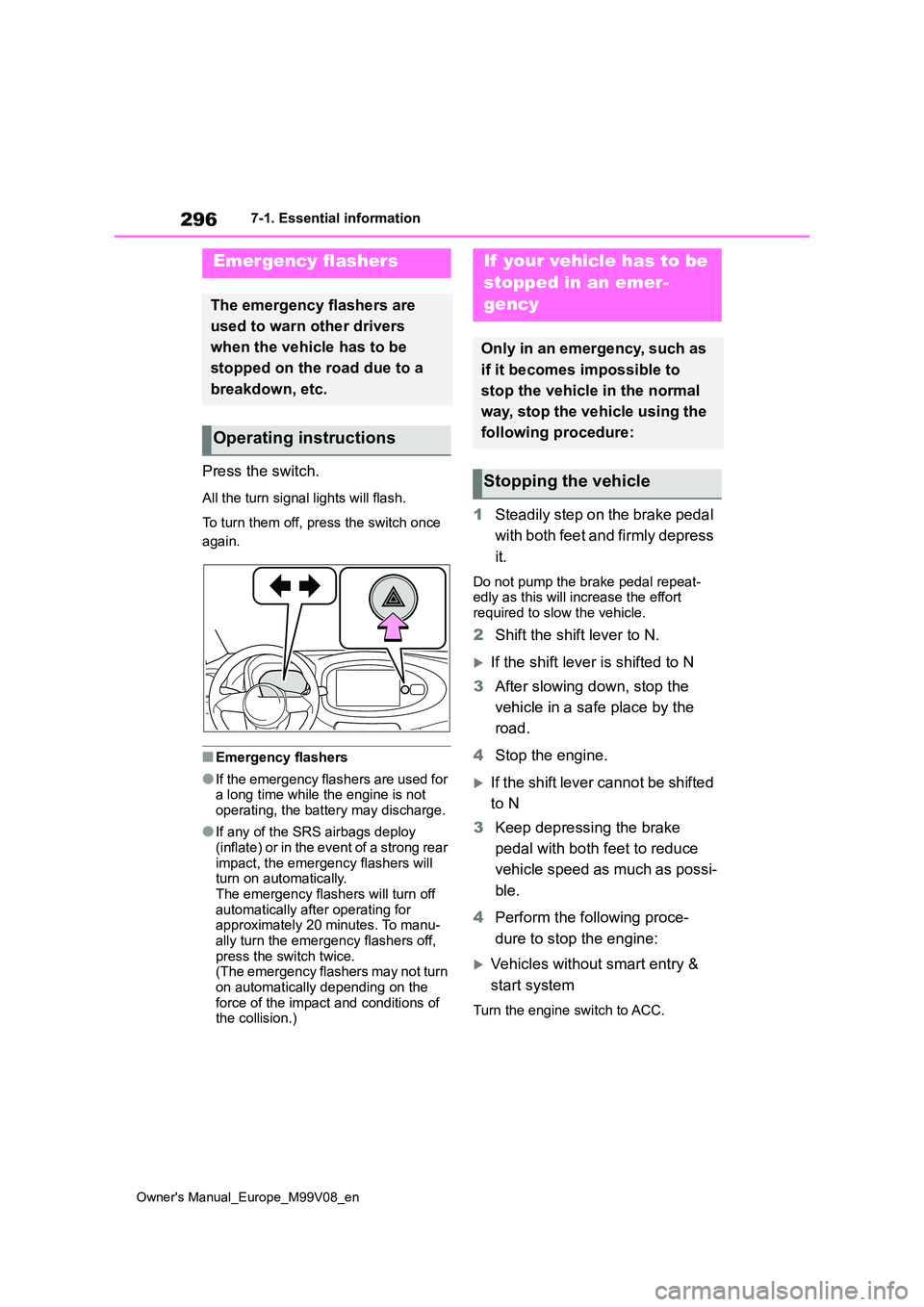

Page 298 of 494

296
Owner's Manual_Europe_M99V08_en
7-1. Essential information
7-1.Esse ntial informa tion
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once
again.
■Emergency flashers
●If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
●If any of the SRS airbags deploy
(inflate) or in the event of a strong rear impact, the emergency flashers will turn on automatically.
The emergency flashers will turn off automatically after operating for approximately 20 minutes. To manu-
ally turn the emergency flashers off, press the switch twice.(The emergency flashers may not turn
on automatically depending on the force of the impact and conditions of the collision.)
1 Steadily step on the brake pedal
with both feet and firmly depress
it.
Do not pump the brake pedal repeat- edly as this will increase the effort required to slow the vehicle.
2 Shift the shift lever to N.
If the shift lever is shifted to N
3 After slowing down, stop the
vehicle in a safe place by the
road.
4 Stop the engine.
If the shift lever cannot be shifted
to N
3 Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as possi-
ble.
4 Perform the following proce-
dure to stop the engine:
Vehicles without smart entry &
start system
Turn the engine switch to ACC.
Emergency flashers
The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to a
breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emer-
gency
Only in an emergency, such as
if it becomes impossible to
stop the vehicle in the normal
way, stop the vehicle using the
following procedure:
Stopping the vehicle

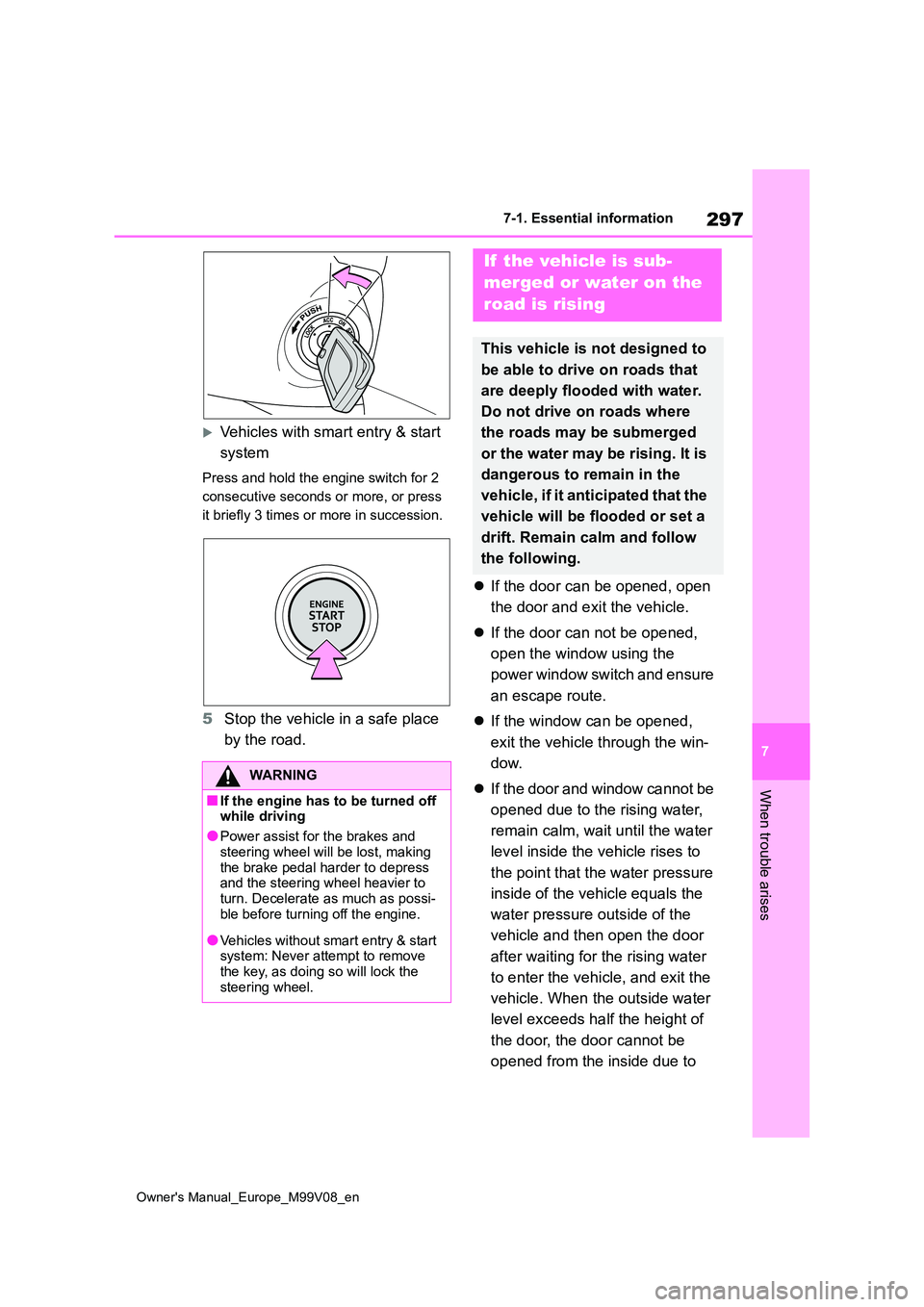

Page 299 of 494

297
7
Owner's Manual_Europe_M99V08_en
7-1. Essential information
When trouble arises
Vehicles with smart entry & start
system
Press and hold the engine switch for 2
consecutive seconds or more, or press
it briefly 3 times or more in succession.
5 Stop the vehicle in a safe place
by the road.
If the door can be opened, open
the door and exit the vehicle.
If the door can not be opened,
open the window using the
power window switch and ensure
an escape route.
If the window can be opened,
exit the vehicle through the win-
dow.
If the door and window cannot be
opened due to the rising water,
remain calm, wait until the water
level inside the vehicle rises to
the point that the water pressure
inside of the vehicle equals the
water pressure outside of the
vehicle and then open the door
after waiting for the rising water
to enter the vehicle, and exit the
vehicle. When the outside water
level exceeds half the height of
the door, the door cannot be
opened from the inside due to
WARNING
■If the engine has to be turned off while driving
●Power assist for the brakes and
steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to
turn. Decelerate as much as possi- ble before turning off the engine.
●Vehicles without smart entry & start system: Never attempt to remove the key, as doing so will lock the
steering wheel.
If the vehicle is sub-
merged or water on the
road is rising
This vehicle is not designed to
be able to drive on roads that
are deeply flooded with water.
Do not drive on roads where
the roads may be submerged
or the water may be rising. It is
dangerous to remain in the
vehicle, if it anticipated that the
vehicle will be flooded or set a
drift. Remain calm and follow
the following.
Page 300 of 494

298
Owner's Manual_Europe_M99V08_en
7-1. Essential information
water pressure.
■Water level exceeds the floor
When the water level exceeds the floor and time has passed, the electrical equipment will get damaged, the power
windows will not operate, the engine stop, and the vehicle may not be able to get moving.
■Using an emergency escape ham-
mer*
Laminated glass is used in the wind- shield on this vehicle.
Laminated glass cannot be shattered
with an emergency hammer*. Tempered glass is used in the windows
on this vehicle.*: Contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer, or aftermarket acces-
sory manufacturer for further informa-
tion about an emergency hammer.
WARNING
■Caution while driving
Do not drive on roads where the roads may be submerged or the water may be rising. Otherwise the vehicle
may be damaged and cannot move, as well as become flooded and set a drift, which may lead to death.
