TOYOTA CAMRY V20 1986 Service Information

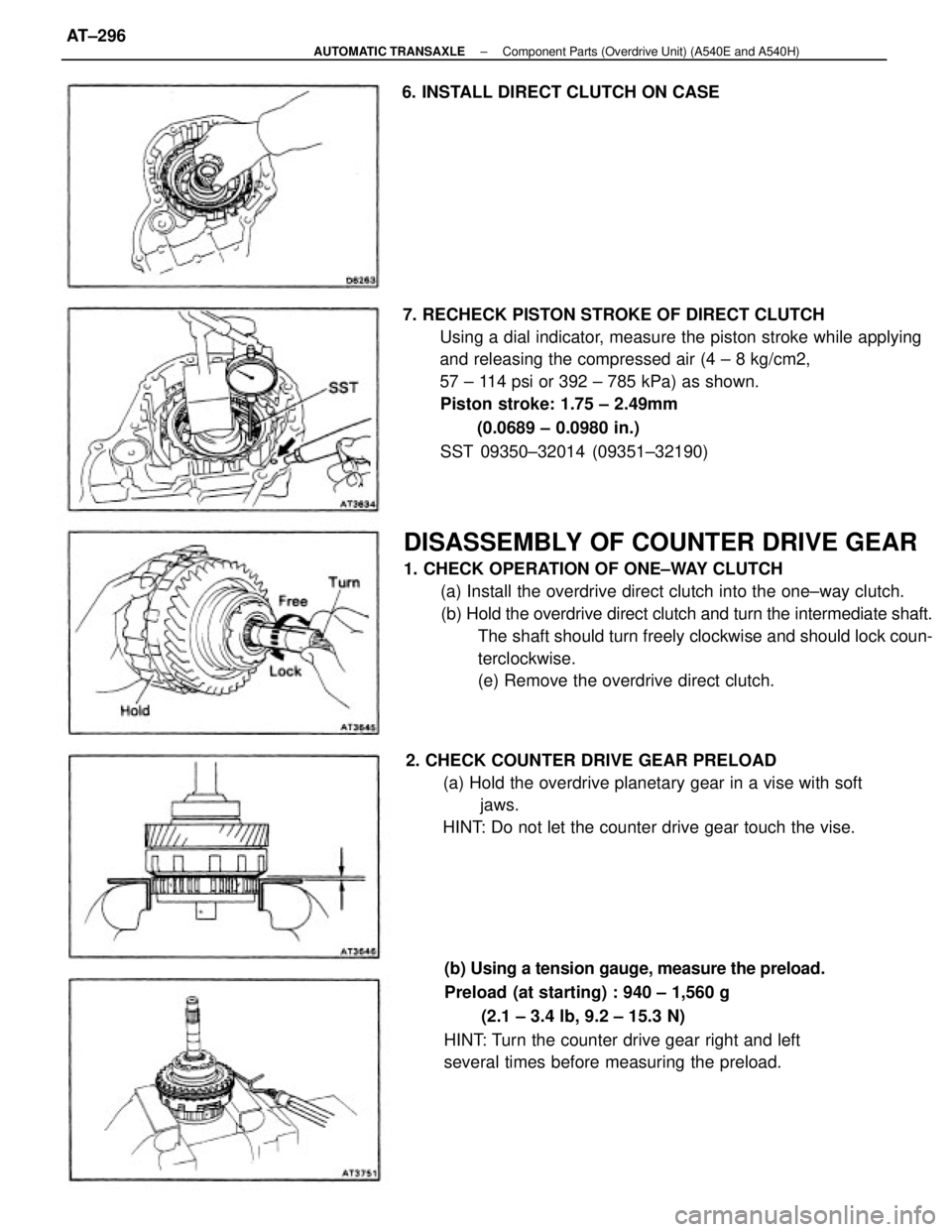

DISASSEMBLY OF COUNTER DRIVE GEAR
1. CHECK OPERATION OF ONE±WAY CLUTCH
(a) Install the overdrive direct clutch into the one±way clutch.
(b) Hold the overdrive direct clutch and turn the intermediate shaft.
The shaft should turn freely clockwise and should lock coun-
terclockwise.
(e) Remove the overdrive direct clutch. 7. RECHECK PISTON STROKE OF DIRECT CLUTCH
Using a dial indicator, measure the piston stroke while applying
and releasing the compressed air (4 ± 8 kg/cm2,
57 ± 114 psi or 392 ± 785 kPa) as shown.
Piston stroke: 1.75 ± 2.49mm
(0.0689 ± 0.0980 in.)
SST 09350±32014 (09351±32190)
(b) Using a tension gauge, measure the preload.
Preload (at starting) : 940 ± 1,560 g
(2.1 ± 3.4 lb, 9.2 ± 15.3 N)
HINT: Turn the counter drive gear right and left
several times before measuring the preload. 2. CHECK COUNTER DRIVE GEAR PRELOAD
(a) Hold the overdrive planetary gear in a vise with soft
jaws.
HINT: Do not let the counter drive gear touch the vise. 6. INSTALL DIRECT CLUTCH ON CASE
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unit) (A540E and A540H)AT±296

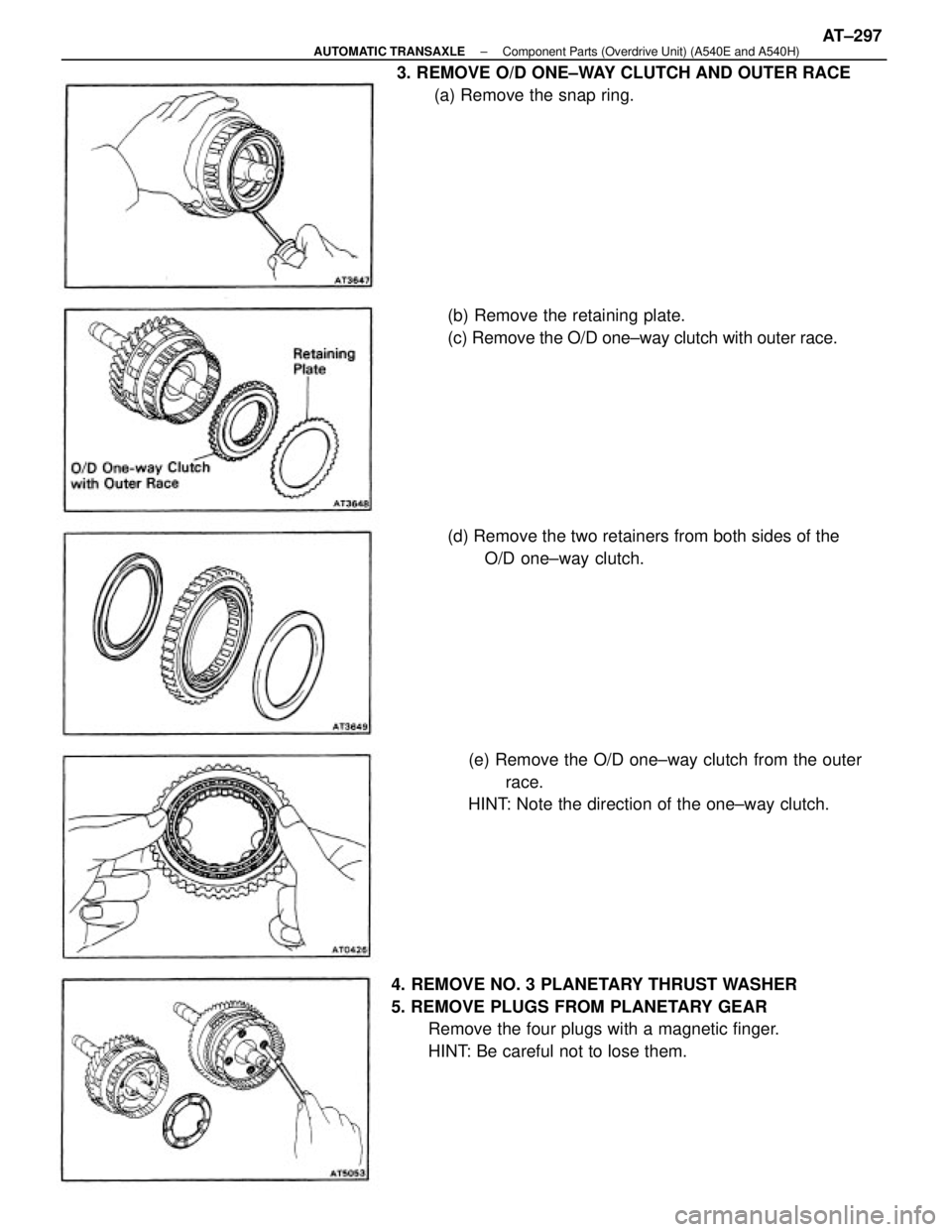

4. REMOVE NO. 3 PLANETARY THRUST WASHER
5. REMOVE PLUGS FROM PLANETARY GEAR
Remove the four plugs with a magnetic finger.
HINT: Be careful not to lose them. 3. REMOVE O/D ONE±WAY CLUTCH AND OUTER RACE
(a) Remove the snap ring.
(e) Remove the O/D one±way clutch from the outer
race.
HINT: Note the direction of the one±way clutch. (b) Remove the retaining plate.
(c) Remove the O/D one±way clutch with outer race.
(d) Remove the two retainers from both sides of the
O/D one±way clutch.
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unit) (A540E and A540H)AT±297

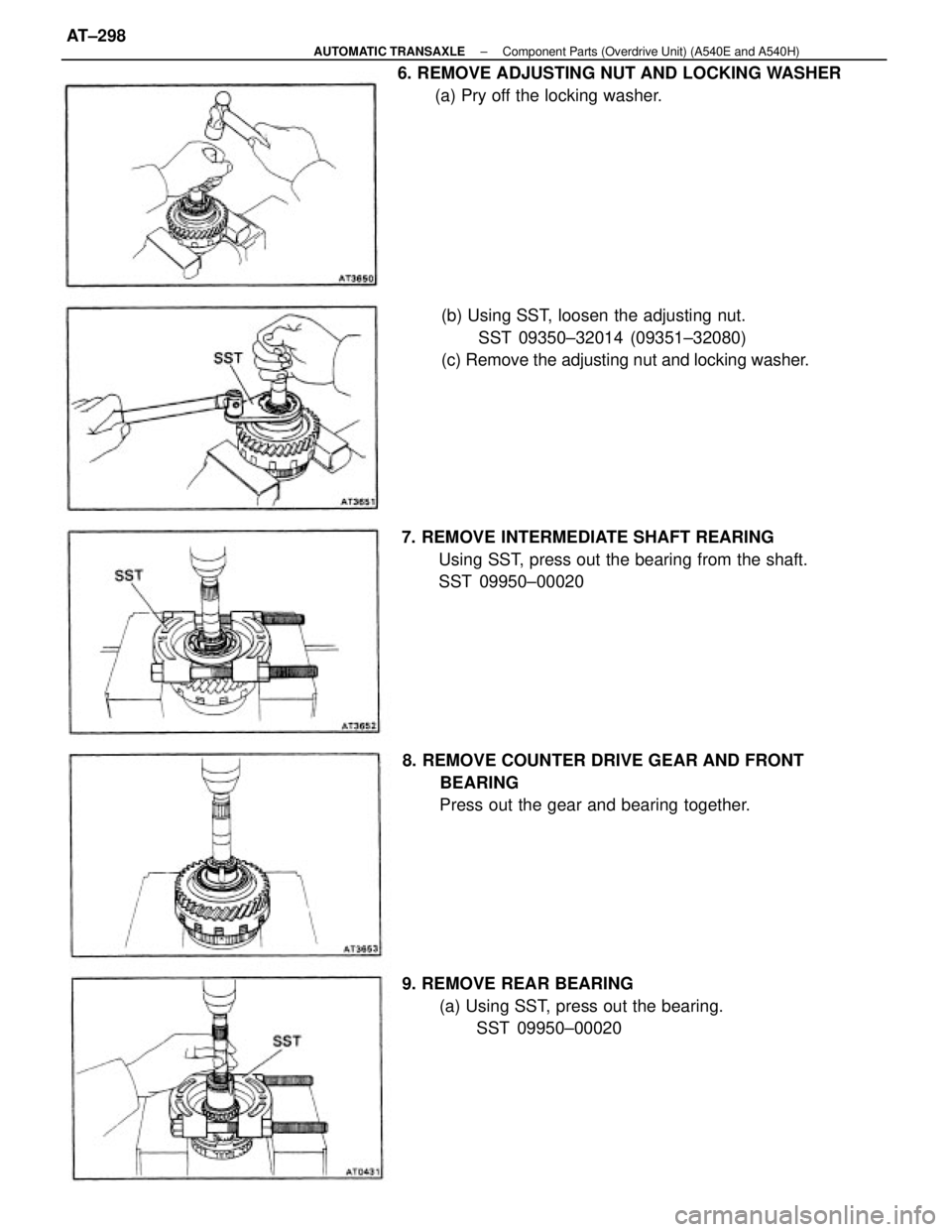

6. REMOVE ADJUSTING NUT AND LOCKING WASHER
(a) Pry off the locking washer.
7. REMOVE INTERMEDIATE SHAFT REARING
Using SST, press out the bearing from the shaft.
SST 09950±00020(b) Using SST, loosen the adjusting nut.
SST 09350±32014 (09351±32080)
(c) Remove the adjusting nut and locking washer.
8. REMOVE COUNTER DRIVE GEAR AND FRONT
BEARING
Press out the gear and bearing together.
9. REMOVE REAR BEARING
(a) Using SST, press out the bearing.
SST 09950±00020
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unit) (A540E and A540H)AT±298

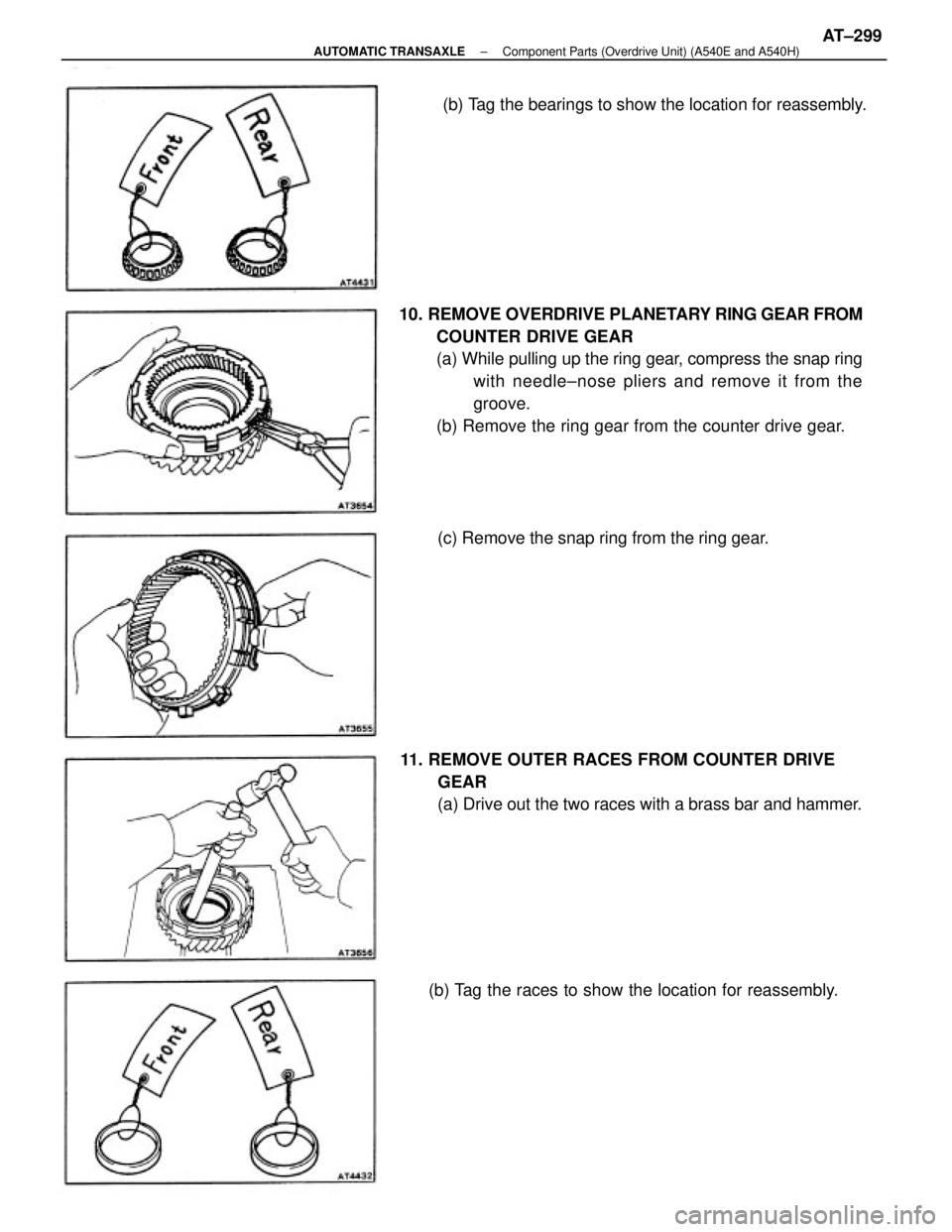

10. REMOVE OVERDRIVE PLANETARY RING GEAR FROM
COUNTER DRIVE GEAR
(a) While pulling up the ring gear, compress the snap ring
with needle±nose pliers and remove it from the
groove.
(b) Remove the ring gear from the counter drive gear.
11. REMOVE OUTER RACES FROM COUNTER DRIVE
GEAR
(a) Drive out the two races with a brass bar and hammer.(b) Tag the bearings to show the location for reassembly.
(b) Tag the races to show the location for reassembly.(c) Remove the snap ring from the ring gear.
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unit) (A540E and A540H)AT±299

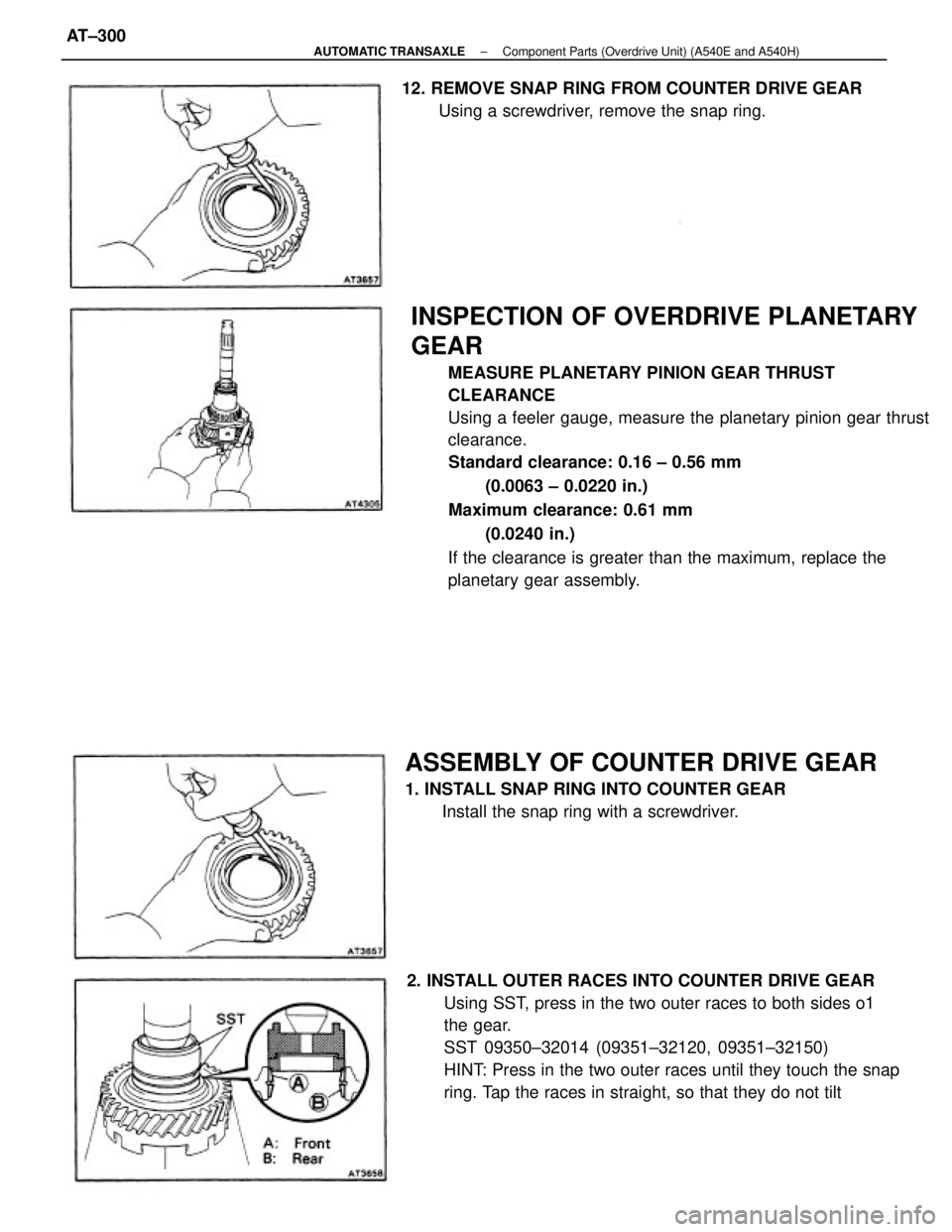

INSPECTION OF OVERDRIVE PLANETARY
GEAR
MEASURE PLANETARY PINION GEAR THRUST
CLEARANCE
Using a feeler gauge, measure the planetary pinion gear thrust
clearance.
Standard clearance: 0.16 ± 0.56 mm
(0.0063 ± 0.0220 in.)
Maximum clearance: 0.61 mm
(0.0240 in.)
If the clearance is greater than the maximum, replace the
planetary gear assembly.
2. INSTALL OUTER RACES INTO COUNTER DRIVE GEAR
Using SST, press in the two outer races to both sides o1
the gear.
SST 09350±32014 (09351±32120, 09351±32150)
HINT: Press in the two outer races until they touch the snap
ring. Tap the races in straight, so that they do not tilt
ASSEMBLY OF COUNTER DRIVE GEAR
1. INSTALL SNAP RING INTO COUNTER GEAR
Install the snap ring with a screwdriver. 12. REMOVE SNAP RING FROM COUNTER DRIVE GEAR
Using a screwdriver, remove the snap ring.
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unit) (A540E and A540H)AT±300

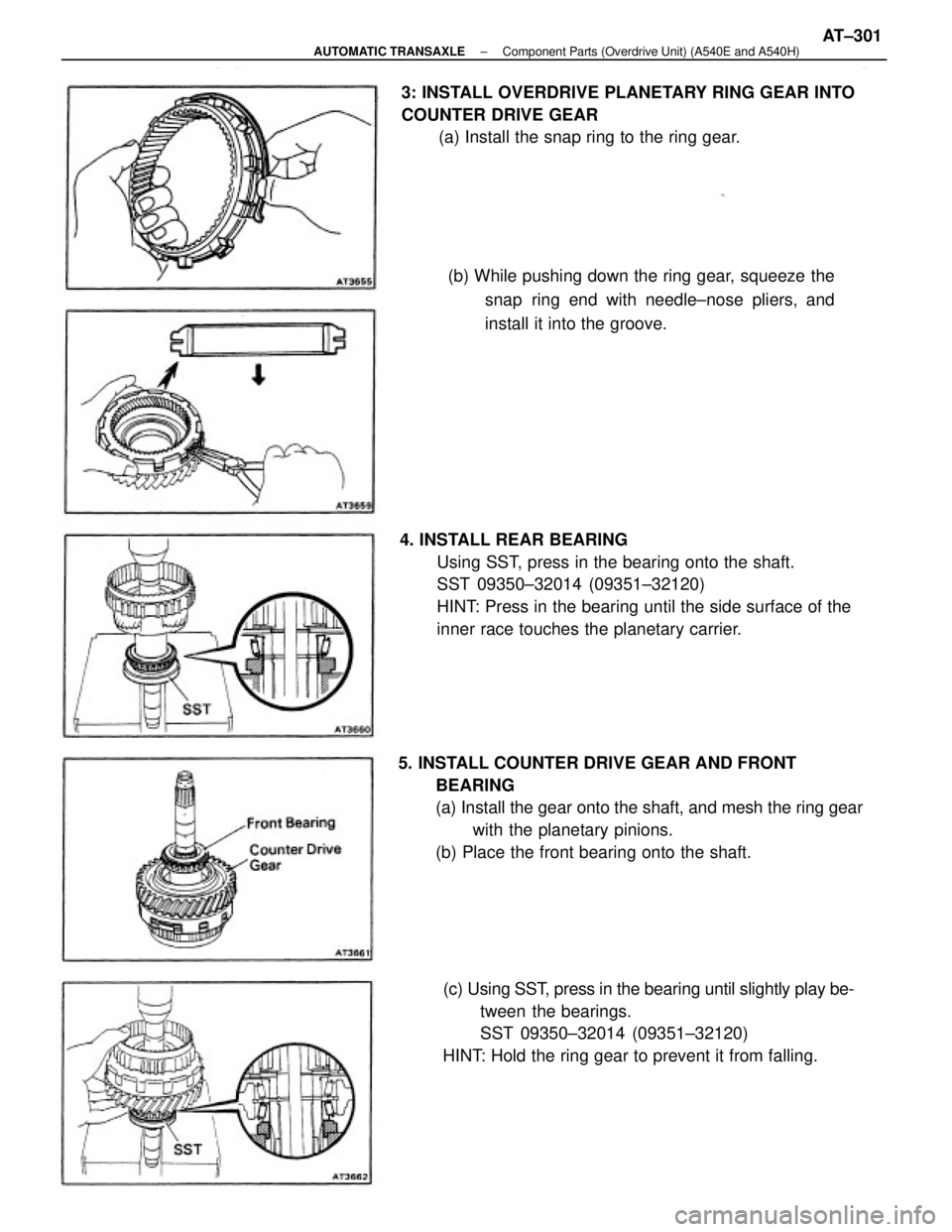

4. INSTALL REAR BEARING
Using SST, press in the bearing onto the shaft.
SST 09350±32014 (09351±32120)
HINT: Press in the bearing until the side surface of the
inner race touches the planetary carrier.
5. INSTALL COUNTER DRIVE GEAR AND FRONT
BEARING
(a) Install the gear onto the shaft, and mesh the ring gear
with the planetary pinions.
(b) Place the front bearing onto the shaft. 3: INSTALL OVERDRIVE PLANETARY RING GEAR INTO
COUNTER DRIVE GEAR
(a) Install the snap ring to the ring gear.
(c) Using SST, press in the bearing until slightly play be-
tween the bearings.
SST 09350±32014 (09351±32120)
HINT: Hold the ring gear to prevent it from falling.(b) While pushing down the ring gear, squeeze the
snap ring end with needle±nose pliers, and
install it into the groove.
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unit) (A540E and A540H)AT±301

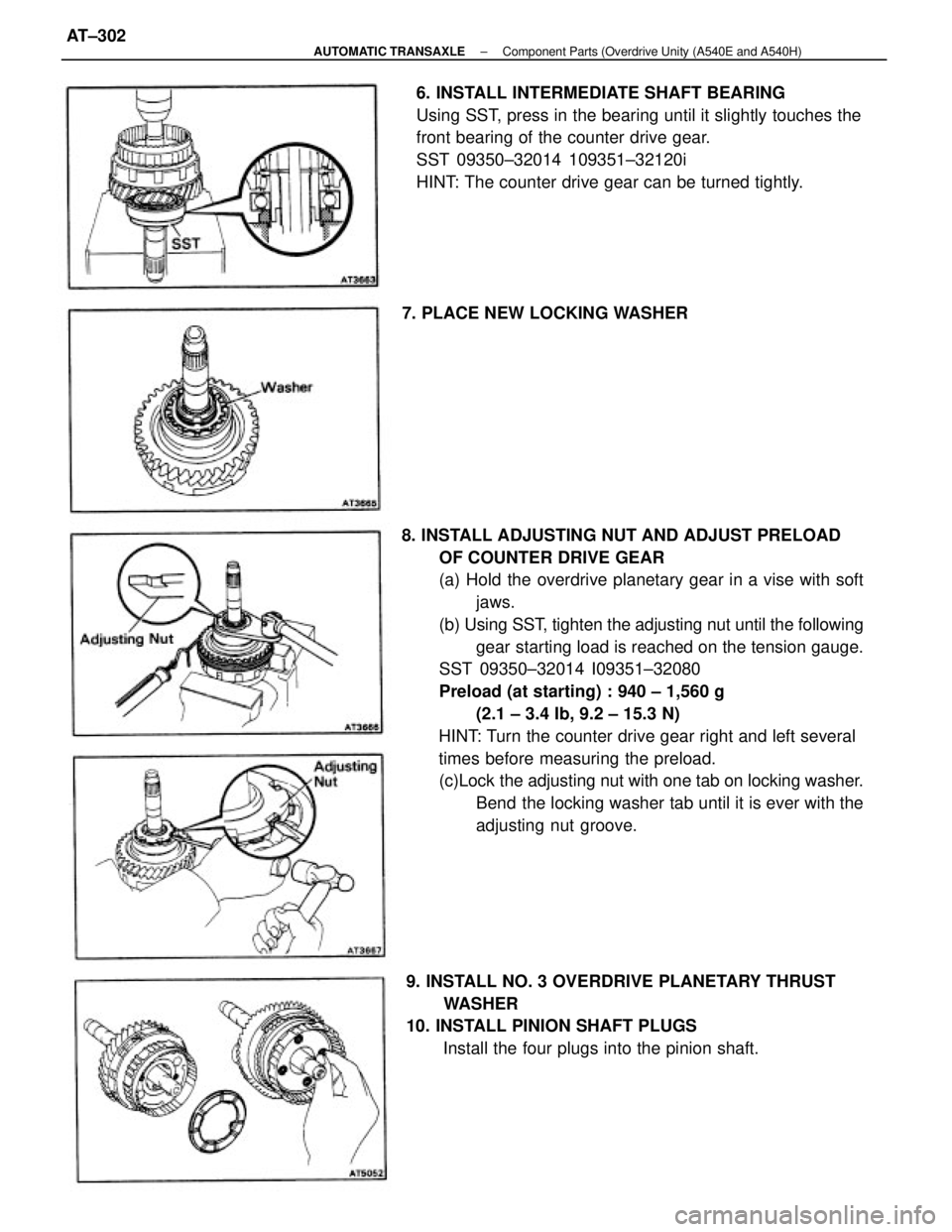

8. INSTALL ADJUSTING NUT AND ADJUST PRELOAD
OF COUNTER DRIVE GEAR
(a) Hold the overdrive planetary gear in a vise with soft
jaws.
(b) Using SST, tighten the adjusting nut until the following
gear starting load is reached on the tension gauge.
SST 09350±32014 I09351±32080
Preload (at starting) : 940 ± 1,560 g
(2.1 ± 3.4 Ib, 9.2 ± 15.3 N)
HINT: Turn the counter drive gear right and left several
times before measuring the preload.
(c)Lock the adjusting nut with one tab on locking washer.
Bend the locking washer tab until it is ever with the
adjusting nut groove. 6. INSTALL INTERMEDIATE SHAFT BEARING
Using SST, press in the bearing until it slightly touches the
front bearing of the counter drive gear.
SST 09350±32014 109351±32120i
HINT: The counter drive gear can be turned tightly.
9. INSTALL NO. 3 OVERDRIVE PLANETARY THRUST
WASHER
10. INSTALL PINION SHAFT PLUGS
Install the four plugs into the pinion shaft. 7. PLACE NEW LOCKING WASHER
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unity (A540E and A540H)AT±302

12. CHECK OPERATION OF O/D ONE±WAY CLUTCH
(a) Install the overdrive direct clutch into the one±way
clutch.
(b) Hold the overdrive direct clutch and turn the intermedi-
ate shaft. The shaft should turn freely clockwise and
should lock counterclockwise.
(c) Remove the overdrive direct clutch.(c) Install the one±way clutch into the overdrive plan-
etary gear.
HINT: Be sure that the one±way clutch is installed
in the correct direction.

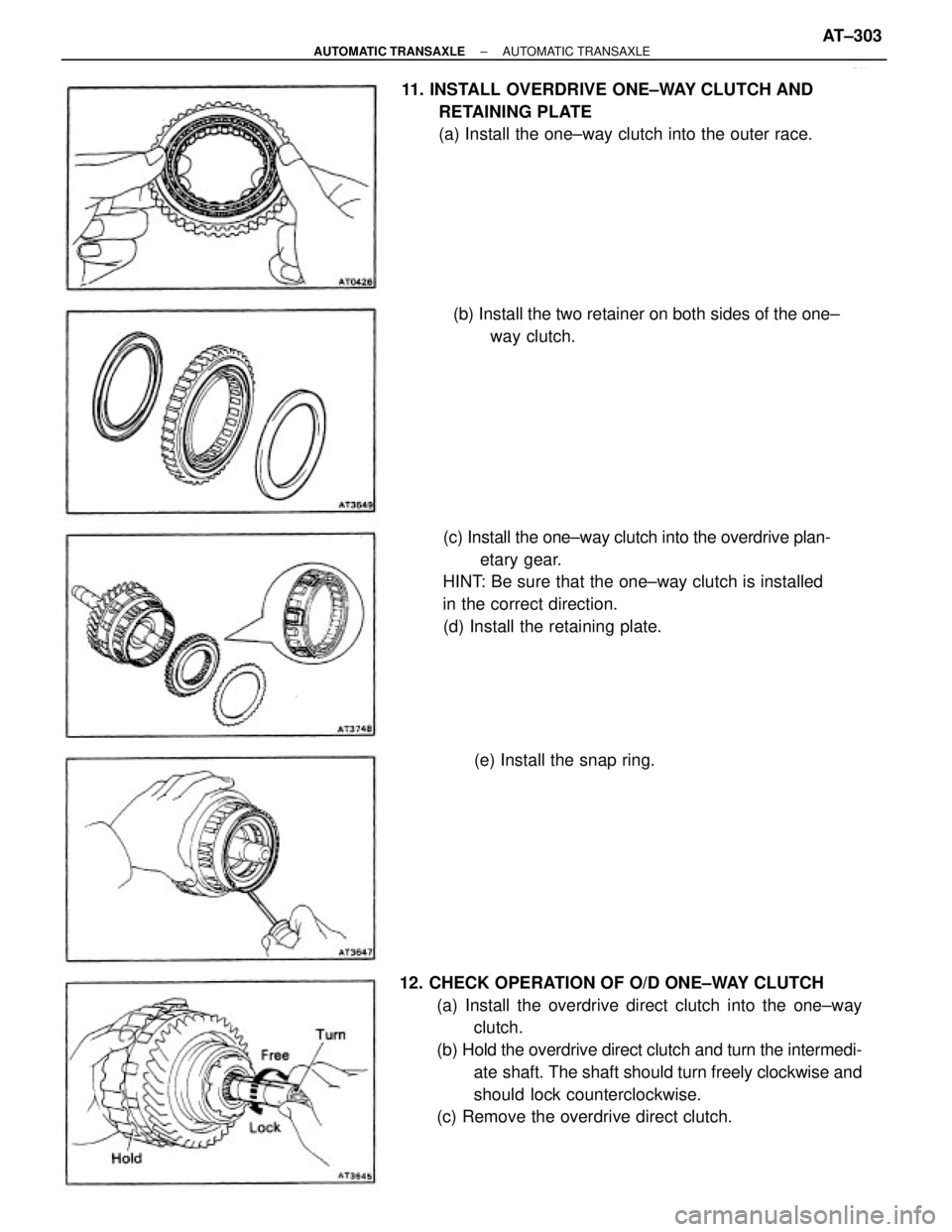

(d) Install the retaining plate. 11. INSTALL OVERDRIVE ONE±WAY CLUTCH AND
RETAINING PLATE
(a) Install the one±way clutch into the outer race.
(b) Install the two retainer on both sides of the one±
way clutch.
(e) Install the snap ring.
± AUTOMATIC TRANSAXLEAUTOMATIC TRANSAXLEAT±303

ASSEMBLY OF OVERDRIVE CASE
1. INSTALL OIL SEAL RINGS ON OVERDRIVE CASE
Spread the two rings apart and install them into the
groove.
HINT: After installing the oil seal rings, check that the
move smoothly.

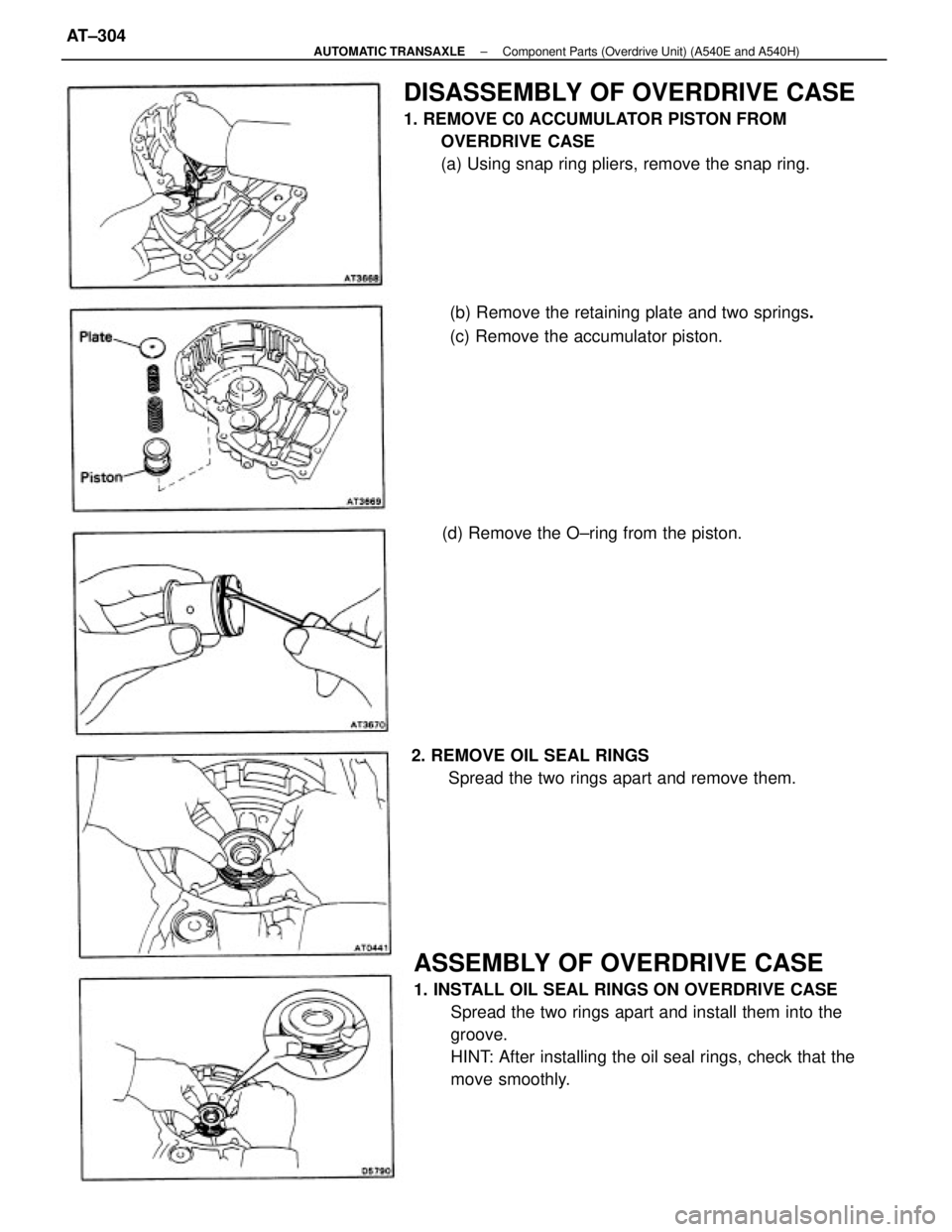

DISASSEMBLY OF OVERDRIVE CASE
1. REMOVE C0 ACCUMULATOR PISTON FROM
OVERDRIVE CASE
(a) Using snap ring pliers, remove the snap ring.
2. REMOVE OIL SEAL RINGS
Spread the two rings apart and remove them.(b) Remove the retaining plate and two springs.
(c) Remove the accumulator piston.
(d) Remove the O±ring from the piston.
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unit) (A540E and A540H)AT±304

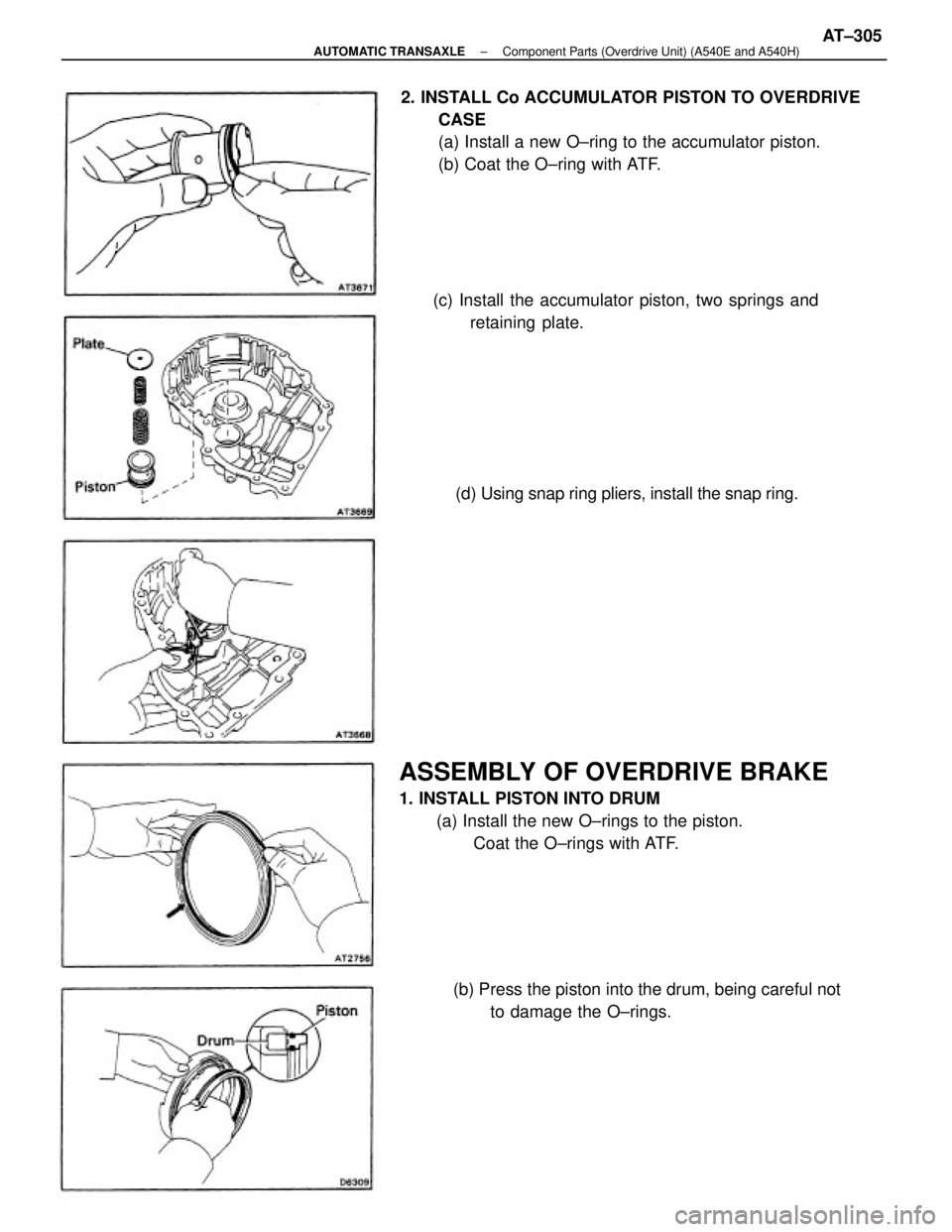

2. INSTALL Co ACCUMULATOR PISTON TO OVERDRIVE
CASE
(a) Install a new O±ring to the accumulator piston.
(b) Coat the O±ring with ATF.
ASSEMBLY OF OVERDRIVE BRAKE
1. INSTALL PISTON INTO DRUM
(a) Install the new O±rings to the piston.
Coat the O±rings with ATF. (c) Install the accumulator piston, two springs and
retaining plate.
(d) Using snap ring pliers, install the snap ring.
(b) Press the piston into the drum, being careful not
to damage the O±rings.
± AUTOMATIC TRANSAXLEComponent Parts (Overdrive Unit) (A540E and A540H)AT±305
