display TOYOTA GT86 2019 Accessories, Audio & Navigation (in English)

97
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM
FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Touch the desired item.
 When “Transfer” is selected
2Follow the steps in “FOR PBAP IN-
COMPATIBLE BUT OPP COMPATI-
BLE Bluetooth
® PHONES” from
“STEP 2”. ( →P.123)
 When “Add” is selected
2Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 2”. ( →P.124)
1Press the button to display the
“Phone” screen.
2Touch the “Dial Pad” tab and enter the
phone number.
3Touch .
4Check that the “Call” screen is dis-
played.
No.Function
Touch to transfer the contacts from
the connected cellular phone.
Touch to add a new contact manual-
ly.
Touch to cancel transferring.
INFORMATION
 Manual transfer operation cannot be
performed while driving.
 If your cellular phone is neither PBAP
nor OPP compatible, the contacts can-
not be transferred.
 Depending on the type of Bluetooth
®
phone:
• It may be necessary to perform addi-
tional steps on the phone when trans-
ferring contact data.
• The registered image in the contact list may not transfer depending on the
type of Bluetooth
® phone connected.
BY DIAL PAD
INFORMATION
 Depending on the type of Bluetooth®
phone being connected, it may be nec-
essary to perform additional steps on
the phone.

99
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM
5. RECEIVING ON THE Bluetooth® PHONE
1Touch to talk on the phone.
To refuse to receive the call : Touch
.
To adjust the volume of a received call :
Turn the “/VOL” knob, or use the vol-
ume control switch on the steering wheel if
equipped.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
INFORMATION
 During international phone calls, the
other party’s name or number may not
be displayed correctly depending on the
type of cellular phone you have.
 The incoming call display mode can be
set. ( →P.130)
 The ringtone that has been set in the
“Sound Settings” screen sounds when
there is an incoming call. Depending on
the type of Bluetooth
® phone, both the
system and Bluetooth® phone may
sound simultaneously when there is an
incoming call. ( →P.121)

100
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
6. TALKING ON THE Bluetooth® PHONE
BY DIAL PAD
1Touch “0-9”.
2Enter the desired number.
While talking on the phone, this screen
is displayed. The operations outlined
below can be performed on this
screen.
No,FunctionPage
Touch to display the dial
pad to send tones.100
Touch to mute your
voice to the other party.
Touch to change hand-
set modes between
handsfree and cellular
phone.

Touch to adjust your
voice volume that the
other party hears from
their speaker.
101
Touch to send tones.
This button only appears
when a number that con-
tains a (w) is dialed in
hands-free mode.
101
Touch to hang up the
phone.
Touch “+” or “-” to ad-
just the volume of the
other party’s voice.

Touch to start talking
with the other party.102
INFORMATION
 Changing from hands-free call to cellular
phone call is not possible while driving.
 When cellular phone call is changed to
hands-free call, the hands-free screen
will be displayed and its functions can be
operated on the screen.
 Changing between cellular phone call
and hands-free call can be performed by
operating the cellular phone directly.
 Transferring methods and operations
will be different depending on the type of
cellular phone you have.
 For the operation of the cellular phone,
see the manual that comes with it.
SENDING TONES
This operation cannot be performed
while driving.

103
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM

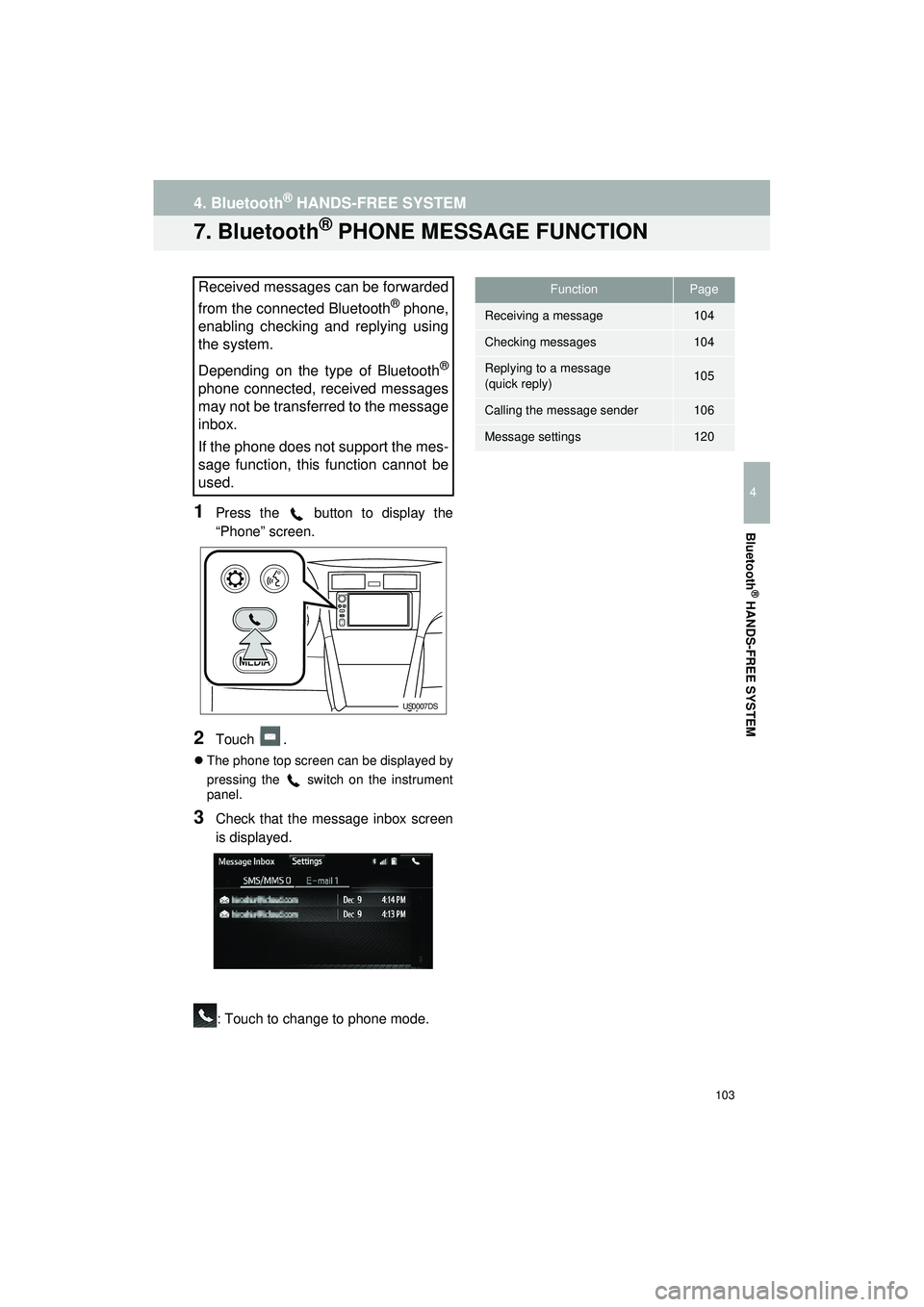

7. Bluetooth® PHONE MESSAGE FUNCTION
1Press the button to display the
“Phone” screen.
2Touch .
The phone top screen can be displayed by
pressing the switch on the instrument
panel.
3Check that the message inbox screen
is displayed.
: Touch to change to phone mode.
Received messages can be forwarded
from the connected Bluetooth
® phone,
enabling checking and replying using
the system.
Depending on the type of Bluetooth
®
phone connected, received messages
may not be transferred to the message
inbox.
If the phone does not support the mes-
sage function, this function cannot be
used.
US0007DS
FunctionPage
Receiving a message104
Checking messages104
Replying to a message
(quick reply)105
Calling the message sender106
Message settings120

104
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
1Display the message inbox screen.
(→P.103)
2Touch the desired message from the
list.
3Check that the message is displayed.

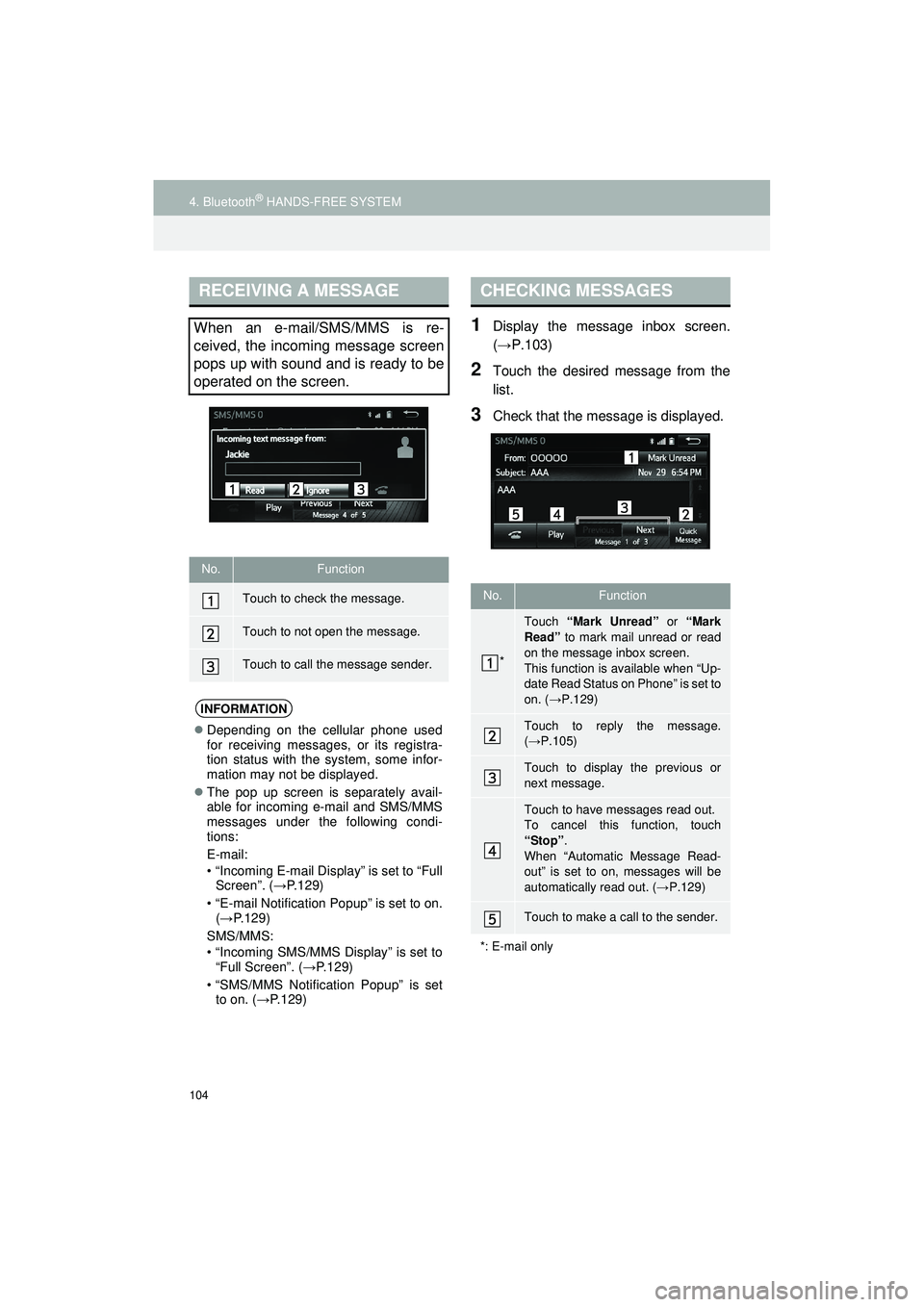

RECEIVING A MESSAGE
When an e-mail/SMS/MMS is re-
ceived, the incoming message screen
pops up with sound and is ready to be
operated on the screen.
No.Function
Touch to check the message.
Touch to not open the message.
Touch to call the message sender.
INFORMATION
Depending on the cellular phone used
for receiving messages, or its registra-
tion status with the system, some infor-
mation may not be displayed.
 The pop up screen is separately avail-
able for incoming e-mail and SMS/MMS
messages under the following condi-
tions:
E-mail:
• “Incoming E-mail Display” is set to “Full
Screen”. ( →P.129)
• “E-mail Notification Popup” is set to on. (→ P.129)
SMS/MMS:
• “Incoming SMS/MMS Display” is set to “Full Screen”. ( →P.129)
• “SMS/MMS Notification Popup” is set to on. ( →P.129)
CHECKING MESSAGES
No.Function
*
Touch “Mark Unread” or “Mark
Read” to mark mail unread or read
on the message inbox screen.
This function is available when “Up-
date Read Status on Phone” is set to
on. ( →P.129)
Touch to reply the message.
(→ P.105)
Touch to display the previous or
next message.
Touch to have messages read out.
To cancel this function, touch
“Stop” .
When “Automatic Message Read-
out” is set to on, messages will be
automatically read out. ( →P.129)
Touch to make a call to the sender.
*: E-mail only

105
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM
1Display the message inbox screen.
(→P.103)
2Touch the desired message from the
list.
3Touch “Quick Message” .
4Touch the desired message.
5Touch “Send” .
While the message is being sent, a send-
ing message screen is displayed.
 To cancel sending the message, touch
“Cancel” .
INFORMATION
Reading a text message is not available
while driving.
 Depending on the type of Bluetooth
®
phone being connected, it may be nec-
essary to perform additional steps on
the phone.
 Messages are displayed in the appropri-
ate connected Bluetooth
® phone’s regis-
tered mail address folder. Touch the tab
of the desired folder to be displayed.
 Only received messages on the con-
nected Bluetooth
® phone can be dis-
played.
 The text of the message is not displayed
while driving.
 Turn the “/VOL” knob, or use the vol-
ume control switch on the steering
wheel (if equipped) to adjust the mes-
sage read out volume.
REPLYING TO A MESSAGE
(QUICK REPLY)
15 pre-populated messages have al-
ready been stored.

106
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS

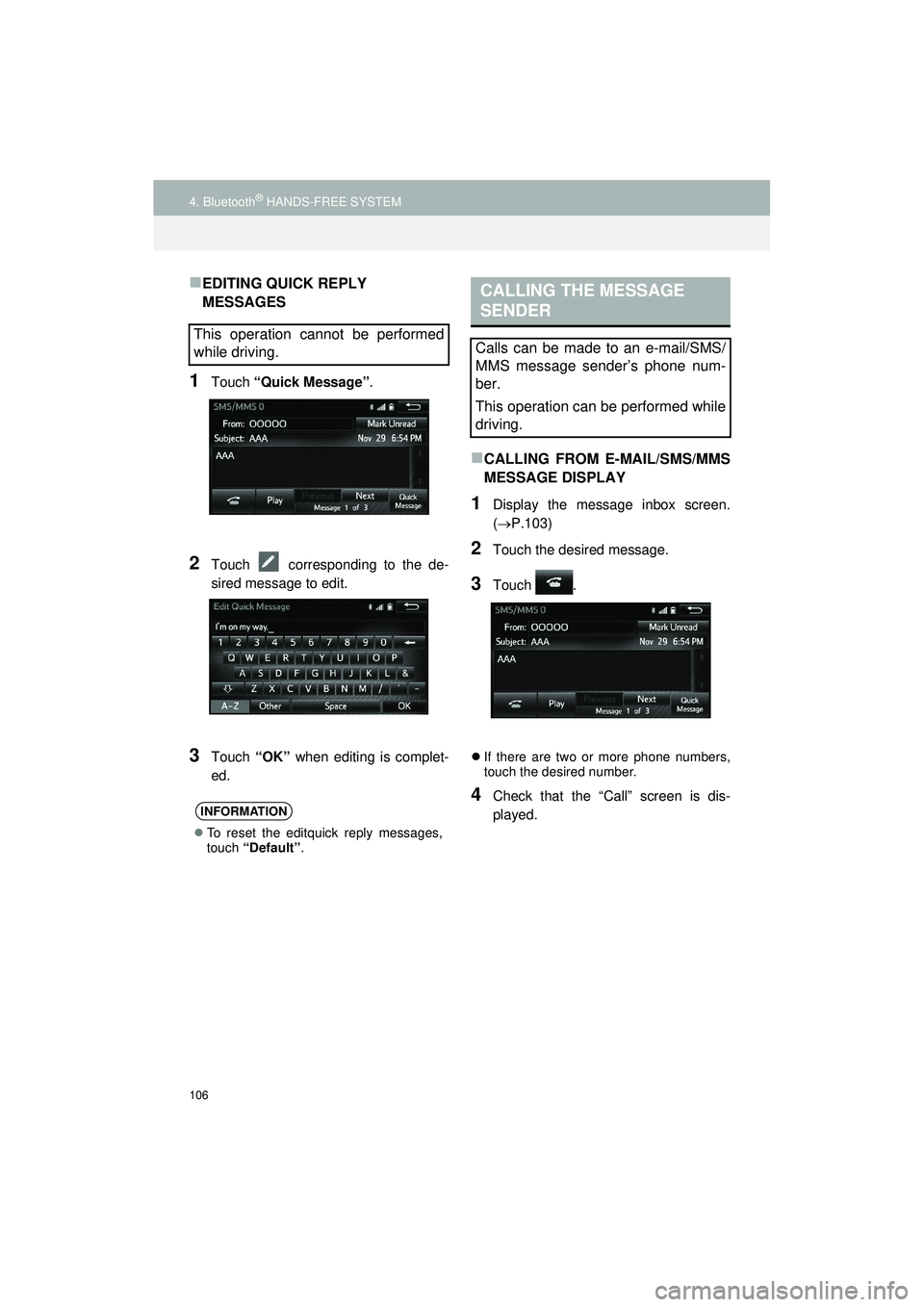

EDITING QUICK REPLY
MESSAGES
1Touch “Quick Message” .
2Touch corresponding to the de-
sired message to edit.
3Touch “OK” when editing is complet-
ed.
CALLING FROM E-MAIL/SMS/MMS
MESSAGE DISPLAY
1Display the message inbox screen.
( P.103)
2Touch the desired message.
3Touch .
If there are two or more phone numbers,
touch the desired number.
4Check that the “Call” screen is dis-
played.
This operation cannot be performed
while driving.
INFORMATION
To reset the editquick reply messages,
touch “Default” .
CALLING THE MESSAGE
SENDER
Calls can be made to an e-mail/SMS/
MMS message sender’s phone num-
ber.
This operation can be performed while
driving.

107
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM
CALLING A NUMBER FROM WITH-
IN A MESSAGE
1Display the message inbox screen.
(P.103)
2Touch the desired message.
3Touch the text area.
4Touch the desired number.
Identified phone numbers contained in the
message are displayed.
5Check that the “Call” screen is dis-
played.
CALLING FROM THE INCOMING
MESSAGE SCREEN
P.104Calls can be made to a number identi-
fied in a message’s text area.
This operation cannot be performed
while driving.
INFORMATION
A series of numbers may be recognized
as a phone number. Additionally, some
phone numbers may not be recognized,
such as those for other countries.

5
109
1
2
3
4
5
Highlander_Navi_MXS

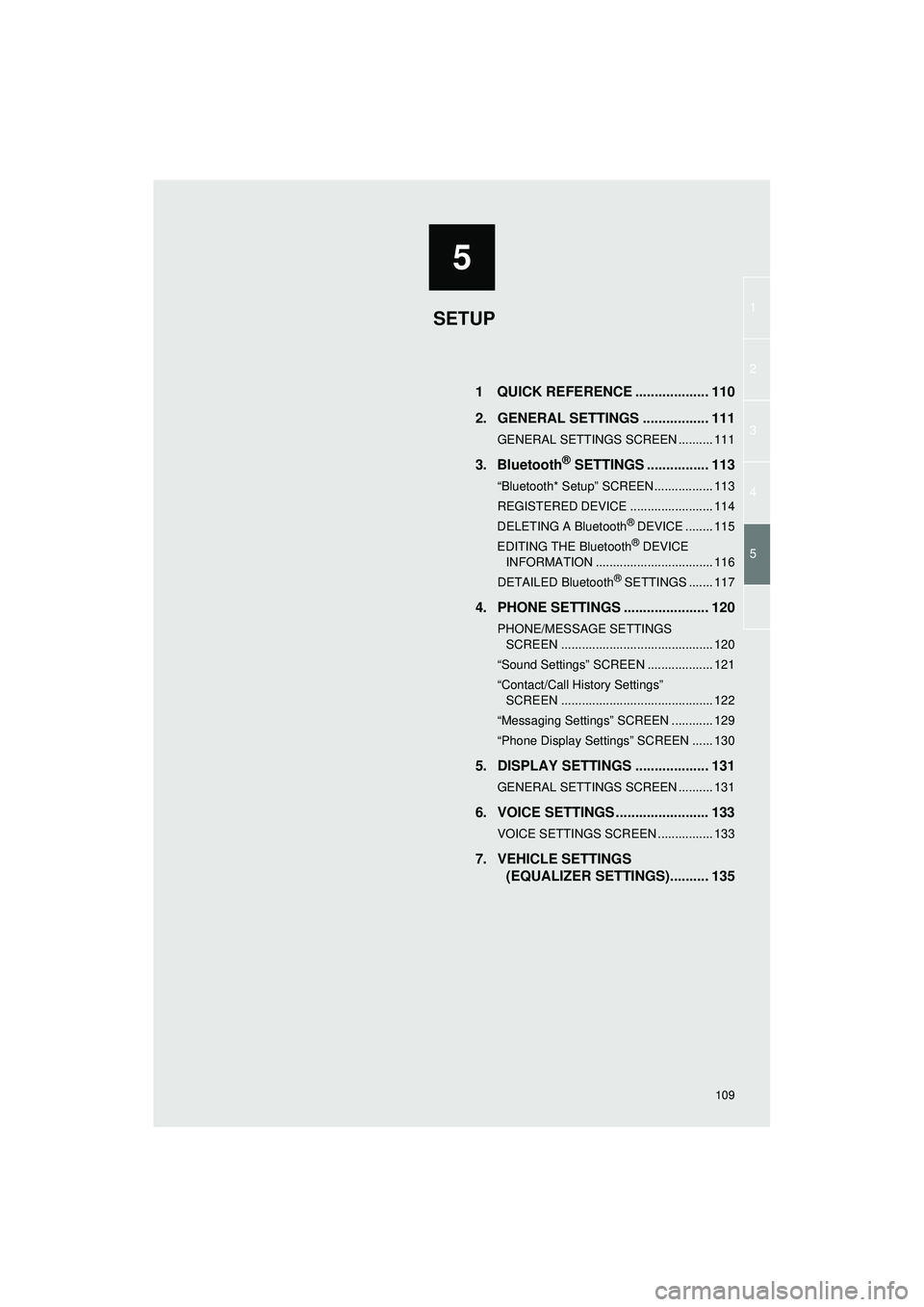

1 QUICK REFERENCE ................... 110
2. GENERAL SETTINGS ................. 111
GENERAL SETTINGS SCREEN .......... 111
3. Bluetooth® SETTINGS ................ 113
“Bluetooth* Setup” SCREEN................. 113
REGISTERED DEVICE ........................ 114
DELETING A Bluetooth® DEVICE ........ 115
EDITING THE Bluetooth® DEVICE
INFORMATION .................................. 116
DETAILED Bluetooth
® SETTINGS ....... 117
4. PHONE SETTINGS ...................... 120
PHONE/MESSAGE SETTINGS SCREEN ............................................ 120
“Sound Settings” SCREEN ................... 121
“Contact/Call History Settings” SCREEN ............................................ 122
“Messaging Settings” SCREEN ............ 129
“Phone Display Settings” SCREEN ...... 130
5. DISPLAY SETTINGS ................... 131
GENERAL SETTINGS SCREEN .......... 131
6. VOICE SETTINGS ........................ 133
VOICE SETTINGS SCREEN ................ 133
7. VEHICLE SETTINGS (EQUALIZER SETTINGS).......... 135
SETUP

110
Highlander_Navi_MXS
5. SETUP
1. QUICK REFERENCE
The items shown on the “Setup” screen can be set. Press the button to display
the “Setup” screen.
No.FunctionPage
Press this button to display the “Setup” screen.
Touch to change the selected language, operation sound, etc.111
Touch to set the voice settings.133
Touch to adjust the contrast and brightness of the screens.131
Touch to set Bluetooth® phones and Bluetooth® audio devices.11 3
Touch to set the phone sound, contacts, message settings, etc.120
Touch to set equalizer settings for your vehicle.135
Touch to turn the screen off.
