1212. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U

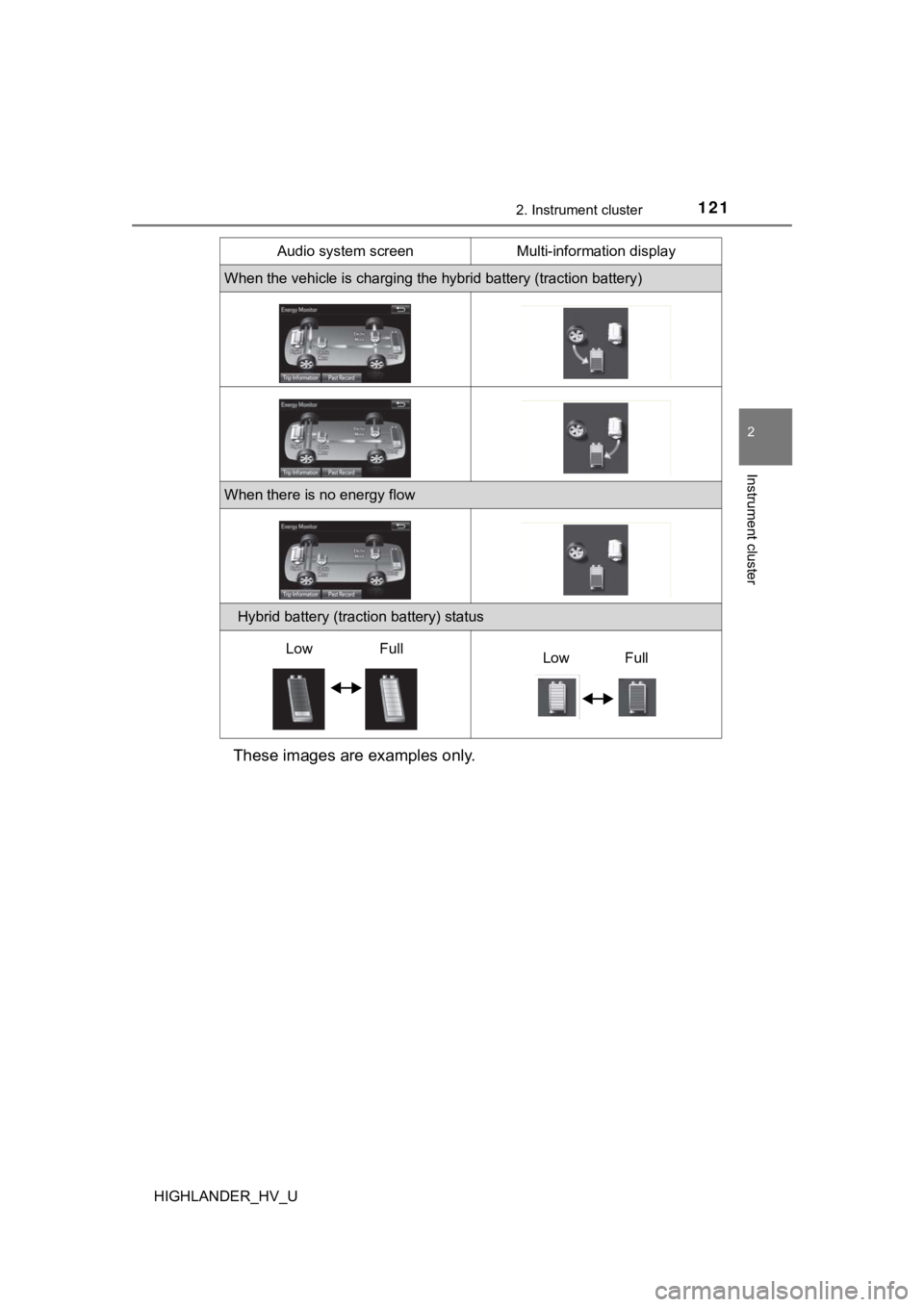

These images are examples only.
When the vehicle is charging the hybrid battery (traction batte ry)
When there is no energy flow
Hybrid battery (traction battery) status
Audio system screenMulti-information display
LowFullLowFull

1222. Instrument cluster
HIGHLANDER_HV_U
Press the “APPS” button.
Touch “ECO” on the “Apps”
screen.
If the “Energy Monitor” or “Past
Record” screen is displayed, touch
“Trip Information”.
Resetting the consumption
data
Fuel consumption in the past
15 minutes
Regenerated energy in the
past 15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybr id system was started.
Cruising range
This image is an example only, and may vary slightly from actua l condi-
tions.
Trip Information (audio system screen)
1
2
1
2
3
4
5
6

1232. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U
Press the “APPS” button.
Touch “ECO” on the “Apps” screen.
If the “Energy Monitor” or “Trip Information” screen is displayed, touch
“Past Record”.
Resetting the past record
data
Best past fuel consumption
Average fuel consumption
Displays a maximum of five past
records of the average fuel con-
sumption.
Previous fuel consumption
record
Update
The average fuel consumption and graph are updated, and a new a ver-
age fuel consumption record begins.
This image is an example only, and may vary slightly from actua l condi-
tions.
■ Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset t he fuel consump-
tion and regenerated energy for the last 15 minutes. Selecting “Clear” on the
“Past Record” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.
Past Record screen (audio system screen)
1
2
1
2
3
4
5

1242. Instrument cluster
HIGHLANDER_HV_U

125
3
Operation of
each component
HIGHLANDER_HV_U 3-1. Key information
Keys .................................. 126
3-2. Opening, closing and locking the doors
Side doors ......................... 130
Back door .......................... 136
Glass hatch ....................... 148
Smart key system ............. 152
3-3. Adjusting the seats Front seats ........................ 160
Rear seats......................... 162
Driving position memory ........................... 169
Head restraints.................. 173
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 177
Inside rear view mirror ...... 179
Outside rear view mirrors ............................. 181
3-5. Opening and closing the windows
Power windows ................. 183
Moon roof .......................... 187
Panoramic moon roof........ 191

126
HIGHLANDER_HV_U
3-1. Key information
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart key system (P. 152)
• Operating the wireless remote control function
Mechanical keys
Key number plate
Locks the doors ( P. 131)
Unlocks the doors ( P. 131)
Models available with one
touch opening/closing on the
front side windows:
Opens the front side windows
and moon roof
* (  P. 131)
Models available with one
touch opening/closing on all
side windows:
Opens all side windows and
moon roof
* (  P. 1 3 1 )
Opens and closes t he power back door (if equipped) ( P. 137)
Sounds the alarm ( P. 127)
*: This setting must be customized at your Toyota dealer.
Keys
The keys
1
2
3
Wireless remote control
1
2
3
4
5

1273-1. Key information
3
Operation of each component
HIGHLANDER_HV_U
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electro nic key bat-
tery is depleted or the entry function does not operate properl y, you will
need the mechanical key. ( P. 622)
■Panic mode
■ When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 456)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using the me chanical
key and the key number stamped on your key number plate. Keep t he plate in
a safe place such as your wallet, not in the vehicle.
Using the mechanical key
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

1283-1. Key information
HIGHLANDER_HV_U■
When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any button on the electronic key while inside the aircraft cabi n. If you are car-
rying an electronic key in your bag etc., ensure that the butto ns are not likely
to be pressed accidentally. Pressing a button may cause the electronic key to
emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting operation
P. 155
■ Electronic key battery depletion
●The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin wh en the hybrid
system stops. ( P. 592)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 539)
• The smart key system or the wireless remote control does not o perate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appliances that produce a magnet ic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ When the electronic key battery is fully depleted
P. 539
■ Confirmation of the registered key number
The number of electronic keys already registered to the vehicle can be con-
firmed. Ask your Toyota dealer for details.
■ If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 666)
■ Certification for the wireless remote control
P. 158

1293-1. Key information
3
Operation of each component
HIGHLANDER_HV_U
NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer et c.
● Do not attach metallic or magnetic materials to the keys or pla ce the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields , such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or more away from elec tric appli-
ances that are turned on. Radio waves emitted from electric app liances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems
Take your vehicle with all the electronic keys provided with yo ur vehicle to
your Toyota dealer.
■ When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft i ncreases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that was provided with your vehicle.

130
HIGHLANDER_HV_U
3-2. Opening, closing and locking the doors
◆Entry function
Carry the electronic key to enable this function.
Front doors
Grip the driver's door handle
to unlock the door. Grip the
passenger's door handle to
unlock all the doors.
*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. ( P. 134)
Touch the lock sensor (indentation on the upper part of the doo r
handle) to lock all the doors.
Check that the door is securely locked.
Back door
Press the unlock button to
unlock all the doors.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Press the lock button to lock
all the doors.
Check that the door is securely
locked.
Side doors
Unlocking and locking the doors from the outside
1
2
1
2
