Alarm-operated door lock
In the following cases, depending on the situation, the door ma y automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the 12-volt battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1021-4. Theft deterrent system
HIGHLANDER_HV_U

103
Instrument cluster2
HIGHLANDER_HV_U2. Instrument cluster
Warning lights and indicators ........................ 104
Gauge and meters ............ 109
Multi-information display............................. 113
Energy monitor/ consumption screen ........ 119

104
HIGHLANDER_HV_U
2. Instrument cluster
The units used on the meters and some indicators may differ depending on
the target region.

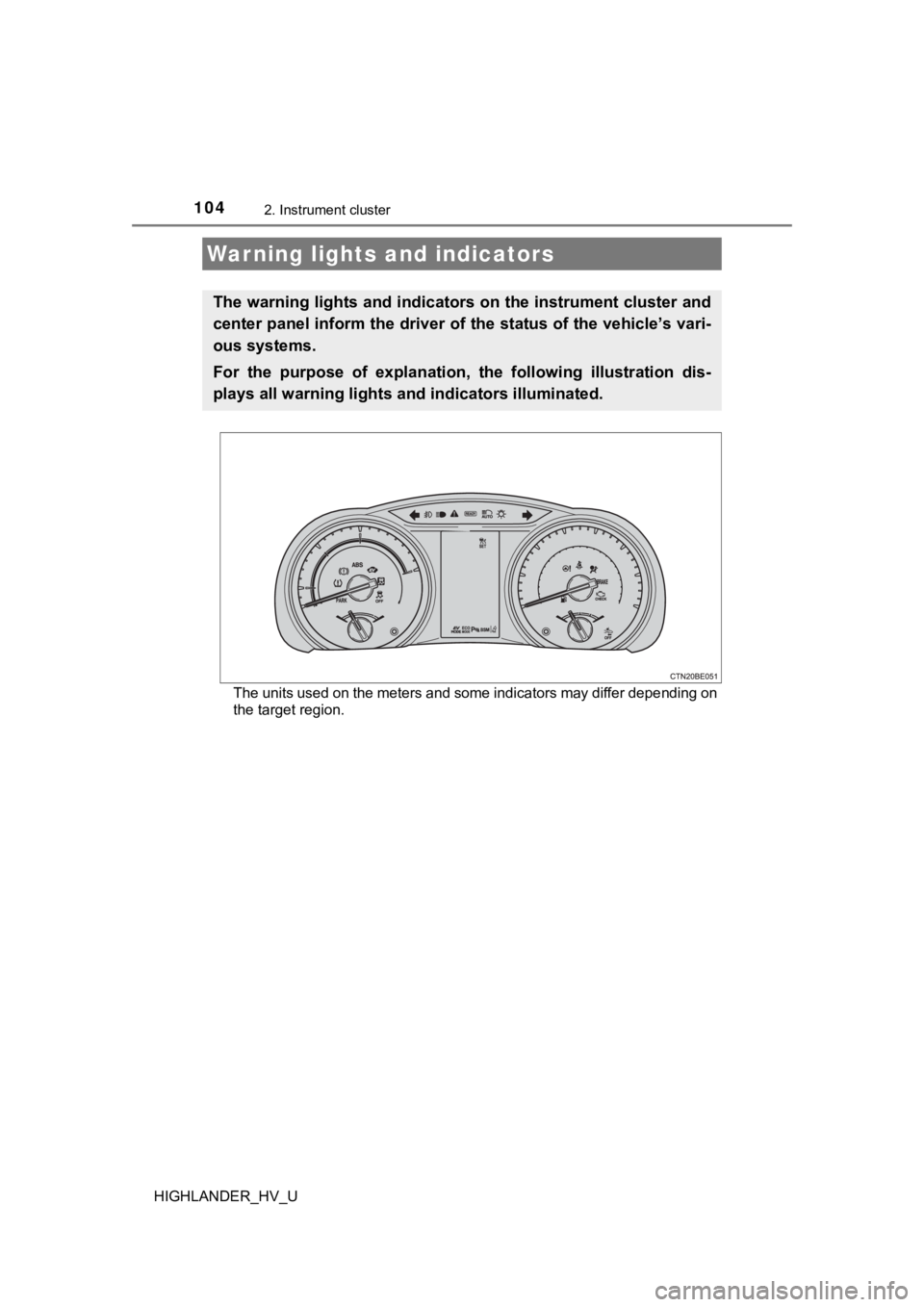

Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, t he following illustration dis-
plays all warning lights a nd indicators illuminated.

1052. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 567)*1, 2PCS (Pre-Collision Sys-
tem) warning light
(P. 569)
*1
(Canada)
Brake system warning
light ( P. 567)
(Amber)
LDA (Lane Departure
Alert with steering con-
trol) indicator ( P. 569)
*1
(Yellow)
Brake system warning
light (P. 567)*1
Slip indicator ( P. 568)
*1
(U.S.A.)
Malfunction indicator
lamp (P. 567)Low fuel level warning
light (P. 568)
*1
(Canada)
Malfunction indicator
lamp ( P. 567)Driver’s and front pas-
senger’s seat belt
reminder light ( P. 568)
*1SRS warning light
(P. 567)*3Rear seat seat belt
reminder lights
(P. 569)
*1
(U.S.A.)
ABS warning light
(P. 568)*1
Master warning light
(P. 569)
*1
(Canada)
ABS warning light
(P. 568)*1
Tire pressure warning
light ( P. 569)
*1Electric power steering
system warning light
(P. 568)*1, 3Vehicle proximity notifi-
cation system warning
light ( P. 570)

1062. Instrument cluster
HIGHLANDER_HV_U
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by your Toyota dealer.
*2: This light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.
*1
(U.S.A)
Parking brake warning
light ( P. 568)*1
(Canada)
Parking brake warning
light (P. 568)

1072. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 245) LDA (Lane Departure
Alert with steering con-
trol) indicator
(
P. 292)
(U.S.A.)
Headlight indicator
(P. 247)*2, 3 Intuitive parking assist
indicator
(Canada)
Tail light indicator
(P. 247) “ECO MODE” indicator
(
P. 240)
Headlight high beam
indicator ( P. 248)
*1, 8 Slip indicator ( P. 337)
Automatic High Beam
indicator ( P. 251)
*1VSC OFF indicator
(P. 337)
*2Front fog light indicator
(P. 255)*2BSM (Blind Spot Moni-
tor) indicator ( P. 320)
Dynamic radar cruise
control (constant speed
control mode) indicator
( P. 307)
*2, 5, 6BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 320)
Dynamic radar cruise
control (vehicle-to-vehi-
cle distance control
mode) indicator
( P. 303)
*7
Security indicator
(P. 97, 99)
Dynamic radar cruise
control “SET”
indicator ( P. 303, 307) “READY” indicator
(
P. 231)
*1, 4PCS (Pre-Collision Sys-
tem) warning light
(P. 278) EV indicator (
P. 89)

1082. Instrument cluster
HIGHLANDER_HV_U
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN- UAL”.
*4: This light comes on when the system is turned off.
*5: In order to confirm operation, the BSM outside rear view mirro r indicators
illuminate in the following situations:
• When the BSM function is enabled on of the multi-information dis-
play, the power switch is turned to ON mode.
• When the power switch is in ON mode, the BSM function is enabl ed on
of the multi-information display.
If the system is functioning correctly, the BSM outside rear vi ew mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminat e or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8: This light flashes to indicate that the system is operating.EV drive mode indicator
(
P. 237)
*1, 7
(Canada)
“AIR BAG ON/
OFF” indicator
(P. 54)
*1, 7
(U.S.A.)
“AIR BAG ON/
OFF” indicator
(P. 54)
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, whic h could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

1092. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Multi-information display
Presents the driver with a variety of driving-related data.
Speedometer
Fuel gauge
Trip meter reset knob
Switches the trip information.
Outside temperature
Odometer and trip meter display
Shift position and shift range
Displays the selected shift position or selected shift range. (P. 239)
Instrument panel light control button
Engine coolant temperature gauge
Displays the engine coolant temperature.
Gauge and meters
The displayed content may differ depending on the type of
meter.
1
2
3
4
5
6
7
8
9
10

1102. Instrument cluster
HIGHLANDER_HV_U
Switches between the trip meter
“A” and “B” displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.
The brightness of the instrument panel lights can be adjusted.
Pressing the butto n will adjust the
brightness of the instrument panel
lights.
The brightness level of the meters
when the surroundings are bright
(day mode) and dark (night mode)
can be adjusted individually. How-
ever, when in day mode, adjusting
the brightness level will also
change the brightness level of
night mode.
Changing the trip meter display
Instrument panel light control
