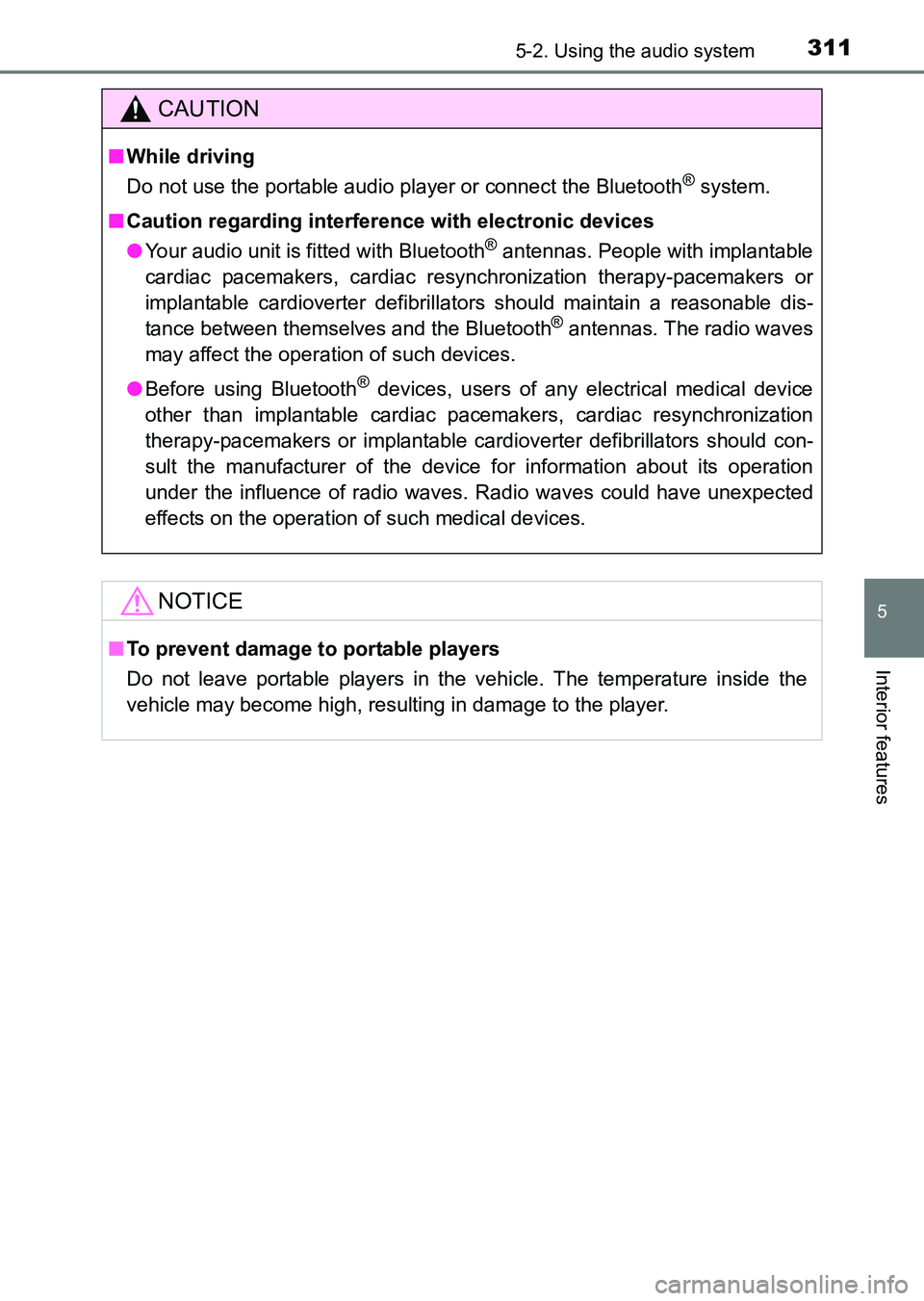

3115-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
CAUTION
■While driving
Do not use the portable audio player or connect the Bluetooth
® system.
■
Caution regarding interference with electronic devices
●
Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
●
Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.
HILUX_OM_OM0K219E_(EE).book Page 311 Wednesday, May 14, 2014 3:06 PM

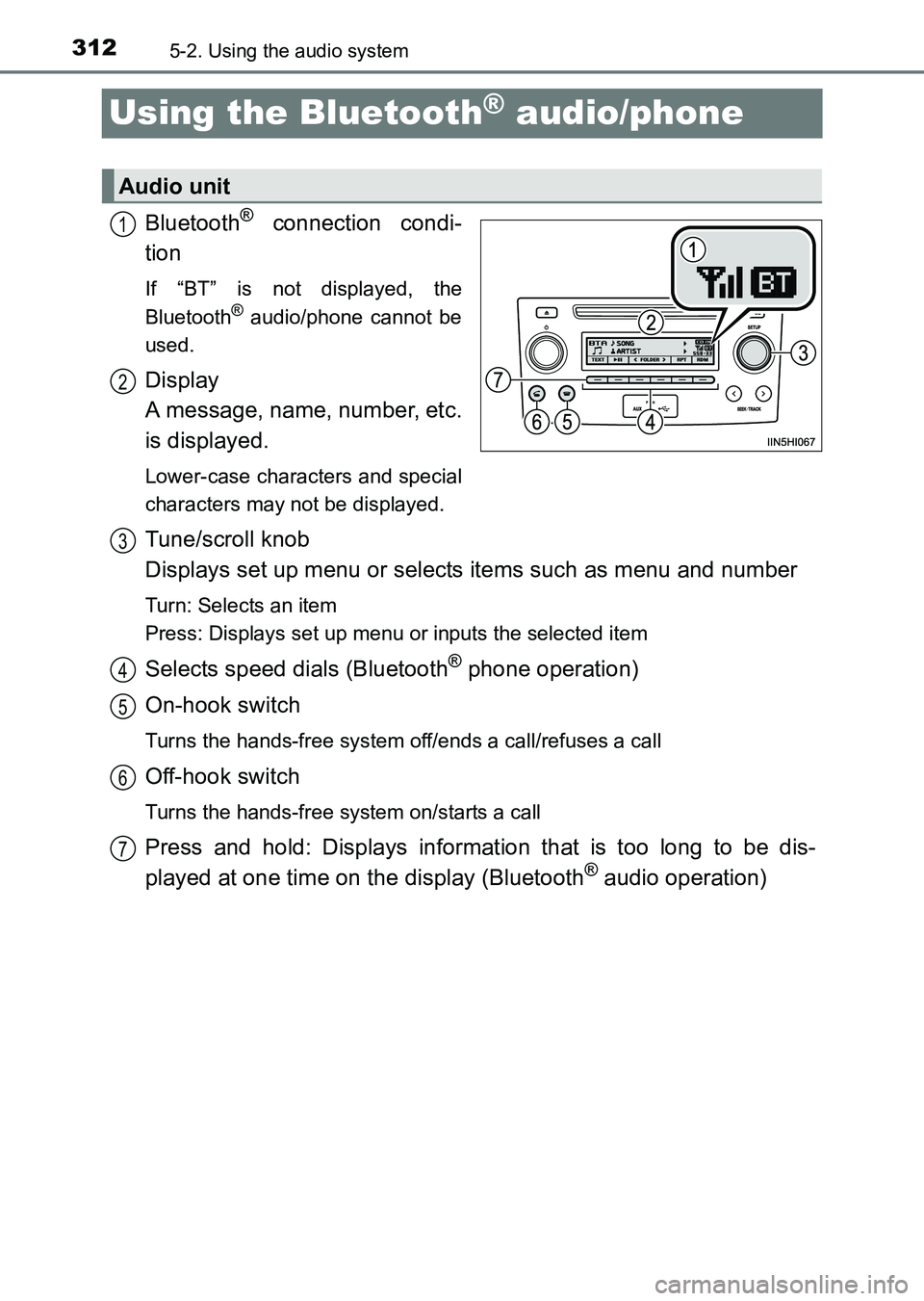

3125-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
Using the Bluetooth® audio/phone
Bluetooth® connection condi-
tion
If “BT” is not displayed, the
Bluetooth® audio/phone cannot be
used.
Display
A message, name, number, etc.
is displayed.
Lower-case characters and special
characters may not be displayed.
Tune/scroll knob
Displays set up menu or selects items such as menu and number
Turn: Selects an item
Press: Displays set up menu or inputs the selected item
Selects speed dials (Bluetooth® phone operation)
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Off-hook switch
Turns the hands-free system on/starts a call
Press and hold: Displays information that is too long to be dis-
played at one time on the display (Bluetooth® audio operation)
Audio unit
1
2
3
4
5
6
7
HILUX_OM_OM0K219E_(EE).book Page 312 Wednesday, May 14, 2014 3:06 PM

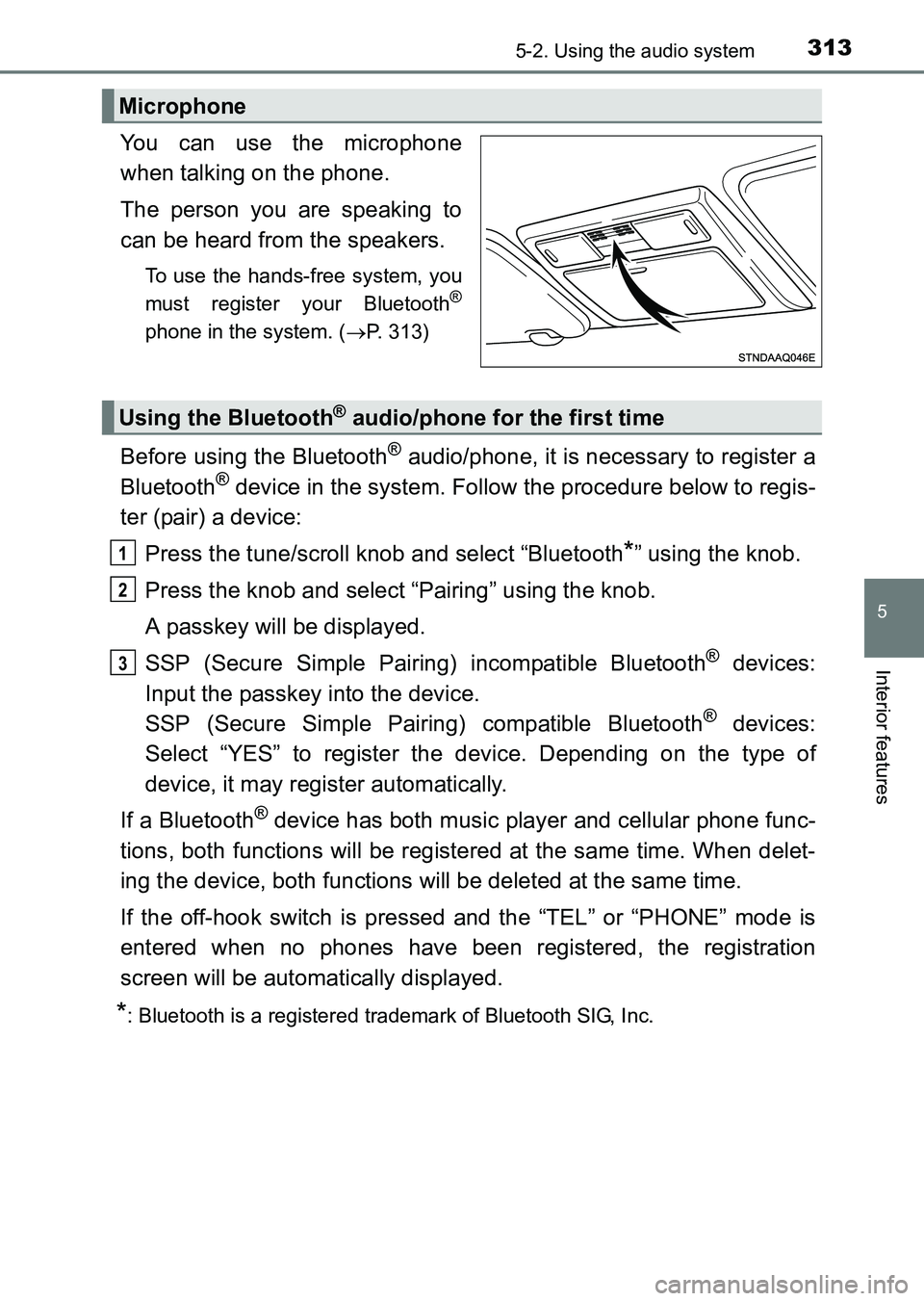

3135-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
You can use the microphone
when talking on the phone.
The person you are speaking to
can be heard from the speakers.
To use the hands-free system, you
must register your Bluetooth®
phone in the system. (→P. 313)
Before using the Bluetooth® audio/phone, it is necessary to register a
Bluetooth® device in the system. Follow the procedure below to regis-
ter (pair) a device:
Press the tune/scroll knob and select “Bluetooth
*” using the knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth
® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth
® devices:
Select “YES” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth
® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is pressed and the “TEL” or “PHONE” mode is
entered when no phones have been registered, the registration
screen will be automatically displayed.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Microphone
Using the Bluetooth® audio/phone for the first time
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 313 Wednesday, May 14, 2014 3:06 PM

3145-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

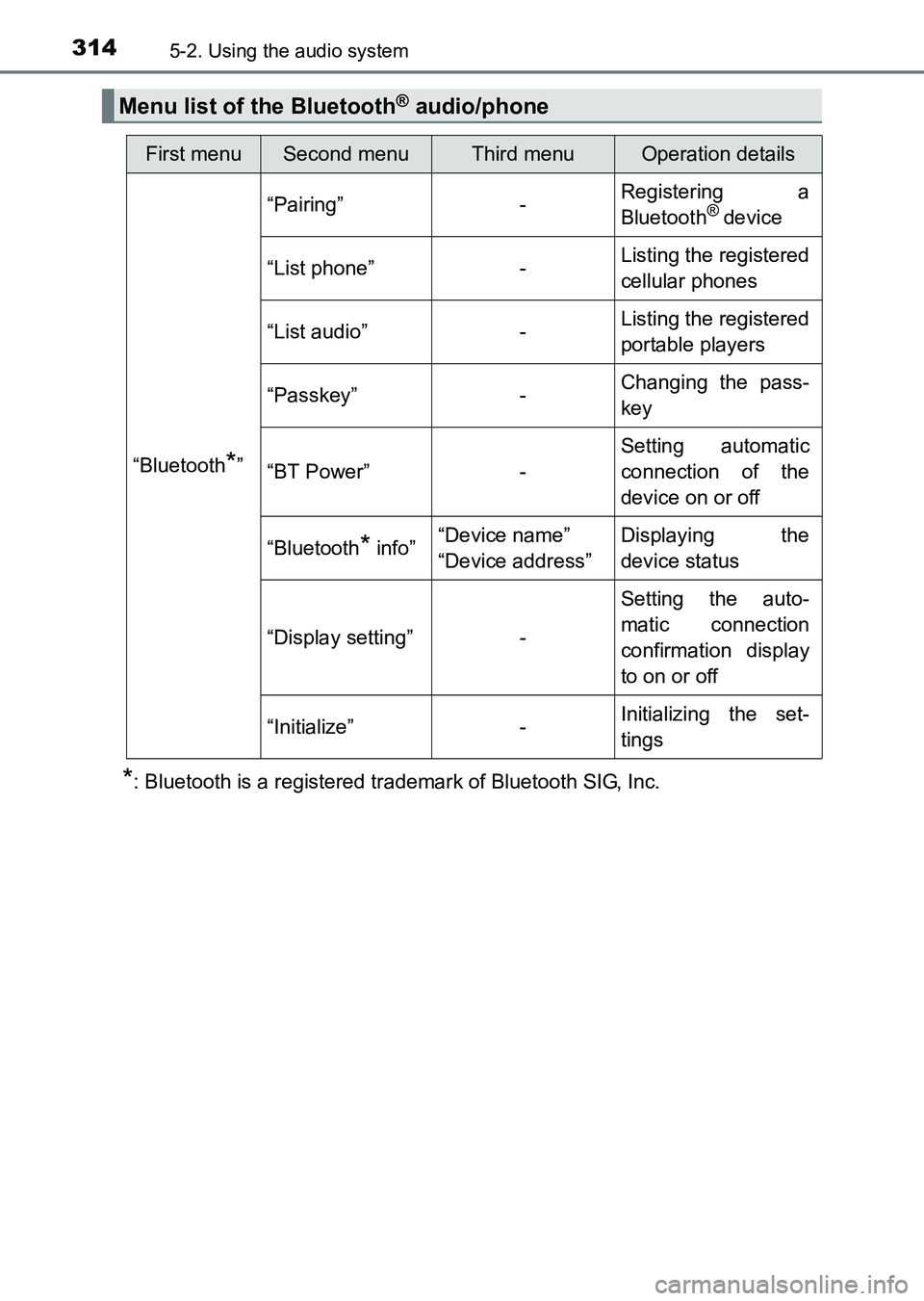

Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth*”
“Pairing” -Registering a
Bluetooth® device
“List phone” -Listing the registered
cellular phones
“List audio” -Listing the registered
portable players
“Passkey” -
Changing the pass-
key
“BT Power” -Setting automatic
connection of the
device on or off
“Bluetooth
* info” “Device name”
“Device address” Displaying the
device status
“Display setting” - Setting the auto-
matic connection
confirmation display
to on or off
“Initialize” - Initializing the set-
tings
HILUX_OM_OM0K219E_(EE).book Page 314 Wednesday, May 14, 2014
3:06 PM

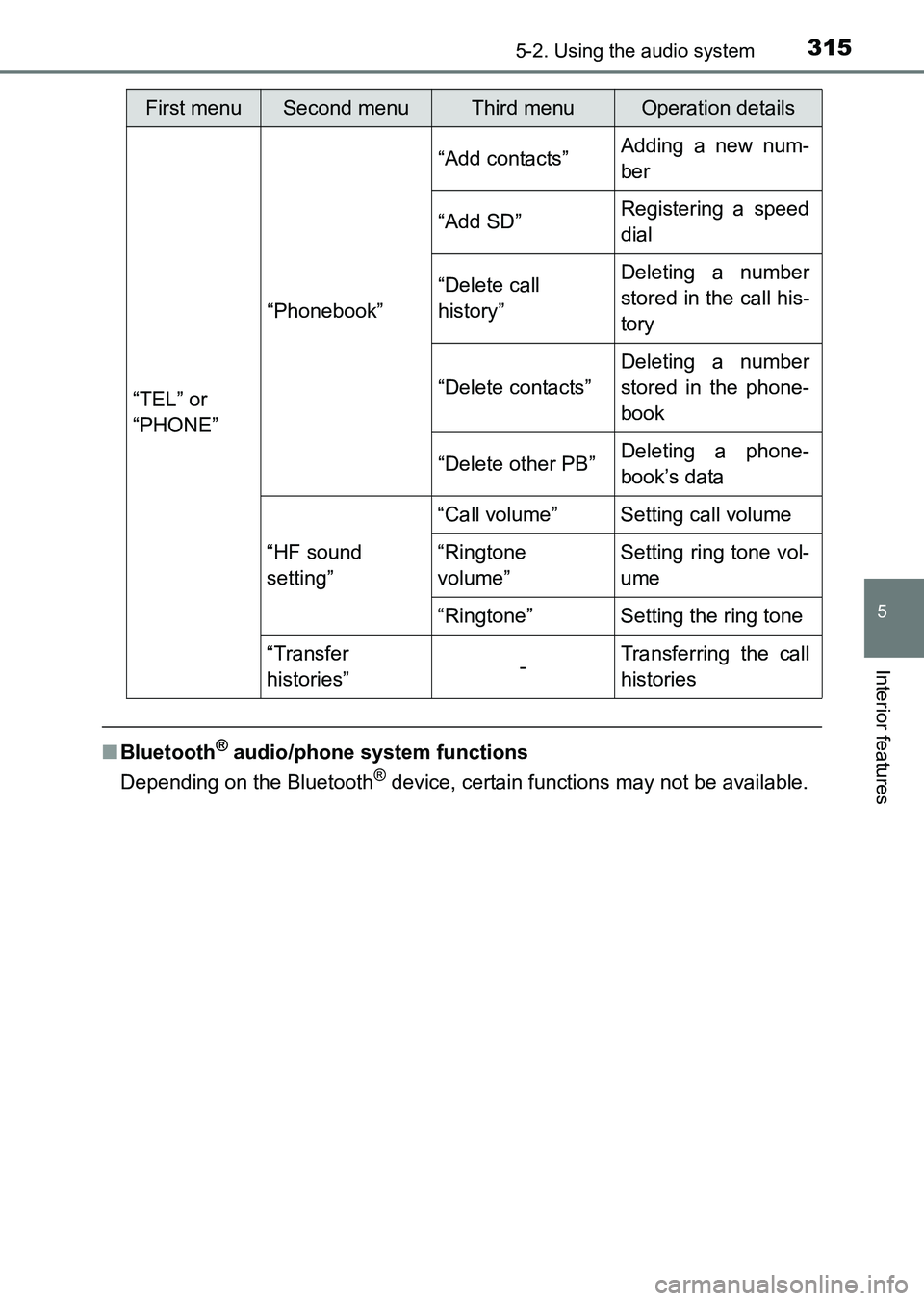

3155-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
■Bluetooth® audio/phone system functions
Depending on the Bluetooth
® device, certain functions may not be available.
First menuSecond menuThird menuOperation details
“TEL” or
“PHONE” “Phonebook” “Add contacts”
Adding a new num-
ber
“Add SD” Registering a speed
dial
“Delete call
history” Deleting a number
stored in the call his-
tory
“Delete contacts” Deleting a number
stored in the phone-
book
“Delete other PB” Deleting a phone-
book’s data
“HF sound
setting” “Call volume” Setting call volume
“Ringtone
volume”
Setting ring tone vol-
ume
“Ringtone” Setting the ring tone
“Transfer
histories” -Transferring the call
histories
HILUX_OM_OM0K219E_(EE).book Page 315 Wednesday, May 14, 2014
3:06 PM

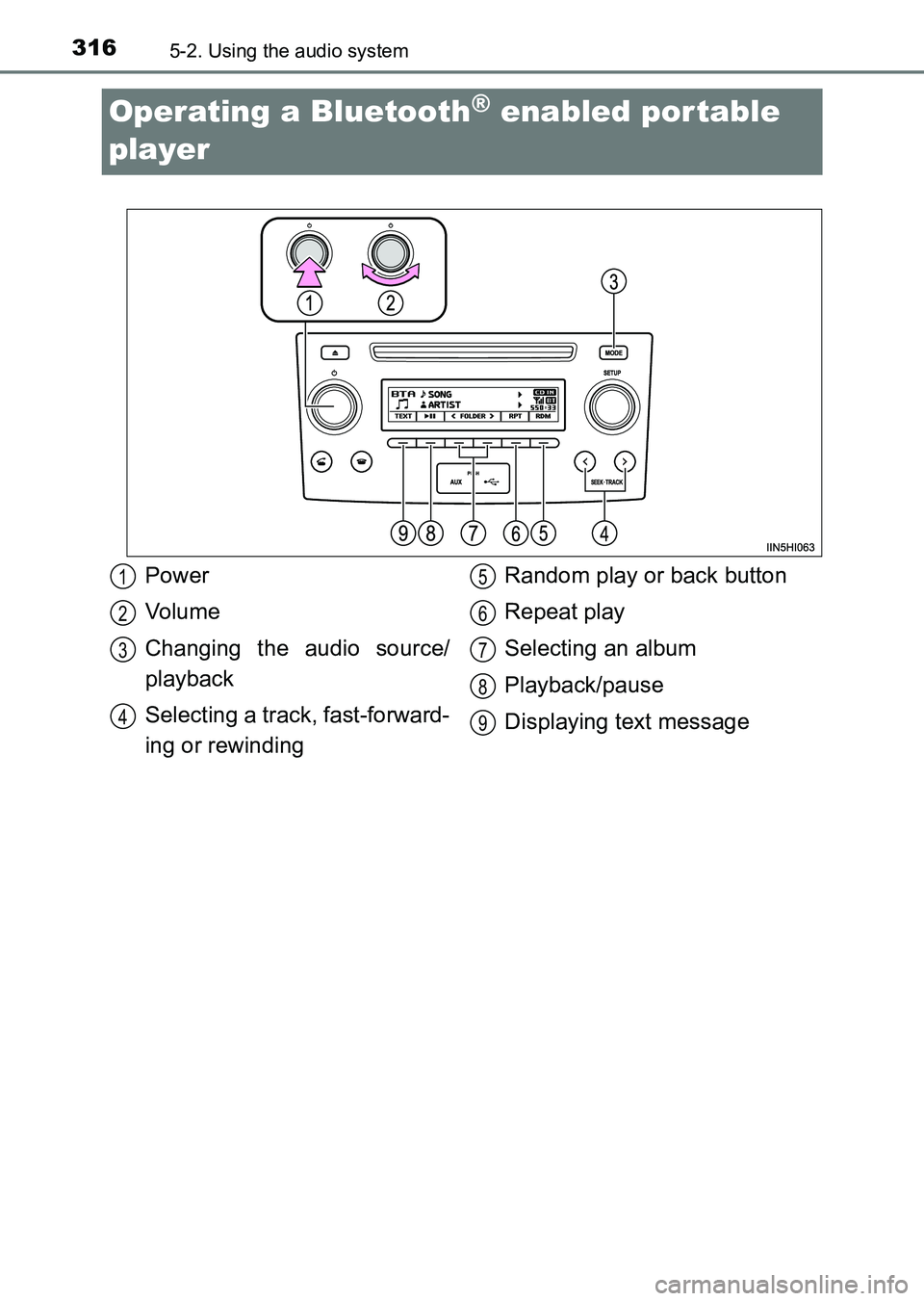

3165-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
Operating a Bluetooth® enabled por table
player
Power
Vo lu m e
Changing the audio source/
playback
Selecting a track, fast-forward-
ing or rewinding Random play or back button
Repeat play
Selecting an album
Playback/pause
Displaying text message1
2
3
4
5
6
7
8
9
HILUX_OM_OM0K219E_(EE).book Page 316 Wednesday, May 14, 2014
3:06 PM

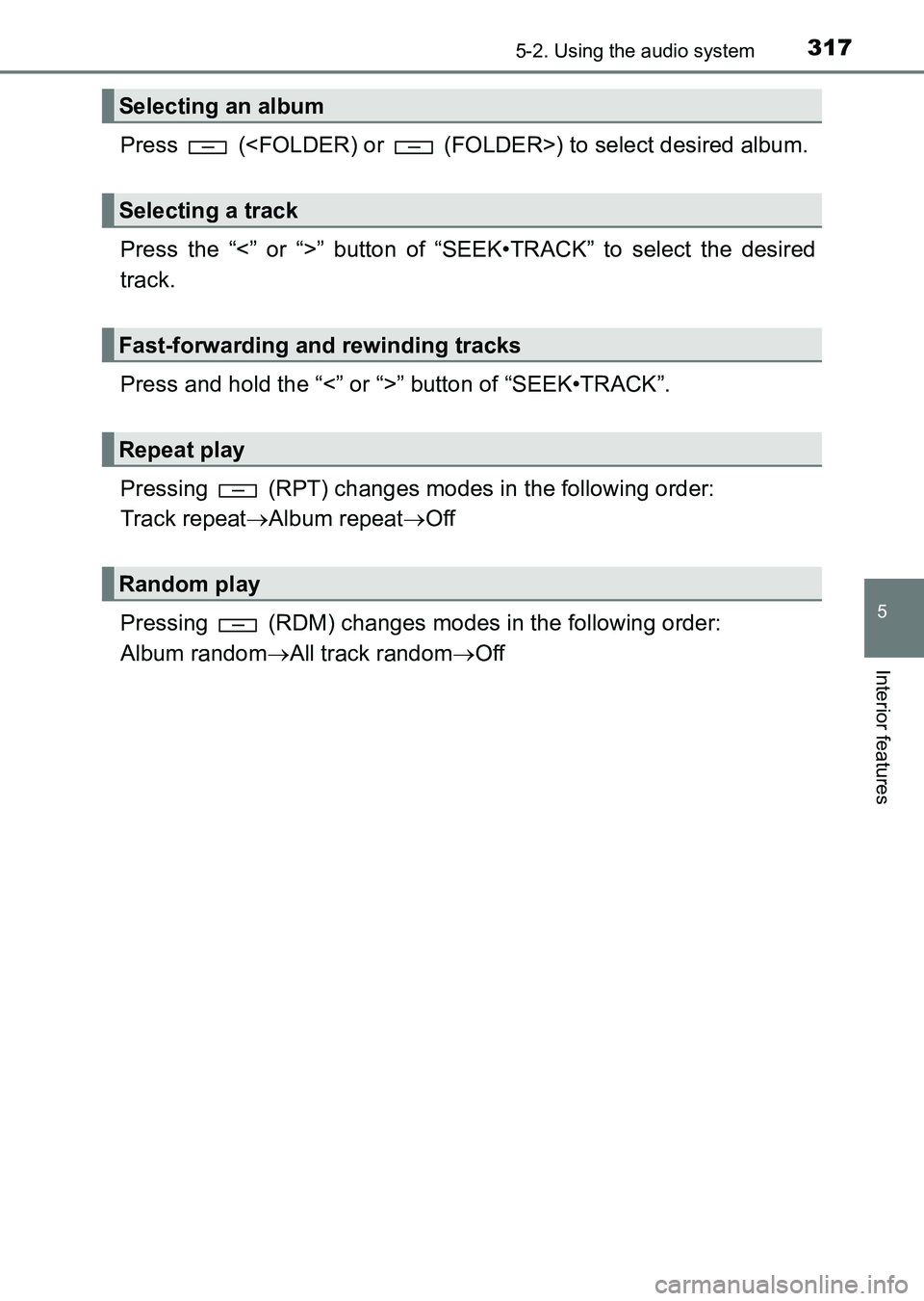

3175-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
Press () to select desired album.
Press the “<” or “>” button of “SEEK•TRACK” to select the desired
track.
Press and hold the “<” or “>” button of “SEEK•TRACK”.
Pressing (RPT) changes modes in the following order:
Track repeat→Album repeat →Off
Pressing (RDM) changes modes in the following order:
Album random →All track random →Off
Selecting an album
Selecting a track
Fast-forwarding and rewinding tracks
Repeat play
Random play
HILUX_OM_OM0K219E_(EE).book Page 317 Wednesday, May 14, 2014 3:06 PM

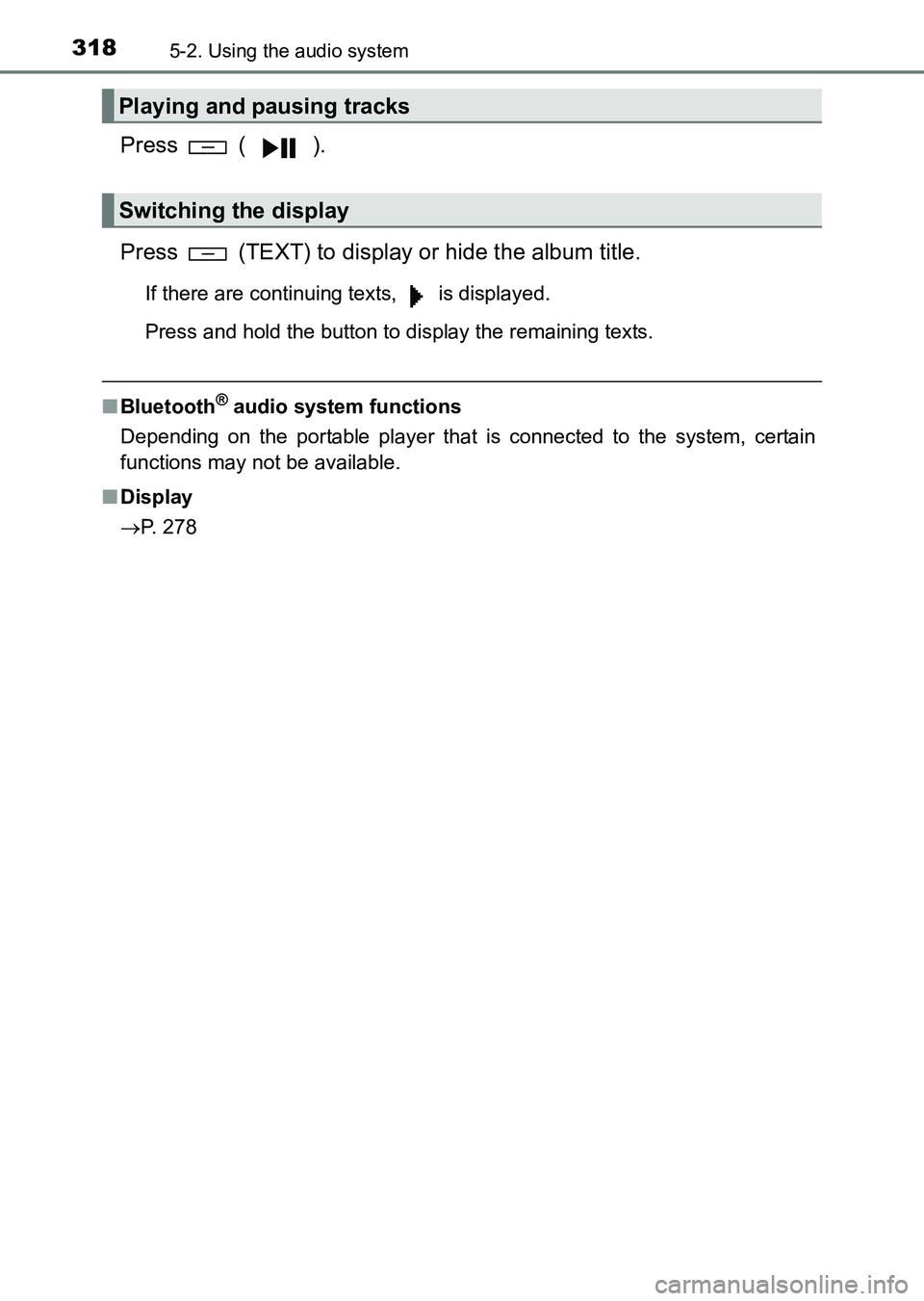

3185-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
Press ( ).
Press (TEXT) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
→ P. 278
Playing and pausing tracks
Switching the display
HILUX_OM_OM0K219E_(EE).book Page 318 Wednesday, May 14, 2014 3:06 PM

319
5
5-2. Using the audio system
Interior features
HILUX_OM_OM0K219E_(EE)
Making a phone call
●Making a phone call
• Dialing by inputting a name
• Speed dialing
• Dialing by entering the number
• Dialing from call histories
● Receiving a phone call
• Answering the phone
• Refusing the call
● Operations during a call
• Transferring a call
• Muting your voice
• Inputting digits
• Setting call volume
● Adjusting the ring tone volume when receiving a call
To enter the “TEL” or “PHONE” mode, press the off-hook switch.
HILUX_OM_OM0K219E_(EE).book Page 319 Wednesday, May 14, 2014 3:06 PM

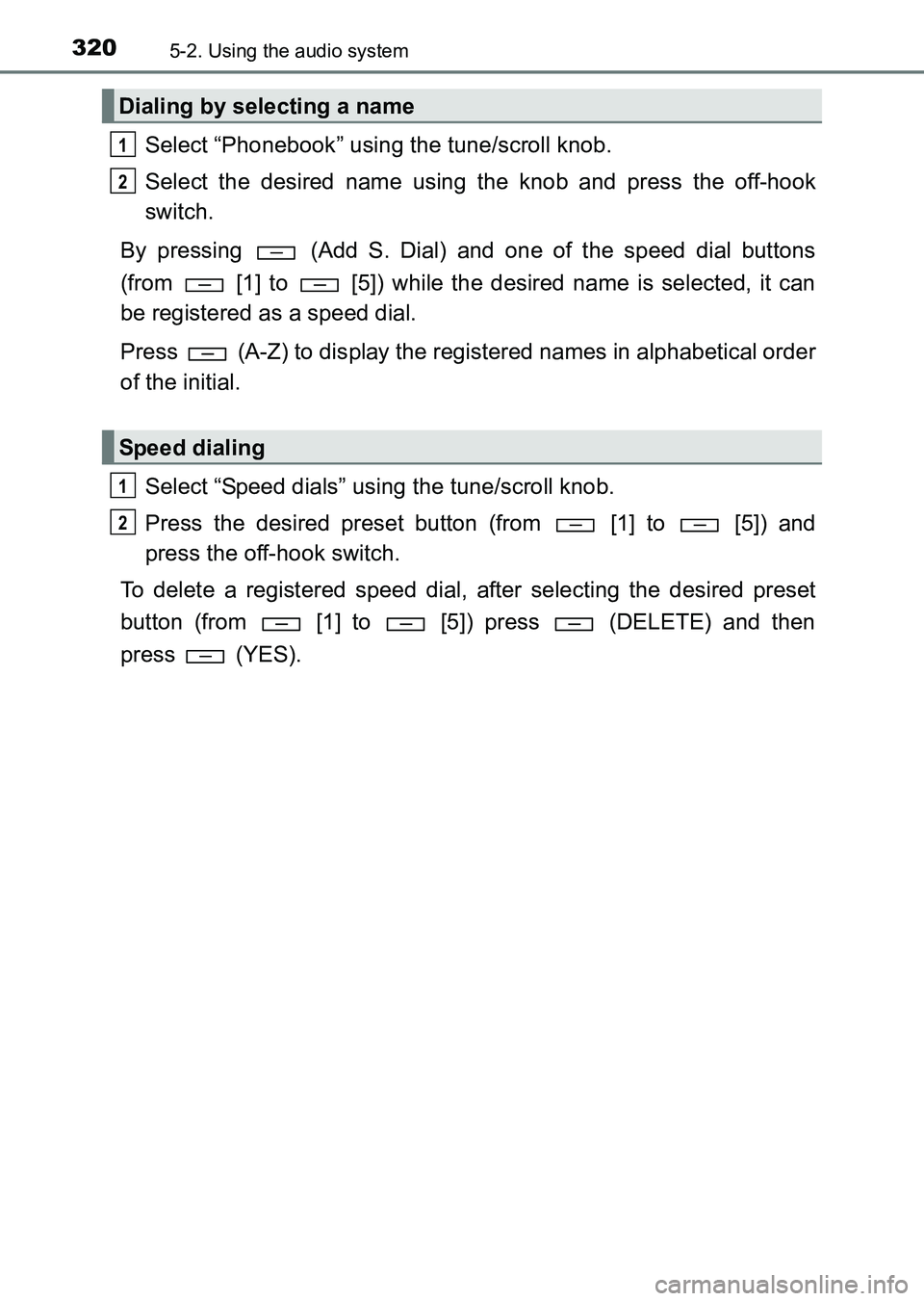

3205-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
Select “Phonebook” using the tune/scroll knob.
Select the desired name using the knob and press the off-hook
switch.
By pressing (Add S. Dial) and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it can
be registered as a speed dial.
Press (A-Z) to display the registered names in alphabetical order
of the initial.
Select “Speed dials” using the tune/scroll knob.
Press the desired preset button (from [1] to [5]) and
press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press (DELETE) and then
press (YES).
Dialing by selecting a name
Speed dialing
1
2
1
2
