3215-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)
Select “Dial by number” using the tune/scroll knob.
Enter the phone number and press the off-hook switch.
Select “All Calls”, “Missed Calls”, “Incoming Calls” or “Outgoing
Calls” using the tune/scroll knob.
Select a desired number using the knob and press the off-hook
switch.
The following operations can be performed:
● Registering a number as a speed dial
Press (Add S. Dial) and then press the desired preset button
(from [1] to [5]).
● Deleting the selected number
Press (DELETE) and press (YES).
Dialing by entering the number
Dialing from call histories
1
2
1
2
HILUX_OM_OM0K219E_(EE).book Page 321 Wednesday, May 14, 2014 3:06 PM

3225-2. Using the audio system
HILUX_OM_OM0K219E_(EE)■
Answering the phone
Press the off-hook switch.
■Refusing the call
Press the on-hook switch.
■Receiving a call when on another call
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
■
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation
of the phone.
b. Press the (PHONE).*
*
: This operation can be performed only when transferring a call from the
cellular phone to the system during a call.
■
Muting your voice
Press (MUTE).
■Inputting digits Press (0-9).
Turn the tune/scroll knob to select the number, and then push the
knob.
If tone data is saved, press (SEND) to send the data all at once.
Press
(EXIT) to delete the tone data.
When finished, press (BACK) to return to the previous
screen.
When receiving a phone call
Operations during a call
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 322 Wednesday, May 14, 2014 3:06 PM

3235-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)■

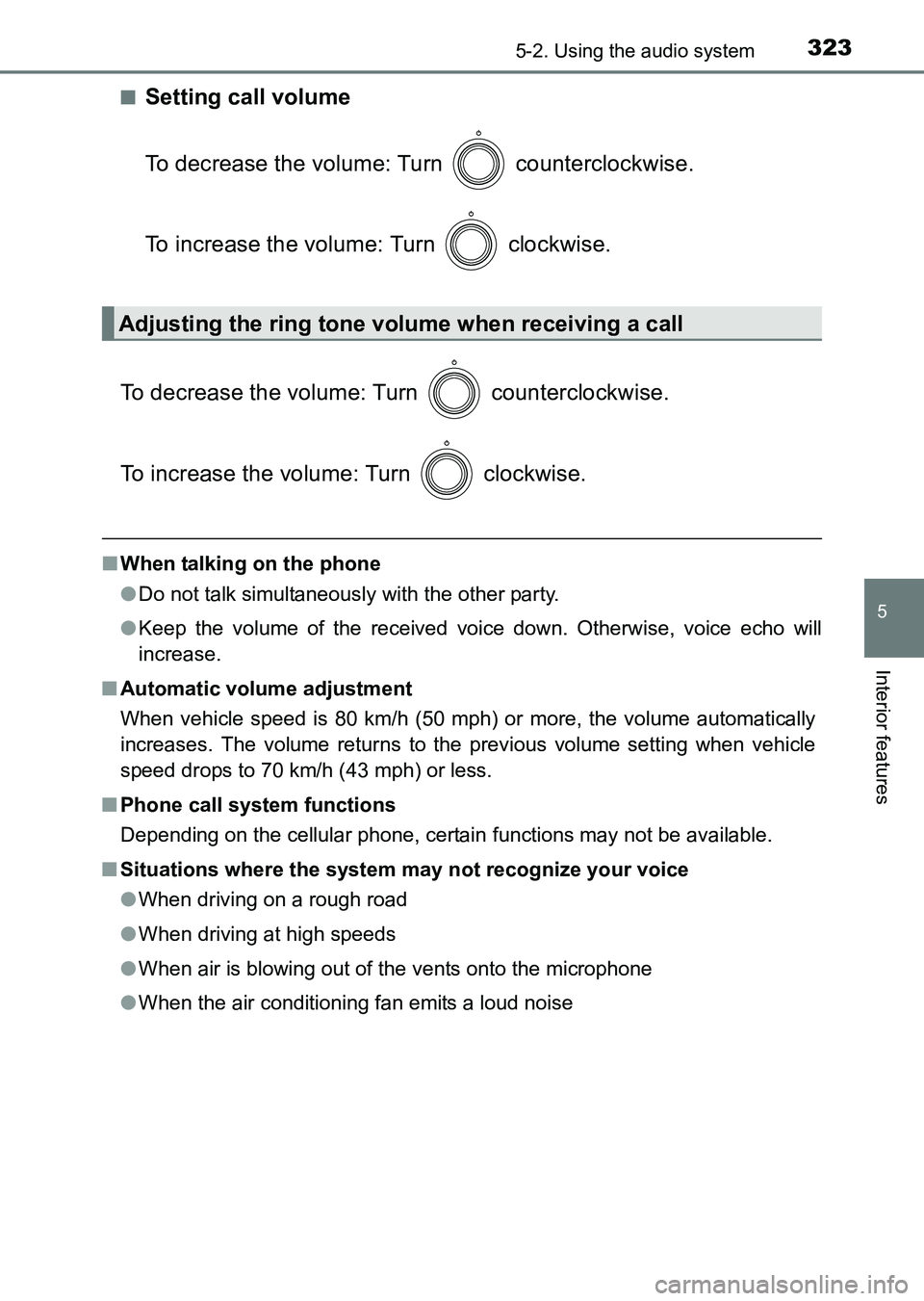

Setting call volume
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
■ When talking on the phone
●Do not talk simultaneously with the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ Phone call system functions
Depending on the cellular phone, certai n functions may not be available.
■ Situations where the system may not recognize your voice
●When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise
Adjusting the ring tone volume when receiving a call
HILUX_OM_OM0K219E_(EE).book Page 323 Wednesday, May 14, 2014 3:06 PM

3245-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

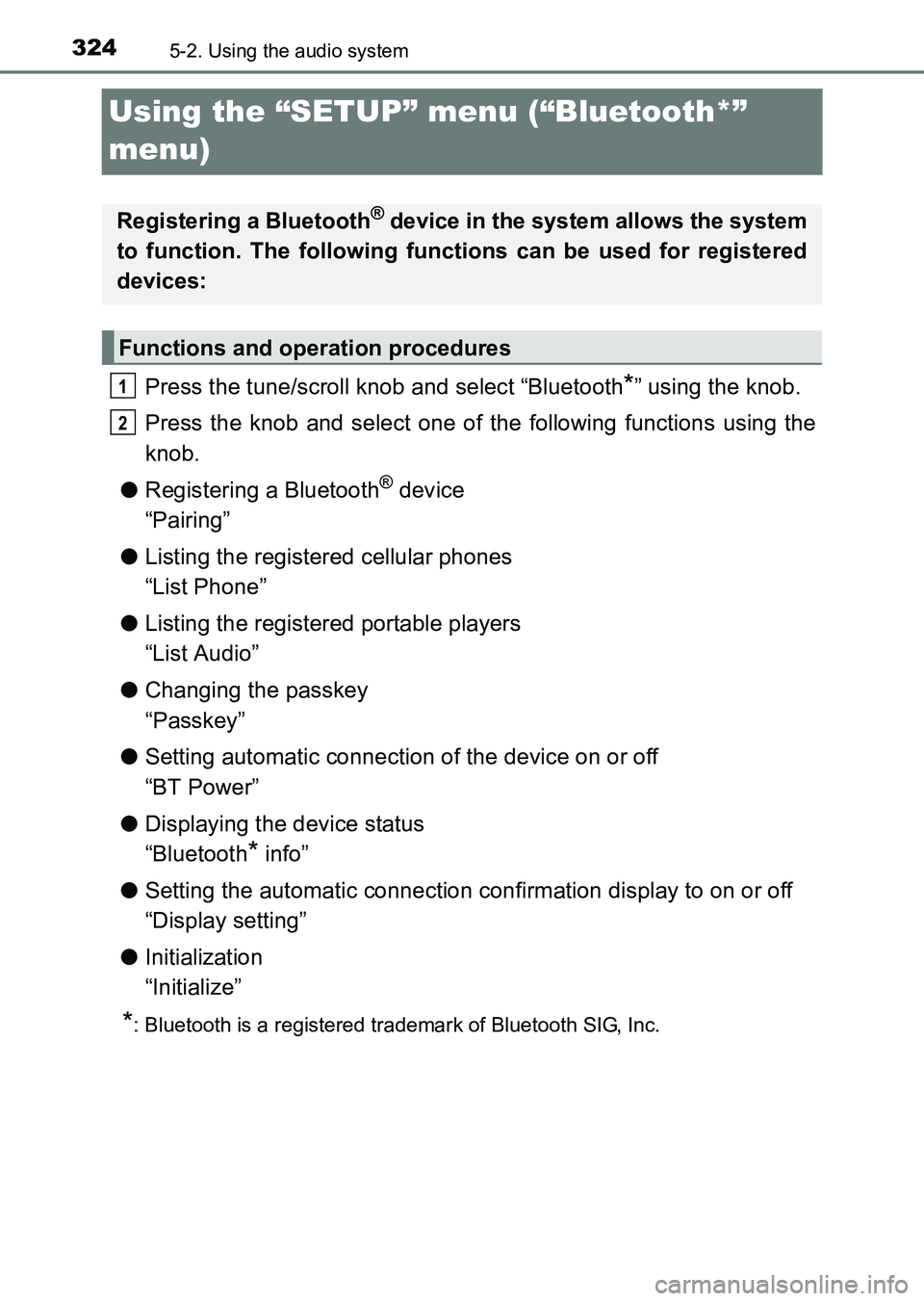

Using the “SETUP” menu (“Bluetooth*”
menu)
Press the tune/scroll knob and select “Bluetooth*” using the knob.
Press the knob and select one of the following functions using the
knob.
● Registering a Bluetooth
® device
“Pairing”
● Listing the registered cellular phones
“List Phone”
● Listing the registered portable players
“List Audio”
● Changing the passkey
“Passkey”
● Setting automatic connection of the device on or off
“BT Power”
● Displaying the device status
“Bluetooth
* info”
● Setting the automatic connection confirmation display to on or off
“Display setting”
● Initialization
“Initialize”
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices:
Functions and operation procedures
1
2
HILUX_OM_OM0K219E_(EE).book Page 324 Wednesday, May 14, 2014 3:06 PM

3255-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)

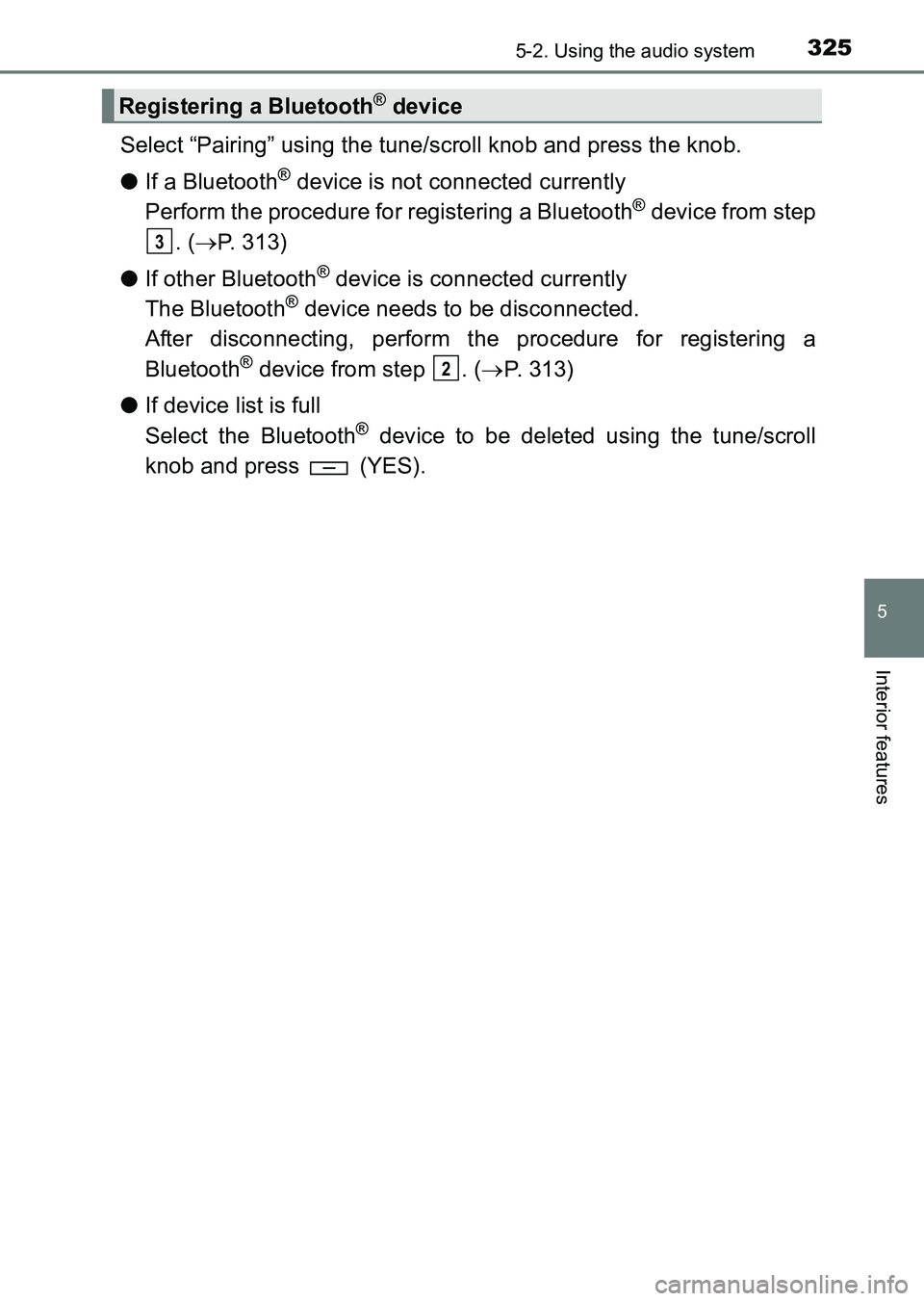

Select “Pairing” using the tune/scroll knob and press the knob.
●If a Bluetooth
® device is not connected currently
Perform the procedure for registering a Bluetooth® device from step
. ( → P. 313)
● If other Bluetooth
® device is connected currently
The Bluetooth® device needs to be disconnected.
After disconnecting, perform the procedure for registering a
Bluetooth
® device from step . ( →P. 313)
● If device list is full
Select the Bluetooth
® device to be deleted using the tune/scroll
knob and press (YES).
Registering a Bluetooth® device
3
2
HILUX_OM_OM0K219E_(EE).book Page 325 Wednesday, May 14, 2014 3:06 PM

3265-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

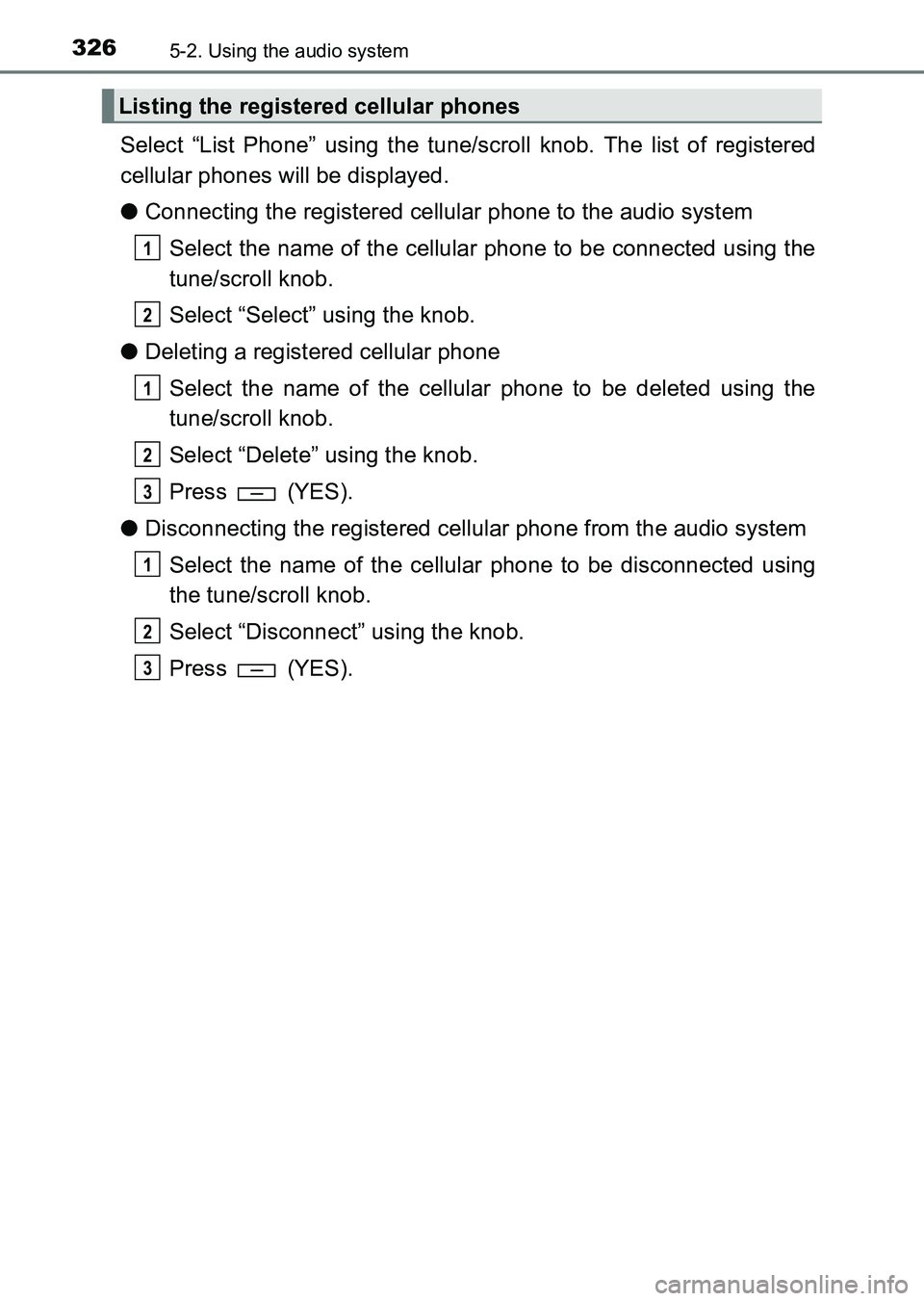

Select “List Phone” using the tune/scroll knob. The list of registered
cellular phones will be displayed.
●Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
tune/scroll knob.
Select “Select” using the knob.
● Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
tune/scroll knob.
Select “Delete” using the knob.
Press (YES).
● Disconnecting the registered cellular phone from the audio system
Select the name of the cellular phone to be disconnected using
the tune/scroll knob.
Select “Disconnect” using the knob.
Press (YES).
Listing the registered cellular phones
1
2
1
2
3
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 326 Wednesday, May 14, 2014 3:06 PM

3275-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)

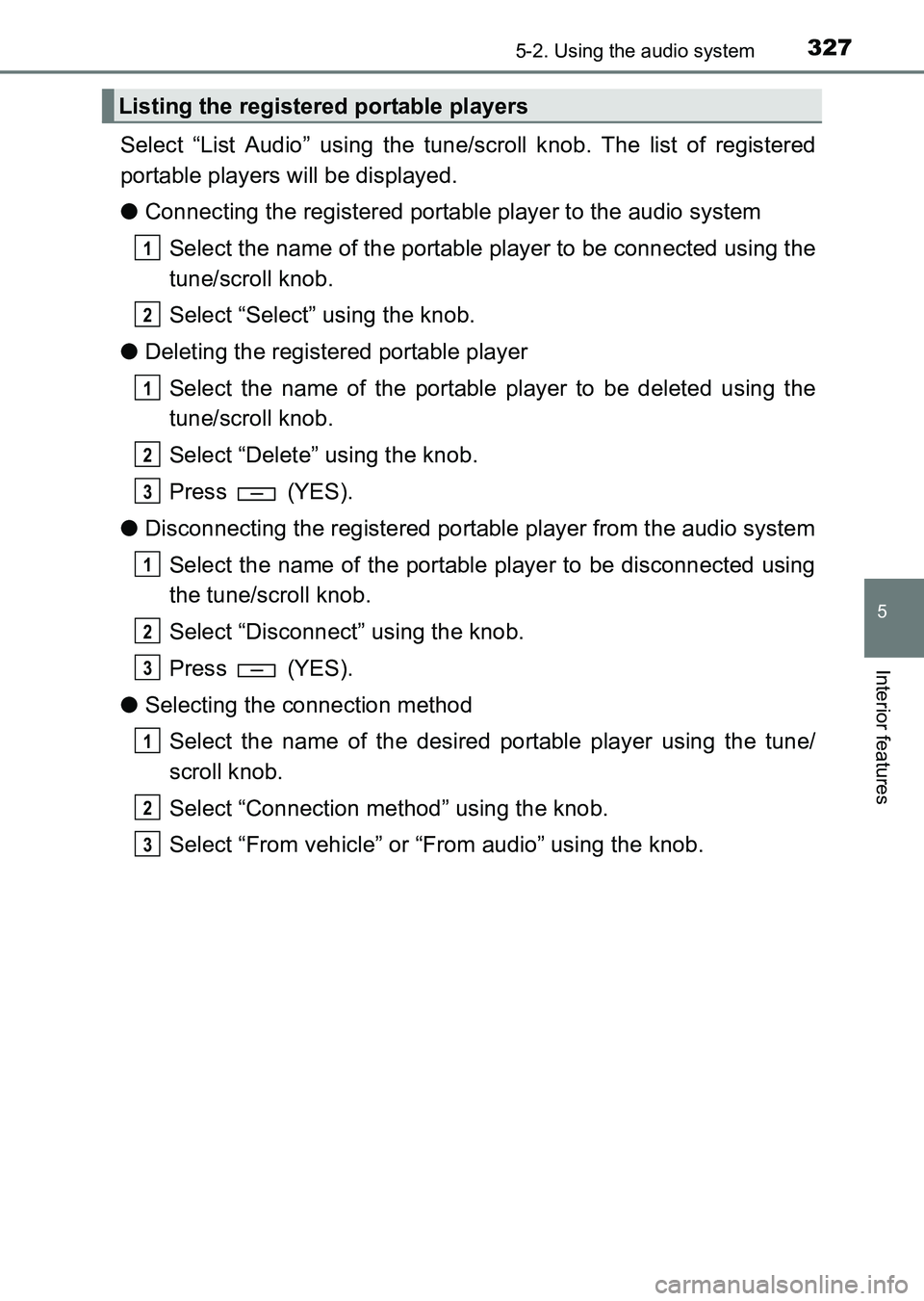

Select “List Audio” using the tune/scroll knob. The list of registered
portable players will be displayed.
●Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
tune/scroll knob.
Select “Select” using the knob.
● Deleting the registered portable player
Select the name of the portable player to be deleted using the
tune/scroll knob.
Select “Delete” using the knob.
Press (YES).
● Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the tune/scroll knob.
Select “Disconnect” using the knob.
Press (YES).
● Selecting the connection method
Select the name of the desired portable player using the tune/
scroll knob.
Select “Connection method” using the knob.
Select “From vehicle” or “From audio” using the knob.
Listing the registered portable players
1
2
1
2
3
1
2
3
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 327 Wednesday, May 14, 2014 3:06 PM

3285-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

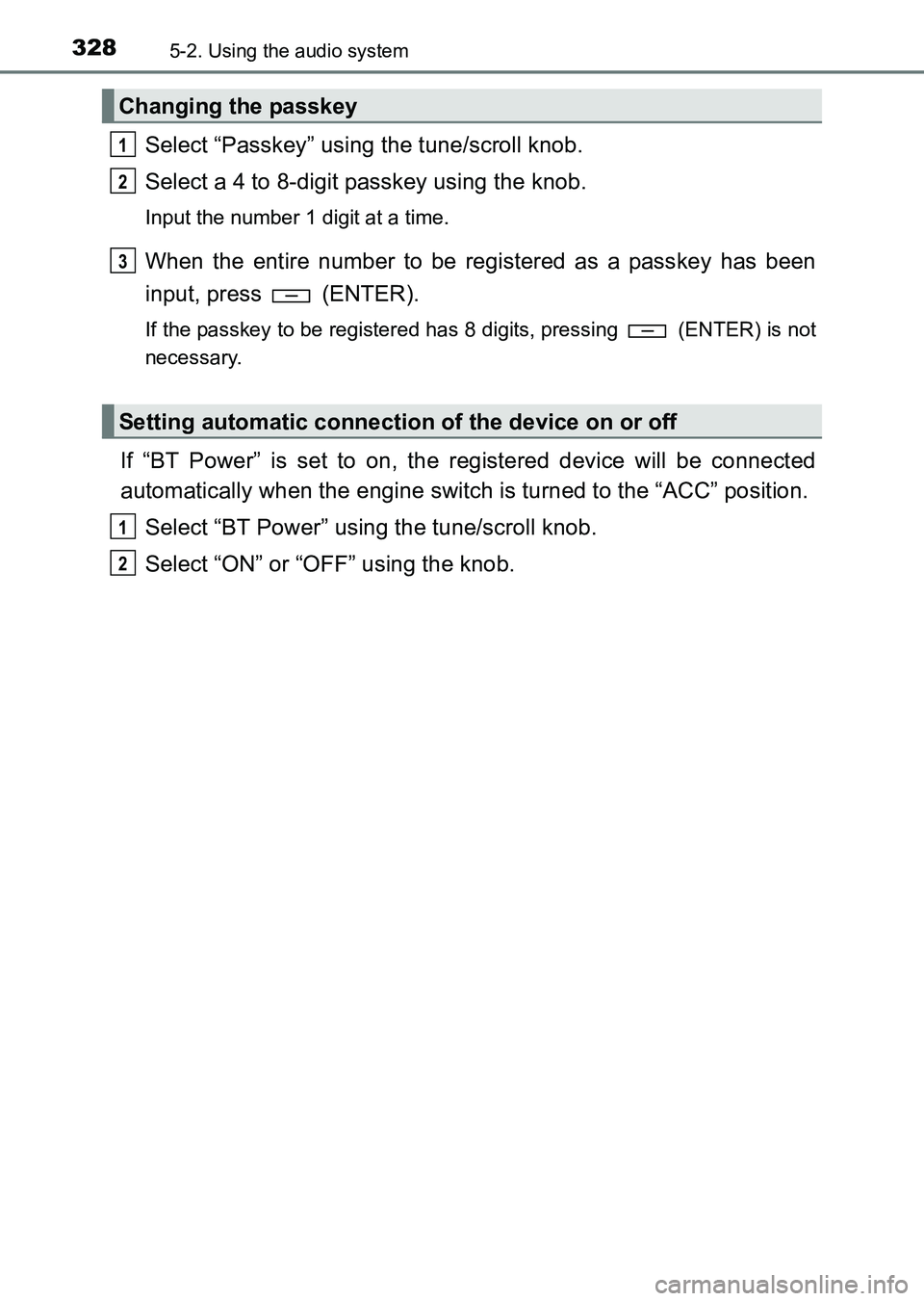

Select “Passkey” using the tune/scroll knob.
Select a 4 to 8-digit passkey using the knob.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press (ENTER).
If the passkey to be registered has 8 digits, pressing (ENTER) is not
necessary.
If “BT Power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position.
Select “BT Power” using the tune/scroll knob.
Select “ON” or “OFF” using the knob.
Changing the passkey
Setting automatic connection of the device on or off
1
2
3
1
2
HILUX_OM_OM0K219E_(EE).book Page 328 Wednesday, May 14, 2014 3:06 PM

3295-2. Using the audio system
5
Interior features
HILUX_OM_OM0K219E_(EE)

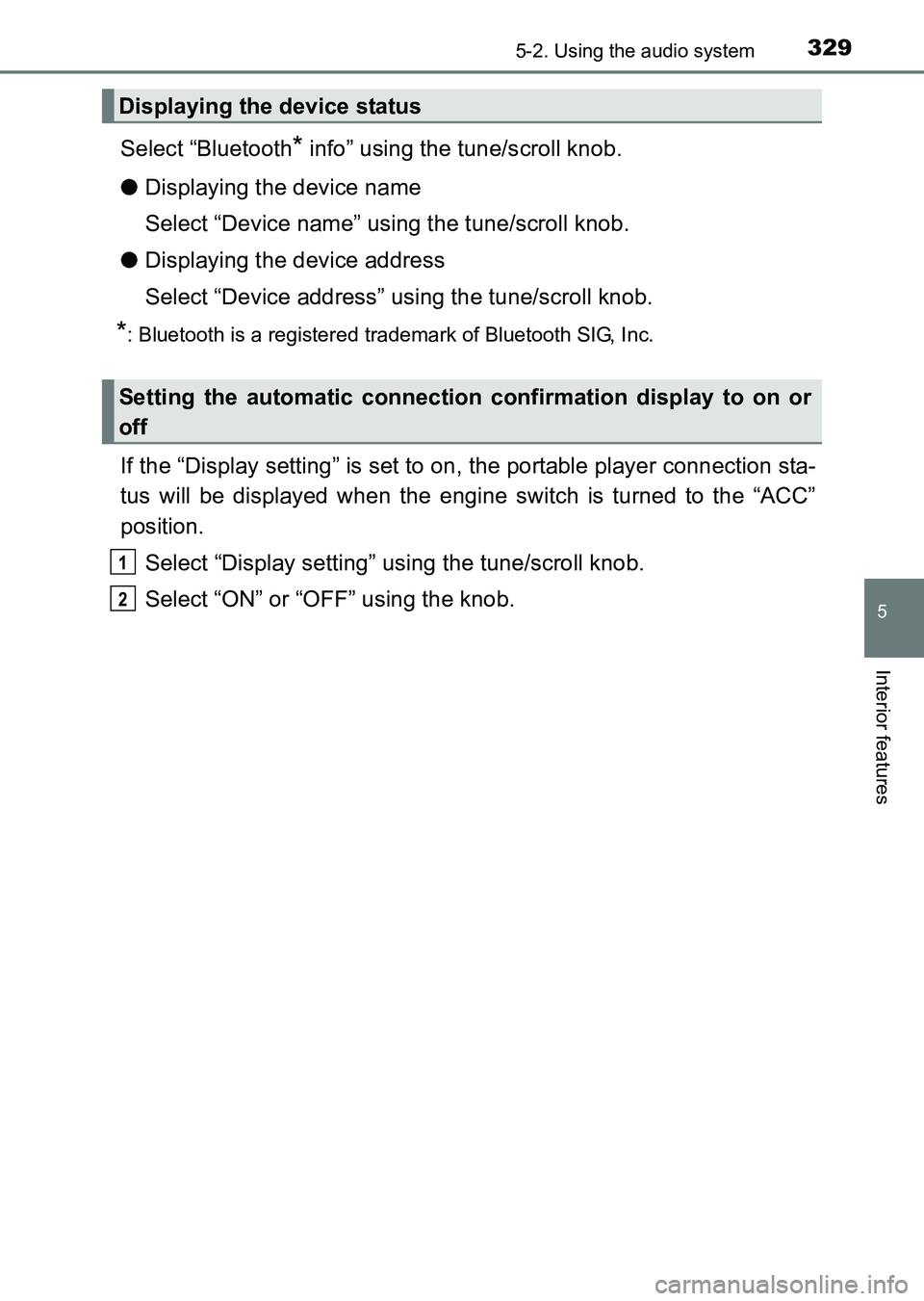

Select “Bluetooth* info” using the tune/scroll knob.
● Displaying the device name
Select “Device name” using the tune/scroll knob.
● Displaying the device address
Select “Device address” using the tune/scroll knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC”
position.
Select “Display setting” using the tune/scroll knob.
Select “ON” or “OFF” using the knob.
Displaying the device status
Setting the automatic connection confirmation display to on or
off
1
2
HILUX_OM_OM0K219E_(EE).book Page 329 Wednesday, May 14, 2014 3:06 PM

3305-2. Using the audio system
HILUX_OM_OM0K219E_(EE)

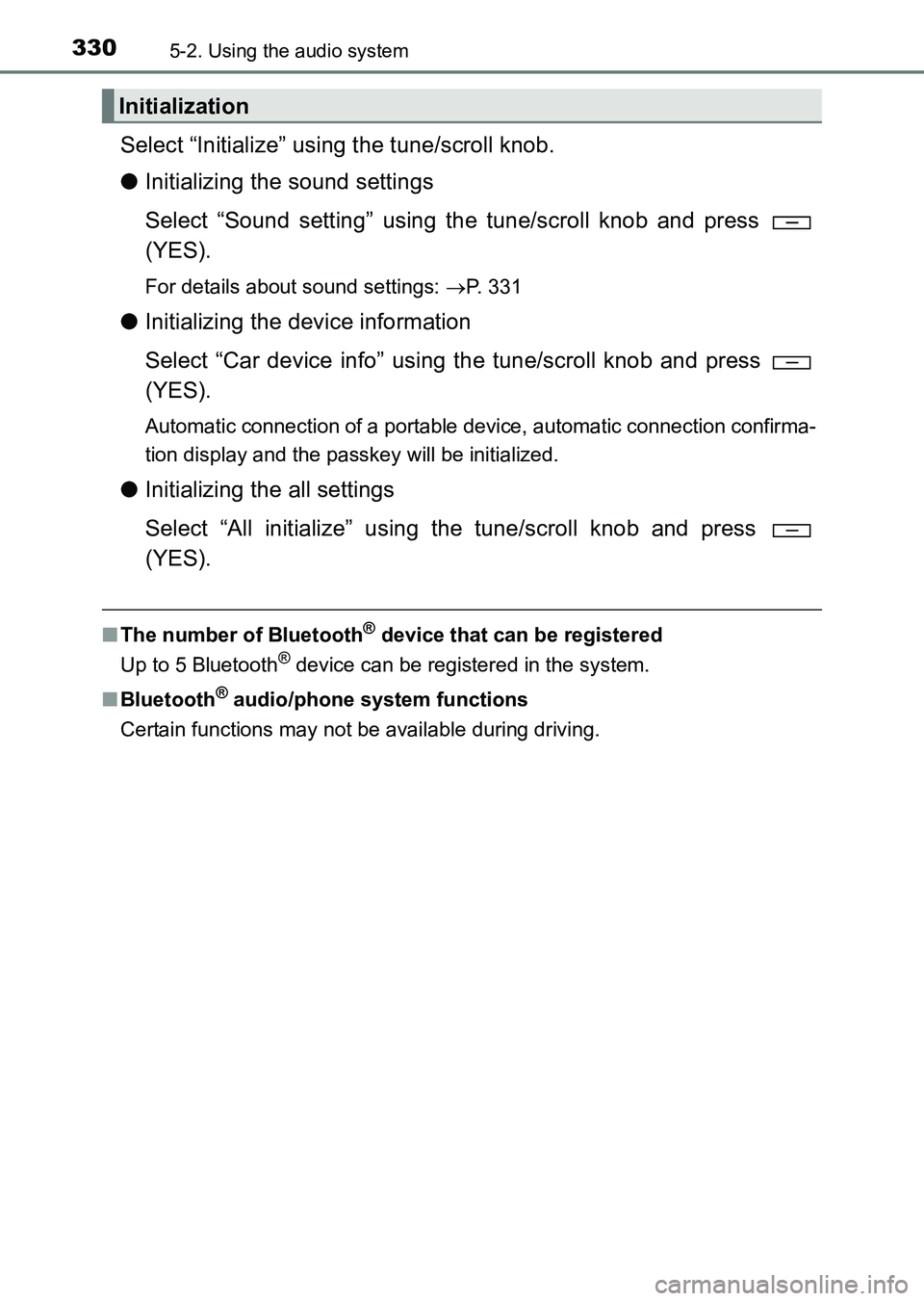

Select “Initialize” using the tune/scroll knob.
●Initializing the sound settings
Select “Sound setting” using the tune/scroll knob and press
(YES).
For details about sound settings: →P. 331
● Initializing the device information
Select “Car device info” using the tune/scroll knob and press
(YES).
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
●Initializing the all settings
Select “All initialize” using the tune/scroll knob and press
(YES).
■The number of Bluetooth® device that can be registered
Up to 5 Bluetooth
® device can be registered in the system.
■ Bluetooth
® audio/phone system functions
Certain functions may not be available during driving.
Initialization
