4016-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)
CAUTION

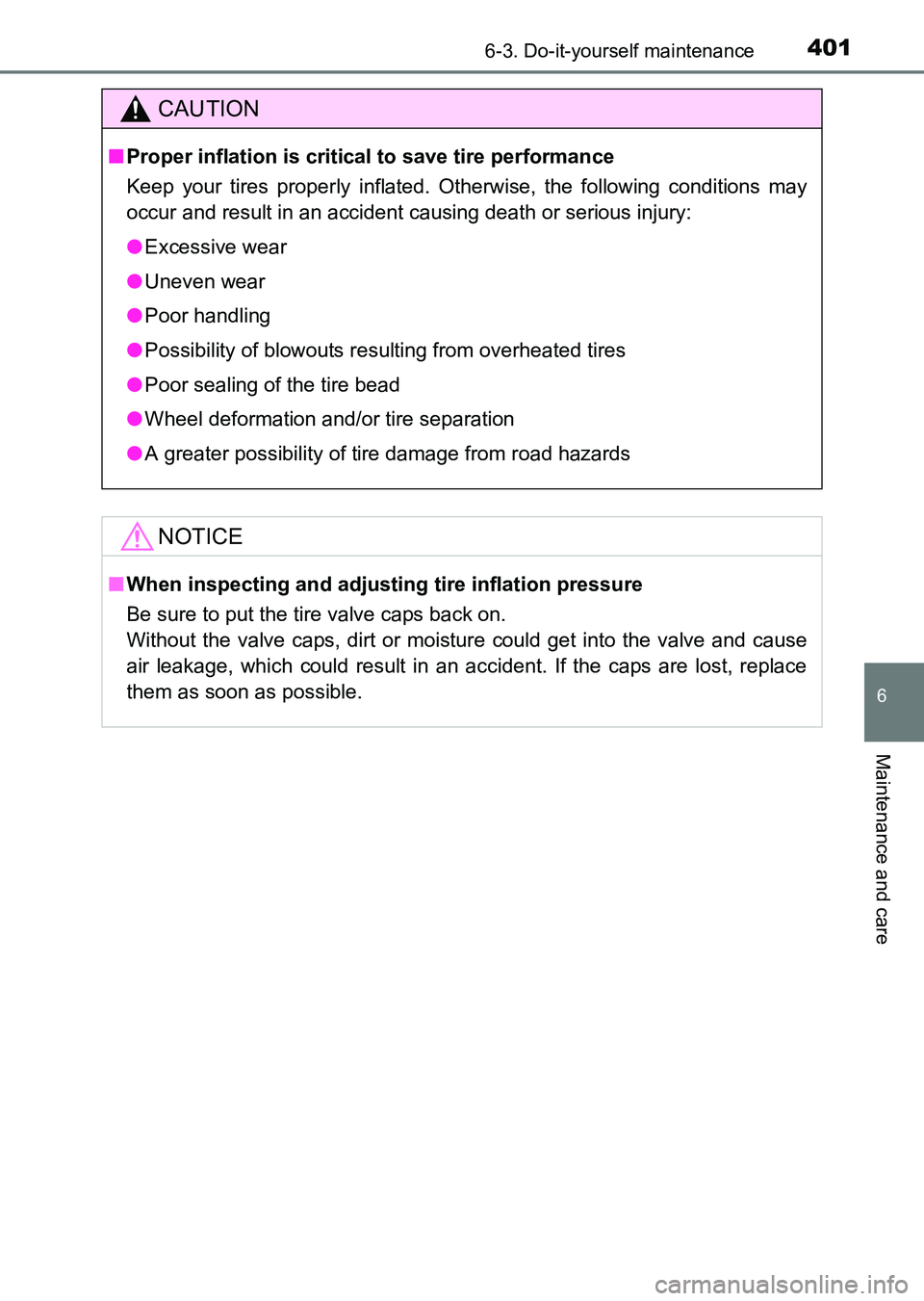

■Proper inflation is critical to save tire performance
Keep your tires properly inflated. Ot herwise, the following conditions may
occur and result in an accident causing death or serious injury:
● Excessive wear
● Uneven wear
● Poor handling
● Possibility of blowouts resulting from overheated tires
● Poor sealing of the tire bead
● Wheel deformation and/or tire separation
● A greater possibility of tire damage from road hazards
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
Without the valve caps, dirt or moisture could get into the valve and cause
air leakage, which could result in an accident. If the caps are lost, replace
them as soon as possible.
HILUX_OM_OM0K219E_(EE).book Page 401 Wednesday, May 14, 2014 3:06 PM

4026-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
Wheels

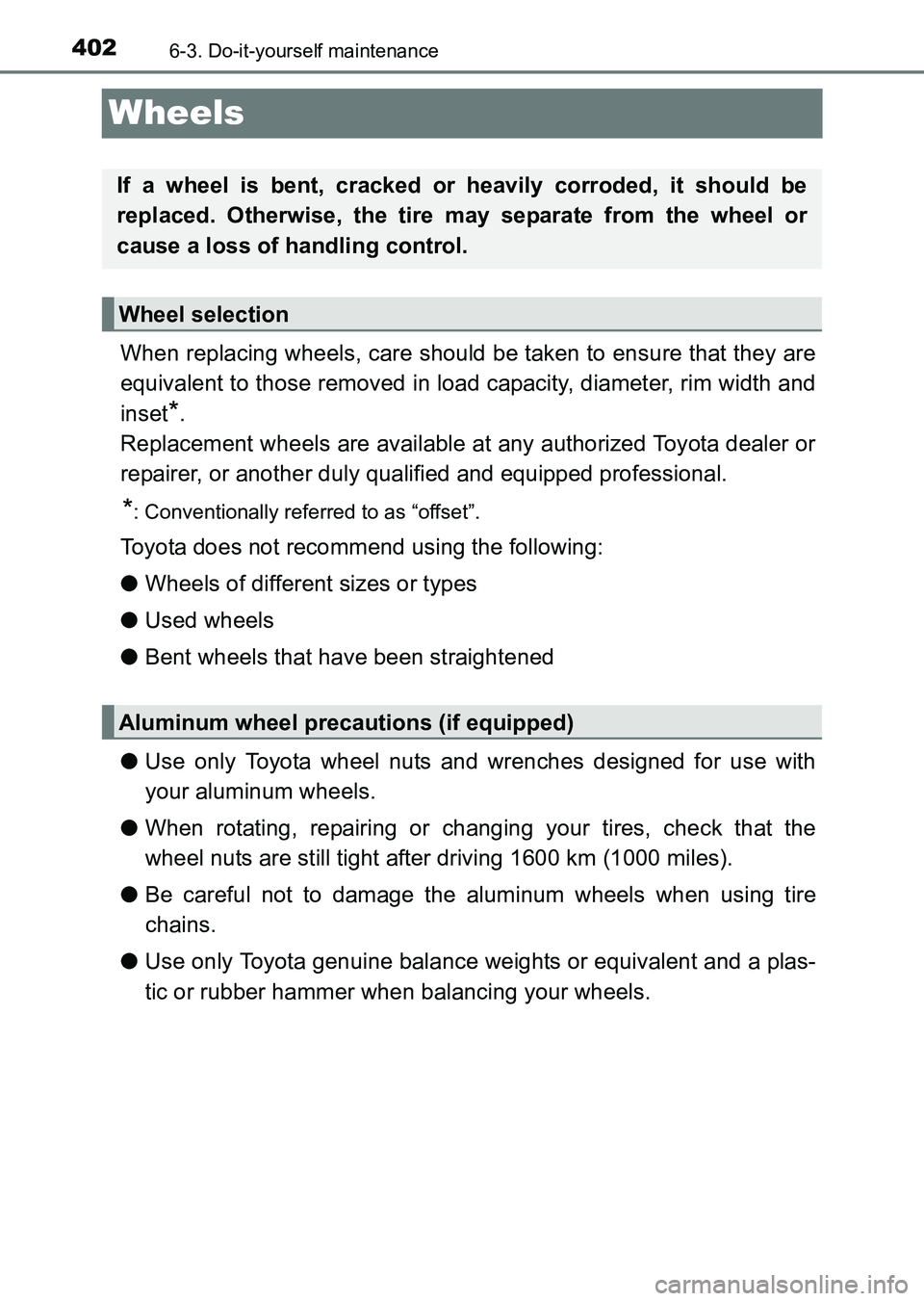

When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*.
Replacement wheels are available at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
● Use only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions (if equipped)
HILUX_OM_OM0K219E_(EE).book Page 402 Wednesday, May 14, 2014 3:06 PM

4036-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)
CAUTION
■When replacing wheels
● Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
● Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
■ When installing the wheel nuts
● Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an acci-
dent and resulting in death or serious injury. Remove any oil or grease
from the wheel bolts or wheel nuts.
■ Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.

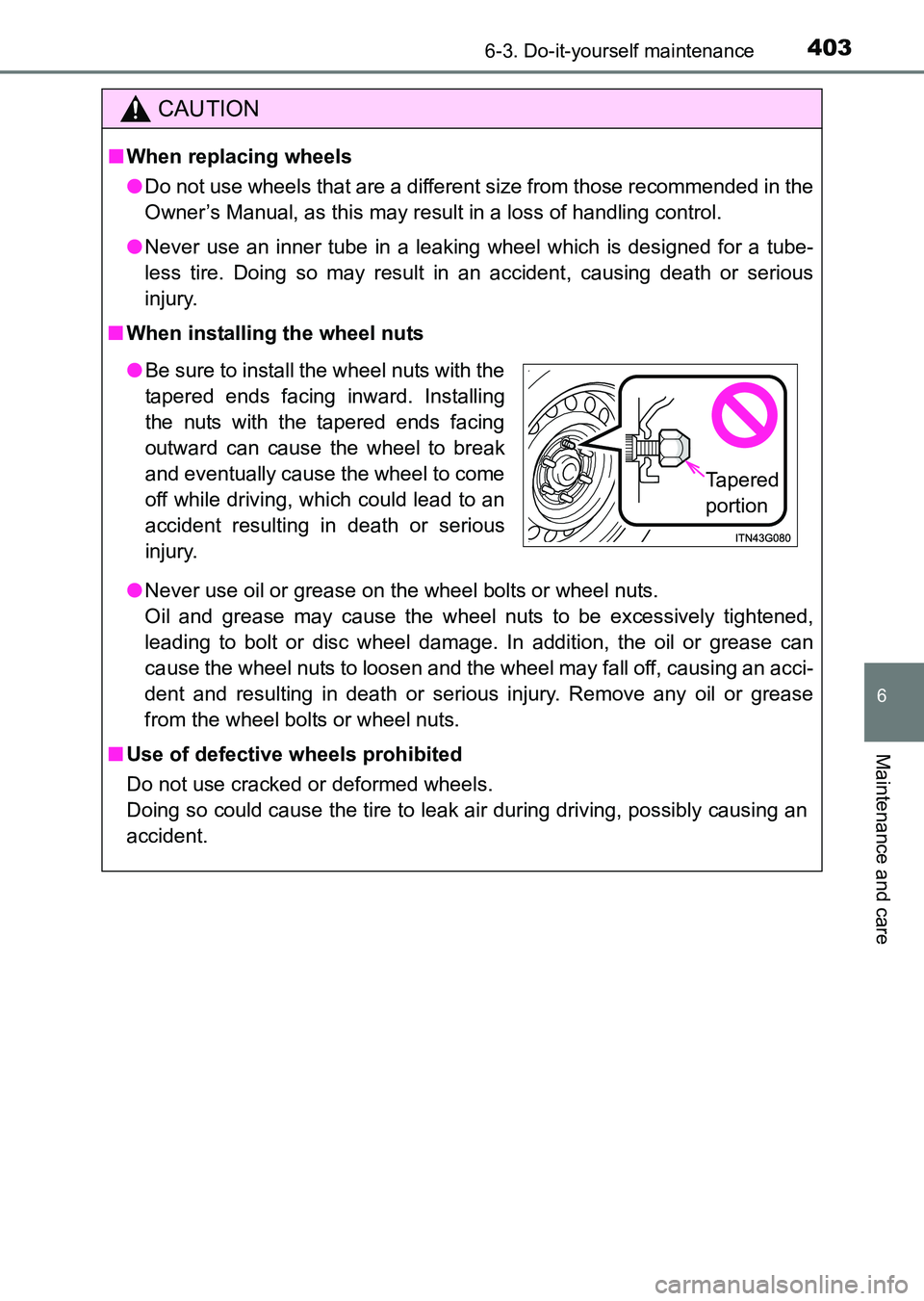

● Be sure to install the wheel nuts with the
tapered ends facing inward. Installing
the nuts with the tapered ends facing
outward can cause the wheel to break
and eventually cause the wheel to come
off while driving, which could lead to an
accident resulting in death or serious
injury.
Tapered
portion
HILUX_OM_OM0K219E_(EE).book Page 403 Wednesday, May 14, 2014 3:06 PM

4046-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
Air conditioning filter

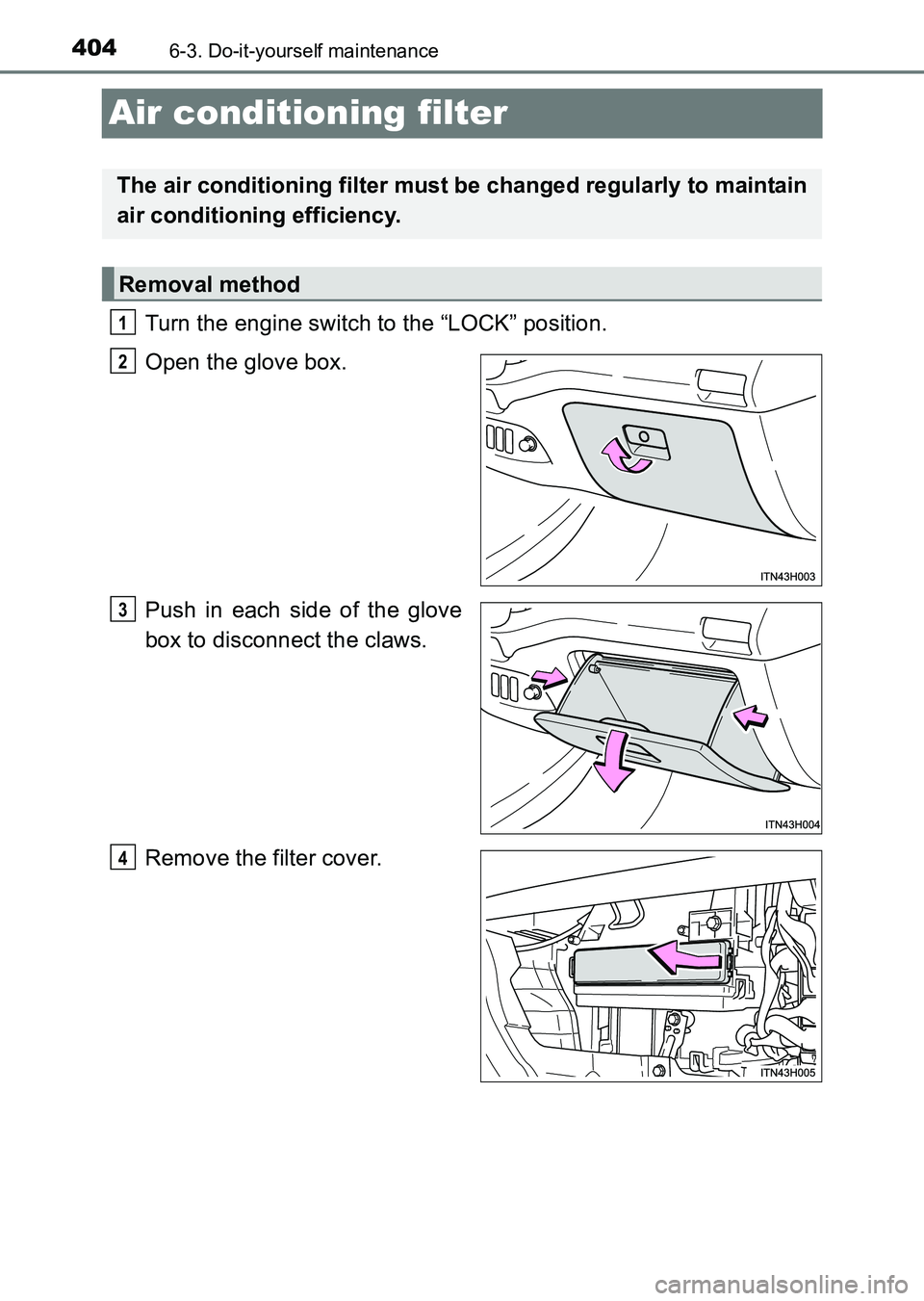

Turn the engine switch to the “LOCK” position.
Open the glove box.
Push in each side of the glove
box to disconnect the claws.
Remove the filter cover.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 404 Wednesday, May 14, 2014 3:06 PM

4056-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

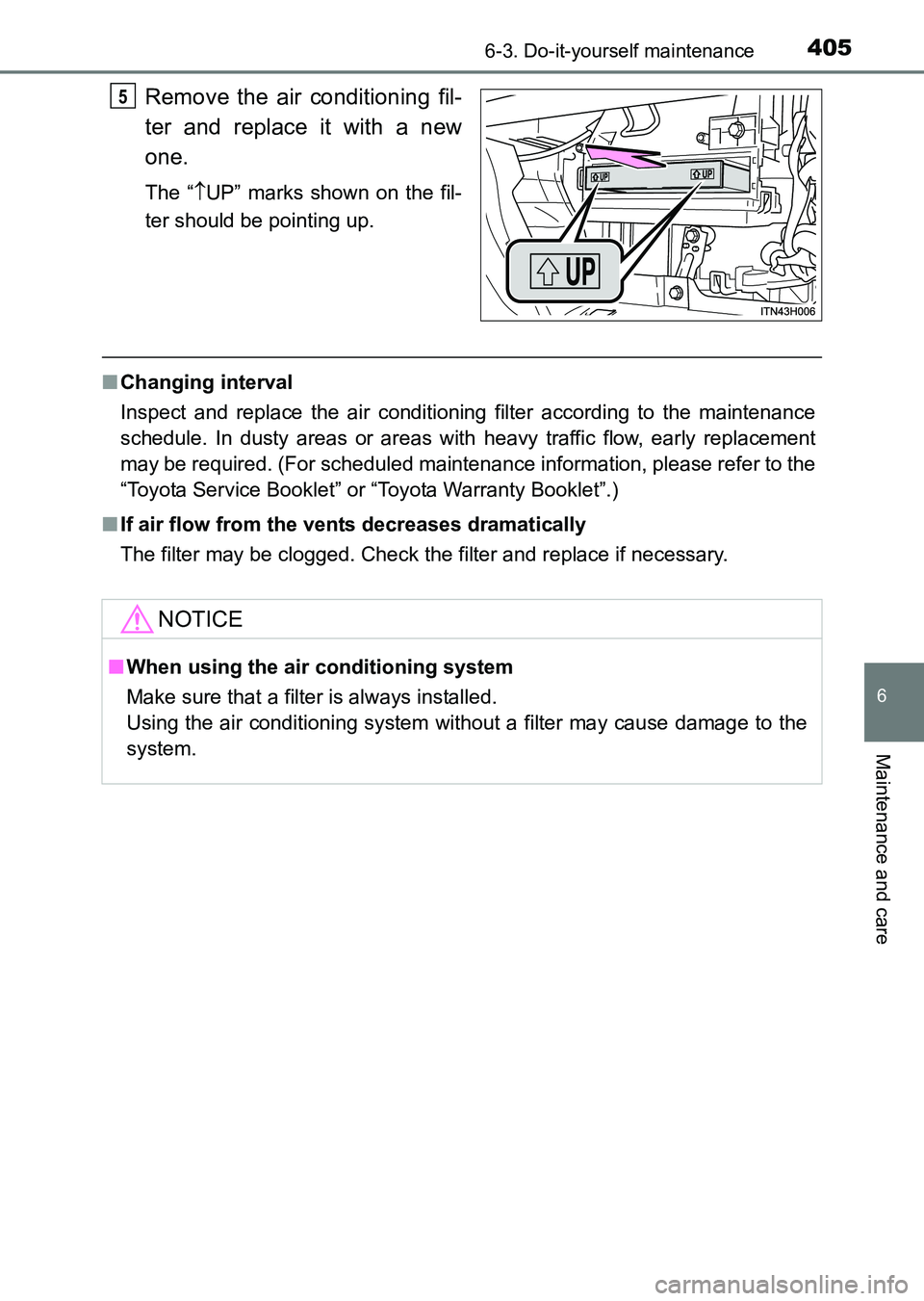

Remove the air conditioning fil-
ter and replace it with a new
one.
The “↑UP” marks shown on the fil-
ter should be pointing up.
■ Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
5
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditi oning system without a filter may cause damage to the
system.
HILUX_OM_OM0K219E_(EE).book Page 405 Wednesday, May 14, 2014 3:06 PM

4066-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
Wireless remote control batter y∗

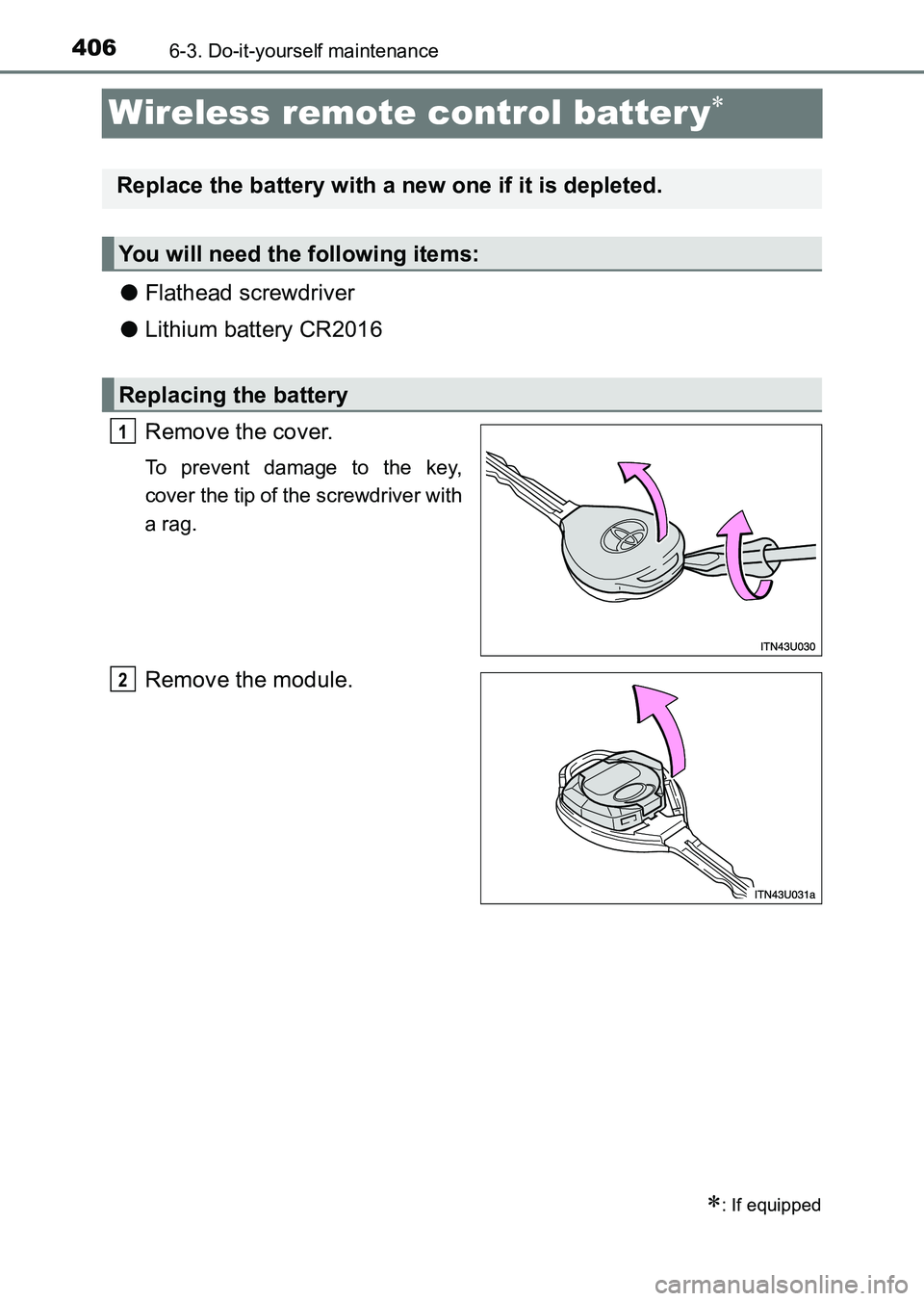

●Flathead screwdriver
● Lithium battery CR2016
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the module.
∗: If equipped
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
HILUX_OM_OM0K219E_(EE).book Page 406 Wednesday, May 14, 2014 3:06 PM

4076-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

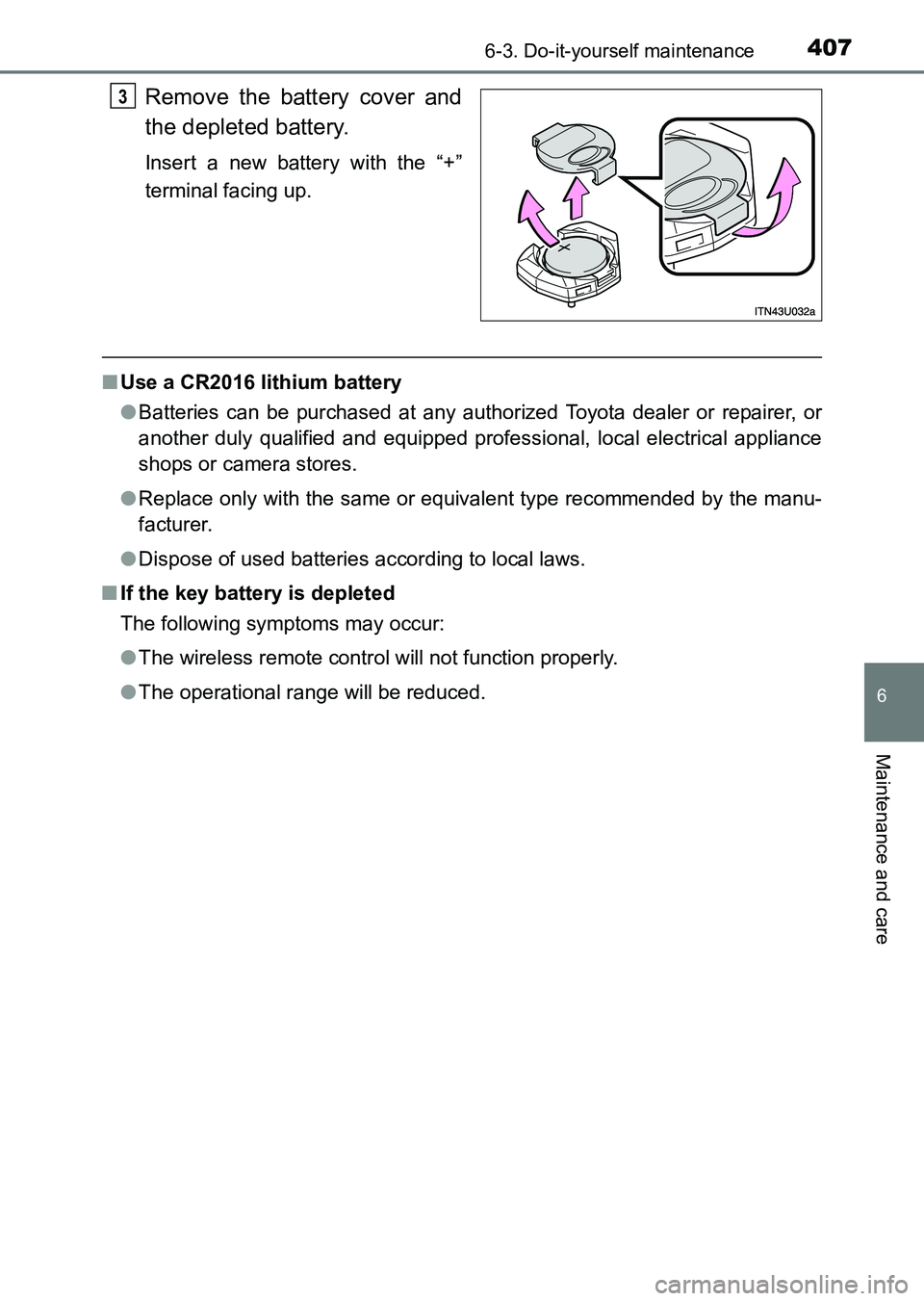

Remove the battery cover and
the depleted battery.
Insert a new battery with the “+”
terminal facing up.
■Use a CR2016 lithium battery
●Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
●The wireless remote control will not function properly.
● The operational range will be reduced.
3
HILUX_OM_OM0K219E_(EE).book Page 407 Wednesday, May 14, 2014 3:06 PM

4086-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■
Certification for the key battery
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.
HILUX_OM_OM0K219E_(EE).book Page 408 Wednesday, May 14, 2014 3:06 PM

409
6
6-3. Do-it-yourself maintenance
Maintenance and care
HILUX_OM_OM0K219E_(EE)
Checking and replacing fuses
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 414) for details about which fuse to check.
Open the fuse box cover.
XEngine compartment
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 409 Wednesday, May 14, 2014 3:06 PM

4106-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

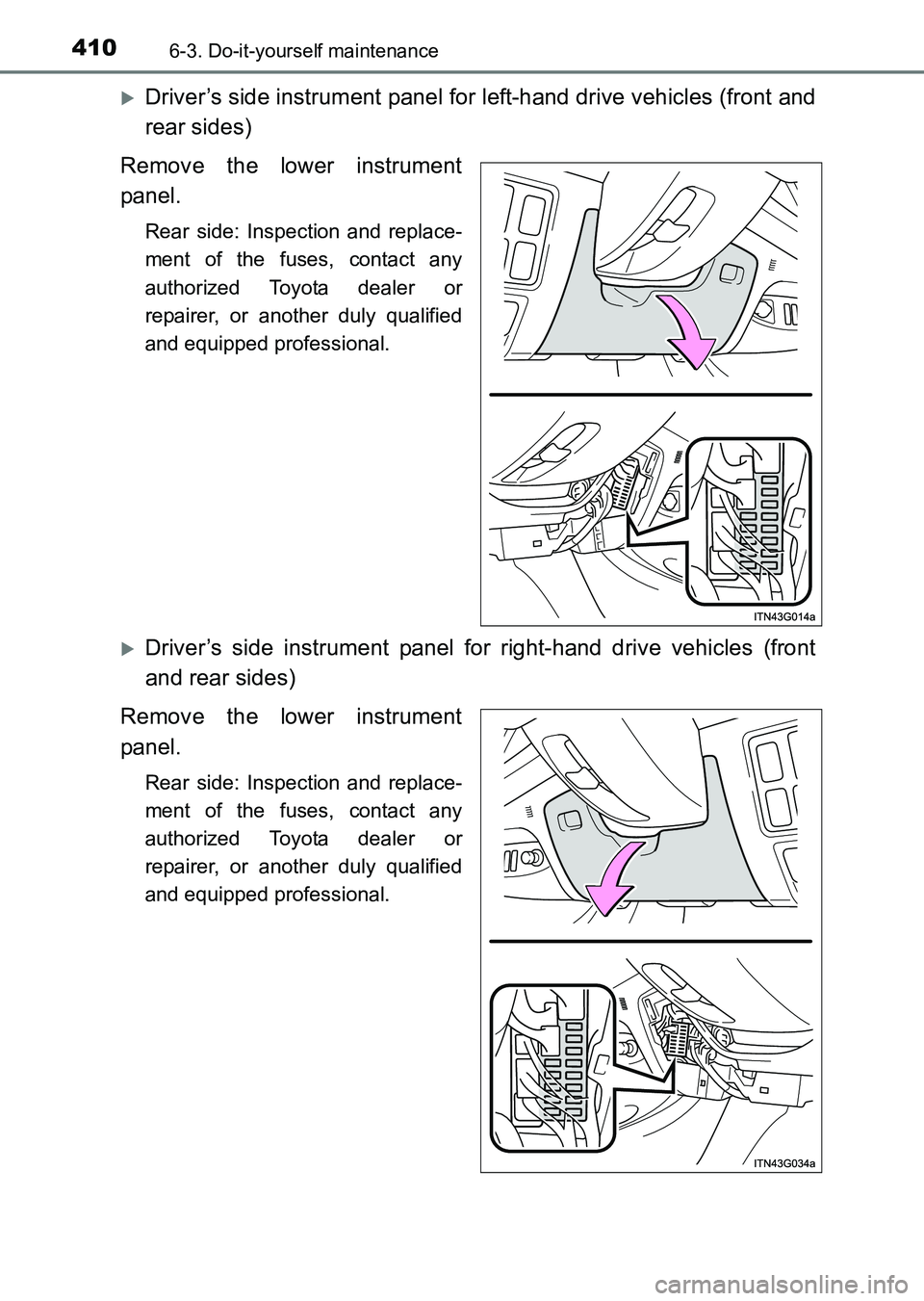

XDriver’s side instrument panel for left-hand drive vehicles (front and
rear sides)
Remove the lower instrument
panel.
Rear side: Inspection and replace-
ment of the fuses, contact any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional.
XDriver’s side instrument panel for right-hand drive vehicles (front
and rear sides)
Remove the lower instrument
panel.
Rear side: Inspection and replace-
ment of the fuses, contact any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional.
HILUX_OM_OM0K219E_(EE).book Page 410 Wednesday, May 14, 2014 3:06 PM
