TOYOTA HILUX 2015 Owners Manual (in English)

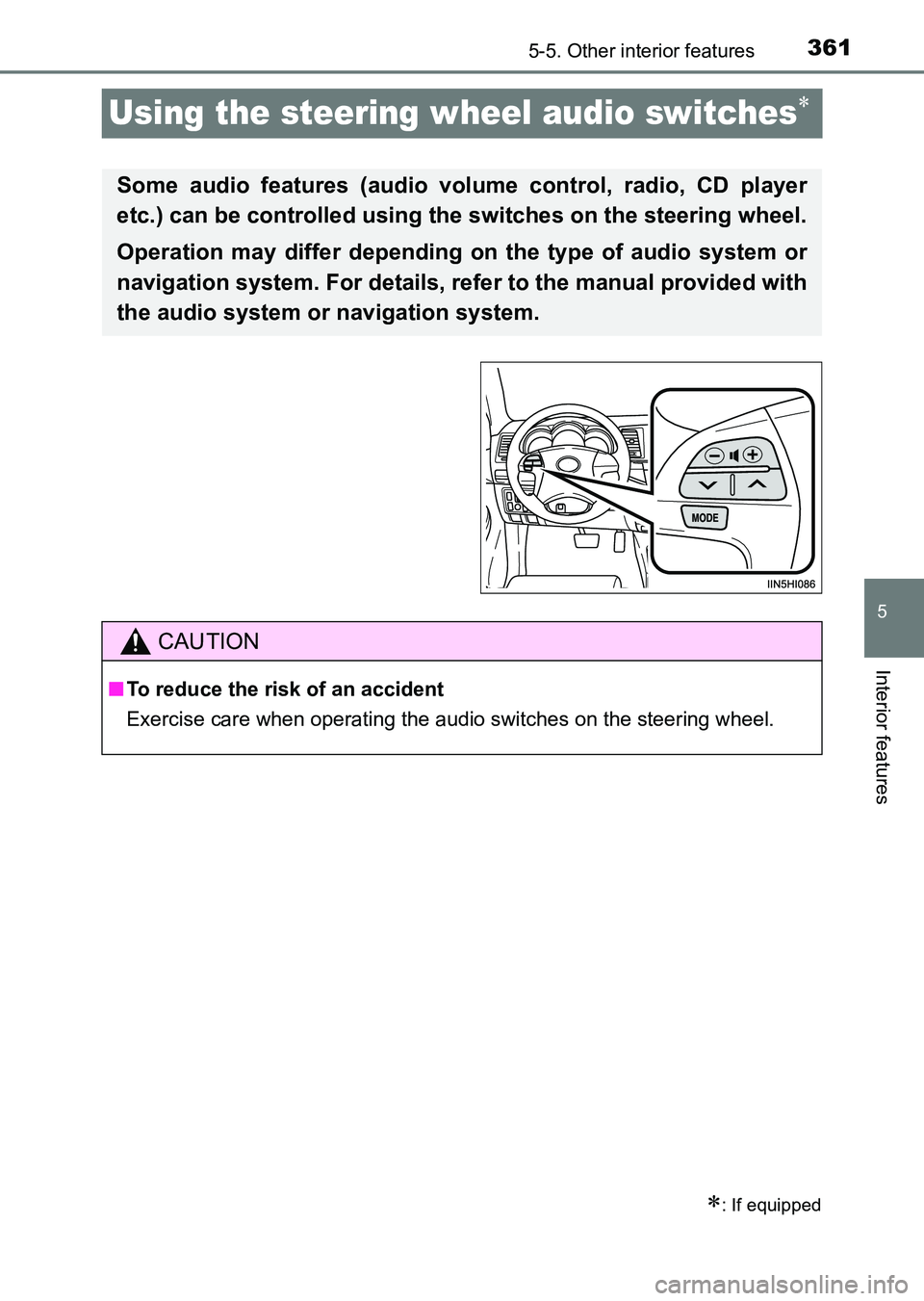

361
5
5-5. Other interior features
Interior features
HILUX_OM_OM0K219E_(EE)
Using the steering wheel audio switches∗
∗: If equipped
Some audio features (audio volume control, radio, CD player
etc.) can be controlled using the switches on the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
HILUX_OM_OM0K219E_(EE).book Page 361 Wednesday, May 14, 2014 3:06 PM

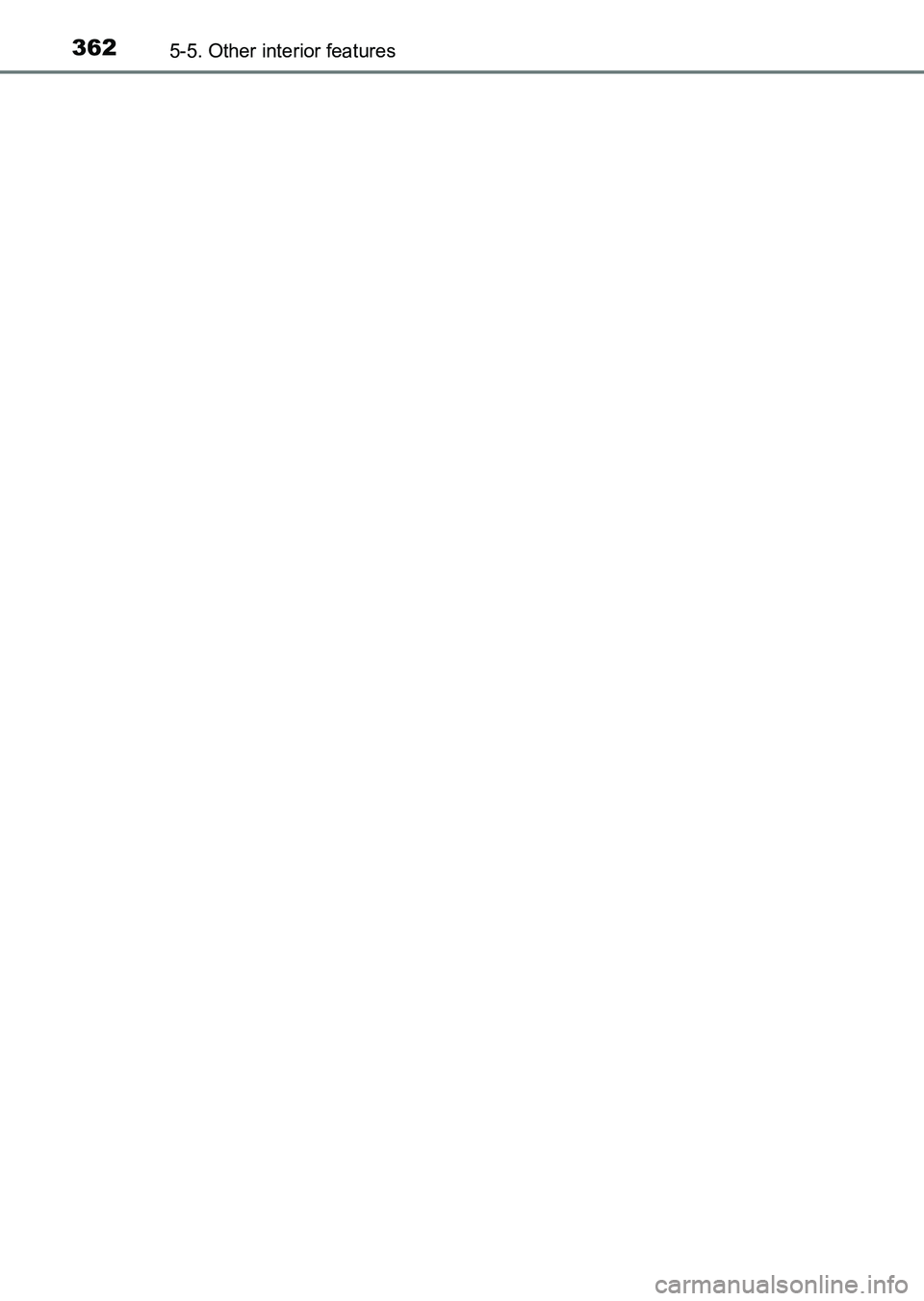

3625-5. Other interior features
HILUX_OM_OM0K219E_(EE)
HILUX_OM_OM0K219E_(EE).book Page 362 Wednesday, May 14, 2014 3:06 PM

363

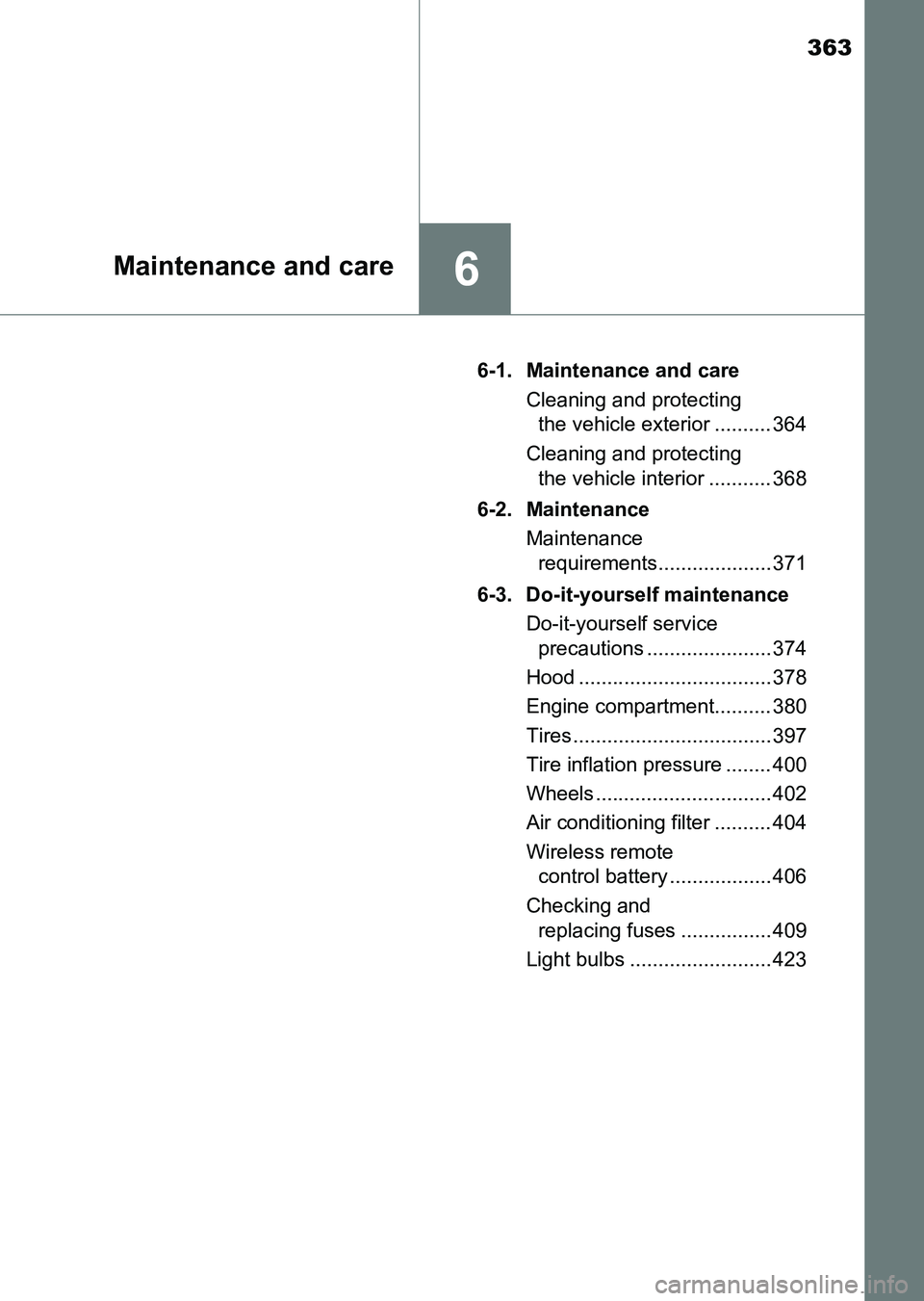

6Maintenance and care
HILUX_OM_OM0K219E_(EE)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 364
Cleaning and protecting the vehicle interior ........... 368
6-2. Maintenance Maintenance requirements.................... 371
6-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 374
Hood .................................. 378
Engine compartment.......... 380
Tires ................................... 397
Tire inflation pressure ........ 400
Wheels ............................... 402
Air conditioning filter .......... 404
Wireless remote control battery .................. 406
Checking and replacing fuses ................ 409
Light bulbs ......................... 423
HILUX_OM_OM0K219E_(EE).book Page 363 Wednesday, May 14, 2014 3:06 PM

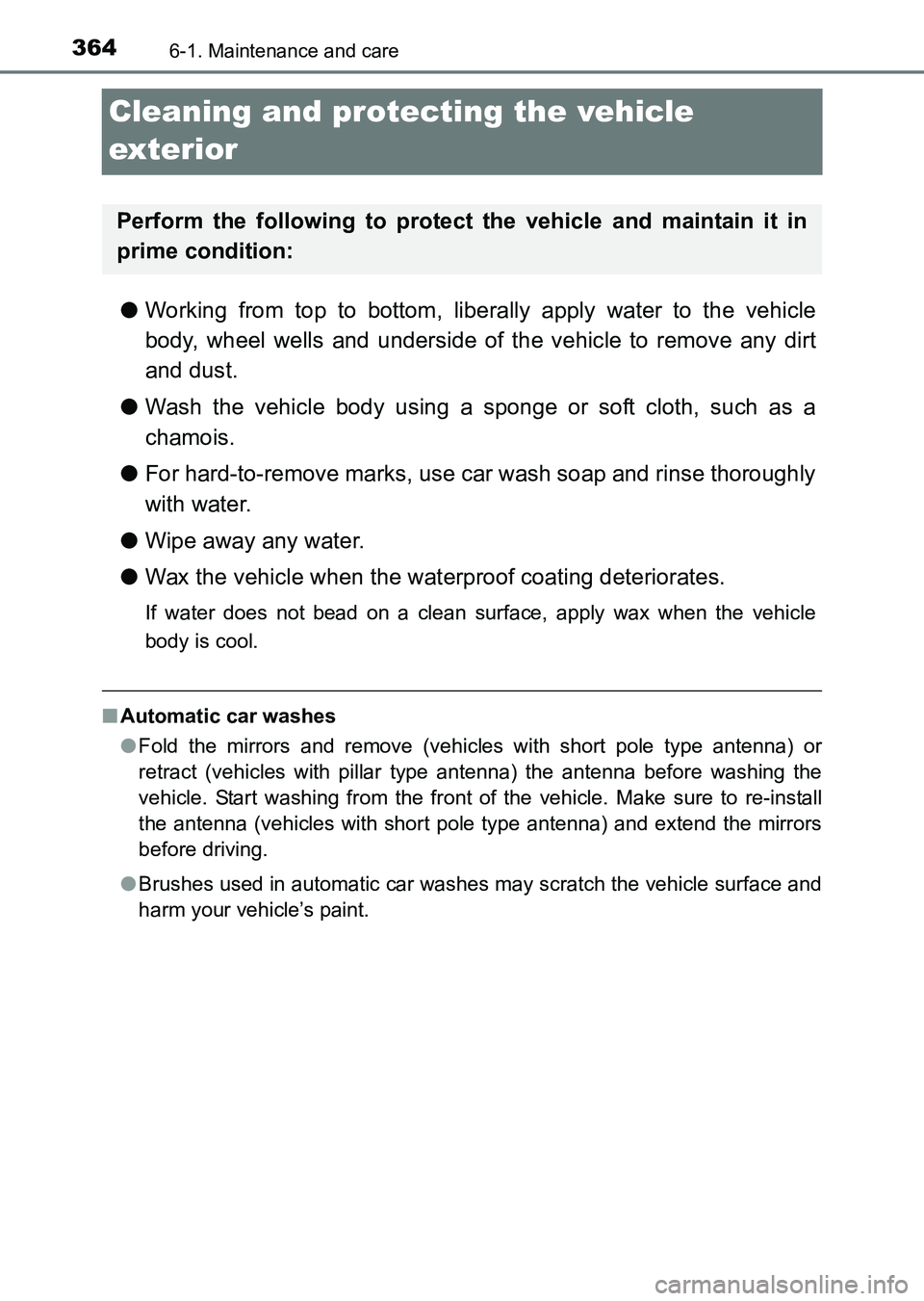

3646-1. Maintenance and care
HILUX_OM_OM0K219E_(EE)
Cleaning and protecting the vehicle
exterior
●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■Automatic car washes
●Fold the mirrors and remove (vehicles with short pole type antenna) or
retract (vehicles with pillar type antenna) the antenna before washing the
vehicle. Start washing from the front of the vehicle. Make sure to re-install
the antenna (vehicles with short pole type antenna) and extend the mirrors
before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
Perform the following to protect the vehicle and maintain it in
prime condition:
HILUX_OM_OM0K219E_(EE).book Page 364 Wednesday, May 14, 2014 3:06 PM

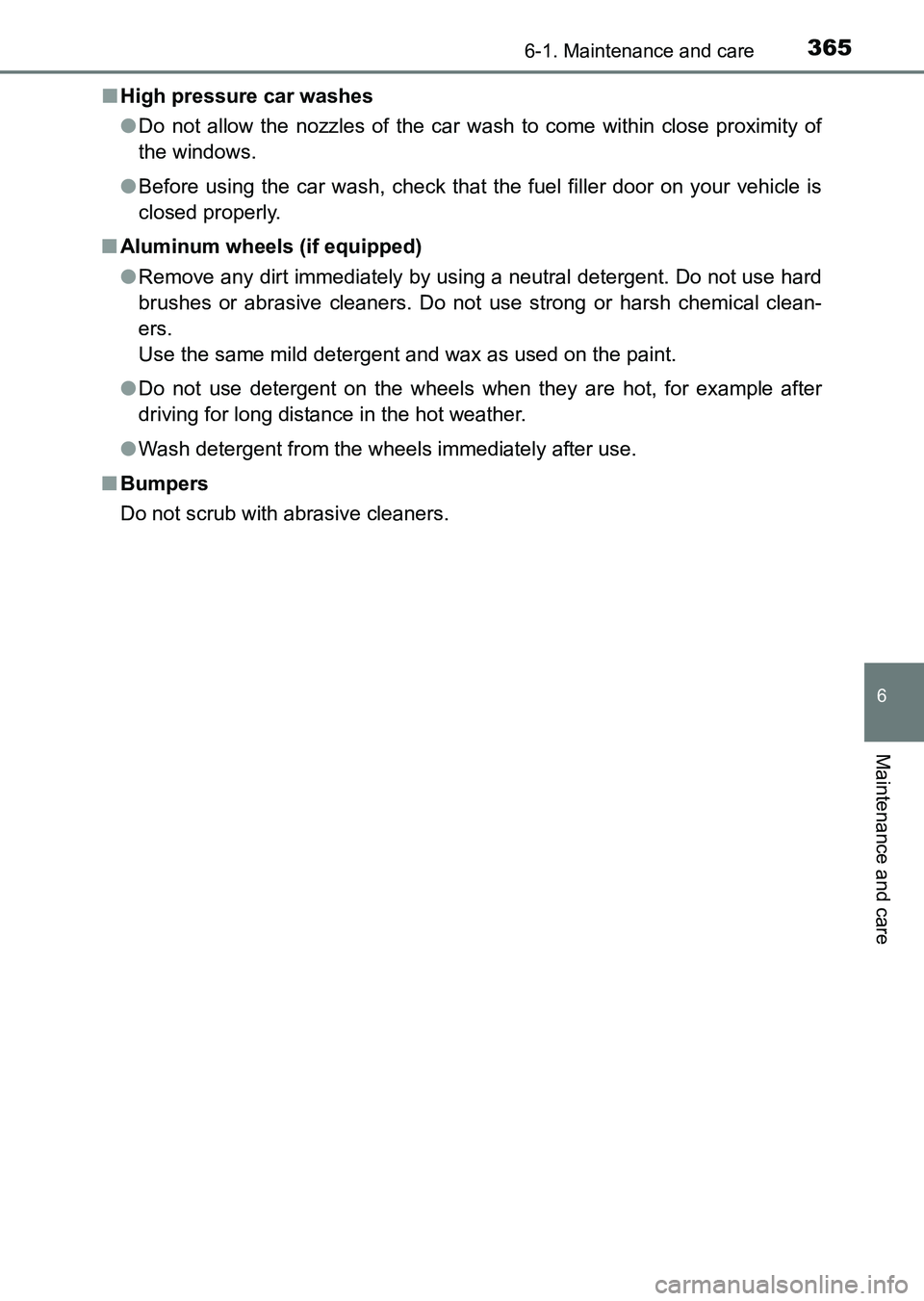

3656-1. Maintenance and care
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)■
High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
■ Aluminum wheels (if equipped)
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical clean-
ers.
Use the same mild detergent and wax as used on the paint.
● Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
● Wash detergent from the wheels immediately after use.
■ Bumpers
Do not scrub with abrasive cleaners.
HILUX_OM_OM0K219E_(EE).book Page 365 Wednesday, May 14, 2014 3:06 PM

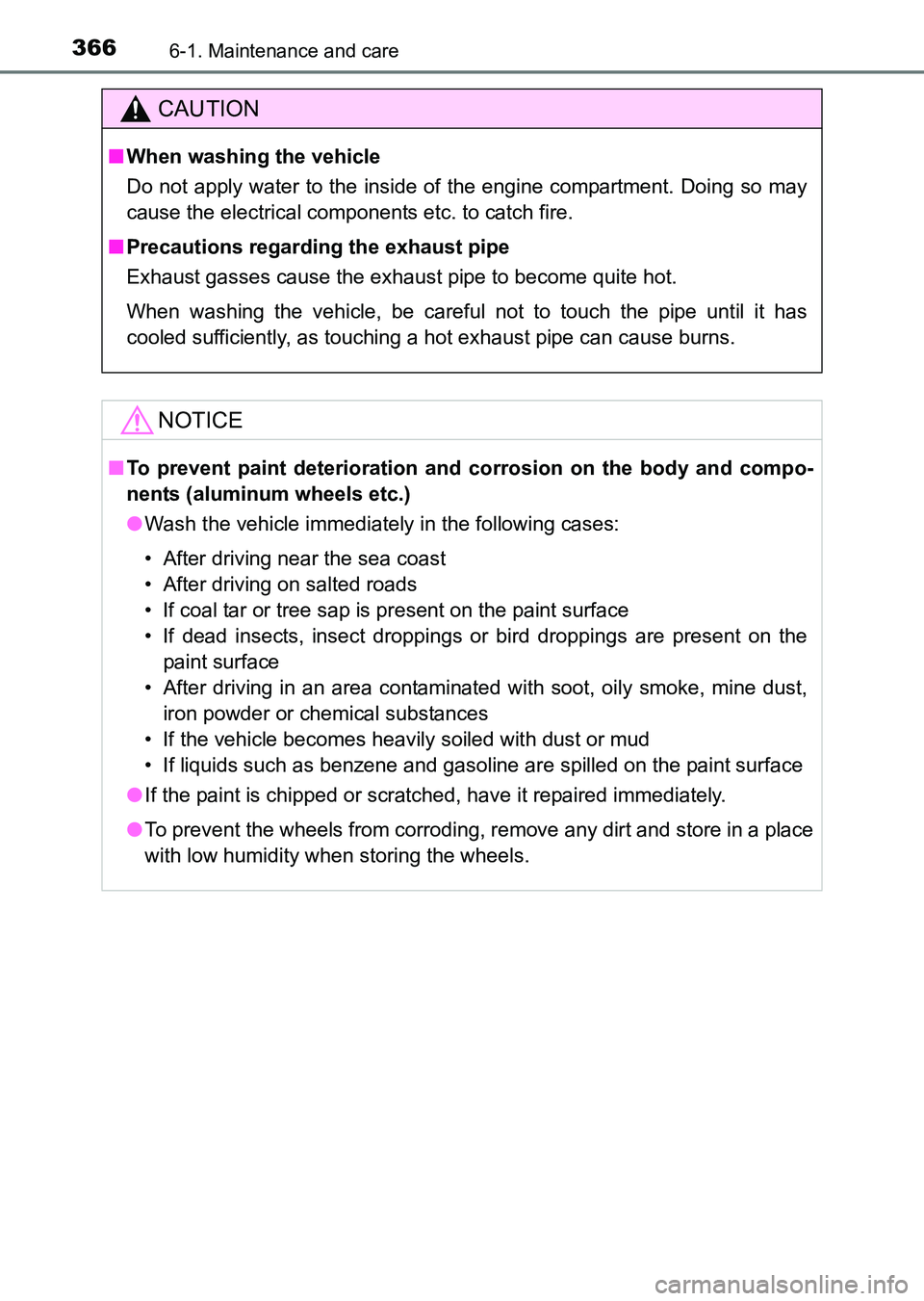

3666-1. Maintenance and care
HILUX_OM_OM0K219E_(EE)
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
■
Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has
cooled sufficiently, as touching a hot exhaust pipe can cause burns.
NOTICE
■To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on thepaint surface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
HILUX_OM_OM0K219E_(EE).book Page 366 Wednesday, May 14, 2014 3:06 PM

3676-1. Maintenance and care
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)

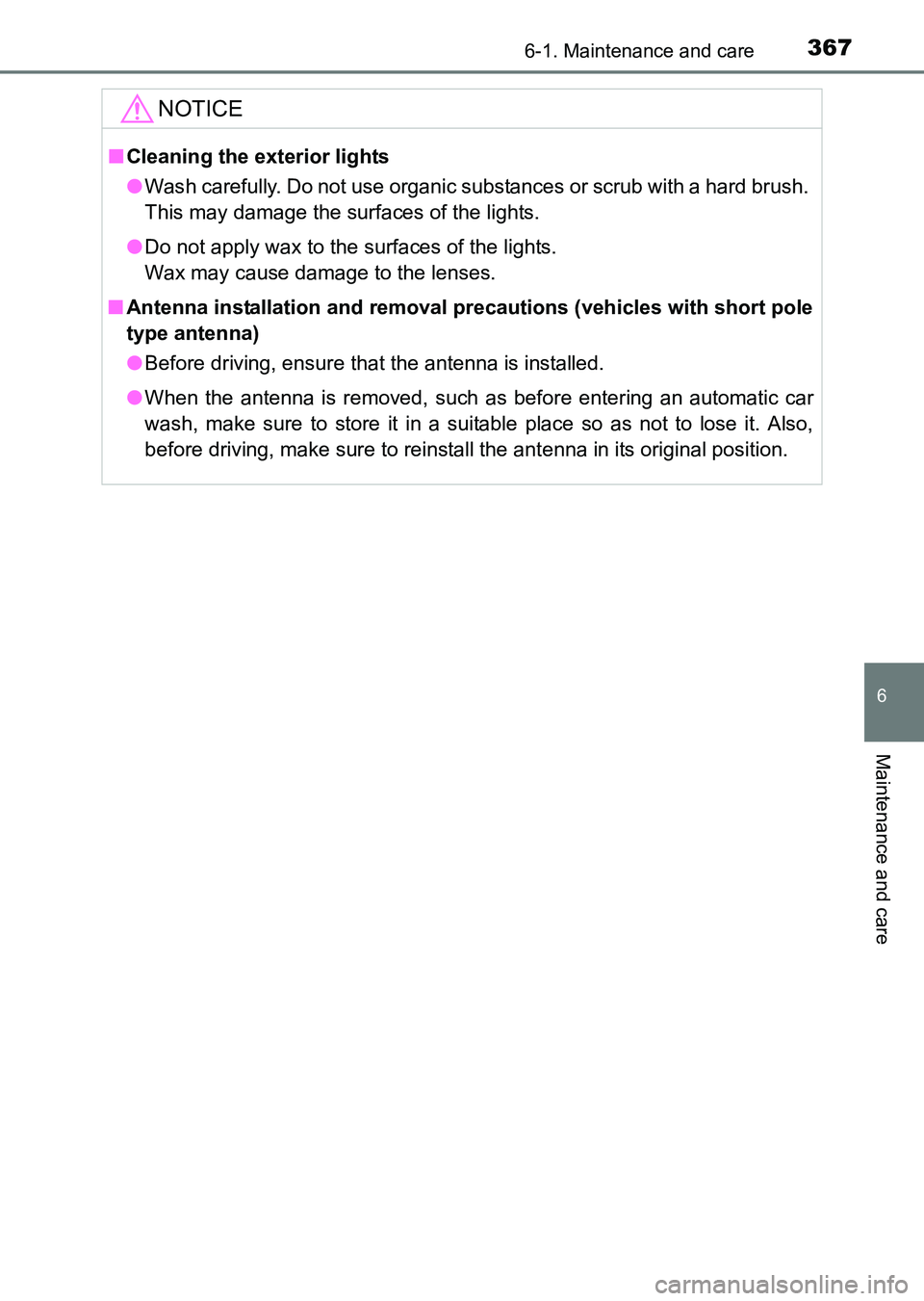

NOTICE
■Cleaning the exterior lights
● Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■ Antenna installation and removal pr ecautions (vehicles with short pole
type antenna)
● Before driving, ensure that the antenna is installed.
● When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.
HILUX_OM_OM0K219E_(EE).book Page 367 Wednesday, May 14, 2014 3:06 PM

3686-1. Maintenance and care
HILUX_OM_OM0K219E_(EE)
Cleaning and protecting the vehicle
interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
●Remove dirt and dust using a vacuum cleaner.
● Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of appr oximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off
all remaining traces of detergent.
● Wipe the surface with a dry, soft cloth to remove any remaining
moisture. Allow the leather to dry in a shaded and ventilated area.
● Remove loose dirt using a vacuum cleaner.
● Apply a mild soap solution to the synthetic leather using a sponge
or soft cloth.
● Allow the solution to soak in for a few minutes. Remove the dirt and
wipe off the solution with a clean, damp cloth.
The following procedures will help protect your vehicle’s interior
and keep it in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas
HILUX_OM_OM0K219E_(EE).book Page 368 Wednesday, May 14, 2014 3:06 PM

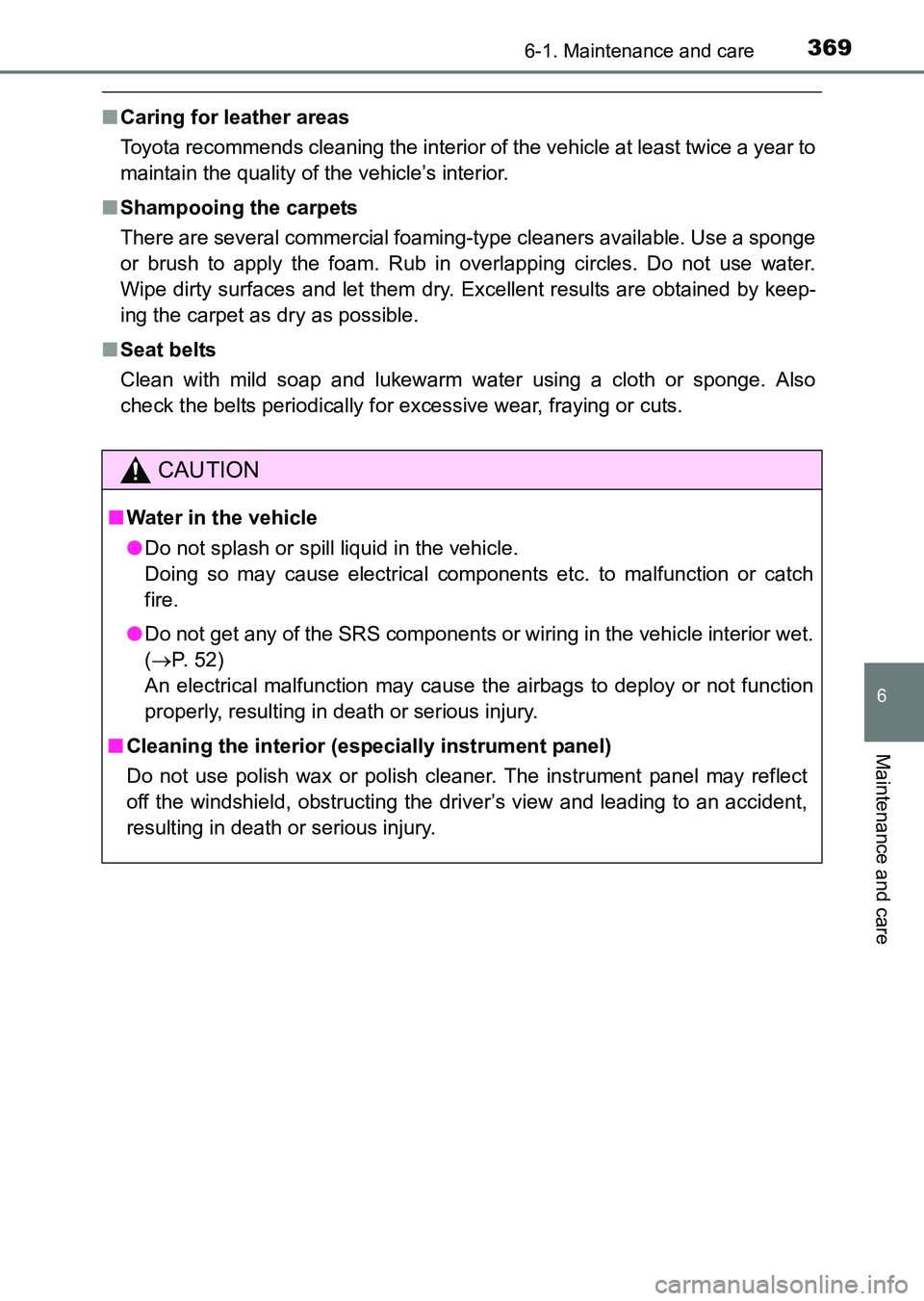

3696-1. Maintenance and care
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)
■Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
■ Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge
or brush to apply the foam. Rub in overlapping circles. Do not use water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.
■ Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
CAUTION
■Water in the vehicle
● Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch
fire.
● Do not get any of the SRS components or wiring in the vehicle interior wet.
(→ P. 52)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
■ Cleaning the interior (esp ecially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.
HILUX_OM_OM0K219E_(EE).book Page 369 Wednesday, May 14, 2014 3:06 PM

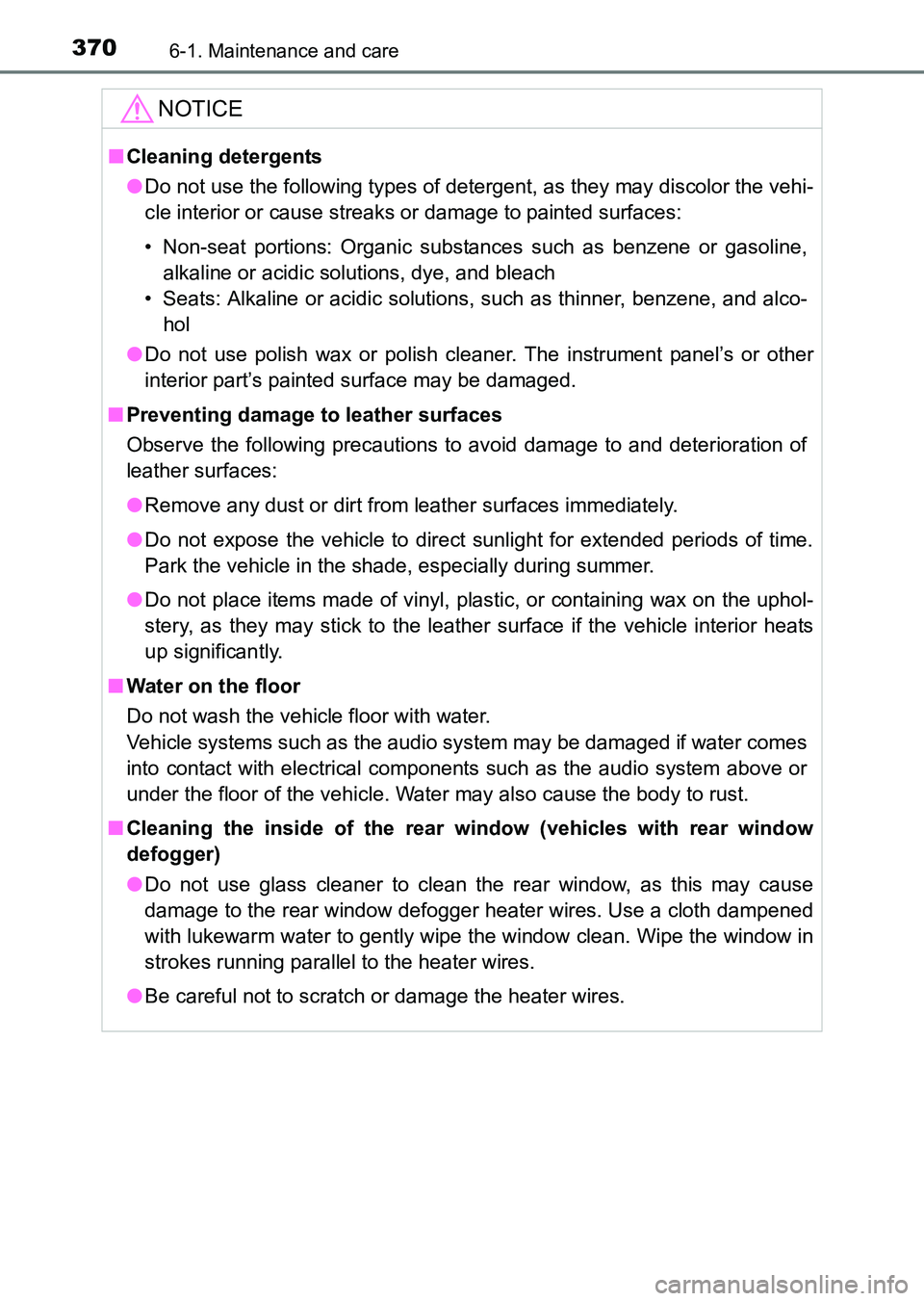

3706-1. Maintenance and care
HILUX_OM_OM0K219E_(EE)
NOTICE
■Cleaning detergents
● Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco- hol
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
● Remove any dust or dirt from leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
■ Cleaning the inside of the rear window (vehicles with rear window
defogger)
● Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
● Be careful not to scratch or damage the heater wires.
HILUX_OM_OM0K219E_(EE).book Page 370 Wednesday, May 14, 2014 3:06 PM
