TOYOTA HILUX 2015 Owners Manual (in English)

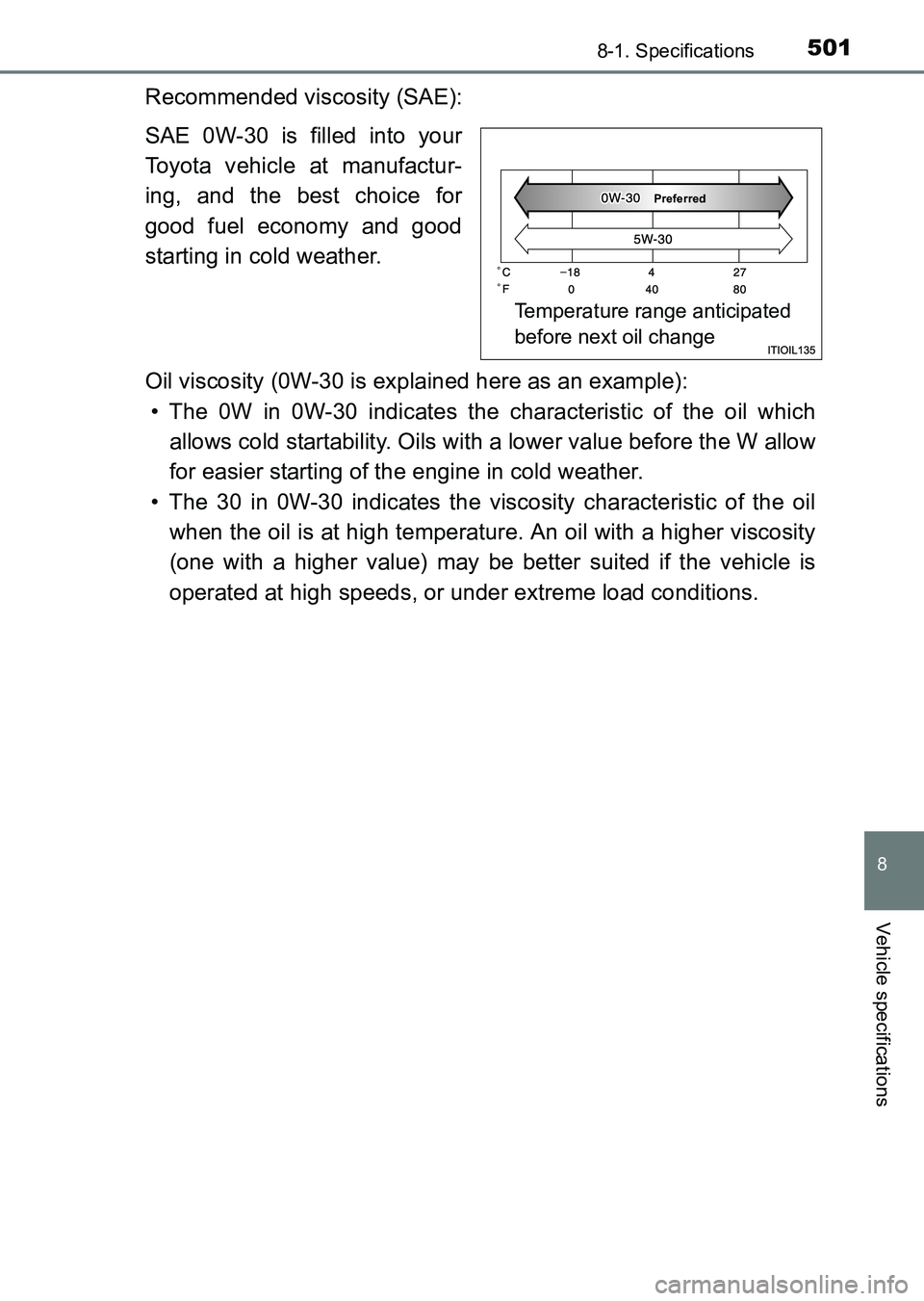

501
8
8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example):• The 0W in 0W-30 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
HILUX_OM_OM0K219E_(EE).book Page 501 Wednesday, May 14, 2014 3:06 PM

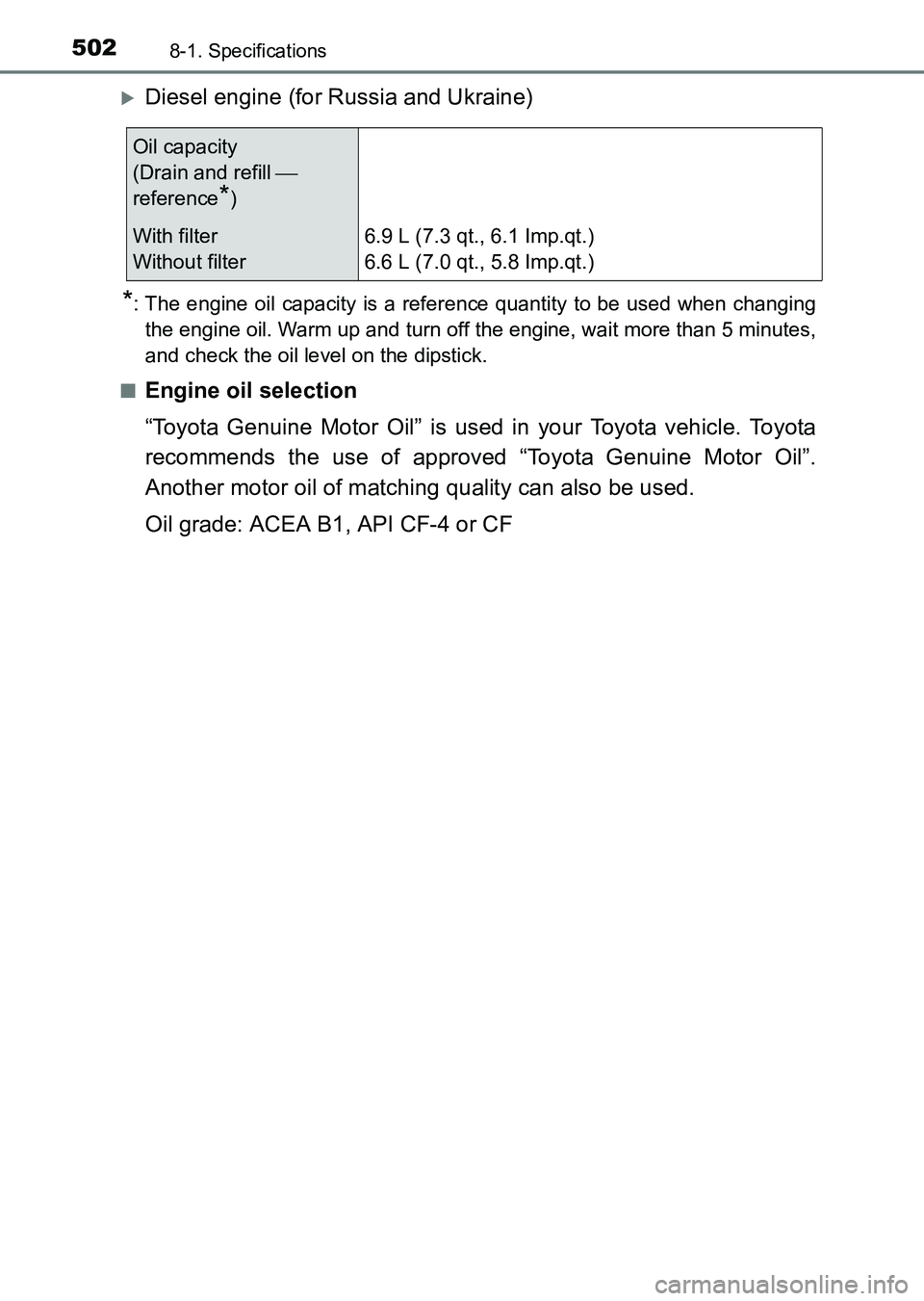

5028-1. Specifications
HILUX_OM_OM0K219E_(EE)
XDiesel engine (for Russia and Ukraine)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA B1, API CF-4 or CF
Oil capacity
(Drain and refill 
reference
*)
With filter
Without filter 6.9 L (7.3 qt., 6.1 Imp.qt.)
6.6 L (7.0 qt., 5.8 Imp.qt.)
HILUX_OM_OM0K219E_(EE).book Page 502 Wednesday, May 14, 2014
3:06 PM

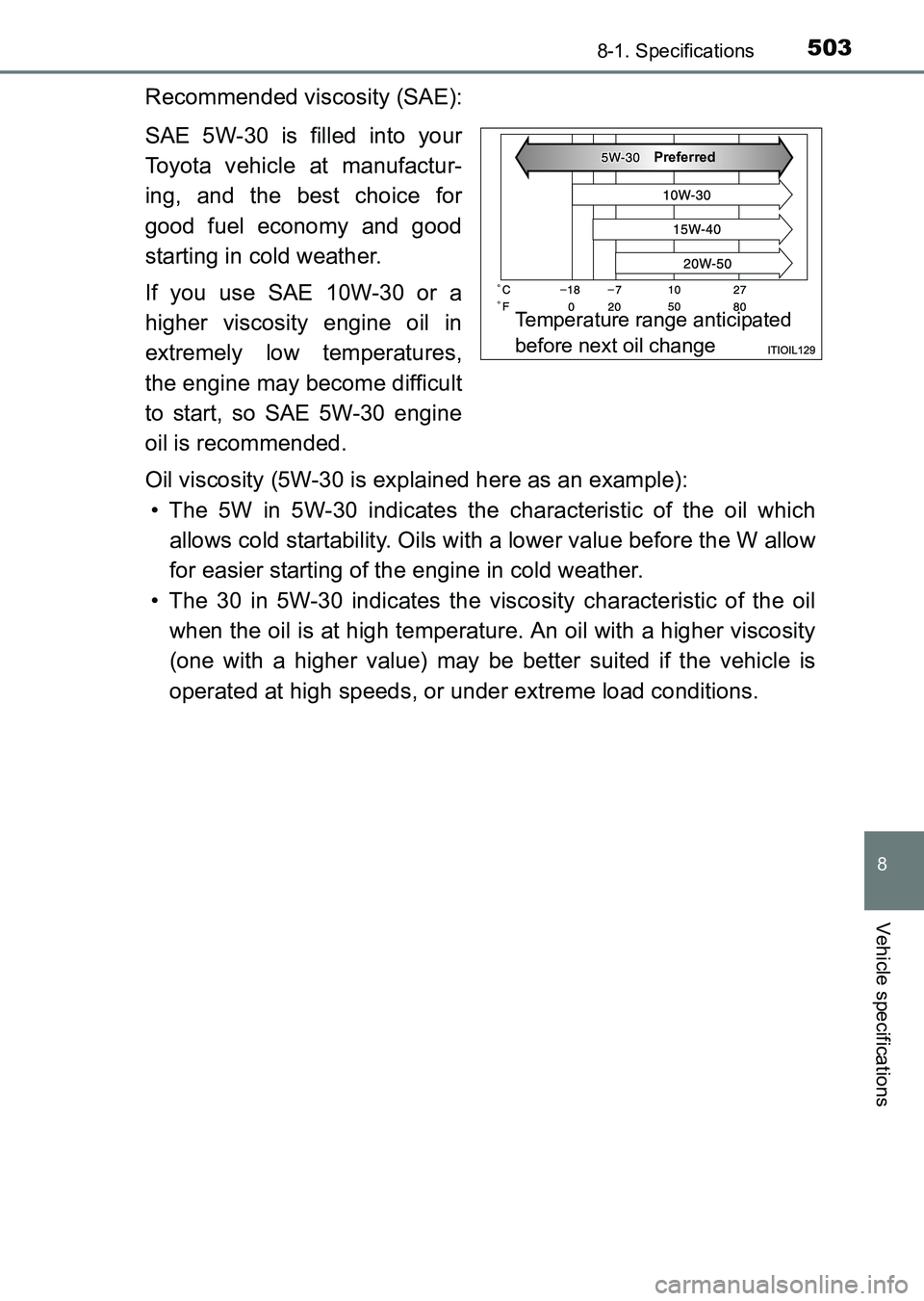

503
8
8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)
Recommended viscosity (SAE):
SAE 5W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 engine
oil is recommended.
Oil viscosity (5W-30 is explained here as an example):• The 5W in 5W-30 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
HILUX_OM_OM0K219E_(EE).book Page 503 Wednesday, May 14, 2014 3:06 PM

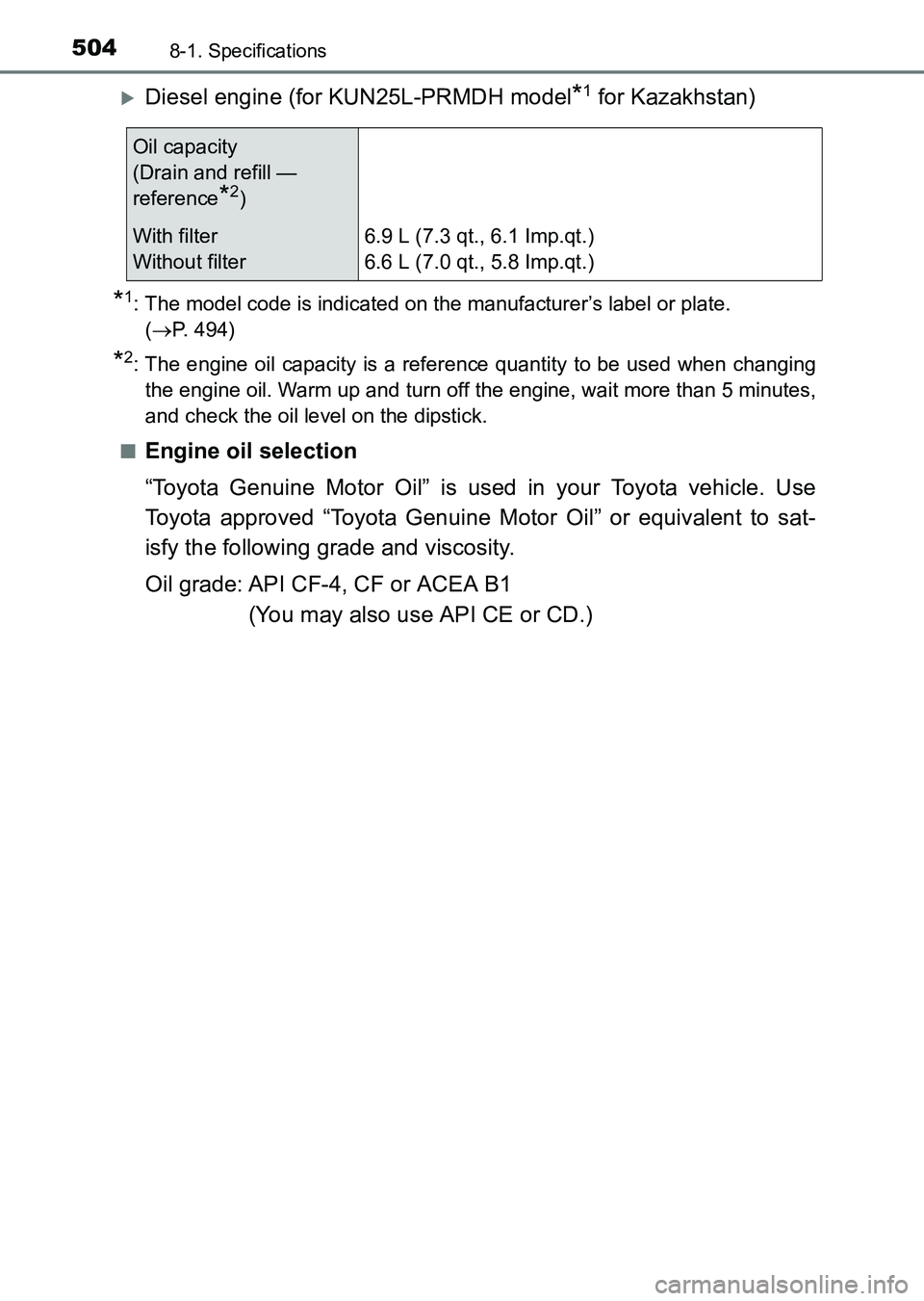

5048-1. Specifications
HILUX_OM_OM0K219E_(EE)
XDiesel engine (for KUN25L-PRMDH model*1 for Kazakhstan)
*1: The model code is indicated on the manufacturer’s label or plate. (→ P. 494)
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: API CF-4, CF or ACEA B1 (You may also use API CE or CD.)
Oil capacity
(Drain and refill —
reference
*2)
With filter
Without filter 6.9 L (7.3 qt., 6.1 Imp.qt.)
6.6 L (7.0 qt., 5.8 Imp.qt.)
HILUX_OM_OM0K219E_(EE).book Page 504 Wednesday, May 14, 2014
3:06 PM

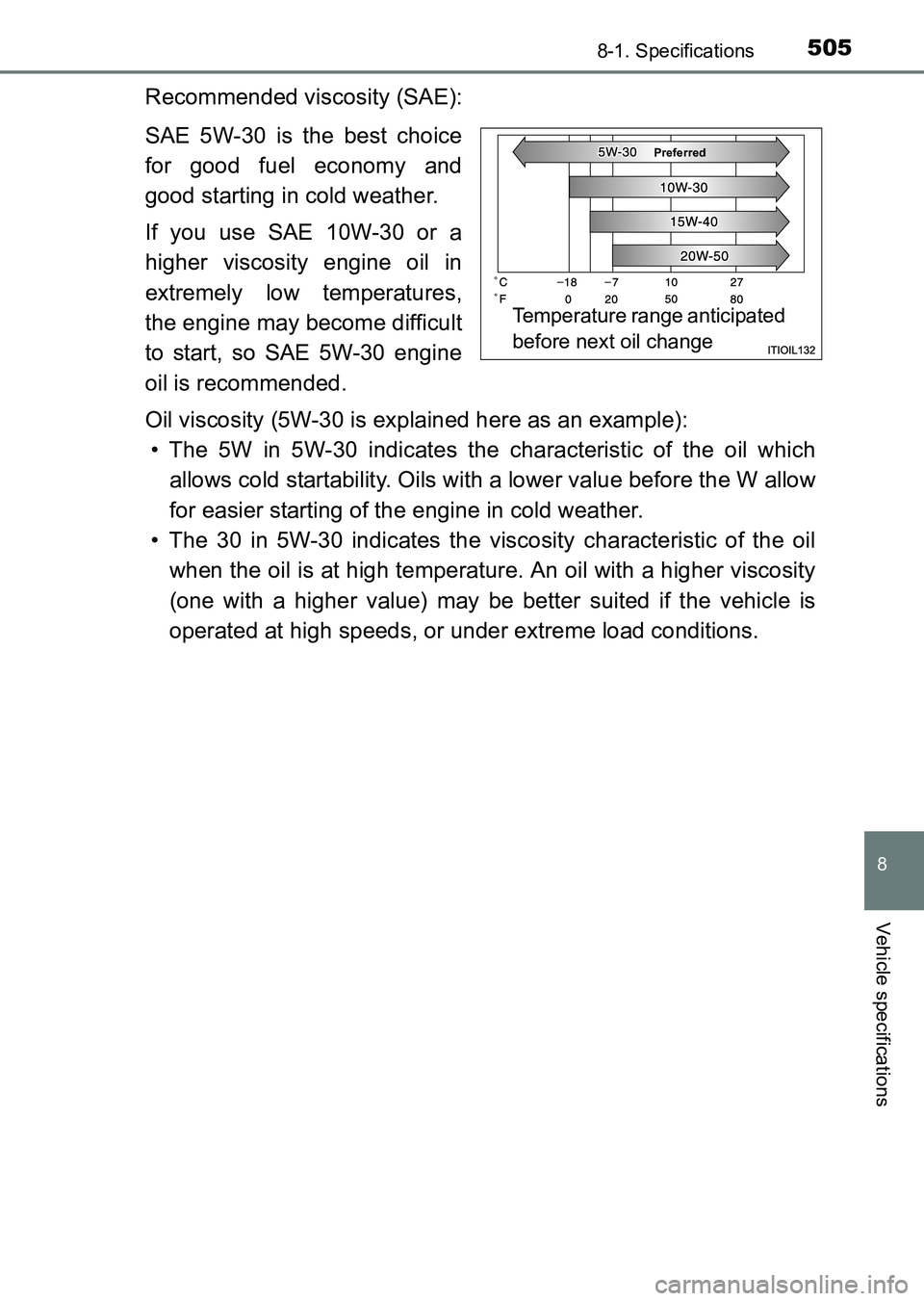

505
8
8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)
Recommended viscosity (SAE):
SAE 5W-30 is the best choice
for good fuel economy and
good starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 engine
oil is recommended.
Oil viscosity (5W-30 is explained here as an example):• The 5W in 5W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
HILUX_OM_OM0K219E_(EE).book Page 505 Wednesday, May 14, 2014 3:06 PM

5068-1. Specifications
HILUX_OM_OM0K219E_(EE)
XDiesel engine (for KUN25L-PRMDH models*1 except for
Kazakhstan)
*1: The model code is indicated on the manufacturer’s label or plate. (→ P. 494)
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: API CF-4, CF or ACEA B1 (You may also use API CE or CD.)
Oil capacity
(Drain and refill 
reference
*2)
With filter
Without filter6.9 L (7.3 qt., 6.1 Imp.qt.)
6.6 L (7.0 qt., 5.8 Imp.qt.)
HILUX_OM_OM0K219E_(EE).book Page 506 Wednesday, May 14, 2014 3:06 PM

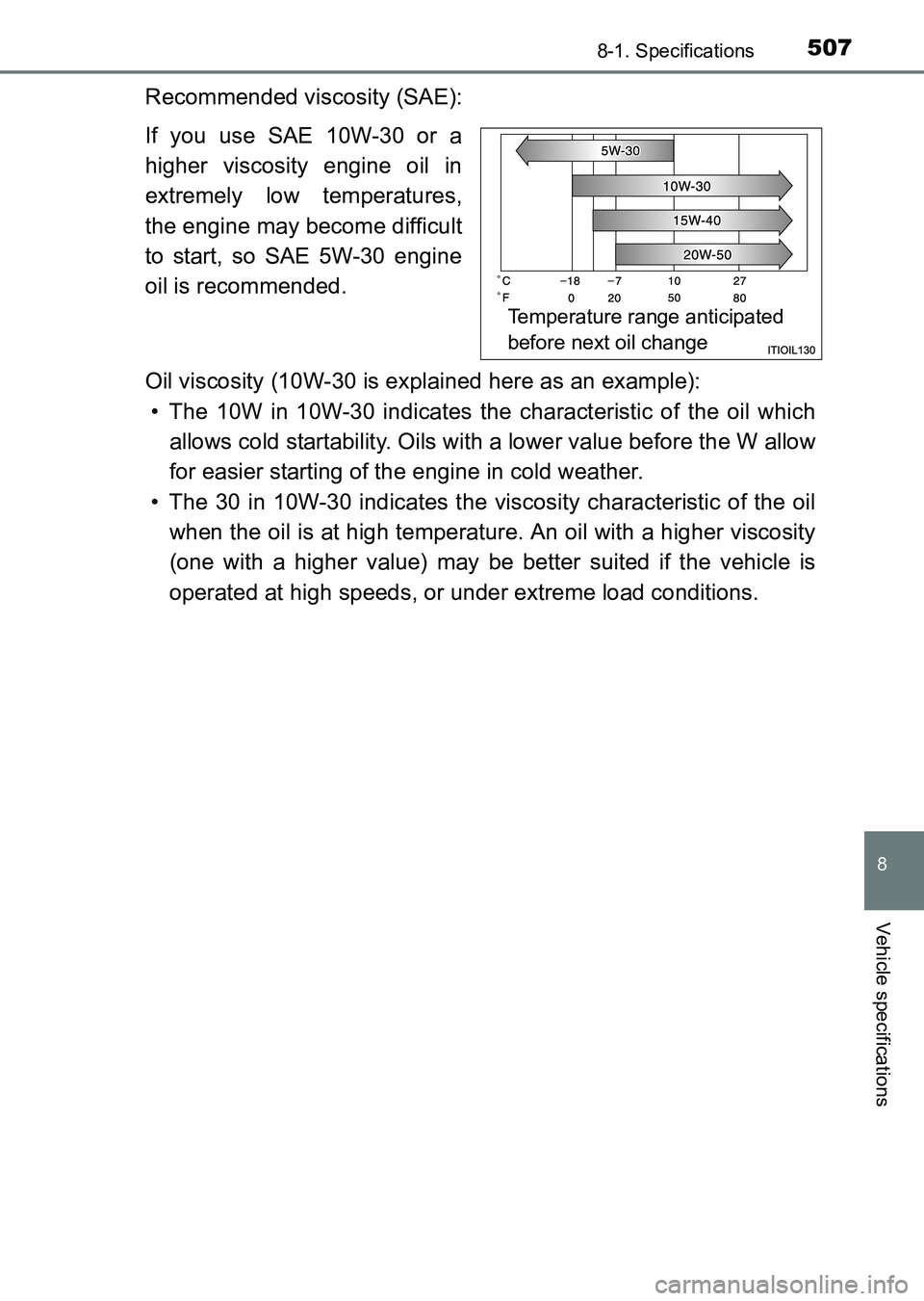

507
8
8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 engine
oil is recommended.
Oil viscosity (10W-30 is explained here as an example):• The 10W in 10W-30 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 10W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
HILUX_OM_OM0K219E_(EE).book Page 507 Wednesday, May 14, 2014 3:06 PM

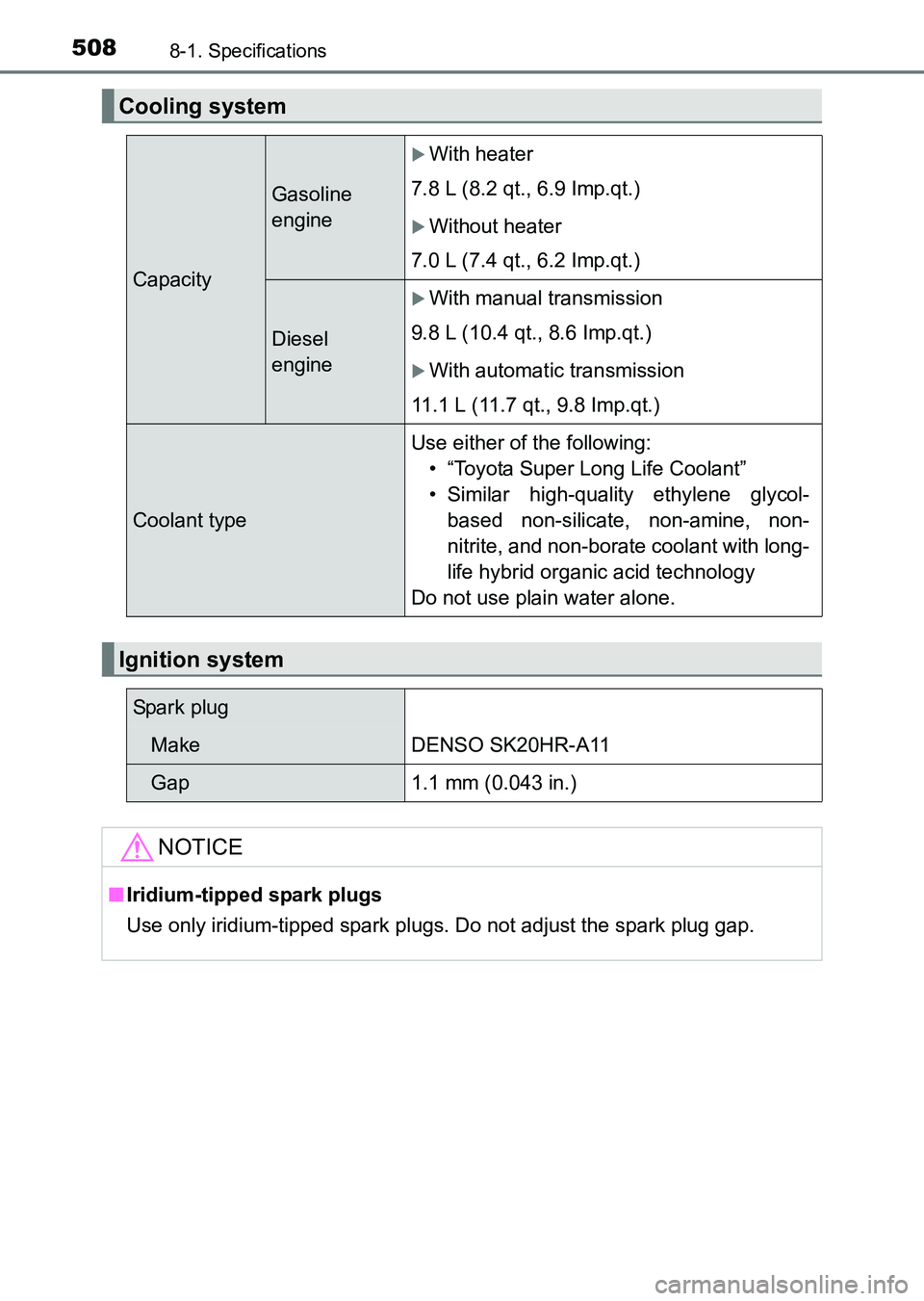

5088-1. Specifications
HILUX_OM_OM0K219E_(EE)
Cooling system
Capacity
Gasoline
engine
XWith heater
7.8 L (8.2 qt., 6.9 Imp.qt.)
XWithout heater
7.0 L (7.4 qt., 6.2 Imp.qt.)
Diesel
engine
XWith manual transmission
9.8 L (10.4 qt., 8.6 Imp.qt.)
XWith automatic transmission
11.1 L (11.7 qt., 9.8 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol- based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO SK20HR-A11
Gap1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
HILUX_OM_OM0K219E_(EE).book Page 508 Wednesday, May 14, 2014 3:06 PM

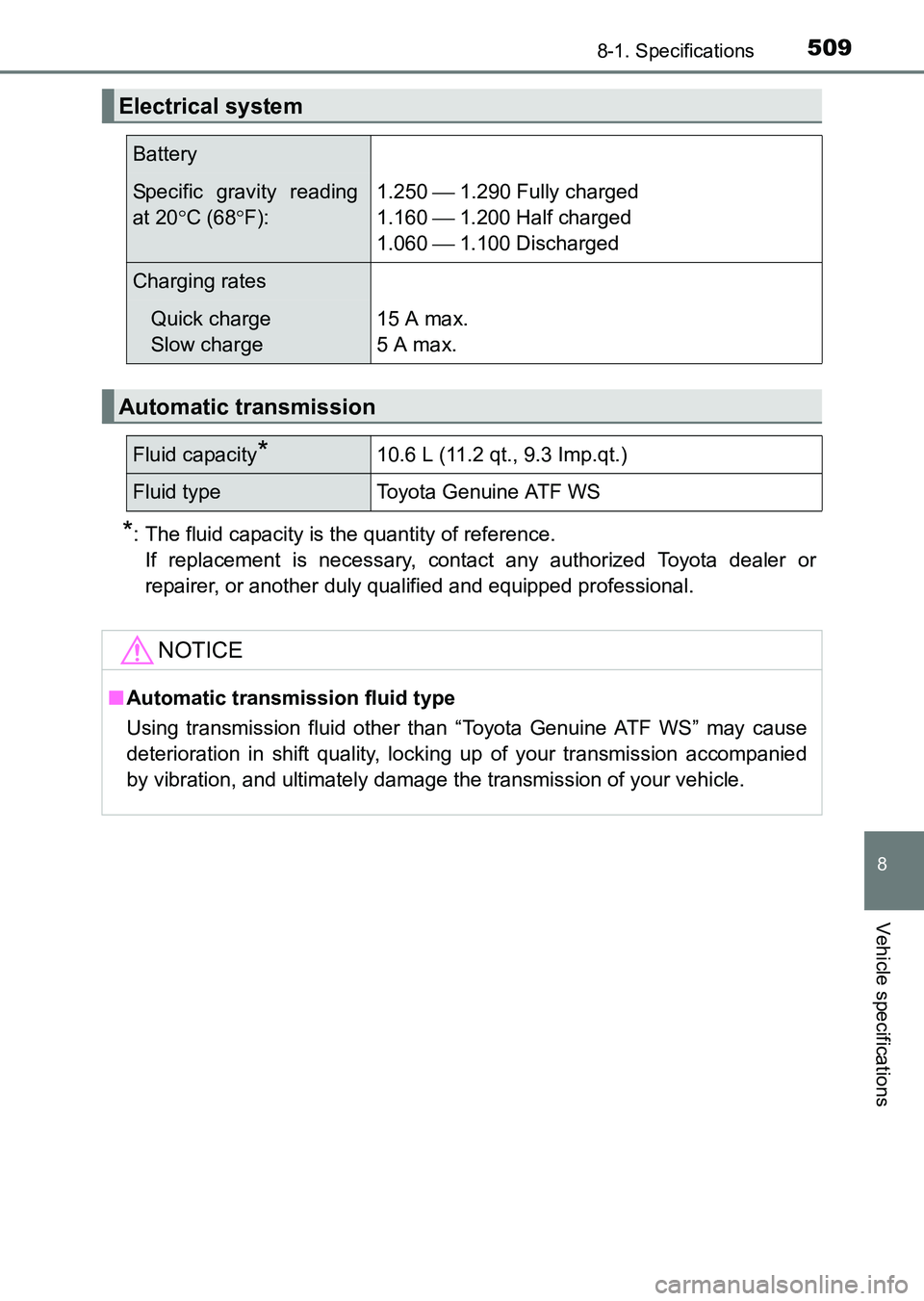

509
8
8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Electrical system
Battery
Specific gravity reading
at 20 °C (68 °F): 1.250
 1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge 15 A max.
5 A max.
Automatic transmission
Fluid capacity*10.6 L (11.2 qt., 9.3 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
HILUX_OM_OM0K219E_(EE).book Page 509 Wednesday, May 14, 2014 3:06 PM

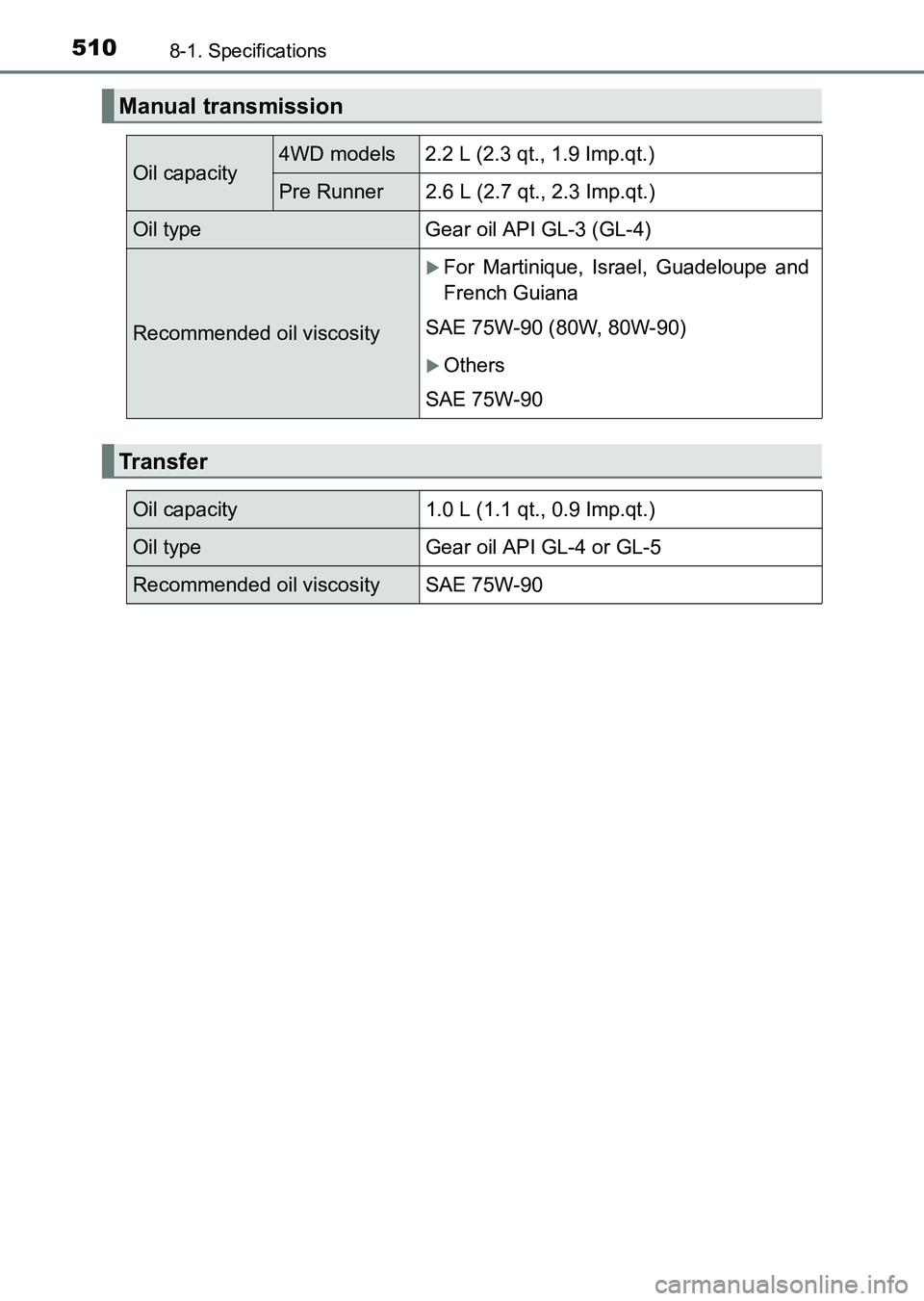

5108-1. Specifications
HILUX_OM_OM0K219E_(EE)
Manual transmission
Oil capacity4WD models 2.2 L (2.3 qt., 1.9 Imp.qt.)
Pre Runner 2.6 L (2.7 qt., 2.3 Imp.qt.)
Oil type Gear oil API GL-3 (GL-4)
Recommended oil viscosity
XFor Martinique, Israel, Guadeloupe and
French Guiana
SAE 75W-90 (80W, 80W-90)
XOthers
SAE 75W-90
Transfer
Oil capacity1.0 L (1.1 qt., 0.9 Imp.qt.)
Oil typeGear oil API GL-4 or GL-5
Recommended oil viscositySAE 75W-90
HILUX_OM_OM0K219E_(EE).book Page 510 Wednesday, May 14, 2014 3:06 PM
