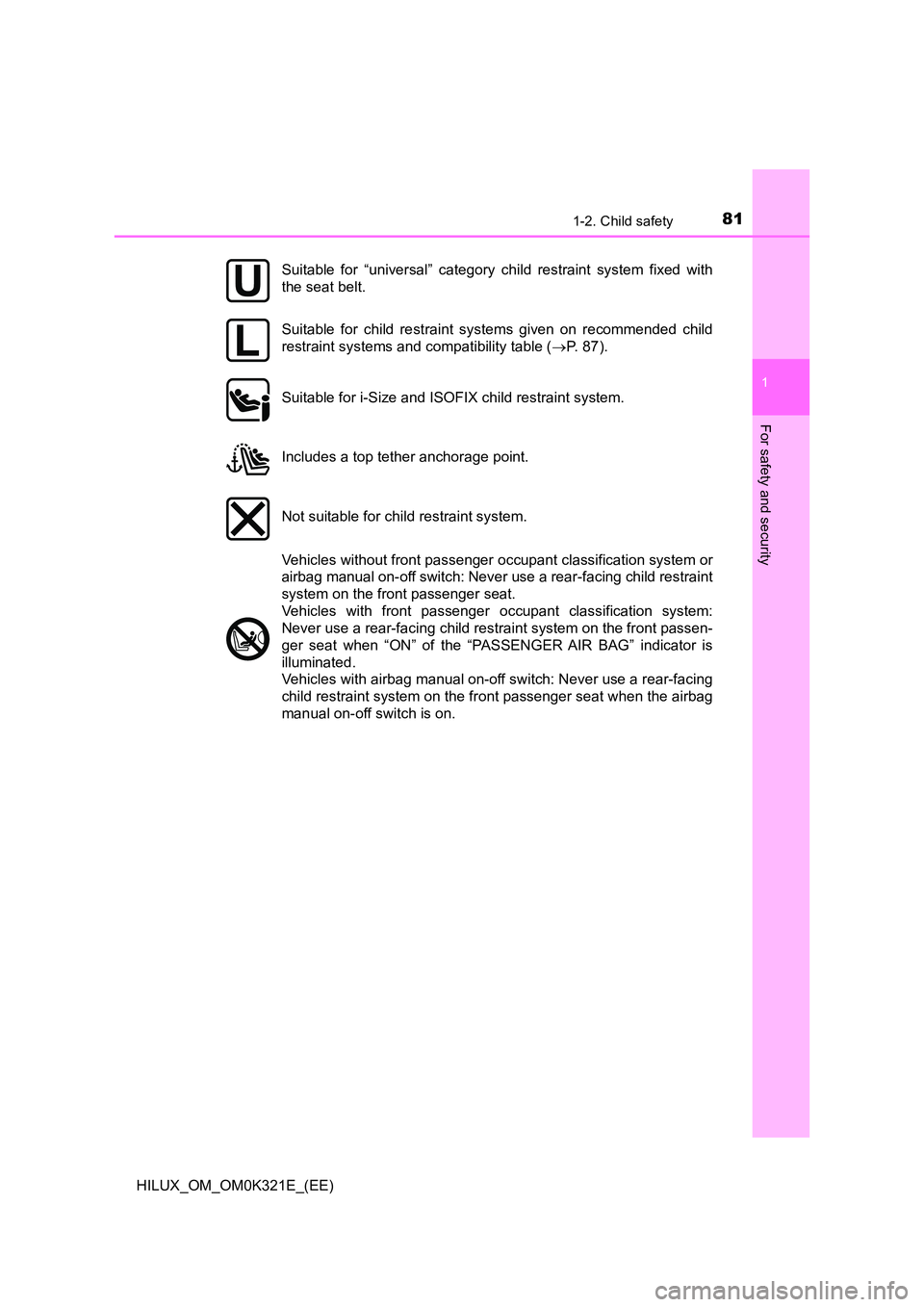

811-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 8 7 ) .
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Vehicles without front passenger occupant classification system or
airbag manual on-off switch: Never use a rear-facing child restraint
system on the front passenger seat.
Vehicles with front passenger occupant classification system:
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.
Vehicles with airbag manual on-off switch: Never use a rear-facing
child restraint system on the front passenger seat when the airbag
manual on-off switch is on.

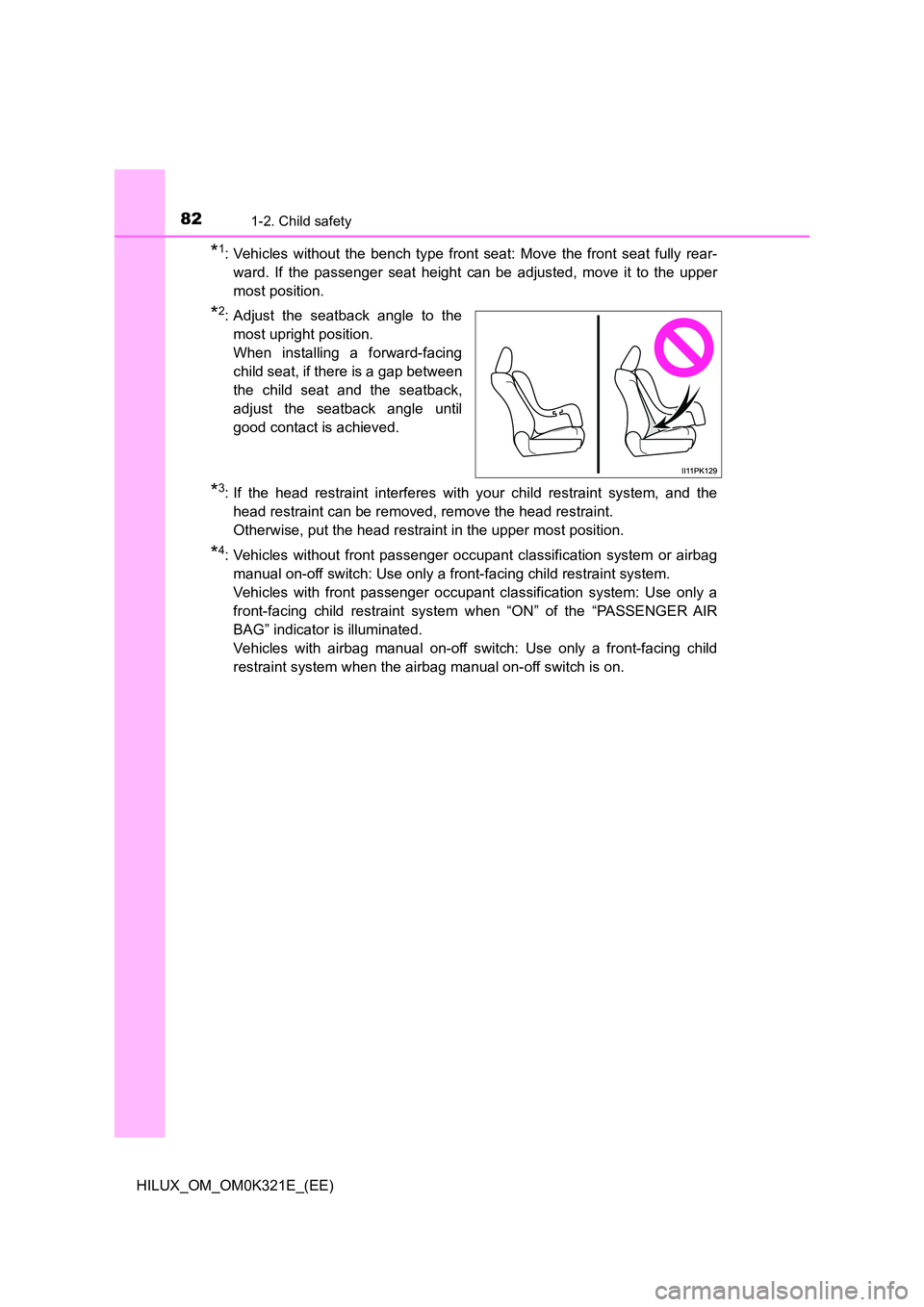

821-2. Child safety
HILUX_OM_OM0K321E_(EE)
*1: Vehicles without the bench type front seat: Move the front seat fully rear-
ward. If the passenger seat height can be adjusted, move it to the upper
most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Vehicles without front passenger occupant classification system or airbag
manual on-off switch: Use only a front-facing child restraint system.
Vehicles with front passenger occupant classification system: Use only a
front-facing child restraint system when “ON” of the “PASSENGER AIR
BAG” indicator is illuminated.
Vehicles with airbag manual on-off switch: Use only a front-facing child
restraint system when the airbag manual on-off switch is on.

831-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security

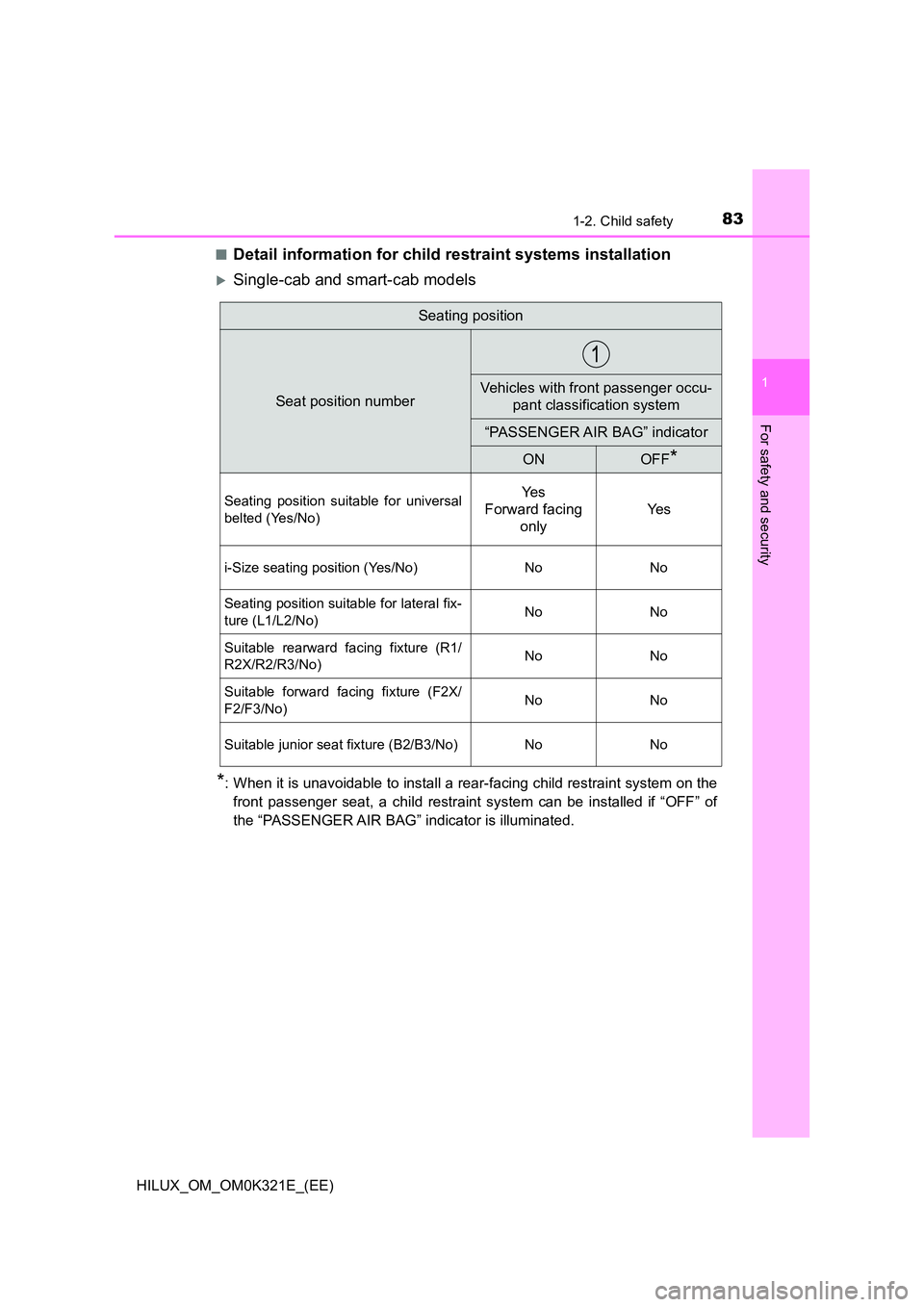

■Detail information for child restraint systems installation
Single-cab and smart-cab models
*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
Seating position
Seat position numberVehicles with front passenger occu-
pant classification system
“PASSENGER AIR BAG” indicator
ONOFF*
Seating position suitable for universal
belted (Yes/No)
Ye s
Forward facing
only
Ye s
i-Size seating position (Yes/No) No No
Seating position suitable for lateral fix-
ture (L1/L2/No) No No
Suitable rearward facing fixture (R1/
R2X/R2/R3/No) No No
Suitable forward facing fixture (F2X/
F2/F3/No) No No
Suitable junior seat fixture (B2/B3/No) No No

841-2. Child safety
HILUX_OM_OM0K321E_(EE)

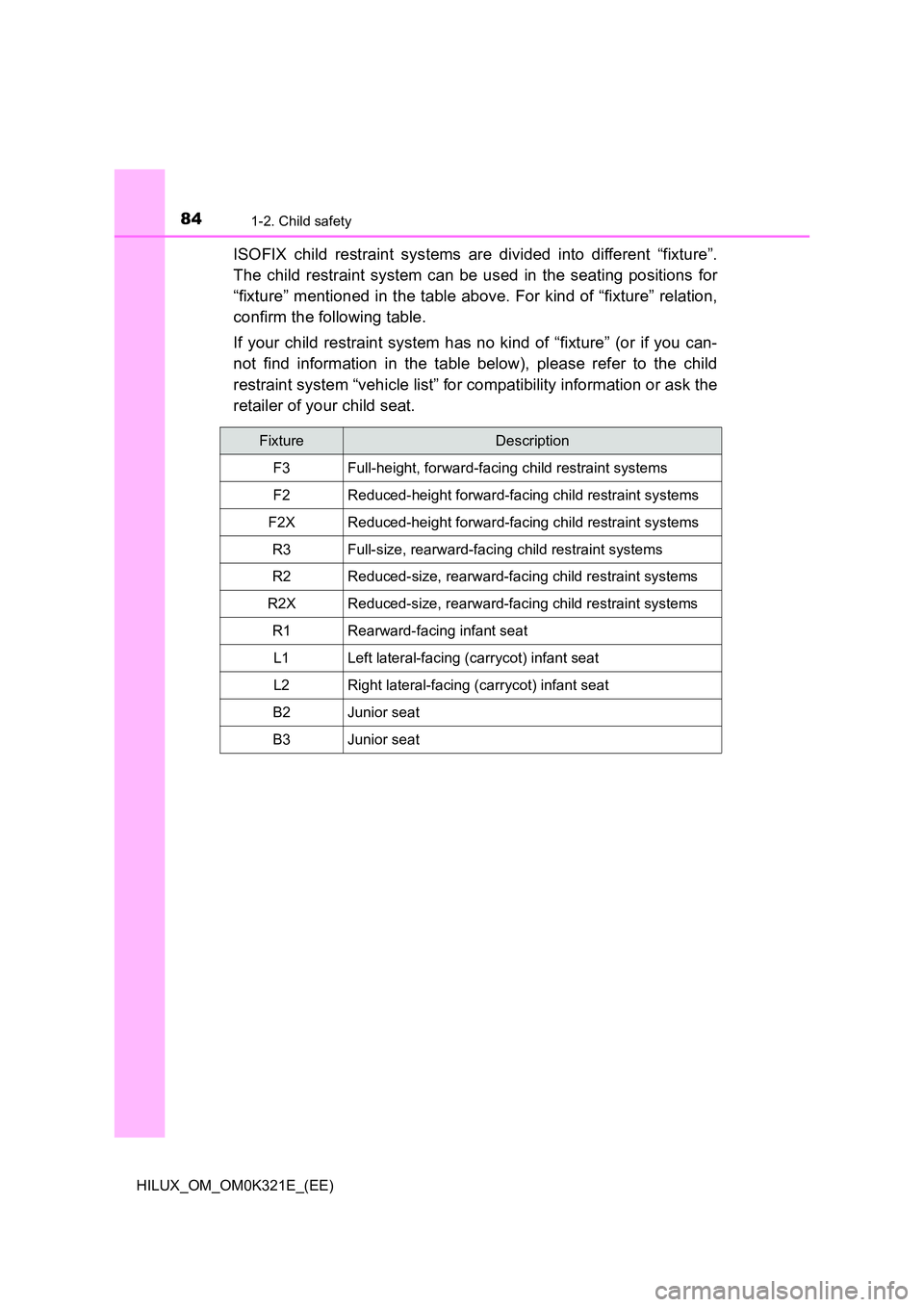

ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” relation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.
FixtureDescription
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat

851-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security

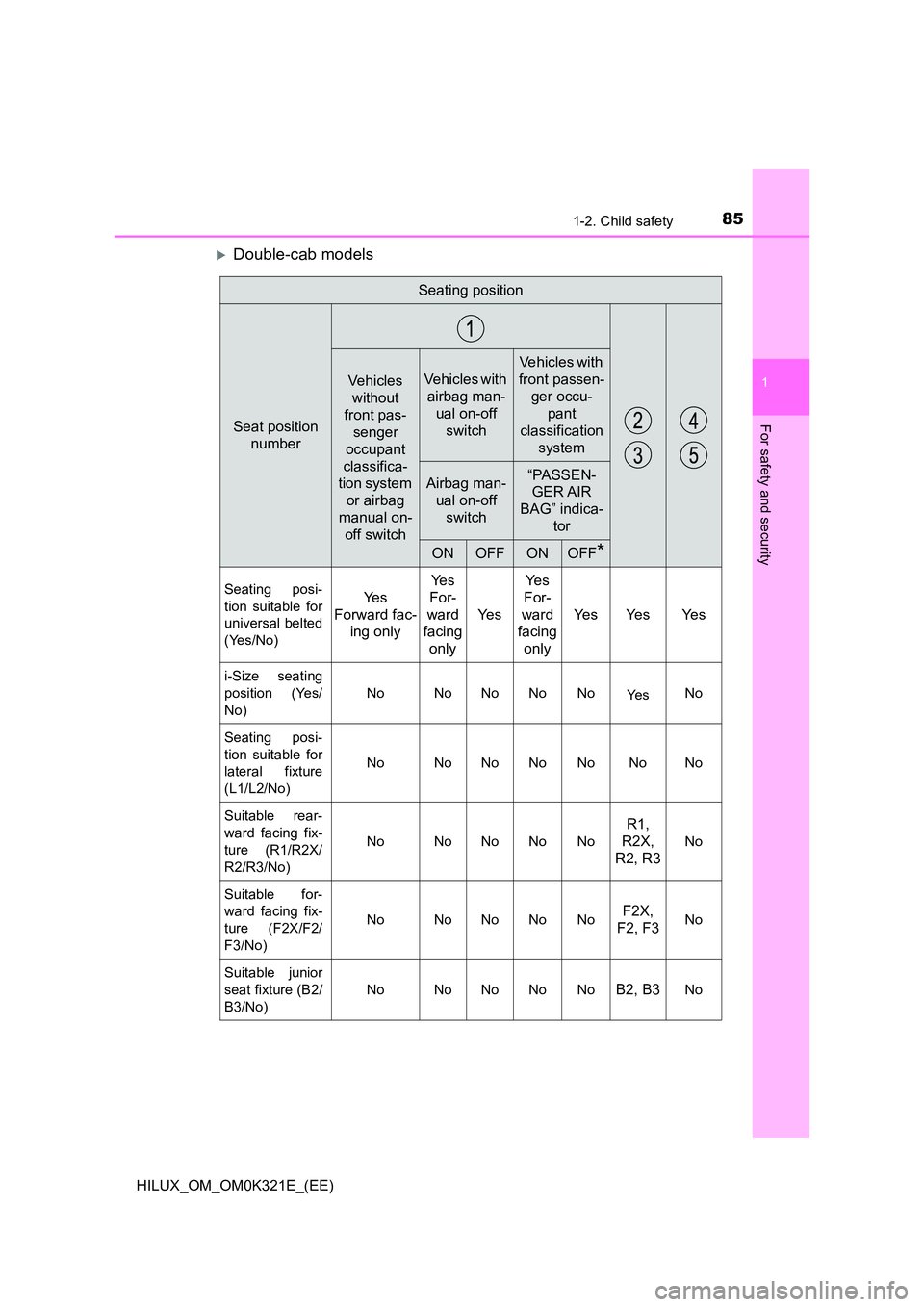

Double-cab models
Seating position
Seat position
number
Vehicles
without
front pas-
senger
occupant
classifica-
tion system
or airbag
manual on-
off switch
Vehi c les w ith
airbag man-
ual on-off
switch
Vehicles with
front passen-
ger occu-
pant
classification
system
Airbag man-
ual on-off
switch
“PASSEN-
GER AIR
BAG” indica-
tor
ONOFFONOFF*
Seating posi-
tion suitable for
universal belted
(Yes/No)
Ye s
Forward fac-
ing only
Ye s
For-
ward
facing
only
Ye s
Ye s
For-
ward
facing
only
Ye s Ye s Ye s
i-Size seating
position (Yes/
No)
No No No No No Ye s No
Seating posi-
tion suitable for
lateral fixture
(L1/L2/No)
No No No No No No No
Suitable rear-
ward facing fix-
ture (R1/R2X/
R2/R3/No)
No No No No No
R1,
R2X,
R2, R3
No
Suitable for-
ward facing fix-
ture (F2X/F2/
F3/No)
No No No No NoF2X,
F2, F3No
Suitable junior
seat fixture (B2/
B3/No)
No No No No NoB2, B3No

861-2. Child safety
HILUX_OM_OM0K321E_(EE)

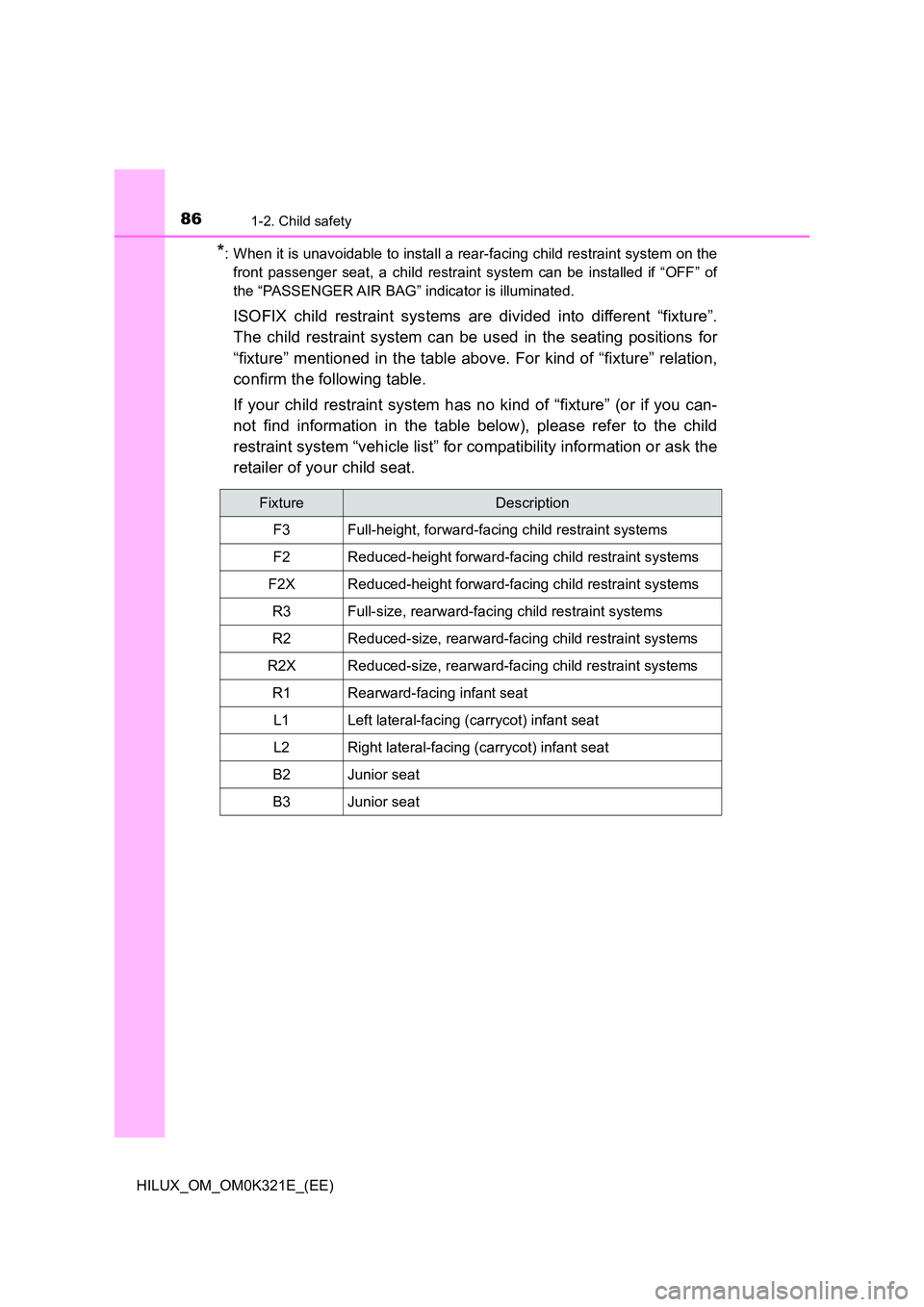

*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” relation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.
FixtureDescription
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat

871-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security

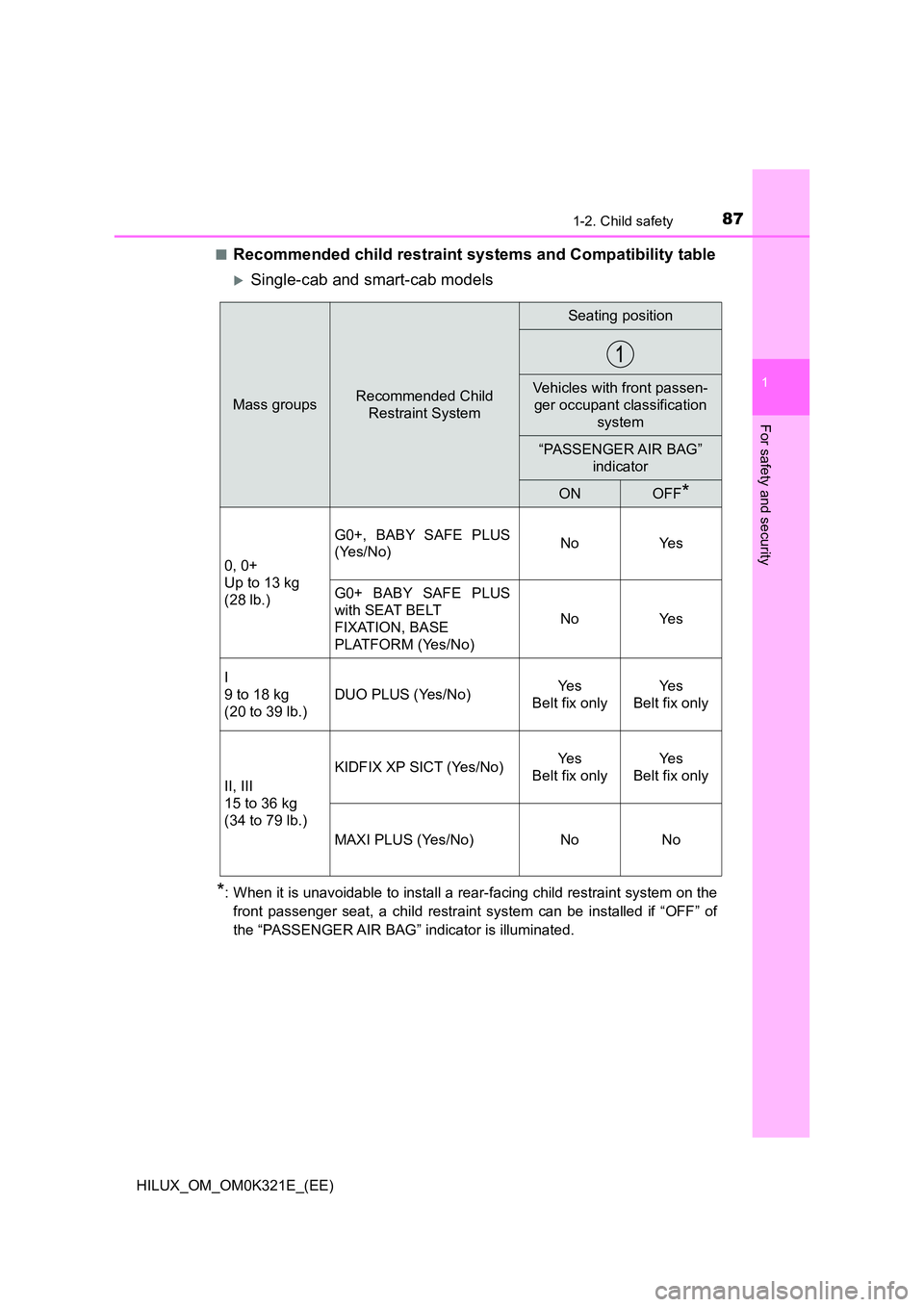

■Recommended child restraint systems and Compatibility table
Single-cab and smart-cab models
*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
Mass groupsRecommended Child
Restraint System
Seating position
Vehicles with front passen-
ger occupant classification
system
“PASSENGER AIR BAG”
indicator
ONOFF*
0, 0+
Up to 13 kg
(28 lb.)
G0+, BABY SAFE PLUS
(Yes/No) No Yes
G0+ BABY SAFE PLUS
with SEAT BELT
FIXATION, BASE
PLATFORM (Yes/No)
No Yes
I
9 to 18 kg
(20 to 39 lb.)
DUO PLUS (Yes/No) Ye s
Belt fix only
Ye s
Belt fix only
II, III
15 to 36 kg
(34 to 79 lb.)
KIDFIX XP SICT (Yes/No) Ye s
Belt fix only
Ye s
Belt fix only
MAXI PLUS (Yes/No) No No

881-2. Child safety
HILUX_OM_OM0K321E_(EE)

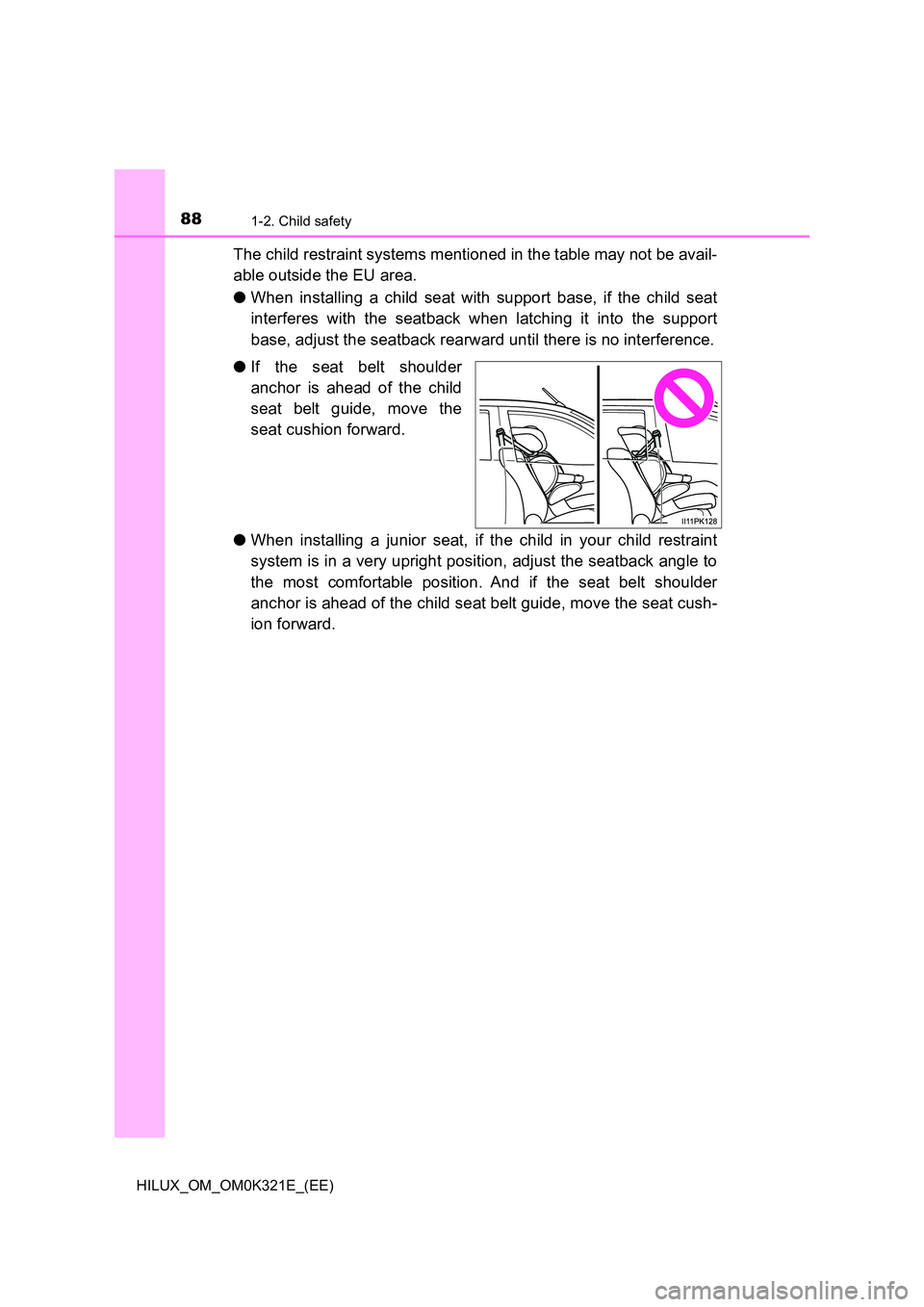

The child restraint systems mentioned in the table may not be avail-
able outside the EU area.
● When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interference.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cush-
ion forward.

891-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security

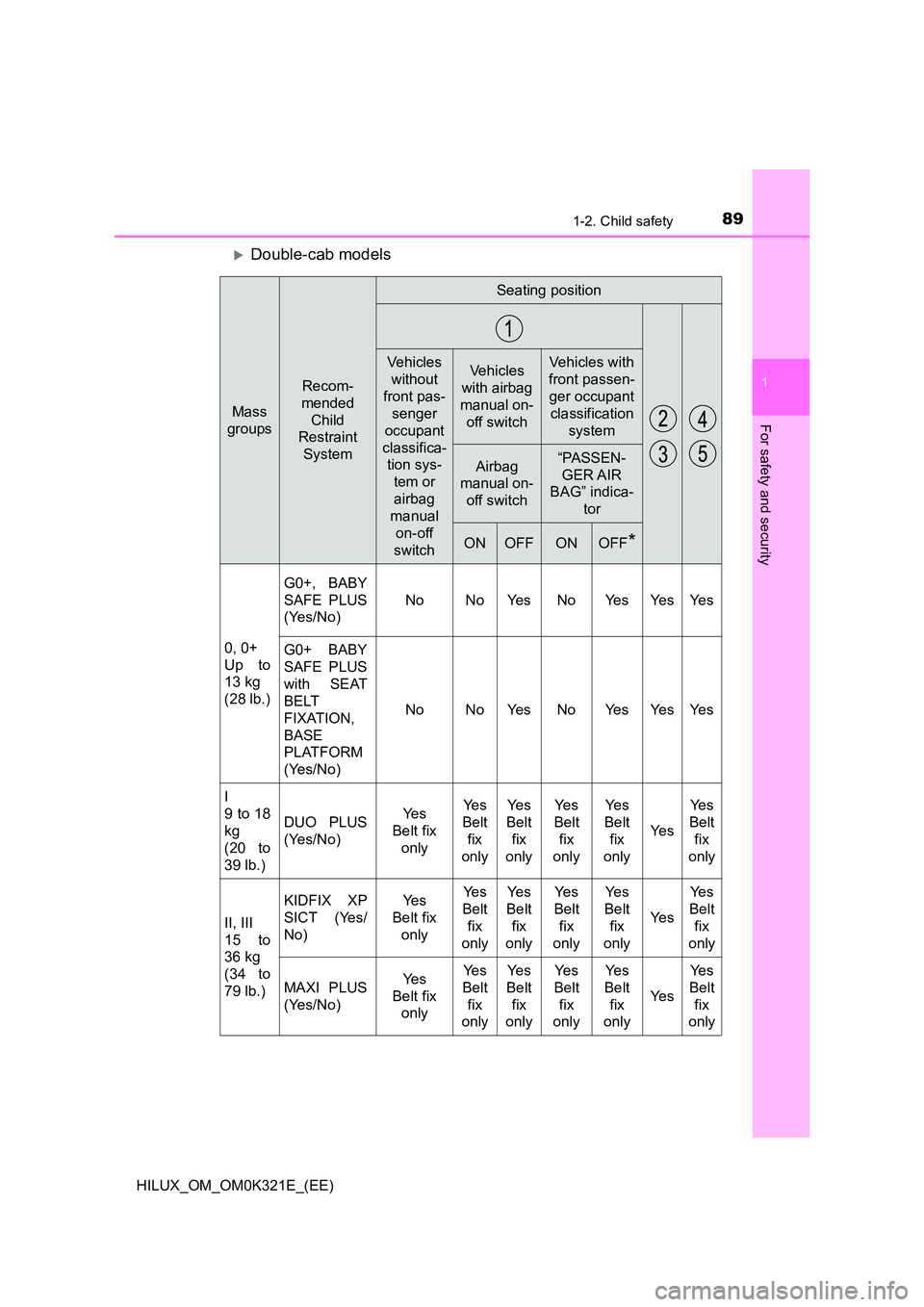

Double-cab models
Mass
groups
Recom-
mended
Child
Restraint
System
Seating position
Vehicles
without
front pas-
senger
occupant
classifica-
tion sys-
tem or
airbag
manual
on-off
switch
Vehicles
with airbag
manual on-
off switch
Vehicles with
front passen-
ger occupant
classification
system
Airbag
manual on-
off switch
“PASSEN-
GER AIR
BAG” indica-
tor
ONOFFONOFF*
0, 0+
Up to
13 kg
(28 lb.)
G0+, BABY
SAFE PLUS
(Yes/No)
No No Yes No Yes Yes Yes
G0+ BABY
SAFE PLUS
with SEAT
BELT
FIXATION,
BASE
PLATFORM
(Yes/No)
No No Yes No Yes Yes Yes
I
9 to 18
kg
(20 to
39 lb.)
DUO PLUS
(Yes/No)
Ye s
Belt fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Ye s
Belt
fix
only
II, III
15 to
36 kg
(34 to
79 lb.)
KIDFIX XP
SICT (Yes/
No)
Ye s
Belt fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Ye s
Belt
fix
only
MAXI PLUS
(Yes/No)
Ye s
Belt fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Ye s
Belt
fix
only

901-2. Child safety
HILUX_OM_OM0K321E_(EE)
*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
The child restraint systems mentioned in the table may not be avail-
able outside the EU area.
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next
to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your shoul-
der and low on your hips. If it does not, or if it interferes with the
child restraint, move to a different position.
Failure to do so may result in death or serious injury.
● When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint
system (if equipped).
● When installing a child seat with support base in the front seats, if
the child seat interferes with the seatback when latching it into
the support base, adjust the seatback rearward until there is no
interference.
● Vehicles without the bench
type front seat: If the seat
belt shoulder anchor is
ahead of the child seat belt
guide, move the seat cushion
forward.
● When installing a junior seat in the front seats, if the child in your
child restraint system is in a very upright position, adjust the seat-
back angle to the most comfortable position. And if the seat belt
shoulder anchor is ahead of the child seat belt guide, move the
seat cushion forward.
