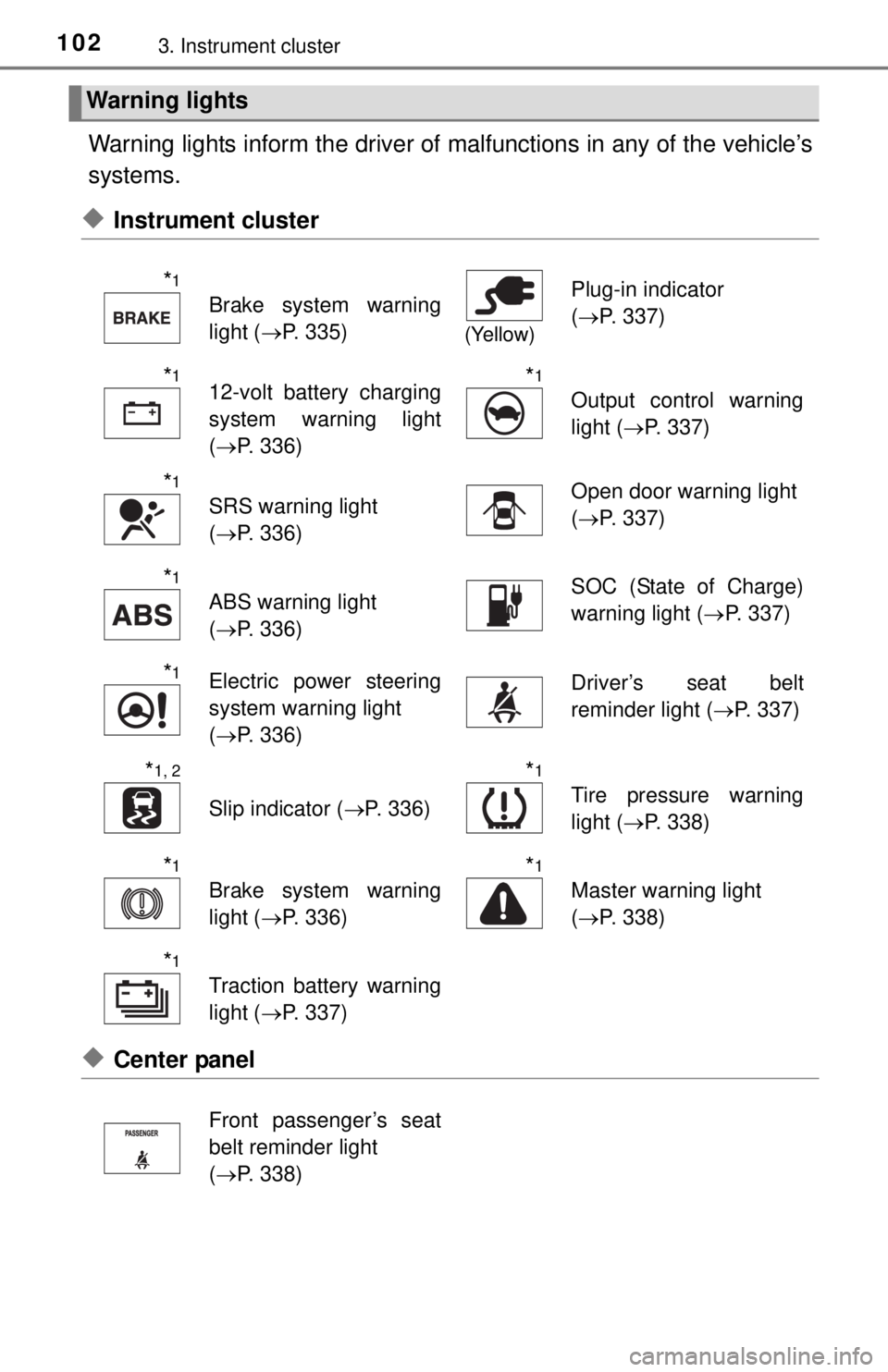

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
◆Instrument cluster
◆Center panel
Warning lights
*1
Brake system warning
light ( P. 335)
(Yellow)
Plug-in indicator
(P. 337)
*112-volt battery charging
system warning light
(P. 336)*1
Output control warning
light ( P. 337)
*1
SRS warning light
(P. 336)Open door warning light
(P. 337)
*1
ABS warning light
(P. 336)SOC (State of Charge)
warning light ( P. 337)
*1Electric power steering
system warning light
(P. 336)Driver’s seat belt
reminder light ( P. 337)
*1, 2
Slip indicator (P. 336)
*1
Tire pressure warning
light (P. 338)
*1
Brake system warning
light (P. 336)
*1
Master warning light
(P. 338)
*1
Traction battery warning
light ( P. 337)
Front passenger’s seat
belt reminder light
(P. 338)

1033. Instrument cluster
3
Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the EV
system is on, or after a few seconds. There may be a malfunction in a sys-
tem if the lights do not come on, or turn off. Have the vehicle inspected by
your Scion dealer.
*2: The light comes on to indicate a malfunction.

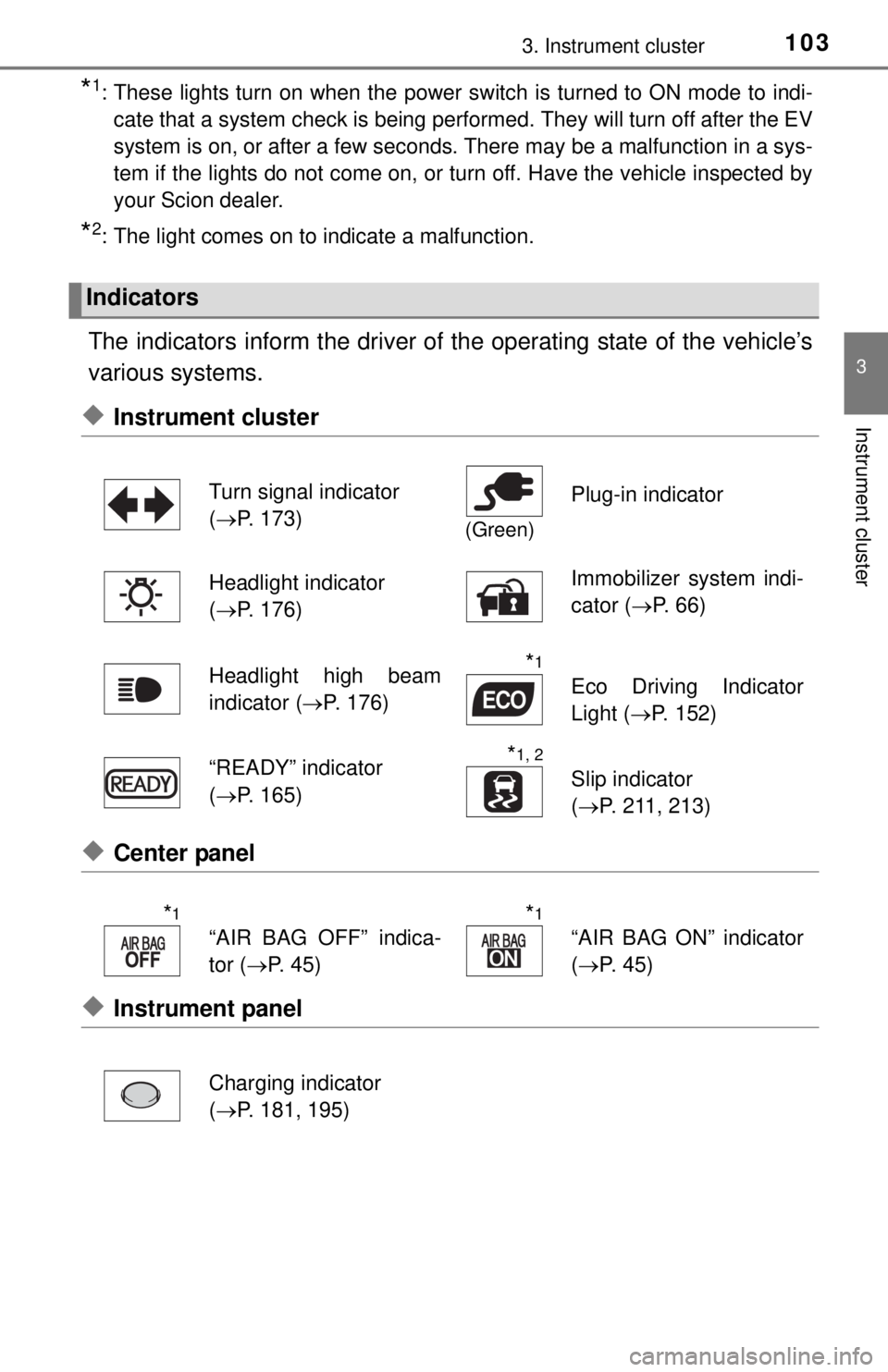

The indicators inform the driver of the operating state of the vehicle’s
various systems.
◆Instrument cluster

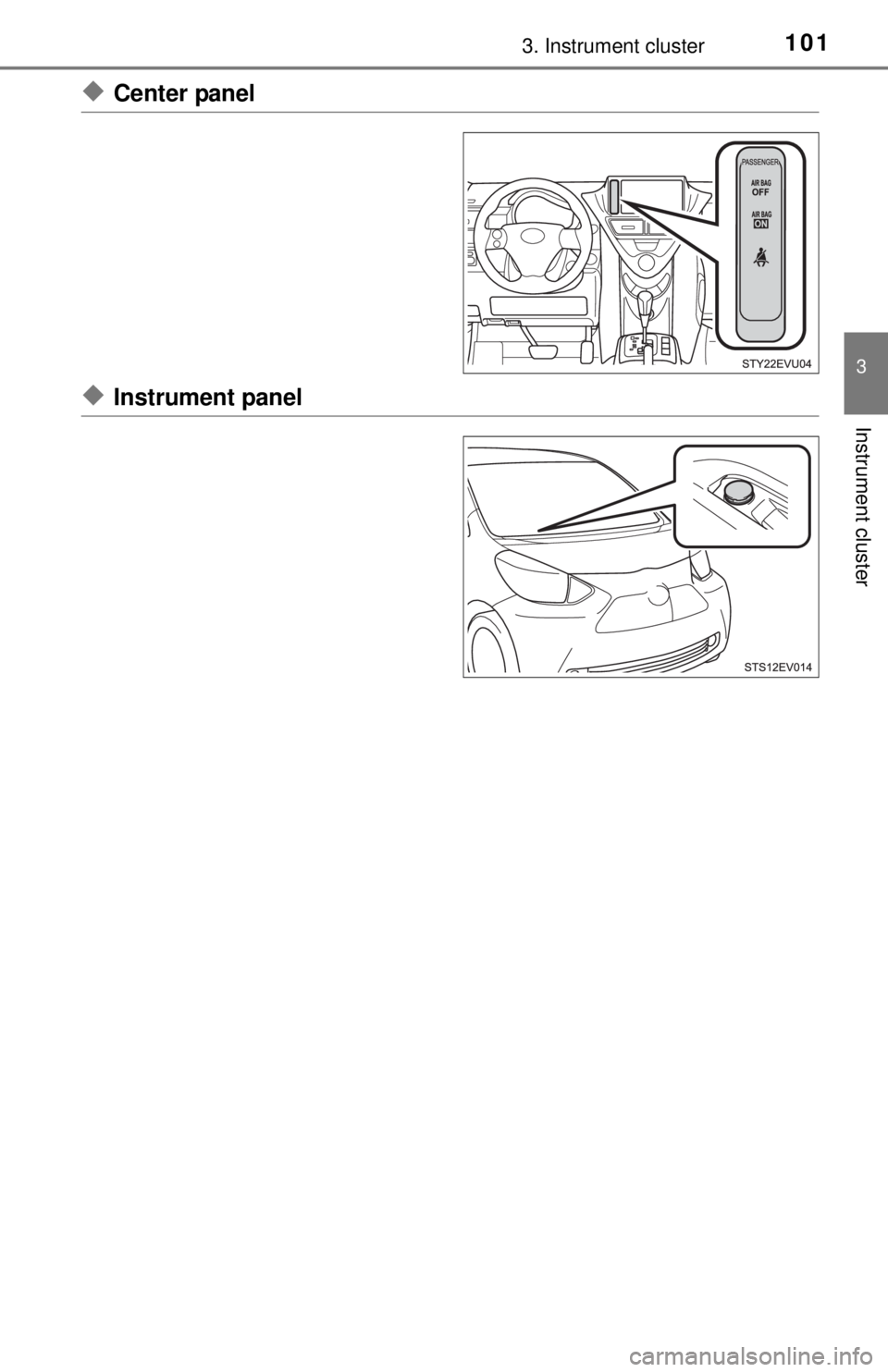

◆Center panel
◆Instrument panel
Indicators
Turn signal indicator
( P. 173)
(Green)
Plug-in indicator
Headlight indicator
( P. 176) Immobilizer system indi-
cator (
P. 66)
Headlight high beam
indicator ( P. 176)
*1
Eco Driving Indicator
Light (P. 152)
“READY” indicator
( P. 165)
*1, 2 Slip indicator
(P. 211, 213)
*1
“AIR BAG OFF” indica-
tor ( P. 45)
*1
“AIR BAG ON” indicator
(P. 45)
Charging indicator
(P. 181, 195)

1043. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the EV
system is on, or after a few seconds. There may be a malfunction in a sys-
tem if the lights do not come on, or turn off. Have the vehicle inspected by
your Scion dealer.
*2: The light flashes to indicate that the system is operating.
CAUTION
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning light
not come on when you start the EV system, this could mean that these sys-
tems are not available to help protect you in an accident, which could r\
esult
in death or serious injury. Have the vehicle inspected by your Scion dealer
immediately if this occurs.

1053. Instrument cluster
3
Instrument cluster

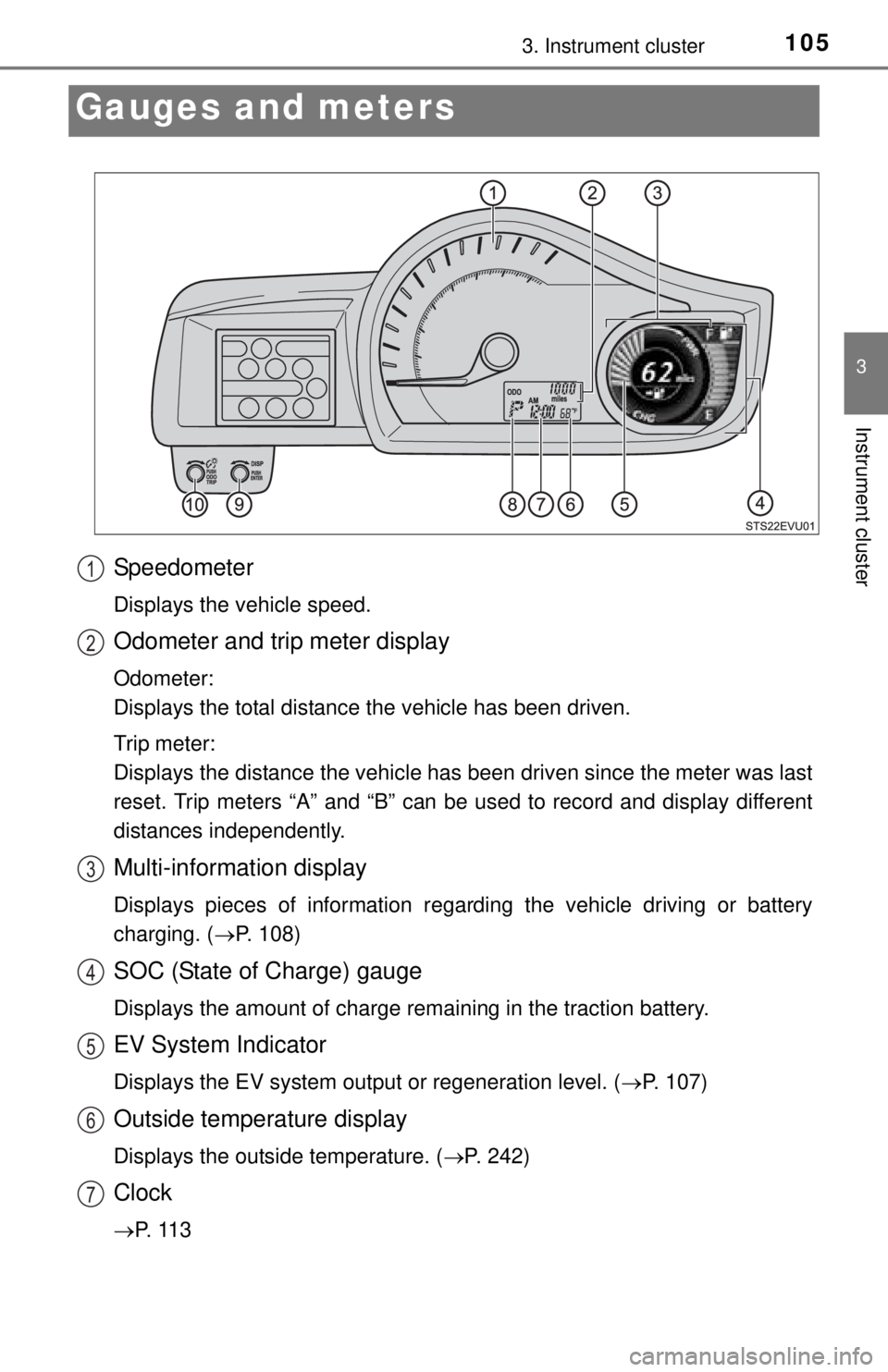

Gauges and meters
Speedometer
Displays the vehicle speed.
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Multi-information display
Displays pieces of information regarding the vehicle driving or battery
charging. ( P. 108)
SOC (State of Charge) gauge
Displays the amount of charge remaining in the traction battery.
EV System Indicator
Displays the EV system output or regeneration level. ( P. 107)
Outside temperature display
Displays the outside temperature. (P. 242)
Clock
P. 1 1 3
1
2
3
4
5
6
7

1063. Instrument cluster
Shift position indicator
Displays the selected shift position. (P. 171)

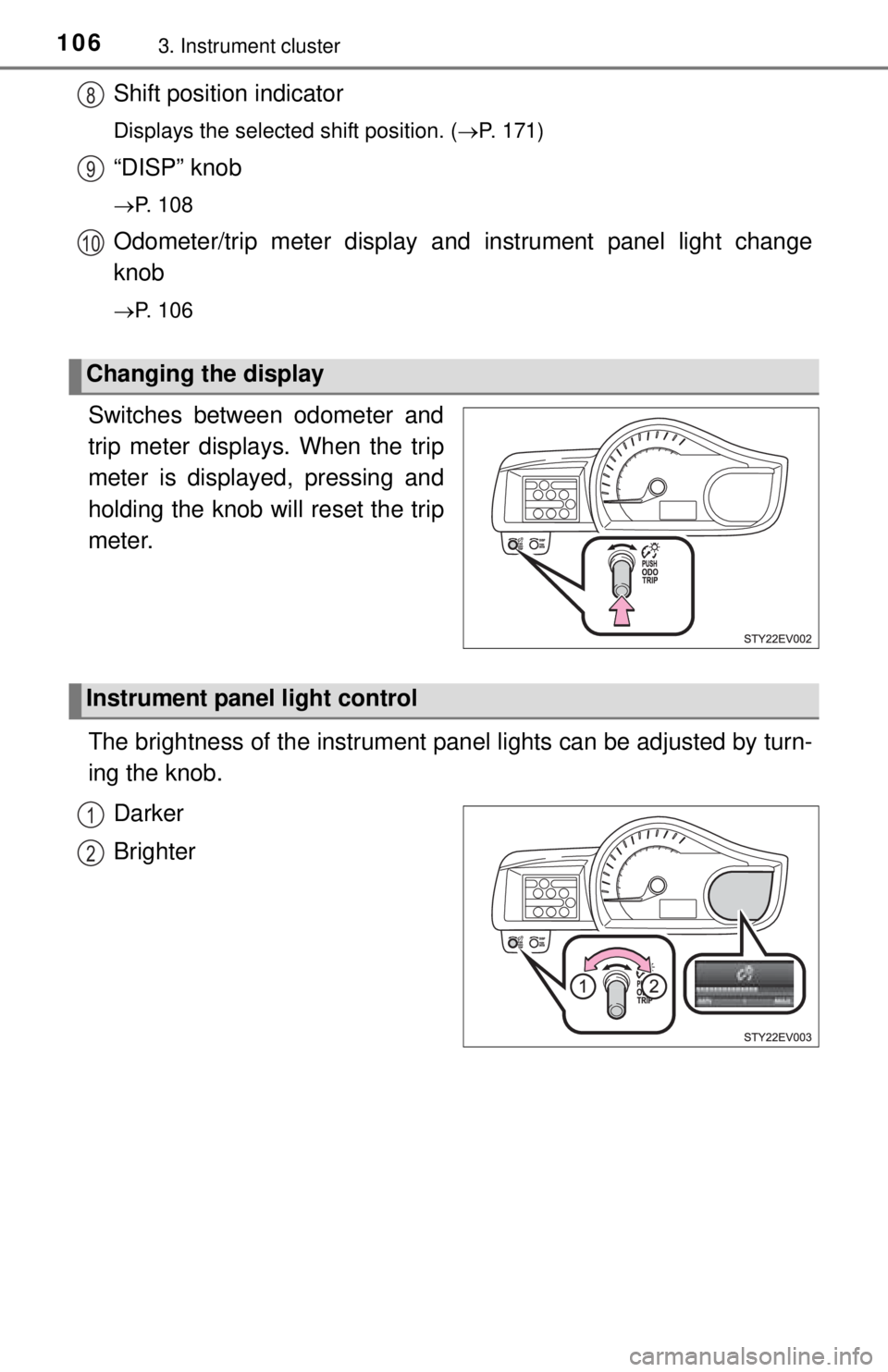

“DISP” knob
P. 108
Odometer/trip meter display and instrument panel light change
knob
P. 106
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.
The brightness of the instrument panel lights can be adjusted by turn-
ing the knob.
Darker
Brighter
Changing the display
8
9
10
Instrument panel light control
1
2

1073. Instrument cluster
3
Instrument cluster
■The meters and display illuminate when
The power switch is in ON mode.
■ Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can
be adjusted individually. However, when the surroundings are bright (daytime
and so forth), turning on the tail lights will not change the instrument panel
brightness.

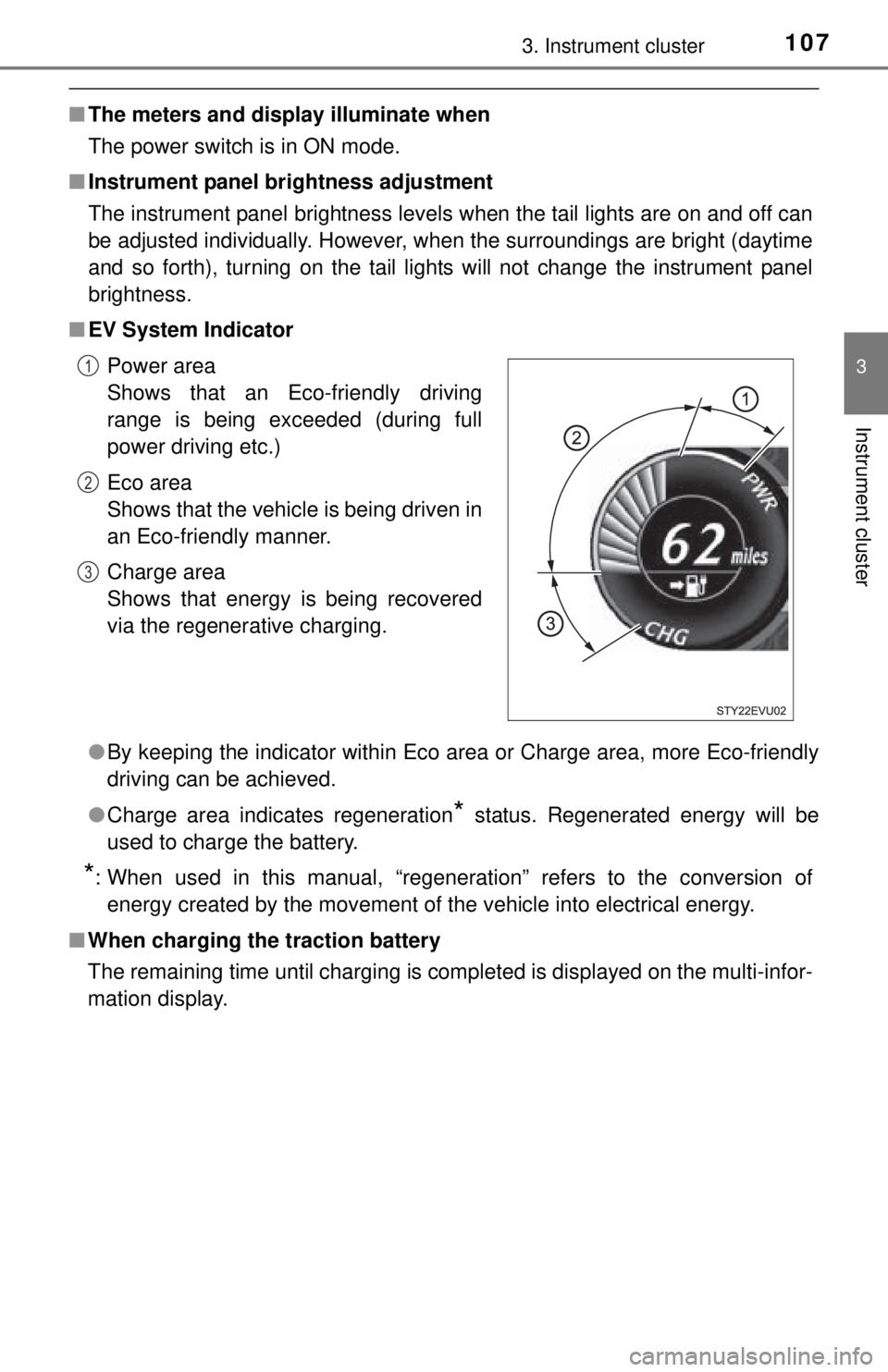

■ EV System Indicator
●By keeping the indicator within Eco ar ea or Charge area, more Eco-friendly
driving can be achieved.
● Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy created by the movement of the vehicle into electrical energy.
■ When charging the traction battery
The remaining time until charging is completed is displayed on the multi-infor-
mation display.Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Charge area
Shows that energy is being recovered
via the regenerative charging.
1
2
3

1083. Instrument cluster
Multi-infor mation display

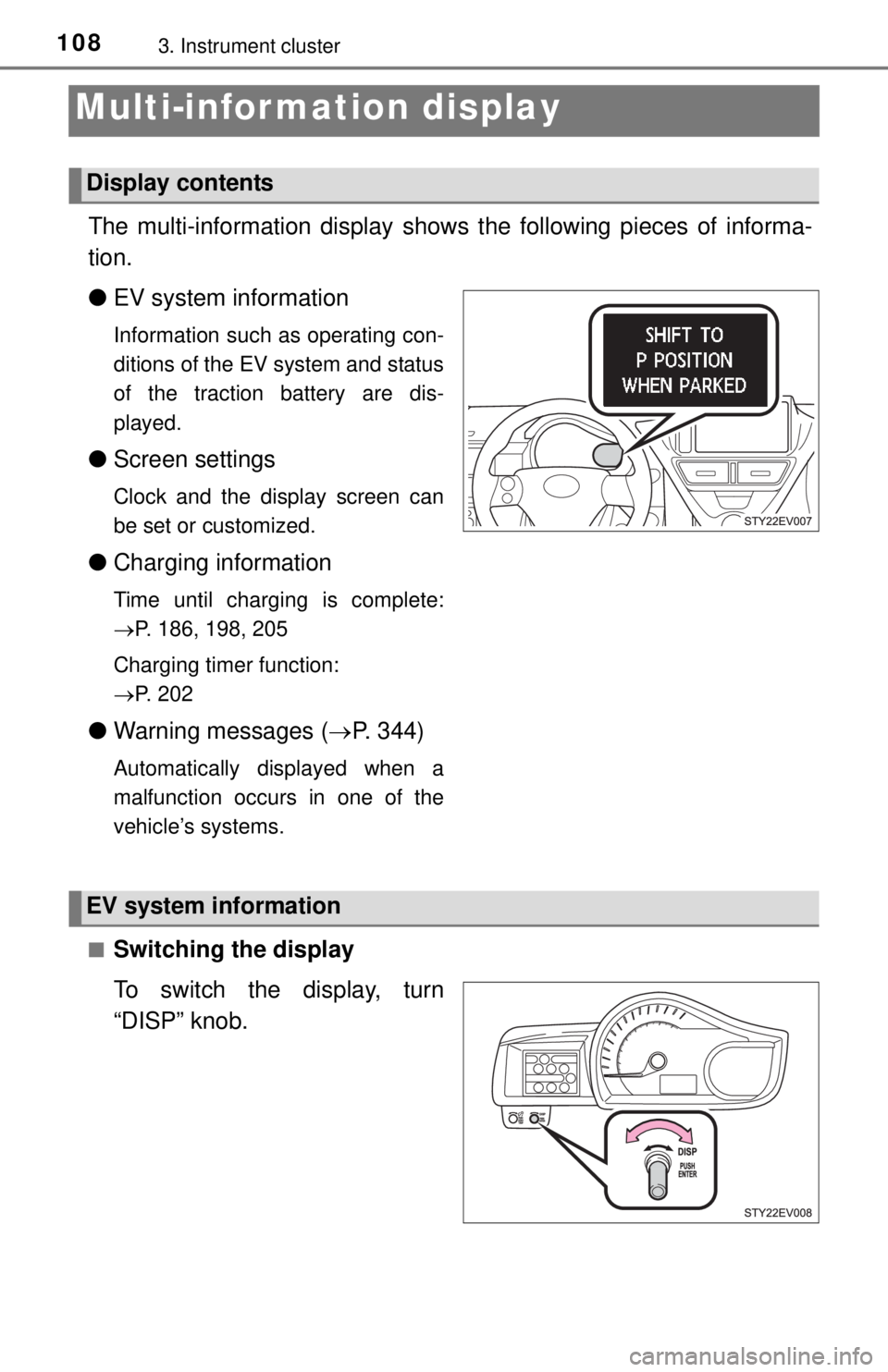

The multi-information display shows the following pieces of informa-
tion.
●EV system information
Information such as operating con-
ditions of the EV system and status
of the traction battery are dis-
played.
●Screen settings
Clock and the display screen can
be set or customized.
●Charging information
Time until charging is complete:
P. 186, 198, 205
Charging timer function:
P. 202
●Warning messages ( P. 344)
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.
■
Switching the display
To switch the display, turn
“DISP” knob.

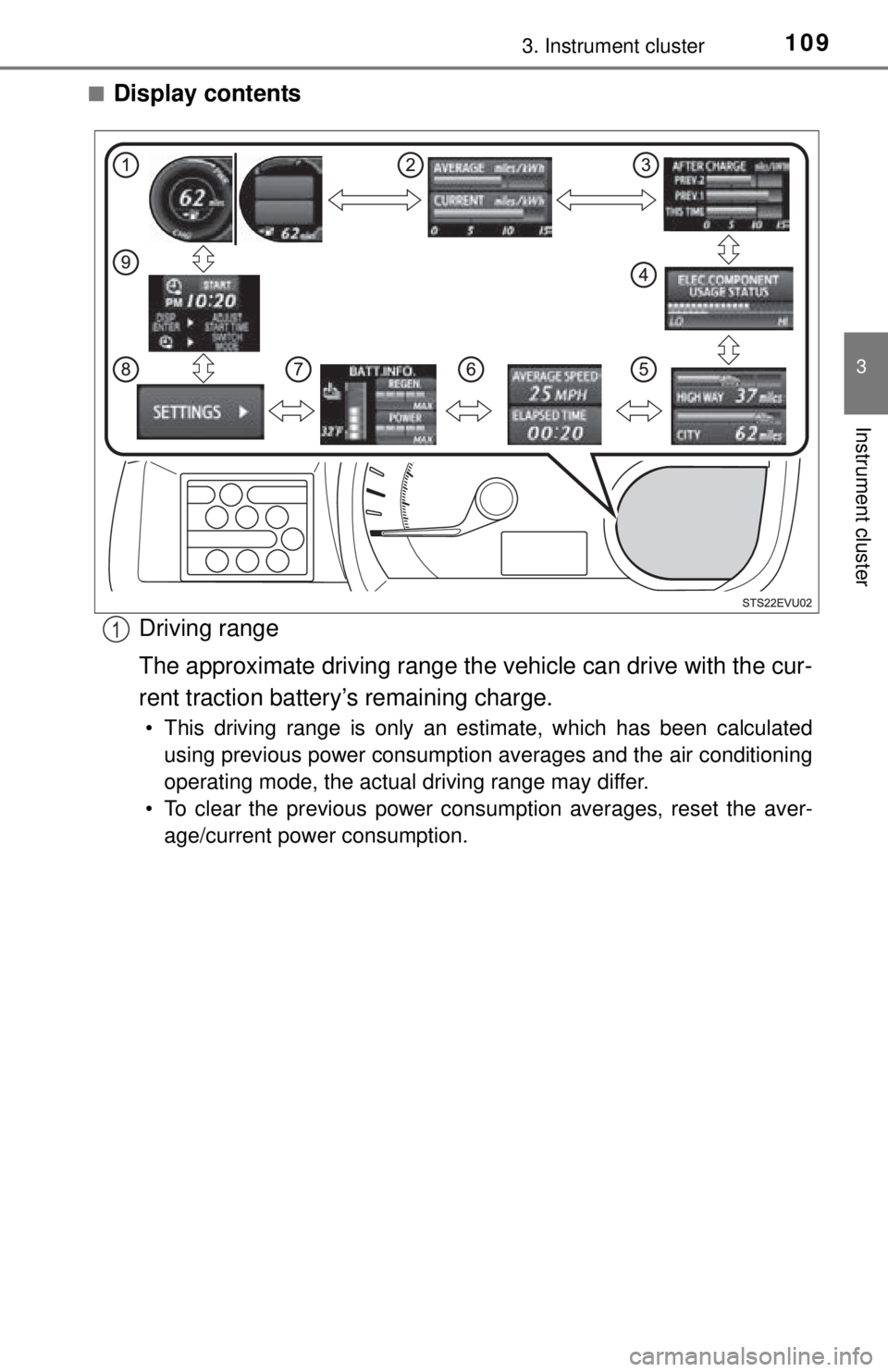

Display contents
EV system information

1093. Instrument cluster
3
Instrument cluster
■Display contentsDriving range
The approximate driving range the vehicle can drive with the cur-
rent traction battery’s remaining charge.
• This driving range is only an estimate, which has been calculatedusing previous power consumption averages and the air conditioning
operating mode, the actual driving range may differ.
• To clear the previous power consumption averages, reset the aver- age/current power consumption.
1

1103. Instrument cluster
Average power consumption/Current power consumption
Displays average power consum ption and current power con-
sumption.
Average power consumption: Displays the average power con-
sumption since the function was reset.
• The function can be reset by pressing the “DISP” knob for longer than 1 second when the average power consumption is displayed. Reset-
ting the average power consumption will also reset the previous
power consumption averages, that are used to calculate the possible
driving range. In addition, the information displayed on the past
record screen of the navigation system will be updated.
• Use the displayed average power consumption as a reference.
Current power consumption: Displays current power consump-
tion.
After charge
Every time the battery is charged the last two records of power
consumption and the current po wer consumption are displayed.
Electric component usage status
The usage status of primary electric components, such as the air
conditioning system, is displayed.
Driving range (Highway, City)
From the current traction batter y’s remaining charge, the approx-
imate driving distance via highway driving and city driving,
respectively, are displayed.
• These displayed driving ranges are only an estimate, which have been calculated from a preset power consumption value and an aver-
age energy consumption of the air conditioning system. The actual
driving ranges may differ.
2
3
