611 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

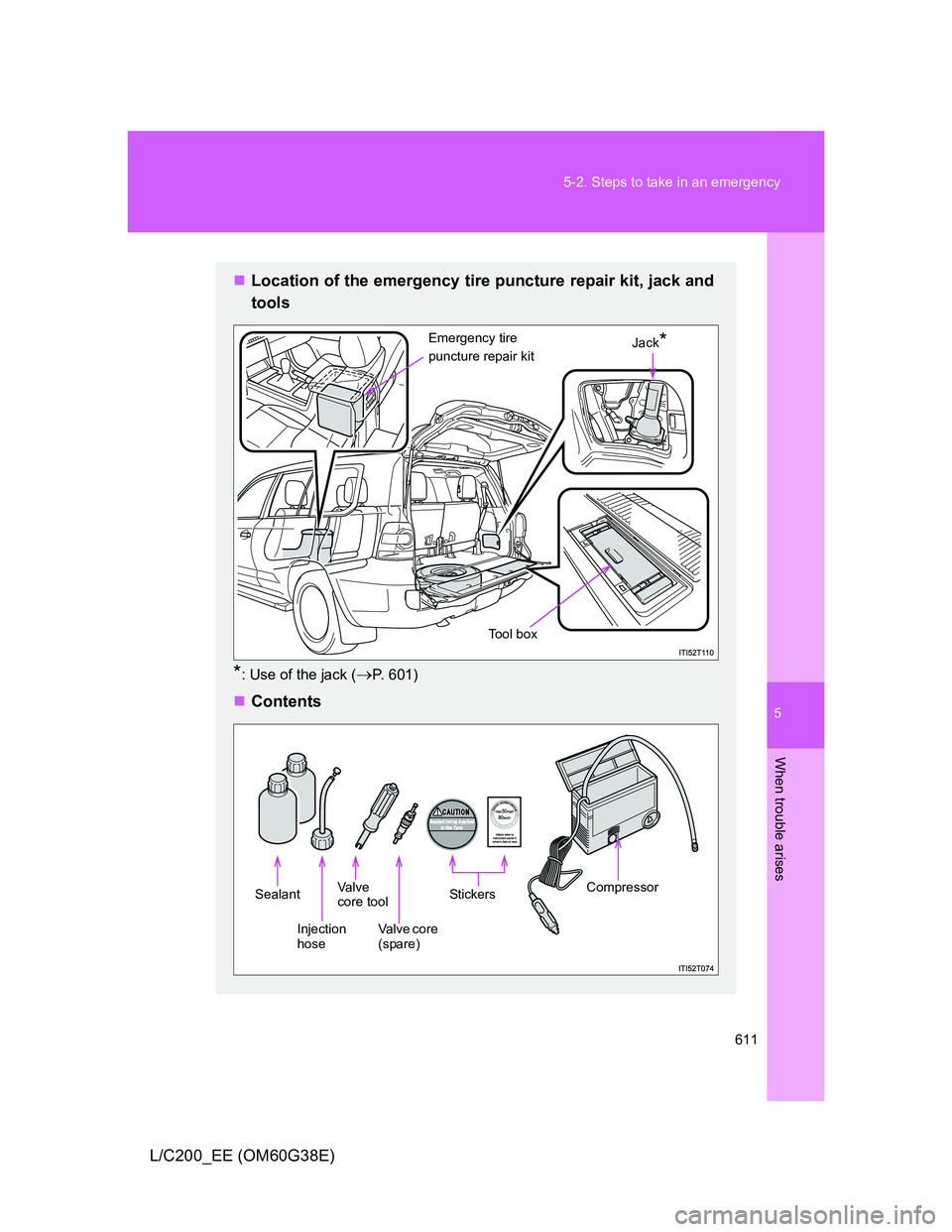

Location of the emergency tire puncture repair kit, jack and
tools
*: Use of the jack (P. 601)
Contents
Tool box Emergency tire
puncture repair kitJack
*
Sealant
Injection
hose
Va l v e
core tool
Va l v e c o r e
(spare)
CompressorStickers
Page 612 of 692

612 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

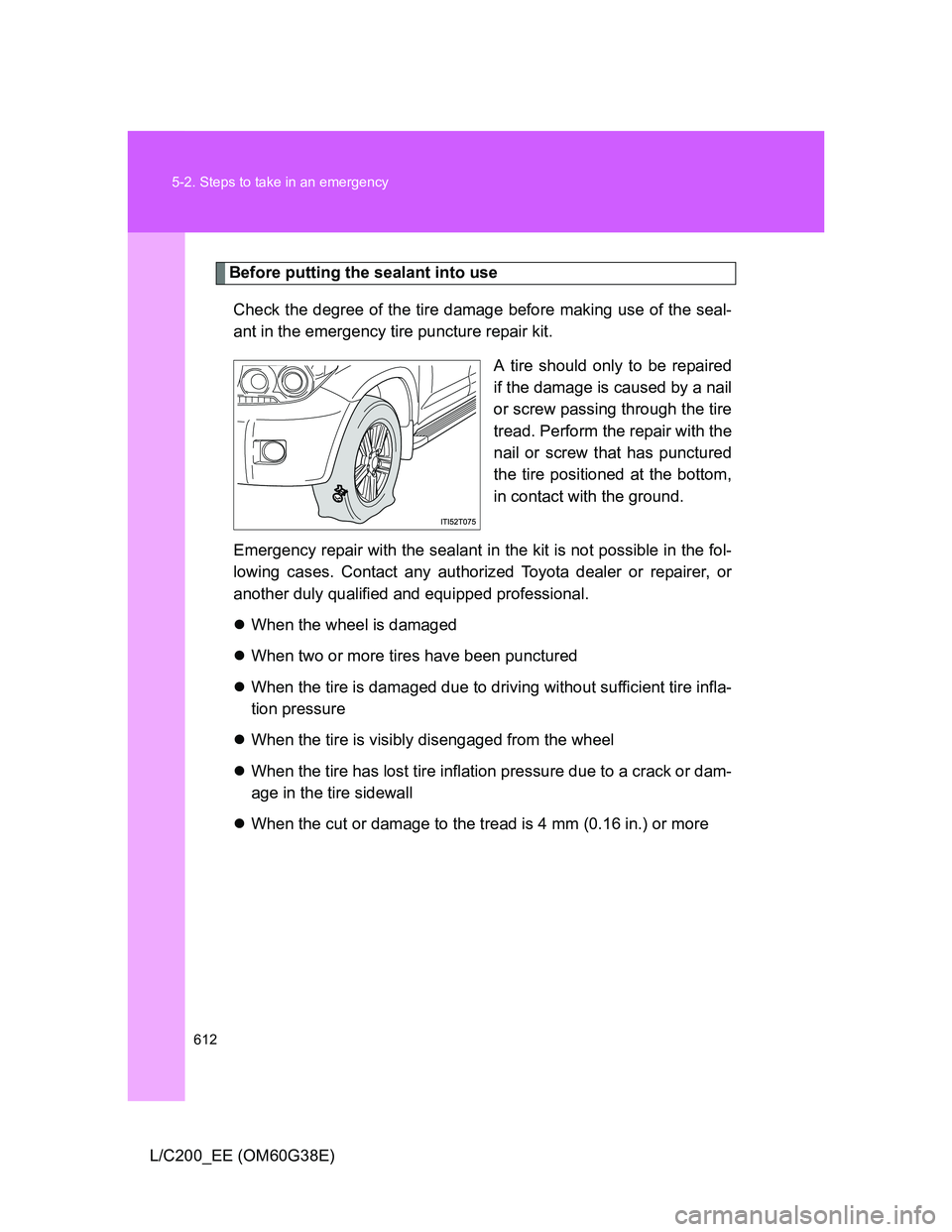

Before putting the sealant into use
Check the degree of the tire damage before making use of the seal-
ant in the emergency tire puncture repair kit.
A tire should only to be repaired
if the damage is caused by a nail
or screw passing through the tire
tread. Perform the repair with the
nail or screw that has punctured
the tire positioned at the bottom,
in contact with the ground.
Emergency repair with the sealant in the kit is not possible in the fol-
lowing cases. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
When the wheel is damaged
When two or more tires have been punctured
When the tire is damaged due to driving without sufficient tire infla-
tion pressure
When the tire is visibly disengaged from the wheel
When the tire has lost tire inflation pressure due to a crack or dam-
age in the tire sidewall
When the cut or damage to the tread is 4 mm (0.16 in.) or more
Page 613 of 692
5
613 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

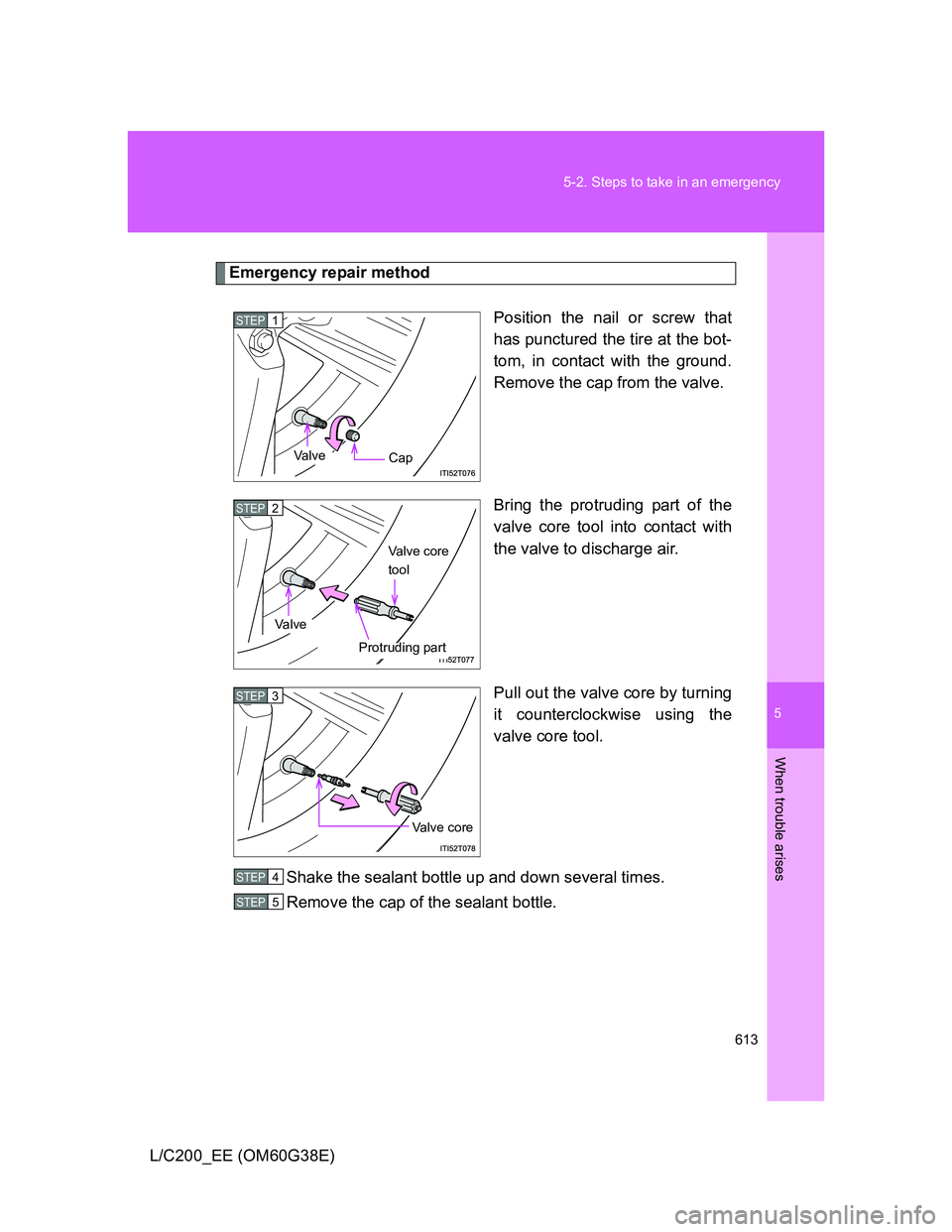

Emergency repair method
Position the nail or screw that
has punctured the tire at the bot-
tom, in contact with the ground.
Remove the cap from the valve.
Bring the protruding part of the
valve core tool into contact with
the valve to discharge air.
Pull out the valve core by turning
it counterclockwise using the
valve core tool.
Shake the sealant bottle up and down several times.
Remove the cap of the sealant bottle.
STEP1
CapVa l v e
STEP2
Va l v e c o r e
tool
Protruding part
Va l v e
STEP3
Va l v e c o r e
STEP4
STEP5
Page 614 of 692
614 5-2. Steps to take in an emergency

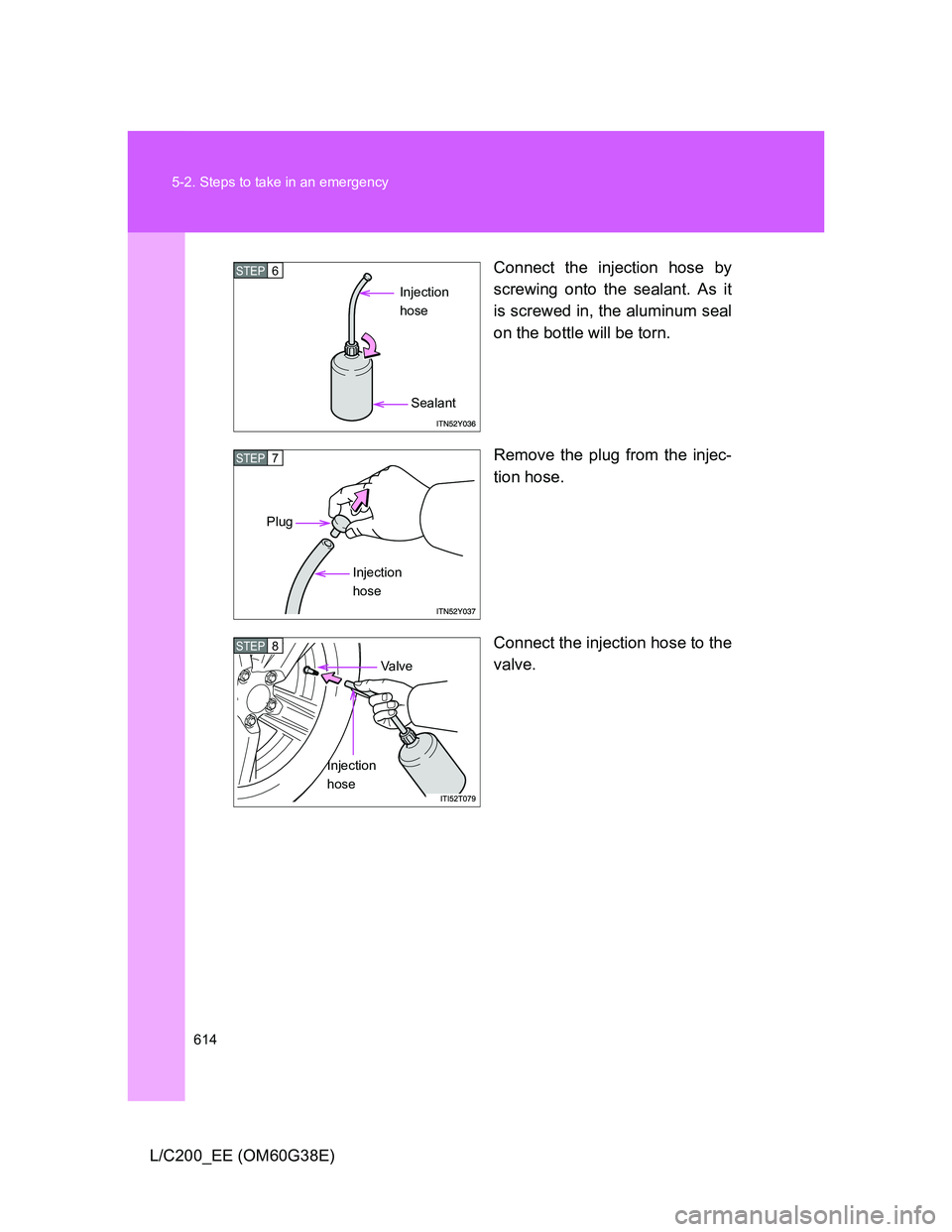

L/C200_EE (OM60G38E)Connect the injection hose by
screwing onto the sealant. As it
is screwed in, the aluminum seal
on the bottle will be torn.
Remove the plug from the injec-
tion hose.
Connect the injection hose to the
valve.
STEP6
Injection
hose
Sealant
STEP7
Injection
hose
Plug
STEP8
Va l v e
Injection
hose
Page 615 of 692
5
615 5-2. Steps to take in an emergency
When trouble arises

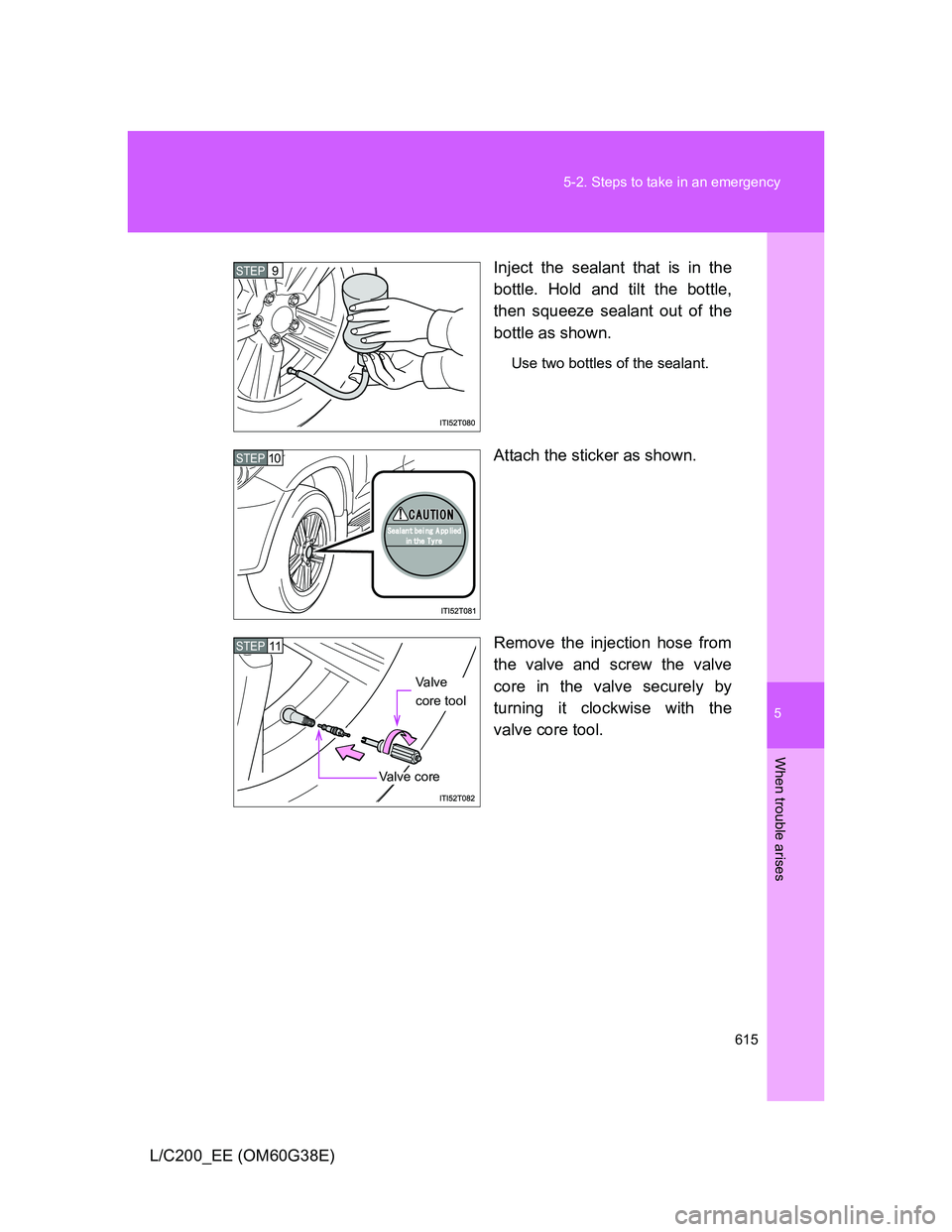

L/C200_EE (OM60G38E)Inject the sealant that is in the
bottle. Hold and tilt the bottle,
then squeeze sealant out of the
bottle as shown.
Use two bottles of the sealant.
Attach the sticker as shown.
Remove the injection hose from
the valve and screw the valve
core in the valve securely by
turning it clockwise with the
valve core tool.
STEP9
STEP10
STEP11
Va l v e
core tool
Va l v e c o r e
Page 616 of 692
616 5-2. Steps to take in an emergency

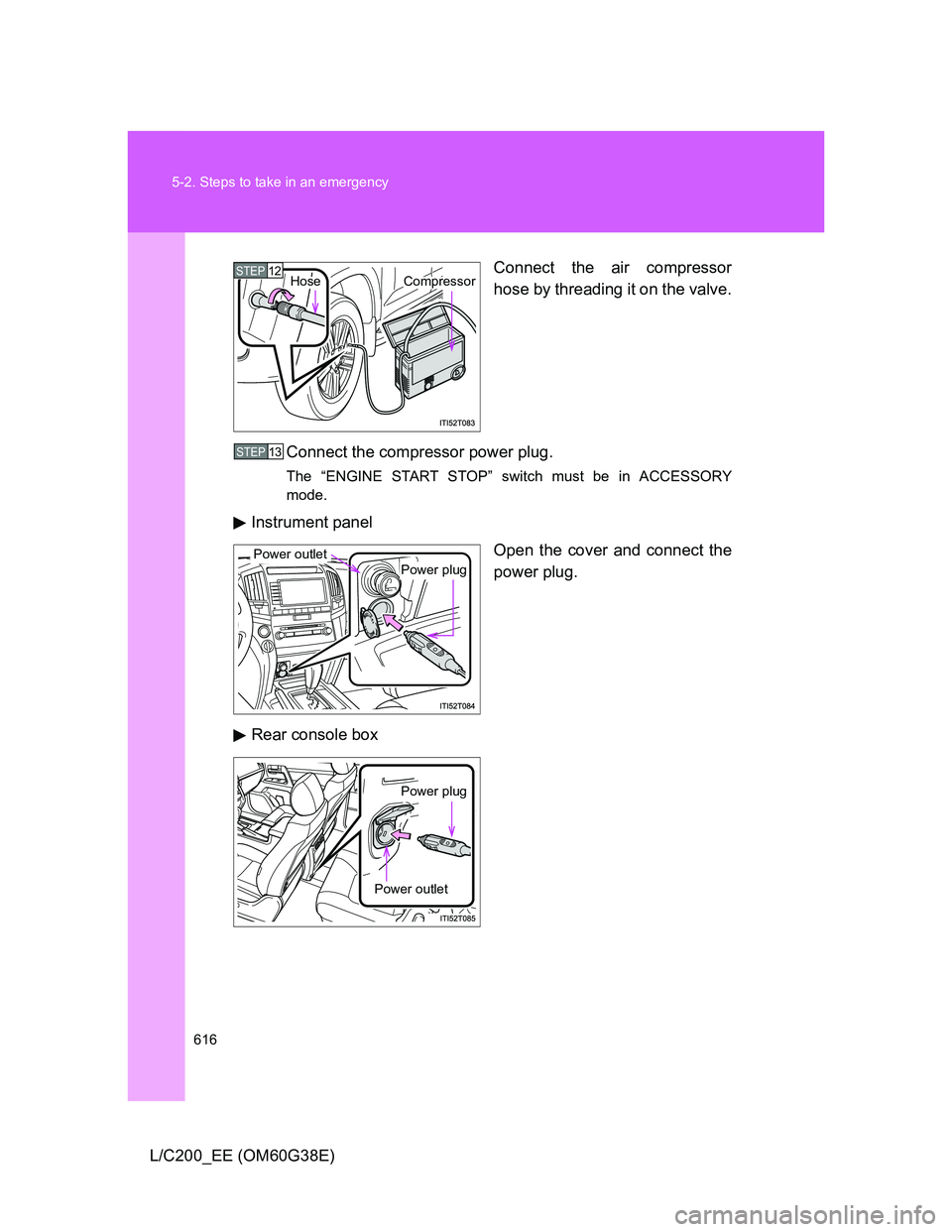

L/C200_EE (OM60G38E)Connect the air compressor
hose by threading it on the valve.
Connect the compressor power plug.
The “ENGINE START STOP” switch must be in ACCESSORY
mode.
Instrument panel
Open the cover and connect the
power plug.
Rear console box
STEP12CompressorHose
STEP13
Power plug
Power outlet
Power plug
Power outlet
Page 617 of 692
5
617 5-2. Steps to take in an emergency
When trouble arises

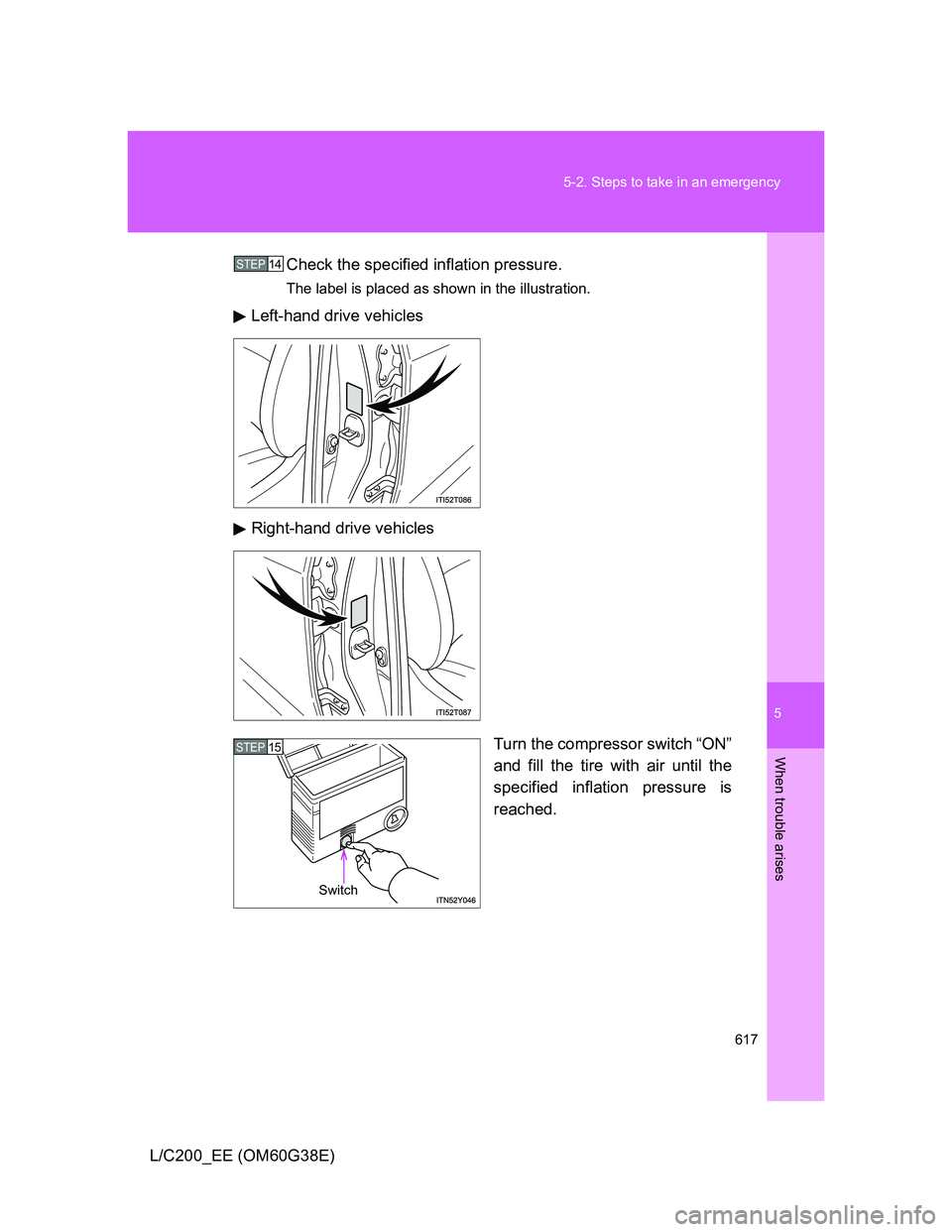

L/C200_EE (OM60G38E)Check the specified inflation pressure.
The label is placed as shown in the illustration.
Left-hand drive vehicles
Right-hand drive vehicles
Turn the compressor switch “ON”
and fill the tire with air until the
specified inflation pressure is
reached.
STEP14
STEP15
Switch
Page 618 of 692
618 5-2. Steps to take in an emergency

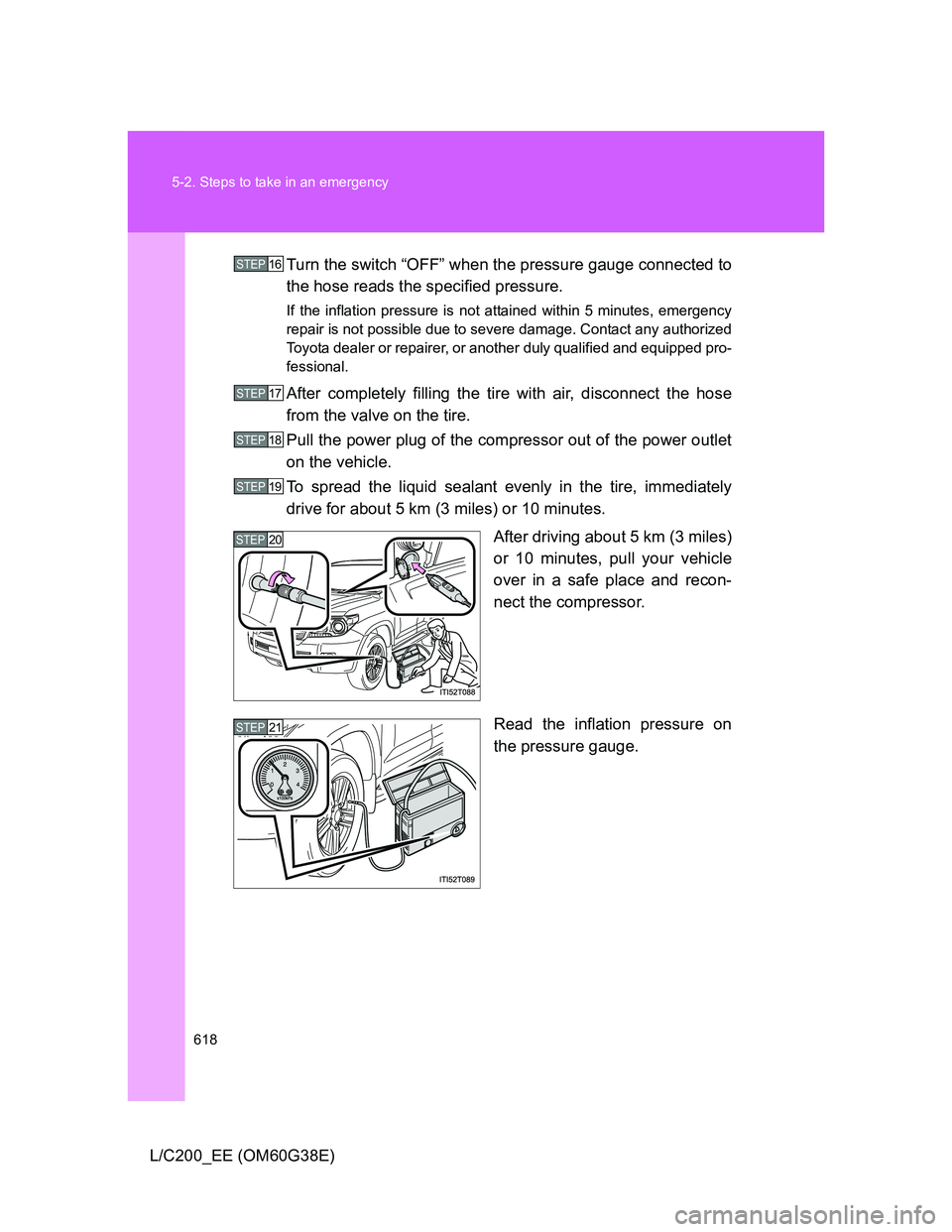

L/C200_EE (OM60G38E)Turn the switch “OFF” when the pressure gauge connected to
the hose reads the specified pressure.
If the inflation pressure is not attained within 5 minutes, emergency
repair is not possible due to severe damage. Contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
After completely filling the tire with air, disconnect the hose
from the valve on the tire.
Pull the power plug of the compressor out of the power outlet
on the vehicle.
To spread the liquid sealant evenly in the tire, immediately
drive for about 5 km (3 miles) or 10 minutes.
After driving about 5 km (3 miles)
or 10 minutes, pull your vehicle
over in a safe place and recon-
nect the compressor.
Read the inflation pressure on
the pressure gauge.
STEP16
STEP17
STEP18
STEP19
STEP20
STEP21
Page 619 of 692
5
619 5-2. Steps to take in an emergency
When trouble arises

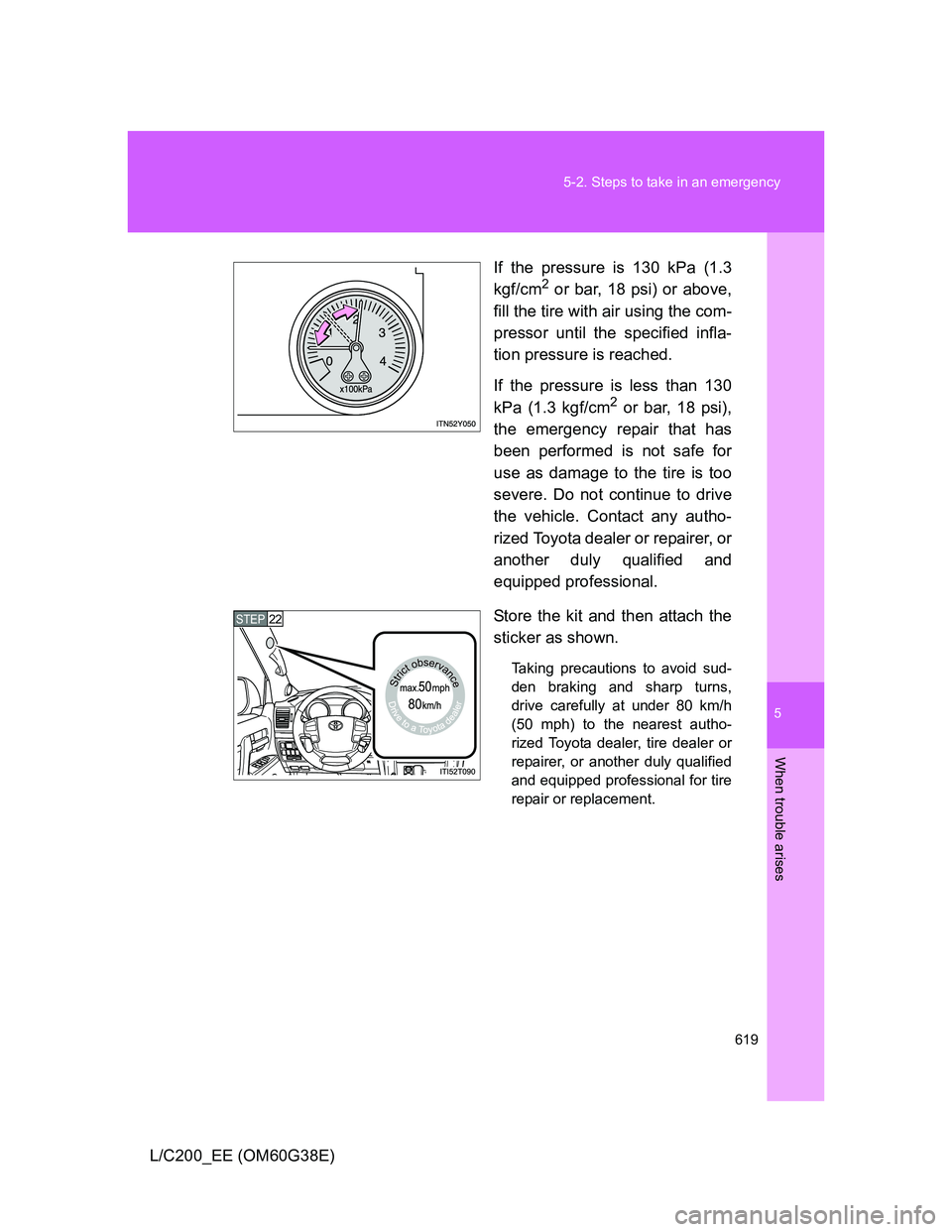

L/C200_EE (OM60G38E)If the pressure is 130 kPa (1.3
kgf/cm
2 or bar, 18 psi) or above,
fill the tire with air using the com-
pressor until the specified infla-
tion pressure is reached.
If the pressure is less than 130
kPa (1.3 kgf/cm
2 or bar, 18 psi),
the emergency repair that has
been performed is not safe for
use as damage to the tire is too
severe. Do not continue to drive
the vehicle. Contact any autho-
rized Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Store the kit and then attach the
sticker as shown.
Taking precautions to avoid sud-
den braking and sharp turns,
drive carefully at under 80 km/h
(50 mph) to the nearest autho-
rized Toyota dealer, tire dealer or
repairer, or another duly qualified
and equipped professional for tire
repair or replacement.
STEP22
Page 620 of 692

620 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

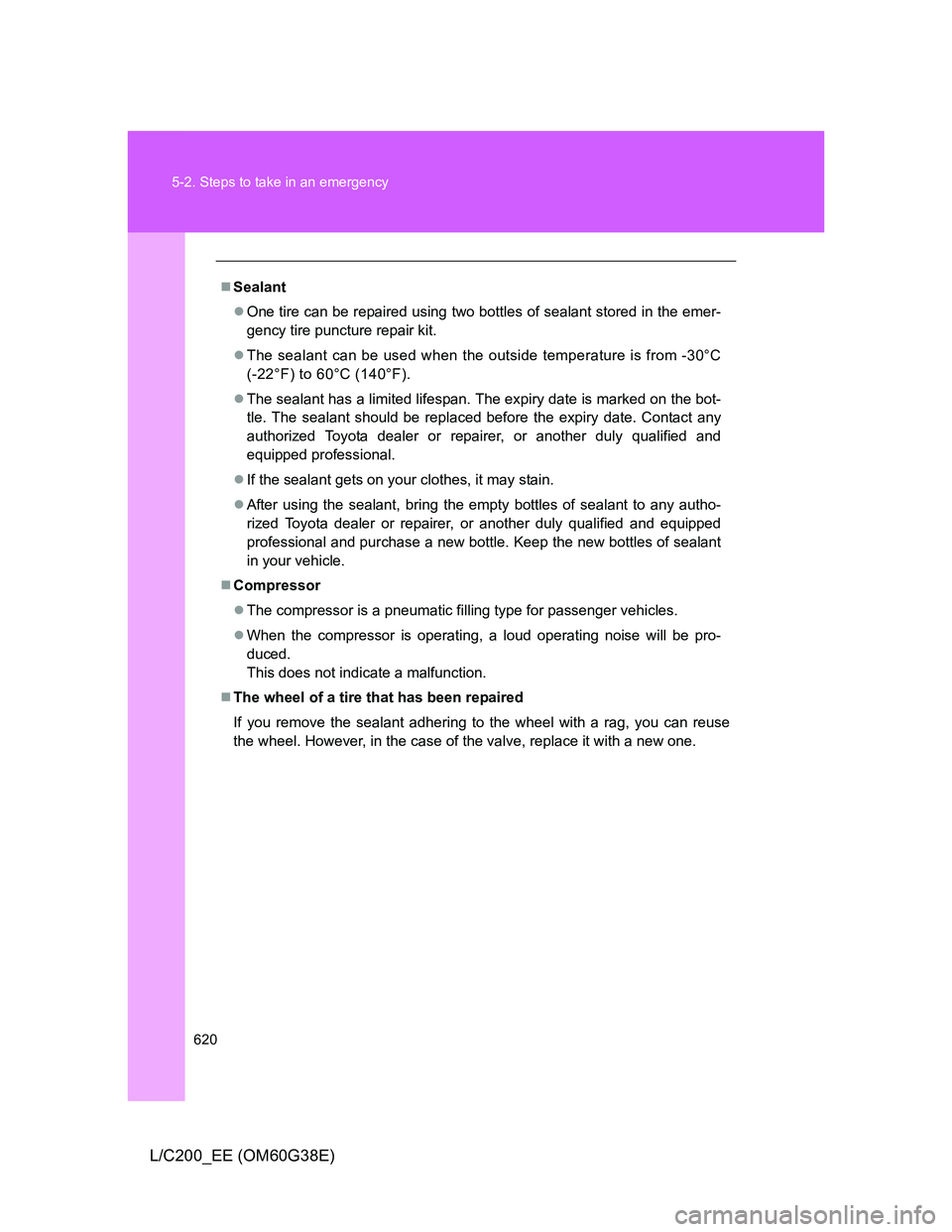

Sealant
One tire can be repaired using two bottles of sealant stored in the emer-
gency tire puncture repair kit.
The sealant can be used when the outside temperature is from -30°C
(-22°F) to 60°C (140°F).
The sealant has a limited lifespan. The expiry date is marked on the bot-
tle. The sealant should be replaced before the expiry date. Contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If the sealant gets on your clothes, it may stain.
After using the sealant, bring the empty bottles of sealant to any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional and purchase a new bottle. Keep the new bottles of sealant
in your vehicle.
Compressor
The compressor is a pneumatic filling type for passenger vehicles.
When the compressor is operating, a loud operating noise will be pro-
duced.
This does not indicate a malfunction.
The wheel of a tire that has been repaired
If you remove the sealant adhering to the wheel with a rag, you can reuse
the wheel. However, in the case of the valve, replace it with a new one.
